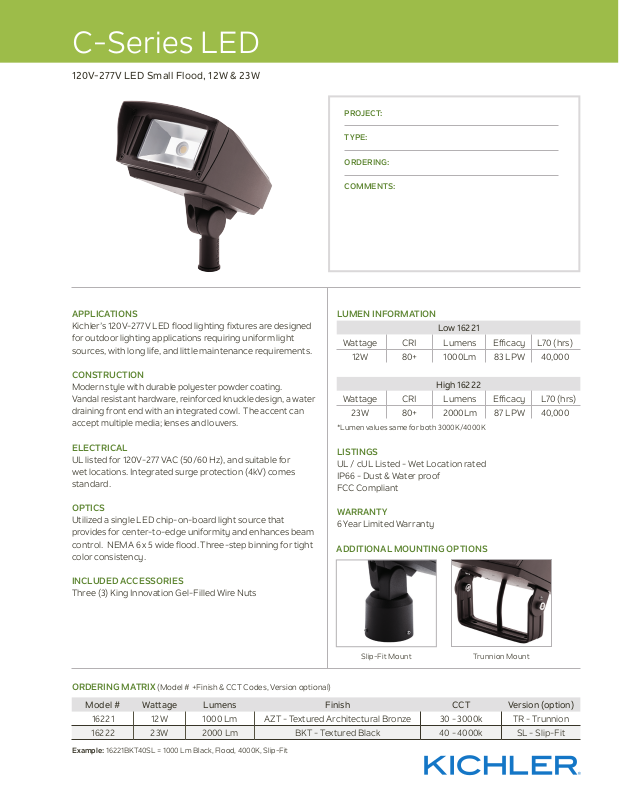

C-Series LED
120V-277V LED Small Flood, 12W & 23W
PROJECT:
TYPE:
ORDERING:
COMMENTS:
APPLICATIONS
Kichler’s 120V-277V LED flood lighting fixtures are designed
for outdoor lighting applications requiring uniform light
sources, with long life, and little maintenance requirements.
CONSTRUCTION
Modern style with durable polyester powder coating.
Vandal resistant hardware, reinforced knuckle design, a water
draining front end with an integrated cowl. The accent can
accept multiple media; lenses and louvers.
ELECTRICAL
UL listed for 120V-277 VAC (50/60 Hz), and suitable for
wet locations. Integrated surge protection (4kV) comes
standard.
OPTICS
Utilized a single LED chip-on-board light source that
provides for center-to-edge uniformity and enhances beam
control. NEMA 6 x 5 wide flood. Three-step binning for tight
color consistency.
INCLUDED ACCESSORIES
Three (3) King Innovation Gel-Filled Wire Nuts
LUMEN INFORMATION
Low 16221
Wattage CRI Lumens Ecacy L70 (hrs)
12W 80+ 1000Lm 83 LPW 40,000
High 16222
Wattage CRI Lumens Ecacy L70 (hrs)
23W 80+ 2000Lm 87 LPW 40,000
*Lumen values same for both 3000K/4000K
LISTINGS
UL / cUL Listed - Wet Location rated
IP66 - Dust & Water proof
FCC Compliant
WARR ANT Y
6 Year Limited Warranty
ADDITIONAL MOUNTING OPTIONS
Slip-Fit Mount Trunnion Mount
ORDERING MATRIX (Model # +Finish & CCT Codes, Version optional)
Model # Wattage Lumens Finish CCT Version (option)
16221 12W
16222 23W 2000 Lm BKT - Textured Black 40 - 4000k SL - Slip-Fit
Example: 16221BKT40SL = 1000 Lm Black, Flood, 4000K, Slip-Fit
1000 Lm
AZT - Textured Architectural Bronze 30 - 3000k TR - Trunnion
Page 2
C-Series LED
Isocandela Diagram (Percent of Maximum Intensity)
Isocandela Diagram (Percent of Maximum Intensity)
120V-277V LED Small Flood, 12W & 23W
DIMENSIONS
7.07"
ACCESSORIES
5.93"
Ordered & shipped separately (for knuckle only)
15645 AZT, BKT - 6” Stem
15656 AZT, BKT - 12” Stem
15657 AZT, BKT - 18” Stem
15658 AZT, BKT - 24” Stem
3.29"
Corrosion resistant
aluminum alloy with
baked thermoset
powder coating.
15276 BKT - Power Post: A Fast, One-Step Connector
Made of Impact / Corrosion Resistant PVC
2.250” Inside Diameter to Accommodate Conduits
of Dierent Sizes
Accepts .50 NPSM Thread
3.88"
Designed For 120V-277V Line Voltage Landscape Lighting,
Eliminating Need For Above or Below Ground Boxes.
Built-in Stabilizer Removes Need For Concrete
15601 AZT, BKT - Cast Aluminum Surface Mounting
Flange with Bronze or Black Finish, Neoprene Gasket For
Watertight Seal
15609 AZT, BKT - Junction Box Mounting Bracket
Corrosion Resistant Cast Aluminum Alloy with Baked
Thermoset Bronze or Black Powder Coat Finish
PHOTOMETRIC DIAGRAMS
40
30
20
-70 -50 -30 -10 10 30 50 70
Vertical Angle (degrees)
90% 80% 70% 60% 50% 40% 30% 20% 10%
16221BKT30 shown (1000 Lumens) 16222BKT30 shown (2000 Lumens)
10
0
-10
-20
Insert ISO Illuminance Plot
-30
-40
-50
-60
Horizontal Angle (degrees)
-70 -50 -30 -10 10 30 50 70
Insert ISO Illuminance Plot
Vertical Angle (degrees)
Horizontal Angle (degrees)
90% 80% 70% 60% 50% 40% 30% 20% 10%
40
20
0
-20
-40
-60
