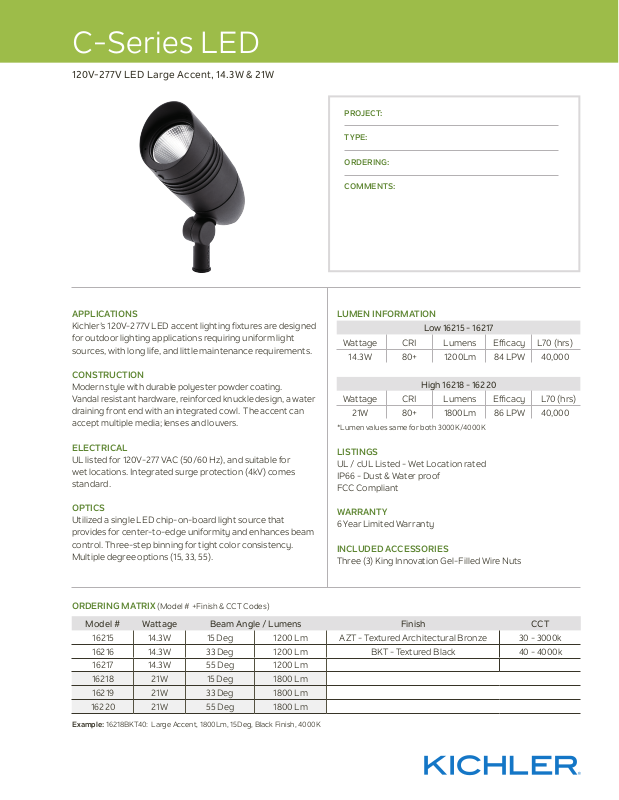

C-Series LED
120V-277V LED Large Accent, 14.3W & 21W
PROJECT:
TYPE:
ORDERING:
COMMENTS:
APPLICATIONS
Kichler’s 120V-277V LED accent lighting fixtures are designed
for outdoor lighting applications requiring uniform light
sources, with long life, and little maintenance requirements.
CONSTRUCTION
Modern style with durable polyester powder coating.
Vandal resistant hardware, reinforced knuckle design, a water
draining front end with an integrated cowl. The accent can
accept multiple media; lenses and louvers.
ELECTRICAL
UL listed for 120V-277 VAC (50/60 Hz), and suitable for
wet locations. Integrated surge protection (4kV) comes
standard.
OPTICS
Utilized a single LED chip-on-board light source that
provides for center-to-edge uniformity and enhances beam
control. Three-step binning for tight color consistency.
Multiple degree options (15, 33, 55).
ORDERING MATRIX (Model # +Finish & CCT Codes)
LUMEN INFORMATION
Wattage CRI Lumens Ecacy L70 (hrs)
14.3W 80+ 1200Lm 84 LPW 40,000
Wattage CRI Lumens Ecacy L70 (hrs)
21W 80+ 1800Lm 86 LPW 40,000
*Lumen values same for both 3000K/4000K
LISTINGS
UL / cUL Listed - Wet Location rated
IP66 - Dust & Water proof
FCC Compliant
WARR ANT Y
6 Year Limited Warranty
INCLUDED ACCESSORIES
Three (3) King Innovation Gel-Filled Wire Nuts
Low 16215 - 16217
High 16218 - 16220
Model # Wattage Beam Angle / Lumens Finish CCT
16215 14.3W
16216 14.3W 33 Deg 1200 Lm BKT - Textured Black 40 - 4000k
16217 14.3W 55 Deg 1200 Lm
16218 21W 15 Deg 1800 Lm
16219 21W 33 Deg 1800 Lm
16220 21W 55 Deg 1800 Lm
Example: 16218BKT40: Large Accent, 1800Lm, 15Deg, Black Finish, 4000K
15 Deg 1200 Lm
AZT - Textured Architectural Bronze 30 - 3000k
Page 2
C-Series LED
Isocandela Diagram (Percent of Maximum Intensity)
Isocandela Diagram (Percent of Maximum Intensity)
120V-277V LED Large Accent, 14.3W & 21W
DIMENSIONS
8.43"
2.85"
3.86"
3.92"
ACCESSORIES
Ordered & shipped separately (for knuckle only)
15645 AZT, BKT - 6” Stem
15656 AZT, BKT - 12” Stem
15657 AZT, BKT - 18” Stem
15658 AZT, BKT - 24” Stem
Corrosion resistant
aluminum alloy with
baked thermoset
powder coating.
15276 BKT - Power Post: A Fast, One-Step Connector
Made of Impact / Corrosion Resistant PVC
2.250” Inside Diameter to Accommodate Conduits
of Dierent Sizes
Accepts .50 NPSM Thread
Designed For 120V-277V Line Voltage Landscape Lighting,
Eliminating Need For Above or Below Ground Boxes.
Built-in Stabilizer Removes Need For Concrete
15601 AZT, BKT - Cast Aluminum Surface Mounting
Flange with Bronze or Black Finish, Neoprene Gasket For
Watertight Seal
15609 AZT, BKT - Junction Box Mounting Bracket
Corrosion Resistant Cast Aluminum Alloy with Baked
Thermoset Bronze or Black Powder Coat Finish
PHOTOMETRIC DIAGRAMS
40
30
20
-50 -40 -30 -20 -10 0 10 20 30 40 50
Vertical Angle (degrees)
90% 80% 70% 60% 50% 40% 30% 20% 10%
16217BKT40 shown (1200 Lumens) 16219BKT30 shown (1800 Lumens)
10
0
-10
Insert ISO Illuminance Plot
-20
-30
-40
-50
Horizontal Angle (degrees)
-40 -30 -20 -10 0 10 20 30 40
Insert ISO Illuminance Plot
Vertical Angle (degrees)
Horizontal Angle (degrees)
90% 80% 70% 60% 50% 40% 30% 20% 10%
40
30
20
10
0
-10
-20
-30
-40
-50
