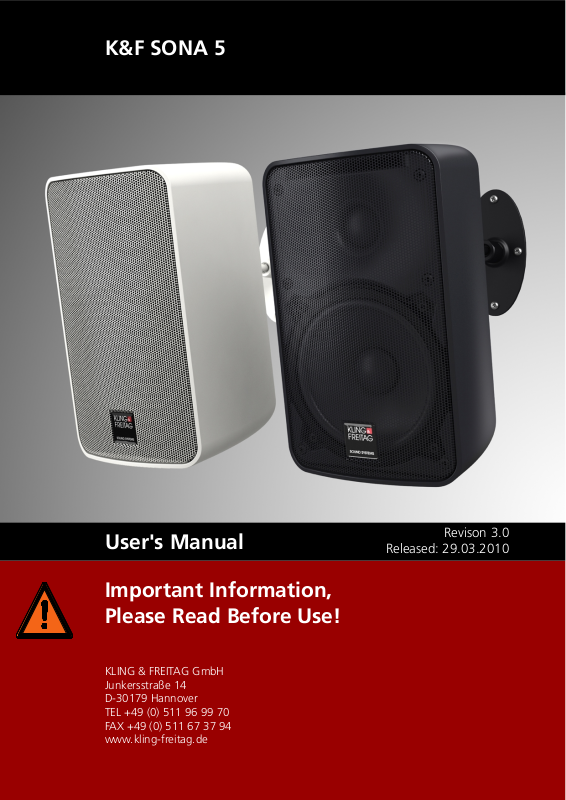

K&F�SONA�5
User's�Manual
Important�Information,
Please�Read�Before�Use!
KLING & FREITAG GmbH
Junkersstraße 14
D-30179 Hannover
TEL +49 (0) 511 96 99 70
FAX +49 (0) 511 67 37 94
www.kling-freitag.de
Revison 3.0
Released: 29.03.2010
User's manual K&F SONA 5
Table of contents
1 Introduction 4
1.1 Symbols in User's Manual 4
1.2 Information about this User's Manual 4
2 Product�Description 5
2.1 Scope of Delivery 5
2.2 Overview of Components 5
2.3 Accessories 5
2.4 Required Tools 6
3 Safety�Instructions 6
3.1 Mounting the Speakers / Wall and Ceiling Installation 6
3.2 Notes for Mounting the Speakers 7
3.3 Preventing hearing damage 7
3.4 Protecting the Speakers / Operating Safety 7
4 Wall�and�Ceiling�Installation 8
5 Stand�Installation 11
6 Proper�Alignment�of�the�Loudspeakers 11
7 Operation�with�or�without�a�controller 12
8 Wiring 12
8.1 Terminal assignment 12
8.2 Wiring Diagrams 12
8.3 Wiring instructions 12
9 Notes�for�the�Version�with�'100�Volt'�Option 13
10 Operating�the�Speakers 13
11 Technical� Specifications 15
12 Measuring�diagrams 15
13 Dimensions 16
13.1 with swivel arm M (56mm) - (included) 16
13.2 with swivel arm M (32mm) - (Accessory) 17
13.3 with swivel arm M (109mm) - (Accessory) 18
14 Disposal 19
14.1 Regulations for Disposal 19
14.1.1 Germany 19
14.1.2 EU, Norway, Iceland, and Liechtenstein 19
14.1.3 All other Countries 19
KLING & FREITAG GMBH © 2009 Revision 3.0 Page 3 of 19
Warning
Caution
User's manual K&F SONA 5
1. Introduction
Thank you for your decision to buy a KLING & FREITAG sound system. To guarantee a trouble-free operating of the equipment and to allow your KLING & FREITAG SONA 5 system to achieve its full potential
please read the operating instructions carefully before use. With the purchase of a SONA 5 system, you
have acquired a large sound system with the highest possible quality and performance capabilities. As
the owner of a SONA 5 system, you now have a versatile and highly professional tool which, when
operated properly, is a true pleasure to use.
1.1 Symbols�in�User's�Manual
This symbol indicates the possibility of life-threatening danger and a health risk for persons. Not following
these instructions may result in serious health problems including potentially fatal injuries.
This symbol indicates a possibly dangerous situation. Not following these instructions may cause minor
injuries or cause property damage.
This symbol gives instructions for the proper use of the described products. Not following these instructions may cause malfunctions or property damage.
Important
Tip
This symbol indicates notes that help you to handle the described products easier.
1.2 Information�about�this�User's�Manual
© Kling & Freitag GmbH, 2008, all rights reserved.
All specifications in this manual are based on information available at the time of publishing for the
features and safety guidelines of the described products.
Technical specifications, measurements, weights and properties are not guaranteed.
The manufacturer reserves the right to make product alterations within legal provisions as well as changes
to improve product quality.
All�persons�who�use�the�speaker�system�must�have�this�guide�and�all�further�information�for
safe�operations�available�to�them�during�assembly,�disassembly,�and�use.The�speaker�system
may�neither�be�set�up�nor�used�until�this�manual�has�been�read,�understood�and�kept�readily
available�on�site.
We appreciate any input with suggestions and improvements for this manual. Please send this to us at
the following address:
info@kling-freitag.de or to:
KLING & FREITAG GMBH Junkersstr.14 D-30179 Hannover.
Phone +49 (0) 511 96 99 70, Fax +49 (0) 511 67 37 94.
KLING & FREITAG GMBH © 2009 Revision 3.0 Page 4 of 19
User's manual K&F SONA 5
1
2
3
4
5
6
9
7
8
2. Product�Description
2.1 Scope�of�Delivery
• Loudspeaker with integrated ball joint swivel arm M (56mm) for wall, ceiling or stand mountings
• User's Manual
• Loudspeakers with option 'Phoenix connector' or '100 Volt' are supplied including the corresponding 4-pole Phoenix plug.
2.2 Overview�of�Components
1. Loudspeaker�enclosure, hightech moulding material (flame retardant class V0 according to UL94)
with textured paint finish
2. Safety�eyelet for 5 mm quick link (quick link not included but available as accessory)
3. Clamp�collar
4. Ball�joint�swivel�arm
5. Retainer, 5/8" inner threading for thread reducer
6. Thread�reducer, 5/8" on M10
7. Rubber�washer
8. Mounting�plate with M10 bolt
9.
Quad�push�connector, suitable for wire cross section up to 4mm
2
2.3 Accessories
• 5 mm quick chain link. For use with the safety eyebolt on the speaker.
• Swivel arm S (32 mm)
• Swivel arm L (109 mm)
KLING & FREITAG GMBH © 2009 Revision 3.0 Page 5 of 19
Warning
User's manual K&F SONA 5
2.4 Required�Tools
• 2.5 mm Allen head wrench
• 19 mm jaw spanner
• Mounting accessories for installation on walls or ceilings
3. Safety�Instructions
3.1 Mounting�the�Speakers�/�Wall�and�Ceiling�Installation
The speakers may only be mounted to wall and ceilings by qualified personnel.
The technicians responsible for assembling the speakers on site are responsible for the safe setup and
use of the speakers and guarantee this.
Never use signal cables or power cords for suspending, aligning or securing the systems.
Before carrying through ceiling and wall installations, it is essential to consider the load capacity of walls,
ceilings and panelling as well as the stability and type of the construction. If there is wall panelling, for
example, it is then necessary to examine the solidity of the wall and use the appropriate wall plugs.
Make sure to comply with the stipulated tightening torques.
If not otherwise stated in this manual, only original KLING & FREITAG parts may be used for mounting the
speakers. The use of other parts - in particular parts by other manufacturers - is not permitted in this case.
Ensure that all installation connections comply with the applicable safety guidelines and that the size
and strength are sufficient.
Ensure that all connections are secured against coming loose and that only authorized, statically tested
and correctly sized supports, mounting equipment, wire ropes and chains are used.
As a basic principle, you must visually inspect all components of the speaker before every use. If there are
signs of wear, cracks, or deformation, then you must replace the parts immediately. The visual inspection
also includes checking the screwed connections on supporting elements.
The information described here does not relieve the user of the duty to follow the given safety requirements and legal regulations.
Fixed�installations�(stationary):
• For fixed installations without safety, always secure the retainer nut and the M10 thread of the
thread reducer to prevent loosening. ou can do so either by using the provided rubber washer or
– with longer threads – glue for securing screws.
Mobile�installations�(non-stationary):
• Always secure the speaker with a second independent safety device to prevent falling.
• To do so, use an approved safety rope with a 5 mm quick link on the safety eyebolt of the
speaker enclosure. You can get an appropriate quick link available as an accessory from Kling &
Freitag.
KLING & FREITAG GMBH © 2009 Revision 3.0 Page 6 of 19
