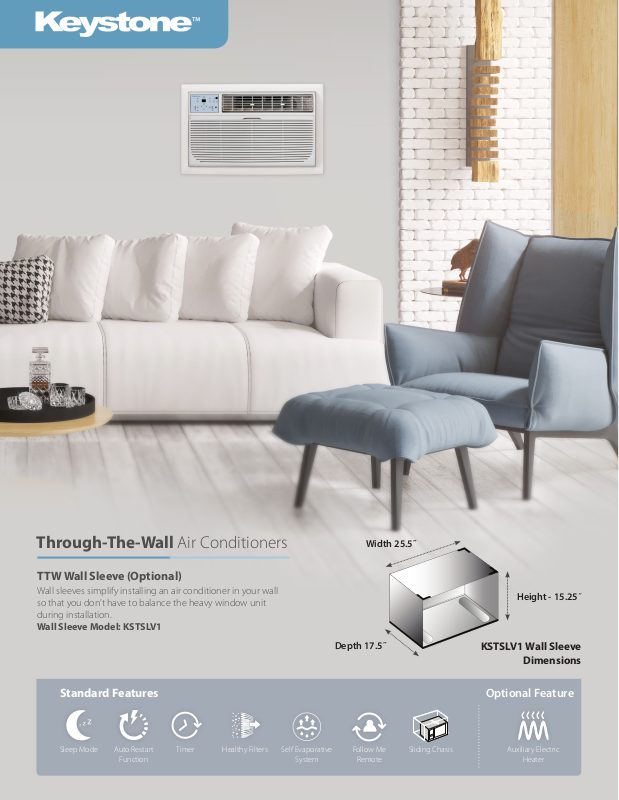

Through-The-Wall Air Conditioners
TTW Wall Sleeve (Optional)
Wall sleeves simplify installing an air conditioner in your wall
so that you don’t have to balance the heavy window unit
during installation.
Wall Sleeve Model: KSTSLV1
Width 25.5˝
Height - 15.25˝
Depth 17.5˝
KSTSLV1 Wall Sleeve
Dimensions
Standard Features Optional Feature
Sleep Mode Auto Restart
Function
Timer Healthy Filters Self Evaporative
System
Follow Me
Remote
Sliding Chasis Auxiliary Electric
Heater
Through-The-Wall Air Conditioners (Cool Only)
Model No. KSTAT08-1C KSTAT10-1C KSTAT10-2C KSTAT12-1C KSTAT12-2C KSTAT14-2C
Power Supply
Cooling Capacity
Heating Pump
Power Input - Cooling
Power Input - Heating
Cooling Amps
EER
Energy Star
Indoor Noise Level dBA
Air Flow Volume - CFM
Cooling Area
Cooling Speeds
Fan Speeds
Net Dimensions (in.)
W x D x H
Net Weight
Included Accessories
115V / 60Hz 115V / 60Hz 230V / 60Hz 115V / 60Hz 230V / 60Hz 230V / 60Hz
8,000 BTU/h 10,000 BTU/h 10,000 BTU/h 12,000 BTU/h 12,000 BTU/h 14,000 BTU/h
- - - - - -
754 W 943 W 943 W 1142 W 1142 W 1515 W
- - - - - -
7.0 A 8.3 A 4.5 A 10.0 A 5.2 A 6.9 A
10.6 10.6 10.6 10.5 10.5 9.3
Yes Yes Yes Yes Yes No
56.8 / 51.8 57.4 / 53.1 58.4 / 54.1 60.5 / 56.5 60.5 / 56.5 61.3
270 269 275 286 286 296
350 sq. ft. 450 sq. ft. 450 sq. ft. 550 sq. ft. 550 sq. ft. 700 sq. ft.
3 3 3 3 3 3
3 3 3 3 3 3
24.2” x 20.3” x 14.5” 24.2”x 20.3”x 14.5” 24.2”x 20.3”x 14.5” 24.2”x 20.3”x 14.5” 24.2” x 20.3” x 14.5” 24.2” x 20.3” x 14.5”
65 lbs. 68 lbs. 69 lbs. 76 lbs. 78 lbs. 79 lbs.
remote control, 2 AAA
batteries, mesh lter
remote control, 2 AAA
batteries, mesh lter
remote control, 2 AAA
batteries, mesh lter
remote control, 2 AAA
batteries, mesh ltert
remote control, 2 AAA
batteries, mesh lter
remote control, 2 AAA
batteries, mesh lter
Through-The-Wall Air Conditioners (with Heat)
Model No. KSTAT08-1HC KSTAT10-2HC KSTAT12-2HC KSTAT14-2HC
Power Supply
Cooling Capacity
Heating Pump
Power Input - Cooling
Power Input - Heating
Cooling Amps
Heating Amps
EER
Energy Star
Indoor Noise Level dBA
Air Flow Volume - CFM
Cooling Area
Cooling Speeds
Fan Speeds
Net Dimensions (in.)
W x D x H
Net Weight
Included Accessories
115V / 60Hz 230V / 60Hz 230V / 60Hz 230V / 60Hz
8,000 BTU/h 10,000 BTU/h 12,000 BTU/h 14,000 BTU/h
4,200 BTU/h 10,600 BTU/h 10,600 BTU/h 10,600 BTU/h
825 W 1020 W 1220 W 1515 W
1380 W 3450 W 3450 W 3450 W
7.8 A 4.6 A 5.5 A 6.9 A
12 A 15 A 15 A 15 A
9.6 9.6 9.5 9.3
No No No No
57 58 61.5 61.5
288 287 300 300
350 sq. ft. 450 sq. ft. 550 sq. ft. 700 sq. ft.
3 3 3 3
3 3 3 3
24.2” x 20.3” x 14.5” 24.2” x 20.3” x 14.5” 24.2” x 20.3” x 14.5” 24.2” x 20.3” x 14.5”
65 lbs. 74 lbs. 78 lbs. 80 lbs.
remote control, 2 AAA
batteries, mesh lter
remote control, 2 AAA
batteries, mesh lter
remote control, 2 AAA
batteries, mesh lter
remote control, 2 AAA
batteries, mesh lter
Keystone Accessories
Follow Me Remote Control
(included)
KSTSLV1: Optional Wall Sleeve
(Sold Separately)
