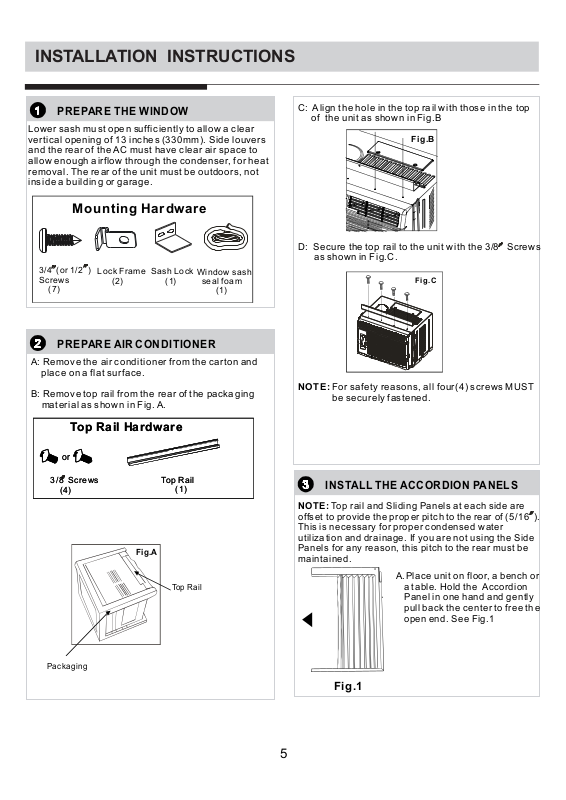

INSTALLATION INSTRUCTIONS
PREPARE THE WINDOW
Lower s ash must open sufficiently t o all ow a cl ear
ve rti cal o pening of 13 inche s (330mm). Sid e l ouvers
and the rear of the AC must h ave clear air sp ace to
allow enough airflow throu gh t he conde n ser, f or heat
re moval . T he rear o f t he uni t must be outdoor s, no t
insid e a building or garage.
Mounting Har dware
3/4 (or 1/ )
Scre ws
(7)
A: Remo ve the air conditio ner from the carton and
place o n a fla t s urf ace.
B: Remo ve top rail from the rear of the packaging
materi al as shown in Fig . A.
2
Lock F rame
(2 )
Sash Lock
(1)
Wind ow s as h
seal fo am
PREPARE AIR CONDITIONER
(1)
C: Ali gn the ho le in the top rail with those in the top
of the unit as shown in Fig .B
Fi g.B
D: Secu re the top ra il to the unit with the 3/8 Scre ws
as shown in Fig.C.
Fig.C
NOTE:
For safet y reasons, a l l four(4 ) screws M US T
be sec urely fas tene d .
Top Rail Hardware
Top Rail Hardware
or
or
3/ 8 Scre ws
3/ 8 Scre ws
(4 )
(4 )
Pac kagin g
Fig.
Top Rail
Top Rail
A
(1)
(1)
Top R ail
INSTALL THE ACCORDION PANEL S
NOTE : Top r ai l a nd Sliding Panels at each s ide are
offset to provi de the prop er p itc h to the rear of (5 /16 ).
This i s n ecessary for pro per c ond ensed w ater
utilization and dr ai nage. If you a re not u sing t he Si de
Panels for any reaso n, this pitc h to the rea r mus t b e
maintained.
A.Pla ce u nit on f loor, a b ench or
a table. Hold the Accord ion
Panel i n o ne hand and g en tly
pull back the c ent er t o f ree t h e
open end. See Fig.1
Fig.1
5
INSTALLATION INSTRUCTIONS
B. Slide t he f ree end " " se ction of t he panel dir ect ly
into the c abi net as shown in Fig. 2. S lide the p ane l
down . Be sure to leave enough space to s lip the
top and b ott o m of the frame int o the rai ls on the
cabinet.
Ⅰ
" "s ectio nⅠ
Fig.2
C. O nce t he panel has been installed on the s ide o f
th e cabinet , make sure it sits securel y inside the
frame c hanne l by making slight adjus t ment s .
Sl ide the top and b o ttom ends of the frame i nto the
to p an d bottom rails of the cabinet. Fig.3.
SECUR E THE ACCORDION PANELS
A.Keep a fir m grip on the air conditio ner, c arefully
place the u n it into th e win dow openi ng so the bottom
of the air co nditi oner fra m e is agains t the windo w
si ll (Fig.5). Ca refu lly clos e the window behind th e top
ra il of the u n it .
INSIDE
Measure from the cabinet edge
About 5/8 to 3/4
OUTSIDE
Wooden Windows
Fig.5
NOT E: Check that ai r conditioner i s tilted back about
5/8 to 3/4 (tilted about 3 to4 do wnward tothe outside ).
Aft er proper installation, cond ensate should not drain
from theove rflow drain h ole d uring nor mal u se, correct
the slope otherwise .
B.E xtend th e side p anels out agains t the windo w
frame ( Fig.6 ).
O O
Top Rail
Bottom Rail
Fig.3
D. Sl ide the pa nel all th e way in a nd repeat on t he
other side .
Fig.4
Top left
Bottom Rail
Top Rail
Top right
window
frame
Fig.6
INSTALL SUPPORT BRACKET
A.P lace the frame lock b etween the frame
extensions a nd t he wi ndow sill as shown(Fi g.7) .
Drive 3 / 4 (1 9mm)or 1 loc k ing screws
through the frame lock and i nto the sill .
NOTE
1 / 8" (3mm ) pilot hol es before driving sc rews.
"
: To p revent windo w sill from s plit tin g,drill
/ 2 "(1 2.7mm )
If sto rm window bloc ks AC, see Fig. 11.NOTE:
Fig.7
6
INSTALLATION INSTRUCTIONS
B.Drive 1/2 " (12 . 7mm) lockin g
3/4" (19mm) or
sc rews through frame holes into w indo w sas h (Fig.8).
Fig.8
C.To secure low er sa sh in p lace, attach rig ht angle
sa sh lo ck with 3/4" (19mm) or 1 scr ew as
sh o wn(F ig.9).
/2" (12 .7mm)
If AC is Blocked by Stor m Window
Add wood a s sho wn in Fig.11, or remov e storm
wind ow before a ir condition er is instal led.
If S torm W indow Frame mu st rem ain, be sure th e
drain holes or s lots are not caulked or painted shut.
Accu mula t ed R ain Wa ter or Condensation m u st be
allo wed to drain out.
Remov ing AC Fr om Window
Turn AC off, a nd di sconn e ct p ower cord.
Remov e sash seal from betwee n win dows, and
unscrew safe ty sash loc k .
Remov e screws insta lle d through fra me and framelock.
Close ( slide ) side p anels int o f rame.
Keeping a firm grip on air con ditioner, rai se sa sh
and car ef ully remove.
Be c arefully not to spill any rem aining water wh ile
li fting uni t f rom window. Sto re p arts WITH air
conditi oner.
SASH
Fig.9
D.C u t and insert i t in the
spac e between the u pper and low er sa shes ( Fig .1 0).
Wind ow sash seal foam
FOAM SEAL
Fig.10
Storm window
frame or other
obstruction.
1-1/2"min
(38 mm)
Fig.11
Board
thi ckn ess
as req ui re d,
for pr op er
pitch to rear,
along entir e
sill. F a sten
with n ails o r
scr ew s.
7
