Keysight Technologies PNA-L N5230A, PNA-X N5242A, PNA E8363B, PNA E8364B, PNA E8362B Configuration Manual

...

Keysight Technologies

PNA Series Microwave Network Analyzers

Configuration Guide

PNA-L N5230A 300 kHz to 6, 13.5, or 20 GHz PNA-L N5230A 10 MHz to 20, 40, or 50 GHz PNA-X N5242A 10 MHz to 26.5 GHz PNA E8362B 10 MHz to 20 GHz PNA E8363B 10 MHz to 40 GHz PNA E8364B 10 MHz to 50 GHz PNA E8361A 10 MHz to 67 GHz PNA N5250A 10 MHz to 110 GHz

System Configuration Summary

This summary lists the main components required to form a basic measurement system. Options or peripherals may be added to provide enhanced measurement and data storage capability.

Full S-parameter measurements

– Keysight PNA Series microwave network analyzers – Test port cables, 50 ohms – Calibration kit for applicable connector type

This configuration guide describes standard configurations, options, accessories, upgrade kits and compatible peripherals for the PNA Series microwave network analyzers. This guide should be used with the Keysight PNA Series Microwave Network Analyzers Data Sheet for a complete description of these analyzers.

Please note: This document does not contain Keysight Technologies, Inc. most up-to-date PNA Series network analyzer portfolio. This document is available for reference only for customers using Keysight’s legacy network analyzers. To view the current Keysight PNA Series Microwave Network Analyzers Configuration Guide click here.

PNA-L (N5230A)

Step 1: Select N5230A model number

Step 2: Choose your frequency range and test set (Mandatory, choose only one)

Description Ordering

number

300 kHz to 6 GHz 2-port standard test set N52300-020 300 kHz to 6 GHz 2-port configurable test set

and extended power range 300 kHz to 13.5 GHz 300 kHz to 13.5 GHz 300 kHz to 13.5 GHz 300 kHz to 13.5 GHz 300 kHz to 13.5 GHz

10 MHz to 20 GHz 2-port standard test set N52300-220 10 MHz to 20 GHz 2-port configurable test set

300 kHz to 20 GHz 4-port standard test set N52300-240 300 kHz to 20 GHz 4-port configurable test set

300 kHz to 20 GHz 4-port configurable test set,

10 MHz to 40 GHz 2-port standard test set N52300-420 10 MHz to 40 GHz 2-port configurable test set

10 MHz to 50 GHz 2-port standard test set N52300-520 10 MHz to 50 GHz 2-port configurable test set

Step 3: Choose additional software options (Optional)

Description Ordering

Time domain for 6 GHz model N52310-010 Time domain for 13.5, 20, 40 or 50 GHz model N52300-010 Frequency-offset measurements N52300-080 Scalar-calibrated converter measurements (Option 080 required) 4-port measurement application N52300-550 N-port capabilities for 6, 13.5 or 20 GHz model N52310-551 N-port capabilities for 40 or 50 GHz model N52300-551

2-port standard test set N52300-120

2-port configurable test set

and extended power range

4-port standard test set N5 2 3 0 0 -140

4-port configurable test set

and extended power range

4-port configurable test set,

extended power range and

internal second source (Option

080 recommended)

and extended power range

extended power range and

internal second source (Option

080 recommended)

and extended power range

N52300-025

N52300-125

N5 2 3 0 0 -145

N5 2 3 0 0 -146

N52300-225

N52300-245

N52300-246

N52300-425

N52300-525

number

N52300-082

Step 4: Choose an electronic or mechanical calibration kit (Optional)

Description Ordering

number

300 kHz to 9 GHz, 2-port, 3.5 mm 85093C 300 kHz to 13.5 GHz, 4-port, Type-N or 3.5 mm N 4 4 31B 300 kHz to 18 GHz, 4-port, Type-N N4432A 300 kHz to 20 GHz, 4-port, 3.5 mm N4433A 300 kHz to 26.5 GHz, 2-port, 3.5 mm N4 691B 10 MHz to 50 GHz, 2-port, 2.4 mm N4693A Note: For additional calibration kits refer to page 16

Step 5: Accessories (Optional)

Description Ordering

number

Rack mount kit without handles N5 2 3 0 A-1C M Rack mount kit with handles N5 2 3 0 A-1C P USB CD R/W drive N4688A USB Hub N4689A Note: For additional accessories refer to page 16

Step 6: Calibration documentation (Optional)

Description Ordering

number

ISO 17025 compliant calibration N5230A-1A7 Commercial calibration certificate with test data N5230A-UK6 ANSI Z540 compliant calibration N5230A-A6J

Documentation

The PNA Series instruments are equipped with an Online Help system available within the instrument in the following languages: English, Japanese, Chinese, German, Spanish, and French. The PNA Ser vice Guide and Online Help system are available on the Web: www.na.tm.keysight.com/pna

Connector type

Option 020, 025, 120, 125, 140, 145, 146, 220, 225, 240, 245, 246: 3.5 mm ruggedized male, 50 ohm Option 420, 425, 520, 525:

2.4 mm ruggedized male, 50 ohm

Additional product information

For additional PNA-L (N5230A) product information, refer to the PNA-L brochure available on our Web site:

www.keysight.com/find/pnal

PNA-L (N5230A)

Source

Switch

PORT 4

Coupler arm Receiver D in

Source out Coupler thru

PORT 3

Coupler arm Receiver C in

Source out Coupler thru

PORT 2 Coupler thru Source out

Receiver B in Coupler arm

PORT 1

Coupler thru Source out

Receiver A in Coupler arm

Reference receiver

Source out Receiver R in

60 dB

Source 1

Source 2

Test port 2Test port 1

Test port 4

Test port 3

60 dB 60 dB

A B C D

Source

Switch/splitter

Reference

receiver

Reference

receiver

Measurement

receivers

Port 1 Port 2

R1 R2

Source

Switch/splitter

Reference

receiver

Reference

receiver

Measurement

receivers

Port 1 Port 2

60 dB

R1 R2

Source

out

Rcvr

SRC

out

Cplr thru

Cplr arm

Rcvr

A in

Rcvr

Source

out

Rcvr

B in

Cplr arm

Cplr thru

SRC

out

Source

Switch

PORT 4

PORT 3

PORT 2

PORT 1

Reference receiver

This guide is intended to assist you in the ordering process. Additional information and products (such as calibration kits and cables) are described throughout this document.

Test set options

– Standard test set and power range (Option xx0)

The 13.5 and 20 GHz versions are available in 2- or 4-ports.

– Configurable test set and extended power range (Option xx5)

Adds front panel access loops and one or two 60 dB step attenuators as shown in the figures below. This provides the capability to improve instrument sensitivity for measuring low-level signals, to reverse the directional couplers to achieve even more dynamic range or to add components and other peripheral instruments for a variety of measurement applications. The 13.5 and 20 GHz versions are available in 2- or 4-ports.

– Configurable test set, extended power range and internal second

source (Option x46) Available with 4-port models only, this option adds an internal second source, nine front panel access loops and two 60 dB step attenuators as shown in the figure below. This provides |an additional signal (fixed or swept) for two-tone third-order-intercept (TOI) and intermodulation testing of amplifiers; or it can be used as a fast swept-LO signal for fixed-IF testing of mixers and converters. In either case, sweep speed is more than twenty times faster than using an external source (Option 080 recommended. Please note, Option 080 is needed in order to have independent control of the two internal sources.)

4-port standard test set

4-port configurable test set and extended power range

2-port standard test set

2-port configurable test set and extended power range

4-port configurable test set, extended power range and internal second source

PNA-L (N5230A)

Additional options

– Time domain (Option 010)

This option enables the PNA Series to view reflection and transmission responses in both time or distance domain. Use time domain to tune filters, gate out the response of fixtures and cables, characterize the impedance of transmission line, and more.

– Frequency offset (Option 080)

This option enables the PNA Series to set the source frequency independently from where the receivers are tuned. This ability is important for two general classes of devices: mixers (and converters) and amplifiers.

– Scalar-calibrated converter measurements (Option 082)

With a simple setup and calibration, this application provides the highest accuracy for conversion-loss (or gain) measurements by combining one-port and power-meter calibrations to remove mismatch errors. Option 080 required.

– 4-port measurement application (Option 550)

Enables full 4-port error correction and differential measurements on a 2-port network analyzer with configurable test set (Option x25). External test set required. User installable.

– N-port capabilities (Option 551)

Adds full N-port error correction and measurement capabilities to any PNA-L network analyzer with configurable test set (Option xx5 or x46). External test set required. User installable.

Certification options

– Commercial calibration certification with test data (Option UK6)

Complete set of measurements which tests unit to manufacturer’s published specifications. Includes calibration label, calibration certificate, and data report. Conforms to ISO

9001.

– ISO 17025 compliant calibration (Option 1A7)

Complete set of measurements which tests unit to manufacturer’s published specifications. Includes calibration label, ISO 17025 calibration certificate, and data report, measurement uncertainties and guardbands on all customer specifications. Conforms to ISO 17025 and ISO 9001.

– ANSI Z540 compliant calibration (Option A6J)

Complete set of measurements which tests unit to manufacturer’s published specifications. Includes pre- and post-adjustment data with measurement uncertainty information compliant to the ANSI/NCSL Z540 standard.

PNA-X Network Analyzers N5242A, 10 MHz to 26.5 GHz, 2 or 4 Ports

Options

To add options to a product, order the corresponding item number.

Description For N5242A Additional information

Tes t set

Option 200 2 ports, single source N5242A-200 Option 224 2 ports, add internal 2nd source, combiner and mechanical

switches Option 400 4 ports, dual source N5242 A-400 Recommends Option 080

Option 423 4 ports, add internal combiner and mechanical switches N5242A-423 Requires Options 400, 419, and 080

Power configuration

Option 219 2 ports, extended power range and bias-tees N5242A-219 Requires Option 200 Option 419 4 ports, extended power range and bias-tees N5242 A-419 Requires Option 400 Option H85 High-power configuration N5242 AH85

Measurement applications

Option 010 Time-domain measurements N5242A-010 Option 029

Fully-corrected noise figure measurements N5242 A-029 Requires one of these options: 219,

Option 080 Frequency offset N5242 A-080 Option 082 Option 083

Scalar-calibrated converter measurements N5242A-082 Requires Option 080

Vector- and scalar-calibrated converter measurements N5242 A-083 Requires Option 080

Option 084 Embedded LO measurements N5242 A-084 Requires Options 080 and 083,

Option 086 Gain compression application N5242A-086 Recommend Options 219 or 419,

Option 551

N-port capabilities N5242 A-551 Pulse, antenna, mm-wave

Option H08 Pulse measurements N5242A-H08 Requires Option 025 Option 020 Add IF inputs for antenna and mm-wave N5242 A-020 Option 021 Add pulse modulator to internal 1st source N5242 A-021 Option 022 Add pulse modulator to internal 2nd source N5242A-022 Requires Options 224 or 400 Option 025 Add four internal pulse generators N5242A-025

Accessories

Option 1CM Rack mount kit for use without handles N5 242 A-1CM N1966A Pulse I/O adapter N1966A N4688A USB CD R/W drive N4688A N4689A USB Hub N4689A

Calibration Software

Option 897

Perpetual license for built-in performance test software for

Keysight inclusive calibration

Option 898

Perpetual license for built-in performance test software for

standards compliant calibration

Calibration documentation

Option 1A7 ISO 17025 compliant calibration N5 242 A-1A 7 Option UK6 Commercial calibration certificate with test data N5242 A-UK6 Option A6J ANSI Z540 compliant calibration N5242A-A6J

1. In addition to the list of required PNA-X options, Option 029 requires an N4691B ECal module for use as an impedance tuner, and a Keysight 346 series noise source for calibration.

2. Option 082 is a subset of Option 083, and therefore, they can not be ordered together.

3. When congured as a multiport analyzer with Option 551, the combiner feature of Option 224 or 423 is not available.

When congured as a standalone analyzer, the combiner feature is available.

4. Additional hardware required. Please refer to chapter 2 of the Service Guide for required service test equipment.

N5242 A-224 Requires Options 200, 219 and 080

224, 419 or 423

requires firmware A.07.50 and above

requires firmware A.08.00 and above

N5242 A-897

N5242A-898

PNA-X Network Analyzer

The PNA-X is an integrated vector network analyzer featuring a built-in S-parameter test set, one or two synthesized sources used for device stimulus, a hard disk drive, USB interfaces, and a 10.4” LCD touch screen display. The N5242A analyzer has 50 ohm, ruggedized 3.5 mm (m) test ports. Included with each instrument is a mouse and a keyboard (U.S. style).

– N5242A Network analyzer, 10 MHz to 26.5 GHz, 2 or 4

ports

Test set options

– 2-port standard test set and power range (Option 200)

The standard 2-port test set comes with six front-panel access loops. The loops provide access to the signal path between (a) the source output and the reference receiver, (b) the source output and directional coupler thru arm and (c) the coupled arm of the directional coupler and the port receiver. The standard test set also includes a solid-state internal RF transfer switch in the R1 reference-receiver path.

– 4-port standard test set, power range and an internal second

source (Option 400) The standard 4-port test set comes with 12 front-panel access loops and a built-in second source. The loops provide access to the signal path between (a) the source output and the reference receiver, (b) the source output and directional coupler thru arm and (c) the coupled arm of the directional coupler and the port receiver. The internal second source provides an additional signal (fixed or swept) for two-tone third-order-intercept (TOI) and intermodulation testing of amplifiers, or it can be used as a fast swept-LO signal for fixed-IF testing of mixers and converters. With two sources, source 1 is accessible through test ports 1 and 2, and source 2 is accessible through test ports 3 and 4. The standard test set also includes a solid-state internal RF transfer switch in the R1 reference-receiver path. Recommends Option 080.

– Extended power range and bias-tees (Option 219, 419)

Adds to the standard test set one 65 dB source attenuator (settable in 5 dB increments), one 35 dB receiver attenuator (settable in 5 dB increments), and one bias-tee to each test port. Option 219 requires Option 200, and Option 419 requires Option 400.

– Add an internal second source, a combiner and mechanical

switches to 2-port analyzer (Option 224) Available with 2-port model only, this option adds an internal second source, a combiner and mechanical switches. The internal second source provides an additional signal (fixed or swept) for two-tone third-order-intercept (TOI) and intermodulation testing of amplifiers, or it can be used as a fast swept-LO signal for fixed-IF testing of mixers and converters. The mechanical switches provide increased flexibility by having rear panel access to signal paths for advanced applications. Access to the second source is available through two output (SMA) connectors on the front panel. Requires Options 200, 219 and 080.

– Add an internal combiner and mechanical switches to 4-port

analyzer (Option 423) Available with 4-port model only, this option adds a combiner and mechanical switches. The mechanical switches provide increased flexibility by having rear panel access to signal paths for advanced applications. Requires Options 400, 419 and 080.

PNA-X Network Analyzer

Test port 1

Source 1

OUT 1

OUT 2

Test port 2

Test port 1

Source 1

OUT 1

OUT 2

Test port 2

35 dB

65 dB

35 dB

65 dB

A B

2-port standard test set and power range (Option 200)

2-port extended power range and bias-tees (Option 219, requires Option 200)

Source 2 Output 1

Test port 1

Source 1

OUT 1

OUT 2

Source 2

OUT 1 OUT 2

Source 2 Output 2

Test port 2

35 dB

65 dB

35 dB

65 dB

Rear

panel

A B

Add an internal second source, a combiner, and mechanical switches to 2-port analyzer

Test port 3

Test port 1

Source 1

OUT 1

OUT 2

Source 2

OUT 1 OUT 2

Test port 4

Test port 2

D B

(Option 224 requires Options 200, 219 and 080)

4-port standard test set, power range, and an internal second source (Option 400, recommends Option 080)

4-port extended power range and bias-tees (Option 419, requires Option 400)

Test port 3

Test port 1

Source 1

OUT 1

OUT 2

Source 2

OUT 1 OUT 2

Test port 4

Test port 2

35 dB

65 dB

35 dB

65 dB

35 dB

65 dB

35 dB

D B

Test port 3

Test port 1

Source 1

OUT 1

OUT 2

Source 2

OUT 1 OUT 2

Test port 4

Test port 2

35 dB

65 dB

35 dB

65 dB

35 dB

65 dB

Rear

panel

35 dB

D B

Add an internal combiner and mechanical switches to 4-port analyzer (Option 423 requires Options 400, 419 and 080)

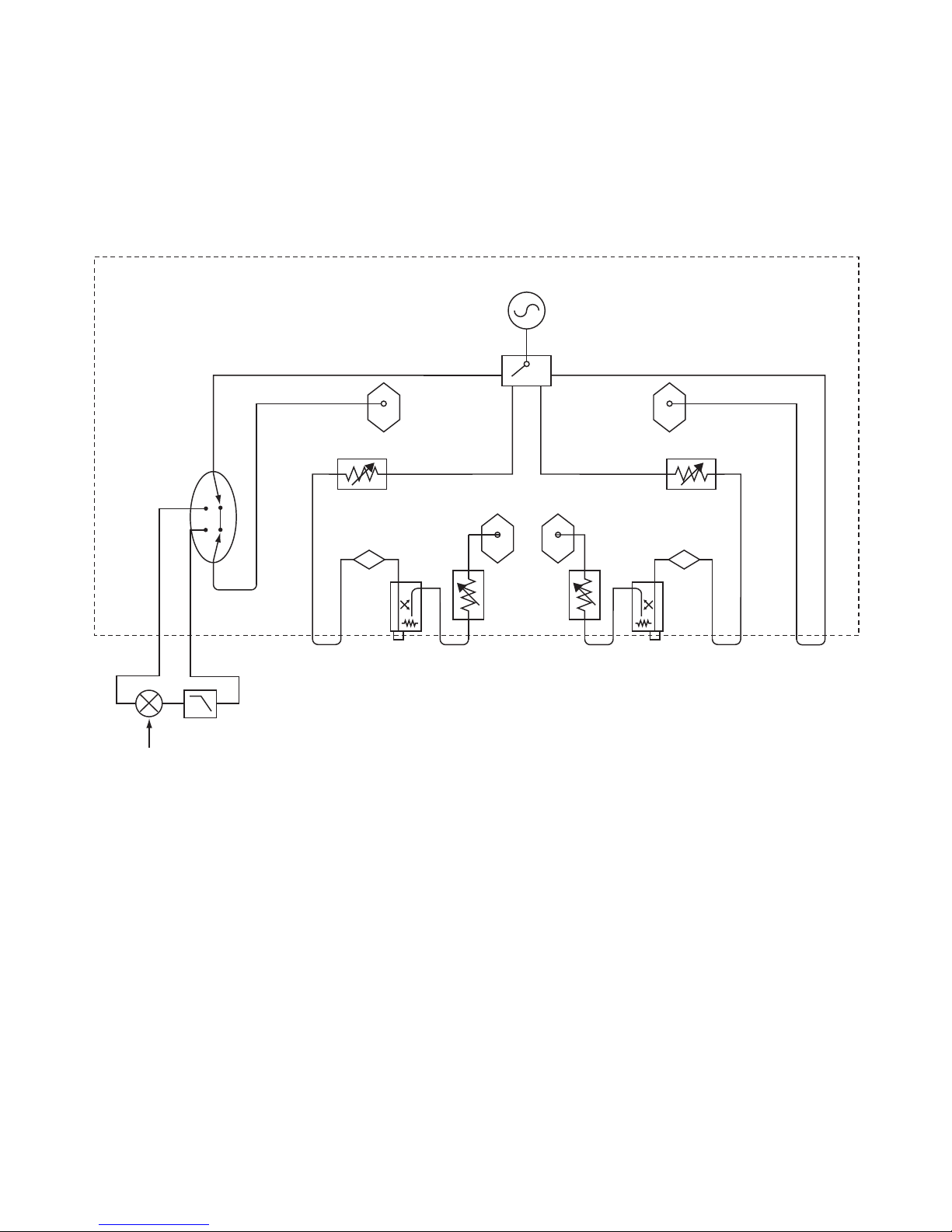

2-port PNA-X with noise figure hardware (shown with Options 200, 219, 224, and 029). On 4-port analyzers (Option 419 or 423) with Option 029, ports 1 and 2 are the same as shown here.

8 7 6 5 4 3 2 1

15 14 13 12 11 10 9

PNA-X Network Analyzer

Additional options

– Pulse measurements (Option H08)

This option provides software to set up and control pulsed-RF measurements with point-in-pulse and pulse-profile capability. The software sets the coefficient of the PNA-X’s digital-IF filters to null out unwanted spectral components, enables the receiver IF gates on the rear panel, controls internal pulse generators (Option

025), internal pulse modulators (Option 021 and/or 022) or external pulse modulators, and optimization for measurement sensitivity. The measurement software can run on the PNA-X or an external computer. A “.dll” file containing the IF-filter algorithms is included for automated pulsed-RF testing. The N1966A pulse I/O adapter is recommended if using external pulse generators and/or external pulse modulators.

– Time domain (Option 010)

This option enables the PNA-X to view reflection and transmission responses in time or distance. Use time domain to tune filters, gate out the response of fixtures and cables, characterize the impedance of transmission lines and more.

– Add IF inputs for antenna and millimeter-wave (Option 020)

This option enables external IF inputs on the rear panel of the PNA-X for applications such as antenna and millimeter-wave test.

– Add pulse modulator to internal first source (Option 021)

This option enables the internal pulse modulator on source 1. Control of the modulator can also be done via pin 8 of the Pulse I/O D-sub connector on the rear panel of the PNA-X using an external pulse generator, or by using one of the internal pulse generators (Option 025). The N1966A pulse I/O adapter is recommended if using an external pulse generator. (See diagram below for details of the D-sub connector.)

– Add pulse modulator to internal second source (Option 022)

This option enables the internal pulse modulator on source 2. Control of the modulator can also be done via pin 8 of the Pulse I/O D-sub connector on the rear panel of the PNA-X using an external pulse generator, or by using one of the internal pulse generators (Option 025). The N1966A pulse I/O adapter is recommended if using an external pulse generator. Option 224 or 400 required. (See diagram below for details of the D-sub connector.)

– Add four internal pulse generators (Option 025)

This option enables four internal pulse generators. These pulse generators can be used to control the internal pulse modulators and internal receiver IF gates, and are also available on pins 10 through 13 of the Pulse I/O D-sub connector on the rear panel of the PNA-X to control external modulators and/or gates. The N1966A pulse I/O adapter is recommended if using external pulse modulators. (See diagram below for details of the D-sub connector.)

Pulse I/O D-sub connector (DB-15 female)

– Fully-corrected noise figure measurements (Option 029)

This option adds hardware and firmware for high-accuracy noise figure measurements, utilizing Keysight’s unique source-correction technique. Using the PNA-X and a Keysight ECal module configured as an impedance tuner, the effects of imperfect system source match are removed, greatly improving the accuracy of the coldsource technique. This approach surpasses the accuracy provided by the Y-factor method. This option requires an N4691B ECal module (m-f recommended) and a 346-series noise source (both must be ordered or supplied separately). During calibration of the analyzer, an additional ECal or mechanical calibration kit is required (also must be ordered or supplied separately). The noise source is only used during calibration of the analyzer. To use the ECal module as a tuner, Option 029 includes a cable (N5242-20137) and 3.5 mm m-f adapter (85052-60013) for use with m-f modules (N4691BM0F). For use with f-f ECal modules (N4691B-00F), order a 3.5 mm m-m adapter (85052-60014).

– Frequency offset (Option 080)

This option enables the PNA-X to set the source frequency independently from where the receivers are tuned. This ability is important for measuring amplifiers, mixers, and frequency converters.

– Scalar-calibrated converter measurements (Option 082)

With a simple setup and calibration, this application delivers the highest accuracy for conversion-loss (or gain) magnitude measurements by combining one-port and power-meter calibrations to remove mismatch errors. This application provides an intuitive and easy-to-use user interface for setting up mixer and converter measurements, with single or dual conversion stages (up to two local oscillators, LO), along with control of up to two external signal generators for use as LO. External synthesizers supported include the Keysight ESG series and the PSG series of signal source families as well as other SCPI controlled signal generators. Option 082 requires Option 080, and cannot be ordered with Option 083.

PNA-X Network Analyzer

– Vector- and scalar-calibrated converter measurements (Option

083)

This converter measurement is a superset and includes not only the scalar-calibrated converter measurement, but also the vector-mixer calibration (VMC). The advanced and unique VMC delivers exceptional conversion loss amplitude and phase accuracy for mixer and converter measurements. This application provides an intuitive and easy-to-use user interface for setting up mixer and converter measurements, with single or dual conversion stages (up to two LO’s), along with control of up to two external signal generators for use as LO. External synthesizers supported include the Keysight ESG series and the PSG series of signal source families as well as other SCPI controlled signal generators. Option 083 requires Option 080, and cannot be ordered with Option 082.

– Embedded LO measurements (Option 084)

Advanced software tuning that provides absolute group delay of converters with embedded LOs without the need for access to a common reference signal. The measurement result is the same as locking the DUT LO to the reference mixer LO. (Option 080 and 083 required) Requires firmware A.07.50 and above.

– Gain compression application (Option 086)

The Gain Compression Application (GCA) provides input power, output power, gain, and phase at an amplifier's compression point, over a specified frequency and power range. GCA's SMART Sweep is very fast and easy-to-use. GCA also includes a guided calibration that corrects for absolute power levels, frequency response, and mismatch errors. Requires firmware A.08.00 and above

– N-port capabilities (Option 551)1

Adds full N-port error correction and measurement capabilities to the PNA-X network analyzer. External test set is required.

– High-power test set (Option H85)

With the standard test set configurations that include source attenuators, the internal bias tees limit the maximum test port power to +30 dBm. Option H85 removes the bias tees between the source attenuators and the test port couplers. This extends the maximum port power that the analyzer can safely handle to +43 dBm. Option H85 requires Option 080, plus Option 224 or 423.

– Rack mount kit without handles (Option 1CM)

Adds a rack mount (5063-9217) and rail kit (E3663AC) for use without handles.

– Pulse I/O adapter (N1966A)

An adapter for connecting between the Pulse I/O connector on the rear panel of the PNA-X and the coaxial inputs and outputs of external pulse generators and external pulse modulators. Coaxial connectors are SMB-male. (See diagram below for details of the Pulse I/O adapter.

The PULSE IN connectors are for controlling the PNA-X's internal IF gates, which are enabled with Option H08 and used with narrowband detection. The PULSE OUT connectors are from the PNA-X's four internal pulse generators, which are enabled with Option 025. The PULSE SYNC IN connector is used to synchronize the internal pulse generators with an external timing pulse. The RF PULSE MOD IN connector controls the internal pulse modulator(s) which are enabled with Options 021 and 022.

1. When congured as a multiport analyzer with Option 551, the combiner feature of Option 224 or 423 is not available. When congured as a standalone analyzer, the

combiner feature is available.

Pulse I/O adapter (N1966A) simplies connections

PNA-X Network Analyzer

Certification options

– Commercial calibration certificate with test data (Option UK6)

Complete set of measurements which tests unit to manufacturer’s published specifications. Includes calibration label, calibration certificate, and data report. Conforms to ISO 9001.

– ISO 17025 compliant calibration (Option 1A7)

– ANSI Z540 compliant calibration (Option A6J)

PNA Network Analyzers1 E8361A/62B/63B/64B, N5250A

PNA (Highest performance series) PNA (Highest performance series)

E8362B 10 MHz to 20 GHz E8361A 10 MHz to 67 GHz E8363B 10 MHz to 40 GHz N5250A E8364B 10 MHz to 50 GHz

Options

To add options to a product, order the corresponding item number.

Description For E8362B For E8363B For E8364B For E8361A For N5250A

Test set

Option 014

Power configuration

Option UNL

Option 016

Option H85

Non-linear measurements

Option 080

Option 081

Option 082

Option 083

Option 0846

Pulse, antenna, mm-wave

Option H08

Option H11

Measurement features

Option 010 Option 550 Option 551

Accessories

Option 1CM

Option 1CP

N4688A N4689A

Calibration documentation

Option 1A7

Option UK6

Option A6J

Note: Item numbers may not correspond to product model number. For example, to order the time-domain option on the E8362B, the correct item number to order is E8362A-010.

Calibration Three year calibration plans are available at time of instrument purchase.

– Configurable test set

– Extended power range

and bias-tees

– Add receiver attenuators

– High-power configuration

– Frequency offset

– Reference receiver switch

– Scalar-calibrated

converter measurements

– Vector- and scalar-calibrated

converter measurements

– Embedded LO Measurement

– Pulsed-RF measurement

capability

– IF access (for antenna,

pulsed-RF and mm-wave measurements)

– Time-domain capability – 4-port measurement appli-

cation

– N-port capabilities

– Rack mount kit for use without

handles

– Rack mount kit for use

with handles – USB CD R/W drive – USB Hub

– ISO 17025 compliant

calibration – Commercial calibration

certificate with test data – ANSI Z540 compliant

calibration

E836 2B-0 14 E8363B-014 E8364B-014 E8 361A-014 Included

E8362B-UNL E8364B-UNL E8364B-UNL E8361A-UNL Included Only E8361A requires 014

E836 2A-016 E8364A-016 E83 64A-016 E8361A-016 E8 361A-016 Requires UNL (only

E8362B-H85 E8363B-H85 E8364B-H85 Contact

E8362A-080 E8364A-080 E8364A-080 E8361A-080 Included Requires 014 (E8361A

E8362A-081 E8364A-081 E8364A-081 E8361A-081 Included Requires 014, 080 (only

E8362B-0 82 E83 63B-08 2 E836 4B-082 E8 361A- 082 E8 361A-0 82

E8362A-083 E8364A-083 E8364A-083 E8361A-083 E8361A-0835Requires 014, 080, 081

E8362B-084 E8363B-083 E8364B-083 E8361A-083 Requires Option 083

E8362B-H08 E8363B-H08 E8364B-H08 E8361A-H08 E8361A-H085Requires 014, 080

E8 362 B-H11 E836 3B-H11 E836 4B-H11 E836 1A -H11 Included Requires 014, UNL, 080,

E8362A-010 E8362B-550 E8362B-551

E8 36 2 A-1CM E 8363A-1CM E8364A-1CM E8361A-1CM E8 361A-1CM

E8 36 2 A-1CP E836 3A-1CP E8 364A-1CP E836 1A-1C P E 8361A-1CP

N4688A N4688A N4688A N4688A N4688A N4689A N4689A N4689A N4689A N4689A

E8 36 2B-1A7 E 8 363B -1A7 E8364B -1A7 E8361A-1A7

E8362A-UK6 E8363A-UK6 E8364A-UK6 E8 361A-UK6 E8361A-UK6

E8362B-A6 J E8363B-A6J E8364B-A6J E836 1A-A6J E8361A-A6J

E836 3A-010 E8363B-550 E8363B-551

10 MHz to 110 GHz

system

Keysight

E836 4A-0 10 E8364B-550 E8364B-551

1. All models are not available in all countries.

2. For more detailed information regarding the 110 GHz network analyzer system, refer to the Keysight Web site: www.keysight.com/nd/pna and download the N5250A

Technical Overview, literature number 5988-9620EN.

3. The N5250A 110 GHz system also includes an N5260A millimeter-wave test set controller, 1.0 mm combiner assembly, interconnecting cables, and installation and productivity assistance. See page 14 for more details.

4. UNL* does not include bias-tees. Only includes source attenuators.

5. Up to 67 GHz.

6. Requires rmware A.07.05 and above plus 1.1 GHz CPU board.

E8361A- 010 E8361A-550 E8361A-551

E8361A-1A7

Contact Keysight

E8361A- 010 Options 550 and 551

Additional information

E8361A also requires 014) Includes 014, 016, UNL*4,

080, 081

only, 081 required if UNL is also purchased)

E8361A also requires UNL)

Requires 014, 080

(only E8361A also requires UNL)

and 081

require 014, and are not compatible with N5250A systems

Keysight PNA Network Analyzers

The microwave PNA Series instruments are integrated vector network analyzers equipped with a built-in S-parameter test set, synthesized source, hard and floppy disk drives, and LCD display. The E8362B analyzer has two 50 ohm, 3.5 mm (m) test ports. The E8363B and E8364B analyzers have two 50 ohm, 2.4 mm (m) test por ts. The E8361A analyzer has two 50 ohm, 1.85 mm (m) test ports. Included with each instrument is a mouse and a keyboard (U.S.).

– E8362B Network analyzer, 10 MHz to 20 GHz

– E8363B Network analyzer, 10 MHz to 40 GHz

– E8364B Network analyzer, 10 MHz to 50 GHz

– E8361A Network analyzer, 10 MHz to 67 GHz

– N5250A Network analyzer system, 10 MHz to 110 GHz

Options

– Time-domain capability (Option 010)

For viewing reflection and transmission responses in time or distance domain.

– Configurable test set (Option 0142

Provides six front panel access loops. Three access loops are for port one and three for port two. The loops provide access to the signal path between (a) the source output and the reference receiver, (b) the source output and directional coupler thru arm and (c) the coupled arm of the directional coupler and the port receiver. This option provides the capability to improve instrument sensitivity for measuring low-level signals, to reverse the directional coupler to achieve even more dynamic range or to add components and other peripheral instruments for a variety of measurement applications. (See PNA Series Microwave Data Sheet literature number 59887988EN for a basic block diagram)

– 4-port measurement application (Option 550)2

Enables full 4-port error correction and differential measurements on a 2-port network analyzer with configurable test set. Option 014 required. External test set required.

– N-port capabilities (Option 551)2

Adds full N-port error correction and measurement capabilities to any PNA network analyzer with configurable test set.

Option 014 required. External test set required.

– Extended power range and bias-tees (Option UNL)2

Adds two 60 dB step attenuators and two bias-tees to the E8362/3/4B. Adds two 50 dB step attenuators and two bias-tees to the E8361A. A step attenuator and bias-tee set is inserted between the source and test port one and another set between the source and test port two. (See PNA Series Microwave Data Sheet literature number 5988-7988EN for a basic block diagram)

– Frequency offset (Option 080)2

This option enables the PNA Series microwave network analyzers to set the source frequency independently from where the receivers are tuned. This ability is important for two general classes of devices: mixers (and converters) and amplifiers. Option 080 provides a very basic user interface.

– Reference receiver switch (Option 081)2

Option 081 adds a solid-state internal RF transfer switch in the R1 reference-receiver path (see PNA Series Microwave Data Sheet literature number 5988-7988EN for a block diagram). The switch allows the instrument to easily switch between standard S-parameter (non-frequency-offset) measurements and frequency offset measurements such as relative phase or absolute group delay that require an external reference mixer. The user can set the switch manually or remotely, but it is best used with the frequency-converter application (Option 083), where it is controlled automatically during the vector-mixer calibration procedure and subsequent measurements.

– Scalar-calibrated converter measurements (Option 082)2

– Vector- and scalar-calibrated converter measurements (Option

083)2

This converter measurement adds an intuitive and easy-to-use user interface, advanced calibration choices that provide exceptional amplitude and phase accuracy, and control of external signal sources for use as local oscillators. Mixer calibration techniques include scalar-mixer calibration and vector-mixer calibration (requires Option 081). Finally, the frequencyconverter application supports all of Keysight’s major signal source families.

– Embedded LO Measurements (Option 084)

Advanced software tuning that provides absolute group delay of converters with embedded LOs without the need for access to a common reference signal. The measurement result is the same as locking the DUT LO to the reference mixer LO. (Options 080 and 083 required) Requires firmware A.07.05 and above plus 1.1 GHz CPU board.

1. The E8361A can be extended to 110 GHz with IF access (Option H11).

2. Up to 67 GHz.

– Add receiver attenuators (Option 016)

An attenuator is added between each test port and its corresponding receiver. Two 35 dB step attenuators are added to the E8362/3/4B. Two 50 dB step attenuators are added to the E8361A (see PNA Series Microwave Data Sheet literature number 59887988EN for a basic block diagram).

– Pulsed-RF measurement capability (Option H08)2

Provides software to set up and control pulsed-RF measurements with point-in-pulse capability. The software sets the coefficient of the PNA’s digital-IF filter to null out unwanted spectral components, enables the IF gates provided with IF access (Option H11), and controls selected Keysight pulse generators. It can be run on the PNA or an external computer. A “.dll” file containing the IF-filter algorithms is included for automated pulsed-RF testing. The pulsed application is configured to work with the Keysight 81110A series pulse generator.

For more detailed information regarding pulsed measurement capabilities with the microwave PNA refer to the Keysight Web site

www.keysight.com/find/pna and download the PNA Series MW Network Analyzers Configuration Guide for Pulsed Measurements,

literature number 5988-9833EN.

– IF access (Option H11)

Provides hardware to enable antenna, point-in pulse, and broadband millimeter-wave measurements to 110 GHz. For each of the MW PNA’s measurement receivers, IF gates (enabled with pulsed measurement capability, Option H08) and external IF inputs are added. In addition, access to the PNA’s internal RF and LO source is provided for remote mixing applications. For basic antenna measurements, only Option H11 is necessary. Pulsed antenna applications also require the pulsed measurement capability (Option H08). Broadband measurements to 110 GHz, also requires an N5260A millimeter-wave test set controller.

Note: Use external IF access for up to 20 dB more sensitivity when making antenna measurements with a remote mixing configuration. Add Option H08 (Pulsed-RF Measurement Capability) to enable advanced pulsed measurements. Or upgrade to a broadband (10 MHz to 110 GHz) VNA system simply by purchasing an N5260A controller test set with test heads (Option 110, 120, or 130).

– High-power test set (Option H85)

This configuration combines options that are often necessary for high power measurements (UNL*1, 014, 016, 080, 081). The only difference between ordering Option H85 versus a combination of the options listed above is the source attenuator option UNL. Standard UNL includes two source attenuators and two bias-tees. Option H85 includes the two source attenuators, but not the biastees, as the bias-tees are the power-limiting factor in the network analyzer test set. The maximum power at the test port is +43 dBm (<20 GHz), and +40 dBm (>20 GHz).

Option 080, frequency-offset mode, is included in Option H85 because it manages the phase-locking internally (instead of depending on the R1 receiver). So if you need to use external components in the path of the R1 receiver, it makes the measurements simpler and more robust.

– Rack mount kit without handles (Option 1CM)

Adds a rack mount (5063-9217) and rail kit (E3663AC) for use without handles.

– Rack mount kit with handles (Option 1CP)

Adds a rack mount (5063-9237)3 and rail kit (E3663AC) for use with standard supplied handles.

Documentation

PNA Online Help system is available within PNA instruments in the following languages: English, German, Spanish, French, Japanese, and Chinese.

The PNA Service Guide and Online Help are available on the Web: http://na.tm.keysight.com/pna

1. UNL* does not include bias-tees. Only includes source attenuators.

2. Up to 67 GHz.

3. The 5063-9237 kit assumes you have the standard handles shipped with the instrument.

If you do not have handles, order a 5063-9224 kit.

Certification options

– Commercial calibration certificate with test data (Option UK6)

Complete set of measurements which tests unit to manufacturer’s published specifications. Includes calibration label, calibration certificate, and data report. Conforms to ISO 9001.

– ISO 17025 compliant calibration (Option 1A7)

– ANSI Z540 compliant calibration (Option A6J)

Calibration

3 year calibration plans are available at time of instrument purchase. Contact your local Keysight sales office for details.

Product services

Keysight product services provide tailored assistance related to a specific need or application. Product services enable you to quickly learn how Keysight instruments operate, their capabilities, and how to apply that knowledge to achieve your specific measurement goals. PNA series services available include:

E8361A/62B/63B/64B Configuration Details

Selecting the correct mixer-test configuration

Most mixer or converter test applications require Options 014, 080, and 082 for conversion loss/gain, or Options 014, 080, 081 and 083 for conversion loss/gain and phase/delay measurements. If you want to create and automate your own custom frequency-offset measurements (for example, intermodulation distortion), you may only need Options 014 and 080. For conver ters that require input power below

-27 dBm, or for devices that have a large amount of LO feedthrough (like an unfiltered mixer), Option UNL, which adds source attenuators, is highly recommended. Besides allowing lower input power levels, these attenuators improve the isolation between the PNA’s internal source and LO leakage signals, helping to prevent source-unleveled errors. For devices that put out signals near or above the receiver’s compression levels (which varies between –3 and +5 dBm, depending on the model and frequency), Option 016 is recommended, which adds receiver attenuators. Finally, Option 010, which adds time-domain analysis, is very useful for gating out unwanted, time-delayed responses which often occur when measuring mixers.

– Remote scheduled productivity assistance – 1 Day of start-up assistance – Daily productivity assistance – PNA operator training for 8 students at your business

site – PNA operator web classes for 1 student – Custom services to be qualified by an Keysight

technical consultant

Microwave PNA Network Analyzer

Source

Switch/splitter

Reference

receiver

Reference

receiver

Measurement

receivers

Port 1 Port 2

R1 R2

Source

Switch

Reference

receiver

Reference

receiver

Measurement

receivers

Port 1 Port 2

R1 R2

Source attenuator

Bias-teeBias-tee

Simplified test set block diagrams

Standard power range

Extended power range and bias-tees (Option UNL)

1. Source attenuator for E8362/3 /4B is 60 dB in 10 dB steps.

Source attenuator for E8361A is 50 dB in 10 dB steps.

Microwave PNA Network Analyzer

Source

Switch

Reference

receiver

Reference

receiver

Measurement

receivers

Port 1 Port 2

R1 R2

Source

Switch

Reference

receiver

Reference

receiver

Measurement

receivers

Port 1 Port 2

Bias-tee

Source attenuator

Bias-tee

Source attenuator

R1 R2

Simplified test set block diagrams – continued

Configurable test set (Option 014)

Configurable test set with extended power range and bias-tees (Option UNL and 014)

1. Source attenuator for E8362/3 /4B is 60 dB in 10 dB steps.

Source attenuator for E8361A is 50 dB in 10 dB steps.

Microwave PNA Network Analyzer

Source

Switch/splitter/leveler

Reference

receiver

Reference

receiver

Measurement

receivers

Cplr arm

Bias-tee

Source attenuator

Bias-tee

Source attenuator

R1 R2

10 dB steps

Receiver

attenuator

Rcvr B

Rcvr A

Cplr

arm

SRC

out

Cplr thru

Source

out

Rcvr R2

Cplr thru

SRC

out

Rcvr R1

Source

out

Option 081

Simplified test set block diagrams – continued

Fully optioned, active device or mixer/converter test configuration (Options 014, UNL, 016, 080, 081)

1. Source attenuator for E8362/3 /4B is 60 dB in 10 dB steps. Source attenuator for

E8361A is 50 dB in 10 dB steps.

2. Receiver attenuator for E8362/3 /4B is 35 dB in 5 dB steps. Receiver attenuator for

E8361A is 50 dB in 10 dB steps.

Microwave PNA Network Analyzer

Source

Switch/splitter/leveler

Reference

receiver

Reference

receiver

Measurement

receivers

Cplr arm

A B

R1 R2

10 dB steps

Receiver

attenuator

Rcvr B

Rcvr A

Cplr arm

SRC

out

Cplr thru

Source

out

Rcvr R2

Cplr thru

SRC

out

Rcvr R1

Source

out

Option 081

D U T

+40 dBm

+30 dBm

+15

dBm

+30

dBm

+30

dBm

+15

dBm

+15 dBm

+40

dBm

+15

dBm

preamp

Source attenuator

+30

dBm

+30

dBm

Simplified test set block diagrams – continued

High-power configuration (Option H85)

Power levels shown on the diagram are damage levels. At a minimum, keep power levels 6 dB below damage level. For optimal per formance, keep the power level incident upon the receivers –20 dBm or less. This will keep the receivers out of compression.

1. Source attenuator for E8362/3 /4B is 60 dB in 10 dB steps. Source attenuator for E8361A

is 50 dB in 10 dB steps.

2. Receiver attenuator for E8362/3 /4B is 35 dB in 5 dB steps. Receiver attenuator for

E8361A is 50 dB in 10 dB steps.

Microwave PNA Network Analyzer

Option 016

Receiver

attenuators

Port 1 Port 2

Option UNL

IF gate

ADC

External

IF in

Option H11

ADC

External

IF in

Option H11

ADC

External

IF in

Option H11

IF gate

ADC

External

IF in

Option H11

Multipliers

(1, 2)

Multipliers (1, 2, 4)

YIG source

8.33 MHz reference

Offset

Phase-locked loop

tune

Option 080

Option 081

Option 014Option 014

Option 014

Front

Rear

Aux RF out

(2 to 20 GHz)

Aux LO out

(2 to 20 GHz)

Offset receiver

IF gate

Simplified test set block diagrams – continued

Fully optioned, pulse-RF, antenna, or mm-wave configuration (Options 014, UNL, 016, 080, 081, H11)

1. Option H11: IF-gate controls and external-IF inputs are accessed on rear panel.

IF gates are enabled with Option H08. External-IF input frequency is 8.33 MHz.

N5250A Configuration Details

– N5250A MM PNA system1, 10 MHz to 110 GHz,

includes: E8361A MW PNA with the following options:

– Configurable test set – Option 014 – Extended power range and bias-tees – Option UNL – Frequency-offset mode – Option 080 – Reference channel switch – Option 081 – IF access – Option H11

– N5260A millimeter-wave test set controller with test heads

– 67 to 110 GHz test heads – 1.0 mm combiner assembly – Interconnecting cables – Installation and productivity assistance

– Additional options available:

– Millimeter-wave modules with bias-tees - N5250A Option 017 – Millimeter-wave modules with bias-tees and port 2

attenuator – N5250A Option 018 – Receiver attenuator – Option 016 – Time-domain capability – Option 010 – Pulsed-RF measurement capability – Option H082 – Scalar-calibrated converter measurements – Option 082 – Frequency converter application – Option 083

Factory integration of the N5250A system integrates the E8361A with Option H11 and the N5260A millimeter-wave controller with test heads and on-site installation is included.

Option Descriptions

– Millimeter-wave modules with bias-tees (N5250A Option 017)

Adds 67 GHz bias-tees to the combiner assembly between the input to the combiner and the 67 GHz coupler. The bias-tees have tri-axial connectors for force, sense, and ground. Positioning the bias-tees close to the DUT greatly improves stability for on-wafer and in-fixture devices. The bias-tees added for this option have a voltage rating of 40 volts and a maximum of 0.5 amps.

– Millimeter-wave modules with bias-tees and port 2 attenuator

(N5250A Option 018) Adds 67 GHz bias-tees to the combiner assembly between the input to the combiner and the 67 GHz coupler. The bias-tees have tri-axial connectors for force, sense, and ground. Positioning the bias-tees close to the DUT greatly improves stability for on-wafer and in-fixture devices. The bias-tees added for this option have a voltage rating of 40 volts and a maximum of 0.5 amps Additionally, Option 018 adds a 25 dB micrometer attenuator to the port 2 test head.

Banded waveguide solution

In order to assemble a banded waveguide solution, the following components are needed:

– Microwave PNA network analyzer (E8361A or E8362/3/4B) with

the following options:

– IF access – Option H11 – Configurable test set – Option 014 – Extended power range and bias-tees – Option UNL – Frequency-offset mode – Option 080 – Reference channel switch – Option 081 – Millimeter-wave test set controller (N5260A) with no options

– A set of waveguide modules:

– N5260AW15, 50 to 75 GHz – N5260AW12, 60 to 90 GHz – N5260AW10, 75 to 110 GHz – N5260AW08, 90 to 140 GHz – N5260AW06, 110 to 170 GHz – N5260AW05, 140 to 220 GHz – N5260AW03, 220 to 325 GHz

NOTE: To significantly improve system dynamic range above 220 GHz, Keysight strongly recommends adding two external synthesizers such as Keysight’s PSG Series signal generators; one for the RF signal, and one for the LO signal.

For more detailed information, see PNA Millimeter-wave Technical Overview, literature number 5988-9620EN.

On-wafer applications

For on-wafer applications, Cascade Microtech complete probing systems using the N5250A. These include both new probing systems and upgrades to existing Cascade Microtech products. Cascade can also provide on-wafer verification and probing system training. Once the N5250A system is verified in coax, Cascade Microtech will verify the system through its wafer probes.

provides

1. For more detailed information regarding the 110 GHz network analyzer system, refer to the Keysight Web site: www.keysight.com/nd/pna and download the N5250A

Technical Overview, literature number 5988-9620EN.

2. Up to 67 GHz.

3. Cascade Microtech is a Keysight Channel Partner.

N5250A Millimeter-Wave PNA Block Diagram

Reference

receiver

Reference

receiver

Option 016

receiver

attenuators

Port 1 Port 2

Bias-tee

50 dB

Bias-tee

50 dB

LO distribution to

each receiver

To IF multiplexer

(see Figure 5)

To IF multiplexer

(see Figure 5)

LO: 2 to 20 GHz

R1 IF

A IF

B IF

gate

RF: 2 to 20 GHz

IF multiplexer

A/D

External IF input

IF gating

(from LO distribution.

See test set

block diagram)

SMA

connectors

BNC

connectors

SMA

connectors

BNC

connectors

50 dB 50 dB

Receiver A

Receiver B

Port 1

Port 2

67 to 110 GHz

waveguide head

67 to 110 GHz

waveguide head

IF1 IF2 IF3 IF4

Test set I/O

LO RF

Combiner assembly

Test

port 1

Test

port 2

E8361A

with Option H11

N5260A

with

test heads

30 in.

76.2 cm

48 in.

121.9 cm

30 in.

76.2 cm

48 in.

121.9 cm

Combiner assembly

Optional

bias-tees

(Option 017)

Test set controller

With Option 017, the signal is routed out of the PNA from the front panel jumpers rather than the ports. Without Option 017, the signal is routed f rom the f ront panel por ts to the combiner assembly, allowing access to the PNA’s internal bias-tees.

PNA test set block diagram

Simplified receiver block diagram

Network analyzer

test set

Network analyzer

test set

Test port

adapter

Device

under

test

Single cable

Device

under

test

Cable set

Measurement Accessories

Calibration kits

A complete list of RF and microwave test accessories is available on our Web site:

www.keysight.com/find/accessories

Accessories are available in these connector types: 50 ohm Type-N, 3.5 mm, 7 mm, 2.4 mm, 2.92 mm, 1.85 mm, 1.0 mm, and waveguide. Test port cables and a calibration kit should be added for a complete measurement system. A verification kit is used to verify corrected system performance.

Cables and adapter sets

Keysight of fers cables in the following types:

– Single cables in semi-rigid and flexible – Cable sets in semi-rigid and flexible

There are also adapter sets available that protect the test port and convert the port to the desired connector interface. These kits contain:

– One male adapter – One female adapter

Coaxial measurements

Mechanical calibration kits include standards, such as opens, shorts and loads, which are measured by the network analyzer for increased measurement accuracy.

Electronic calibration (ECal) kits replace mechanical calibration standards with one solid-state calibration module that is controlled by the network analyzer via USB, to present many different impedances to the test ports. A full two-port calibration can be performed quickly with a single connection. This technique reduces operator errors and connector wear and abrasion.

Choose a calibration kit for each connector type to be used.

Economy, includes:

– Open standards (male and female) – Short standards (male and female) – Fxed-termination standards (male and female)

Standard, includes the devices in the economy kit and adds:

– Sliding load standards (male and female) or a series of offset shorts

To attain the best mechanical rigidity for device connection, use a single cable and the appropriate special adapter set. To attain the greatest flexibility for device connection, use a cable set.

Precision, includes the devices in the economy kit and adds:

– 50 ohm airline(s) for TRL calibration – TRL adapters

Waveguide measurements

For waveguide measurements, Keysight offers mechanical calibration kits that include:

– Waveguide-to-coax adapters (X, P, K, R, Q, U, V) – Precision waveguide section – Flush short circuit – Fixed terminations – Straight section

For devices with 1.0 mm connectors

For devices with 1.85 mm connectors

Mechanical calibration/verification kit

– 85059A DC to 110 GHz precision calibration/verification kit.

Includes:

85059-60003 1.00 mm (m) short 2.450 mm 85059-60007 1.00 mm (f) short 2.450 mm 85059-60004 1.00 mm (m) short 3.000 mm 85059-60008 1.00 mm (f) short 3.000 mm 85059-60002 1.00 mm (m) short 1.825 mm 85059-60006 1.00 mm (f) short 1.825 mm 85059-60001 1.00 mm (m) short 1.300 mm 85059-60005 1.00 mm (f) short 1.300 mm 85059-60009 1.00 mm male open 85059-60010 1.00 mm female open 85059-60019 1.00 mm male load 85059-60020 1.00 mm female load 85059-60021 1.00 mm lossy delay line 11920-60001 1.00 mm (m) to 1.00 mm (m) adapter 11920-60002 1.00 mm (f) to 1.00 mm (f) adapter 11920-60003 1.00 mm (m) to 1.00 mm (f) adapter 11500-60001 1.00 mm (f) to 1.00 mm (f) 8.8 cm cable 85059-60016 1.00 mm mismatch thru adapter for verification 85059-60017 1.00 mm matched thru adapter for verification 8710-2079 6 mm, 4 in-lb torque wrench 8710-2156 6 mm open end wrench

Cables

– 11500I 1.0 mm (f-f) test port cable (8.8 cm) – 11500J 1.0 mm (m-f) test port cable (16.0 cm) – 11500K 1.0 mm (m-f) test port cable (20.0 cm) – 11500L 1.0 mm (m-f) test port cable (24.0 cm)

Adapter set

– V281C 1.0 mm(f) to V-band waveguide adapter – V281D 1.0 mm (m) to V-band waveguide adapter – W281C 1.0 mm (f) to W-band waveguide adapter – W281D 1.0 mm (m) to W-band waveguide adapter – 11920A 1.0 mm (m) to 1.0 mm (m) adapter – 11920B 1.0 mm (f) to 1.0 mm (f) adapter – 11920C 1.0 mm (m) to 1.0 mm (f) adapter – 11921A 1.0 mm (m) to 1.85 mm (m) adapter – 11921B 1.0 mm (f) to 1.85 mm (f) adapter – 11921C 1.0 mm (m) to 1.85 mm (f) adapter – 11921D 1.0 mm (f) to 1.85 mm (m) adapter – 11922A 1.0 mm (m) to 2.4 mm (m) adapter – 11922B 1.0 mm (f) to 2.4 mm (f) adapter – 11922C 1.0 mm (m) to 2.4 mm (f) adapter – 11922D 1.0 mm (f) to 2.4 mm (m) adapter – 11923A 1.0 mm (f) connector launch assembly

1. For on-wafer applications, two 11500J/K/L cables are required; one cable for each test port.

2. Special rugged female connector specically for connecting to the network analyzer test port, but does not mate with a standard male connector.

Mechanical calibration kits

– 85058B Standard: DC to 67 GHz.

Includes:

85058-60101 1.85 mm (m) short 5.4 mm 85058-60102 1.85 mm (m) short 6.3 mm 85058-60103 1.85 mm (m) short 7.12 mm 85058-60104 1.85 mm (m) short 7.6 mm 85058-60105 1.85 mm (f) short 5.4 mm 85058-60106 1.85 mm (f) short 6.3 mm 85058-60107 1.85 mm (f) short 7.12 mm 85058-60108 1.85 mm (f) short 7.6 mm 85058-60109 1.85 mm male open 85058-60110 1.85 mm female open 85058-60111 1.85 mm male load 85058-60112 1.85 mm female load 85058-60113 1.85 mm (m) to 1.85 mm (m) adapter 85058-60114 1.85 mm (f) to 1.85 mm (f) adapter 85058-60115 1.85 mm (m) to 1.85 mm (f) adapter

– 85058E Economy: DC to 67 GHz

Includes:

85058-60101 1.85 mm (m) short 5.4 mm 85058-60105 1.85 mm (f) short 5.4 mm 85058-60109 1.85 mm male open 85058-60110 1.85 mm female open 85058-60123 1.85 mm male load 85058-60124 1.85 mm female load 85058-60113 1.85 mm (m) to 1.85 mm (m) adapter 85058-60114 1.85 mm (f) to 1.85 mm (f) adapter 85058-60115 1.85 mm (m) to 1.85 mm (f) adapter

Electronic calibration kits

– N4694A Microwave ECal: 10 MHz to 67 GHz, 2 ports.

Includes:

Option M0F module with: N4694-60001 1.85 mm (f) to 1.85 mm (m) ECal module Option 00M module with: N4694-60002 1.85 mm (m) to 1.85 mm (m) ECal module Option 00F module with: N4694-60003 1.85 mm (f) to 1.85 mm (f) ECal module Option 00A adds: 85058-60113 1.85 mm (m) to 1.85 mm (m) adapter 85058-60114 1.85 mm (f) to 1.85 mm (f) adapter

Cables

– N4697E2 Single, flexible:

1.85 mm (f) to 1.85 mm (f), 96.5 cm, 38 inches

– N4697F2 Set, flexible:

One 1.85 mm (f) to 1.85 mm (f) cable, 62.2 cm, 24.5 inches, p/n N4697-60100 One 1.85 mm (f) to 1.85 mm (m) cable, 62.2 cm, 24.5 inches, p/n N4697-60200

– N4697H2 Single, flexible:

1.85 mm (f) to 1.85 mm (m), 62.2 cm, 24.5 inches

– N4421B-B67 Set of 4, flexible:

1.85 mm (f) to 1.85 mm (m), 91.4 cm, 36 inches

Adapter set

– 85130H 1.85 mm2 to 1.85 mm

For devices with 2.4 mm connectors

Mechanical calibration kits

– 85056A Standard: DC to 50 GHz.

Includes:

00901-60003 2.4 mm (m) fixed broadband load 00902-60004 2.4 mm (f) fixed broadband load 00915-60003 2.4 mm (m) sliding load 00915-60004 2.4 mm (f) sliding load 85056-60005 2.4 mm (m) to 2.4 mm (m) adapter 85056-60006 2.4 mm (f) to 2.4 mm (f) adapter 85056-60007 2.4 mm (m) to 2.4 mm (f) adapter 85056-60020 2.4 mm (m) short 85056-60021 2.4 mm (f) short 85056-60022 2.4 mm (m) open 85056-60023 2.4 mm (f) open

– 85056D Economy: DC to 50 GHz.

Includes:

00901-60003 2.4 mm (m) fixed broadband load 00902-60004 2.4 mm (f) fixed broadband load 85056-60005 2.4 mm (m) to 2.4 mm (m) adapter 85056-60006 2.4 mm (f) to 2.4 mm (f) adapter 85056-60007 2.4 mm (m) to 2.4 mm (f) adapter 85056-60020 2.4 mm (m) short 85056-60021 2.4 mm (f) short 85056-60022 2.4 mm (m) open 85056-60023 2.4 mm (f) open

Electronic calibration kits

– N4693A Microwave ECal: 10 MHz to 50 GHz, 2 ports.

Includes:

Option M0F module with: N4693-60001 2.4 mm (f) to

2.4 mm (m) ECal module Option 00M module with: N4693-60002 2.4 mm (m) to

2.4 mm (m) ECal module Option 00F module with: 4693-60003 2.4 mm (f) to 2.4 mm (f) ECal module Option 00A adds: 85056-60005 2.4 mm (m) to 2.4 mm (m) adapter 85056-60007 2.4 mm (f) to 2.4 mm (f) adapter

Cables

– 85133C1 Single, semi-rigid:

2.4 mm (f) to PSC-2.4 mm (f), 81 cm, 32 inches

– 85133D1 Set, semi-rigid:

One 2.4 mm (f) to 2.4 mm (m), 53 cm, 21 inches, p/n 85133-60001 One 2.4 mm (f) to 2.4 mm (f), 53 cm, 21 inches, p/n 85133-60002

– 85133E1 Single, flexible:

2.4 mm (f) to PSC-2.4 mm (f), 97 cm, 38 inches

– 85133F1 Set, flexible:|One 2.4 mm (f) to 2.4 mm (f), 63 cm,

25 inches, p/n 85133-60016 One 2.4 mm (f) to 2.4 mm (m), 63 cm, 25 inches, p/n 85133-60017

– 85133G1 Single, semi-rigid: 2.4 mm (f) to 2.4 mm (m),

53 cm, 21 inches

– 85133H1 Single, flexible: 2.4 mm (f) to 2.4 mm (m), 63 cm,

25 inches

– N4421A-B20 Set of 4, flexible: 2.4 mm (f) to 2.4 mm (m),

91.4 cm, 36 inches

Adapter set

For devices with K connectors (2.92 mm)

Mechanical calibration kits

85056K 2.92/2.4 economy: DC to 40/50 GHz. Includes: 00901-60003 2.4 mm (m) fixed broadband load 00902-60004 2.4 mm (f) fixed broadband load 00915-60003 2.4 mm (m) sliding load (Option 001) 00915-60004 2.4 mm (f) sliding load (Option 001) 11904-60001 2.4 mm (m) to 2.92 mm (m) adapter 11904-60002 2.4 mm (f) to 2.92 mm (f) adapter 11904-60003 2.4 mm (m) to 2.92 mm (f) adapter 11904-60004 2.4 mm (f) to 2.92 mm (m) adapter 85056-60005 2.4 mm (m) to 2.4 mm (m) adapter 85056-60006 2.4 mm (f) to 2.4 mm (f) adapter 85056-60007 2.4 mm (m) to 2.4 mm (f) adapter 85056-60020 2.4 mm (m) short 85056-60021 2.4 mm (f) short 85056-60022 2.4 mm (m) open 85056-60023 2.4 mm (f) open

Electronic calibration kits

– N4692A Microwave ECal: 10 MHz to 40 GHz, 2 ports.

Includes:

Option M0F module with: N4692-60001 2.92 mm (f) to 2.92 mm (m) ECal module Option 00M module with: N4692-60002 2.92 mm (m) to 2.92 mm (m) ECal module Option 00F module with: N4692-60003 2.92 mm (f) to 2.92 mm (f) ECal module Option 00A adds: N4692-60021 2.92 mm (m) to 2.92 mm (m) adapter N4692-60022 2.92 mm (f) to 2.92 mm (f) adapter

Cables

– 85133C1 Single, semi-rigid:

2.4 mm (f) to PSC-2.4 mm (f), 81 cm, 32 inches

– 85133D1 Set, semi-rigid:

One 2.4 mm (f) to 2.4 mm (m), 53 cm, 21 inches, p/n 85133-60001 One 2.4 mm (f) to 2.4 mm (f), 53 cm, 21 inches, p/n 85133-60002

– 85133E1 Single, flexible:

2.4 mm (f) to PSC-2.4 mm (f), 97 cm, 38 inches

– 85133F1 set, flexible:

One 2.4 mm (f) to 2.4 mm (f), 63 cm, 25 inches, p/n 85133-60016 One 2.4 mm (f) to 2.4 mm (m), 63 cm, 25 inches, p/n 85133-60017

– 85133G1 Single, semi-rigid:

2.4 mm (f) to 2.4 mm (m), 53 cm, 21 inches

– 85133H1 Single, flexible:

2.4 mm (f) to 2.4 mm (m), 63 cm, 25 inches

– N4421A-B20 Set of 4, flexible: 2.4 mm (f) to 2.4 mm (m),

91.4 cm, 36 inches

Adapters

– 11904A 2.4 mm (m) to K (m) – 11904B 2.4 mm (f) to K (f) – 11904C 2.4 mm (m) to K (f) – 11904D 2.4 mm (f) to K (m) – 11904S 2.4 mm to K adapter set

85130G 2.4 mm1 to 2.4 mm

1. Special rugged female connector specically for connecting to the network analyzer test port, but does not mate with a standard male connector.

For devices with 3.5 mm or SMA connectors

Mechanical calibration kits

– 85052B Standard: DC to 26.5 GHz.

Includes:

00902-60003 3.5 mm (m) fixed load 00902-60004 3.5 mm (f) fixed load 00911-60019 3.5 mm (m) sliding load 00911-60020 3.5 mm (f) sliding load 85052-60006 3.5 mm (m) short 85052-60007 3.5 mm (f) short 85052-60008 3.5 mm (m) open 85052-60009 3.5 mm (f) open 85052-60012 3.5 mm (f) to 3.5 mm (f) adapter 85052-60013 3.5 mm (f) to 3.5 mm (m) adapter 85052-60014 3.5 mm (m) to 3.5 mm (m) adapter

– 85052C Precision TRL: DC to 26.5 GHz.

Includes:

00902-60003 3.5 mm (m) fixed load 00902-60004 3.5 mm (f) fixed load 85052-60006 3.5 mm (m) short 85052-60007 3.5 mm (f) short 85052-60008 3.5 mm (m) open 85052-60009 3.5 mm (f) open 85052-60032 3.5 mm (f) to 3.5 mm (f) adapter 85052-60033 3.5 mm (m) to 3.5 mm (m) adapter 85052-60034 3.5 mm (f) to 3.5 mm (m) adapter 85052-60035 3.5 mm short TRL line 85052-60036 3.5 mm long TRL line

– 85052D Economy: DC to 26.5 GHz.

Includes:

00902-60003 3.5 mm (m) fixed load 00902-60004 3.5 mm (f) fixed load 85052-60006 3.5 mm (m) short 85052-60007 3.5 mm (f) short 85052-60008 3.5 mm (m) open 85052-60009 3.5 mm (f) open 85052-60012 3.5 mm (f) to 3.5 mm (f) adapter 85052-60013 3.5 mm (f) to 3.5 mm (m) adapter 85052-60014 3.5 mm (m) to 3.5 mm (m) adapter

Electronic calibration kits

– 85093C RF ECal: 300 kHz to 9 GHz, 2 ports

Standard module includes:

Option M0F with: 85093-60008 3.5 mm (f) to 3.5 mm (m) ECal module Option 00F module with: 85093-60010 3.5 mm (f) to 3.5 mm (f) ECal module Option 00M module with: 85093-60009 3.5 mm (m) to 3.5 mm (m) ECal module Option 00A adds: 85052-60012 3.5 mm (m) to 3.5 mm (m) adapter 85052-60014 3.5 mm (f) to 3.5 mm (f) adapter

85093C-xxx mixed-connector options:

Port A option Port B option

Type (f) (m) Type (f) (m) Type (f) (m)

3.5 mm101 10 2 Type-N 50 ohm

– N4431B Microwave ECal: 300 kHz to 13.5 GHz, 4 ports.

Includes:

Option 010 module with: N4431-60006 4 x 3.5 mm (f) ECal module

N4431B-xxx mixed-connector options:

Connector type Port A

option

3.5 mm (f) 101 201 301 401

3.5 mm (m) 102 202 302 402

Type-N 50 ohm (f) Type-N 50 ohm (m) 7-16 (f) 105 205 305 405 7-16 (m) 106 206 306 406

– N4433A Microwave ECal: 300 kHz to 20 GHz, 4 ports.

Includes:

Option 010 module with: N4433-60003 4 x 3.5 mm (f) ECal module

N4433A-xxx mixed-connector options:

Connector type Port A

3.5 mm (f) 101 201 301 401

3.5 mm (m) 102 202 302 402

103 203 303 403

104 204 304 404

option

203 204 7-16 205 206

Port B option

Port C option

Port D option

– N4691B Microwave ECal: 300 kHz to 26.5 GHz, 2 ports.

Includes:

Option M0F module with: N4691-60001 3.5 mm (f) to 3.5 mm (m) ECal module Option 00M module with: N4691-60002 3.5 mm (m) to 3.5 mm (m) ECal module Option 00F module with: N4691-60003 3.5 mm (f) to 3.5 mm (f) ECal module Option 00A adds: 85052-60012 3.5 mm (m) to 3.5 mm (m) adapter 85052-60014 3.5 mm (f) to 3.5 mm (f) adapter

Cables

– 85131C1 Single, semi-rigid: 3.5 mm (f) to PSC-3.5 mm (f), 81 cm,

32 inches

– 85131D1 Set, semi-rigid:

One 3.5 mm (f) to 3.5 mm (m), 53 cm, 21 inches, p/n 85131-60009 One 3.5 mm (f) to PSC-3.5 mm (f), 53 cm, 21 inches, p/n 85131-60010

– 85131E1 Single, flexible: 3.5 mm (f) to PSC-3.5 mm (f), 96.5 cm, 38

inches

– 85131F1 Set, flexible:

One 3.5 mm (f) to 3.5 mm (m), 62.2 cm, 24.5 inches, p/n 85131-60012 One 3.5 mm (f) to PSC-3.5 mm (f), 62.2 cm, 24.5 inches, p/n 85131-60013

– 85131G1 Single, semi-rigid: 3.5 mm (f) to 3.5 mm (m), 53 cm,

21 inches

– 85131H1 Single, flexible: 3.5 mm (f) to 3.5 mm (m), 62.2 cm,

24.5 inches

– 85134C1 Single, semi-rigid: PSC-3.5 mm (f) to 2.4 mm (f), 81 cm, 32

inches

– 85134D1 Set, semi-rigid:

One 2.4 mm (f) to PSC-3.5 mm (f), 53 cm, 21 inches, p/n 85134-60002 One 2.4 mm (f) to PSC-3.5 mm (m), 53 cm, 21 inches, p/n 85134-60001

– 85134E1 Single, flexible: PSC-3.5 mm (f) to 2.4 mm (f), 96 cm,

38 inches

– 85134F1 Set, flexible:

Adapter sets

– 85130C 3.5 mm1 to Type-N

– 85130D 3.5 mm1 to 3.5 mm

– 85130F 2.4 mm1 to 3.5 mm

One 2.4 mm (f) to PSC-3.5 mm (f), 53 cm, 21 inches, p/n 85134-60004 One 2.4 mm (f) to PSC-3.5 mm (m), 53 cm, 21 inches, p/n 85134-60003

– 85134G1 Single, semi-rigid: 2.4 mm (f) to PSC-3.5 mm (m), 53 cm,

21 inches

– 85134H1 Single, flexible: 2.4 mm (f) to PSC-3.5 mm (m), 53 cm, 21

inches

– N4419A-B20 Set of 4, flexible: 3.5 mm (m) to 3.5 mm (f), 91.4 cm,

36 inches

– Z5623A-B20 Set of 4, flexible: 3.5 mm (m) to 3.5 mm (m),

91.4 cm, 36 inches (phase-matched)

1. Special rugged female connector specically for connecting to the network analyzer test port, but does not mate with a standard male connector.

2. For use with E8362A or B.

For devices with Type-N connectors

Mechanical calibration kits

– 85054B Standard: DC to 18 GHz.

Includes:

00909-60011 Type-N (m) fixed lowband load 00909-60012 Type-N (f) fixed lowband load 85054-60025 Type-N (m) short 85054-60026 Type-N (f) short 85054-60027 Type-N (m) open 85054-60028 Type-N (f) open 85054-60031 Type-N (f) to 7mm adapter 85054-60032 Type-N (m) to 7mm adapter 85054-60037 Type-N (f) to Type-N (f) adapter 85054-60038 Type-N (m) to Type-N (m) adapter 85054-80010 Type-N (f) sliding load 85054-80009 Type-N (m) sliding load 85054-60050 Type-N (f) connector gage 85054-60052 Type-N (f) gage master 85054-60051 Type-N (m) connector gage 85054-60053 Type-N (m) gage master

– 85054D Economy: DC to 18 GHz.

Includes:

85054-60025 Type-N (m) short 85054-60026 Type-N (f) short 85054-60027 Type-N (m) open 85054-60028 Type-N (f) open 85054-60031 Type-N (f) to 7mm adapter 85054-60032 Type-N (m) to 7mm adapter 85054-60037 Type-N (f) to Type-N (f) adapter 85054-60038 Type-N (m) to Type-N (m) adapter 85054-60046 Type-N (m) fixed load 85054-60047 Type-N (f) fixed load

Electronic calibration kits

– N4431B Microwave ECal: 300 kHz to 13.5 GHz, 4 ports.

Includes:

Option 020 module with: N4431-60007 4 x Type-N (f) ECal module

N4431B-xxx mixed-connector options:

Connector type Port A

option

3.5 mm (f) 101 201 301 401

3.5 mm (m) 102 202 302 402 Type-N 50 ohm

103 203 303 403 (f) Type-N 50 ohm

104 204 304 404 (m)

7-16 (f) 7-16 (m)

105 205 305 405

106 206 306 406

– N4432A Microwave ECal: 300 kHz to 18 GHz, 4 ports.

Includes:

Option 020 module with: N4432-60003 4 x Type-N (f) ECal module

– N4432A-xxx mixed-connector options:

Connector type Port A

option

3.5 mm (f) 101 201 301 401

3.5 mm (m) 102 202 302 402 Type-N 50 ohm

103 203 303 403 (f) Type-N 50 ohm

104 204 304 404 (m)

– N4690B Microwave ECal: 300 kHz to 18 GHz, 2 ports.

Includes:

Option M0F module with: N4690-60001 Type-N (f) to Type-N (m) ECal module Option 00M module with: N4690-60002 Type-N (m) to Type-N (m) ECal module Option 00F module with: N4690-60003 Type-N (f) to Type-N (f) ECal module Option 00A adds: 85054-60037 Type-N (f) to Type-N (f) adapter 85054-60038 Type-N (m) to Type-N (m) adapter

Port B option

Port C option

Port D option

1. Limits ECal module high frequency to 7.5 GHz.

2. Special rugged female connector specically for connecting to the network analyzer test port, but does not mate with a standard male connector.

Cables

Use the test port cables recommended for devices with 7 mm connectors, and 7 mm to Type-N adapters that are from the 85054B/D Type-N calibration kit (see 7 mm connector section).

For devices with 7 mm connectors

For devices with waveguide

Mechanical calibration kits

– 85050B standard: DC to 18 GHz.

Includes:

00909-60008 7 mm coax termination 85050-60006 7 mm fixed broadband load 85050-80007 7 mm short 85050-80010 7 mm open 85050-80011 7 mm sliding load

– 85050C precision TRL: DC to 18 GHz.

Includes:

00909-60008 7 mm coax termination 85050-60003 7 mm to 7 mm airline 85050-60005 7 mm to 7 mm TRL adapter 85050-60006 7 mm fixed broadband load 85050-80008 7 mm short 85050-80009 7 mm short collet 85050-80010 7 mm open

– 85050D economy: DC to 18 GHz.

Includes:

85050-60006 7 mm fixed broadband load 85050-80007 7 mm short 85050-80010 7 mm open

Electronic calibration kits

– N4696B Microwave ECal: 300 kHz to 18 GHz, 2 ports,

7mm to 7mm Microwave module

Cables

– 85132C single, semi-rigid: 7 mm to 3.5 mm (f), 81 cm,

32 inches

– 85132D set, semi-rigid: two 3.5 mm (f) to 7 mm cables,

53 cm each, 21 inches each2, p/n 85132-60003

– 85132E single, flexible: 7 mm to 3.5 mm (f), 97.2 cm, 38.25 inches

– 85132F set, flexible: two 3.5 mm (f) to 7 mm cables, 62.9 cm each,

24.75 inches each2, p/n 85132-60004

– 85135C single, semi-rigid: 7 mm to 2.4 mm (f), 81 cm, 32 inches

– 85135D set, semi-rigid: two 2.4 mm (f) to 7 mm cables, 53 cm

each, 21 inches each, p/n 85135-60001

– 85135E single, flexible: 7 mm to 2.4 mm (f), 96 cm, 38 inches

– 85135F set, flexible: two 2.4 mm (f) to 7 mm cables, 53 cm each, 21

inches each, p/n 85135-60002

Mechanical calibration kits

X Band

– X11644A standard, WR-90: 8.2 to 12.4 GHz.

Includes:

00896-60008 X-band standard section 00910-60003 X-band termination 11644-20018 X-band short 11644-20021 X-band shim

– 85132F cable set (set, flexible 7 mm to 3.5 mm, 62.9 cm each,

24.75 inches each2)

– 85135F cable set (set, flexible, 7 mm to 2.4 mm, 53 cm each,

21 inches each)

– X281C adapter (included in calibration kit):

WR-90 to 7 mm

P Band

– P11644A standard, WR-62: 12.4 to 18 GHz.

Includes:

00896-60007 P-band standard section 00910-60002 P-band termination 11644-20017 P-band short 11644-20020 P-band shim

– 85132F cable set (set, flexible, 7 mm to 3.5 mm, 62.9 cm each,

24.75 inches each

– 85135F cable set (set, flexible, 7 mm to 2.4 mm, 53 cm each,

21 inches each)

– P281C adapter (included in calibration kit): WR-62 to 7 mm

K Band

– K11644A standard, WR-42: 18 to 26.5 GHz.

Includes:

00896-60006 K-band standard section 00910-60001 K-band termination

11644-20016 K-band short 11644-20019 K-band shim

– 85134F cable set (set, flexible, 3.5 mm to 2.4 mm, 53 cm each, 21

inches each)

– K281C adapter (included in calibration kit): WR-42 to 3.5 mm (f)

Option 012 WR-42 to 3.5 mm (m)

)

Adapter sets

– 85130E 2.4 mm1 to 7 mm

1. Special rugged female connector specically for connecting to the network analyzer test port, but does not mate with a standard male connector.

2. For use with E8362A or B.

R Band

– R11644A standard, WR-28: 26.5 to 40 GHz.

Includes:

00914-20028 R-band termination 11644-20005 R-band short 11644-20003 R-band shim 11644-60001 R-band 10 cm straight waveguide 11644-60016 R-band 5 cm straight waveguide

– 85133F cable set (set, flexible, 2.4 mm, 53 cm each, 21 inches

each)

– R281A adapter (2.4 mm (f) to WR-28 waveguide adapter)

– R281B adapter (2.4 mm (m) to WR-28 waveguide adapter)

Q Band

– Q11644A standard, WR-22: 33 to 50 GHz.

Includes:

11644-60005 Q-band termination 11644-20004 Q-band short 11644-20001 Q-band shim 11644-60002 Q-band 10 cm straight waveguide 11644-60017 Q-band 5 cm straight waveguide

– 85133F cable set (set, flexible, 2.4 mm, 53 cm each, 21 inches

each)

– Q281A adapter (2.4 mm (f) to WR-22 waveguide adapter)

– Q281B adapter (2.4 mm (m) to WR-22 waveguide adapter)

U Band

– U11644A standard, WR-19: 40 to 60 GHz.

Includes:

11644-60006 U-band termination 11644-20004 U-band short 11644-20002 U-band shim 11644-60003 U-band 10 cm straight waveguide 11644-60018 U-band 5 cm straight waveguide

Verification kits

All Keysight verification kits include:

– Precision Z0 airline or match thru – Mismatched airline or mismatch thru – Fixed attenuators – Traceable measured data and uncertainties

– 85053B 300 kHz to 26.5 GHz 3.5 mm kit

Includes attenuators, airline and mismatch airline with data on a 3.5-inch disk for use in confirming accuracy enhanced system measurement performance, traceable to national standards. Test procedure is provided in the service manual.

– 85055A 300 kHz to 18 GHz Type-N kit

– 85057B 45 MHz to 50 GHz 2.4 mm kit

– 85058V 45 MHz to 67 GHz 1.85 mm kit

Includes attenuators, match thru and mismatch thru with data on a 3.5-inch disk for use in confirming accuracy enhanced system measurement performance, traceable to national standards. Test procedure is provided in the service manual.

V Band

– V11644A standard, WR-15: 50 to 75 GHz.

Includes:

11644-60025 V-band termination 11644-20015 V-band short 11644-20013 V-band shim 11644-60012 V-band standard section

General Accessories

USB

– N4688A CD-ROM drive

Provides an external read/write CD-ROM drive with a USB cable.

– N4689A USB hub

Provides a USB hub for connecting additional USB peripherals.

Hard drive

– N8980A spare hard drive

For use with 500 MHz Pentium III CPU board1 Recommended for use in secure environments.

– N8981A spare hard drive

For use with 1.1 GHz Pentium M CPU board1 Recommended for use in secure environments.

Probe

– 85024A high-frequency probe

Provides high-impedance in-circuit test capability from 300 kHz to 3 GHz.

Power meters and sensors

Recommended for self support, adjustments and performance tests to verify proper instrument operation.

– U2000A USB power sensor, 10 MHz to 18 GHz – U2001A USB power sensor, 10 MHz to 6 GHz – U2002A USB power sensor, 50 MHz to 24 GHz – U2004A USB power sensor, 9 kHz to 6 GHz – E4418B single-channel power meter – E4419B dual-channel power meter – 8481B power sensor, 10 MHz to 18 GHz, Type-N (m), 25 W – 8481A power sensor, 10 MHz to 18 GHz, Type-N (m), 100 mW – 8485A power sensor, 50 MHz to 26.5 GHz, APC-3.5 mm (m), 100 mW – 8487A power sensor, 50 MHz to 50 GHz, 2.4 mm, 300 mW – 8487D power sensor, 50 MHz to 50 GHz, 2.4 mm, 100 mW – R8486A power sensor, 26 GHz to 40 GHz, waveguide flange

UG-599/U, 100 mW

– Q8486A power sensor, 33 GHz to 50 GHz, waveguide flange

UG-383/U, 100 mW

– U8486A power sensor, 50 GHz to 75 GHz, waveguide flange

UG-385/U, 200 mW avg – E4412A CW power sensor, 10 MHz to 18 GHz, Type-N (m), 200 mW – E4413A CW power sensor, 50 MHz to 26.5 GHz, 3.5 mm, 200 mW

Amplifiers

– 83006A power amplifier, 10 MHz to 26.5 GHz, 20 dB gain, power

out: +18 dBm to 10 GHz or +16 dBm to 20 GHz or +14 dBm to 26.5 GHz

– 83017A power amplifier, 50 MHz to 26.5 GHz, 25 dB gain, power

out: +20 dBm to 20 GHz, or +15 dBm to 26.5 GHz

– 83018A power amplifier, 2 to 26.5 GHz, 27 dB gain to 20 GHz or

23 dB to 26.5 GHz, power out: +24 dBm to 20 GHz or +21 dBm to

26.5 GHz

– 83020A power amplifier, 2 to 26.5 GHz, 30 dB gain to 20 GHz or

27 dB to 26.5 GHz, power out: +30 dBm to 20 GHz or +26 dBm to

26.5 GHz

– 83050A power amplifier, 2 to 50 GHz, 23 dB gain, power out:

+20 dBm to 40 GHz or +17 dBm to 50 GHz

– 83051A power amplifier, 45 MHz to 50 GHz, 23 dB gain power out:

+12 dBm to 45 GHz or +10 dBm to 50 GHz

Couplers

– 87300B coaxial coupler, 1 to 20 GHz, SMA (f), 10 dB coupling

– 87300C coaxial coupler, 1 to 26.5 GHz, 3.5 mm (f), 10 dB coupling

– 87301B coaxial coupler, 10 to 46 GHz, 2.92 mm (f), 10 dB coupling

– 87301D coaxial coupler, 1 to 40 GHz, 2.4 mm (f) or optional

2.92 mm (f), 13 dB coupling

– 87301E coaxial coupler, 2 to 50 GHz, 2.4 mm (f), 10 dB coupling

– 87310B 90 ° coaxial coupler, 1 to 18 GHz, SMA (f), 3 dB coupling

Equipment rack accessories

– E3663AC Rail kit

– 5063-9217 Rack mount kit, for use without handles (included with

Option 1CM)

– 5063-9205 Front handle kit

– 5063-9224 Rack mount kit with handles

– 5063-9237 Rack mount kit, for use with standard supplied handles

(included with Option 1CP)

1. The 500 MHz CPU board has one USB port oriented vertically and a single GPIB port. The 1.1 GHz CPU board has four USB ports and two GPIB ports. For more information on this subject, refer to http://na.support.keysight.com/pna/hdnum- bers.html.

2. For the latest guide to power meters and power sensors, refer to the Keysight web site: www.keysight.com/nd/powermeters

3. Front handles and Option 1CP (rack mount with handles) are not available for the

N5242A.

Applications

Material measurements

– 85070E High-Temperature Dielectric Probe Kit

The 85070E enables measurements of the dielectric properties of materials quickly and conveniently. Measurements made with this probe are nondestructive and require no sample preparation. The dielectric probe is well suited for measurements of liquid, semisolid and flat solid materials. Measurement results can be viewed in a

variety of formats (ε’r, ε”r, tan δ or Cole-Cole). The supplied software

can be run in the PNA analyzer or on a PC.

– 85071E Materials Measurement Software

The 85071E materials measurement software calculates the permitivity and permeability of material samples placed in a coaxial airline or a rectangular waveguide. The measurement technique works well for solid materials that can be machined to fit precisely inside a transmission line. Measurement results can be viewed in a variety of formats

(ε’r, εr, µ’r, µ”r, tan δ, or Cole-Cole µ). The software can be run in the

PNA analyzer or on a PC.

Pulsed measurements

The pulsed RF measurement capability (Option H08) and IF access (Option H11), are recommended for pulsed measurements with the PNA Series.

Pulse/pattern generators

Recommended to provide pulse signals and timing to the pulsed S-parameter text set and MW PNA

– 81104A Pulse/pattern generator, 80 MHz, single-/dual-channel

with one or two Keysight 81105A output modules.

– 81110A Pulse/pattern generator, 165 MHz, single-/dual-channel

with one or two Keysight 81111A output modules.

– Z5623AH84 Pulsed S-parameter test set, 2 to 40 GHz

Includes two pin switches for bi-directional (forward and reverse) pulsed-RF stimulus, and two directional couplers for the reference channels. It does not include internal amplifiers, but has front panel access loops for switching in external amplifiers to boost port power in both directions.

– Z5623AH86 Pulsed S-parameter test set, 2 to 40 GHz

Includes one pin switch to modulate the analyzer’s internal source in the forward direction, and one directional coupler for the reference channel. It does not include internal amplifiers, but has front panel access loops for switching in an external amplifier to boost port power.

– Z5623AH87 Pulsed S-parameter test set, 1 to 50 GHz

Includes two pin switches for bi-directional (forward and reverse) pulsed-RF stimulus. It does not include internal amplifiers, but has front panel access loops for switching in external amplifiers to boost port power in both directions.

– Z5623AH89 Pulsed S-parameter test set, 10 MHz to 5 GHz

Includes one pin switch to modulate the analyzer’s internal source in the forward direction. This test set has no internal amplifier, no reference channel variable attenuator, and no GPIB control (manual control only).

– Z5623AH90 Pulsed S-parameter test set, 1 to 50 GHz

Same as Z5623AH87, but adds 50 GHz couplers to the front panel to allow DUT connection on the test set instead of using the PNA test ports.

Note: Pulse biasing can be achieved with or without the use of a pulsed S-parameter test set. A proper pulse-bias driver must be used. Contact your local Keysight Sales Representative for additional pulsed S-parameter test set configurations and details.

Note: Each pulse/pattern generator must be ordered with its associated output modules depending on the measurement configuration.

Pulsed S-Parameter test sets

– Z5623AH81 Pulsed S-parameter test set, 2 to 20 GHz

Includes a pin-diode switch to modulate the analyzer’s internal source, an amplifier, and directional coupler to provide a pulsed reference to the analyzer.

– Z5623AH83 Pulsed S-parameter test set, 2 to 20 GHz

1. For more details regarding pulsed measurement congurations with the PNA Series, refer to Keysight’s Web site (www.keysight.com/nd/pna) to download a copy of the Microwave PNA Series Network Analyzer Conguration Guide for Pulsed

Measurements, literature number 5988-9833EN.

Peripherals

The following peripherals may be used with the Microwave PNA Series. Other peripherals not listed here may also be compatible with these instruments.

Monitors

VGA-compatible monitor

Printers

USB, LAN, parallel or serial printers with Microsoft Windows printer driver

Interface cables

Choose the appropriate cables to connect each peripheral to the network analyzer.

– 10833A GPIB cable, 1.0 m (3.3 ft) – 10833B GPIB cable, 2.0 m (6.6 ft) – 10833D GPIB cable, 0.5 m (1.6 ft)

– 82357B GPIB to USB interface

Upgrade Kits

Upgrade kits for the PNA Series E8362B, E8363B, E8364B, E8361A, N5250A

Upgrade kits are available to add options after initial purchase. To order an upgrade kit for the PNA series, order the analyzer’s model number followed by a “U”, then indicate the option to be added (for example, E8362BU-010). The serial number of the instrument to be retrofitted is required as part of the order.

– Time-domain (Option 010) User installable.

– Configurable test set (Option 014)

Provides six front-panel RF access loops. Includes installation at a Keysight service center.

– Receiver attenuators (Option 016)

Includes installation at a Keysight service center.

– Extended memory (Option 022)

Applies only to E8362B/63B/64B/61A with 256 MB of RAM. Includes installation at a Keysight service center.

– Frequency range upgrade to an E8363B (40 GHz) PNA

(Option 04/41) Available only for the E8362A/B. Includes installation at a Keysight service center.

– Frequency range upgrade to an E8364B (50 GHz) PNA

(Option 05/51) Available only for the E8362A/B and E8363A/B Includes installation at a Keysight service center.

– Frequency range upgrade to an E8361A (67 GHz) PNA

(Option 067/068)) Available only for the E8363B and E8364B. Includes installation at a Keysight service center.

– Frequency-offset (Option 080)

Includes installation at a Keysight service center.

– External reference switch (Option 081)

Includes installation at a Keysight service center.

– Scalar-calibrated converter measurements (Option 082)

User installable. Option 080 required.

– Frequency converter measurement application (Option 083)

User installable. Option 080 and 081 required.

– Embedded LO measurements (Option 084)

– 4-port measurement application (Option 550)

Enables full 4-port error correction and differential measurements. Option 014 and external test set required. User installable.

– N-port capabilities (Option 551)

Adds full N-port error correction and measurement capabilities. Option 014 and external test set required. User installable.

– Extended power range (Option UNL)

Adds a step attenuator and a bias-tee between source and each test port. Includes installation at a Keysight service center.

– Pulsed-RF measurement capability (Option H08)

Provides software to set up and control pulsed-RF measurements using narrowband detection, with point-in-pulse and pulseprofile capability. User installable.

– IF access (Option H11)

Provides hardware for antenna, point-in-pulse, and millimeterwave measurements. Adds rear-panel RF and LO outputs, external IF inputs, and IF gates (gates enabled with Option H08). Includes installation at a Keysight service center.

– High-power test set (Option H85)

Removes bias tees for higher test port power-handling capability. Options UNL, 014, 016, 080, and 081 are required. Includes installation at a Keysight Service Center.

– Upgrade to C model

(Option 221 or Option 241) Provides new front panel, new hard drive with latest firmware and new GUI. Option 221 is available for the E8361A, E8362/3 /4B, and N5230A 2-port instruments. Option 241 is available for N5230A 4-port instruments.

1. Please contact Keysight for ordering this upgrade.

2. Some older PNAs may also require the purchase of a new CPU board.

3. For N5250A upgrades, order E8361AU options.

Upgrade kits for the PNA-L Series N5230A

x20 x25 x40 x45 x46

020

025

120 140

125 145

146

220 240

225 245

246

420

425

520

525

6 GHz

20 GHz

40 GHz

50 GHz

927

960

971

973

990

960

966

921/922

Upgrade kits are available to add options after initial purchase. To order an upgrade kit for the PNA-L series, order the analyzer’s model number followed by a “U”, then indicate the option to be added (example: N5230AU-010). The serial number of the instrument to be retrofitted is required as part of the order.

– Time-domain upgrade kit (Option 010)

The serial number of the instrument to be retrofitted must be specified when ordering this kit. User installable.

– Frequency-offset upgrade kit (Option 080)

The serial number of the instrument to be retrofitted must be specified when ordering this kit. User installable.

– Scalar-calibrated converter measurements (Option 082)

User installable. Option 080 required.

– 4-port measurement application (Option 550)

Enables full 4-port error correction and differential measurements on a 2-port network analyzer with configurable test set (Option x25). External test set required. User installable.

– N-port capabilities (Option 551)

Adds full N-port error correction and measurement capabilities to PNA-L with configurable test set (Option xx5 or x46). External test set required. User installable.

– 6 or 13.5 GHz configurable test set & extended power range

upgrade kit (Option 901) Applicable to 6 or 13.5 GHz PNA-L (N52300-020, N52300-120). Upgrade to configurable test set and extended power range. Includes installation at a Keysight service center.

– 20 GHz 2-port configurable test set & extended power range

upgrade kit (Option 921) Applicable to 20 GHz PNA-L (N52300-220 with serial prefix MY4500A and below). Upgrade to configurable test set and extended power range. Includes installation at a Keysight service center.

– 20 GHz 2-port configurable test set & extended power range

upgrade kit (Option 922)

Applicable to 20 GHz PNA-L (N52300-220 with serial prefix MY4640A and above). Upgrade to configurable test set and extended power range. Includes installation at a Keysight service center.

– 13.5 or 20 GHz 4-port configurable test set & extended power

range upgrade kit (Option 926) Applicable to 20 GHz 4-port PNA-L (N52300-140, N52300-240). Upgrade to configurable test set and extended power range. Includes installation at a Keysight service center.

– 13.5 GHz 4-port configurable test set, extended power range

& internal second source upgrade kit (Option 928) Applicable to 13.5 GHz 4-port PNA-L (N52300-145). Upgrade to configurable test set, extended power range and internal second source. Includes installation at a Keysight service center. (Option 080 recommended. Please note, Option 080 is needed in order to have independent control of the two internal sources.)

– 20 GHz 4-port configurable test set, extended power range &

internal second source upgrade kit (Option 927)

Applicable to 20 GHz 4-port PNA-L (N52300-245). Upgrade to configurable test set, extended power range and internal second source. Includes installation at a Keysight service center. Option 080 recommended.

– 40 or 50 GHz configurable test set & extended power range

upgrade kit (Option 941) Applicable to 40 or 50 GHz PNA-L (N52300-420, N52300-520). Upgrade to configurable test set and extended power range. Includes installation at a Keysight service center.

– Frequency range upgrade from 6 to 13.5 GHz (Option 960)

Applicable to the 6 GHz PNA-L (N52300-020, N52300-025). Includes installation at a Keysight service center.

– Frequency range upgrade from 13.5 to 20 GHz (Option 966)

Applicable to the 13.5 GHz 4-port PNA-L (N52300-140, N52300145, N52300-146). Includes installation at a Keysight service center.

– Frequency range upgrade from 20 to 40 GHz (Option 971)

Applicable to the 20 GHz PNA-L (N52300-220). Includes installation at a Keysight service center.

– Frequency range upgrade from 20 to 40 GHz (Option 973)

Applicable to the 20 GHz PNA-L (N52300-225 with serial prefix MY4500A and below). Includes installation at a Keysight service center.

– Frequency range upgrade from 40 to 50 GHz (Option 990)

Applicable to the 40 GHz PNA-L (N52300-420, N52300-425). Includes installation at a Keysight service center.

For additional upgrade paths, contact your Keysight field office.

PNA-L upgrade path examples.

Upgrade kits for the PNA-X N5242A

N5242A PNA-X upgrade path

2-port 4-port 200 219 224 400 419 423

921 922 926 927 200 219 224 400 419 423

Upgrade kits are available to add options after initial purchase. To order an upgrade kit for the PNA-X, order the analyzer’s model number followed by a “U”, then indicate the option to be added (example: N5242AU-010). The model and serial numbers of the instrument to be retrofitted are required as part of the order.

– Pulse measurements (Option H08)

User installable.

– Time-domain (Option 010)

User installable.

– Add IF inputs for antenna and millimeter-wave (Option 020)

User installable.

– Add pulse modulator to internal 1st source (Option 021)

User installable.

– Add pulse modulator to internal 2nd source (Option 022)

User installable. Option 224 or 400 required.

– Add four internal pulse generators (Option 025)

User installable.

– Frequency offset (Option 080)

User installable.

– Scalar-calibrated converter measurements (Option 082)

User installable. Option 080 required, and can not be ordered with Option 083.

– Frequency converter measurements (Option 083)

User installable. Option 080 required, and can not be ordered with Option 082.

– Embedded LO measurements (Option 084)

User installable. Options 080 and 083 required. Requires firmware A.07.50 and above.

– Gain compression application (Option 086)

User installable. Requires firmware A.08.00 and above.

– N-port capabilities (Option 551)

User installable.

– Perpetual license for built-in performance test software for

Keysight inclusive calibration (Option 897)

User installable. Additional hardware required.

– Perpetual license for built-in performance test software for

standards compliant calibration (Option 898)

User installable. Additional hardware required.

– 2 ports, extended power range and bias-tees (Option 921)

Applicable to 2-port model only (N5242A-200). This upgrade adds one 65 dB source attenuator, one 35 dB receiver attenuator, and one bias-tee to each test port. Includes installation at a Keysight service center. Option 200 required.

– 2 ports, add an internal 2nd source, a combiner & mechanical

switches (Option 922)

Applicable to 2-port models only (N5242A-200, N5242A-219). This upgrade adds an internal second source, a combiner and mechanical switches. Access to the second source is available through two output (SMA) connectors on the front panel. Includes installation at a Keysight service center. Options 200, 219 and 080 required.

– Fully corrected noise figure measurements, 2-port (Option 924)

Adds fully-corrected noise figure measurements to 2-port analyzer. Includes installation at a Keysight Service Center. Option 219 or 224 required.

– 4 ports, extended power range and bias-tees (Option 926)

Applicable to 4-port model only (N5242A-400). This upgrade adds one 65 dB source attenuator, one 35 dB receiver attenuator, and one bias-tee to each test port. Includes installation at a Keysight service center. Option 400 required.

– 4 ports, add an internal combiner & mechanical switches (Option

927) Applicable to 4-port models only (N5242A-400, N5242A-419). This upgrade adds a combiner and mechanical switches. Includes installation at a Keysight service center. Options 400, 419 and 080 required.

– Fully corrected noise figure measurements, 4-port (Option 929)

Adds fully-corrected noise figure measurements to 4-port analyzer. Includes installation at a Keysight Service Center. Option 419 or 423 required.

Key Web Resources

Visit our Web sites for additional product information and literature:

www.keysight.com/find/pna

Electronic calibration (ECal) visit:

www.keysight.com/find/ecal

Material test equipment:

www.keysight.com/find/materials

Test and measurement accessories:

www.keysight.com/find/accessories

Antenna and radar cross-section products visit:

www.keysight.com/find/antenna

Multiport test sets visit:

www.keysight.com/find/multiport

Pulsed-RF products visit:

www.keysight.com/find/pulsedRF

On-wafer and in-fixture measuring products visit:

www.keysight.com/find/probingRF

Keysight’s service and support products visit:

www.keysight.com/find/tm_services

Expand your measurement capabilities with Keysight qualified channel partners

Our channel partners offer accessories and measurement solutions that extend your network analysis capabilities.

For more information about probing equipment and accessories, contact:

Cascade Microtech, Inc

2430 NW 206th Avenue Beaverton, Oregon 97006, USA Toll free telephone: 1-800-550-3279 Telephone: (503) 601-1000 Fax: (503) 601-1002 Web site: www.cascademicrotech.com E-mail: sales@cmicro.com

40 | Keysight | PNA Series Microwave Network Analyzers – Configuration Guide

Evolving Since 1939

Our unique combination of hardware, software, services, and people can help you reach your next breakthrough. We are unlocking the future of technology.

From Hewlett-Packard to Agilent to Keysight.

myKeysight

www.keysight.com/find/mykeysight

A personalized view into the information most relevant to you.

http://www.keysight.com/find/emt_product_registration

Keysight Services

www.keysight.com/find/service

Keysight Services can help from acquisition to renewal across your instrument’s lifecycle. Our comprehensive service offerings—onestop calibration, repair, asset management, technology refresh, consulting, training and more—helps you improve product quality and lower costs.

Keysight Assurance Plans

www.keysight.com/find/AssurancePlans

Up to ten years of protection and no budgetary surprises to ensure your instruments are operating to specification, so you can rely on accurate measurements.

Keysight Channel Partners

www.keysight.com/find/channelpartners

Get the best of both worlds: Keysight’s measurement expertise and product breadth, combined with channel partner convenience.

For more information on Keysight Technologies’ products, applications or services, please contact your local Keysight office. The complete list is available at:

www.keysight.com/find/contactus

Americas

Canada (877) 894 4414 Brazil 55 11 3351 7010 Mexico 001 800 254 2440 United States (800) 829 4444

Asia Pacific

Australia 1 800 629 485 China 800 810 0189 Hong Kong 800 938 693 India 1 800 11 2626 Japan 0120 (421) 345 Korea 080 769 0800 Malaysia 1 800 888 848 Singapore 1 800 375 8100 Taiwan 0800 047 866 Other AP Countries (65) 6375 8100

Europe & Middle East

Austria 0800 001122 Belgium 0800 58580 Finland 0800 523252 France 0805 980333 Germany 0800 6270999 Ireland 1800 832700 Israel 1 809 343051 Italy 800 599100 Luxembourg +32 800 58580 Netherlands 0800 0233200 Russia 8800 5009286 Spain 800 000154 Sweden 0200 882255 Switzerland 0800 805353

Opt. 1 (DE) Opt. 2 (FR) Opt. 3 (IT)

United Kingdom 0800 0260637

For other unlisted countries:

www.keysight.com/find/contactus

(BP-9-7-17)

DEKRA Certified

ISO9001 Quality Management System

www.keysight.com/go/quality

Keysight Technologies, Inc. DEKRA Certified ISO 9001:2015 Quality Management System

This information is subject to change without notice. © Keysight Technologies, 2017 Published in USA, December 2, 2017 5988-7989EN

www.keysight.com

Keysight Technologies PNA-L N5230A, PNA-X N5242A, PNA E8363B, PNA E8364B, PNA E8362B Configuration Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
