Keysight Technologies
N9344C/N9343C/N9342C
Handheld Spectrum Analyzer (HSA)
Conguration Guide
02 | Keysight | N9342-44C Handheld Spectrum Analyzer (HSA) - Conguration Guide
Configure your Keysight N934xC* Handheld Spectrum Analyzer (HSA)
This configuration guide will help you determine which performance options, measurement application software, accessories, and
services to include with your new Keysight Technologies, Inc. N9344C, N9343C and N9342C HSAs, or to add as upgrades to an
existing HSA. This step-by-step process will help you configure your N9344C/N9343C/N9342C HSAs. Capabilities that are listed as
standard come with the instrument at no additional charge. Tailor the performance, and service packages to meet your requirements.
Ordering optional capabilities at the time of purchase provides the lowest overall cost.
For performance information, refer to the N9344C/N9343C/N9342C Handheld Spectrum Analyzer Data Sheets. See literature
numbers in the Additional Resources section on page 7.
Description Option number Additional information
Step 1. Select maximum frequency range (frequency range not upgradable)
Frequency range, 1 MHz to 20 GHz N9344C Tunable to 9 kHz
Frequency range, 1 MHz to 13.6 GHz N9343C Tunable to 9 kHz
Frequency range, 100 kHz to 7 GHz N9342C Tunable to 9 kHz
Step 2. Add a preamplifier
Preamplifier, 1 MHz to 20 GHz N9344C-P20
Preamplifier, 1 MHz to 13.6 GHz
Preamplifier, 100 kHz to 7 GHz N9342C-PA7 For N9342C
Step 3. Add a tracking generator
Tracking generator, 5 MHz to 7 GHz N934xC-TG7 Output level –20 dBm to 0 dBm, 1 dB step
Step 4. Add a cable and antenna tester
Cable and antenna test, 5 MHz to 7 GHz N9342C-CA7 – Exclusive to the N9342C HSA.
Step 5. Add a GPS receiver
GPS receiver, with built-in antenna N934xC-GPS Provides information on longitude, latitude, and altitude.
Step 6. Add optional measurement features
Spectrum monitor N934xC-SIM Adds spectrogram view, record, playback, and audio alert. Great tool for spectrum
Channel scanner N934xC-SCN Allows the user to easily measure channel power of multiple channels and export data
Task planner N934xC-TPN Reduces test setup time by 95%, delivers test automation and consistency, and
U2000 Series USB power sensor support N934xC-PWM Requires the Keysight U2000 Series USB power sensor.
U2020/2040 X-Series USB peak and
average power sensor support
Security features N934xC-SEC Low-level and non-recoverable formatting of user memory and
EMI filters and quasi-peak detector N934xC-EMC Provides CISPR compliant resolution bandwidth (200 Hz, 9 kHz, 120 kHz and 1 MHz)
N9343C-P13 For N9343C
N934xC-PWP Requires the Keysight U2020/2040 X-Series USB peak and average power sensor.
For N9344C
– Offers return loss, VSWR, cable loss, and distance-to-fault (DTF).
– Requires the tracking generator module (Option TG7).
– Requires N9311X-201 precision mechanical calibrator (3-in-1 OSL).
– Recommended accessories include N9311X-585 phase stable cable type N(m)
to DIN(f), N9311X-586 phase stable cable type N(m) to N(f), and N9311X-547
adapter type N(m) to DIN(f).
An optional external antenna N934xC-GPA can be ordered.
monitoring and interference analyzing.
to mapping applications like Google Earth and MapInfo.
makes it easy to capture test results, generate reports, and share task plans with
others. Find more information at www.keysight.com/find/taskplanner.
USB/LAN port control
and quasi-peak detector for basic EMI precompliance test.
* * Throughout this document “N934xC” refers to N9344C, N9343C, and N9342C.
03 | Keysight | N9342-44C Handheld Spectrum Analyzer (HSA) - Conguration Guide
Configure your Keysight N934xC Handheld Spectrum Analyzer (HSA)
(continued)
Description Option number Additional information
Baseband input N9342C-BB1 Exclusive to the N9342C HSA. Offers improved RF performance below 12 MHz.
AM/FM modulation analysis N934xC-AMA Provides modulation metrics, including carrier power, modulation rate, and AM
depth/FM deviation.
ASK/FSK modulation analysis N934xC-DMA Provides modulation metrics, including carrier power, ASK depth/index, and FSK
deviation.
Time-gated spectrum analysis N934xC-TMG Measures any one of several signals separated in time, or excludes periodic
interfering signals.
Step 7. Add an accessory
Spare battery N934xC-BAT Lithium ion, 10.8 V, 4.56 A-hr
Spare external battery charger N934xC-BCG
Spare AC/DC adapter N934xC-ADP 1 output: 15 V, 5.33 A
Automotive 12 V DC adapter and charger N934x C-1DN Provides DC power supply and power charging
Hard transit case N93 4xC-1T C
Adaptor, 50 to 75 Ω N934xC-TAD Type N(m) 50 Ω to type N(f) 75 Ω
Ergonomic soft carrying case with
backpack and shoulder strap
External GPS antenna N934xC-GPA SMA-M connector
Calibrator N9 311x-201 Precision mechanical calibrator, 3-in-1 OSL, DC to 7 GHz, N(m)
Antenna N9311x-500 70 to 1000 MHz, 65 g, 180 degree tilt angle adjustable, N(m) telescopic whip antenna
Antenna N9311x-501 700 to 2500 MHz, 70 g, 210 mm x 20 mm, omni-directional, N(m)
Antenna N9311x-504 700 MHz to 4 GHz, 4 dBi gain, 270 g, 340 mm x 200 mm x 25 mm, logarithmic-
Antenna N9311x-508 680 MHz to 8 GHz, 5 dBi gain, 250 g, 340 mm x 200 mm x 25 mm, logarithmic-
Antenna N9 311x-518 680 MHz to 18 GHz, 5 dBi gain, 250 g, 340 mm x 200 mm x 25 mm, logarithmic-
Bandpass filter N9311x-550 – 3 dB passband 814 to 850 MHz
N934xC-SCC
periodic, N(m)
periodic, N(m)
periodic, N(m)
– Rejection ≥ 36 dBc at 740 MHz, ≥ 36 dBc at 915 MHz
– Insertion loss ≤ 0.5 dB
– VSWR ≤ 1.5
04 | Keysight | N9342-44C Handheld Spectrum Analyzer (HSA) - Conguration Guide
Configure your Keysight N934xC Handheld Spectrum Analyzer (HSA)
(continued)
Description Option number Additional information
Step 7. Add an accessory (continued)
Bandpass filter N9 311x-5 51 – 3 dB passband 880 to 915 MHz
– Rejection ≥ 35 dBc at 826 MHz, ≥ 36 dBc at 932 MHz
– Insertion loss ≤ 1 dB
– VSWR ≤ 1.5
Bandpass filter N9 311x-5 52 – 3 dB passband 1707.5 to 1787.5 MHz
– Rejection ≥ 35 dBc at 1550 MHz, ≥ 35 dBc at 1925 MHz
– Insertion loss ≤ 0.4 dB
– VSWR ≤ 1.5
Bandpass filter N9 311x-5 5 3 – 3 dB passband 1845 to 1915 MHz
– Rejection ≥ 35 dBc at 1770 MHz, ≥ 35 dBc at 1986 MHz
– Insertion loss ≤ 0.6 dB
– VSWR ≤ 1.5
Bandpass filter N9 311x-5 5 4 – 3 dB passband 1910 to 1990 MHz
– Rejection ≥ 35 dBc at 1825 MHz, ≥ 35 dBc at 2070 MHz,
– Insertion loss ≤ 0.6 dB
– VSWR ≤ 1.5
Adapter N9 311x-5 40 Type-N(m) to BNC(f), DC to 2 GHz
Adapter N9 311x-5 41 Type-N(m) to SMA(f), DC to 12.4 GHz
Adapter N9 311x-5 42 Type-N(f) to 7/16 DIN(f), DC to 7.5 GHz
Adapter N9 311x-5 43 Type-N(f) to BNC(m), DC to 4 GHz
Adapter N9 311x-5 44 Type-N(f) to 7/16 DIN(m), DC to 7.5 GHz
Adapter N9 311x-5 45 Type-N(f) to SMA(m), DC to 12.4 GHz
Adapter N9311x-546 Type-N(f) to Type-N(f), DC to 18 GHz
Adapter N9 311x-5 47 Type-N(m) to DIN(f), DC to 7.5 GHz
Cable N9 311x-5 8 0 Phase stable, 1.5 m, N(m) to N(m)
Cable N9 311x-5 81 Phase stable, 3 m, N(m) to N(m)
Cable N9 311x-5 8 2 1.5 m, SMA(m) to SMA(m)
Cable N9 311x-5 8 3 1.5 m, BNC(m) to BNC(m)
Cable N9 311x-5 8 5 Phase stable, 1.5 m, N(m) to DIN(f)
Cable N9 311x-5 8 6 Phase stable, 1.5 m, N(m) to N(f)
Attenuator N9 311x-5 6 0 40 dB, N(m) to N(f), 10 watts average
Attenuator N9 311x-5 61 40 dB, N(m) to N(f), 50 watts average
Attenuator N9 311x-5 6 2 40 dB, N(m) to N(f), 100 watts average
Step 8. Add calibration service
Select Keysight calibration plan
Commercial calibration certificate with test data N934xC-UK6 Keysight provides a commercial calibration certification; only available at time of
purchase; provides measurement results.
3-year calibration assurance plan
(return to Keysight)
5-year calibration assurance plan
(return to Keysight)
R-50C-011-3 Priority calibration service covering all calibration costs for
3 years; 15% cheaper than buying stand-alone calibrations.
R-50C-011-5 Priority calibration service covering all calibration costs for
5 years; 20% cheaper than buying stand-alone calibrations.
05 | Keysight | N9342-44C Handheld Spectrum Analyzer (HSA) - Conguration Guide
Instrument Upgrades
Upgrade your existing Keysight N934xC (HSA)
Keysight provides a fast upgrade process for performance options that do not require additional hardware.
1. Place an order for the upgrade with Keysight and ask to receive the option upgrade entitlement certificate through email.
2. Redeem the certificate through the Web by following the instructions on the certificate.
3. Install the license file and latest software on the N934xC.
4. Begin using the new capability.
Installation, calibration, and verification information is available at:
– For N9344C, it is www.keysight.com/find/N9344C_upgrades
– For N9343C, it is www.keysight.com/find/N9343C_upgrades
– For N9342C, it is www.keysight.com/find/N9342C_upgrades
Description Option number Additional information
Instrument upgrades
Preamplifier, 1 MHz to 20 GHz N9344CK-P20 For N9344C
Preamplifier, 1 MHz to 13.6 GHz N9343CK-P13 For N9343C
Preamplifier, 100 kHz to 7 GHz N9342CK-PA7 For N9342C
GPS receiver, with built-in antenna N934xCK-GPS Provides information on longitude, latitude, and altitude.
Spectrum monitor
Channel scanner
Task planner N934xCK-TPN Reduces test setup time by 95%, delivers test automation and consistency, and makes
U2000 Series USB power sensor support N934xCK-PWM Requires the Keysight U2000 Series USB power sensor.
U2020/2040 X-Series USB peak and
average power sensor support
Security features N934xCK-SEC Low-level and non-recoverable formatting of user memory and
AM/FM modulation analysis N934xCK-AMA Provides modulation metrics, including carrier power, modulation rate, and AM depth/
ASK/FSK modulation analysis N934xCK-DMA Provides modulation metrics, including carrier power, ASK depth/index, and FSK
Time-gated spectrum analysis N934xCK-TMG Measures any one of several signals separated in time, or excludes periodic interfering
Baseband input N9342CK-BB1 Exclusive to the N9342C HSA. Offers improved RF performance below 12 MHz. To
EMI filters and quasi-peak detector N934xCK-EMC Supports basic EMI precompliance test
N934xCK-SIM Adds spectrogram view, record, playback and audio alert. Great tool for spectrum
monitoring and interference analyzing.
N934xC-SCN
N934xCK-PWP Requires the Keysight U2020/2040 X-Series USB peak and average power sensor.
Allows the user to easily measure channel power of multiple channels and export data
to mapping applications like Google Earth and MapInfo.
it easy to captures test results, generate reports and share task plans with others. Find
more information at www.keysight.com/find/taskplanner.
USB/LAN port control.
FM deviation.
deviation.
signals.
install this option upgrade, the N9342C HSA must have the digital board with S/N
starting with “N934463012”. The digital board S/N can be viewed at the System menu,
[Shift], [System], {System Info}, {Show System}.
06 | Keysight | N9342-44C Handheld Spectrum Analyzer (HSA) - Conguration Guide
Instrument Upgrades (continued)
Upgrade your existing Keysight N934xC (HSA)
Description Option number Additional information
Instrument upgrades
Cable and antenna test, 5 MHz to 7 GHz N9342CK-CA7, or
N9342CK-CAU
Exclusive to the N9342C HSA.
Requires the tracking generator module (Option TG7). If Option TG7 is not installed on
the N9342C, please order both N9342CK-TG7 and N9342CK-CA7. Otherwise please
check the TG module S/N:
If the TG module S/N starts with “N934263004”, please order N9342CK-CA7.
If the TG module S/N starts with “N934263003”, please order N9342CK-CAU.
TG module S/N can be viewed at the System menu, [Shift], [System], {System Info},
{Show System}.
Requires N9311X-201 precision mechanical calibrator (3-in-1 OSL).
Recommended accessories include N9311X-585 phase stable cable type N(m) to
DIN(f), N9311X-586 phase stable cable type N(m) to N(f), and N9311X-547 adapter
type N(m) to DIN(f).
Hardware Upgrades
Add additional accessories to your existing Keysight N934xC (HSA)
Description Option number Additional information
Hardware upgrades
Tracking generator, 5 MHz to 7 GHz N934xCK-TG7 Output level –20 to 0 dBm, 1 dBm step
Spare battery N9910X-870 Lithium ion, 11.1 V, 4.6 A-hr
Spare external battery charger N934xCK-BCG
Spare AC/DC adapter N934xCK-ADP 1 output: 15 V, 5.33 A
Automotive 12 V DC adapter and charger N9 3 4xCK-1DN Provides DC power supply and power charging
Hard transit case N934xCK-1TC
Adaptor, 50 to 75 Ω N934xCK-TAD Type N(m) 50 to type N(f) 75 Ω
Ergonomic soft carrying case with backpack
and shoulder strap
External GPS antenna N934xCK-GPA SMA-M connector
N934xCK-SCC
07 | Keysight | N9342-44C Handheld Spectrum Analyzer (HSA) - Conguration Guide
Other Information
Description
Connectivity (standard)
1 USB 2.0 type A port, female N934xC behaves like a host controller, USB 2.0 compatible port.
1 USB 2.0 type-mini AB port, female N934xC behaves like a slave device, USB 2.0 compatible port.
10 Base-T LAN interface
HSA PC software An easy-to-use, PC-based remote control tool for your N9344C/N9343C/N9342C handheld spectrum
analyzer (HSA).
Instrument weight and dimensions
Dimensions (W x H x D) 318 mm x 207 mm x 69 mm (12.5 in x 8.15 in x 2.7 in)
Weight (with battery) 3.6 kg (7.9 Ibs)
Hard transit case weight and dimensions
Dimensions (W x H x D) 560 mm x 460 mm x 270 mm
Weight (empty) 7.7 kg (16.9 lbs)

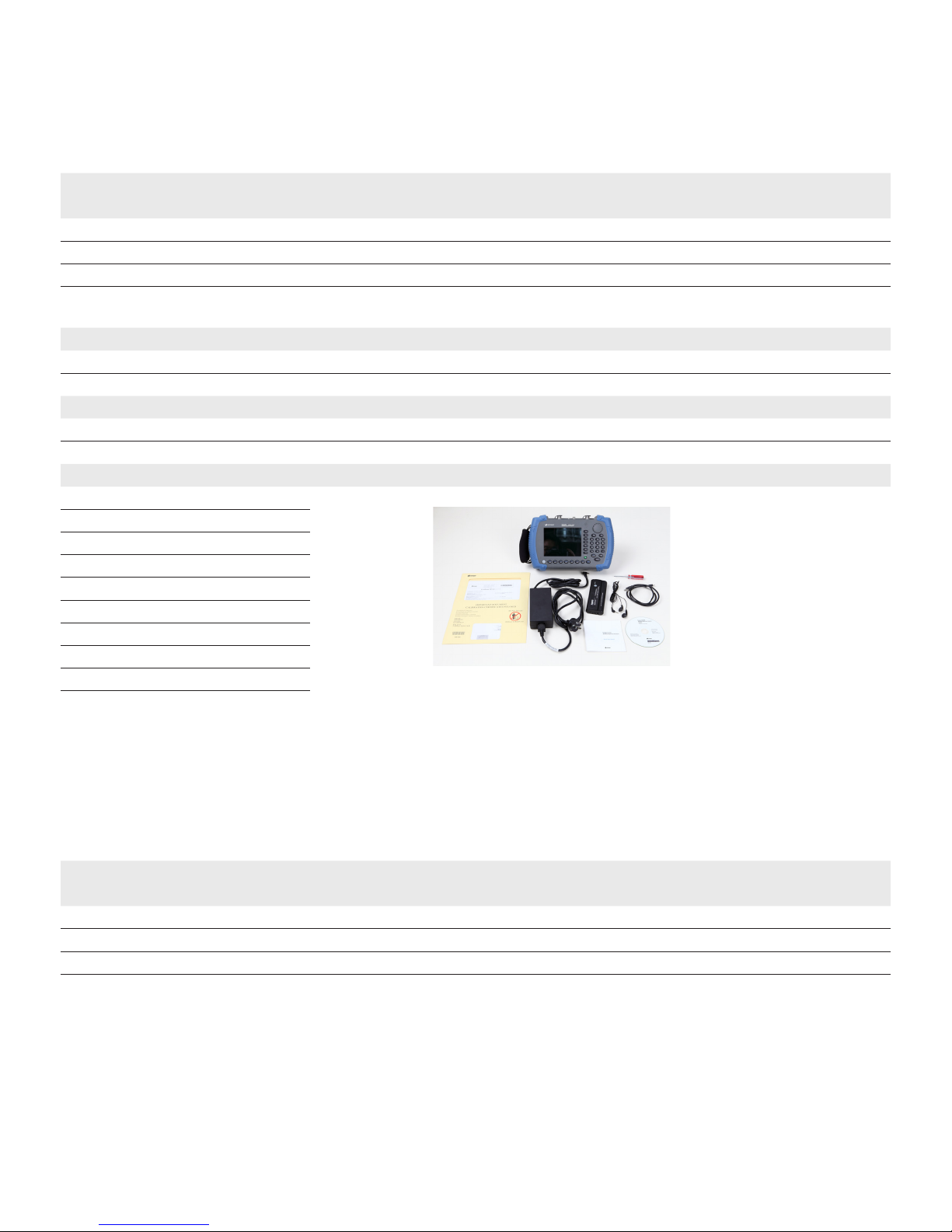

Standard shipped items
N934xC HSA
RoHS addendum
USB cable
Battery Li-Ion
Screwdriver
Help kit CD
Ear phone
AC/DC power supply
Quick start tutorial
Additional Resources
Related Keysight literature
Publication
Publication number Publication title
5990-7199EN Keysight N9344C Handheld Spectrum Analyzer Data Sheet
5990-7193EN Keysight N9343C Handheld Spectrum Analyzer Data Sheet
5990-5587EN Keysight N9342C Handheld Spectrum Analyzer Data Sheet
008 | Keysight | N9342-44C Handheld Spectrum Analyzer (HSA) - Conguration Guide
Evolving Since 1939
Our unique combination of hardware, software, services, and people can help you
reach your next breakthrough. We are unlocking the future of technology.
From Hewlett-Packard to Agilent to Keysight.
myKeysight
www.keysight.com/find/mykeysight
A personalized view into the information most relevant to you.
http://www.keysight.com/find/emt_product_registration
Register your products to get up-to-date product information and
find warranty information.
Keysight Services
www.keysight.com/find/service
Keysight Services can help from acquisition to renewal across your
instrument’s lifecycle. Our comprehensive service offerings—onestop calibration, repair, asset management, technology refresh,
consulting, training and more—helps you improve product quality
and lower costs.
Keysight Assurance Plans
www.keysight.com/find/AssurancePlans
Up to ten years of protection and no budgetary surprises to ensure
your instruments are operating to specification, so you can rely on
accurate measurements.
Keysight Channel Partners
www.keysight.com/find/channelpartners
Get the best of both worlds: Keysight’s measurement expertise and
product breadth, combined with channel partner convenience.
www.keysight.com/find/HSA
www.keysight.com/find/hsa-videos
For more information on Keysight
Technologies’ products, applications or
services, please contact your local Keysight
office. The complete list is available at:
www.keysight.com/find/contactus
Americas
Canada (877) 894 4414
Brazil 55 11 3351 7010
Mexico 001 800 254 2440
United States (800) 829 4444
Asia Pacic
Australia 1 800 629 485
China 800 810 0189
Hong Kong 800 938 693
India 1 800 11 2626
Japan 0120 (421) 345
Korea 080 769 0800
Malaysia 1 800 888 848
Singapore 1 800 375 8100
Taiwan 0800 047 866
Other AP Countries (65) 6375 8100
Europe & Middle East
Austria 0800 001122
Belgium 0800 58580
Finland 0800 523252
France 0805 980333
Germany 0800 6270999
Ireland 1800 832700
Israel 1 809 343051
Italy 800 599100
Luxembourg +32 800 58580
Netherlands 0800 0233200
Russia 8800 5009286
Spain 800 000154
Sweden 0200 882255
Switzerland 0800 805353
Opt. 1 (DE)
Opt. 2 (FR)
Opt. 3 (IT)
United Kingdom 0800 0260637
For other unlisted countries:
www.keysight.com/find/contactus
(BP-9-7-17)
DEKRA Certified
ISO9001 Quality Management System
www.keysight.com/go/quality
Keysight Technologies, Inc.
DEKRA Certified ISO 9001:2015
Quality Management System
This information is subject to change without notice.
© Keysight Technologies, 2013 - 2017
Published in USA, October 19, 2017
5990-5588EN
www.keysight.com
Loading...
