Keysight N437x Series Lightwave Component Analyzer

Programmer’s Guide

Notices

No part of this manual may be reproduced in any form or by any means (including electronic storage and retrieval or translation into a foreign language) without prior agreement and written consent from Keysight Technologies, as governed by United States and international copyright laws.

Keysight Technologies, Deutschland GmbH Herrenberger Straße 130 71034 Böblingen, Germany.

Manual Part Number

437xB-90A01

Edition

Edition 2.0, February 2015

Subject Matter

The material in this document is subject to change without notice.

Keysight Technologies makes no warranty

of any kind with regard to this printed material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.

Keysight Technologies shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

Printing History

New editions are complete revisions of the guide reflecting alterations in the functionality of the instrument. Updates are occasionally made to the guide between editions. The date on the title page changes when an updated guide is published. To find out the current revision of the guide, or to purchase an updated guide, contact your Keysight Technologies representative.

Warranty

This Keysight Technologies instrument pro duct i s warranted against defects in material and workmanship for a period of one year from date of shipment. During the warranty period, either repair or replace products that prove to be defective.

For warranty service or repair, this product must be returned to a service facility designated by shipping charges to shall pay shipping charges to return the product to Buyer. However, Buyer shall pay all shipping charges, duties, and taxes for products returned to country.

Keysight will, at its option,

Keysight. Buyer shall prepay

Keysight and Keysight

Keysight from another

Limitation of Warranty

The foregoing warranty shall not apply to defects resulting from improper or inadequate maintenance by Buyer, Buyersupplied software or interfacing, unauthorized modification or misuse, operation outside of the environmental specifications for the product, or improper site preparation or maintenance.

No other warranty is expressed or implied. Keysight Technologies specifically disclaims the implied warranties of Merchantability and Fitness for a Particular Purpose.

Exclusive Remedies

The remedies provided herein are Buyer’s sole and exclusive remedies. Technologies shall not be liable for any direct, indirect, special, incidental, or consequential damages whether based on contract, tort, or any other legal theory.

Keysight

Assistance

Product maintenance agreements and other customer assistance agreements are available for products. For any assistance contact your nearest Service Office.

Keysight Technologies

Keysight Technologies Sales and

Certification

Keysight Technologies certifies that this product met its published specifications at the time of shipment from the factory.

Keysight Technologies further certifies that its calibration measurements are traceable to the United States National Institute of Standards and Technology, NIST, to the extent allowed by the Institutes’s calibration facility, and to the calibration facilities of other International Standards Organization members.

Keysight warrants that its software and firmware designated by an instrument will execute its programming instructions when properly installed on that instrument. the operation of the instrument, software, or firmware will be uninterrupted or error free.

Keysight does not warrant that

Keysight for use with

ISO 9001 Certification

Produced to ISO 9001 international quality system standard as part of our objective of continually increasing customer satisfaction through improved process control.

Remote Operation 5

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Transferring code from the 8703A/B to the Keysight

Analyzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

LCA System Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

How to configure the LCA for networking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

How to connect the LCA to your network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

How to change network settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Install the LCA Remote Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

How to use the LCA Remote Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Adding references to your project . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Declare and create the required objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Basic structure of an LCA client application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Synchronous vs. Asynchronous Method Calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

LCA Remote Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

LCA remote control DLLs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Specific Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Interface structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Enumeration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Class LCAMeasParams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Class LCAProperties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

N437x Series Lightwave Component

Interface ILCA

General commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Measurement commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

The LCA SCPI Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Port Types . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Start/Stop the LCA SCPI Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

The LCA SCPI commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Command Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

RemoteClient . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Programming Examples

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

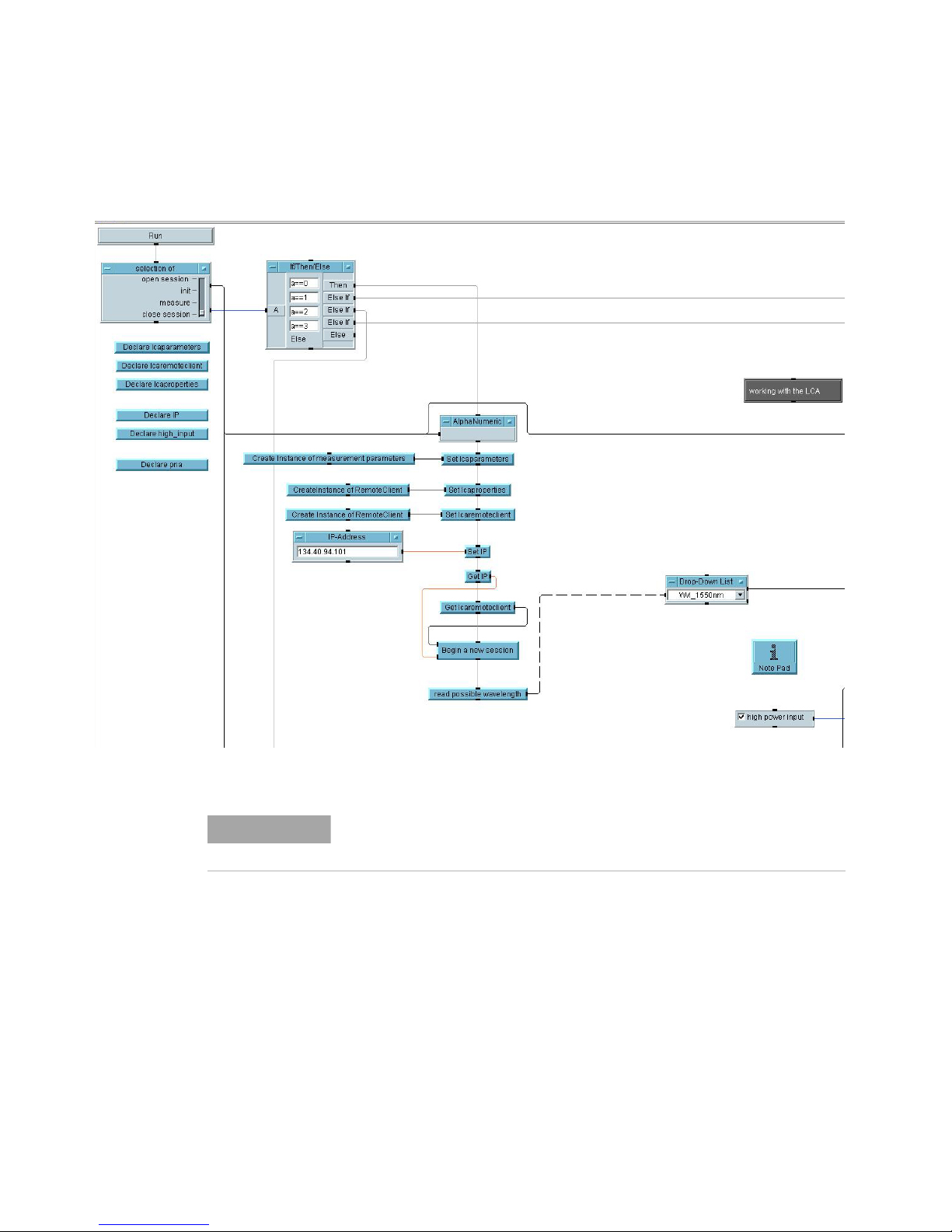

VEE Programming Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Getting started. . . . . . . . . . . . . .

Description of the VEE-example. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

VBA/Excel Programming Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

. . . . . . . . . . . . . . . . . . . . . . . 70

Warranty Information

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Remove all doubt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Phone or Fax. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Keysight online information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Remote Operation

Overview

Transferring code from the Keysight 8703A/B to the Keysight N437xB Series Lightwave Component Analyzer 11 LCA System Configuration

How to configure the LCA for networking How to connect the LCA to your network How to change network settings

Install the LCA Remote Client

12 12 12

Synchronous vs. Asynchronous Method Calls 21 How to use the LCA Remote Client

Adding references to your project Declare and create the required objects Basic structure of an LCA client application

Troubleshooting LCA Remote Programming

LCA remote control DLLs LCA remote control DLLs

16 18 19

23 24

24 24

Specific Commands

Interface structure Enumeration Class LCAMeasParams Class LCAProperties

Interface ILCARemoteClient

General commands Measurement commands Properties

The LCA SCPI Interface

Overview Port Types Configuration

25 26 27 30

31 34

43 43 45

Start/Stop the LCA SCPI Module

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

LCA SCPI Commands Command Details

45 46 48

Overview

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

This programming guide supports LCA models beginning with the B generation. These now include: N4373D, N7373C, N4373B, N4374B, N4375D, N4375B, N4376D and N4376B.

This chapter will help you control an LCA from your own computer. The chapter covers how to write your own applications. The next chapter explains examples based on Keysight VEE and VBA/Excel in more detail. Note that applications for remote control can also be run on the LCA itself, which is useful for automated measurement procedures.

The LCA is a remoting enabled, Microsoft .NET instrument that can be controlled across any LAN that can relay an http web page. The provided remote control client has an Active X interface and a .NET interface, so you can program the LCA from many established programming environments such as Visual Basic 6.0 and VBA, as well as from .NET enabled programming environments such as C#.

Beginning with the LCA software version 3.00.03 for Windows XP systems or 3.01.00 with Window 7, an SCPI interface is also available, which may be more comfortable for other environments like Labview. The SCPI interface can be used over either a LAN or USB port.

The LCA uses .NET remoting as the foundation for its external communications. Remoting is

the process of programs or distributed components interacting across different processes or machines.

In .NET remoting, the server program publishes an object on a

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

network channel and the client program subscribes to that channel when loading or connecting to that object. In the case of the LCA, a RemoteObject object is published to an http channel and the subscribing client program is the LCA RemoteClient. A Remoting server is embedded in the LCA Server application. The LCA RemoteClient is a layer of abstraction, which provides an easy to use interface with methods to control the LCA. The LCA Remote Client layer consists of 3 files, named "RemoteClient.dll", "RemoteObjects.dll" and "RemoteClient.tlb". These files are installed as part of the the LCA Remote Client installation package, together with a number of programming examples.

Since the LCA interface does not provide any methods to set network analyzer related parameters or to retrieve measurement data from the network analyzer, most applications also need to program the network analyzer. The network analyzer’s native functions can be controlled either using SCPI or COM. We recommend using the COM interface. This is reflected in the programming examples.

Figure 1 LCA Remoting Architecture

While this chapter assumes you are familiar with your

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

programming environment, it does not assume familiarity with controlling remote objects from within that environment. Examples are provided for VB.NET, C#, VB 6.0, VBA and Keysight VEE, which can be extrapolated to most environments for controlling the LCA. After installing the LCA Remote Client on your computer, you can find these examples in the folder:

C:\Program Files (x86)\Agilent\Agilent LCA Remote Client\Examples

The location on your computer depends on the folder in which you installed the LCA Remote Client.

The Excel-VBA example pulls data directly from the LCA into Excel. This is very useful if you are setting up measurements manually, but want to analyze the results on your own computer.

Transferring code from the 8703A/B to the Keysight N437x Series Lightwave Component Analyzer

Tools are available to migrate code from the 8720 network analyzer to the new PNA network analyzer platform at

www.keysight.com/find/nadisco

The 8703A/B Lightwave Component Analyzers are based on the 8720 network analyzers, so you can use thes tools to migrate existing code to the N437x Series LCA based on the PNA platform.

Most of the code in a typical application for the 8703 LCA controls the functionality of the network analyzer. This part of the application can be migrated with these tools. The code related to LCA specific functionality has to be migrated by hand.

e code conversion

LCA System Configuration

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

How to configure the LCA for networking

Remote programming of the LCA with the .NET interface is only possible if the LCA is connected to a local area network (LAN) via the built-in LAN connector. When the LCA is connected to a network, it is also possible to connect it to network printers and remote servers, with access to shared folders and files.

NOTE

Using the SCPI interface, the LCA can also be controlled from a USB port.

How to connect the LCA to your network

The LCA comes configured for DHCP networking, and has a default machine name. In many cases, connecting the LCA to your LAN is simply a case of registering the machine name with your IT department.

NOTE

Do not connect the LCA to a network that is configured to automatically install software on network devices. Installing or overwriting files on the LCA computer system may impact the operation of the instrument. Please contact your network administrator or IT department to find out if you have this type of network.

The LCA LAN connector supports 10 Base-T and 100 Base-T Ethernet networks using TCP/IP and other Microsoft supported networking protocols. The LCA uses Microsoft® Windows 7 or XP.

How to change network settings

You can change the LCA network settings as needed so that it connects properly to your specific network.

NOTE

Because your network settings are unique to your IT infrastructure, Keysight Technologies will not be able to assist you with connecting your instrument to your network. Please contact your network administrator or IT department for assistance. For more information, refer to the MS Windows resource kit (available from Microsoft) that is appropriate for your computer system. You can also refer to the online Help for Windows (Start > Help).

NOTE

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

By default, as the instrument starts up, you are logged on as an administrator with the logon name PNA-Admin. The login password,

which is usually not needed, is "pna" for systems with Windows 7 or "agilent" for systems using Windows XP.

Keysight only recommends using the LCA application while you are logged on as an administrator.

You can change network settings by using the standard Microsoft® Windows functions.

To view or change the computer machine name

1 On the Task bar, click Start, point to Settings, and then click

Control Panel.

NOTE

2 Double-click the

System icon and click on the Computer Name

tab. From here you can view or change the machine name.

3 When you have finished making changes, restart the

instrument.

To configure TCP/IP to use DNS or WINS

If using a protocol other than TCP/IP, please contact your IT department for assistance.

Editing your instrument’s protocols and file access permissions can result in unwanted behaviors that are difficult to reverse. Ensure that your changes are valid!

Please consult with your network administrator concerning advanced TCP/IP and multi-protocol configuration settings to support your network.

Please contact your network administrator or IT department if you have any problems connecting the LCA to your network.

4 On the Task bar, click Start, point to Settings, and then click

Network and Dial-up Connections.

5 Then click Local Area ConnectionProperties.

6 On the

Networking tab (all other connections), click Internet Protocol (TCP/IP)

all desired changes.

General tab (for a local area connection) or the

, and then click Properties. From here, you can make

7 When you have finished making changes, restart the

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

instrument.

NOTE

For more information, click Start > Help > Index, and search for “DNS” or “WINS” or “static” or “dynamic.”

To configure TCP/IP for static or dynamic addressing

• To get started, follow the same steps listed above.

Install the LCA Remote Client

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

The LCA Remote Client is described in “Overview” on page 6.

NOTE

This installation is not for the LCA itself. (Applications using the remote programming commands can be run on the LCA itself without installing the remote client package.)

1 If not already installed, install the .NET Framework Version

from Microsoft. Go to www.microsoft.com and search for

2.0 ‘How to get the Microsoft .NET framework’. Be sure to get the framework and all the service packs. Make sure that you get the framework, not the SDK (software development kit.)

2 The LCA CD shipped with the LCA contains the Remote

Client Installation Package to install the LCA specific DLLs and the programming examples. The most recent version of the LCA Remote Client Installation Package is available from the Keysight web site (www.keysight.com/find/lca).

• Insert the CD into the CD drive, use Windows Explorer to find LCA Remote Client Installer Folder, or

• Start the downloaded installer.

3 If you want to program the network analyzer via its COM

interface you need to install the PNAProxy. The installation executable “PNAProxy.exe” can be found on the network analyzer in the folder:

C:\Program Files\Agilent\Network Analyzer\Automation

Install the PNA Proxy by running the installation program “PNAProxy.exe” on your client machine.

When asked to type in the host name or IP address of the remote network analyzer during installation, you do not need to type in anything. You can specify the host name or IP address during program development or execution.

How to use the LCA Remote Client

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

Here you can see the basic steps required to write an LCA client application.

The code sequences presented here are in VB.NET syntax. For sequences in other languages like C#, VB 6.0, VBA or C++ refer to the different programming examples. You can find these examples in the “Examples” folder, in the “ Client” installation folder.

Since most client applications will also control the network analyzer for setting measurement parameters like start- and stop-frequency and for reading out the measurement data, we also show the basic steps required to control the network analyzer using its COM interface over LAN (DCOM). The network analyzer can also be programmed using its SCPI interface, but this is not covered here. For details about programming the network analyzer, please refer to the relevant network analyzer documentation.

Adding references to your project

Keysight LCA Remote

In VB.NET, C#, VB 6.0 or VBA projects, you have to add references to the LCA Remote Client Library and to the PNAProxy type library (the network analyzer proxy, assuming you also want to program the network analyzer).

The LCA Remtote Client implements two different interface technologies.

• In environments which support .NET assemblies, we recommend using the LCA Remote Client .NET assembly directly.

• If your programming environment does not support .NET assemblies, use the LCA Remote Client over its COM interface.

Here we show how this is done in Microsoft Visual Studio 2005 using the LCA Remote Client .NET assembly directly. When using the COM interface, the basic structure is the same.

For the differences, please check the VBA, VB 6.0 and C++ example projects, installed with the LCA Remote Client.

1 From the “Project” menu, select “Add Reference”.

2 Switch to the “Browse” tab.

3 Browse to your LCA Remote Client installation folder.

4 Select “RemoteClient.dll” and press OK.

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

If you also want to use the network analyzer COM

interface, please refer to the network analyzer

documentation, including:

http://na.support.keysight.com/pna/programming/

Because environments like VB 6.0 or VBA cannot work directly with .NET assemblies, you have to use the COM interface of the LCA Remote Client in such cases.

1 In VB 6.0, from the “Project” menu, select “References”.

In VBA, open the “Tools” menu and select “References”.

In both programming environments you will see a dialog like

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

the following:

2 Select“Keysight Remote Client for the LCA”.

Declare and create the required objects

The LCA Remote Client defines

• three interfaces ILCARemoteClient, ILCAMeasParams, ILCAProperties and

• three classes, LCARemoteClient, LCAMeasParams and LCAProperties.

Each of these classes implements the corresponding interface. To be able to use the LCA Remote Client, you have to create objects from these classes.

‘ Declare the objects

Private lcaClient As Agilent.LCA.RemoteClient.LCARemoteClient

Private lcaMeasParams As Agilent.LCA.RemoteClient.LCAMeasParams

Private lcaProperties As Agilent.LCA.RemoteClient.LCAProperties

….

‘Create the objects

lcaClient = New Agilent.LCA.RemoteClient.LCARemoteClient()

lcaMeasParams = New Agilent.LCA.RemoteClient.LCAMeasParams()

lcaProperties = New Agilent.LCA.RemoteClient.LCAProperties()

If you also want to use the network analyzer, you have to declare

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

and create a network analyzer application object. This is quite different to the LCA. When working with the LCA you are creating a local LCA Remote Client object. The connection to the remote LCA server is done with the “Connect” command on the LCA Remote Client interface. When using the network analyzer over its COM interface, you are using DCOM and have to remotely activate the network analyzer interface. For examples on how this is done in different programming environments, see the programming examples installed with the LCA Remote Client. Here we show how this is done in VB.NET:

‘ Declare the object

Private pnaClient As AgilentPNA835x.Application

…

Public Sub Open(ByVal serverName As String)

‘ the class-id of the AgilentPNA835x.Application class

Dim clsID As System.Guid = New Guid(

"16D3C697-5F97- 11D2-BC1F-0060B0B52EA7")

Dim srvtype As System.Type =

System.Type.GetTypeFromCLSID(

clsID, serverName, True)

‘ now we connect to the remote PNA

pnaClient =

CType(System.Activator.CreateInstance(srvtype),

End Sub

For further details on programming the network analyzer, please refer to the relevant network analyzer documentation.

Basic structure of an LCA client application

When programming the LCA you have to follow this basic structure:

1 (optional) Set a time-out value

lcaClient.SetTimeout(timout_ms)

2 Connect to the LCA server.

lcaClient.Connect(serverName)

AgilentPNA835x.IApplication9)

now you could call commands which do not require an open

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

session. In the case of the LCA client, this is the GetLCAProperties command.

lcaClient.GetLCAProperties(lcaProperties)

3 Open a session on the LCA, and check the return value of the

Open() command. A return value False indicates that the Open() command has failed.

lcaClient.Open()

4 All commands that change the state of the LCA require an

active session opened on the LCA. All these commands have to be enclosed by Open() and Close() commands. Commands which do not change the state of the LCA, like reading properties, only require a passive session on the LCA.

5 When finished with working on the LCA, close the session

lcaClient.Close()

6 Before leaving the application, make sure to call the

Disconnect() command. This prevents unnecessary processing overhead on the LCA, needed to monitor and close inactive sessions.

lcaClient.Disconnect()

Synchronous vs. Asynchronous Method Calls

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

A traditional remote control application consists of a list of actions that you send to the instrument, expecting it to execute them in that order and to tell you when it is done. This makes programming easy - you can do your whole measurement in a single function or sub-routine.

In this approach you send the actions to the instrument in

chronous mode. This means that an action you send to the

syn instrument blocks the program flow of the calling thread until it finishes. The advantage is that your program structure is very simple. The drawback is that you have to wait for the instrument to finish the action. For example this could lead to an unresponsive user interface.

This can be solved using multithreading . Run the measurement sequence in a new thread while the main thread handles other things like running the user interface.

A third possibility is to call potentially time consuming actions

synchronously. The LCA Remote Client lets you call some

a commands in asynchronous mode. This means that the call returns immediately, even before the action on the instrument has finished execution.

In such cases you need an additional method to determine, when an action finishes. The LCA Remote Client offers two different methods to accomplish this.

• The first is the property OperationComplete(). This property value is True, when the last asynchronously called operation on the LCA has finished execution. Otherwise the property value is False.

• The other method is named WaitForOPC(). This method blocks program execution on the calling thread until the operation on the instrument finishes.

Here are two short examples in VB.NET syntax, showing the usage of asynchronous calls:

Using the OperationComplete() Property in a loop:

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

oLCAClient.Init_OO(params, False)

‘ let the application handle events

Application.DoEvents()

System.Threading.Thread.Sleep(200)

While oLCAClient.OperationComplete = False

Using the WaitForOPC() command:

oLCAClient.Init_OO(params, False)

DoMyActionsAfterCallingInit() ‘ doing some other stuff

‘ When we are done with our own stuff,

‘ we need to wait for Init_OO to finish

oLCAClient.WaitForOPC()

Troubleshooting

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

During application development you may encounter situations where the Open() call fails. This happens when a session on the LCA is already open. If there are no other applications using the LCA, the most likely reason is that an application finished without closing its session, for example when running an application in the debugger and you terminate it by stopping the debugger.

The LCA and the LCA Remote Client have a heartbeat

anism to detect abandoned sessions. The LCA checks for

mech 60 seconds of inactivity. If nothing happens in this time, the LCA assumes the session has been abandoned and it closes this session, so that other clients are able to open a session.

You may want to workaround this behavior during application development. There are two cases here.

• If your client application halts on a breakpoint, the heartbeat is suspended, so if your application is suspended for more than 60 seconds, the server closes the session. When you try to continue execution, you get an error telling you that no session is open. To keep sessions open, start the LCA server on the network analyzer with the command-line parameter “NOAUTOCLOSE”.

NOTE

• If you are running into problems restarting your application because aborted sessions are still open, call CloseAll() before the Open() call.

We recommend you only use these workarounds during development.

Only use CloseAll() in environments where you are sure no other client could have a session opened. CloseAll() will close sessions from all the LCA clients.

LCA Remote Programming

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

LCA remote control DLLs

The LCA remote programming interface uses Microsoft.NET Remoting technology. It is controlled by manipulating the properties and methods exposed by the server object. The list of properties and methods in this section describe the interface that is available to a programmer wanting to program the LCA system in other applications.

The LCA RemoteClient DLL provides a communication link with the LCA server. The DLLs are comprised of a set of properties, and methods that together provide a basic set of remote LCA capabilities. The two DLLs of interest are: RemoteClient.dll and RemoteObjects.dll. By default these two DLLs are installed to:

C:\Program Files\Agilent\Agilent LCA Remote Control\.

Specific Commands

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

Interface structure

There are three classes to control the LCA: the LCAMeasParams, the LCAProperties and the LCARemoteClient.

• The class LCAMeasParams summarizes all possible parameters of your measurement.

• The class LCAProperties provides read-only properties, which give you some information about the network analyzer and the LCA.

• The class LCARemoteClient provides the methods to connect to the LCA, perform measurements and change hardware settings.

Enumeration

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

This is the list of enumeration names, with their possible values.

Enumeration Description

ELaserState Enumerates the possible laser states, on or off. NotSet

ELaserWvl Enumerates the possible laser wavelengths. NotSet

EMeasMode Specify if you are doing single ended or differential measurements.

Note: differential measurements require a 4-port network analyzer.

EMeasType Enumerates the different LCA measurement types NotSet

EModBiasOpt Specify how often a modulator bias voltage optimization has to be performed.

Once: only once when the laser is switched on. EverySweep: prior to each measurement started by the LCA. Continuous: the optimization loop runs continuously.

Possible values

LaserOff LaserOn

Wvl_850nm Wvl_1310nm Wvl_1550nm

NotSet SingleEnded Differential

EE EO OE OO

NotSet Once EverySweep Continuous

EOpticalInput Enumerates the optical inputs on the optical test head’s front panel. High power

input is comparable to input 2 and standard to input 1.

ERFSwitch Enumerates the RF switches in a switched LCA system NotSet

ERFSwitchState Enumerates the possible settings of the RF switches UnKnown

NotSet Standard HighPower

Source Receiver

Thru Intern

Class LCAMeasParams

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

These are common properties of the LCA measurement parameters

Property Description Ty p e Default value

Wavelength_nm Specify with which laser wavelength the LCA will measure. Enum ELaserWvl NotSet

OpticalPower_dBm Specify the optical output power of the LCA in dBm Double 0.0

HighPower_Input If you are using the high power optical input you have to set

the HighPower_Input property to true.

MeasMode Specify if you want to do single ended or differential

measurements

ModBiasOptimization Specify how often a modulator bias voltage optimization has

to be performed

Property Description Ty p e Default value

Advanced Enable the possibility to overwrite some of the default

behavior of the LCA. In advanced mode you can force the LCA to switch the laser on or off independently of the measurement type. You also have additional Optical- and RFpath deembedding possibilities, or can apply additional deembedding on the receiver and the source side, independent of the measurement type.

Laser_On Switch the intern laser on or off.

Note: The value of this property is only evaluated in advanced mode. In default mode the laser is switched on or off according to the measurement type.

Boolean False

Enum EMeasMode SingleEnded

Enum EModBiasOpt EverySweep

Boolean – if true, advanced features are active

Boolean – if true, the laser is on

False

Tr ue

The following properties control additional optical path deembedding.

Property Description Ty p e Default value

UseOpticalConnData With this property you could switch the whole optical path

deembedding on or off.

SrcAttOpt_dB Specify the optical attenuation on the source path in dB.

In default mode only evaluated for O/E and O/O measurements.

RcvAttOpt_dB Specify the optical attenuation on the receiver path in dB

In default mode only evaluated for E/O and O/O measurements.

Boolean False

Double 0.0

Property Description Ty pe Default value

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

SrcRefIdx Specify the refractive index of the source path in dB.

In default mode only evaluated for O/E and O/O measurements.

RcvRefIdx Specify the refractive index of the receiver path in dB.

In default mode only evaluated for E/O and O/O measurements.

SrcLengthOpt_m Specify the geometrical length of the source path in m.

In default mode only evaluated for O/E and O/O measurements.

RcvLengthOpt_m Specify the geometrical length of the receiver path in m.

In default mode only evaluated for E/O and O/O measurements.

UseOpticalS2PFile Specify if you want to describe the optical paths by the

parameters above or by transmission data stored in a s2p file. Only the S21 transmission data is used.

OptRcvFile The name of the s2p file to use for additional adaptor

deembedding on the receiver side In default mode only evaluated for E/O and O/O measurements.

OptSrcFile The name of the s2p file to use for additional adaptor

deembedding on the source side. In default mode only evaluated for O/E and O/O measurements.

Double 0.0

Boolean False

String Empty string

These properties are for controlling the additional electrical path deembedding.

Property Description Ty pe Default value

UseElAdaptor With this property you could switch the whole electrical

path deembedding on or off.

ElRcv1File The name of the s2p file to use for electrical adaptor

deembedding. This property has to be used for receiver side deembedding

in single ended measurements or for the receiver port with the lower number in differential measurements.

ElRcv2File The name of the s2p file to use for electrical adaptor

deembedding. This property has to be used only for the receiver port with the higher number in differential measurements.

Boolean False

String Empty string

Property Description Ty p e Default value

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

ElSrc1File The name of the s2p file to use for electrical adaptor

deembedding. This property has to be used for source side deembedding in single ended measurements or for the source port with the lower number in differential measurements.

ElSrc2File The name of the s2p file to use for electrical adaptor

deembedding. This property has to be used only for the source port with

the higher number in differential measurements.

CalSetUserCal Name a Calset on the network analyzer which has to be

used for the user calibration measurement. If an empty string is passed, the current calset is used. If “NONE” is passed, no calset is applied for the user calibration measurement.

String Empty string

Class LCAProperties

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

NOTE

Property Description Ty pe Default value

NWAModel The model number of the network analyzer String

NumNWAPorts The number of ports of the network analyzer Integer

NumOpticalInputs The number of optical inputs of the LCA test head Integer

ProductNumber The product number of the LCA system String

SerialNumber The serial number of the LCA system String

SwitchedArchitecture True: LCA test head has a switched architecture, False: non

switched architecture

SoftwareVersion The version of the LCA server software String

SourceWvl An array showing all available wavelengths of the LCA test

head

MaxPower_dBm An array holding the maximum optical output power values

in dB. These values are correlated to the wavelength values in “SourceWvl” at the same position.

MinPower_dBm An array holding the minimum optical output power values

in dB. These values are correlated to the wavelength values in “SourceWvl” at the same position.

These properties are all read-only

Boolean

array ELaserWvl

array double

Interface ILCARemoteClient

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

General commands

Sub Connect (ByVal server As String)

Create a connection to an LCA server application. An LCA client application can only have one open connection to an LCA server at any time. The LCA server could handle several open connections concurrently.

Parameters:

Return value:

ByVal server As String Host name or IP address of the network analyzer where the LCA server is running.

No return value.

Sub Disconnect ()

Closes the connection to the LCA server application

Parameters:

Return value:

No parameters.

No return value.

Function IsConnected() As Boolean

Checks if a connection to an LCA server already exists.

Parameters:

Return value:

No parameters.

Boolean True: a connection to an LCA server exists False: no connection exists

Function Open () As Boolean

Opens an active session on the LCA.

All commands that change the state of the LCA require an active session. The LCA server allows only one active session at any time.

All actions allowed in a passive session are also allowed in an

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

active session.

Parameters:

Return value:

No parameters.

Boolean True: A session has been opened False: Opening a session failed

Function OpenPassive () As Boolean

Opens an passive session on the LCA.

All commands that just read settings from the LCA require at least an open passive session.

Several passive sessions could be opened concurrently.

Parameters:

Return value:

No parameters.

Boolean True: A session has been opened False: Opening a session failed

Sub Close ()

Closes active session on the LCA.

Parameters:

Return value:

No parameters.

No return value.

Sub ClosePassive ()

Closes passive session on the LCA.

Parameters:

Return value:

No parameters.

No return value.

Sub CloseAll ()

Closes the active sessions on the LCA. Any measurements that are currently running are aborted.

This can be useful if an abandoned, open session prevents a

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

successful Open() command. However, be careful not to disturb any other connected client applications. The LCA automatically closes abandoned sessions after some time (>60s) of inactivity.

Parameters:

Return value:

No parameters.

No return value.

Sub ResetLCASystem ()

Restarts the LCA server. Open sessions are closed and running measurements are aborted.

A restart is necessary, when the network analyzer application

as been restarted or when the LCA testhead has been switched

h off while the LCA server was running.

Parameters:

Return value:

No parameters.

No return value.

Sub GetLCAProperties

(ByVal properties As RemoteClient.ILCAProperties)

Read out the properties of the LCA system.

Parameters:

ByVal properties As RemoteClient.ILCAProperties The properties are written to this LCAProperties object

Return value:

No return value.

Sub SetTimeout (ByVal timeout_ms As Integer)

Set the timeout value for the .NET remoting.

A value of 0 or -1 indicates an infinite timeout period, which is also the default value.

The timeout value is set in the .NET remoting layer during execution of the “Connect” command. If you want to set a timeout value, you have to do this before calling the “Connect” command.

If you are using the LCA Remote Client .NET assembly directly,

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

you can also specify the timeout value in the LCARemoteClient constructor. When using the COM interface you could only use the default constructor, so you have to use this command to specify a nondefault timeout value.

Parameters:

Return value:

Measurement commands

Sub Init_EE

(ByVal parameters As RemoteClient.ILCAMeasParams, ByVal sync As Boolean)

Initializes the LCA for a EE measurement.

Parameters:

ByVal timeout_ms As Integer An integer that specifies the number of milliseconds to w a it before a .NET remo ting request times out

No return value.

ByVal parameters As RemoteClient.ILCAMeasParams The measurement parameters for initialization

Optional ByVal sync As Boolean True (default): the call is blocked until initialization is complete False: the call returns immediately.

Return value:

For synchronization use the synchronization methods WaitForOPC or OperationComplete

No return value.

Sub Init_EO (ByVal parameters As

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

RemoteClient.ILCAMeasParams, ByVal sync As Boolean)

Initializes the LCA for an EO measurement.

Parameters:

ByVal parameters As RemoteClient.ILCAMeasParams The measurement parameters for initialization

Optional ByVal sync As Boolean True (default): the call is blocked until initialization is complete False: the call returns immediately. For synchronization use the synchronization methods WaitForOPC or OperationComplete

Return value:

No return value.

Sub Init_OE (ByVal parameters As

RemoteClient.ILCAMeasParams, ByVal sync As Boolean)

Initializes the LCA for an OE measurement.

Parameters:

ByVal parameters As RemoteClient.ILCAMeasParams The measurement parameters for initialization

Return value:

Optional ByVal sy

nc As Boolean

True (default): the call is blocked until initialization is complete False: the call returns immediately.

For synchronization use the synchronization methods WaitForOPC or OperationComplete

No return value.

Sub Init_OO (ByVal parameters As

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

RemoteClient.ILCAMeasParams, ByVal sync As Boolean)

Initializes the LCA for an OO measurement.

Parameters:

Return value:

ByVal parameters As RemoteClient.ILCAMeasParams The measurement parameters for initialization

Optional ByVal sync As Boolean True (default): the call is blocked until initialization is complete False: the call returns immediately.

For synchronization use the synchronization methods WaitForOPC or OperationComplete

No return value.

Sub LoadOOTxCalData (ByVal parameters As

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

RemoteClient.ILCAMeasParams, ByVal filename As String, ByVal sync As Boolean)

Use this command instead of Init_OE if you want the LCA to load and use previously saved user calibration data.

The loaded user calibration data will be used by the LCA until

he next initialization command is called.

See also: SaveUserCalData

Parameters:

Return value:

ByVal parameters As RemoteClient.ILCAMeasParams The measurement parameters for initialization

ByVal filename As String The name of the file containing the user calibration data

Optional ByVal sync As Boolean True (default): the call is blocked until initialization is complete False: the call returns immediately.

For synchronization use the synchronization methods WaitForOPC or OperationComplete

No return value.

Sub LoadOETxCalData (ByVal parameters As

RemoteClient.ILCAMeasParams, ByVal filename As String, ByVal sync As Boolean)

Use this command instead of Init_OE if you want the LCA to load and use previously saved user calibration data.

The loaded user calibration data will be used by the LCA until

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

the next initialization command is called. See also: SaveUserCalData

NOTE

Parameters:

ByVal parameters As RemoteClient.ILCAMeasParams The measurement parameters for initialization

ByVal filename As String The name of the file containing the user calibration data

Optional ByVal sy

nc As Boolean True (default): the call is blocked until initialization is complete False: the call returns immediately. For synchronization use the synchronization methods WaitForOPC or OperationComplete

Return value:

No return value.

Sub Measure (ByVal continuous As Boolean,

ByVal sync As Boolean)

Be careful when calling a continuous measurement in synchronous mode. Since the synchronous call blocks the program execution of the calling thread, you can't stop this measurement from the calling thread. It can only be stopped from another thread.

Triggers a measurement on the LCA. If you call a continuous measurement while another measurement is running, the original measurement is stopped without starting a new measurement. If you call a single measurement while another measurement is running, this measurement is stopped and a new single measurement is started.

It requires that one of the initialization routines above has been called. If no measurement type has been initialized, an “InvalidOperationException” is thrown. The type of the measurement is the one initialized by the last “Init_XX” or “LoadXXTxCalData” call.

You should trigger your DUT measurements with this routine, as

t takes care of optical DC power dependent deembedding and

i modulator bias voltage optimization.

For synchronization use the synchronization methods

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

WaitForOPC or OperationComplete.

Parameters:

ByVal continuous As Boolean True: measurements are done continuously False (default): a single measurement is triggered

Optional ByVal sync As Boolean True (default): the call is blocked until initialization is complete False: the call returns immediately.

Return value:

No return value.

Sub SaveUserCalData (ByVal filename As String)

Save the measured user calibration data into a s2p-file.

If no user calibration data has been measured during last OE or OO initialization, default values are stored.

This command is only allowed when OE or OO measurement

ode is inititalized.

Parameters:

Return value:

ByVal filename As String The filename, where the data should be stored.

No return value.

Sub Abort ()

Aborts a currently running measurement or initialization.

Parameters:

Return value:

No parameters.

No return value.

Sub WaitForOPC ()

Waits until the last asynchronously called command has finished execution. Exceptions thrown during execution of an asynchronously called command could be caught when calling WaitForOPC() or OperationComplete().

Se also property: OperationComplete()

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

Properties

Parameters:

Return value:

No parameters.

No return value.

Reading these properties requires only a passive session, while setting these properties requires an active session.

LaserWvl_nm As RemoteClient.ELaserWvl

Get or set the current wavelength of the LCA optical output in nanometers.

Parameters:

No parameters.

LaserPower_dBm As Double

Get or set the current power of the LCA optical output in dBm

Parameters:

No parameters.

LaserState As RemoteClient.ELaserState

Get or set the current state of the LCA optical output

Parameters:

No parameters.

OpticalInput As RemoteClient.EOpticalInput

Get or set the current optical input of the LCA testhead

Parameters:

No parameters.

RFSwitchState

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

(ByVal RFSwitch As RemoteClient.ERFSwitch)

Setting the RF switches in the LCA testhead. With a non switched LCA system, setting this property has no effect. Trying to set this property to UnKnown, is ignored. Reading this property from a non switched system will always return UnKnown.

Parameters:

ByVak RFSwich As RemoteClient.ERFSwitch The switch you want to read from or you want to set.

RFPowerFwd_dBm As Double

Gets or sets the RF power on the network analyzer ports for forward measurements. To set this property back to the factory defined default value, set it to Double.NaN or a value < 200dBm.

Parameters:

No parameters.

RFPowerRev_dBm As Double

Gets or sets the RF power on the network analyzer ports for reverse measurements. To set this property back to the factory defined default value, set it to Double.NaN or a value < 200dBm.

Parameters:

ReadOnly OpticalDCPower_dBm As Double

Get the actual optical DC power, measured by the optical powermeter built into the LCA testhead

Parameters:

No parameters.

ReadOnly LCAProperties As

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

RemoteClient.ILCAProperties

See the command GetLCAProperties

Parameters:

No parameters.

ReadOnly CurrentMeasType As

RemoteClient.EMeasType

Get the measurement type which has been initialized by the last call to one of the Init_XX commands or by one of the LoadXXTxCalData commands.

Parameters:

No parameters.

ReadOnly OperationComplete As Boolean

Get the operation status of the last asynchronously called command. Exceptions thrown during execution of an asynchronously called command could be caught when calling WaitForOPC() or OperationComplete().

Parameters:

No parameters.

The LCA SCPI Interface

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

Overview

Port Types

The LCA instrument is a combined instrument. It is a network analyzer with additional hardware and software to become the LCA. The network analyzer already offers a SCPI interface on different ports. Now the new LCA SCPI interface extends the existing LCA application. It is implemented with the Keysight Translator Framework and the LCA Remote Server. Each SCPI command is intercepted and linked to an LCA Remote Interface method. The LCA SCPI interface is not completely IEEE compliant. It only implements the most necessary common commands besides the application specific commands.

The LCA SCPI interface is available either on a network socket or on the device USB port. Other ports like GPIB are not supported. You may select and configure one of the available types. Using both ports in parallel is not supported.

Socket Port

The LCA SCPI talker/listener runs on port 5026. The network analyzer SCPI interface runs on port 5025. You may run both SCPI interfaces for the LCA and the network analyzer application in parallel, since they take different socket ports.

USB Port

The LCA system is an integrated system. The system has only one USB device port which can be used to control the application from a remote PC. Therefore you can use the USB port to control either the network analyzer via SCPI or the LCA application via SCPI. You can’t control both applications over the USB port at the same time.

You always have to run the network analyzer application to get

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

the LCA functionality. Therefore if you only run the network analyzer and NOT the LCA SCPI interface, the USB device port is taken by the network analyzer SCPI talker/listener. When you first connect your PC with a USB cable to the LCA (combined instrument), you get the Network Analyzer identification string if you send the *IDN? query.

If you start the LCA SCPI interface and configure it to run on the USB device port, you will get theidentification string for the LCA instrument when you send the *IDN? SCPI query.

However, if you run the LCA SCPI interface on the socket port and have connected your PC via USB with the LCA instrument, the network analyzer identification string will still be returned.

After a system reboot, the USB device port is always taken by the network analyzer SCPI interface by default. The LCA SCPI interface has to be started manually. If you run the LCA SCPI interface on the USB device port and want to switch to the socket port, you have to stop the LCA SCPI interface first, then change the configuration to socket port and save it. This action will restart the network analyzer application automatically, to reclaim the USB device port for the network analyzer. Now the LCA SCPI interface can be restarted with the new configuration.

GPIB port

The LCA SCPI interface doesn’t support the GPIB port. However you may control the network analyzer application through SCPI over the GPIB port. This gives you the possibility to control the instrument independent of LAN by controlling the LCA application through SCPI over USB and the network analyzer application through SCPI over GPIB.

Configuration

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

Select the communication port for your LCA SCPI interface, either the LAN socket port 5026 or the USB device port. Run the Agilent.LCA.SCPI.Config.exe program or click on the LCA SCPI Configuration shortcut on the network analyzer macro list to select the preferred port. The LCA SCPI talker/listener runs on the socket port 5026 by default. The port is not selectable to avoid conflicts with the network analyzer SCPI interface, which runs on port 5025.

For support purposes, you may turn the logging on or off. The logging stores all program outputs into a file. Note: it may fill up your hard disk if you run the SCPI interface in logging mode for a long time.

When done with configuration, click the “Save Config” button to store all settings. After saving the settings, the LCA SCPI module will adopt the modified configuration when you click on the “Start SCPI” button.

Start/Stop the LCA SCPI Module

All LCA modules require the network analyzer application. It should always start after a system reboot automatically. If the network analyzer is not running, please start it manually. Like all other LCA modules, the LCA SCPI module does not start automatically. You have to start it manually. Use the Agilent.LCA.SCPI.Conf.exe program to start or stop the LCA SCPI interface. To launch this program, you may either use the LCA SCPI link in the network analyzer GUI macro list under utilities, or the shortcut LCA SCPI Interface on the desktop or in the program menu.

LCA SCPI Commands

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

The LCA SCPI interface is implemented on the LCA Remote Interface methods and the Agilent Translator Framework. Therefore the LCA Server starts automatically when you start the LCA SCPI interface. When you click on the “Start SCPI” button on the SCPI configuration form, the Agilent Translator Framework starts and loads the Agilent.LCA.SCPI.Module. The LCA Server cannot handle more than one session. Therefor you can run either the LCA Measurement Setup application or the LCA SCPI interface, but not both in parallel. This is the same for the LCA Remote Client. It also connects to the LCA Server and therefore the SCPI interface cannot run at the same time.

Overview

The LCA SCPI commands do not fulfill the IEEE standard. They just offer a simple way to control the LCA application on a LAN dependent socket port or on a USB port. Except for the *IDN? and :SYST:ERR? Commands, there is always a direct relation between a SCPI command and a method or property of the LCA.Net Remote Interface.

Command Tree

*CLS [:LCA]:PNUMber? -> <string> [:LCA]:SNUMber? -> <string> [:LCA]:SOFTware:VERSion? -> <string> :LOAD:OO:CALibration:NAME noquery “<string>” :LOAD:OE:CALibration:NAME noquery “<string>” :MEASurement:ABORt :MEASurement:CALData:SAVE noquery “<string>” :MEASurement:CURRent:TYPE? -> <string> :MEASurement:INITialize:EE :MEASurement:INITialize:EO :MEASurement:INITialize:OE :MEASurement:INITialize:OO :MEASurement:STARt <SINGle|CONTinuous>

:NWA:MODel? -> <string>

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

:NWA:PORT:NUMBer? -> <integer>

*OPC? -> <0|1> as string :PARameter:ADVAnced:MODE /? -> <0|1> as string :PARameter:ELECtrical:PATH:DEEMbedding /? -> <0|1> as string :PARameter:ELECtrical:RECeiver:S2PFile[n] /? <string> (index n = 1|2) :PARameter:ELECtrical:SOURce:S2PFile[n] /? -> <string > (index n = 1|2) :PARameter:MEASurement:MODE /? -> <SINGel|DIFFerential > :PARameter:MODUlator:BIAS:MODE /? <CONTinuous| EVERysweep|ONCE> :PARameter:OPTical:INPut:POWer:HIGH /? -> <0|1> as string :PARameter:OPTical:OUTput:POWer /? -> <double> :PARameter:OPTical:PATH:DEEMbedding /? <0|1> as string :PARameter:OPTical:RECeiver:S2PFile /? -> <string > :PARameter:OPTical:S2PFile:USE /? -> <0|1> as string :PARameter:OPTical:SOURce:S2PFile /? -> <string > :PARameter:RECeiver:ATTenuation /? -> <double> :PARameter:RECeiver:PATH:LENGth /? -> <double> :PARameter:RECeiver:REFR:INDex /? -> <double> :PARameter:SOURce:ATTenuation /? -> <double> :PARameter:SOURce:POWer:STATe /? <0|1off|on > :PARameter:SOURce:PATH:LENGth /? -> <double> :PARameter:SOURce:REFR:INDex /? -> <double> :PARameter:USER:CALIbration:CALSet /? -> <string> :PARameter:WAVelength /? -> <string>

:RF:POWer:FWD /? -> <double> unit is dBm :RF:POWer:REVerse /? -> <double> unit is dBm :

RF:SWITch:STATe /? <RECeiver|SOURce >,<INTern|THRu > :SOURce{n}:MAXPower? qonly -> <string>, n = index of array :SOURce{n}:MINPower? qonly -> <string>, n = index of array :SOURce:POWer /? -> <double> {dBm} :SOURce:STATe /? <ON|OFF|0|1> :SOURce:WAVelength /? -> <1310|1550> as string :SOURce:WAVelength:ALL? qonly -> <string> :THEAd:INPut:MODe /? ->< STD|HIGH> :THEAd:INPut:POWer? qonly <double> unit is dBm :THEAd:INPut:NUMBers? qonly -> <integer> :THEAd:SWITched:ARCHitecture? qonly -> <0|1>

Command Details

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

Command: *CLS syntax: *CLS description: Clears the system error queue. parameters: none response: none example: *cls

Command:

syntax: [:LCA]:PNUMber? description: The product number of the LCA system

parameters: none response: string

C#: (property) ProductNumber example: :PNUM? -> N4373B

Command: [:LCA]:SNUMber? syntax: [:LCA]:SNUMber?

description: The serial number of the LCA system parameters: none response: string C

C#: (property) SerialNumber example: :SNUMber? ->,MY49151038

Command: [:LCA]:SOFTware:VERSion? syntax: [:LCA]:SOFTware:VERSion? description: The version of the LCA server software

parameters: none response string C#: (property) example :SOFT:VERS? -> 2.3.10.2

Command: syntax: description:

parameters: response:

C#: example:

[:LCA]:PNUMber?

:LOAD:OO:CALibration:NAME

:LOAD:OO:CALibration:NAME<wsp>”<path string>” Use this command instead of Init_OO if you want the LCA to load and use previously saved user calibration data

“<string>” path and filename enclosed in double quotes none (method) LoadOOTxCalData :LOAD:OO:CAL:NAME “c:\temp\test.s2p”

Command: syntax: description:

parameters: response:

C#:

example:

:LOAD:OE:CALibration:NAME

:LOAD:OE:CALibration:NAME<wsp>”<path string>” Use this command instead of Init_OE if you want the LCA to load and use previously saved user calibration data

“<string>” path and file name enclosed in double quotes none (method) LoadOETxCalData

:LOAD:OE:CAL:NAME “c:\temp\test.snp”

Command: :MEASurement:ABORt

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

syntax: :MEASurement:ABORt description: Aborts a currently running measurement or initialization.

parameters: none response: none C#: (method) Abort() example: :MEAS:ABOR

Command: :MEASurement:CALData:SAVE syntax: :MEASurement:CALData:SAVE<wsp>”<path string>” description: Save the measured user calibration data into a s2p-file.

parameters: “<string>” path and file name enclosed in double quotes response: none

C#: (method) SaveUserCalData() example: :MEAS:CALD:SAVE “c:\temp\test.s2p”

Command: syntax: description:

parameters: response:

C#: example:

Command: :MEASurement:INITialize:EE syntax: :MEASurement:INITialize:EE

description: Initializes the LCA for an EE measurement parameters: none response: none C#: (method) Init_EE() example: :MEAS:INIT:EE

command: :MEASurement:INITialize:EO syntax: :MEASurement:INITialize:EO

description: Initializes the LCA for an EO measurement. parameters: none response: none C#: (method) Init_EO() example: :MEAS:INIT:EO

command: :MEASurement:INITialize:OE syntax: :MEASurement:INITialize:OE

description: Initializes the LCA for an OE measurement parameters: none response: none C#: (method) Init_OE example: :MEAS:INIT:OE

:MEASurement:CURRent:TYPE? :MEASurement:CURRent:TYPE? Get the measurement type that has been initialized by the last call to one of the :MEAS:INIT XX commands or by one of the.:LOAD:XX: commands.

none <string> NotSet | EE | EO | OE | OO (method) CurrentMeasType() :MEAS:CURR:TYPE? -> OO

command: :MEASurement:INITialize:OO syntax: :MEASurement:INITialize:OO

description: Initializes the LCA for an OO measurement parameters: none response: none C#: (method) Init_OO() example: :MEAS:INIT:OO

command: :MEASurement:STARt syntax: MEASurement:STARt<wsp>[SINGle|CONTinuous]

description:

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

parameters: response:

C#: example:

command: :NWA:MODel? syntax: :NWA:MODel? description: The model number of the network analyzer

parameters: none response: string

C#: (property) NWAModel example: :NWA:MOD? -> N5245A

command: :NWA:PORT:NUMBer? syntax: :NWA:PORT:NUMBer? description: The number of network analyzer ports

parameters: none response: integer

C#: (property) NumNWAPorts example: :NWA:PORT:NUMBer? -> 4

command: *OPC? syntax: *OPC? description: Retrieves the operation complete state parameters: none response: <string> 0 | 1

C#: (method) OperationComplete() example: *OPC? -> 1

Triggers a measurement on the LCA. If you call a continuous measurement while another measurement is running, the original measurement is stopped without starting a new measurement

<string> SINGle | CONTinuous none (method) Measure() :MEAS:STAR CONT

command: syntax: description:

parameters: response:

C#: example:

command: syntax: description:

parameters: response:

C#: example:

:PARameter:ADVAnced:MODE?

:PARameter:ADVAnced:MODE? Returns 1 if advanced mode is enabled. In advanced mode you

can force the LCA to switch the laser on or off, independent of the measurement type. You also have additional optical- and RFpath de-embedding possibilities, or can apply additional deembedding on the receiver and the source side, independent of the measurement type.

none <string> 0 | 1 (property) Advanced :PAR:ADVA:MODE? -> 0

:PARameter:ADVAnced:MODE :PARameter:ADVAnced:MODE<wsp>ON | OFF | 1 | 0 Enables or disables advance mode, which allows changing some default settings. In advanced mode you can force the LCA to switch

the laser on or off, independent of the measurement type. You also have additional optical- and RF-path de-embedding possibilities, or can apply additional de-embedding on the receiver and the source side, independent of the measurement type.

<string> ON | OFF | 1 | 0 none (property) Advanced :PAR:ADVA:MODE ON

command:

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

syntax: description:

parameters: response:

C#: example:

:PARameter:ELECtrical:PATH:DEEMbedding?

:PARameter:ELECtrical:PATH:DEEMbedding? Retrieves the property which shows whether the whole

electrical path de-embedding is switched on or off.

none <string> 1 | 0 (property)UseElAdaptor :PAR:ELEC:PATH:DEEM? -> 0

command: syntax: description:

parameters:

response: C#:

example:

command: syntax: description:

parameters: response:

C#: example:

command: syntax: description:

parameters: response:

C#: example:

:PARameter:ELECtrical:PATH:DEEMbedding

:PARameter:ELECtrical:PATH:DEEMbedding<wsp>ON|OFF|1|0 Sets the property which enables or disables the whole electrical path deembedding .

<string> ON | OFF | 1 | 0

none (property)UseElAdaptor

:PAR:ELEC:PATH:DEEM OFF

:PARameter:ELECtrical:RECeiver:S2PFile[1 - 2]?

:PARameter:ELECtrical:RECeiver:S2P:FILE[1 - 2]:NAME? Gets the name of the s2p file to use for electrical adaptor de-embedding. File index 1 has to be used for receiver side de-embedding in single-ended measurements or for the receiver port with the lower number in differential measurements. Index 2 has to be used only for the receiver port with the higher number in differential measurements

none <string> (property) ElRcv1File / ElRcv2File :PAR:ELEC:REC:S2PFile? -> c:\temp\test.s2p

:PARameter:ELECtrical:RECeiver:S2PFile[1 - 2]

:PARameter:ELECtrical:RECeiver:S2P:FILE[1 - 2]:NAME<wsp>“<path string>” Sets the name of the s2p file to use for electrical adaptor de-embedding. File index 1 has to measurements or for the receiver port with the lower number in differential measurements. Index 2 has to be used only for the receiver port with the higher number in differential measurements

“<string>” path and file name none (property) ElRcv1File / ElRcv2File :PAR:ELEC:REC:S2PFile“c:\temp\test.s2p”

be used for receiver side de-embedding in single-ended

command:

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

syntax: description:

parameters: response:

C#: example:

:PARameter:ELECtrical:SOURce:S2PFile[ 1 - 2]?

:PARameter:ELECtrical:SOURce:S2PFile[[ 1- 2]:NAME? Gets the name of the s2p file to use for electrical adaptor de-embedding. This property has to be used with file index 1 for source side deembedding in single-ended measurements or for the source port with the lower number in differential measurements. Index 2 is the file for the source port with the higher number in differential measurements.

none <string> path and file name (property) ElSrc1File / ElSrc2File :PARameter:ELECtrical:SOURce:S2PFile1? -> c:\temp\test.s2p

command: syntax: description:

parameters:

response: C#:

example:

command: :PARameter:MEASurement:MODE? syntax: :PARameter:MEASurement:MODE? description: Returns setting for selecting single-ended or differential measurements

parameters: none response: <string> DIFFerential|SINGleended | NOTSet C#: (property) MeasMode

example: :PAR:MEAS:MODE? -> NotSet

command: :PARameter:MEASurement:MODE syntax: :PARameter:MEASurement:MODE<wsp>DIFFerential|SINGleended|NOTSet description: Specify single ended or differential measurements parameters: <string> DIFFerential|SINGleended | NOTSet

response: none C#: (property) MeasMode

example: :PAR:MEAS:MODE SING

:PARameter:ELECtrical:SOURce:S2PFile[ 1 - 2]

:PARameter:ELECtrical:SOURce:S2PFile[[ 1- 2]<wsp>“<path string>” Sets the name of the s2p file to use for electrical adaptor deembedding. This property has to be used with file index 1 for source side de-embedding in single-ended measurements or for the source port with the lower number in differential measurements. Index 2 is the file for the source port with the higher number in differential measurements

“<string>” path and file name

none (property) ElSrc1File / ElSrc2File :PARameter:ELECtrical:SOURce:S2PFile1 “c:\temp\test.s2p”

command: :PARameter:MODUlator:BIAS:MODE? syntax: :PARameter:MODUlator:BIAS:MODE? description: Returns how often a modulator bias voltage optimization will be performed

parameters: response:

C#: example:

none <string> Continuous|EverySweep|Once (property) ModBiasOptimization

:PAR:MODU:BIAS:MODE? -> EverySweep

command: :PARameter:MODUlator:BIAS:MODE

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

syntax: :PARameter:MODUlator:BIAS:MODE<wsp>CONT|EVER|ONCE description: Specify how often a modulator bias voltage optimization will be performed parameters: <string> CONTinuous|EVERysweep|ONCE

response: none C#: (property) ModBiasOptimization

example: :PAR:MODU:BIAS:MODE EVER

command: :PARameter:OPTical:INPut:POWer:HIGH? synstax: :PARameter:OPTical:INPut:POWer:HIGH? description: Returns the state of the high power input property. parameters: none response: <string> 1 | 0, input power high true = 1, false = 0 C#: (property) HighPower_Input example: :PAR:OPT:INP:POWer:HIGH? -> 0

command: :PARameter:OPTical:INPut:POWer:HIGH syntax: :PARameter:OPTical:INPut:POWer:HIGH<wsp>ON|OFF|1|0 description: Gets the state of the high power input property.

parameters: <string> ON | 1 enables high power input, OFF | 0 disables high power input response: none C#: (property) HighPower_Input example: :PAR:OPT:INP:POWer:HIGH ON

command: :PARameter:OPTical:OUTput:POWer? synstax: :PARameter:OPTical:OUTput:POWer? description: Returns the optical output power of the LCA in dBm.

parameters: none response: <double> power value, the default unit is dBm.

C#: (property) OpticalPower_dBm example: :PAR:OPT:OUT:POWer -> -1

command: :PARameter:OPTical:OUTput:POWer synstax: :PARameter:OPTical:OUTput:POWer<ws><power> description: Specify the optical output power of the LCA in dBm.

parameters: power <double>, power value in dBm response: none.

C#: (property) OpticalPower_dBm example: :PAR:OPT:OUT:POWer -1

command: :PARameter:OPTical:PATH:DEEMbedding? synstax: :PARameter:OPTical:PATH:DEEMbedding? description: Returns whether the whole optical path de-embedding is set on or off.

parameters: none response: <string> 1 = optical path de-embedding is enabled, 0 = disabled C#: (property) UseOpticalConnData example: :PAR:OPT:PATH:DEEM? -> 1

command: :PARameter:OPTical:PATH:DEEMbedding syntax: :PARameter:OPTical:PATH:DEEMbedding<wsp>ON|1|OFF|0 description: Switches the whole optical path de-embedding on or off.

parameters: <string> ON | 1 = enabled optical path de-embedding, OFF | 0 = disable response: none C#: (property) UseOpticalConnData example: :PAR:OPT:PATH:DEEM? -> 1

command:

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

synstax: description:

parameters: response: C#: example:

:PARameter:OPTical:RECeiver:S2PFile?

Returns the name of the s2p file to use for additional adaptor deembedding on the receiver side. In default mode, only evaluated for E/O and O/O measurements.

none <string> path and file name (property) OptRcvFile :PAR:OPT:REC:S2PF? -> c:\temp\test1.s2p

command: syntax: description:

parameters: response: C#: example:

command: syntax: description:

parameters: response: C#: example:

command: syntax: description:

parameters: response: C#: example:

:PARameter:OPTical:RECeiver:S2PFile

:PARameter:OPTical:RECeiver:S2PFile<wsp>”<path string>” Sets the name of the s2p file which is used for additional adaptor deembedding on the receiver side. In default mode only evaluated for E/O and O/O measurements.

“<string>” file name and path enclosed in double quotes none (property) OptRcvFile :PAR:OPT:REC:S2PF “c:\temp\test1.s2p”

:PARameter:OPTical:S2PFile:USE?

:PARameter:OPTical:S2PFile:USE? Returns whether the optical paths are described by transmission data stored in an s2p file. Only the S21 transmission data is used

none <string> 1 = s2p file use enabled, 0 = disabled (property) UseIOpticalS2PFile :PAR:OPT:S2PF:USE? -> 0

:PARameter:OPTical:S2PFile:USE

:PARameter:OPTical:S2PFile:USE<wsp>ON|1|OFF|0 enables or disables description of the optical paths by transmission data stored in an s2p file. Only the S21 transmission data is used

<string> ON | 1 = s2p file use none (property) UseIOpticalS2PFile :PAR:OPT:S2PF:USE ON

enabled, OFF | 0 = disabled

command: syntax: description:

parameters: response: C#: example:

:PARameter:OPTical:SOURce:S2PFile?

:PARameter:OPTical:SOURce:S2PFile? Retrieves the name of the s2p file to use for additional adaptor deembedding on the source side. In default mode only evaluated for O/E and O/O measurements.

none <string> file name and path of the s2p file on the LCA system. (property) OptSrcFile :PAR:OPT:SOUR:S2PF? -> c:\temp\test1.s2p

command:

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

syntax: description:

parameters: response: C#: example:

:PARameter:OPTical:SOURce:S2PFile

:PARameter:OPTical:SOURce:S2PFile<wsp>“<path string>” Specifies the name of the s2p file to use for additional adaptor deembedding on the source side. In default mode only and O/O measurements.

“<string>” the file name and path enclosed in double quotes. <string> file name and path of the s2p file on the LCA system. (property) OptSrcFile :PAR:OPT:SOUR:S2PF “c:\temp\test1.s2p”

evaluated for O/E

command: syntax: description:

parameters: response: C#: example:

command:

syntax: description:

parameters:

response: C#: example:

command: syntax: description:

parameters: response: C#: example:

command: syntax: description:

parameters: response: C#: example:

:PARameter:RECeiver:ATTenuation?

:PARameter:RECeiver:ATTenuation? Retrieves the optical attenuation on the receiver path. In default mode only evaluated for E/O and O/O measurements

none <double> attenuation value, default unit is dB (property) RcvAttOpt_dB :PAR:REC:ATT? -> 3

:PARameter:RECeiver:ATTenuation

:PARameter:RECeiver:ATTenuation <wsp><attenuation Specifies the optical attenuation on the receiver path. In default mode only evaluated for E/O and O/O measurements

attenuation <double> attenuation value, default unit is dB none (property) RcvAttOpt_dB :PAR:REC:ATT 2

:PARameter:RECeiver:PATH:LENGth?

:PARameter:RECeiver:PATH:LENGth? Retrieves the geometrical length of the receiver path in m. In default mode only evaluated for E/O and O/O measurements

none <double> The path length value, default unit is meter. (property) RcvLengthOpt_m :PAR:REC:PATH:LENG? -> 0.3

:PARameter:RECeiver:PATH:LENGth

:PARameter:RECeiver:PATH:LENGth<wsp> <length> Specifies the geometrical length of the receiver path in m. In default mode only evaluated for E/O and O/O measurements

length <double> path length value, default unit is meter. none. (property) RcvLengthOpt_m :PAR:REC:PATH:LENG 0.45

command: syntax: description:

parameters: response:

example:

:PARameter:RECeiver:REFR:INDex?

:PARameter:RECeiver:REFR:INDex ? Retrieves the refractive index of the receiver path in dB. In default mode only evaluated for E/O and O/O measurements.

none <double> the refractive index value, unit is dB. (property) RcvRefIdx :PAR:REC:REFR:IND? -> 0

command:

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

syntax: description:

parameters:

response: C#:

example:

:PARameter:RECeiver:REFR:INDex

:PARameter:RECeiver:REFR:INDex<wsp><index> Specifies the refractive index of the receiver path in dB. In default mode only evaluated for E/O and O/O measurements.

index <double> the receiver refractive value, unit id dB. none (property) RcvRefIdx :PAR:REC:REFR:IND 1.3

command:

syntax: description:

parameters: response: C#: example:

command: syntax: description:

parameters: response: C#: example:

command: syntax: description:

parameters: response: C#: example:

:PARameter:SOURce:ATTenuation?

:PARameter:SOURce:ATTenuation? Retrieves the optical attenuation on the source path. In default mode only evaluated for O/E and O/O measurements.

none <double> attenuation value in dB (property) SrcAttOpt_dB :PAR:SOUR:ATT? -> 0

:PARameter:SOURce:ATTenuation

:PARameter:SOURce:ATTenuation<wsp><attenuation> Specifies the optical attenuation on the source path. In default mode only evaluated for O/E and O/O measurements.

attenuation <double> attenuation none (property) SrcAttOpt_dB :PAR:SOUR:ATT 0.4

:PARameter:SOURce:POWer:STATe?

:PARameter:SOURce:POWer:STATe? Retrieves the internal laser state, on or off. Note: the value of this property is only evaluated in advanced mode. In default mode the laser is switched on or off according to the measurement type.

none <string> 1 = internal laser is on, 0 = internal laser is off (property) Laser_On :PAR:SOUR:POW:STAT? -> 1

value in dB

command: :PARameter:SOURce:POWer:STATe syntax: :PARameter:SOURce:POWer:STATe<wsp>ON|1|OFF|0

description:

parameters:

response: C#: example:

command: syntax: description:

parameters: response: C#: example:

Switches the internal laser on or off. Note: The value of this property is only evaluated in advanced mode. In default mode the laser is switched on or off according to the measurement type

<string> ON | 1 to switch the laser on, OFF | 0 to switch the laser off none (property) Laser_On :PAR:SOUR:POW:STAT ON

:PARameter:SOURce:PATH:LENGth?

:PARameter:SOURce:PATH:LENGth? Retrieves the geometrical length of the source path in m . In default mode only evaluated for O/E and O/O measurements

.none <double> the path length in meter SrcLengthOpt_m :PAR:SOUR:PATH:LENG? -> 0.27

command:

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

synstax: description:

parameters:

response: C#: example:

:PARameter:SOURce:PATH:LENGth

:PARameter:SOURce:PATH:LENGth<wsp><length> Specifies the geometrical length of the source path in m. In default mode only evaluated for O/E and O/O measurements

length <double> the path length value, default unit is meter. none SrcLengthOpt_m :PAR:SOUR:PATH:LENG 0.42

command: syntax: description:

parameters: response: C#: example:

command: syntax: description:

parameters: response: C#:

example:

command:

syntax: description:

parameters: response: C#: example:

:PARameter:SOURce:REFR:INDex?

:PARameter:SOURce:REFR:INDex? Retrieves the refractive index of the source path in dB. In default mode only evaluated for O/E and O/O measurements.

none <double> the refractive index (property) SrcRefIdx :PAR:SOUR:REFR:IND? -> 0

:PARameter:SOURce:REFR:INDex

:PARameter:SOURce:REFR:INDex<wsp><index> Specifies the refractive index of the source path in dB. In default mode only evaluated for O/E and O/O measurements.

index <double> the refractive index value in dB none (property) SrcRefIdx

:PAR:SOUR:REFR:IND 0.13

:PARameter:USER:CALIbration:CALSet?

:PARameter:USER:CALIbration:CALSet? Retrieves the name of a Calset on the network analyzer to be used for the user calibration measurement. If an empty string is returned, the current Calset is used. If “NONE” is returned, no Calset is applied for the user calibration measurement.

none <string> NONE | path and file name (property) CalSetUserCal :PAR:USER:CAL:CALS? -> c:\temp\calset1.s2p

command: syntax:

description:

parameters:

response: C#: example:

command: :PARameter:WAVelength? syntax: :PARameter:WAVelength? description: Returns the laser wavelength set on the LCA.

parameters: none response: <string> The wavelength and unit as a string.

C#: example:

:PARameter:USER:CALIbration:CALSet

:PARameter:USER:CALIbration:CALSet<wsp>[NONE | “<path string>”]

Specifies the name of a Calset on the network analyzer to be used for the user calibration measurement. If an empty string is passed, the current Calset is used. If “NONE” is passed, no Calset is applied for the user calibration measurement.

NONE| <string> |No argument, None or the path and file name surrounded by double quotes. none (property) CalSetUserCal :PAR:USER:CAL:CALS “c:\temp\calset1.s2p”

(property) Wavelength_nm :PAR:WAV? -> Wvl_1550nm

command: :PARameter:WAVelength

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

syntax: :PARameter:WAVelength<wsp>850|1310|1550 description: Specifies with which laser wavelength the LCA will measure

parameters: <string> 850 | 1310 | 1550 response: none C#: (property) Wavelength_nm example: :PAR:WAV 1550

command: :RF:POWer:FWD? syntax: :RF:POWer:FWD? description: Gets the RF power on the network analyzer ports for forward measurements

parameters: none response: <double> forward power value in dBm C#: (property) RFPowerFwd_dBm example: :RF:POWer:FWD? -> -8

command: :RF:POWer:FWD syntax: :RF:POWer:FWD<wsp><power> description: Sets the RF power on the network analyzer ports for forward measurements

parameters: power <double> forward power value in dBm response: none C#: (property) RFPowerFwd_dBm example: :RF:POWer:FWD -1

command: :RF:POWer:REVerse? syntax: :RF:POWer:REVerse? description: Gets the RF power on the network analyzer ports for reverse measurements.

parameters: none response: <double> RF reverse power value in dBm. C#: (property) RFPowerRev_dBm example: :RF:POW:REV? -> -8

command: syntax: description:

parameters: response: C#: example:

command: syntax: description:

parameters: response: C#: example:

command: syntax: description:

parameters: response: C#: example:

:RF:POWer:REVerse

:RF:POWer:REVerse<wsp><power> Sets the RF power on the network analyzer ports for reverse measurements. To set this property back to the factory defined default value, set it to Double.NaN or a value < -200dBm.

power <double> RF reverse power value in dBm. none (property) RFPowerRev_dBm :RF:POW:REV -4

:RF:SWITch:STATe?

:RF:SWITch:STATe? Retrieves the RF switch settings in the LCA test-head. With a nonswitched LCA system, setting this property has no effect.. Reading this property from a non-switched system will always return Unknown.

none <string> NotSet | Receiver | Source , Intern | Thru | Unknown (property) RFSwitchState :RF:SWIT:STAT? -> NotSet, Unknown

:RF:SWITch:STATe

:RF:SWITch:STATe<wsp>REC|SOUR,INT|THRU Setting the RF switches in the LCA testhead. With a non switched LCA system, setting this property has no effect. Trying to set this property to UnKnown, is ignored. Setting this property for a non switched system will stay UnKnown.

<string> RECeiver | SOURce , INTern, THRU none (property) RFSwitchState :RF:SWIT:STAT REC,INT

command:

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

syntax:

description:

parameters: response:

C#: example:

:SOURce[1 – n]:MAXPower?

Retrieves the maximum optical output power values in dB. The maximum power for an index n corresponds to the wavelength value from :SOUR:WAV:ALL? at position n.

none <double> The maximum power value in dBm. For an invalid index it returns -200 and there is an entry in the error queue. See :SYST:ERR?. (property) MaxPower_dBm :SOUR:MAXP? -> 6

command: syntax: description:

parameters: response:

C#: example:

command: :SOURce:POWer? syntax: :SOURce:POWer?

description: Gets the current power of the LCA optical output in dBm parameters: none response: <double> Laser power value in dBm. C#: (property) LaserPower_dBm example: :SOUR:POW? -> 5.00375

command: :SOURce:POWer syntax:

:SOURce:POWer<wsp><power>

description: Sets the current power of the LCA optical output in dBm parameters: power <double> Laser power value in dBm response: .none C#: (property) LaserPower_dBm example: :SOUR:POW 2.45

command: :SOURce:STATe? syntax: :SOURce:STATe? description: Gets the current state of the LCA optical output.

parameters: none response: <string> LaserOn | LaserOff C#: (property) LaserState example: :SOUR:STAT? -> LaserOn

:SOURce[1 – n]:MINPower?

:SOURce[1 – n]:MINPower? Retrieves the minimum optical output power value in dBm. The minimum power for an index n corresponds to the wavelength value from

:SOUR:WAV:ALL at position n.

none <double> The minimum power value in dBm. For an invalid index it returns -200 and there is an entry in the error queue. See :SYST:ERR?. (property) MimPower_dBm :SOUR:MINP? -> -1

command: :SOURce:STATe syntax: :SOURce:STATe<wsp>ON|OFF|1|0 description: Sets the current state of the LCA optical output.

parameters: <string> ON | 1 | OFF | 0 response: none C#: (property) LaserState example: :SOUR:STAT ON

command: syntax: description:

parameters: response: C#: example:

:SOURce:WAVelength?

:SOURce:WAVelength? Gets the current wavelength of the LCA optical output.

none <string> The wavelength as string together with the unit. (property) LaserWavelength_nm :SOUR:WAV? -> <Wvl_1550nm

command:

Remote Operation

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

syntax: description:

parameters:

response: C#: example:

command: :SOURce:WAVelength:ALL? syntax: :SOURce:WAVelength:ALL? description: Retrieves a list showing all available wavelengths of the LCA test head.

parameters: none response: <string> comma separated list of wavelengths units. C#: (property) SourceWvl example: : SOUR:WAV:ALL? -> Wvl_1310nm, Wvl_1550nm

command: :THEAd:INPut:MODe? syntax: :THEAd:INPut:MODe? description: Gets the current optical input of the LCA test-head.

parameters: none response: <string> Standard | HighPower C#: (property) OpticalInput example: THEA:INP:MODE? -> Standard

command: :THEAd:INPut:MODe syntax: :THEAd:INPut:MODe<wsp>STAN|HIGH description: Sets the current optical input of the LCA test-head.

parameters: <string> HIGH | STANdard response: none C#: (property) OpticalInput example: THEA:INP:MODE HIGH

:SOURce:WAVelength

:SOURce:WAVelength<wsp><wavelength> Sets the current wavelength of the LCA optical output. The available wavelengths can be retrieved with :SOUR:WAV:ALL?

wavelength <string> the wavelength value as string, unit is nm e. g. 1550. none (property) LaserWavelength_nm :SOUR:WAV 1550

command: syntax: description:

parameters: response: C#: example:

command: :THEAd:INPut:NUMBers? syntax: :THEAd:INPut:NUMBers? description: Gets the number of optical inputs of the LCA test-head

parameters: none response: <integer> number of optical inputs. C#: (property) NumOpticalInputs example: :THEA:INP:NUMB? -> 2

command: syntax: description:

parameters: response: C#: example:

:THEAd:INPut:POWer?

:THEAd:INPut:POWer? Gets the actual optical DC power, measured by the optical power meter built into the LCA test-head.

none <double> the power value in dBm. (property) OpticalDCPower_dBm :THEA:INP:POW? -> -40.3798

:THEAd:SWITched:ARCHitecture?

:THEAd:SWITched:ARCHitecture? Gets the LCA test-head architecture. True: LCA test head has switched, False: non-switched architecture.

none <string> 0 = false or 1 = true (property) SwtichedArchitecture :THEA:SWIT:ARCH? -> 0

Programming Examples

VEE Programming Example 62

Getting started 62 Description of the VEE-example 70

VBA/Excel Programming Example 74

Further programming examples are installed with the LCA Remote Client in the folder

C:\Program Files (x86)\Agilent\Agilent LCA Remote Client\Examples

The location on your computer depends on the folder in which you installed the LCA Remote Client.

VEE Programming Example

Programming Examples

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

Keysight VEE is a Visual Engineering Environment that allows you to program by creating intuitive “block diagrams.” You select and edit objects from pull-down menus and connect them to each other by wires to specify the program’s flow, mimicking the order of tasks you want to perform.

This makes it easy to get useful results in a short time and in only a few steps.

Getting started

Starting a complete measurement means interacting

• over the .NET interface with the LCA and

• over the COM interface with the network analyzer.

Working with the LCA

Programming Examples

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

If your version of VEE version can use .NET assemblies, we recommend you reference the LCA Remote Client .NET assembly directly, as described here. If you have an older version of VEE which cannot use .NET assemblies, you need to reference the Active X interface of the LCA Remote Client. This is not described here, but is similar to referencing the PNAProxy, which is described later in this example.

1 After having opened VEE, in the “Device” menu, select “.NET

embly References”.

Ass

Figure 2 Calling the .NET Assembly references

2 Using the "Browse" button, find the references “RemoteClient.dll”

Programming Examples

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

and “RemoteObjects.dll” These are in the folder:

C:\Program Files (x86)\Agilent\Agilent LCA Remote Client

3 Enable the flag “Import namespaces after closing”.

4 Ensure that “RemoteClient” and “RemoteObjects” are

selected.

gure 3 Selecting the required references

5. Set the flag to import the namespaces

“Agilent.LCA.RemoteClient” and click OK

Figure 4 Importing namespaces

Programming Examples

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

You now find the required functions in the “Function & Object Browser”. You will find this in the “Device” menu.

Select

• type: .NET/CLR Objects

• assembly: RemoteClient

• namespace: Agilent.LCA.RemoteClient

to choose the function you want.

NOTE

Before using one of the functions or properties, you have to create an instance of the constructor.

Figure 5 Function & Object Browser

Programming Examples

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

Working with the network analyzer

To get your measurement data from the network analyzer, you have to use the COM-interface. To be able to communicate with the network analyzer over its COM interface, you have to install the PNAProxy. For information on installing the PNAProxy see “Install the LCA Remote Client” on page 12.

You can communicate with it using ActiveX references.

Programming Examples

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

1 In the “Device” menu, select “ActiveX Automation

References”.

Figure 5 Calling the ActiveX automation references

2 In the dialog, which appears, enable the “Agilent PNA Series

1.9 Type Library” and click OK.

Figure 7 Selecting the required references

Programming Examples

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

Before you can start, you need to declare a variable as object, so Keysight VEE knows you want to create an object.

3 In the “Data” menu, select “Variable”, then “Declare

Var iable”.

4 As type, select “Object”, and as subtype, select “COM”, which

is available in the advanced dialog.

gure 8 Declaration

You can set the declared variable in a new formula.

5 In the “Device” menu, select “Formula”.

6 T ype the following command into the formula

SET name =CreateObject (“AgilentPNA835x.application”,

Programming Examples

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

IP-Address)

where name is the name of the variable you declared, and IPaddress by the IP address of the LCA.

Figure 9 Setting the variable

This creates the identifier for object calls “AgilentPNA835x.Application”.

You now find the required functions in the “Function & Object Browser”. You will find this in the “Device” menu, under Function & Object Browser.

Select

• type: ActiveX Objects

• namespace: AgilentPNA835x to

choose the function you want.

Figure 10 Using the Function & Object Browser

Programming Examples

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

Description of the VEE-example

You can find the examples in the “Examples” folder in the “Agilent LCA Remote Client” installation folder. In the VEEexample you can switch between the panel and the detail view.

The panel view lets you set LCA parameters and control the LCA.

Programming Examples

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

gure 11 Panel view

In the detail view you can trace the relationships between the

Programming Examples

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

different parts of the program:

Figure 12 Detail view

NOTE

Starting a measurement always needs an open session. That’s why you have to begin with the point open session of the slider list.

Beginning a new session connects to the server. Before opening a new session, make sure no other session is open that could block the LCA. Then you have the right to control the LCA.

When you select “open a session”, the program sets the instances of LCARemoteClient, LCAMeasParams and LCAProperties. The program then sets the IP address variable and makes it available to the other parts of the program.

The “init”-part reads out the parameters set by the user, and

Programming Examples

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

saves them in the properties of the LCAMeasParams. The LCA calls the correct initialization routine for the measurement selected.

The “measure”-part makes a DUT measurement. When the

easurement is finished, the program retrieves the results from

m the network analyzer andplots them as an X-Y plot.

You can read out our data in the panel view too.

Figure 13 Measured data

When you have finished working with the LCA, close the session and disconnect from the LCA. Do this by selecting “close session” and pressing “Run”.

VBA/Excel Programming Example

Programming Examples

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

You can find this programming example in the folder:

Examples\Excel VBA\ in your LCA Remote Client installation

directory.

Run the VBA/Excel example:

1 To connect to the LCA you need its IP-address

a On the LCA, from the “Start” menu, select “Run”, then

enter “cmd.exe”.

b Enter “ipconfig” and press Enter.

CAUTION

Now you can read off the IP address of the LCA.

2 Configure the security settings for DCOM.

This procedure sets DCOM security is set to the lowest level. This ensures the application runs.

For information on how to apply a more specific DCOM security setting for different environments we recommend your read the related network analyzer documentation. (Chapter: Configure for COM-DCOM Programming in the network analyzer help file) or the document “dcom.rtf” on the network analyzer support CD.

a From the “Start” menu select “Run”.

Programming Examples

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

b Enter “dcomcnfg” and press ENTER.

c Expand “Component Services” and “Computers”, and

select “My Computer”.

d Right click on “My Computer”, and select “Properties”.

e Select the “Default Properties” tab.

f For the “Default Authentication Level”, choose None.

gClose with OK.

3 If it is not already installed, install the PNA-Proxy.

Programming Examples

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

For help, see the document “dcom.rtf” on the network analyzer support CD.

4 Open the Excel workbook “example.xls”.

Change the LCA parameters.

NOTE

If you encounter COM automation errors when running this example, copy the file “Ecel.exe.config” into the folder where the Excel executable is located. This forces the runtime environment to bind Excel with .NET 2.0 at startup. If you have an older version of Excel it might be bound to an older version of the .NET framework by default. Since an application can only be bound to one version of the .NET framework you will see errors in this case, because the LCA Remote Client requires .NET 2.0.

This .config file can be found in the same folder as the file “example.xls”.

In the field “LCA Name”, enter the host name or the IP address of the LCA.

Connect to the LCA and start a new session.

Disconnect the LCA from the remote interface (end session).

Select the type of measurement

The blue button combines the grey buttons, and runs a full measurement.

Click “measure” to start a measurement. The results are shown on sheet 2 (Data).

Click “Draw a chart” to generate a graph of your measurement results (on sheet

2).

Change to sheet 2 to see your measurement results.

Programming Examples

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

Programming Examples

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

Warranty Information

Warranty

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

All system warranties and support agreements are dependent upon the integrity of the Lightwave Component Analyzer. Any modification of the system software or hardware will terminate any obligation that Keysight Technologies may have to the purchaser. Please contact your local Keysight field engineer before embarking in any changes to the system.

System

Remove all doubt

In addition to the standard warranty, extended warranty periods, on-site troubleshooting, reduced response times and increased coverage hours can be negotiated under a separate support agreement and will be charged at an extra cost.

Keysight offers a wide range of additional expert test and measurement services for your equipment, including initial start-up assistance onsite education and training, as well as design, system integration, and project management.

Our repair and calibration services will get your equipment back

o you, performing like new, when promised. You will get full

t value out of your Your equipment will be serviced by using the latest factory calibration procedures, automated repair diagnostics and genuine parts. You will always have the utmost confidence in your measurements.

For more information on repair and calibration services, go to

Keysight equipment throughout its lifetime.

Keysight-trained technicians

www.keysight.com/find/removealldoubt

Keysight E-mail Updates

Warranty Information

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

Get the latest information on the products and

applications you select.

www.keysight.com/find/emailupdates

MyKeysight

Quickly choose and use your test equipment solutions with confidence.

www.keysight.com/find/mykeysight

Keysight Open

Keysight Open simplifies the process of connecting and programming test systems to help engineers design, validate and manufacture electronic products. offers open connectivity for a broad range of systemready instruments, open industry software, PC-standard I/O and global support, which are combined to more easily integrate test system development.

www.keysight.com/find/open

Keysight

Phone or Fax

Warranty Information

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

United States: (tel) 800 829 4444

(fax) 800 829 4433

Canada: (tel) 877 894 4414

(fax) 800 746 4866

China: (tel) 800 810 0189

(fax) 800 820 2816

Europe: (tel) 31 20 547 2111

Japan: (tel) (81) 426 56 7832

(fax) (81) 426 56 7840

Korea: (tel) (080) 769 0800

(fax) (080) 769 0900

Latin America: (tel) (305) 269 7500

Taiwan: (tel) 0800 047 866

(fax) 0800 286 331

Other Asia Pacific Countries: (tel) (65) 6375 8100

(fax) (65) 6755 0042

Email: tm_ap@

keysight.com

Keysight online information:

Warranty Information

Keysight N437x Series Lightwave Component Analyzer, Programmer’s Guide

Opt

ical test instruments

www.keysight.com/find/oct

Lightwave Component Analyzers

www.keysight.com/find/lca

Polarization sol

www.keysight.com/find/pol

ctral analysis products

Spe

www.keysight.com/comms/octspectral

lectro-optical converters

www.keysight.com/find/ref

Optical test instruments a

www.keysight.com/comms/oct-accessories

irmware and driver download

www.keysight.com/comms/octfirmware

utions

ccessories

Keysight photonic discussion forum

www.keysight.com/find/photonic_forum

For Network analyzer related literature, please visit:

Keysight Network Analyzers: www.keysight.com/find/na

Mechanical and Electronic Calibration Kits:

www.keysight.com/find/ecal

RF Test Accessories, Cabinets, Cables:

www.keysight.com/find/accessories

This information is subject to change without notice.

Edition 2.0, February 2015

www.keysight.com

Keysight Technologies N7373C, N437 Series, N4373D, N4373B, N4374B Programmer's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
