Keysight Technologies
PXI Vector Network Analyzer
M9370A 300 kHz to 4 GHz
M9371A 300 kHz to 6.5 GHz
M9372A 300 kHz to 9 GHz
M9373A 300 kHz to 14 GHz
M9374A 300 kHz to 20 GHz
M9375A 300 kHz to 26.5 GHz
Configuration Guide
02 | Keysight | PXI Vector Network Analyzer - Configuration Guide
Drive Down the Size of Test
This configuration guide describes standard configurations, options, accessories, upgrade kits and
compatible peripherals for the M937xA PXIe vector network analyzer (VNA). This guide should be used
with the Keysight PXI VNA data sheet for a complete description of these analyzers.
Table of Contents
A. Select Options for M937xA PXIe VNA ......................................................................... 03
B. Select Controller (Embedded Controller) .................................................................... 04
C. Select Controller (Via PC) ............................................................................................ 05
D. Select a Chassis and Accessories ............................................................................... 06
E. Physical Connection Diagram for Controllers ............................................................. 07
F. Select Software for M937xA PXIe VNA ....................................................................... 08
G. Select Services: Calibration, Start-up Assistance ...................................................... 09
H. Measurement Accessories ..........................................................................................11
For devices with 3.5 mm or SMA connectors .........................................................12
For devices with Type-N connectors .....................................................................13
For devices with 7 mm connectors .........................................................................14
For devices with waveguide ....................................................................................14
I. Example Configurations ..................................................................................................15
Single 2-port M937xA PXIe VNA ............................................................................15
Multiport Measurement Configurations .................................................................. 15
Multi-site Measurement Configurations .................................................................17
Upgrading your system .....................................................................................................17
Using a Non-Keysight Chassis ..........................................................................................18
PC Requirements for M937xA PXIe VNA Control .............................................................18
Related Literature .............................................................................................................. 18
www.keysight.com/find/pxivna
03 | Keysight | PXI Vector Network Analyzer - Configuration Guide
A. Select Options for M937xA PXIe VNA
Step 1. Start by choosing the frequency range of the M937xA PXIe VNA
– M9370A 300 kHz to 4 GHz –
– M9371A 300 kHz to 6.5 GHz
– M9372A 300 kHz to 9 GHz
– M9373A 300 kHz to 14 GHz
– M9374A 300 kHz to 20 GHz
– M9375A 300 kHz to 26.5 GHz
Step 2. Add automatic fixture removal capability (optional)
– M937xA-007 Automatic fixture removal
Step 3. Add frequency offset mode and scalar calibrated converter measurement capability (optional)
– M937xA-009 Frequency offset mode and scalar calibrated converter measurement
Step 4. Add time domain capability (optional)
– M937xA-010 Time domain
Step 5. Add full N-port correction capability (optional)
– M937xA-551 N-port calibrated measurement
1
Step 6. Add multiport cable kit (optional)
– Y1242A Multiport cable kit Includes 2 SMB cables and 1 SMA cables for connecting 2 modules
together.
Add one multiport cable kit for each additional 2-port VNA
Step 7. Add multiport accessory and tool kit (optional)
– Y1281A Accessory and tool kit Includes the following tools for SMA and SMB connector removal:
5002-3361 Pull tool for SMB connectors
5023-1450 Custom long deep socket for 3.5/SMA
connector nuts
1. When ordering multiple VNA modules Option Y1242A is recommended for each additional multiport interconnection.
www.keysight.com/find/pxivna
04 | Keysight | PXI Vector Network Analyzer - Configuration Guide
B. Select Controller (Embedded Controller)
1
Step 1. If selecting an embedded controller, select either M9036A or M9037A2
– M9036A Mid-performance embedded controller
– Intel i5-520E dual-core, 2.4 GHz, 4 thread, 4 GB RAM
– Select the M9036A for mid-performance, lower cost
– M9037A High-performance embedded controller
– Intel i7-4700EQ quad-core processor, 2.4 GHz, 8 thread, 4 GB RAM
– Select M9037A for the best performance if you have memory intensive applications,
multiple applications running in parallel or if a lot of data is sent to the PC from the PXIe
chassis. Features removable SSD drive for security and x8 connector from front for
connection to second chassis
Step 2. Upgrade from standard memory size (optional)
For M9036A
– M9036A-M08 Memory upgrade from 4 GB to 8 GB RAM
For M9037A
– M9037A-M08 Memory upgrade from 4 GB to 8 GB RAM
– M9037A-M16 Memory upgrade from 4 GB to 16 GB RAM
Step 3. Select an operating system
For M9036A
– M9036A-WE3 Microsoft Windows Embedded Standard 7 (32-bit)
– M9036A-WE6 Microsoft Windows Embedded Standard 7 (64-bit)
For M9037A
– M9037A-WE3 Microsoft Windows Embedded Standard 7 (32-bit)
– M90 37A-WE 6 Microsoft Windows Embedded Standard 7 (64-bit)
1. For a list of qualified external controllers, please see Test Computer List Technical Note literature no. 5990-7632EN. The M9021A is used for both PC
controllers and can only be used in the M9018A chassis.
2. The M9018A 18-slot chassis includes empty space to the lef t of the first functional slot. The embedded controller occupies that empty space and the first
functional slot.
www.keysight.com/find/pxivna
05 | Keysight | PXI Vector Network Analyzer - Configuration Guide

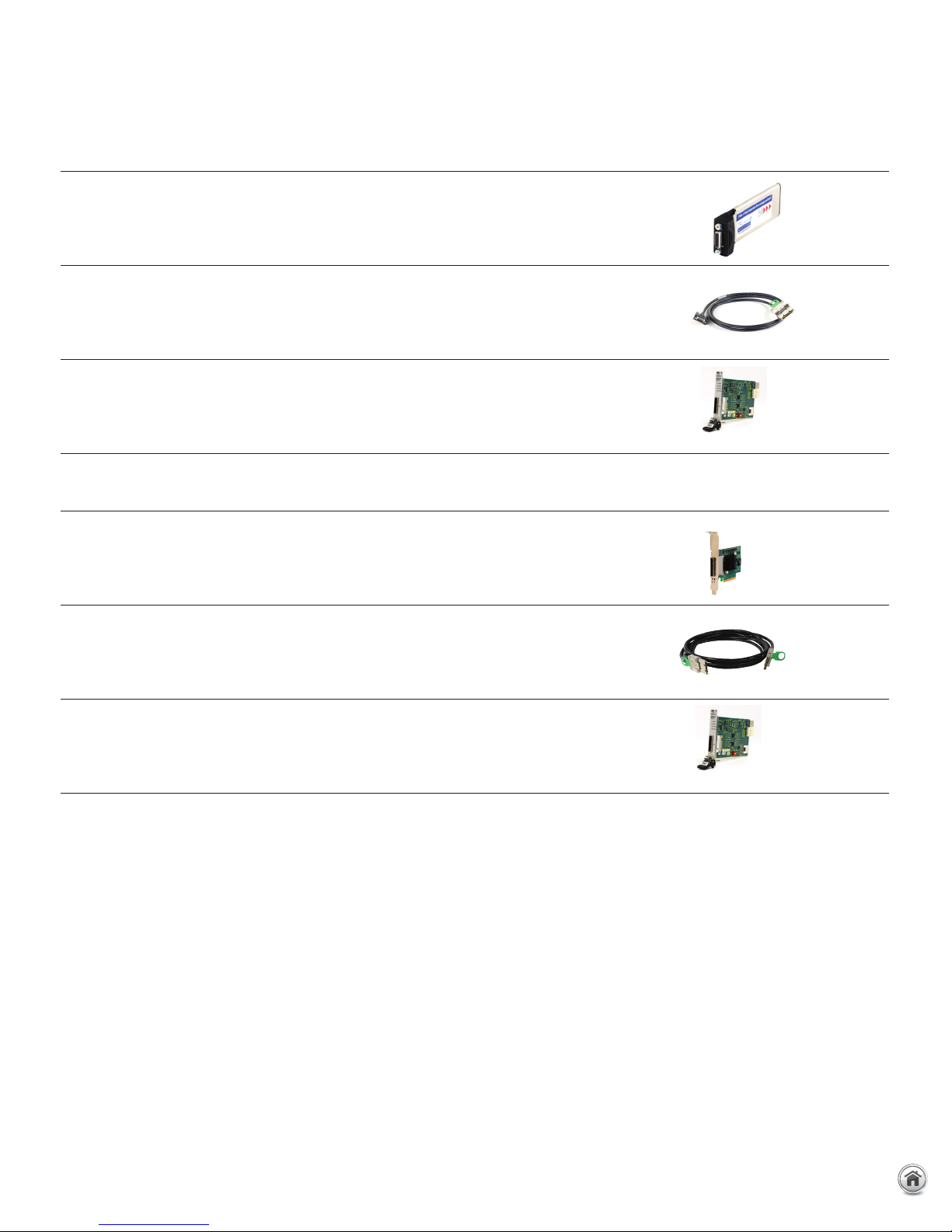

C. Select Controller (Via PC)1
To use your Laptop PC as a controller
– M9045B PCIe ExpressCard adaptor
– Y12 00B PCIe cable
– M9021A PCIe cable interface
To use your Desktop PC as a controller
– M9048A PCIe desktop adaptor
– Y12 02A PCIe cable
– M9021A PCIe cable interface
2
: 1 slot
2
: 1 slot
1. For a list of qualified external controllers, please see Test Computer List, Technical Note literature number 5990-7632EN.
See physical connections diagram in Section E.
2. The M9021A is used for either PC control option and can only be used with the Keysight M9018A 18-slot chassis.
www.keysight.com/find/pxivna
06 | Keysight | PXI Vector Network Analyzer - Configuration Guide
D. Select a Chassis and Accessories
Step 1. Select a chassis
– M9 018 A 18-slot PXIe chassis
– M9019A 18-slot, 3U, 24 Gb/s, Gen 3 PXIe chassis
Step 2. Choose enough slot blocker kits and EMC filler panels to fill every open slot
Recommended to achieve datasheet specifications
– Y1212A Slot blocker kit: 5 slots
– Y1213A PXI EMC filler panel kit: 5 slots
Step 3. Choose a rack mount kit (optional)
– Y1215A Rack mount kit for M9018A 18-slot PXIe chassis
Step 4. Choose an air inlet kit
1
(optional)
Recommended for rack mounted systems with less than 1U space below chassis.
– Y1214A Air inlet kit: M9018A 18-slot chassis
1
1. Available in 1-slot, 2-slot or 3-slot options depending on the chassis configuration. For more information, please visit www.keysight.com/find/
www.keysight.com/find/pxivna
07 | Keysight | PXI Vector Network Analyzer - Configuration Guide

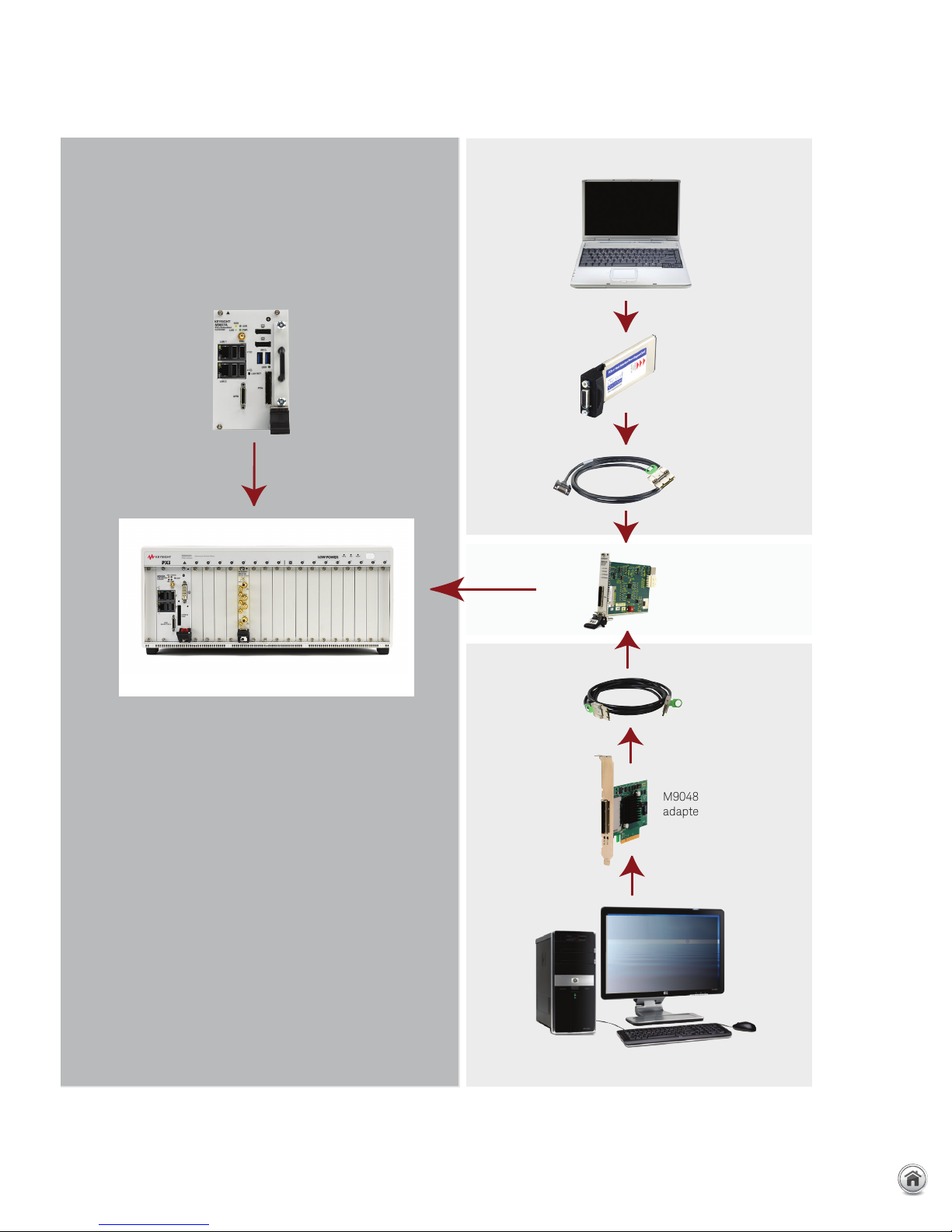

E. Physical Connection Diagram for Controllers
External laptop PC control ptions
Embedded controller
M9036A
or M9037A
embedded
controller
M937xA PXIe VNA placed inside
the M9018A PXIe chassis
M9045B PCIe
ExpressCard
adaptor
Y1200B
PCIe cable
M9021A
PXIe cable
interface
Y1202A
PCIe cable
M9048A PCIe
adapter
External desktop PC control options
www.keysight.com/find/pxivna
08 | Keysight | PXI Vector Network Analyzer - Configuration Guide
F. Select Software for M937xA PXIe VNA
Step 1. Start with M937xA base configuration
The M937xA comes standard with the following software: – Keysight IO Libraries Suite including Connection Expert
– Instrument software, sof t front panel, drivers for use with Matlab,
LabVIEW, Visual Studio (including VB Net, C#, C/C++), Keysight VEE
– Programming examples
3
Step 2. Download free Keysight Command Expert software
FREE software that provides fast and easy instrument control for the PC. Command Expert combines instrument command sets,
command sequences, documentation, syntax checking, and command execution in one simple interface. Command Expert helps you to:
– Find instrument commands
– Access command documentation
– Verify command syntax
– Build instrument command sequences
– Execute instrument command sequences
– Integrate sequences in MATLAB, Visual Studio, Excel, LabVIEW, Keysight VEE or Keysight SystemVue PC application
environment
(optional)
1
2
– Generate code for command sequences in MATLAB, Visual C#, Visual Basic.NET and Visual C/C++
– Profile command execution time
– Debug command sequences using breakpoints and single stepping
1. Both IO library (version 16.3 or newer) and Connection Expert software need to be installed on the PC controlling the equipment.
2. To download, visit www.keysight.com/find/iosuite
3. Find latest versions of this sof tware at www.keysight.com/find/pxivna
4. To download or get more information on Command Exper t, visit www.keysight.com/find/commandexpert
www.keysight.com/find/pxivna
09 | Keysight | PXI Vector Network Analyzer - Configuration Guide
G. Select Services: Calibration, Start-up Assistance
– M937xA -UK6 Commercial calibration certification with
test data
– M937x A -1A7 RISO 17025 compliant calibration Complete set of measurements which tests unit to manufac-
– M937xA -A6J ANSI Z540 compliant calibration Complete set of measurements which tests unit to manufac-
– M937xA -897 Perpetual license for built-in performance
test software for Keysight inclusive cal
– M937xA -898 Perpetual license for built-in performance
test software for Standards compliant cal
– R- 5 0C-011- 3 Calibration Assurance Plan - Return to Keysight, 3 years
– R-50C-011-5 Calibration Assurance Plan - Return to Keysight, 5 years
Complete set of measurements which tests unit to manufacturer’s published specifications. Includes calibration label,
calibration certificate, and data report. Conforms to ISO 9001
turer’s published specifications. Includes calibration label, ISO
17025 calibration certificate, and data report, measurement
uncertainties and guardbands on all customer specifications.
Conforms to ISO 17025 and ISO 9001
turer’s published specifications. Includes pre- and post-adjustment data with measurement uncertainty information
compliant to the ANSI/NCSL Z540 standard.
Adds built-in performance testing and calibration software
for self-maintainers. Requires additional equipment. See the
analyzer’s Service Guide for more information on equipment
required.
Adds built-in performance testing and calibration software
for self-maintainers. Requires additional equipment. See the
analyzer’s Service Guide for more information on equipment
required
– R- 5 0C-011-7 Calibration Assurance Plan - Return to Keysight, 7 years
– R- 5 0C-011-10 Calibration Assurance Plan - Return to Keysight, 10 years
Documentation
The PXI VNA is equipped with a Soft Front Panel help system
in English only. This context-sensitive help is available in the
software and on the CD. All PXI VNA documentation is available
at: http://na.support.keysight.com/pxivna/help
Calibration services
The modular products are factory calibrated and shipped with
an ISO-9002, NIST-traceable calibration certificate. A one
year calibration cycle is recommended. The M937xA PXIe VNA
is supported by the Keysight N7800A Calibration Sof tware to
perform calibrations that test all product specifications and
is compliant with ISO 17025:2005, ANSI/NCSL Z540.3-2006
and Measurement Uncertainty per ISO Guide to Expression of
Measurement Uncertainty 1995.
N7800A calibration and adjustment software
The M937xA PXIe VNA is supported by Keysight’s calibration
and adjustment software. This is the same software used at
Keysight’s service centers to automate calibration. The
software of fers compliance tests for ISO 17025:2005, ANSI/NCSL
Z540.3-2006, and measurement uncertainty per ISO Guide to
Expression of Measurement Uncertainty.
Product Information: www.keysight.com/find/contactus
Or call: 1 800 829-4444 US
Repair and Calibration: www.keysight.com/find/infoline
Parts and Accessories: www.parts.keysight.com
Email Updates: www.keysight.com/find/emailupdate
For all modular products: www.keysight.com/find/modular
1. Additional hardware required. Please refer to the analyzer’s Service Guide for required service test equipment.
www.keysight.com/find/pxivna
10 | Keysight | PXI Vector Network Analyzer - Configuration Guide
H. Measurement Accessories
A complete list of RF and microwave test accessories is available
on our web site: www.keysight.com/find/mta.
Accessories are available in these connector types: 50 ohm
Type-N, 3.5 mm, 7 mm, and waveguide. Test port cables and a
calibration kit should be added for a complete measurement
system. A verification kit is used to verify corrected system
performance.
Cables and adapter sets
Keysight of fers cables in the following types:
– Single cables in semi-rigid and flexible
– Cable sets in semi-rigid and flexible
There are also adapter sets available that protect the test port
and convert the port to the desired connector interface. These
kits contain:
– One male adapter
– One female adapter
To attain the best mechanical rigidity for device connection, use a
single cable and the appropriate special adapter set. To attain the
greatest flexibility for device connection, use a cable set.
Calibration kits
Coaxial measurements
Mechanical calibration kits include standards, such as opens,
shorts and loads, which are measured by the network analyzer for
increased measurement accuracy.
Electronic calibration (ECal) kits replace mechanical calibration
standards with one solid-state calibration module that is
controlled by the network analyzer via USB, to present many
different impedances to the test ports. A full two-port calibration
can be performed quickly with a single connection. This technique reduces operator errors and connector wear and abrasion.
Choose a calibration kit for each connector type to be used.
Economy, includes:
– Open standards (male and female)
– Short standards (male and female)
– Fixed-termination standards (male and female)
Standard, includes the devices in the economy kit and adds:
– Sliding load standards (male and female) or a series of offset shorts
Precision, includes the devices in the economy kit and adds:
– 50 ohm airline(s) for TRL calibration
– TRL adapters
Device
under
test
Network analyzer
test set
Test port
adapter
Single cable
Network analyzer
test set
Cable set
Device
under
test
Waveguide measurements
For waveguide measurements, Keysight offers mechanical
calibration kits that include:
– Waveguide-to-coax adapters (X, P, K)
– Precision waveguide section
– Flush short circuit
– Fixed terminations
– Straight section
www.keysight.com/find/pxivna
11 | Keysight | PXI Vector Network Analyzer - Configuration Guide
For devices with 3.5 mm or SMA connectors
Mechanical calibration kits
– 85052B Standard, DC to 26.5 GHz
Includes:
00902-60003 3.5 mm (m) fixed load
00902-60004 3.5 mm (f) fixed load
00911-60019 3.5 mm (m) sliding load
00911-60020 3.5 mm (f) sliding load
85052-60006 3.5 mm (m) short
85052-60007 3.5 mm (f) short
85052-60008 3.5 mm (m) open
85052-60009 3.5 mm (f) open
85052-60012 3.5 mm (f) to 3.5 mm (f) adapter
85052-60013 3.5 mm (f) to 3.5 mm (m) adapter
85052-60014 3.5 mm (m) to 3.5 mm (m) adapter
– 85052C Precision TRL, DC to 26.5 GHz
Includes:
00902-60003 3.5 mm (m) fixed load
00902-60004 3.5 mm (f) fixed load
85052-60006 3.5 mm (m) short
85052-60007 3.5 mm (f) short
85052-60008 3.5 mm (m) open
85052-60009 3.5 mm (f) open
85052-60032 3.5 mm (f) to 3.5 mm (f) adapter
85052-60033 3.5 mm (m) to 3.5 mm (m) adapter
85052-60034 3.5 mm (f) to 3.5 mm (m) adapter
85052-60035 3.5 mm short TRL line
85052-60036 3.5 mm long TRL line
– 85052D Economy, DC to 26.5 GHz
Includes:
00902-60003 3.5 mm (m) fixed load
00902-60004 3.5 mm (f) fixed load
85052-60006 3.5 mm (m) short
85052-60007 3.5 mm (f) short
85052-60008 3.5 mm (m) open
85052-60009 3.5 mm (f) open
85052-60012 3.5 mm (f) to 3.5 mm (f) adapter
85052-60013 3.5 mm (f) to 3.5 mm (m) adapter
85052-60014 3.5 mm (m) to 3.5 mm (m) adapter
Electronic calibration kits
– N7550A economy ECal, DC to 4 GHz, 2-ports
– N7551A economy ECal, DC to 6.5 GHz, 2-ports
– N7552A economy ECal, DC to 9 GHz, 2-ports
– N7553A economy ECal, DC to 14 GHz, 2-ports
– N7554A economy ECal, DC to 18 GHz, 2-ports
– N7555A economy ECal, DC to 26.5 GHz, 2-ports
– N755xA Series includes:
Option 3MF with 3.5 mm (m) to 3.5 mm (f) ECal module
Option 3MM with 3.5 mm (m) to 3.5 mm (m) ECal module
Option 3FF with 3.5 mm (f) to 3.5 mm (f) ECal module
– 85093C RF ECal, 300 kHz to 9 GHz, 2-ports
Standard module includes
Option M0F with:
85093-60008 3.5 mm (f) to 3.5 mm (m) ECal module
Option 00F module with:
85093-60010 3.5 mm (f) to 3.5 mm (f) ECal module
Option 00M module with:
85093-60009 3.5 mm (m) to 3.5 mm (m) ECal module
Option 00A adds:
85052-60012 3.5 mm (f) to 3.5 mm (f) adapter
85052-60014 3.5 mm (m) to 3.5 mm (m) adapter
85093C-xxx mixed-connector options:
Port A option Port B option
Type (f) (m) Type (f) (m) Type (f) (m)
3.5 mm 101 102 Type-N
50 ohm
– N4 4 31B Microwave ECal, 300 kHz to 13.5 GHz, 4-ports
Includes:
Option 010 module with:
N4431-60006 4 x 3.5 mm (f) ECal module
N4431B-xxx mixed-connector options:
Connector Port A Port B Port C Port D
Type Option Option Option Option
3.5 mm (f) 101 201 301 401
3.5 mm (m) 102 202 302 402
Type-N 50 ohm (f) 103 203 303 403
Type-N 50 ohm (m) 10 4 204 304 404
7-16 (f ) 105 205 305 405
7-16 (m) 106 206 306 406
– N4433A Microwave ECal, 300 kHz to 20 GHz, 4-ports
Includes:
Option 010 module with:
N4433-60003 4 x 3.5 mm (f) ECal module
N4433A-xxx mixed-connector options:
Connector Port A Port B Port C Port D
Type Option Option Option Option
3.5 mm (f) 101 201 301 401
3.5 mm (m) 102 202 302 402
– N4 691B Microwave ECal, 300 kHz to 26.5 GHz, 2-ports
Includes:
Option M0F module with:
N4691-60004 3.5 mm (f) to 3.5 mm (m) ECal module
Option 00M module with:
N4691-60005 3.5 mm (m) to 3.5 mm (m) ECal module
Option 00F module with:
N4691-60006 3.5 mm (f) to 3.5 mm (f) ECal module
Option 00A adds:
85052-60012 3.5 mm (f) to 3.5 mm (f) adapter
85052-60014 3.5 mm (m) to 3.5 mm (m) adapter
203 204 7-16 205 206
www.keysight.com/find/pxivna
12 | Keysight | PXI Vector Network Analyzer - Configuration Guide
For devices with Type-N connectors
Mechanical calibration kits
– 85054B Standard, DC to 18 GHz
Includes:
00909-60011 Type-N (m) fixed lowband load
00909-60012 Type-N (f) fixed lowband load
85054-60025 Type-N (m) short
85054-60026 Type-N (f) short
85054-60027 Type-N (m) open
85054-60028 Type-N (f) open
85054-60031 Type-N (f) to 7mm adapter
85054-60032 Type-N (m) to 7mm adapter
85054-60037 Type-N (f) to Type-N (f) adapter
85054-60038 Type-N (m) to Type-N (m) adapter
85054-80010 Type-N (f) sliding load
85054-80009 Type-N (m) sliding load
85054-60050 Type-N (f) connector gage
85054-60052 Type-N (f) gage master
85054-60051 Type-N (m) connector gage
85054-60053 Type-N (m) gage master
– 85054D Economy, DC to 18 GHz
Includes:
85054-60025 Type-N (m) short
85054-60026 Type-N (f) short
85054-60027 Type-N (m) open
85054-60028 Type-N (f) open
85054-60031 Type-N (f) to 7mm adapter
85054-60032 Type-N (m) to 7mm adapter
85054-60037 Type-N (f) to Type-N (f) adapter
85054-60038 Type-N (m) to Type-N (m) adapter
85054-60046 Type-N (m) fixed load
85054-60047 Type-N (f) fixed load
Electronic calibration kits
– N7550A economy ECal, DC to 4 GHz, 2-ports
– N7551A economy ECal, DC to 6.5 GHz, 2-ports
– N7552A economy ECal, DC to 9 GHz, 2-ports
– N7553A economy ECal, DC to 14 GHz, 2-ports
– N7554A economy ECal, DC to 18 GHz, 2-ports
– N755xA Series includes:
Option NMF with Type-N (m) to Type-N (f) ECal module
Option NMM with Type-N (m) to Type-N (m) ECal module
Option NFF with Type-N (f) to Type-N (f) ECal module
– N4 4 31B Microwave ECal, 300 kHz to 13.5 GHz, 4-ports
Includes:
Option 020 module with:
N4431-60007 4 x Type-N (f) ECal module
N4431B-xxx mixed-connector options:
Connector Port A Port B Port C Port D
Type Option Option Option Option
3.5 mm (f) 101 201 301 401
3.5 mm (m) 102 202 302 402
Type-N 50 ohm (f) 103 203 303 403
Type-N 50 ohm (m) 10 4 204 304 404
1
7-16 (f )
1
7-16 (m)
1. Limits ECal module high frequency to 7.5 GHz
105 205 305 405
106 206 306 406
– N4432A Microwave ECal, 300 kHz to 18 GHz, 4-ports
Includes:
Option 020 module with:
N4432-60003 4 x Type-N (f) ECal module
N4432A-xxx mixed-connector options:
Connector Port A Port B Port C Port D
Type Option Option Option Option
3.5 mm (f) 101 201 301 401
3.5 mm (m) 102 202 302 402
Type-N 50 ohm (f) 103 203 303 403
Type-N 50 ohm (m) 104 204 304 404
– N4690B Microwave ECal, 300 kHz to 18 GHz, 2-ports
Includes:
Option M0F module with:
N4690-60004 Type-N (f) to Type-N (m) ECal module
Option 00M module with:
N4690-60005 Type-N (m) to Type-N (m) ECal module
Option 00F module with:
N4690-60006 Type-N (f) to Type-N (f) ECal module
Option 00A adds:
85054-60037 Type-N (f) to Type-N (f) adapter
85054-60038 Type-N (m) to Type-N (m) adapter
www.keysight.com/find/pxivna
13 | Keysight | PXI Vector Network Analyzer - Configuration Guide
For devices with 7 mm connectors
Mechanical calibration kits
– 85050B Standard, DC to 18 GHz
Includes:
00909-60008 7 mm coax termination
85050-60006 7 mm fixed broadband load
85050-80007 7 mm short
85050-80010 7 mm open
85050-80011 7 mm sliding load
– 85050C Precision TRL, DC to 18 GHz
Includes:
00909-60008 7 mm coax termination
85050-60003 7 mm to 7 mm airline
85050-60005 7 mm to 7 mm TRL adapter
85050-60006 7 mm fixed broadband load
85050-80008 7 mm short
85050-80009 7 mm short collet
85050-80010 7 mm open
– 85050D Economy, DC to 18 GHz
Includes:
85050-60006 7 mm fixed broadband load
85050-80007 7 mm short
85050-80010 7 mm open
Electronic calibration kits
For devices with waveguide
Mechanical calibration kits
X Band
– X11644 A Standard WR-90, 8.2 to 12.4 GHz
Includes:
00896-60008 X-band standard section
00910-60003 X-band termination
11644-20018 X-band short
11644-20021 X-band shim
P-Band
– P11644A Standard WR-62, 12.4 to 18 GHz
Includes:
00896-60007 P-band standard section
00910-60002 P-band termination
11644-20017 P-band short
11644-20020 P-band shim
K-Band
– K11644 A Standard WR-42, 18 to 26.5 GHz
Includes:
00896-60006 K-band standard section
00910-60001 K-band termination
11644-20016 K-band short
11644-20019 K-band shim
– N4696B Microwave ECal, 300 kHz to 18 GHz, 2-ports,
7 mm to 7 mm microwave module
Verification kits
All Keysight verification kits include:
– Precision Z0 airline or match thru
– Mismatched airline or mismatch thru
– Fixed attenuators
– Traceable measured data and uncertainties
– 85 051B 45 MHz to 18 GHz 7 mm kit
Includes attenuators, airline and mismatch airline with data
on a 3.5-inch disk for use in confirming accuracy enhanced
system measurement performance, traceable to national
standards. Test procedure is provided in the service manual.
– 85053B 300 kHz to 26.5 GHz 3.5 mm kit
Includes attenuators, airline and mismatch airline with data
on a 3.5-inch disk for use in confirming accuracy enhanced
system measurement performance, traceable to national
standards. Test procedure is provided in the service manual.
– 85055A 300 kHz to 18 GHz Type-N kit
Includes attenuators, airline and mismatch airline with data
on a 3.5-inch disk for use in confirming accuracy enhanced
system measurement performance, traceable to national
standards. Test procedure is provided in the service manual.
www.keysight.com/find/pxivna
14 | Keysight | PXI Vector Network Analyzer - Configuration Guide
I. Example Configurations
Please see the M937xA Startup Guide literature number
M9370-90001 for detailed cabling diagram and parts list.
Single 2-port M937xA PXIe VNA
Multiport Measurement Configurations
The Keysight PXI VNA is an ideal solution for multiport measurements. The PXI VNA has a two-por t (two reference receivers
and two test receivers) architecture in a one-slot module. It can
be easily configured as a true multiport VNA by using additional
modules installed in the same chassis. The true multiport VNA
has no degradation in performance (i.e. dynamic range, trace
noise, directivity.,,) due to external switches. The PXI VNA
supports full N-port correction capability when configured as a
multiport VNA.
When multiple M937xA modules are used in the following
configurations they are configured for multiport operation. The
modules may be installed in one chassis and identified by the
M937xA firmware as one VNA under a single PXI controller.
At least one VNA module in the chassis must have Option 551
(N-Port Calibrated Measurements) to maintain N-port capabilities. The frequency of the multiport array is determined by the
lowest frequency module configured in the array. For example, a
4-port analyzer configuration using an M9370A (4 GHz) and an
M9375A (26.5 GHz) would have a maximum frequency of 4 GHz
when performing 4-port measurements.
This behavior extends to Option 010 and 009. In a multiport
configuration only one module must have a valid license for
these capabilities to function in multiport mode. However, in a
multi-site configuration a license must be purchased for each
independent VNA configuration.
Each module is connected into the array with Keysight cables. A
Y1242A multiport cable kit should be ordered for each additional
module and a single Y1281 accessory and tool kit should be
ordered for easier cable connections.
Additional cables and accessories for multiport connections:
Y12 42 A Multiport cable kit
Includes 2 SMB cables and 1 SMA cable for
connecting 2 modules together.
Add one multiport cable kit for each additional
2-port VNA
Y1281A Accessory and tool kit
Includes the following tools for SMA and SMB
connector removal:
5002-3361 Pull tool for SMB connectors
5023-1450 Custom long deep socket for
3.5/SMA connector nuts

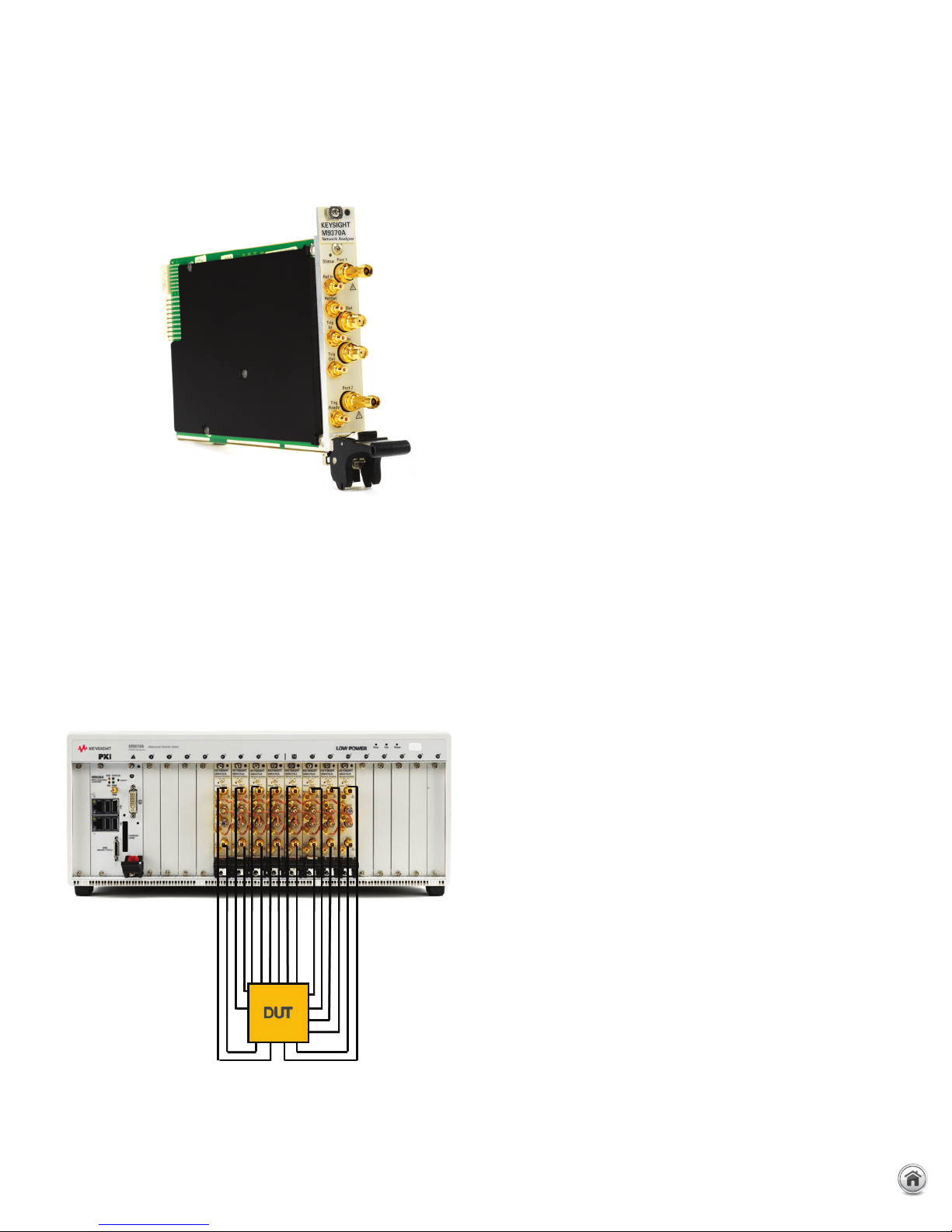

Figure 1. The Keysight PXI VNA is an ideal solution for multiport measurements.
Easy to configure, better performance, and much fas ter speed!
www.keysight.com/find/pxivna
15 | Keysight | PXI Vector Network Analyzer - Configuration Guide
8-port Multiport Configuration
16-port Multiport Configuration
32-port Multiport Configuration
www.keysight.com/find/pxivna
16 | Keysight | PXI Vector Network Analyzer - Configuration Guide
Multi-site Measurement Configurations
The Keysight M937xA multi-site capability allows for each PXI module to behave as an independent VNA. This makes it possible to run measurements of different devices at the same time or
different measurement paths in a single component. In addition, segment sweep enables you
to optimize measurement conditions specifically for each device under test, so you can balance
speed and accuracy.
Figure 2. Example of an 8-por t multiport VNA , a 2-port VNA, and a 4-port VNA running under three separate
copies of the sof tware all executing simultaneously in multi-site operation on the same controller.
For multi-site configurations that require Option 010, a valid license is required for at least one
module in each independent VNA configuration.
The Y1242A multiport cable kit only needs to be ordered when modules are used in a multiport
configuration.
Upgrading your system
Your product can be easily upgraded after the initial purchase. Contact your Keysight representative to place an order for an option upgrade.
Order for existing model number
M9370A M9371A M9372A M9373A M9374A M9375A
Extend analyzer’s frequency range to 6.5 GHz M9370AU-706 n/a n/a n/a n/a n/a
Extend analyzer’s frequency range to 9 GHz M9370AU-709 M9371AU-709 n/a n/a n/a n/a
Extend analyzer’s frequency range to 14 GHz M9370AU-714 M9371AU-714 M9372AU-714 n/a n/a n/a
Extend analyzer’s frequency range to 20 GHz M9370 AU-720 M9371AU-720 M9372AU-720 M9373AU-720 n/a n/a
Extend analyzer’s frequency range to 26.5 GHz M9 370AU-726 M9371AU-726 M9372AU-726 M9373AU-726 M9374 AU -72 6 n/a
Add automatic fixture removal capability M9370AU-007 M9371AU-007 M9372AU-007 M9373AU-007 M9374AU-007 M9375AU-007
Add frequency offset mode/scalar mixer
calibration capability M9370AU-009 M9371AU-009 M9372AU-009 M9373AU-009 M9374AU-009 M9375AU-009
Add time domain capability M9370AU-010 M9371AU-010 M9372AU-010 M9373AU-010 M9374AU-010 M93745U-010
Add full n-port correction capability M9370AU-551 M9371AU-551 M9372AU-551 M9373AU-551 M9374AU-551 M93745U-551
www.keysight.com/find/pxivna
17 | Keysight | PXI Vector Network Analyzer - Configuration Guide
Using a Non-Keysight Chassis
The M937xA can be successfully installed in a non-Keysight PXI chassis. Please use the following guidelines.
– Ensure that the chassis has an available PXIe or PXI-H slot which can be used by the M937xA.
– Ensure that the chassis and controller supports peer-to-peer PXI Express I/O switch topology.
– Ensure that controller selected is compatible with chassis.
Please contact your Keysight representative for more detailed information. For technical
assistance with non-Keysight equipment, please refer to the equipment manufacturer’s website.
PC Requirements for M937xA PXIe VNA Control
Windows 7 and Vista
Operating system Windows 7 (32 & 64 bit)
Windows Vista, SP 1 & 2 (32 & 64 bit)
Processor speed 1.5 GHz dual core (x86 or x64) minimum,
2.4 GHz recommended
Available memory 1 GB minimum
8 GB recommended
Available disk space 1.5 GB available hard disk space
1
Related Literature
For more detailed product and specification information refer to the following literature and web pages:
M937xA PXIe VNA, Data Sheet, M9370-90002
M937xA PXIe VNA, Startup Guide, M9370-90001
M937xA PXIe VNA, Brochure, 5992-0098EN
M937xA PXIe VNA, Flyer/Photo Card, 5991-4883EN
M9018A PXIe 18 slot Chassis, Data Sheet, 5990-6583EN
M9019A PXIe 18 slot Chassis, Data Sheet, 5992-1481EN
M9037A PXIe High Performance Embedded Controller, Data Sheet, 5991-3661EN
M9036A PXIe Embedded Controller, Data Sheet, 5990-8465EN
1. For a list of computers compatible with Keysight Technologies PXIe M9018A chassis, refer to Tested Computer Technical Note (literature no. 5990-7632EN).
www.keysight.com/find/pxivna
18 | Keysight | PXI Vector Network Analyzer - Configuration Guide
Evolving Since 1939
Our unique combination of hardware, software, services, and people can help you
reach your next breakthrough. We are unlocking the future of technology.
From Hewlett-Packard to Agilent to Keysight.
myKeysight
www.keysight.com/find/mykeysight
A personalized view into the information most relevant to you.
http://www.keysight.com/find/emt_product_registration
Register your products to get up-to-date product information and
find warranty information.
Keysight Services
www.keysight.com/find/service
Keysight Services can help from acquisition to renewal across your
instrument’s lifecycle. Our comprehensive service offerings—onestop calibration, repair, asset management, technology refresh,
consulting, training and more—helps you improve product quality
and lower costs.
Keysight Assurance Plans
www.keysight.com/find/AssurancePlans
Up to ten years of protection and no budgetary surprises to ensure
your instruments are operating to specification, so you can rely on
accurate measurements.
Keysight Channel Partners
www.keysight.com/find/channelpartners
Get the best of both worlds: Keysight’s measurement expertise and
product breadth, combined with channel partner convenience.
For more information on Keysight
Technologies’ products, applications or
services, please contact your local Keysight
office. The complete list is available at:
www.keysight.com/find/contactus
Americas
Canada (877) 894 4414
Brazil 55 11 3351 7010
Mexico 001 800 254 2440
United States (800) 829 4444
Asia Pacific
Australia 1 800 629 485
China 800 810 0189
Hong Kong 800 938 693
India 1 800 11 2626
Japan 0120 (421) 345
Korea 080 769 0800
Malaysia 1 800 888 848
Singapore 1 800 375 8100
Taiwan 0800 047 866
Other AP Countries (65) 6375 8100
Europe & Middle East
Austria 0800 001122
Belgium 0800 58580
Finland 0800 523252
France 0805 980333
Germany 0800 6270999
Ireland 1800 832700
Israel 1 809 343051
Italy 800 599100
Luxembourg +32 800 58580
Netherlands 0800 0233200
Russia 8800 5009286
Spain 800 000154
Sweden 0200 882255
Switzerland 0800 805353
Opt. 1 (DE)
Opt. 2 (FR)
Opt. 3 (IT)
United Kingdom 0800 0260637
For other unlisted countries:
www.keysight.com/find/contactus
(BP-9-7-17)
www.keysight.com/find/pxivna
DEKRA Certified
ISO9001 Quality Management System
www.keysight.com/go/quality
Keysight Technologies, Inc.
DEKRA Certified ISO 9001:2015
Quality Management System
This information is subject to change without notice.
© Keysight Technologies, 2014 - 2018
Published in USA, March 7, 2018
5991-4885EN
www.keysight.com
Loading...
