The Wireless LAN feature set (N4010A Option 102/103)
combines a fully-calibrated vector signal generator and
wide bandwidth signal analyzer into a single test set,
which enables efficient and repeatable WLAN module
test from R&D through to production. N4010A Option
108 provides the software license for the 802.11n MIMO
modulation analysis measurements within the test set.
The N4010A test set also works with the Agilent 89601A
and 89607A Vector Signal Analyzer software. This
software provides the flexibility to make a broad range
of measurements for evaluating wireless formats in the
2.4 GHz or 5 GHz band, including ZigBee/IEEE 802.15.4.
The test set will meet its warranted performance after
one hour within the stated environmental operating
range plus 40 minutes after turn on. Unless otherwise
stated all specifications are valid over the temperature
range 20 to 30 °C. Supplemental characteristics are
intended to provide additional information, useful in
applying the instrument by giving typical (expected),
but not warranted, performance parameters. These
characteristics are shown in italics or labeled as nominal.
N4010A Introduction
The Agilent N4010A Wireless Connectivity Test Set is a
measurement solution that enables efficient and lower
cost test for products and components that incorporate
Bluetooth® wireless technology, Wireless LAN (WLAN),
and other emerging wireless connectivity technologies.
The Bluetooth (N4010A Option 101) feature set provides
the ability to connect to Bluetooth version 1.1 and 1.2
devices in either test mode or normal mode, and make
measurements in accordance with the Bluetooth RF test
specification. Bluetooth EDR link plus measurements
(Option 107) add BTv2.0+EDR support and Enhanced
Data Rate (EDR) measurement capabilities.
Bluetooth audio generation and analysis (Option 113),
simplifies Bluetooth audio test configurations and
provides cost-effective functional test of Bluetooth audio
devices by performing a basic set of audio measurements.
Headset profile (Option 112) enables testing of Bluetooth
voice channels, audio gateway, and headset products.
The N4017A Bluetooth® Graphical Measurement
Application, a PC-based software product, works in a
complementary manner with the N4010A test set and
provides the ability to fully configure the test set and
display both numerical and graphical results.

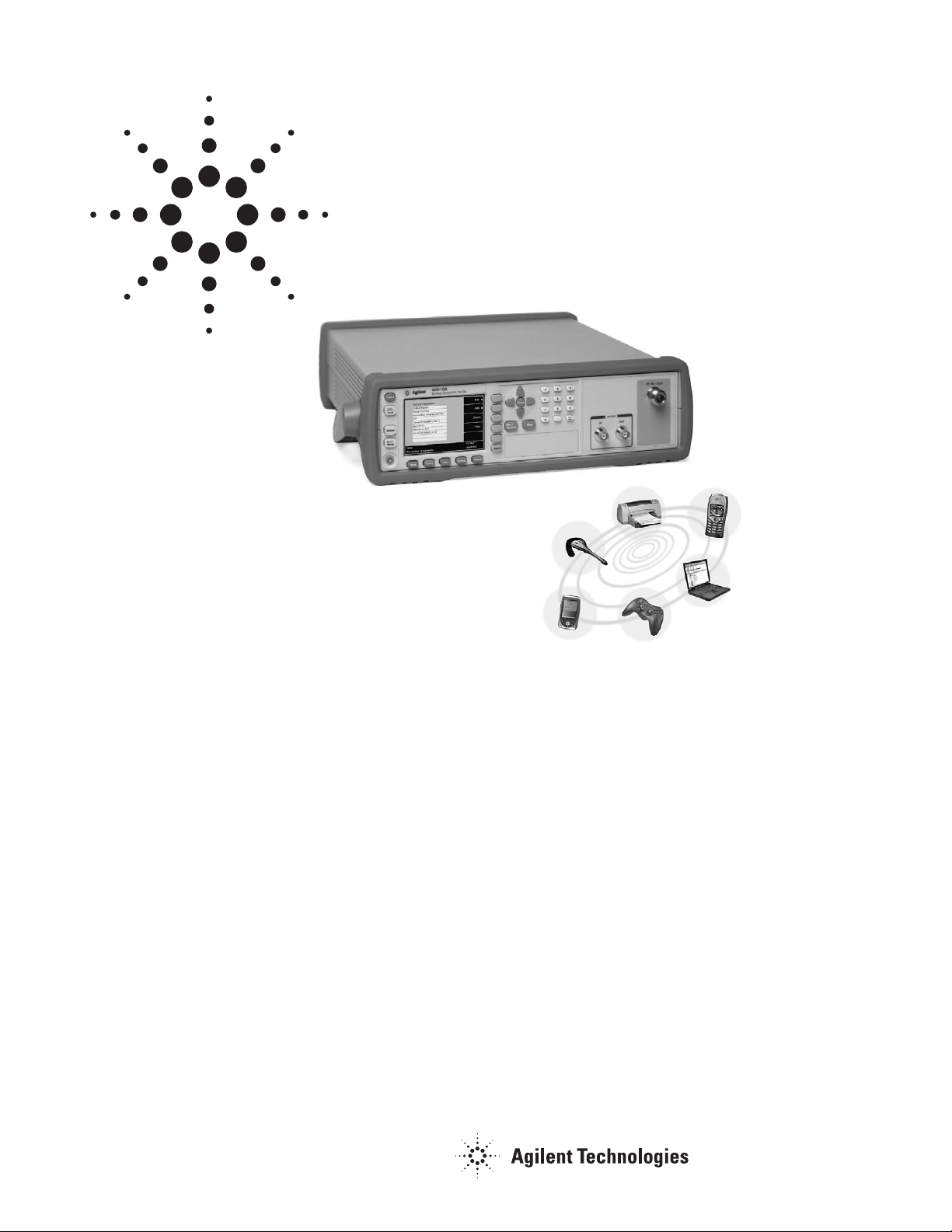

Agilent
N4010A Wireless Connectivity Test Set
and N4011A MIMO/Multi-port Adapter
Data Sheet
Bluetooth Specifications
N4010A Option 101 Bluetooth
• provides ability to act as a Bluetooth master, perform
inquiry, and establish a connection in Test mode or
Normal mode
• makes measurements in accordance with Bluetooth
RF Test Specification 1.2
• integral sequencer allows test plans to be created and
edited easily
• all tests default to SIG standard settings – user may
change settings to match particular test requirements
Bluetooth tests
1
Output power
Link conditions
Link mode Test mode (loopback, Tx),
normal mode (ACL, SCO)
Hopping
2
On or off
Packet type
2
DH1, DH3, DH5, HV3
Payload
2
PRBS9, BS00, BSFF, BS0F, BS55
Measurement
Supported Average power, peak power
measurements
Number of measurement 3
channels
3
Range +23 to –70 dBm
Measurement resolution 0.01 dB
Measurement accuracy ±0.5 dB
Power control
Link conditions
Link mode Test mode (loopback, Tx)
Hopping On or off
Packet type DH1, DH3, DH5, HV3
Payload PRBS9, BS00, BSFF, BS0F, BS55
Measurement
Supported Average power, min/max step
measurements size
Number of measurement 3
channels
3
Range +23 to –70 dBm
Measurement resolution 0.01 dB
Measurement accuracy ±0.5 dB
Modulation characteristics
Link conditions
Link mode Test mode (loopback, Tx),
normal mode (ACL, SCO)
Hopping
2
On or off
Packet type
2
DH1, DH3, DH5, HV3
Payload
2
BS55, BS0F
Measurement
Supported Min/max ∆f1
avg
, min ∆f2
max
(kHz)
measurements
total ∆f2
max
> ∆f2
max
lower limit (%)
min of min ∆f2
avg
/ max ∆f1
avg
,
pseudo frequency deviation
(∆f1 and ∆f2) in normal mode
Number of measurement 3
channels
3
RF input level range +23 to –70 dBm
Deviation range –400 to +400 kHz
Deviation resolution 100 Hz
Ratio resolution 0.1%
Measurement accuracy
4
As frequency reference ±100 Hz
2
1. Performance of the N4010A signal source or signal analyzer over wider
temperature (specified later in this document) applies to all the Bluetooth tests
listed.
2. Normal mode measurements made with hopping on, NULL packet, and no payload.
3. Internal sequencer enables three measurement channels to be measured
consecutively. Measurements on all 79 Bluetooth channels are supported.
4. Example, using the 10 MHz reference with accuracy of 10 Hz (1 ppm), at frequency
of 2.402 GHz, frequency accuracy would be in the range ±((2.402 GHz x 10 Hz)/
10 MHz) ± 100 Hz = ±2402 Hz ± 100 Hz = ±2502 Hz.
Initial carrier frequency tolerance
Link conditions
Link mode Test mode (loopback, Tx),
normal mode (ACL)
Hopping
1
On or off
Packet type
1
DH1, DH3, DH5, HV3
Payload
1
PRBS9, BS00, BSFF, BS0F, BS55
Measurement
Supported Maximum and minimum
measurements error/channel
Number of measurement 3
channels
2
RF input level range +23 to –70 dBm
Frequency Nominal channel freq ±150 kHz
Measurement accuracy
3
as frequency reference ±100 Hz
Carrier frequency drift
Link conditions
Link mode Test mode (loopback, Tx),
normal mode (ACL)
Hopping
1
On or off
Packet type
1
DH1, DH3, DH5, HV3
Payload
1
PRBS9, BS00, BSFF, BS0F, BS55
Measurement
Supported Maximum and minimum
measurements measurements drift at each
frequency during the test,
pseudo frequency drift in
normal mode
Number of measurement 3
channels
2
RF input level range +23 to –70 dBm
Measurement range ±100 kHz
Measurement accuracy
3
As frequency reference ±100 Hz
Sensitivity – single slot packets
Link conditions
Link mode Test mode (loopback, Tx),
normal mode (ACL)
Hopping
1
On or off
Packet type
1
DH1, DH3, DH5
Payload
1
PRBS9, BS00, BSFF, BS0F, BS55
Number of bits 1 to 200,000,000
Impairments – default to table
Frequency offset ±75 kHz
Modulation index 0.28 to 0.35
Modulation index 0.01
resolution
Symbol timing –20 ppm, 0, +20 ppm
Symbol timing resolution 1 ppm
Measurement
Supported BER, number of bit errors,
measurements Number of Rx bits, PER,
number of NACK packets,
number of errored packets,
number of Tx packets. PER only
in normal mode
Number of measurement 3, hopping
channels
2
Range 0 to –90 dBm
Resolution 0.1 dB
Accuracy
4, 5
±0.6 dB, –35 to –90 dBm
±1dB, > –35 dBm
Sine impairments (applicable for single slot packets,
multi-slot packets, and maximum input level)
Modulation frequency 300 Hz to 1.6 kHz
range
Resolution 100 Hz
Maximum deviation 0 Hz to 40 kHz
range
Resolution 1 kHz
3
‘Dirty transmitter’ impairments table for Rx sensitivity tests
(applicable for single slot packets, multi-slot packets, and
maximum input level)
Carrier Symbol
Set of frequency Modulation timing
parameters offset (kHz) index error (ppm)
1 75 0.28 –20
2 14 0.30 –20
3 –2 0.29 +20
4 1 0.32 +20
5 39 0.33 +20
6 0 0.34 –20
7 –42 0.29 –20
8 74 0.31 –20
9 –19 0.28 –20
10 –75 0.35 +20
1. Normal mode measurements made with hopping on, NULL packet, and no payload.
2. Internal sequencer enables three measurement channels to be measured
consecutively. Measurements on all 79 Bluetooth channels are supported.
3. Example, using the 10 MHz reference with accuracy of 10 Hz (1 ppm), at frequency
of 2.402 GHz, frequency accuracy would be in the range ±((2.402 GHz x 10 Hz)/
10 MHz) ± 100 Hz = ±2402 Hz ± 100 Hz = ±2502 Hz.
4. Verified using CW measurements.
5. Add 0.01 dB/°C from 30 to 55 °C, add 0.07 dB/°C from 20 to 0 °C.
Sensitivity – multi-slot packets
Link conditions
Link mode Test mode (loopback)
Hopping On or off
Packet type DH1, DH3, DH5
Payload PRBS9, BS00, BSFF, BS0F, BS55
Number of bits 1 to 200,000,000
Impairments – default to table
Frequency offset ±75 kHz
Modulation index 0.28 to 0.35
Modulation index 0.01
resolution
Symbol timing –20 ppm, 0, +20 ppm
Symbol timing resolution 1 ppm
Measurement
Supported BER, number of bit errors,
measurements number of Rx bits, PER,
number of NACK packets,
number of errored packets,
number of Tx packets
Number of measurement 3, hopping
channels
1
Range 0 to –90 dBm
Resolution 0.1 dB
Accuracy
2, 3
±0.6 dB, –35 to –90 dBm
±1dB, > –35 dBm
Maximum input level
Link conditions
Link mode Test mode (loopback)
Hopping On or off
Packet type DH1, DH3, DH5
Payload PRBS9, BS00, BSFF, BS0F, BS55
Number of bits 1 to 200,000,000
Measurement
Supported BER, number of bit errors,
measurements number of Rx bits, PER,
number of NACK packets,
number of errored packets,
number of Tx packets
Number of measurement 3
channels
1
Range 0 to –90 dBm
Resolution 0.1 dB
Accuracy
2, 3
±0.6dB, –35 dBm to –90 dB
±1 dB, > –35 dBm
4
1. Internal sequencer enables three measurement channels to be measured
consecutively. Measurements on all 79 Bluetooth channels are supported.
2. Verified using CW measurements.
3. Add 0.01 dB/°C from 30 to 55 °C, add 0.07 dB/°C from 20 to 0 °C.
N4010A Option 107 Bluetooth EDR link
plus measurements
Bluetooth EDR transmitter tests
EDR relative transmit power
Link conditions
Link mode Test mode (loopback, Tx)
Hopping On or off
Payload PRBS9, BS00, BSFF, BS55
Packet type 2-DH1, 2-DH3, 2-DH5, 3-DH1,
3-DH3, 3-DH5
Measurement
Supported measurements Power in GFSK header, power in
PSK payload, relative power
between GFSK header to PSK
payload
Number of measure- 3, hopping
ment channels
1
Range +23 to –70 dBm
Resolution 0.01 dB
Accuracy
2
±0.5 dB
EDR modulation accuracy and carrier
frequency stability
Link conditions
Link mode Test mode (loopback, Tx)
Hopping On or off
Payload PRBS9, BS00, BSFF, BS55
Packet type 2-DH1, 2-DH3, 2-DH5, 3-DH1,
3-DH3, 3-DH5
Measurement
Supported measurements Worst case initial frequency
error (wi) for all packets
(carrier frequency stability),
worst case frequency error for
all blocks (wo), (wo+ wi) for all
blocks, rms DEVM, peak DEVM,
99% DEVM
Number of measure- 3, hopping
ment channels
1
Range +23 to –70 dBm
Resolution ±100 Hz carrier frequency
stability and frequency error
Accuracy
Modulation accuracy
N4010A receiver < 2% (nominal)
rms DEVM
N4010A source < 5% (nominal)
rms DEVM
Carrier frequency As frequency reference
stability and frequency ±100 Hz
error
3
EDR differential phase encoding
Link conditions
Link mode Test mode (Tx)
Hopping On or off
Payload PRBS9, BS00, BSFF, BS55
Packet type 2-DH1, 2-DH3, 2-DH5, 3-DH1,
3-DH3, 3-DH5
Measurement
Supported measurements BER, number of bit errors,
number of Rx bits, PER,
number of NACK packets,
number of errored packets,
number of Tx packets, number
of HEC, CRC, and NACK error
Number of measure- 3, hopping
ment channels
1
RF input level range +23 to –70 dBm
Guard interval measurement
Link conditions
Link mode Test mode (loopback, Tx)
Hopping On or off
Payload PRBS9, BS00, BSFF, BS55
Packet type 2-DH1, 2-DH3, 2-DH5, 3-DH1,
3-DH3, 3-DH5
Measurement
Supported measurements Average, maximum, and
minimum guard time
Number of measure- 3, hopping
ment channels
1
RF input level range +23 to –70 dBm
Resolution 0.1 µs
1. Internal sequencer enables three measurement channels to be measured
consecutively. Measurements on all 79 Bluetooth channels are supported.
2. Example, using the 10 MHz reference with accuracy of 10 Hz (1ppm), at frequency
of 2.402 GHz, frequency accuracy would be in the range ±((2.402 GHz x 10 Hz)/
10 MHz) ± 25 Hz = ±2402 Hz ± 25 Hz = ±2427 Hz.
3. Example, using the 10 MHz reference with accuracy of 10 Hz (1ppm), at frequency
of 2.402 GHz, frequency accuracy would be in the range ±((2.402 GHz x 10 Hz)/
10 MHz) ± 100 Hz = ±2402 Hz ± 100 Hz = ±2502 Hz.
5
Loading...
