Sentry
HIPOT • LCR METERS • MEGOHMMETERS • MILLIOHMMETERS
Series Hipot Testers
USES:
•Production Testing of Appliances,
Instruments and Information
Technology Equipment in Accordance
with UL,IEC,TÜV and Other Standards
such as EN60335, EN60950, EN61010,
CSA C22.2 No. 1010.1, UL3111 and
UL1950
•Transformer Electrical Safety Testing
•Electric Motor Safety Testing
•Variety of Electronic Components
•Testing Electronic Components
FEATURES:
•Easy to Use
•Cost Effective Solution for Hipot and IR
•Programmable Output Voltage to 5KV
AC and 6KV DC
•Programmable Ramp and Test Times
•Programmable High and Low Limits
•Quick Discharge of DUT in IR and DC
Hipot
•Storage of 40 2-Step Tests or
80 1-Step Tests
•Remote Control
•Ground Continuity Check with
1ohm Limit
•Front Panel Lockout
•Arc Detection with Programmable Limit
•Resistance Measurements from
10M
ΩΩ to 10GΩΩ
•CE Mark Models (Sentry 15, 25, 35)
Economical AC/DC/IR Hipot Testers
Introduction
A complete dielectric testing solution, with three models from which to choose. The
Sentry 10 for AC Hipot testing, the Sentry 20 for AC/DC Hipot testing, and the Sentry
30 which combines both AC and DC Hipot with insulation resistance (IR) measurements

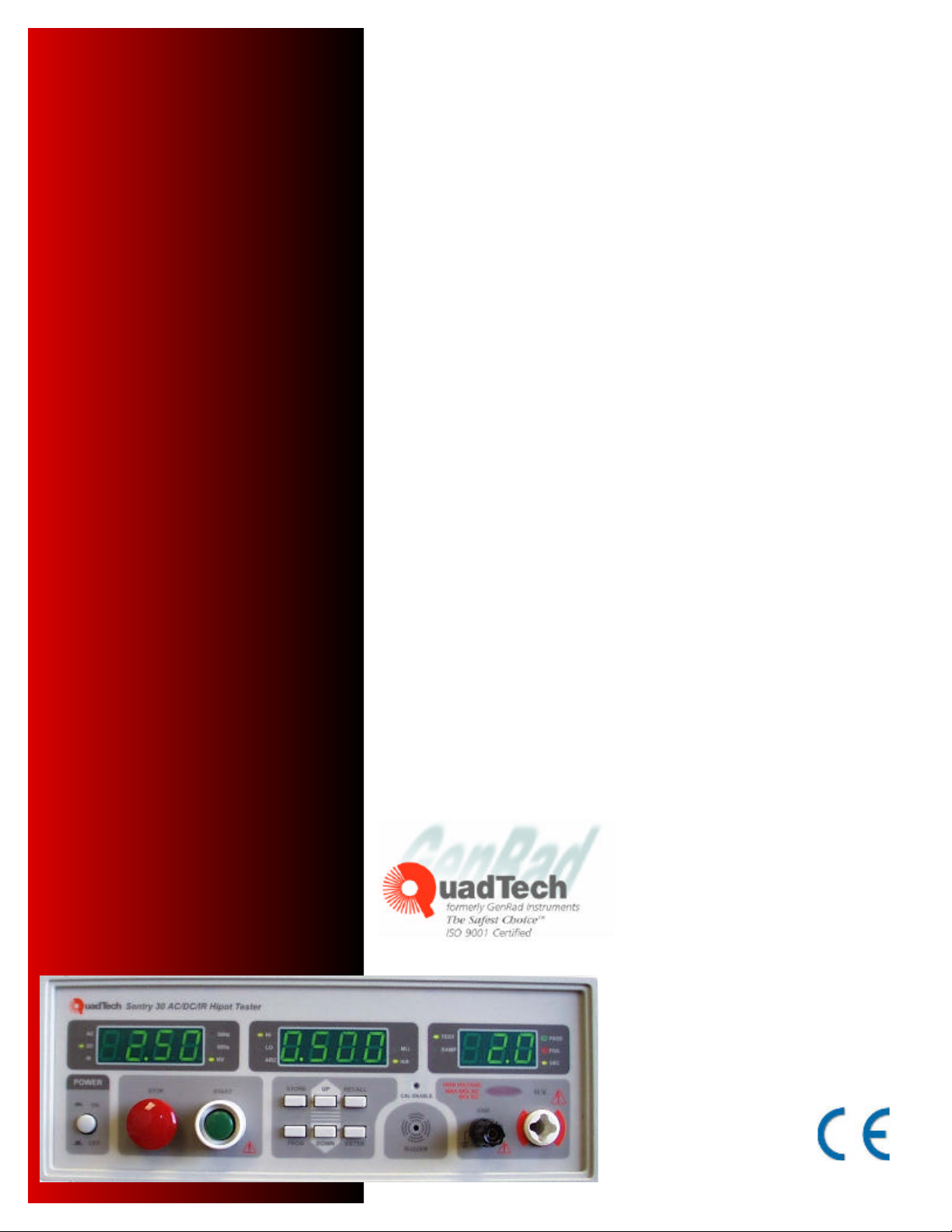

into a single compact unit. The front panel of the Sentry makes it easy to operate. Digital
display and user friendly control allows test parameters and limits to be set easily without
the high voltage activated.
These three units are also available in a CE Mark version, the Sentry 15 for AC Hipot,
Sentry 25 for AC/DC Hipot and the Sentry 35 for AC/DC Hipot and IR.
Description
The Sentry Series of electrical safety testers are advanced digital hipots with load and
line regulation to ensure measurement integrity. Multistep capability allows the user
to perform up to two tests in a sequence such as AC hipot followed by IR.
The Sentry 10/15 AC Hipot Testerperforms AC dielectric withstand (hipot) tests. The
test voltage can be programmed in the range from 100V AC to 5kV AC with a
resolution of 10V. The maximum total output current is 15mA.
The Sentry 20/25 AC/DC Hipot Testerhas all the features of the Sentry 10/15 with the
addition of DC hipot capability. The test voltage can be programmed in the range from
100V DC to 6kV DC with a resolution of 10V. The maximum total current is 7.5mA
(5.0mA for the CE Mark version, Sentry 25).
The Sentry 30/35 AC/DC/IR Hipot Testerhas all of the features of the Sentry 10/15
and 20/25 plus measurement of insulation resistance. The IR measurement range is from
Ω to 10GΩ with test voltages from 50 to 1000V DC.
10M
Quick Discharge:In both the DC hipot and IR the device under test is discharged back
through the HV transformer. This technique results in a rapid and safe discharge.
Ground ContinuityCheck:All of the Sentry units have a ground continuity check fea-
ture to determine that the resistance, between the ground blade of the power cord and any
exposed metal on the product, is less than 1 ohm.
For more detailed
specifications, visit
www.quadtech.com
For more information about special
purchase, rent & lease options, call
1-800-253-1230
Fax 1-978-461-4295
Intl. 1-978-461-2100
Sentry 10, 20, 30, and 15, 25, 35
AC Output Voltage: Range: 100V to 5000V AC
Common Features
Resolution: 10Volts/step
Frequency: 50/60 Hz selectable
Frequency Accuracy: 100ppm
Waveform: Sinusoidal
Regulation: +/-(1% of setting +5V)
Voltage Display: Accuracy: +/-(1% of reading + 5V)
Resolution: 1Volt
AC Current Display: Total current
Range: 0.001 to 15mA AC
Resolution: 1µA
Accuracy:+/-(1.5% of reading + 5cnt)
High/Low Limit Test: 1µA to 15mA AC
Accuracy: +/-(1% of limit + 5cnt)
Low limit can be turned OFF
Sentry 20, 30 and 25, 35
DC Output Voltage: Range: 100V to 6000V DC
Resolution: 10Volts/step
Regulation: +/-(1% of setting +5V)
Voltage Display: Accuracy: +/-(1% of reading + 5V)
Resolution: 1Volt
DC Current Display: Range: 1µA to 7.5mA DC
(5.0mA for Sentry 25, 35)
Resolution: 1µA
Accuracy:+/-(1.5% of reading + 5cnt)
High/Low Limit Test: 1µA to 7.5mA DC
(5mA for Sentry 25, 35)
Low limit can be turned OFF
Charging Current: 7.5mA max (5mA for Sentry 25, 35)
Sentry 30 and 35
Insulation Resistance: Range: 10MΩ - 10GΩ
+/- (10% of reading + 10 cts), >500V
+/- (15% of reading + 10 cts), <500V
Voltage Range: 50V to 1000V DC
Accuracy: +/-(1% of setting +5V)
High/Low Limit Test: 10M Ω - 10GΩ
High limit can be turned OFF
Charging Current: 7.5mA max (5mA for Sentry 35)
Arc Detection: Arc Level: >1mA - 15mA or OFF
Arc Duration: > 10µs
Indication: Pass/fail lights, audible sound
Buzzer Level: On / Off
Time: Ramp: 0.1 to 999s (+/-20ms)
Test: 0.1 to 999s (+/-20ms) and
Continuous
Quick Discharge: Discharge of voltage across DUT back
through the HV transformer
Ground Continuity: High Limit: 1Ω
Accuracy: +/-0.1Ω
Test Current: 100 mA DC
Remote Control: Inputs: Start, Stop and Interlock
Characteristics: 24V Active Low,
Pulse Width >1ms.
Outputs: Pass/Fail/Under Test
Characteristics: Dry Contact relay
Ele. Characteristics: 120V 100mA max.
Logic: Closed if True
Connector: 9 pin Male D-Series
Connector
Test Setups: 40 Memory Locations with 2 Steps each
80 Memory Locations with 1 Step each
Connectors: Front Connection (HV and Ground)
HV Socket
Ground (Binding Post)
Grnd Cont.(Banana Socket)
Front Panel Lockout: Key press with or without memory recall
Miscellaneous: Continuous Voltage on Fail
Zero Offset
Dimensions: (w x h x d):11x4x14in
(270x100x350mm)
Weight: 21 lbs (10kg) Shipping: 28 lbs (13kg)
Environmental: Meets MIL-T-28800E, Type 3, Class 5
Operating: 0° to + 40° C
Humidity: <75%
Storage: - 10° to + 60° C
Warm-up Time: 1minute
Ordering Information
Sentry 10 AC Hipot Tester
Sentry 20 AC/DC Hipot Tester
Sentry 30 AC/DC/IR Hipot Tester
Sentry 15 AC Hipot Tester
Sentry 25 AC/DC Hipot Tester
Sentry 35 AC/DC/IR Hipot Tester
Includes:
Instruction Manual
700070 Power Cable
S02 Test Leads
For more detailed specifications, visit www.quadtech.com
For more information about special purchase, rent & lease options, call
1-800-253-1230 • Fax 1-978-461-4295 • Intl. 1-978-461-2100
5 Clock Tower place, 210 East, Maynard, MA 01754
Power: •90 - 130V AC •50 or 60Hz
700100 Ground Continuity Lead
Calibration Certificate Traceable to NIST
Optional Accessories:
Calibration Data
S02 HV Lead Set, 1m, (std w/unit)
S03 Corded Product Adapter(115V)
S04 HV Lead Set, 2m
S05 Foot Switch
S06 High Voltage Probe
S07 Power Entry Adapter Cable
•200 - 250V AC •300W max
S08 Gun Probe
S09 HV Lead, 1 meter, unterminated
S10 HV Lead, 2 meters, unterminated
S11 Gun Probe with remote start
S12 Load Box, resistive
S14 Load Box, custom resistors
S15 Interconnection Cable to S50
S16 Rack Mount Kit
G16 International Power Strip
G25 Corded Product Adapter (240V)
P/N 030073/A3
