User’s Guide
HP E1779A Battery Pack
This manual provides documentation for the following instruments:
HP ESA-E Series
HP E4401B
HP E4402B
HP E4404B
HP E4405B
HP E4407B
and
HP ESA-L Series
HP E4403B
HP E4408B
HP E4411A
HP E4411B
HP Part No. E1779-90013 Supersedes E1779-90001
Printed in USA
March 1999
© Copyright 1997-1999 Hewlett-Packard Company.
The information contained in this document is subject to change
without notice.
Hewlett-Packard makes no warranty of any kind with regard to this
material, including but not limited to, the implied warranties of
merchantability and fitness for a particular purpose. Hewlett-Packard
shall not be liable for errors contained herein or for incidental or
consequential damages in connection with the furnishing, performance,
or use of this material.
2
Safety Word Definitions
The following safety notes are used throughout this manual.
Familiarize yourself with each note before operating this instrument.
WARNING Warning denotes a hazard. It calls attention to a procedure
which, if not correctly performed or adhered to, could result in
injury or loss of life. Do not proceed beyond a warning note
until the indicated conditions are fully understood and met.
CAUTION Caution denotes a hazard. It calls attention to a procedure that, if not
correctly performed or adhered to, could result in damage to or
destruction of the instrument. Do not proceed beyond a caution sign
until the indicated conditions are fully understood and met.
NOTE Note denotes special information. It calls attention to a procedure that,
if not correctly performed or adhered to, could result in errors to that
procedure. Do not proceed beyond a note until the indicated conditions
are fully understood and met.
General Safety Considerations
WARNING No serviceable parts inside. To prevent electrical shock, do not
remove covers.
CAUTION Always use the three-prong ac power cord supplied with the battery
pack charger power supply. Failure to ensure adequate earth grounding
by not using this cord may cause product damage.
Statement of Compliance
This product has been designed and tested in accordance with IEC
Publication 1010, Safety Requirements for Electronic Measuring
Apparatus, and has been supplied in a safe condition. These
instructions contain information and warnings which must be followed
by the user to ensure safe operation and to maintain the product in a
safe condition.
3
Warranty
This Hewlett-Packard instrument product is w arranted against defects
in material and workmanship for a period of one year from date of
shipment. During the warranty period, Hewlett-Pac kard Company will,
at its option, either repair or replace products which prove to be
defective.
For warranty service or repair, this product must be returned to a
service facility designated by Hewlett-Packard. Buyer shall prepay
shipping charges to Hewlett-Packard and Hewlett-Packard shall pay
shipping charges to return the product to Buyer. However, Buyer shall
pay all shipping charges, duties, and taxes for products returned to
Hewlett-Packard from another country.
Hewlett-Packard warrants that its software and firmware designated
by Hewlett-Packard for use with an instrument will execute its
programming instructions when properly installed on that instrument.
Hewlett-Packard does not warrant that the operation of the
instrument, or software, or firmware will be uninterrupted or
error-free.
LIMITATION OF WARRANTY
The foregoing warranty shall not apply to defects resulting from
improper or inadequate maintenance by Buyer, Buyer-supplied
software or interfacing, unauthorized modification or misuse , operation
outside of the environmental specifications for the product, or improper
site preparation or maintenance.
NO OTHER WARRANTY IS EXPRESSED OR IMPLIED.
HEWLETT-PACKARD SPECIFICALLY DISCLAIMS THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE.
EXCLUSIVE REMEDIES
THE REMEDIES PROVIDED HEREIN ARE BUYER’S SOLE AND
EXCLUSIVE REMEDIES. HEWLETT-PACKARD SHALL NOT BE
LIABLE FOR ANY DIRECT, INDIRECT , SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, WHETHER BASED ON CONTRACT,
TORT, OR ANY OTHER LEGAL THEORY.
4
Contents
1. Preparing for Use
Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Panel Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Initial Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Power Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2. Installation and Operation
Battery Charging Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Installing the Battery Pack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Installation Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Basic Operation Check. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3. Troubleshooting
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Basic Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Troubleshooting the Battery Pack and the 24 Vdc Charger Power
Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Latch Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Safety Boot Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4. Characteristics
Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Typical Runtime . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Regulatory Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
5. Disposal and Service
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Battery Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
RBRC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Contacting Hewlett-Packard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Battery Pack Serial Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Calling HP Sales and Service Offices . . . . . . . . . . . . . . . . . . . . . . . . 37
How to Order Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Direct Phone-Order System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Direct Phone-Order System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Regular and Hotline Orders. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
5
Contents
6
1 Preparing for Use
This chapter describes the battery pack and provides initial inspection
information.
7
Preparing for Use
Description
Description
The HP E1779A is a battery pack that will typically power an HP ESA
spectrum analyzer from 60 to 90 minutes, depending on the model
number and the options installed in the analyzer. (See Chapter 4,
“Characteristics,” for more information about run time.)

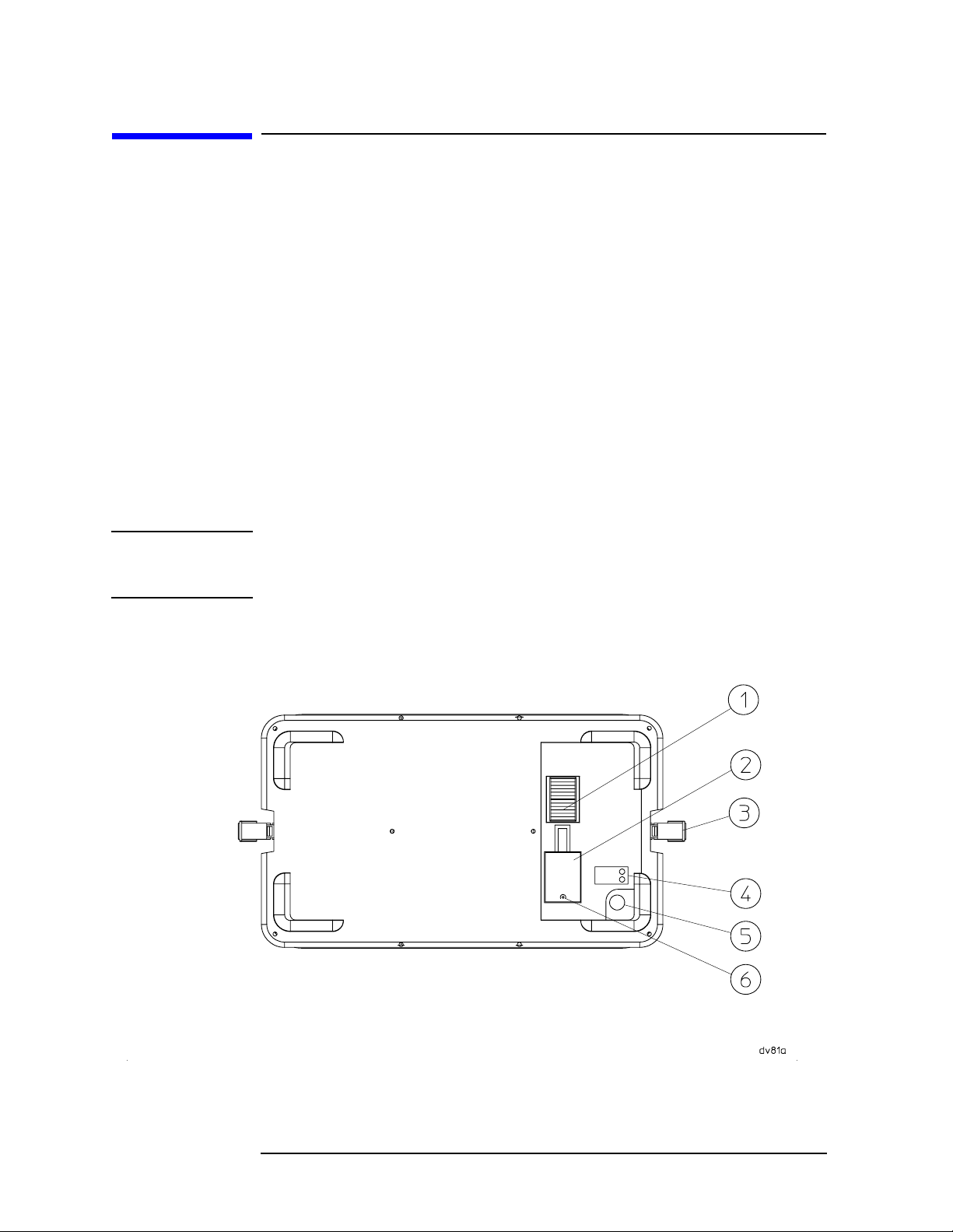

Panel Description
The battery pack has gold plated electrical contacts (1). A protective
rubber safety boot (2) is attached to protect the contacts when the
battery pack is not installed. A charging connector (5) is provided for
attachment of the charger power supply. Adjacent to the charging
connector are two LED indicator lights (4) to give visual information of
the charging status. The latches (3) on each side of the battery pack are
for attaching the battery pack to the spectrum analyzer. There is a hole
(6) provided for the rubber safety boot plug to hold the boot in place
when the battery pack is attached to the spectrum analyzer.
CAUTION The battery pack is NOT water resistant. It must be protected from
liquids and other contaminants which could be spilled on the connector
face.
Figure 1-1 Battery Pack Description
8 Chapter 1
Initial Inspection
You should receive the following:

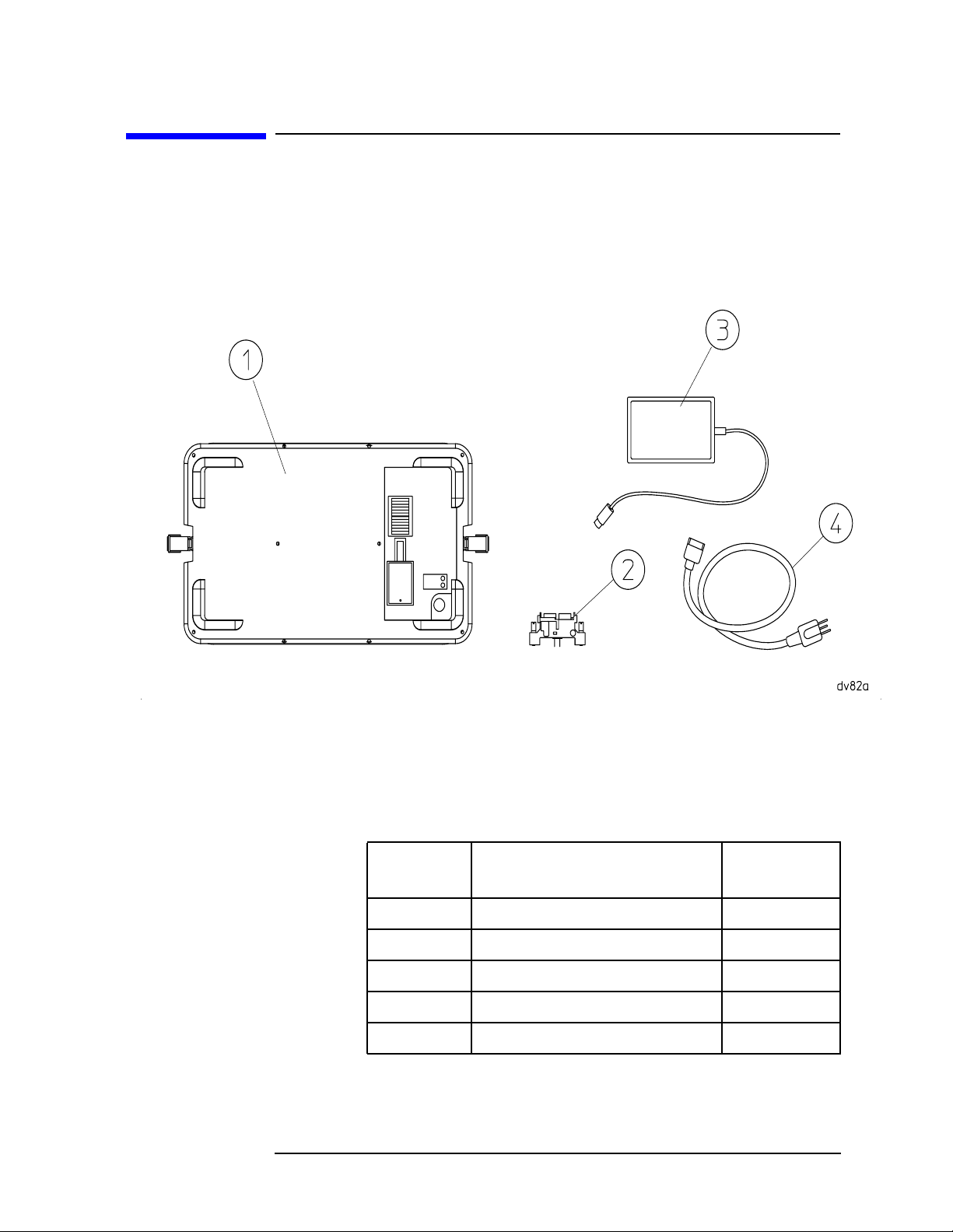

Figure 1-2 HP E1779A Battery Pack Components
Preparing for Use
Initial Inspection
Number Description
1 Battery Pack None
2 dc Adapter E4401-60025
3 Charger Power Supply E1779-60002
4 ac Line Cord See Table 1-1
User’s Guide E1779-90013
Chapter 1 9
HP Part
Number
Preparing for Use
Initial Inspection
Power Cable
The battery pack charger power supply is equipped with a three-wire
power cable, in accordance with international safety standards. When
connected to an appropriate power line outlet, this cable grounds the
charger power supply case.
WARNING F ailure to ground the charger power supply properly can result
in personal injury. Insert the main power cable plug only into a
socket outlet that has a protective earth contact. DO NOT
defeat the earth-grounding protection by using an extension
cable, power cable, or autotransformer without a protective
ground conductor.
If you are using an autotransformer, make sure its common
terminal is connected to the protective earth contact of the
power source outlet socket.
Various power cables are available to connect the charger power supply
to the types of ac power outlets unique to specific geographic areas. You
will receive the cable appropriate for the area to which the charger
power supply is originally shipped. You can order additional ac power
cables for use in different areas. The following table lists the available
ac power cables, illustrates the plug configurations, and identifies the
geographic area in which each cable is appropriate.
10 Chapter 1

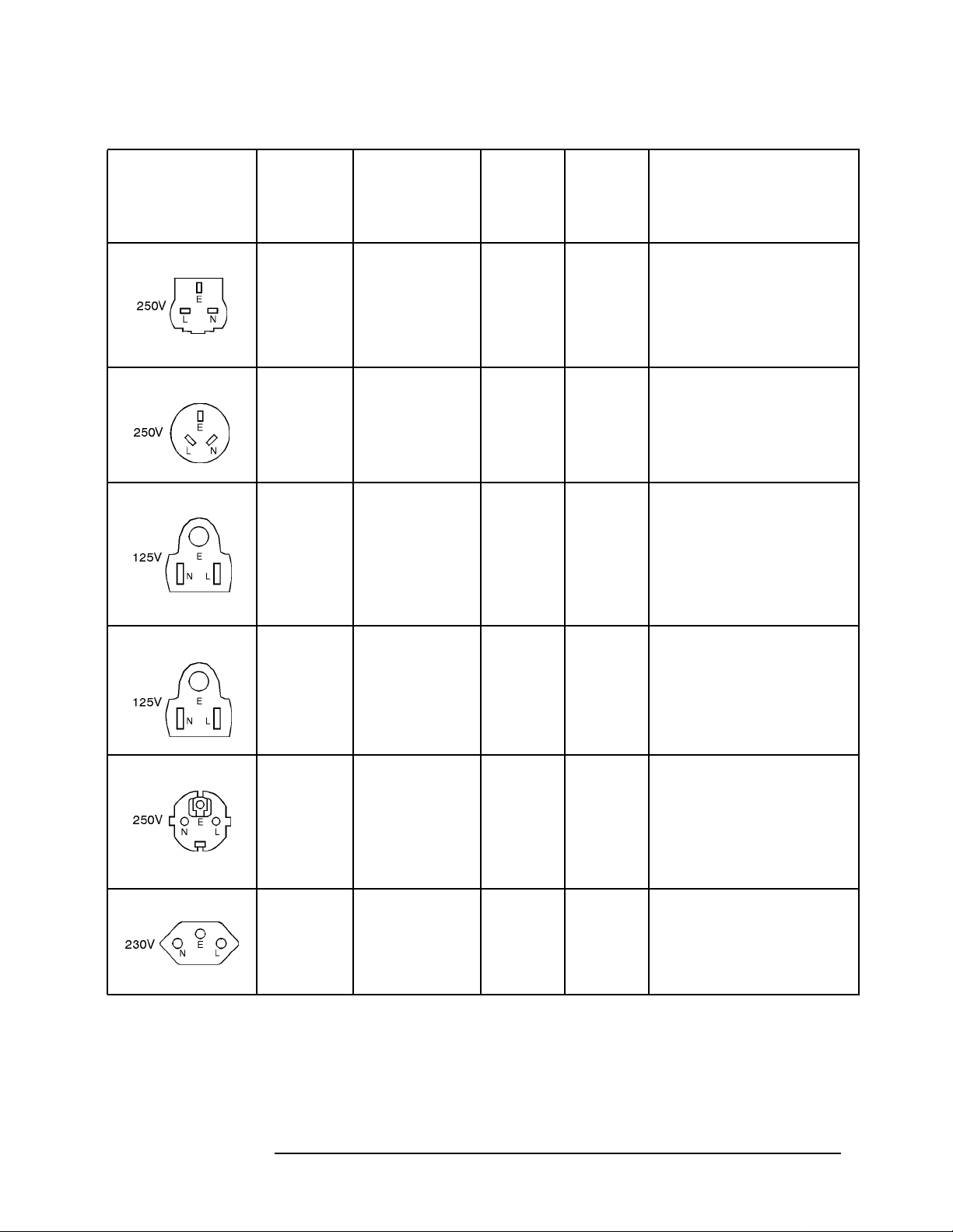

Table 1-1 Power Cables
Preparing for Use
Initial Inspection
Plug Type
a
HP
Cable
Part
Number
8120-1351
8120-1703
8120-1369
8120-0696
8120-1378
8120-1521
b
Plug
Description
Straight
BS 1363A
90˚
Straight
AS 3112
90˚
Straight
NEMA 5-15P
90˚
Length
cm (in.)
229 (90)
229 (90)
210 (79)
200 (78)
203 (80)
203 (80)
Cable
Color
Mint
Gray
Mint
Gray
Gray
Gray
Jade
Gray
Jade
Gray
For Use in Country
Option 900
United Kingdom, Hong
Kong, Cyprus, Nigeria,
Singapore, Zimbabwe
Option 901
Argentina, Australia, New
Zealand, Mainland China
Option 903
United States, Canada,
Brazil, Colombia, Mexico,
Philippines, Saudi
Arabia, Taiwan
8120-4753
8120-4754
8120-1689
8120-1692
8120-2104
8120-2296
Straight
NEMA 5-15P
90˚
Straight
CEE 7/VII
90˚
Straight
SEV Type 12
90˚
229 (90)
229 (90)
200 (78)
200 (78)
200 (78)
200 (78)
Gray
Gray
Mint
Gray
Mint
Gray
Gray
Gray
Option 918
Japan
Option 902
Continental Europe,
Central African Republic,
United Arab Republic
Option 906
Switzerland
Chapter 1 11
Preparing for Use
Initial Inspection

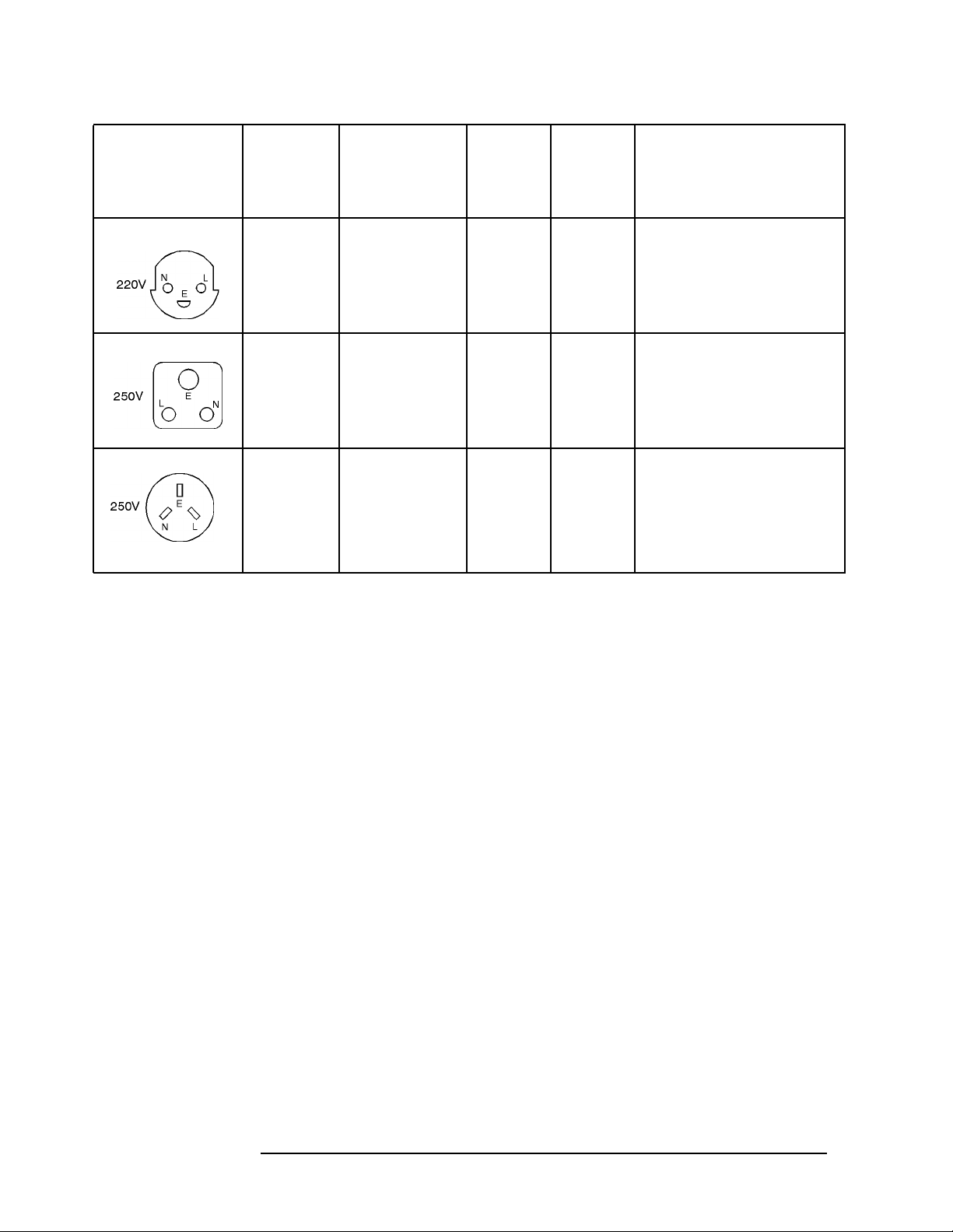

HP
Plug Type
a
Cable
Part
Description
Plug
b
Length
cm (in.)
Cable
Color
For Use in Country
Number
8120-2956
8120-2957
8120-4211
8120-4600
Straight
SR 107-2-D
90˚
Straight
IEC 83-B1
90˚
200 (78)
200 (78)
200 (78)
200 (78)
Gray
Gray
Mint
Gray
Mint
Option 912
Denmark
Option 917
South Africa, India
Gray
8120-5182
8120-5181
Straight
SI 32
90˚
200 (78)
200 (78)
Jade
Gray
Jade
Option 919
Israel
Gray
a. E = earth ground, L = line, and N = neutral.
b. Plug identifier numbers describe the plug only. The HP part number is for the com-
plete cable assembly.
12 Chapter 1
Loading...
