Infiniium 80000B Series Oscilloscopes
InfiniiMax Series Probes
2 GHz to 13 GHz Oscilloscope
Measurement Systems
Data Sheet
• 2 GHz to 13 GHz bandwidth
real-time oscilloscopes all with
up to 40 GSa/s sample rate
• Up to 2 Mpts MegaZoom deep
memory at 40 GSa/s sample
rates and 64 Mpts MegaZoom
deep memory at 4 GSa/s
• Industry’s lowest noise floor for
both oscilloscopes and probes
• Industry’s lowest jitter
measurement floor
• Industry’s lowest trigger jitter –
less than 500 fs rms
• Industry’s flattest frequency
response
• Industry’s only full bandwidth
probe system for all use
models – up to 13 GHz
bandwidth for differential
solder-in, browser and SMA
connections
• Industry’s only bandwidth
upgradeable series from 2 GHz
to 13 GHz via the After-Burner II
upgrade program
• Industry’s largest selection of
application software packages

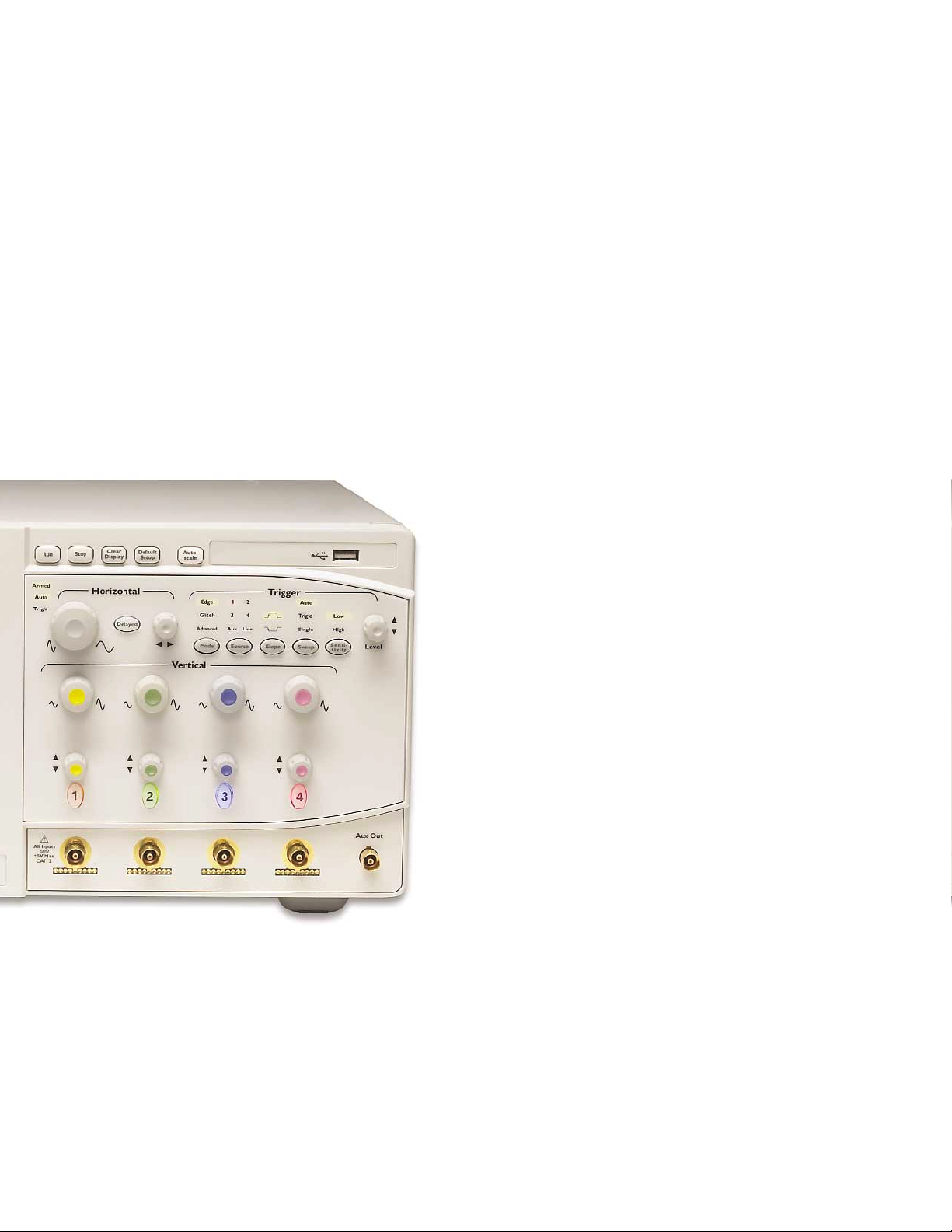

• Includes touch screen, XGA
display, front-panel USB port,
2.93 GHz CPU and intensity
graded waveforms
Infiniium
80000B Series
Superior Signal
Integrity and Probing
for Your Application
The superior signal integrity,
probing and application software
selection of Agilent Technologies’
Infiniium 80000B Series and
InfiniiMax II probing system will
lead to improved measurements
and increased design margins.
The signal integrity advantages of
Agilent’s Infiniium 80000B Series
Scopes and InfiniiMax Probing
System include the industry’s
lowest noise floor, lowest jitter
measurement floor, lowest trigger
jitter and flattest frequency
response. These foundational
capabilities are crucial for
achieving accurate and repeatable
measurements. These superior
signal integrity capabilities
come from Agilent’s RF design
experience, proprietary packaging
technologies and unique CMOS
ADC architecture. Superior signal
integrity maximizes engineer’s
design margins by not wasting
any measurement accuracy
due to
the poor
noise,
jitter or
frequency
response
of the
scope or
probing
system.
2
Benefits

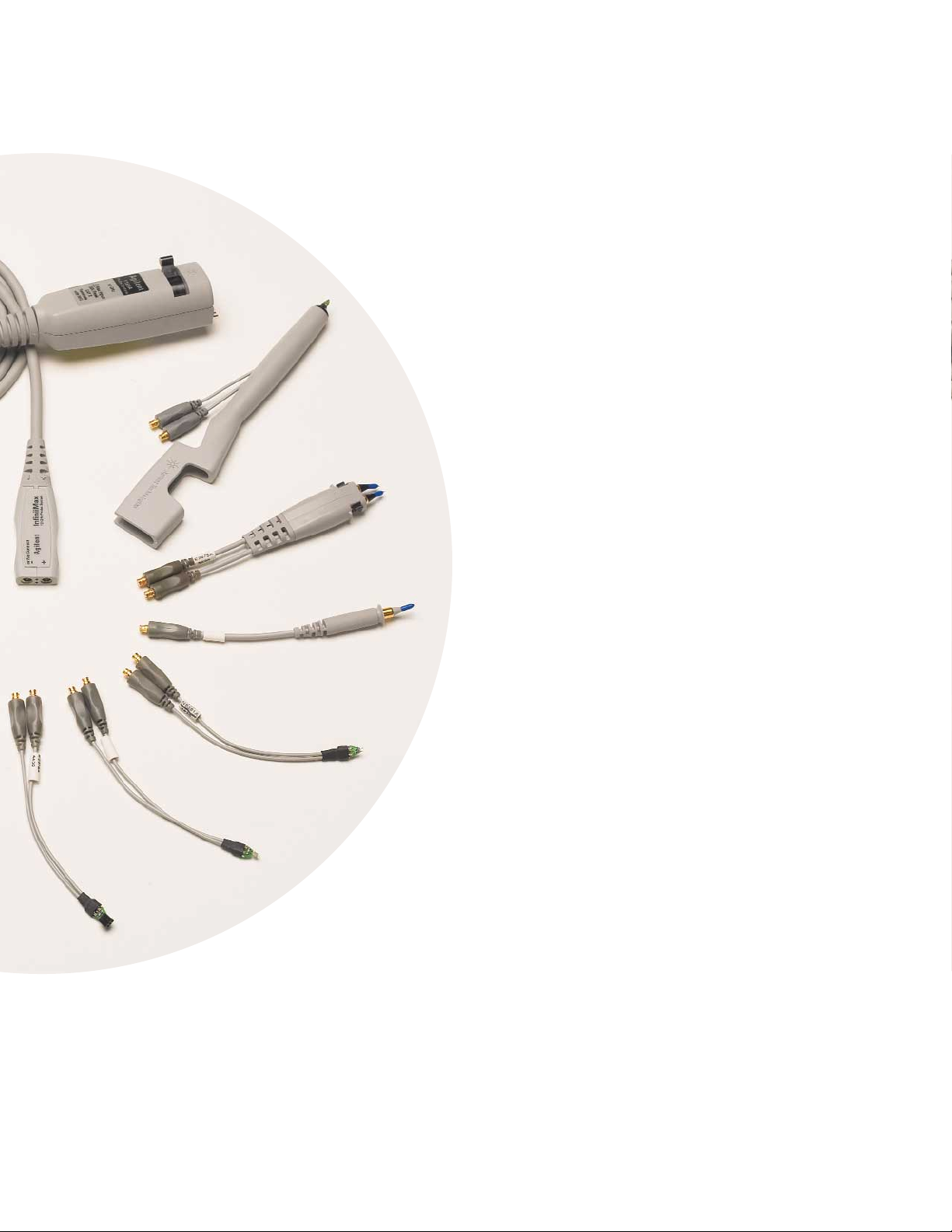

The probing advantages of the
InfiniiMax Series probes include
the low noise and flat frequency
response mentioned above. The
InfiniiMax Series also offers the
industry’s widest selection of
probe amplifier bandwidths
(currently six) and the industry’s
widest variety of different probe
head types (currently nine).
InfiniiMax is also the only probing
system to offer the full 13 GHz
bandwidth for the differential
solder-in, differential browsing and
differential SMA use models. Since
its inception, the award-winning
InfiniiMax probe system has
provided maximum performance
with unmatched usability.
The application software for the
Infiniium 80000B Series is the
industry’s largest – currently
offering a choice of 23 different
application packages to tailor the
capabilities of the oscilloscope
to your specific measurement
requirements. Application
specific software solutions
include compliance test packages
for industry standards such as:
PCI-Express®, DDR, FBD, SATA,
SAS, FC, DVI, HDMI, USB, FW
and Ethernet as well as more
general purpose jitter and serial
data analysis packages. Agilent
is also the industry’s only vendor
to offer innovative packages for
ultra-wideband vector signal
analysis, noise reduction and the
brand new InfiniiScan event
identification software.
The industry leading signal
integrity, probing and software
application capabilities of the
Infiniium 80000B Series scopes
and InfiniiMax Series probes
have recently won three
industry awards.
U.S. Navy imagery used in illustration without endorsement expressed or implied.
Superior signal integrity and
probing for your application
Agilent doesn’t only deliver
industry leading oscilloscope
performance. It also uses the
company’s extensive technology
base to provide superior signal
integrity, probing and analysis
software for the designer’s
specific application. The most
noteable benefits of the Agilent
solution are:
Signal integrity
• Industry’s lowest scope
noise floor
• Industry’s lowest jitter floor
• Industry’s lowest trigger jitter
• Industry’s flatest frequency
response
• Industry’s leading hardware
sensitivity
• Industry’s only bandwidth
upgradeable series
Probing
• Industry’s lowest probe
noise floor
• Industry’s widest range of
probe amplifier bandwidths
• Industry’s widest range of
probe head types
• Industry’s only full bandwidth
probing system
• Industry’s flatest probe
frequency response
Applications
• Industry’s largest set
of applications
• Industry’s only event
identification software
• Industry’s only wideband
spectrum analyzer software
• Industry’s only noise
reduction software
• Industry’s only calibrated
jitter measurement
• Industry’s only compliance
test framework to support
SAS, FC, DDR, FBD, USB,
SATA, Ethernet, PCI-Express,
DVI and HDMI
3
www.agilent.com/find/infiniimaxII
80000B Series Infiniium oscilloscopes
Real-time bandwidth on Equivalent-time bandwidth on Real-time bandwidth on
Model 2 channels and 40 GSa/s 4 channels with 1.56 ps point spacing 4 channels at 20 GSa/s
DSO81304B 13 GHz* 13 GHz 8 GHz
DSO81204B 12 GHz 12 GHz 8 GHz
DSO81004B 10 GHz 10 GHz 8 GHz
DSO80804B 8 GHz 8 GHz 8 GHz
DSO80604B 6 GHz 6 GHz 6 GHz
DSO80404B 4 GHz 4 GHz 4 GHz
DSO80304B 3 GHz 3 GHz 3 GHz
DSO80204B 2 GHz 2 GHz 2 GHz
* Real-time DSP enhanced bandwidth
Maximum memory depth for all DSO80000B Series
Standard acquisition memory 0.5 Mpts on 2 channels, 0.25 Mpts on 4 channels
Optional acquisition memory 2 Mpts on 2 channels, 1 Mpts on 4 channels
this option also enables 64 Mpts on 2 channels at 4 GSa/s, 32 Mpts on 4 channels ≤ 2 GSa/s
Maximum memory in equivalent-time modes always 0.25 Mpts per channel
Benefits (continued)
4
Benefits (continued)
Example 1: How much bandwidth do I need to measure a given rise/fall time accurately?
Rise/fall time (20 - 80%) 3% accuracy 10% accuracy 20% accuracy
100 ps 5.6 GHz 4.8 GHz 4.0 GHz
75 ps 7.5 GHz 6.4 GHz 5.3 GHz
60 ps 9.3 GHz 8.0 GHz 6.7 GHz
50 ps 11.2 GHz 9.6 GHz 8.0 GHz
40 ps 14.0 GHz 12.0 GHz 10.0 GHz
30 ps 18.7 GHz 16.0 GHz 13.3 GHz
Notes:
Maximum signal frequency content = 0.4/rise time (20 - 80%)
Scope bandwidth required = 1.4 x maximum signal frequency for 3% accuracy measurements
Scope bandwidth required = 1.2 x maximum signal frequency for 5% accuracy measurements
Scope bandwidth required = 1.0 x maximum signal frequency for 10% accuracy measurements
Example 2: How much bandwidth do I need for a given high-speed serial bus clock rate?
Fundamental frequency 3rd harmonic frequency 5th harmonic frequency
Serial bus clock rate of data signal of data signal of data signal
2.5 Gb/s 1.25 GHz 3.75 GHz 6.25 GHz
4.25 Gb/s 2.125 GHz 6.375 GHz 10.625 GHz
5.0 Gb/s 2.5 GHz 7.5 GHz 12.5 GHz
6.0 Gb/s 3.0 GHz 9.0 GHz 15.0 GHz
7.0 Gb/s 3.5 GHz 10.5 GHz 17.5 GHz
8.5 Gb/s 4.25 GHz 12.75 GHz 21.25 GHz
5
www.agilent.com/find/infiniimaxII
Benefits (continued)
InfiniiMax II Series probe amplifiers
Model Bandwidth Description
1169A 12 GHz (spec) 13 GHz (typical) InfiniiMax II probe amplifier – order one or more probe heads
1168A 10 GHz InfiniiMax II probe amplifier – order one or more probe heads
InfiniiMax II probe amplifier specifications: Dynamic range = 3.3 V, DC offset range = ± 16 V, maximum voltage = ± 30 V
InfiniiMax I Series probe amplifiers
Model Bandwidth Description
1134A 7 GHz InfiniiMax I probe amplifier – order one or more probe heads
1132A 5 GHz InfiniiMax I probe amplifier – order one or more probe heads
1131A 3.5 GHz InfiniiMax I probe amplifier – order one or more probe heads
1130A 1.5 GHz InfiniiMax I probe amplifier – order one or more probe heads
InfiniiMax I probe amplifier specifications: Dynamic range = 5 V, DC offset range = ± 12 V, maximum voltage = ± 30 V
6
Benefits (continued)

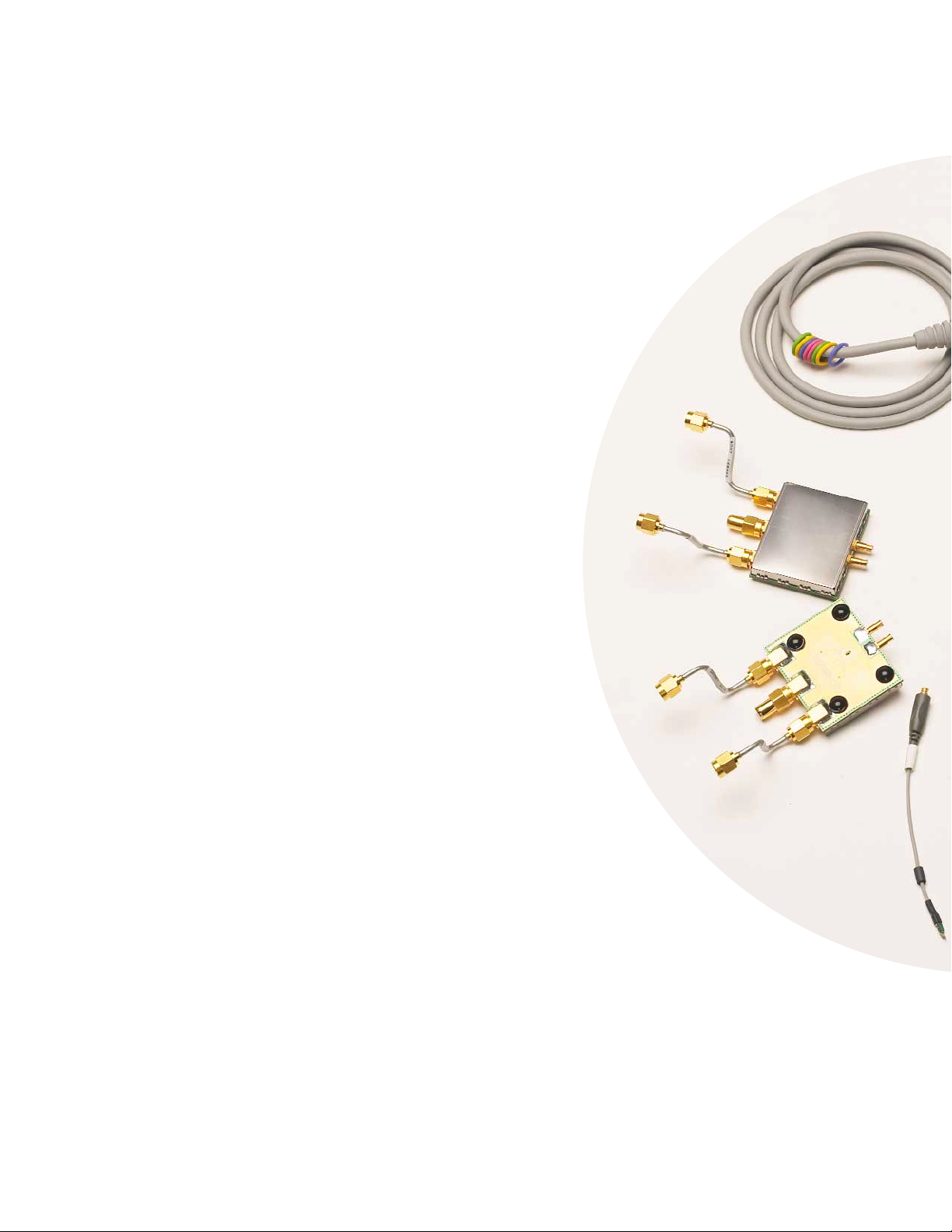

InfiniiMax II Series probe heads
InfiniiMax II Series probe heads are recommended for 1169A/68A probe amplifiers. When used with a DSO81304B, the
N5380A, N5381A, and N5382A will typically achieve 13 GHz bandwidth.
Differential measurement Single-ended measurement
Probe head Model number (BW, input C, input R) (BW, input C, input R)
Hi-BW differential SMA N5380A 12 GHz 12 GHz
Hi-BW differential solder-in N5381A 12 GHz, 0.21 pF, 50 kΩ 12 GHz, 0.35 pF, 25 kΩ
Hi-BW differential browser N5382A 12 GHz, 0.21 pF, 50 kΩ 12 GHz, 0.35 pF, 25 kΩ
InfiniiMax I Series probe heads (can be used with 1169A/68A probe amplifiers with limitations)
Differential measurement Single-ended measurement
Probe head Model number (BW, input C, input R) (BW, input C, input R)
Differential solder-in E2677A 12 GHz, 0.27 pF, 50 kΩ 12 GHz, 0.44 pF, 25 kΩ
(Higher loading, high frequency
response variation)
Differential socket E2678A 12 GHz, 0.34 pF, 50 kΩ 12 GHz, 0.56 pF, 25 kΩ
(Higher loading)
Differential browser – wide span E2675A 6 GHz, 0.32 pF, 50 kΩ 6 GHz, 0.57 pF, 25 kΩ
Differential SMA E2695A 8 GHz 8 GHz
Single-ended solder-in E2679A N/A 6 GHz, 0.50 pF, 25 kΩ
(must bandlimit input to ≤ 6 GHz)
Single-ended browser E2676A N/A 6 GHz, 0.67 pF, 25 kΩ
Differential kit E2669A
(includes E2675A,
E2677A and E2678A)
Single-ended kit E2668A
(includes E2676A,
E2679A and E2678A)
High-impedance adapter E2697A
(includes 500 MHz
passive probe)
7
www.agilent.com/find/infiniimaxII
Benefits (continued)
Infiniium 80000B Series support for industry bus standards
Serial data analysis (E2688A)
Recommended Jitter SW clock 8b/10b Mask Compliance
Bus standard Bit rate BW
1
analysis2recovery decode testing testing Test fixtures
Ethernet 250 Mbs 2 GHz Yes Yes N/A Yes N5392A N5395B
USB 2.0 up to 480 Mbs 2 GHz Yes Yes N/A Yes N5416A E2649A
DDR I/II up to 800 MTs 4 GHz Yes N/A N/A No N5413A No
SATA 1.5 Gbps 1.5 Gbps 6 GHz Yes Yes Yes Yes N5411A Crescent Heart
SAS 150 1.5 Gbps 6 GHz Yes Yes Yes Yes N5412A N5421A
DVI 1.65 Gbps 4 GHz Yes Yes Yes Yes N5394A Silicon Image
HDMI up to 1.65 Gbps 4 GHz Yes Yes Yes Yes N5399A N5405A
Fibre Channel 2.125 Gbps 4 GHz Yes Yes Yes Yes N5410A No
PCI Express I 2.5 Gbps 6 GHz Yes Yes Yes Yes N5393A
3
PCI-SIG
®
ExpressCard 2.5 Gbps 6 GHz Yes Yes Yes Yes N5393A
3
PCMCIA.org
InfiniBand 2.5 Gbps 6 GHz Yes Yes Yes Yes No Fujikura
Advanced TCA 2.5 Gbps 6 GHz Yes Yes Yes Yes No No
SATA 3Gbps 3.0 Gbps 10 GHz Yes Yes Yes Yes N5411A
4
Crescent Heart
SAS 300 3.0 Gbps 10 GHz Yes Yes Yes Yes N5412A
4
N5421A
10G Ethernet 3.125 Gbps 8 GHz Yes Yes N/A Yes No No
XAUI 3.125 Gbps 8 GHz Yes Yes Yes Yes No No
Serial Rapid IO up to 3.125 Gbps 8 GHz Yes Yes Yes Yes No No
FireWire up to 3.2 Gbps 8 GHz Yes Yes N/A N/A Yes - QP Quantum Para.
Fibre Channel 4.25 Gbps 10 GHz Yes Yes Yes Yes N5410A
4
No
FBD I up to 4.8 Gbps 12 GHz Yes Yes N/A Yes N5409A
4
N4235A/36/38A
PCI Express II 5.0 Gbps 12 GHz Yes Yes Yes No No No
InfiniBand II 5.0 Gbps 12 GHz Yes Yes Yes No No No
SATA 6Gbps 6.0 Gbps 13 GHz Yes Yes Yes No No No
SAS 600 6.0 Gbps 13 GHz Yes Yes Yes No No No
Fibre Channel 8.5 Gbps 13 GHz Yes Yes Yes No No No
FBD II up to 9 Gbps 13 GHz Yes Yes N/A No No No
1 Recommended bandwidth is derived from a combination of data rate and edge speed
2 Jitter analysis solutions: EZJIT (E2681A), EZJIT Plus (N5400A), oscilloscope tools (E2690B)
3 Requires E2688A serial data analysis
4 Requires E2688A serial data analysis and N5400A EZJIT Plus jitter analysis
8

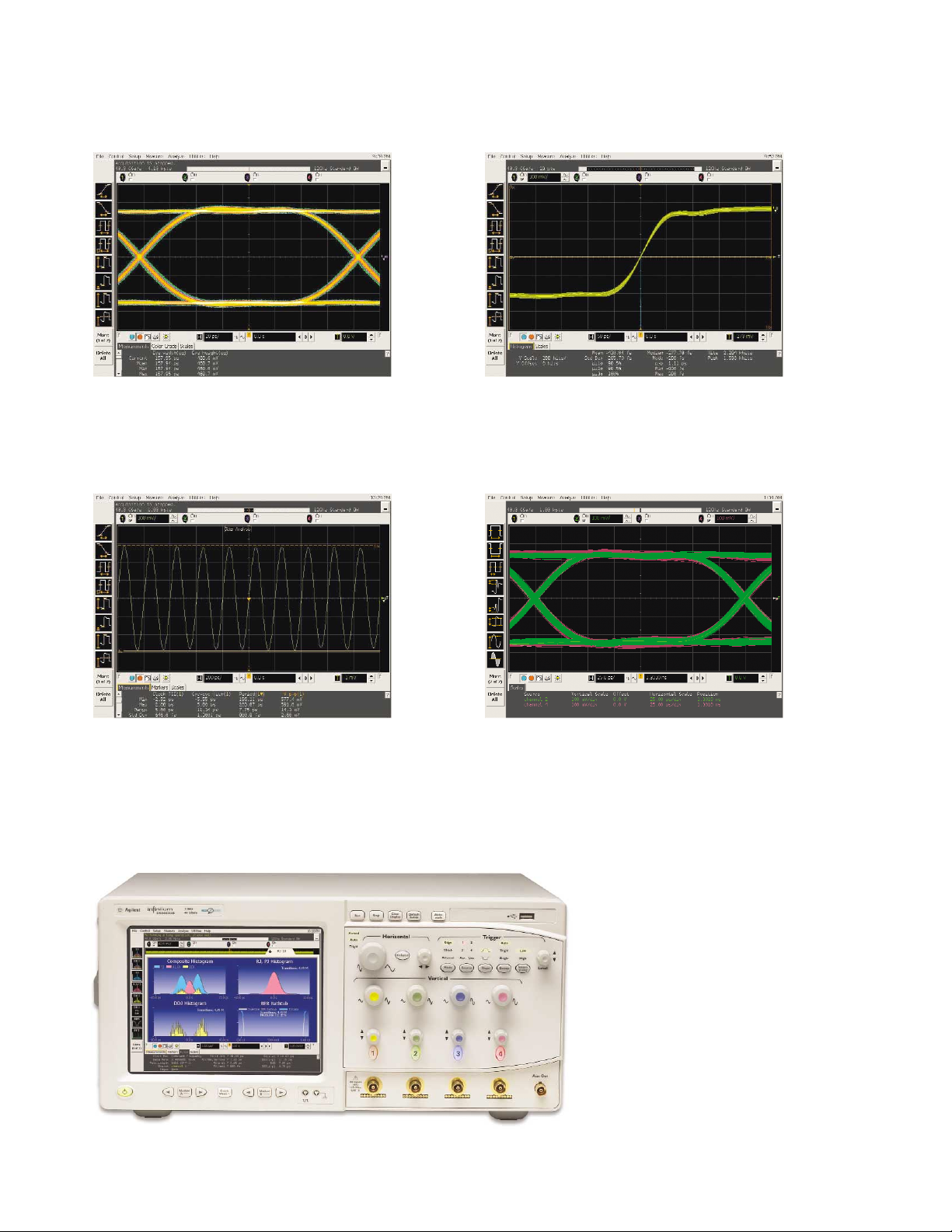

The industry’s lowest noise floor delivers superior
measurement results and maximizes design
margins. (see page 12 for noise floor
characteristics)
The industry’s lowest trigger jitter, less than
500 fs rms, facilitates accurate waveform
viewing of multiple waveforms.
Benefits (continued)
The industry’s lowest jitter measurement floor
minimizes the oscilloscopes contribution to jitter
measurements and results in superior compliance
test results.
The industry’s flattest frequency response leads
to excellent correlation between scope only
(white trace) and scope plus probe (red trace)
measurements as shown in this dual infinite
persistence eye diagram.
EZJIT Plus jitter decomposition supports
arbitrary data patterns. Agilent’s
industry-leading selection of application
software packages facilitate rapid analysis
of acquired data into measurement results.
9
www.agilent.com/find/infiniimaxII
Overview of Infiniium 80000B Series Application Software
Jitter
Application software package U.S. list
E2681A EZJIT jitter analysis (option 002) $4,000
N5400A EZJIT Plus jitter analysis (option 004) $8,000
E2690B Amherst oscilloscope tools Various
Analysis
Application software package U.S. list
E2688A SDA high-speed serial data analysis (option 003) $8,000
N5414A InfiniiScan event identification software $5,000
N5391A I2C/SPI serial data analysis $1,500
N5402A CAN serial data analysis $1,500
89601A Vector signal analysis ≥ $7,000
Compliance
Application software package U.S. list
N5392A Ethernet compliance $3,000
N5393A PCI Express compliance $2,000
N5394A DVI compliance $4,000
N5399A HDMI compliance $4,000
N5409A Fully Buffered DIMM compliance $4,000
N5410A Fiber channel compliance $4,000
N5411A SATA I/II compliance $3,000
N5412A SAS compliance $3,000
N5413A DDR2 clock characterization $3,000
N5416A USB compliance $2,000
Fire-wire compliance (Quantum Parametrics) Various
Utilities
Application software package U.S. list
N5403A Noise reduction (option 005) $2,000
E2625A Communications mask test kit $3,000
E2699A My Infiniium integration package (option 006) $800
E2682A Voice control option $500
10
Infiniium: “It’s like someone who sits down and actually uses
a scope designed this one.”
Steve Montgomery, Director of Engineering, Linx Technologies
Up to 40 GSa/s sample rate on two channels
significantly reduces the chances of aliasing,
increases measurement accuracy, and delivers the
full real-time bandwidth of the oscilloscope on two
channels simultaneously.
Four channels at 20 GSa/s with 8 GHz real-time
bandwidth or full bandwidth equivalent time modes
are also available.
Get fast answers to your questions with
the built-in information system. Infiniium’s
task-oriented Setup Guide provides step-by-step
instructions for several advanced measurements
and procedures. A 2.93 GHz Celeron CPU processes
measurements quickly.
See your signal more clearly with a large (8.4-inch)
XGA (1024 x 768) high-resolution color display.
Infiniium’s bright TFT display with anti-glare
coating lets you see the details of your signal from
all angles.
≥ 40 Gb hard drive, a front-panel high-speed USB
2.0 port and four rear panel high-speed USB 2.0
ports make it easy to save setup files, data files,
screen shots, etc.
Identify anomalies easily with a 256 level intensity
graded or color-graded persistence display which
provides a three dimensional view of your signals.
Label waveforms and add notes to your screen
captures – Infiniium’s keyboard makes it easy.
The built-in touch screen or a plug-in mouse
can be used to access all menus, drag and drop
measurement icons or position markers.
Easy access to advanced features like
math functions and FFTs, is provided by the
Windows®-based graphical user interface. This GUI
also gives you unique capabilities like drag-and-drop
measurements and zooming, and offers a graphical
equivalent to all front panel controls.
Remote access with Web-enabled connectivity,
e-mail on trigger, and GPIB over LAN allows you to
access your scope from remote locations.
64 Mpts acquisition memory at 4 GSa/s
sample rate on two channels allows you to capture
long time windows at high resolution – such as
identifying glitches due to a power supply start-up
from reset.
QuickMeas+ key gives you any five automated
measurements with a push of a button. You can
also configure this key to print/save screen shots,
save waveforms, or load a favorite setup.
Infiniium: Award-winning scopes
Infiniium has received ten industry
awards to date, including EDN’s
“Innovation of the Year” award
(twice) and T&M World’s “Best in
Test.” Agilent is committed to
breaking new ground and providing
tools that bring unique value to
our customers.
11
www.agilent.com/find/infiniimaxII
Zoom and search with instant response. Zoom into
your signal using the horizontal scale knob and
search through your waveform with the position
knob. MegaZoom technology allows you to find
your area of interest quickly and easily – even with
64 Mpts waveforms.
Built-in CD-R drive on rear panel allows you to
update the system software conveniently and can
be used to install third-party application packages.
Hands-free operation with the Infiniium
VoiceControl option. Just speak into the
microphone to operate front-panel controls.
Segmented memory acquisition mode captures
bursting signals at maximum sample rate without
consuming memory during periods of inactivity.
Removable hard disk drive option is available for
added data security.
Install third-party software packages such as
Excel, LabView, Agilent Vee, MATLAB®, anti-virus
software, and more to perform customized
processing and automation of your oscilloscope
or to make the scope compliant to the network
environment of your company.
An external monitor allows you to run third-party
applications on a large, high-resolution XGA
display while using the scope’s built-in monitor
for high-speed waveform display.
Windows XP Pro operating system.
A familiar interface makes simple tasks simple.
Infiniium’s analog-like front panel has a full set
of controls color coded to the waveforms and
measurements, making simple tasks simple.
One-year standard warranty and a variety of
Agilent support options protect your investment
for the long term.
10 MHz reference clock can be input to or
output from the scope to allow precise timebase
synchronization with RF instruments or
logic analyzers.
A new 18 GHz, BNC-compatible connector
provides a high signal fidelity connection to Agilent
active probes, SMA adapters, and standard BNCs.
AutoProbe interface completely configures your
scope for use with the InfiniiMax probing system
and previous generation Agilent active probes.
10/100 Mbps LAN interface lets you easily print
waveforms on networked printers, save your results
on your office PC, share information with others,
and control the scope over the Web.
E2679A 6 GHz
extremely small
single-ended, solder-in
probe heads for probing of
even the hardest-to-reach
single-ended signals.
E2695A 8 GHz
differential SMA
probe head allows
you to connect two
SMA cables to make a
differential measurement
on a single scope channel.
12
InfiniiMax II: The World’s Best High-Speed Probing System
Just Keeps Getting Better
N5380A 13 GHz
Hi-BW differential
SMA probe head
provides maximum
bandwidth for
SMA fixtured
differential pairs.
InfiniiMax offers you the highest performance
available for measuring differential and
single-ended signals, with flexible connectivity
solutions for today’s high-density ICs and
circuit boards.
InfiniiMax probes have fully characterized
performance for all of their various probe heads.
This includes:
• Swept frequency response plot
• Common mode rejection vs. frequency plot
• Impedance vs. frequency plot
• Time-domain probe loading plot
• Time-domain probe tracking plot
One-year standard warranty on active probes and
a variety of Agilent support options to choose from.
Controlled impedance transmission lines in every
probe head deliver full performance versus the
performance limitations produced by traditional
wire accessories.
Probe interface software allows you to save the
calibration information for up to 10 different probe
heads per channel and will automatically retrieve
calibration data for a probe amplifier as it is
attached to the scope.
High-input impedance active probes minimize
loading, support differential measurements and DC
offset, and can compensate for cable loss.
Probe calibration software delivers the most
accurate probe measurements, linear phase
response and allows various probe combinations
to be deskewed to the same reference time.
A flat frequency response over the entire probe
bandwidth eliminates the distortion and
frequency-dependent loading effects that are
present in probes that have an in-band resonance.
Probe Performance Plots Available
The InfiniiMax II probe manuals contain an extensive set of
performance plots (bandwidth, probe tracking, CMRR, step
response, impedance) for various probe configurations.
See the following web site for this information
www.cos.agilent.com/manuals/scopes/01169-9700_man.pdf
N5380A
E2695A
E2679A
N5382A 13 GHz Hi-BW differential browser
provides maximum bandwidth for hand-held
or probe holder use. Variable spacing from
0.2 to 3.3 mm (8 to 130 mills).
E2675A 6 GHz differential browser is the best
choice for general-purpose trouble-shooting
of differential or single-ended signals with
z-axis compliance and variable spacing from
0.25 - 5.80 mm (10 - 230 mills).
E2676A 6 GHz Single-ended browser is the best
choice for general purpose probing of single-ended
signals when small size of the probe head is the
primary consideration.
E2677A 12 GHz solder-in differential probe
head can be attached to very small geometry
circuits for measuring both single-ended and
differential signals. External mini-coaxial resistors
facilitate wider span but have increased high-frequency
response variation relative to N5381A.
E2678A 12 GHz
differential socket
probe head can be
used to measure
either differential or
single-ended signals
via a plug-on socket
connection.
13
www.agilent.com/find/infiniimaxII
Six different InfiniiMax probe amplifiers from 1.5 GHz to 13 GHz are
available for matching your probing solution to your performance and
budget requirements. The 1168/69A InfiniiMax II amplifiers offer the
highest bandwidth and the lowest noise floors. The 1134/32/31/30A
offer a more cost effective solution and wider dynamic range.
N5381A 13 GHz Hi-BW solder-in differential
probe head provides maximum bandwidth and
minimizes capacitive loading to ≤ 210 fF. Variable
spacing from 0.2 to 3.3 mm (8 to 130 mills).
E2678A
E2677A
N5381A
E2676A
E2675A
N5382A
A SMP microwave extension cable from
Gore is available for extending the reach of
InfiniiMax probes into tight environments
or into test chambers (Gore part number
PRP042105-01, page 30).
14
Infiniium 80000B Series Performance Characteristics
Vertical
Input channels 4
Analog bandwidth (–3 dB)*
10
80204B 80304B 80404B 80604B 80804B 81004B 81204B 81304B
2 GHz 3 GHz 4 GHz 6 GHz 8 GHz 10 GHz 12 GHz 12 GHz
DSP enhanced bandwidth
9
81304B: 13 GHz using DSP enhanced bandwidth mode
Rise time/fall time 80204B 80304B 80404B 80604B 80804B 81004B 81204B 81304B
10 - 90% 212 ps 153 ps 105 ps 70 ps 54 ps 42 ps 36 ps 33 ps
20 - 80% 152 ps 108 ps 91 ps 48 ps 38 ps 30 ps 25 ps 23 ps
Input impedance 50 Ω ±3%
Sensitivity
1
1 mV/div to 1 V/div
Input coupling DC
Vertical resolution
2
8 bits, ≥ 12 bits with averaging
Channel to channel isolation DC to 3 GHz: 60 dB
(any two channels with 3 GHz to 8 GHz: 40 dB
equal V/div settings) 8 GHz to BW: 35 dB
DC gain accuracy*
1
± 2% of full scale at full resolution channel scale
Maximum input voltage* ± 5 V
Offset range Vertical sensitivity: Available offset:
0 mV/div to ≤ 40 mV/div ± 0.4 V
> 40 mV/div to ≤ 75 mV/div ± 0.9 V
> 75 mV/div to ≤ 130 mV/div ± 1.6 V
> 130 mV/div to ≤ 240 mV/div ± 3.0 V
> 240 mV/div ± 4.0 V
Offset accuracy*
1
≤ 3.5 V: ± (2% of channel offset + 1% of full scale) +1 mV
> 3.5 V: ± (2% of channel offset + 1% of full scale)
Dynamic range ± 4 div from center screen
DC voltage measurement accuracy*
1
Dual cursor: ± [(DC gain accuracy)+(resolution)]
Single cursor: ± [(DC gain accuracy)+(offset accuracy)+(resolution/2)]
RMS noise floor (scope only) 80204B 80304B 80404B 80604B 80804B 81004B 81204B 81304B
Volts/div 5 mV 131 µV 160 µV 188 µV 239 µV 280 µV 340 µV 390 µV 420 µV
10 mV 154 µV 187 µV 218 µV 273 µV 310 µV 380 µV 440 µV 490 µV
20 mV 229 µV 272 µV 316 µV 392 µV 470 µV 530 µV 610 µV 730 µV
50 mV 534 µV 637 µV 737 µV 911 µV 1.1 mV 1.2 mV 1.4 mV 1.7 mV
100 mV 1.0 mV 1.2 mV 1.4 mV 1.8 mV 2.1 mV 2.3 mV 2.7 mV 3.3 mV
200 mV 2.0 mV 2.5 mV 2.8 mV 3.5 mV 4.1 mV 4.7 mV 5.3 mV 6.6 mV
500 mV 5.4 mV 6.4 mV 7.5 mV 9.3 mV 11 mV 12 mV 14 mV 17 mV
1 V 10.4 mV 12.5 mV 14.5 mV 18.0 mV 21 mV 24 mV 27 mV 34 mV
RMS noise floor (scope with probe) 80204B 80304B 80404B 80604B 80804B 81004B 81204B 81304B
w/1131A w/1131A w/1132A w/1134A w/1168A w/1168A w/1169A w/1169A
Volts/div 20 mV 3.2 mV 3.4 mV 3.6 mV 4.2 mV 2.7 mV 2.7 mV 2.9 mV 3.0 mV
50 mV 3.3 mV 3.4 mV 3.6 mV 4.2 mV 2.8 mV 2.9 mV 3.1 mV 3.4 mV
100 mV 3.4 mV 3.6 mV 3.8 mV 4.4 mV 3.3 mV 3.5 mV 3.8 mV 4.6 mV
200 mV 3.8 mV 4.2 mV 4.5 mV 5.3 mV 5.2 mV 5.6 mV 6.2 mV 7.8 mV
500 mV 6.0 mV 6.9 mV 7.9 mV 9.9 mV 12 mV 13 mV 14 mV 17 mV
1 V 10 mV 12 mV 14 mV 18 mV 22 mV 24 mV 27 mV 34 mV
Loading...
