Keysight (Agilent) 909A Specifications Sheet

173

Fixed

HP 909 Series

The HP 909 series are fixed low-reflection loads for
terminating a 50 Ω (75 Ω for HP 909E) coaxial system
in its characteristic impedance. Whereas the HP 909A
is designed for general purpose applications, the
HP 909C,D,E,F series are intended for use as
calibration standards. All loads find wide use as
accessories for both broadband and narrowband
measurement instruments, with models covering dc
to 26.5 GHz.

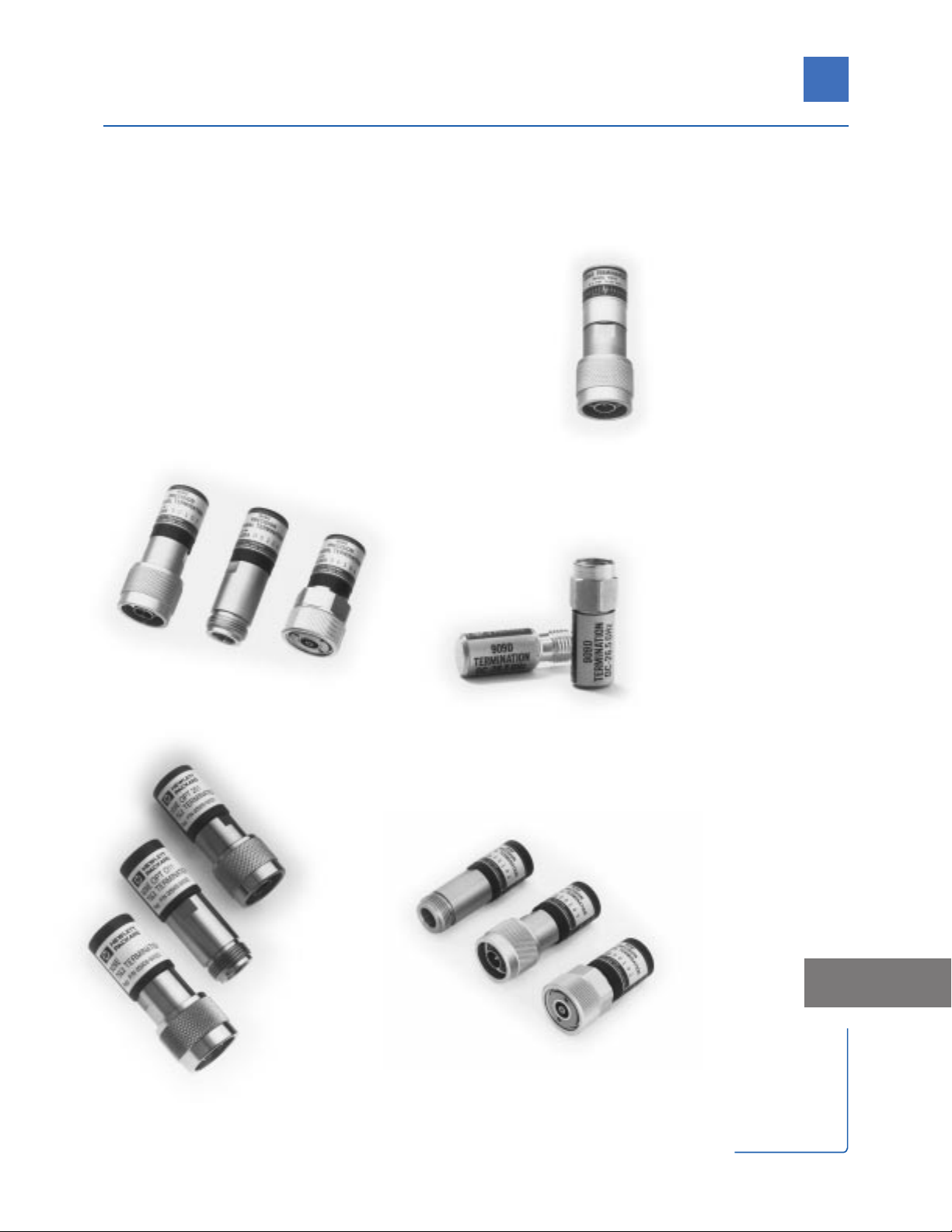

HP 909A

HP 909C

HP 909D

HP 909F

HP 909E

17

Terminations (Loads)

Visit our web site http://www.hp.com/go/mta

HP Frequency Maximum Maximum Connector Length Diameter Shipping
Model Impedance Range (GHz) SWR Power Type mm (in) mm (in) Weight kg (lb)

909A 50 Ω dc to 18 0 to 4 GHz: 1.05 APC-7 51 (2) 23 (0.9)

4 to 12.4 GHz: 1.1

12.4 to 18 GHz: 1.25

909A 0 to 4 GHz: 1.06
Opt. 012 50 Ω dc to 18 4 to 12.4 GHz: 1.11 Opt. 012: N (m) 51 (2) 21 (0.8)
909A 12.4 to 18 GHz: 1.30
Opt. 013 50 Ω dc to 18 Opt. 013: N (f) 51 (2) 16 (0.63)
909C 50 Ω dc to 2 1.005 APC-7 51 (0.5) 22 (0.9)

909C
Opt. 012 50 Ω dc to 2 1.01 Opt. 012: N (m) 21 (0.8)
909C
Opt. 013 50 Ω dc to 2 1.01 Opt. 013: N (f) 17 (0.7)
909C
Opt. 200 50 Ω dc to 0.2 1.005 Must also order

Opt. 012: N (m) or 21 (0.8)
Opt. 013: N (f) 17 (0.7)

909C Must also order
Opt. 201 50 Ω dc to 0.2 1.01 Opt. 012: N (m) 51 (2) 21 (0.8)

909D 50 Ω dc to 26.5 dc to 3 GHz: 1.02 3.5 mm (m) 23 (0.9) 9 (0.4)

3 to 6 GHz: 1.036

0.2 (0.5)

909D 6 to 26.5 GHz: 1.12
Opt. 011 50 Ω dc to 26.5 3.5 mm (f) 23 (0.9) 8 (0.3)

909D dc to 4 GHz: 1.02
Opt. 040 50 Ω dc to 26.5 4 to 6 GHz: 1.036 3.5 mm (m) 23 (0.9) 8 (0.3)

6 to 26.5 GHz: 1.12

909E 75 Ω dc to 3 1.02 N (m) 21 (0.8)

909E
Opt. 011 75 Ω dc to 3 1.02 N (f) 16 (0.6)

909E
Opt. 201 75 Ω dc to 0.2 1.01 N (m) 21 (0.8)

909F 50 Ω dc to 18 dc to 5 GHz: 1.005 APC-7 22 (0.9)

5 to 6 GHz: 1.01
6 to 18 GHz :1.15

909F dc to 2 GHz: 1.007
Opt. 012 50 Ω dc to 18 2 to 3 GHz: 1.01 Opt. 012: N (m) 21 (0.8)
909F 3 to 6 GHz: 1.02
Opt. 013 50 Ω dc to 18 6 to 18 GHz: 1.15 Opt. 013: N (f) 17 (0.7)
85138A 50 Ω dc to 50 2.4 (m)
85138B 50 Ω dc to 50 2.4 (f)

Specifications

Fixed

51 (2)

51 (2)

1/2 W avg.

100 W peak

1/2 W avg.

100 W peak

2 W avg.

100 W peak

2 W avg.

300 W peak

174
