HP 8711B and HP 8713B
RF Economy Scalar
Network Analyzers
Technical Specifications
HP 8711B, 300 kHz to 1.3 GHz
HP 8713B, 300 kHz to 3.0 GHz
REFLECTION
TRANSMISSION
2
Measurement Ports
HP 8712B HP 8714B
≤1.0 GHz >1.0 GHz
minimum maximum minimum maximum minimum maximum
Options power power power power power power
No options 0 dBm 16 0 13 −5 10
1E1 −60 15 −60 12 −60 9
1EC1 −3 13 −3 10 −8 7
1DA/DB −2 14 −2 11 −9 6
1E1 and 1EC1 −60 12 −60 9 −60 6
1E1 and 1DA −60 13 −60 10 −60 5
1EC1 and 1DB −5 11 −5 8 −12 3
1EC
1, 1E1, and 1DB −60 10 −60 7 −60 2
Specifications
Source
Frequency
Range 300 kHz to 1.3 GHz (HP 8712B)
300 kHz to 3.0 GHz (HP 8714B)
Resolution 1 Hz
Stability ±5 ppm 0° C to 55° C (typical)
Accuracy 1) ±5 ppm at 25° C ±5° C
2) <1 Hz at 10% change in line voltage
Harmonics <–20 dBc, <1 MHz
<–30 dBc, >1 MHz for HP 8712B,
<–30 dBc for HP 8714B
Output Power
Resolution 0.01 dB
Level accuracy ±1.0 dB
±1.5 dB Option 1EC
1
±2.0 dB Option 1E1
±3.0 dB Option 1EC
1 and 1E1
Maximum and minimum power
HP 8712B HP 8714B
50 and 75 ohm
Directivity 40 dB 40 dB
Source match 20 dB 20 dB
(reflection)
Source match 14 dB typical
1
23 dB typical at <1.3 GHz,
(transmission) 20 dB typical at >1.3 GHz
Load match 18 dB typical 20 dB typical at <1.3 GHz,
18 dB typical at >1.3 GHz
Reflection Tracking 0 ±0.4 dB typical 0 ±0.2 dB typical
1. All power specifications with Option 1EC (75 ohms) are typical above 2.0 GHz.
This table shows the residual
HP 8712B and 8714B system
specifications. These characteristics apply at an environmental
temperature of 25° ±5° C, with less
than 1° C deviation from the calibration temperature. Directivity
and source match specifications
apply after calibration.
3
2. Receiver dynamic range is calculated as the difference between maximum receiver input level and receiver’s noise floor. System
dynamic range applies to transmission measurements only, since reflection measurements are limited by directivity. Noise floor is
specified as the mean trace noise at specified CW frequencies. A signal at this level would have a signal to noise ratio of 3 dB.
Noise floor is measured with test ports terminated in loads, response and isolation calibration, 15 Hz IF bandwidth, 10 dB source
power and no averaging.
Frequency range HP 8712B HP 8714B
Narrowband 300 kHz 300 kHz
to 1.3 GHz to 3.0 GHz
Broadband 0.10 to 1.3 GHz 0.10 to 3.0 GHz
Dynamic range
2
Narrowband >100 dB, ≥5 MHz
50 ohm (+10 to –90 dBm) >100 dB
>60 dB, <5 MHz (+10 to –90 dBm)
(+10 to –50 dBm)
Narrowband >97 dB, >5 MHz >97 dB
75 ohm (+10 to –87 dBm) (+10 to –87 dBm)
>57 dB, <5 MHz
(+10 to –47 dBm)
Broadband
50 ohm > 66 dB >66 dB
(+16 to –50 dBm) (+16 to –50 dBm)
75 ohm > 63 dB >63 dB
(+16 to –47 dBm) (+16 to –47 dBm)
Damage level +23 dBm, +23 dBm,
±25 VDC ±25 VDC
Maximum input
Narrowband (0.5 +10 dBm +10 dBm
dB compression)
Broadband (0.55 +16 dBm +16 dBm
dB compression)

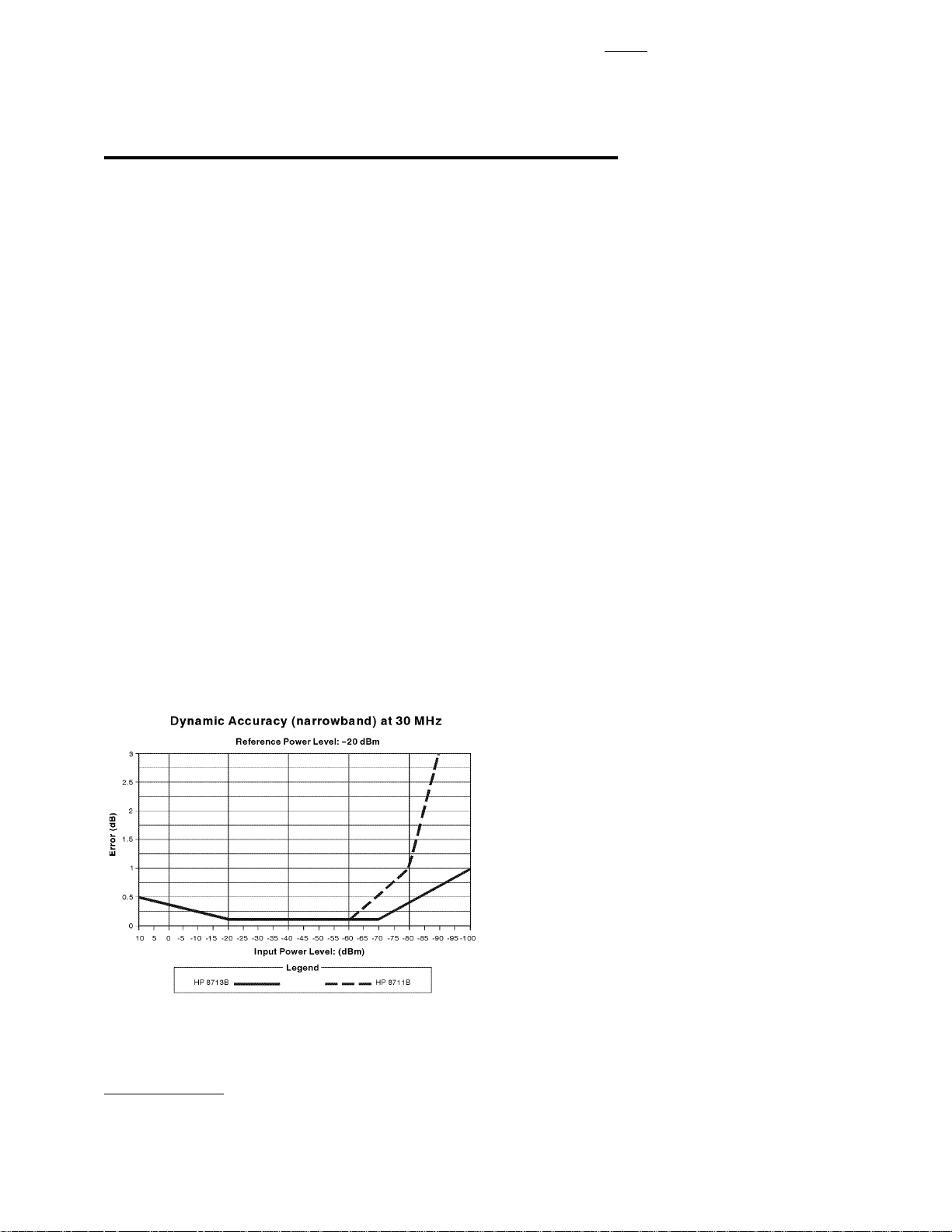

Receiver
