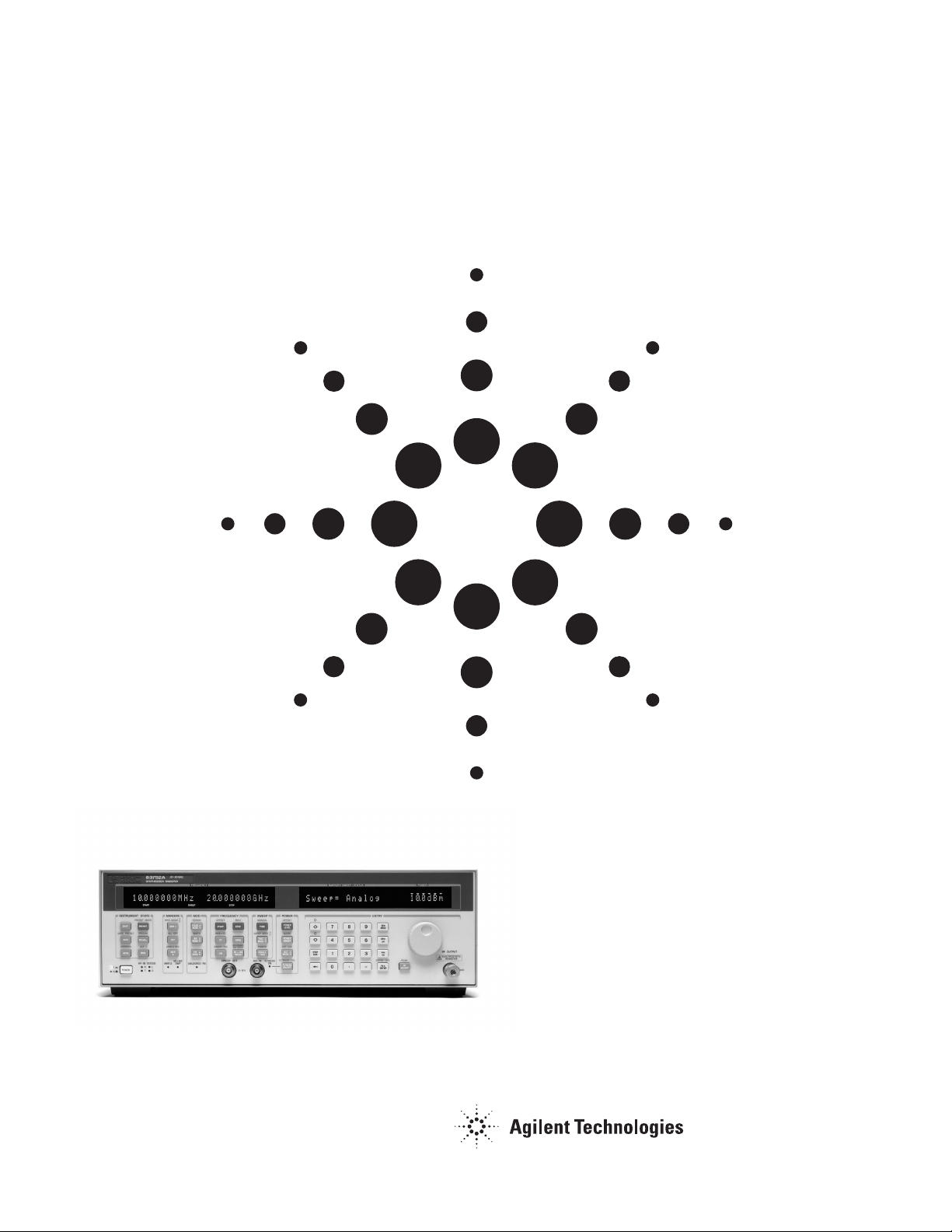

Keysight (Agilent) 83752B Data Sheet

Agilent 83751A/B and 83752A/B
Synthesized Sweepers

2 to 20 GHz, 10 MHz to 20 GHz

Data Sheet

2

3

Specifications

Specifications describe warranted instrument perform­ance over the 0 to 55 °C temperature range unless oth­erwise noted. Specifications apply after the peak func­tion has been performed. Supplemental characteristics
(indicated by italics) are intended to provide informa­tion useful in applying the instrument, but are not war­ranted parameters.

Frequency

Range

83751A/B: 2 GHz to 20 GHz
83752A/B: 10 MHz to 20 GHz

Timebase stability

Standard 10 MHz time base: ±10 ppm
High stability time base (Option IE5):

accuracy = calibration ± aging rate
± temperature effects ± line voltage effects

Aging rate: 5 x 10

-

10

/day, 1 x 10

-

7

/year

With temperature: 1 x 10

-

10

/°C

With line voltage: 5 x 10

-

10

for 10% change

CW mode

Resolution: 1 Hz
Accuracy: same as time base

Switching time: 70 ms max

Stepped sweep mode

Resolution: settable 1 Hz, display 1 kHz
Accuracy: same as timebase
Minimum step size: same as resolution
Number of points: 2 to 1601

Switching time/point1: 7 ms + 8 ms/GHz step

Dwell time/point: 1 ms to 1 s

Ramp (analog, phase locked)
sweep mode

Resolution: 1 kHz
Accuracy (25 ±5 °C):

For 100 ms sweeps the greater of: ±.01% of span ±time
base or ±75 kHz ±time base

At other sweep speeds: [±.001% of span]/[sweep time
(s)] ±time base

Sweep time: 10 ms to 100 s; 400 MHz/ms max

Markers

10 independent continuously variable markers

Display modes: z-axis intensity

or RF amplitude pulse

Sweep functions

Start/stop, center frequency/span, marker, ramp,
stepped, manual, alternate and power sweep

Marker sweep: sweeps between markers one and two
Alternate sweep: alternates successive sweeps between

current front panel setting and stored setup

RF output

2

Maximum leveled power

3

(25 ±5 °C)
83751A, 83752A: +10 dBm
83751B, 83752B:

<2 GHz +16 dBm
>2 GHz +17 dBm

With option 1E1 (step attenuator): reduce by 1 dB

Minimum settable power

83751A, 83752A: -15 dBm

With option 1E1: -85 dBm

83751B, 83752B: -10 dBm

With option 1E1: -80 dBm

1

Up to 50 ms switching times can occur when crossing the 2 GHz band
switch point.

2

With type N connector (option 1ED), performance is typical above 18 GHZ

3

Power typically degrades <2.5 db over 0 to 55 °C
