10 MHz to 110 GHz
Specifications apply after full user calibration,
and in coupled attenuator mode of operation
(ALC level greater than –10 dBm).
Frequency
Range:
83620B 10 MHz to 20 GHz
83622B 2 GHz to 20 GHz
83623B 10 MHz to 20 GHz (high power)
83624B 2 GHz to 20 GHz (high power)
83630B 10 MHz to 26.5 GHz
83640B 10 MHz to 40 GHz
83650B 10 MHz to 50 GHz
83623L 10 MHz to 20 GHz
83630L 10 MHz to 26.5 GHz
83640L 10 MHz to 40 GHz
83650L 10 MHz to 50 GHz
Resolution:
Standard 1 kHz
Option 008 1 Hz
Frequency bands (for CW signals):
Frequency range n
10 MHz to <2 GHz 1
2 GHz to <7 GHz 1
7 GHz to <13.5 GHz 2
13.5 GHz to <20 GHz 3
20 GHz to <26.5 GHz 4
26.5 GHz to <38 GHz
1
6
38 GHz to 50 GHz 8
Internal 10 MHz time base
Accuracy = Calibration ± Aging Rate ± Temperature
Effects ± Line Voltage Effects
Aging Rate: 5 ´ 10
–10
/day, 1 ´ 10–7/year
With Temperature: 1 ´ 10
–10
/°C, typical
With Line Voltage: 5 ´ 10
–10
for line voltage change
of 10%, typical
Sweep functions
Control: Start/stop, center/span, marker (M1-M2),
alternate sweep
Trigger: auto, external, single, or GPIB
Sweep modes
CW and manual modes
Accuracy: Same as time base
Switching Time:
For steps within a frequency band:
15 ms + (step size/1 GHz) ´ 5 ms step size
Maximum, or across band switch points: 50 ms
Step or list modes within a frequency band:
5 ms
2
+ (step size /1 GHz) ´ 5 ms
Agilent
8360B Series Synthesized Swept
Signal Generators
8360L Series Synthesized Swept
CW Generators
Data Sheet
1. This band is 26.5 GHz to 40 GHz for the 83640B/L.
Step sweep mode
Accuracy: Same as time base
Minimum Step Size: Same as frequency resolution
Number of Points: 2 to 801
Switching Time: Same as CW
Dwell Time: 100 µs to 3.2 s
List mode
Accuracy: Same as time base
Minimum step size: Same as frequency resolution
Number of points: 1 to 801
Switching time: Same as CW
Dwell time: 100 µs to 3.2 s
Ramp sweep mode
Accuracy (sweep time ³100 ms and ²5 s):
Sweep widths >n ´ 10 MHz: (start, stop, and
bandedge frequencies are phase-locked
corrected during sweep)
Lesser of 1% of sweep width or n ´ 1 MHz
+ 0.1% of sweep width.
Sweep time: 10 ms to 100 s, 300 MHz/ms
maximum rate

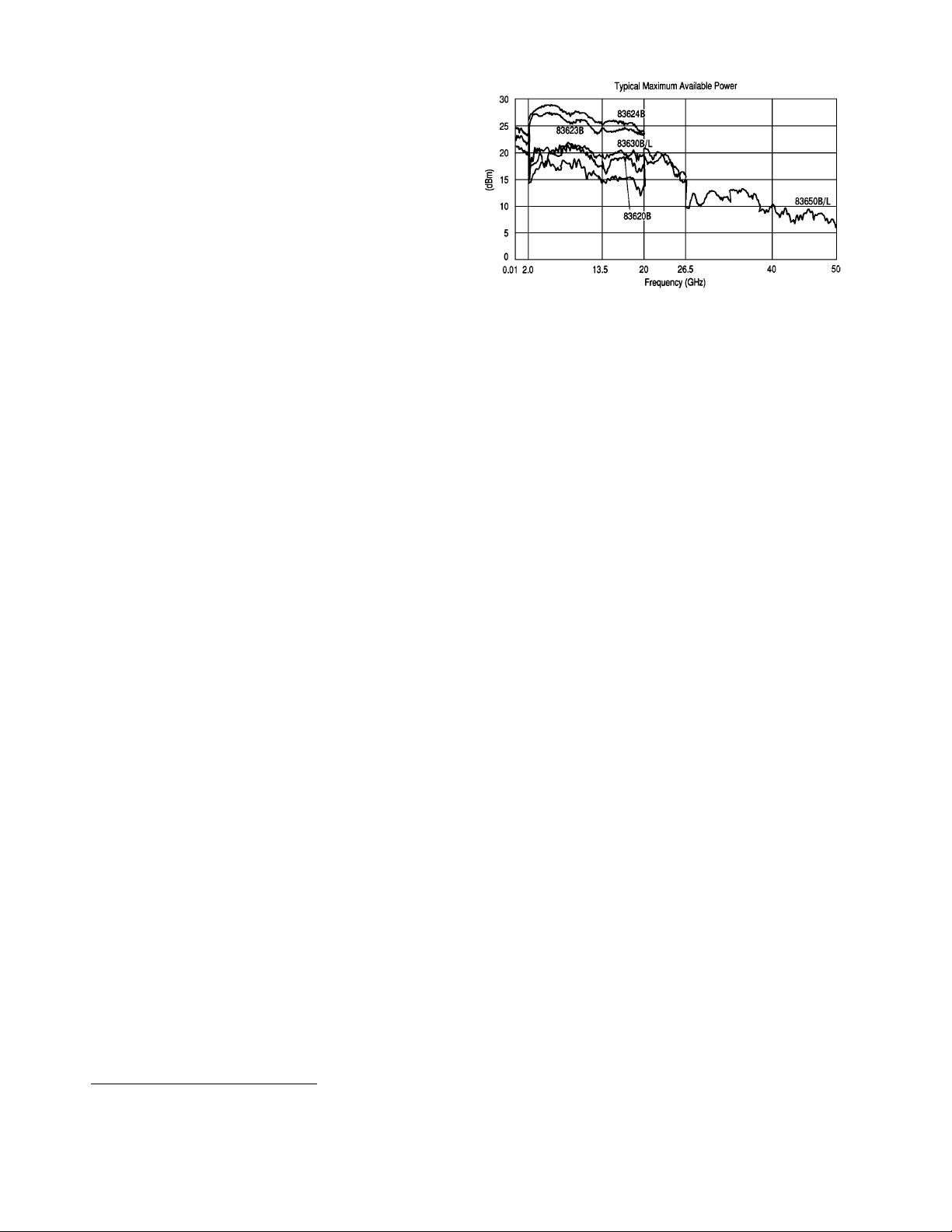

RF output
Output power
Maximum leveled (dBm)
2
Standard Option 006
(B models only)
83620B, 83622B +13 +13
83623B +17 +17
83623L +15 Not applicable
83624B +20 +17
83630B/L
Output frequencies <20 GHz +13 +13
Output frequencies ³20 GHz +10 +10
83640B/L
Output frequencies <26.5 GHz +10 +10
Output frequencies ³26.5 GHz +6 +6
83650B/L
Output frequencies <26.5 GHz +10 +10
Output frequencies ³26.5 GHz +5 +5
and <40 GHz
Output frequencies ³40 GHz +2.5 +2.5
With attenuator (Option 001): Minimum settable
output power is –110 dBm. Maximum leveled
output power is reduced by 1.5 dB to 20 GHz,
2 dB above 20 GHz, and 2.5 dB above 40 GHz.
Minimum settable
Standard: –20 dBm
Option 001: –110 dBm
Resolution: 0.02 dB
Switching time (without attenuator change):
10 ms, typical
Temperature stability: 0.01 dB/°C, typical
Accuracy (dB)
3,4
Specifications apply in CW, step, list, manual
sweep, and ramp sweep modes of operation.
Frequency (GHz)
Power <2.0 ³2.0 >20
and ²20 and ²40 >40
>+10 dBm ±1.2 ±1.3
>–10 dBm
5
±0.6 ±0.7 ±0.9 ±1.7
>–60 dBm ±0.9 ±1.0 ±1.2 ±2.0
²–60 dBm ±1.4 ±1.5 ±1.7 ±2.5
User flatness correction
Number of points: 2 to 801 points/table.
Number of tables = up to 8
Entry modes: GPIB power meter, GPIB bus,
and manual.
Flatness (dB)
Specifications apply in CW, step, list, manual
sweep, and ramp sweep modes of operation.
Frequency (GHz)
Power <2.0 ³2.0 >20
and ²20 and ²40 >40
>+10 dBm ±0.9 ±1.0
>–10 dBm
7
±0.5 ±0.6 ±0.8 ±1.5
>–60 dBm ±0.7 ±0.8 ±1.0 ±1.7
²–60 dBm ±1.1 ±1.2 ±1.4 ±2.1
2. Specification applies over the 0 °C to 35 °C temperature range (0 °C to 25 °C for output frequencies >20 GHz). Maximum leveled output power over
the 35 °C to 55 °C temperature range typically degrades by less than 2 dB.
3. Includes flatness.
4. Specifications apply over the 15 °C to 35 °C temperature range for output frequencies <50 MHz
5. Specifications apply over the 15 °C to 35 °C temperature range and are degraded 0.3 dB outside of that range.
3
Analog power sweep
Range: –20 dBm to maximum available power, can
be offset using step attenuator.
External leveling
Range:
At external 33330D/E detector: –36 to +4 dBm
At external leveling input: –200 µV to –0.5 volts
Bandwidth
External detector mode: 10 or 100 kHz (sweep
speed and modulation mode dependent),
nominal
Power meter mode: 0.7 Hz, nominal
Source match
(internally leveled), typical
6
<20 GHz 1.6:1 SWR
<40 GHz 1.8:1 SWR
<50 GHz 2.0:1 SWR
Spectral purity
Specifications apply in CW, step, list, and manual
sweep modes of operation. Specifications for
harmonics beyond maximum instrument frequencies are typical.
Spurious signals (dBc)
Harmonics
Agilent model numbers
Output 83620B 83623B 83623L 83630B/L 83640B/L
frequencies 83622B 83624B 83650B/L
<2.0 GHz
Standard –30 –25
7
–257–30 –30
7
Option 006 –30
7
–25
7
–30
7
–30
7
³2.0 GHz and
<26.5 GHz
Standard –50 –25 –45 –50 –50
Option 006 –60 –60 –60 –50
³26.5 GHz
Standard –40
Option 006 –40
Subharmonics
Output 83620B 83623B 83623L 83630B/L 83640B/L
frequencies 83622B 83624B 83650B/L
<7 GHz None None None None None
³7 and
²20 GHz –50 –50 –50 –50 –50
>20 GHz and
²40 GHz –50 –40
8
>40 GHz –35
8
6. Typically 2.0:1 SWR at frequencies below 50 MHz.
7. Specification is –20 dBc below 50 MHz.
8. Specifications typical below 0 dBm.
