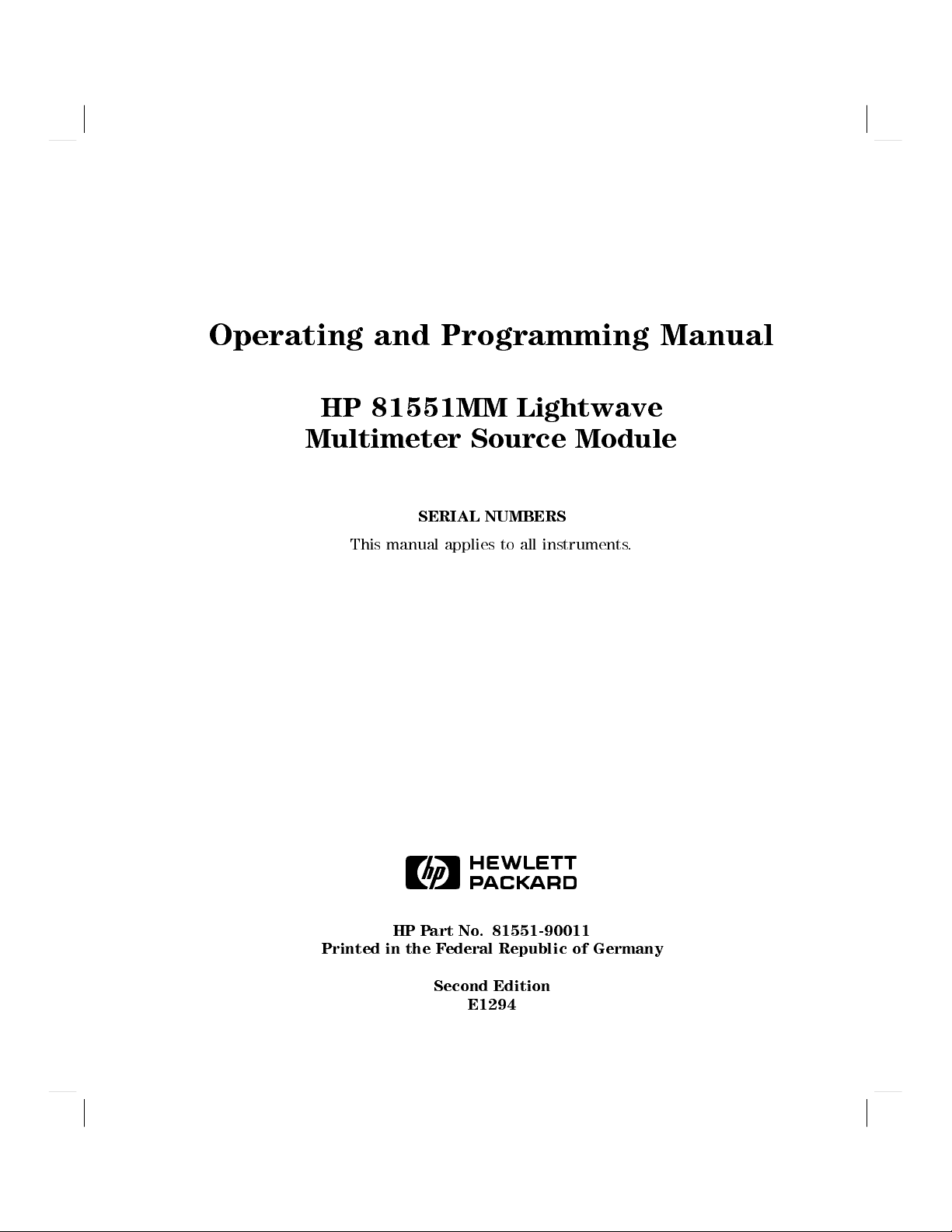

Agilent 81551MM Operations Guide

Operating and Programming Manual

HP 81551MM Lightwave

Multimeter Source Module

SERIAL NUMBERS

This manual applies to all instruments.

ABCDE

HP Part No. 81551-90011

Printed in the Federal Republic of Germany

Second Edition

E1294

Control Serial Number: Edition 2 applies directly to all instruments.

Edition 1 : 1st May 1990 : 81551-90011 : E0590

Edition 2 : 1st November 1990 : 81551-90011 : E1190

1st August 1991 : 81551-90011 : E0891

1st December 1994 : 81551-90011 : E1294

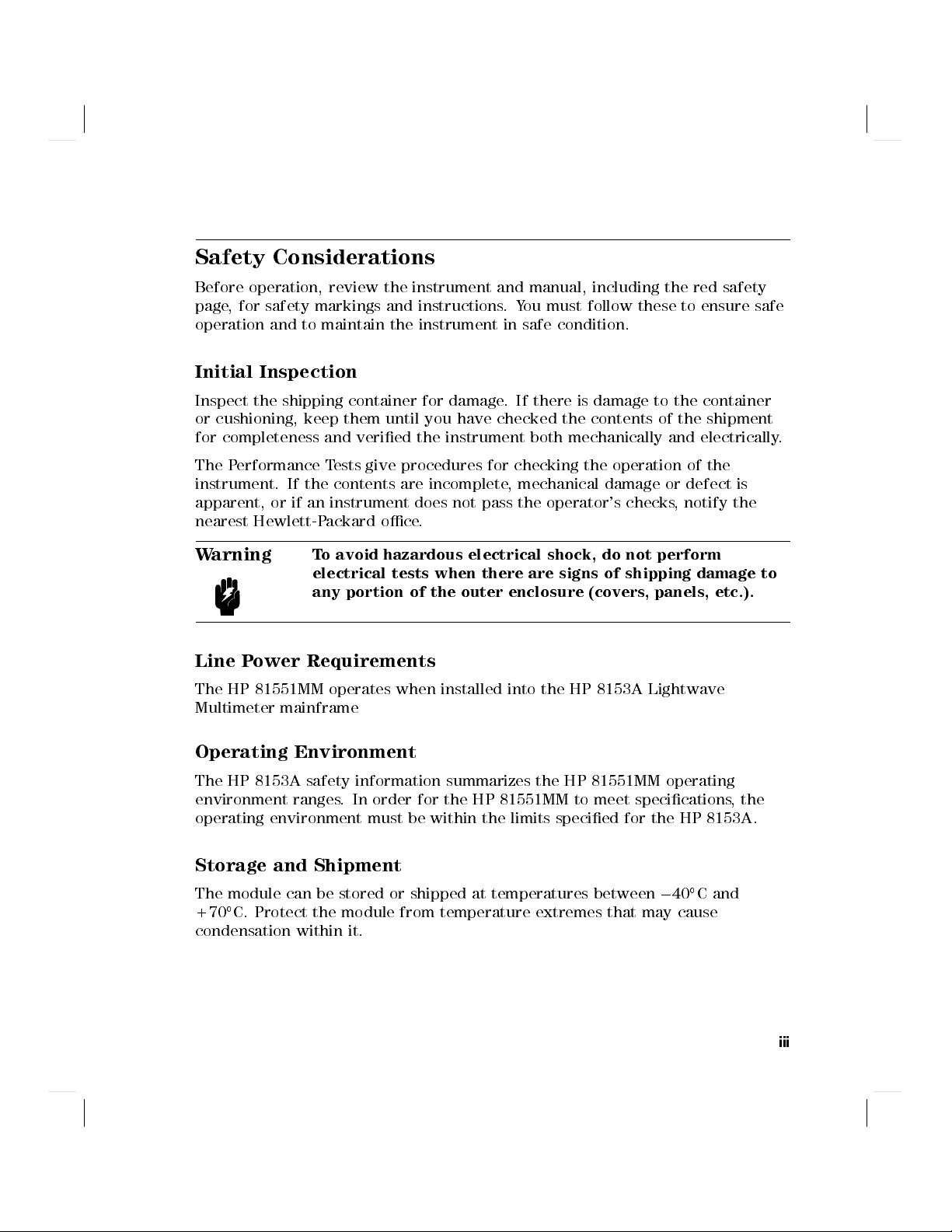

Safety Considerations

Before operation, review the instrument and manual, including the red safety

page, for safety markings and instructions

.You must follow these to ensure safe

operation and to maintain the instrument in safe condition.

Initial Inspection

Inspect the shipping container for damage. If there is damage to the container

or cushioning, keep them until you have checked the contents of the shipment

for completeness and veried the instrument both mechanically and electrically.

The Performance Tests give procedures for checking the operation of the

instrument. If the contents are incomplete, mechanical damage or defect is

apparent, or if an instrument does not pass the operator's checks, notify the

nearest Hewlett-Packard oce.

Warning

To avoid hazardous electrical shock, do not perform

electrical tests when there are signs of shipping damage to

any portion of the outer enclosure (covers, panels, etc.).

Line Power Requirements

The HP 81551MM operates when installed into the HP 8153A Lightwave

Multimeter mainframe

Operating Environment

The HP 8153A safety information summarizes the HP 81551MM operating

environment ranges. In order for the HP 81551MM to meet specications, the

operating environment must be within the limits specied for the HP 8153A.

Storage and Shipment



The module can be stored or shipped at temperatures between040

C and

+70C. Protect the module from temperature extremes that may cause

condensation within it.

iii

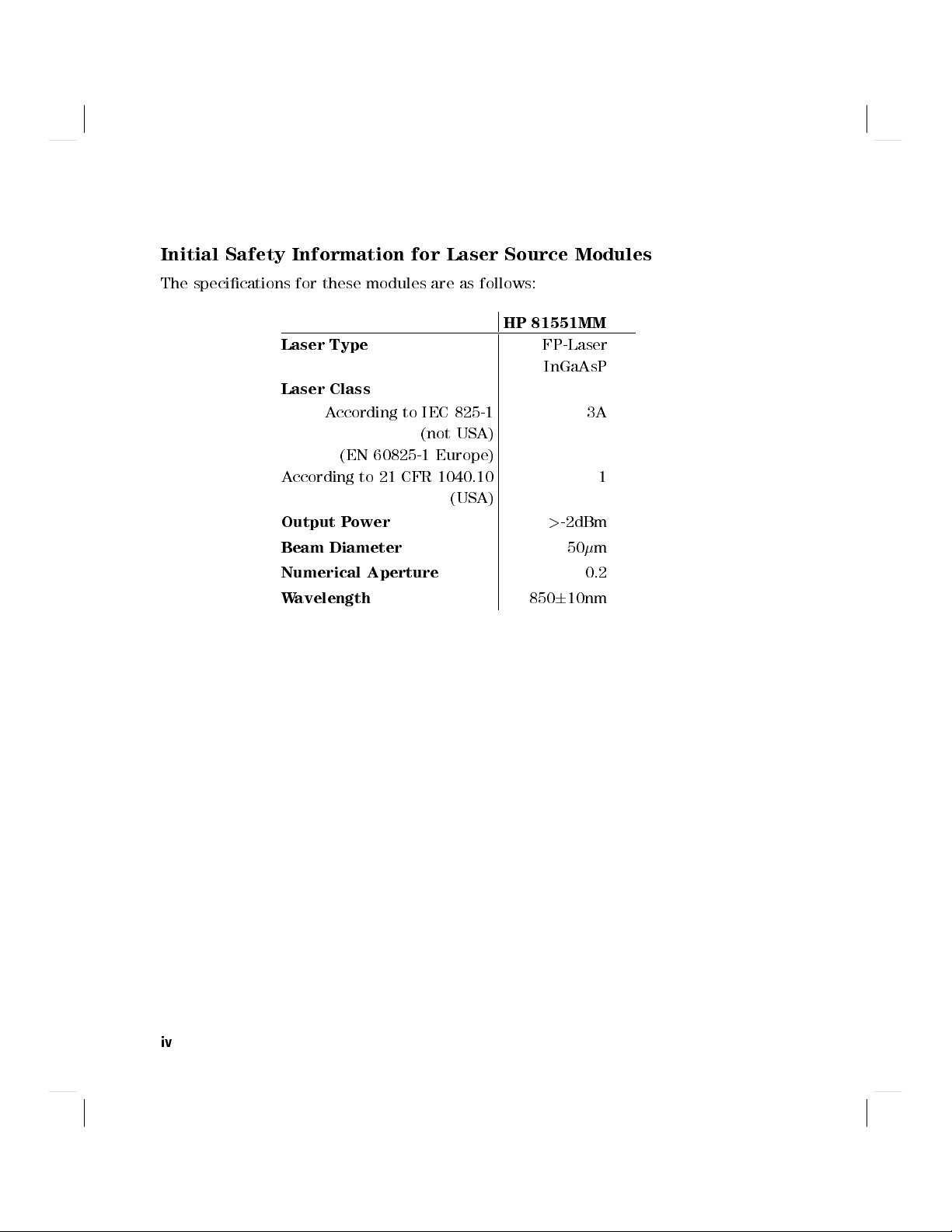

Initial Safety Information for Laser Source Modules

The specications for these modules are as follows:

HP 81551MM

Laser Type

Laser Class

According to IEC 825-1 3A

(not USA)

(EN 60825-1 Europe)

According to 21 CFR 1040.10 1

(USA)

Output Power

Beam Diameter

Numerical Aperture

Wavelength

FP-Laser

InGaAsP

>

-2dBm

50m

0.2

850610nm

iv

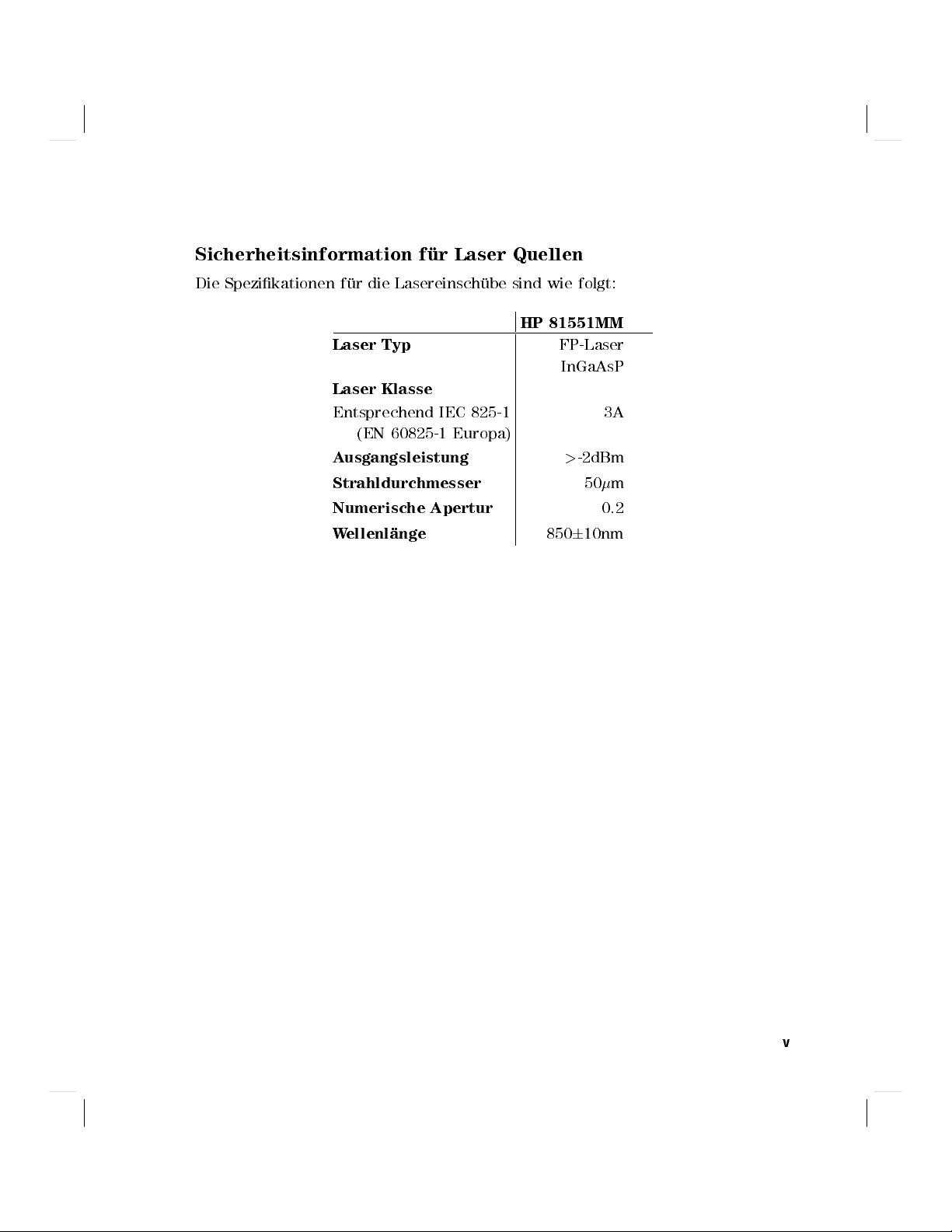

Sicherheitsinformation fur Laser Quellen

Die Spezikationen f ur die Lasereinsch ube sind wie folgt:

HP 81551MM

Laser Typ

Laser Klasse

Entsprechend IEC 825-1 3A

(EN 60825-1 Europa)

Ausgangsleistung

Strahldurchmesser

Numerische Apertur



Wellenl

ange

FP-Laser

InGaAsP

>

-2dBm

50m

0.2

850610nm

v

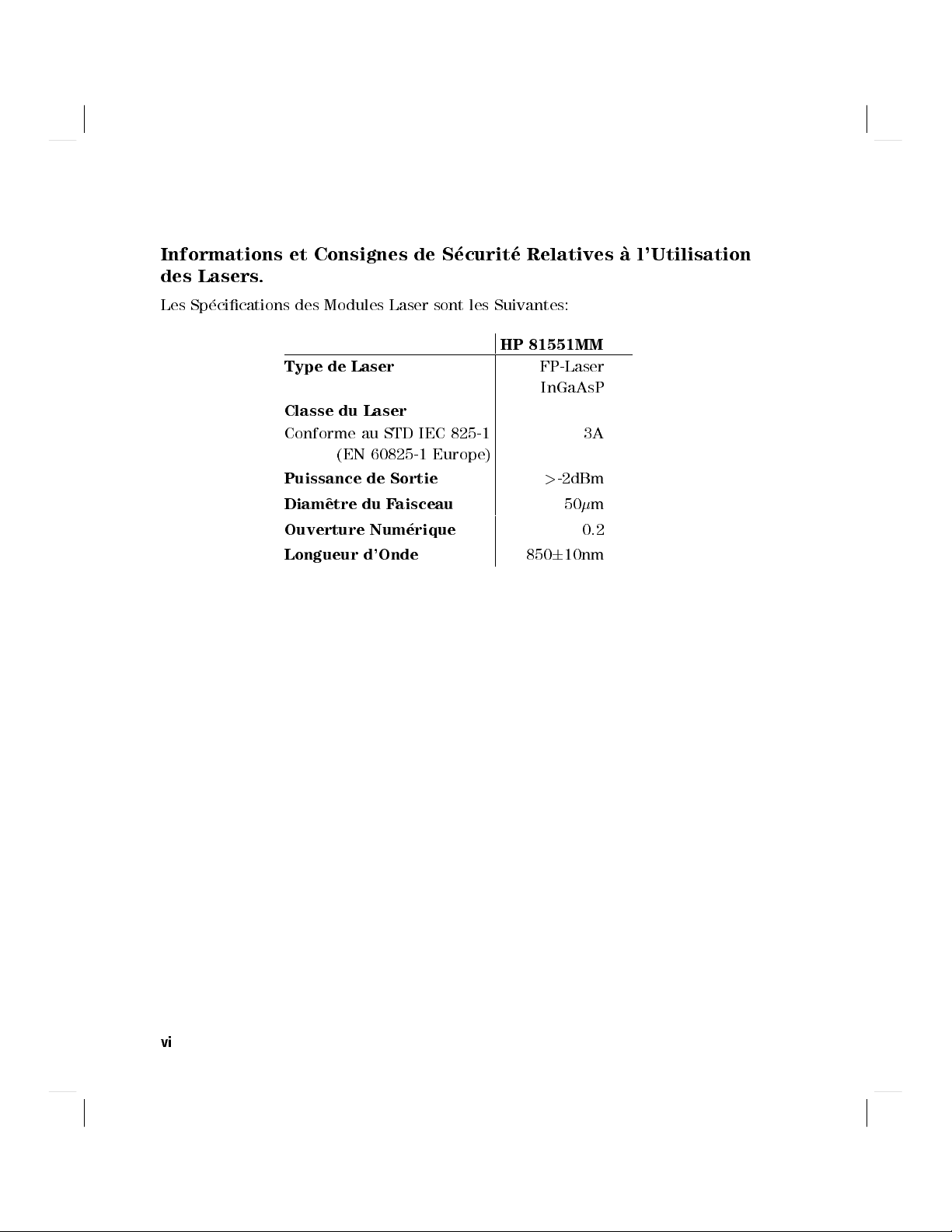

Informations et Consignes de Securite Relativesa l'Utilisation

des Lasers.

Les Sp ecications des Modules Laser sont les Suivantes:

HP 81551MM

Type de Laser

Classe du Laser

Conforme au STD IEC 825-1 3A

(EN 60825-1 Europe)

Puissance de Sortie

Diam^etre du Faisceau

Ouverture Numerique

Longueur d'Onde

FP-Laser

InGaAsP

>

-2dBm

50m

0.2

850610nm

vi

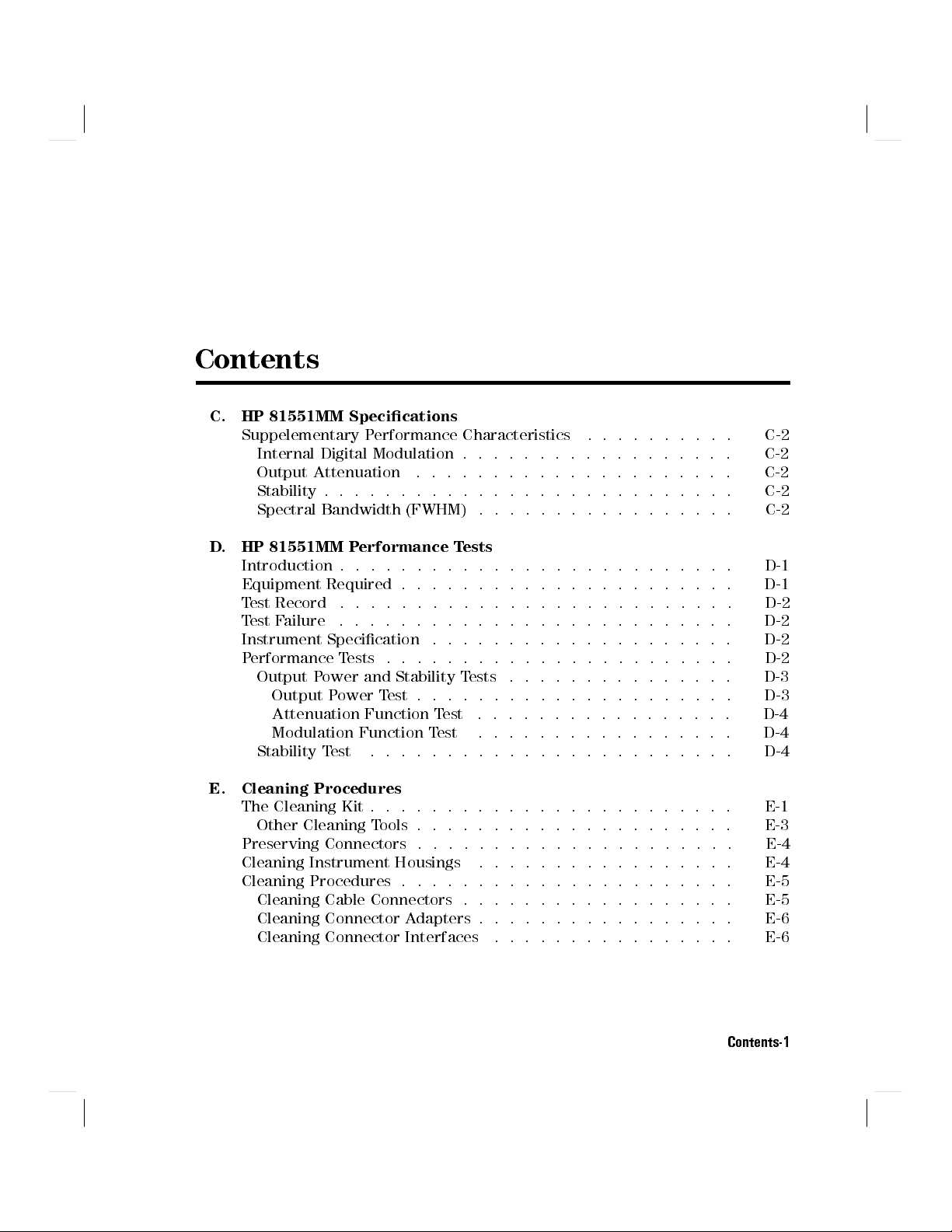

Contents

C. HP 81551MM Specications

Suppelementary Performance Characteristics ...... .... C-2

Internal Digital Modulation . . . . . . . . . . . . . . . . . . C-2

Output Attenuation .... ...... ...... ..... C-2

Stability . . . . . . . . . . . . . . . . . . . . . . . . . . . C-2

Spectral Bandwidth (FWHM) ................. C-2

D. HP 81551MM Performance Tests

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . .

Equipment Required . . . . . . . . . . . . . . . . . . . . . .

Test Record .......................... D-2

Test Failure .......................... D-2

Instrument Specication .... ...... ...... .... D-2

Performance Tests . . . . . . . . . . . . . . . . . . . . . . . D-2

Output Power and Stability Tests .. ...... ..... .. D-3

Output Power Test...... ...... ...... ... D-3

Attenuation Function Test .. ...... ...... ... D-4

Modulation Function Test .......... ...... . D-4

Stability Test ........................ D-4

E. Cleaning Procedures

The Cleaning Kit . . . . . . . . . . . . . . . . . . . . . . . . E-1

Other Cleaning Tools . . . . . . . . . . . . . . . . . . . . . E-3

Preserving Connectors . . . . . . . . . . . . . . . . . . . . . E-4

Cleaning Instrument Housings ................. E-4

Cleaning Procedures . . . . . . . . . . . . . . . . . . . . . . E-5

Cleaning Cable Connectors . . . . . . . . . . . . . . . . . . E-5

Cleaning Connector Adapters . . . . . . . . . . . . . . . . . E-6

Cleaning Connector Interfaces ................ E-6

D-1

D-1

Contents-1

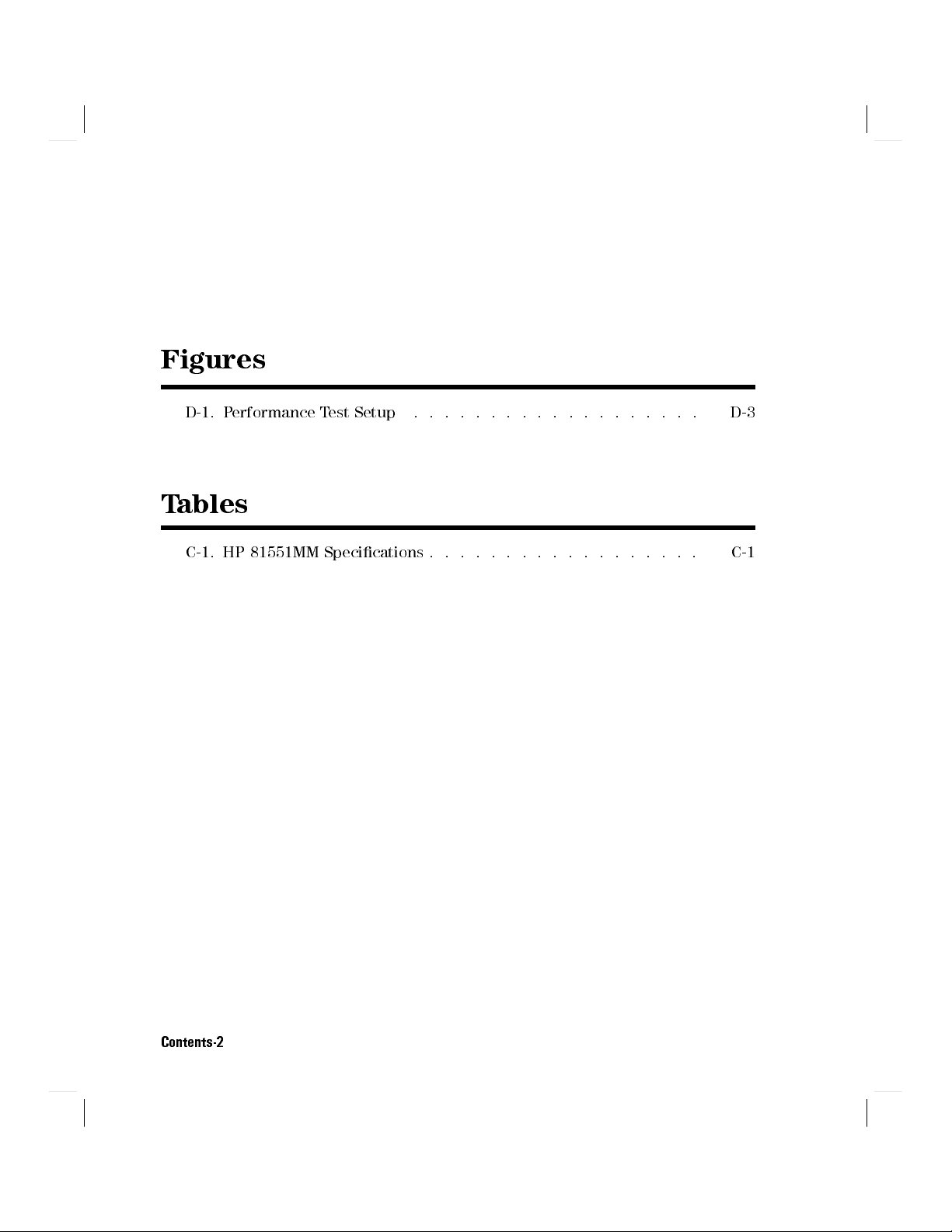

Figures

D-1. Performance Test Setup ................... D-3

Tables

C-1. HP 81551MM Specications . . . . . . . . . . . . . . . . . . C-1

Contents-2
