Keysight N5435A Datasheet

Keysight Technologies

N5435A Infiniium Server-Based
License for Infiniium Oscilloscopes

Data Sheet

Introduction

The Keysight Technologies, Inc. N5435A Inniium server-based license allows you to
move your oscilloscope application license from one Inniium oscilloscope to another,
using a license server. Just check out the license from the server when you need it, and
return it when you are nished with it. You can check out the license in increments of
days. If you forget to return the licenses, the oscilloscope will automatically return them
for you when the allotted time expires.

License les for the N5435A Inniium server-based license are supported across
Inniium Series oscilloscope platforms, as well as the N8900A Inniium Ofine
oscilloscope analysis sof tware, so you can protect your application sof tware investment.

03 | Keysight | N5435A Inniium Server-Based License for Inniium Oscilloscopes - Data Sheet

Inniium application server license: How it works

The N5435A Inniium server-based license is ideal for companies with multiple Inniium
oscilloscopes. You can share license les across oscilloscopes, anywhere in the world.

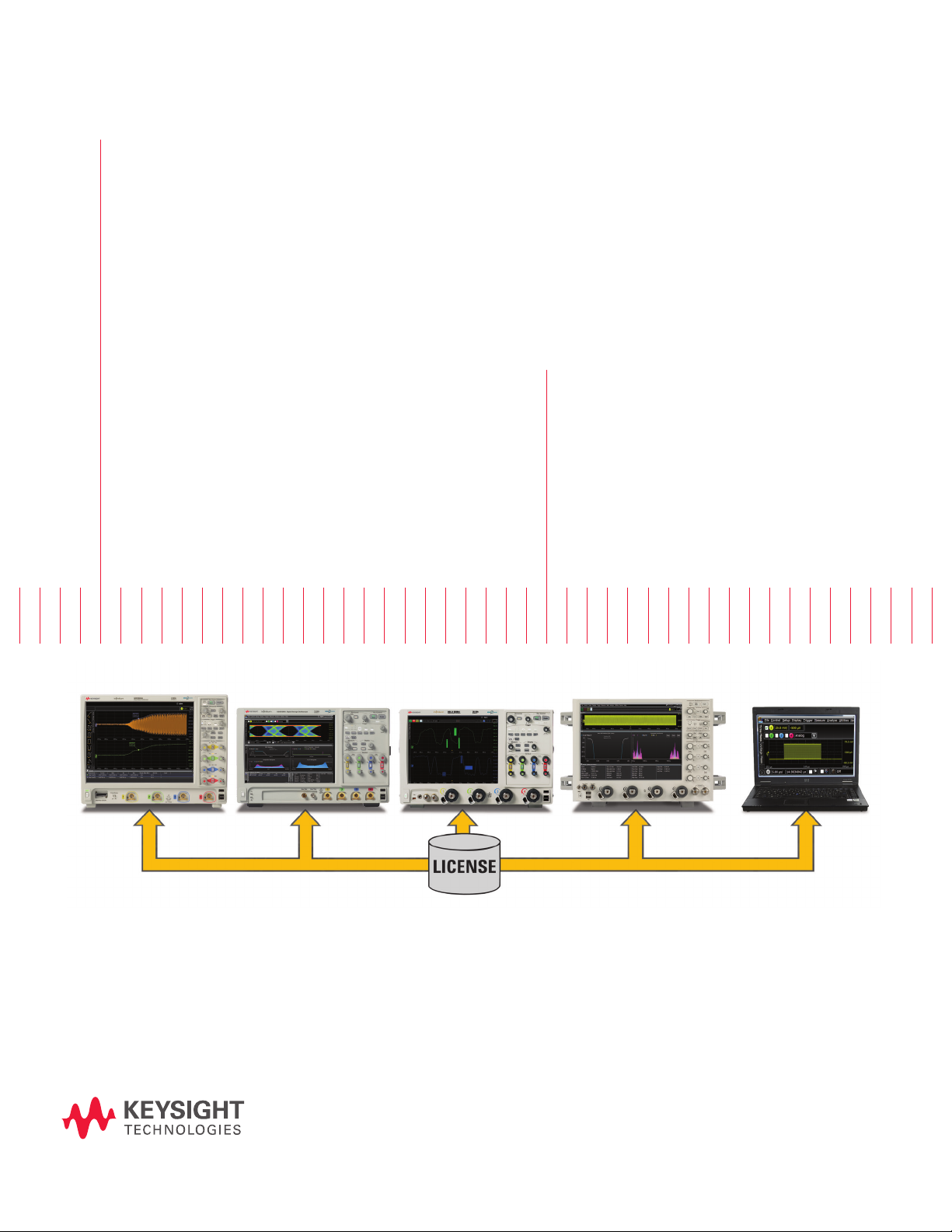

Figure 1. License server configuration example

To borrow licenses, the oscilloscope needs to be connected to a LAN to access the
license server. Once you obtain the necessary licenses, you do not need to remain
connected to the LAN. Just reconnect when you decide to return your borrowed licenses
to the license server. If you forget to return the license within your borrowing period (in
units of days), that is not a problem. Both the license server and the Infiniium
oscilloscope have their own time counters tracking the valid period for the license. Once
a particular license expires, the license server automatically returns the credit to that

specific license file. At the same time, the Infiniium oscilloscope automatically
loses the license.

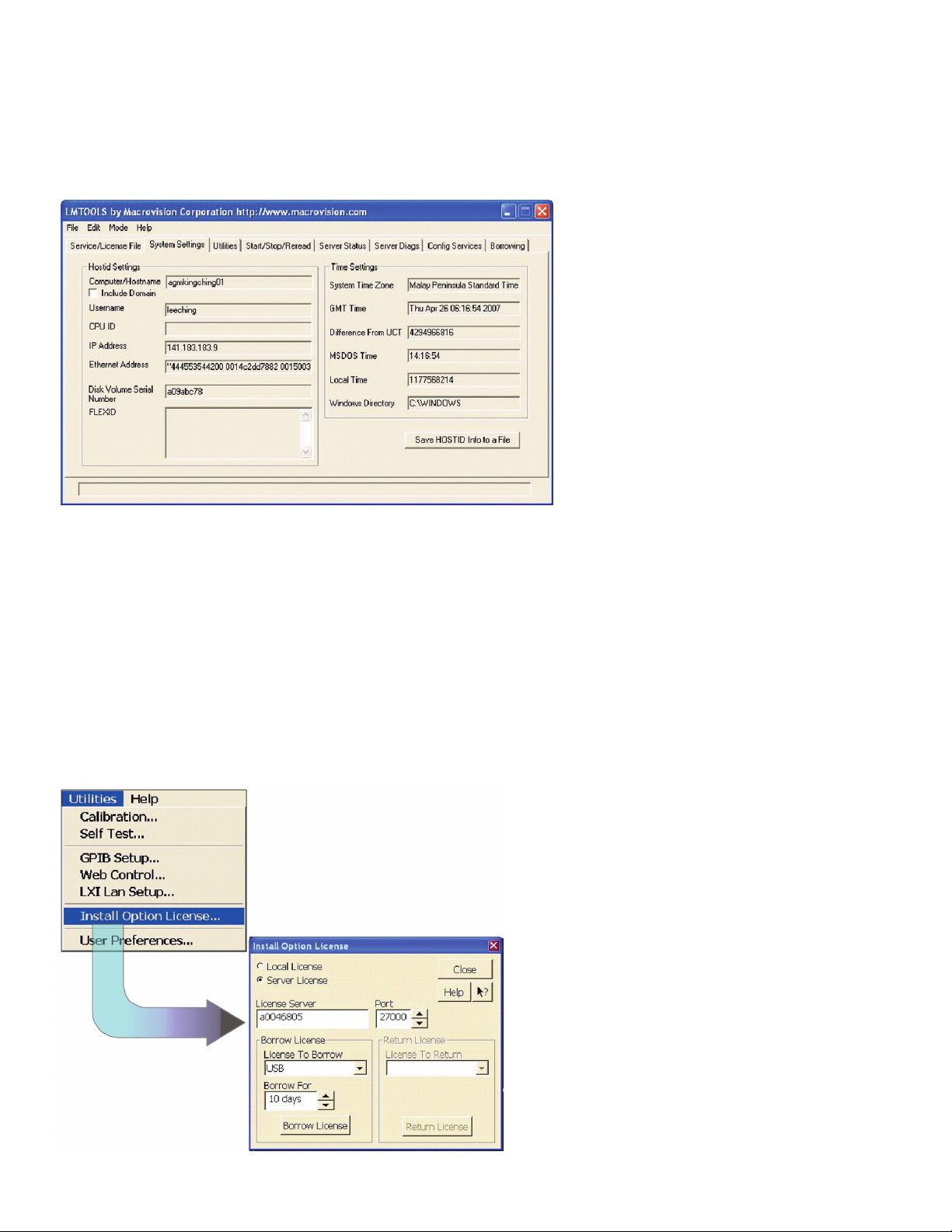

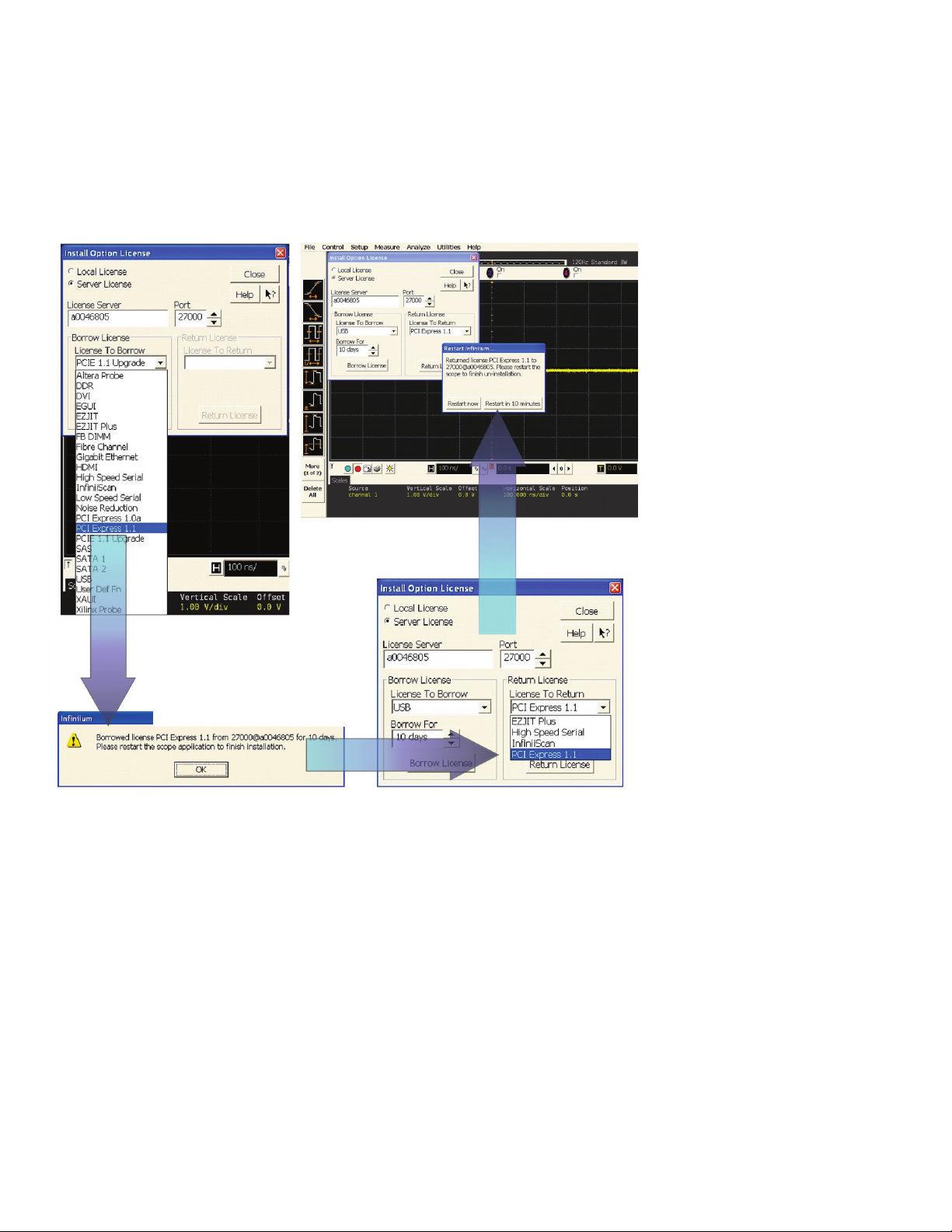

Figures 2 to 5 show you the complete flow of borrowing and returning application
software on an Infiniium oscilloscope that is connected to the LAN.

Figure 2: Install Option License dialog box

04 | Keysight | N5435A Inniium Server-Based License for Inniium Oscilloscopes - Data Sheet

Inniium application server license: How it works (continued)

If you already have some node-locked licenses installed on your Inniium oscilloscope,
that is not a problem. The N5435A Inniium application server license automatically
populates the list with available server-based licenses that your oscilloscope doesn't

have.

Figure 6: The return confirmation. Restart your Infiniium oscilloscope to
finish the process.

Figure 3: The License to Borrow menu

automatically populates those licenses not
already installed on the Infiniium scope.

Figure 4: The conf irmation window gives you borrowing
period information. You must restar t your Inf iniium

oscilloscope to activate the licenses.

Figure 5: The License To Return dialog box is populated with
only the server licenses you borrowed. No node-locked
licenses are shown in the list.

05 | Keysight | N5435A Inniium Server-Based License for Inniium Oscilloscopes - Data Sheet

Which license type is best for you?

There are several different types of Inniium oscilloscope application software licenses
available from Keysight. Choose the type that works best for your situation:

Server-based licenses are generally recommended for companies that want to share
licenses across multiple Inniium oscilloscopes and/or the N8900A Inniium Of ine

application.

Node-locked licenses are recommended for teams that want to ensure specic
oscilloscopes retain specic licenses indenitely.

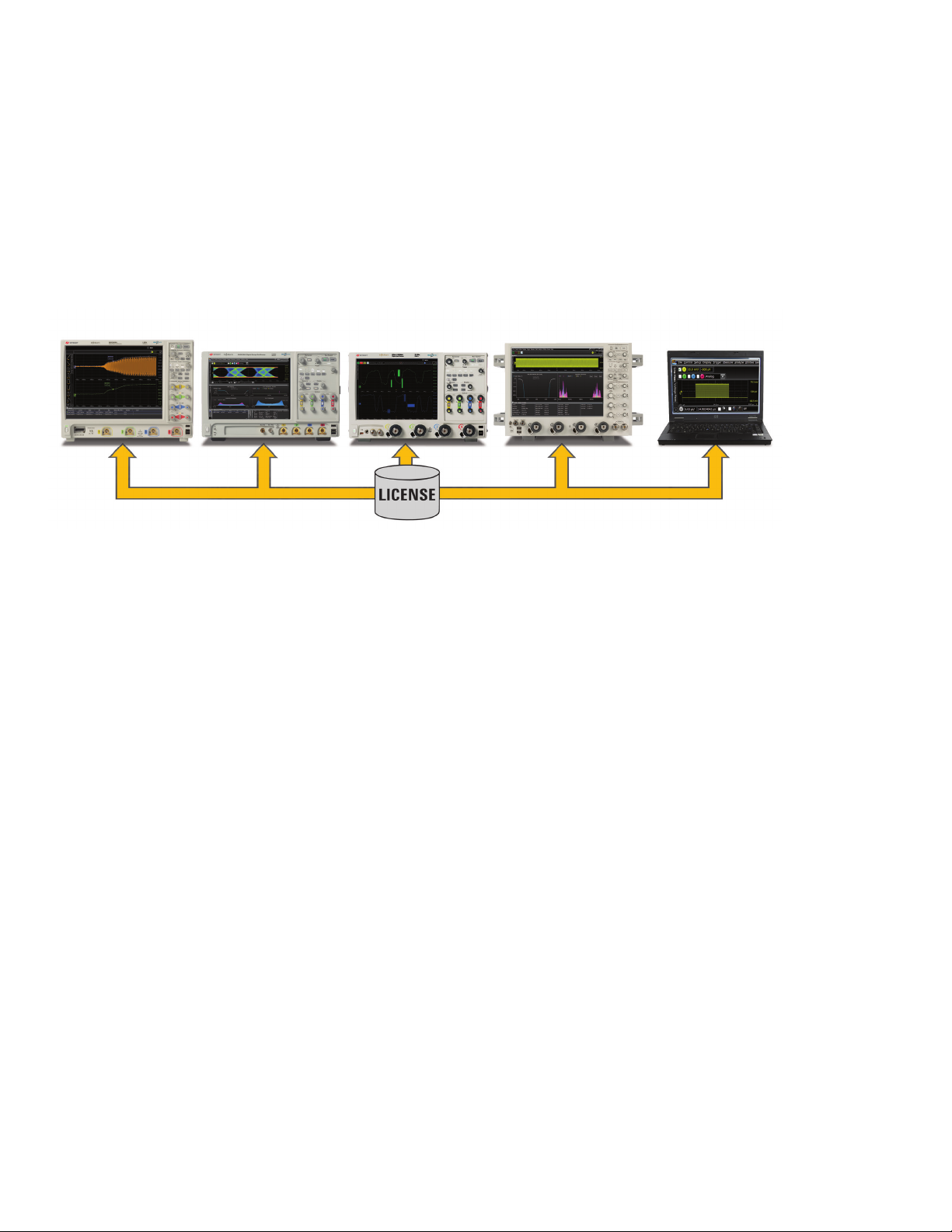

Figure 7: N5435A server-based licenses can work across Infiniium Series oscilloscopes as well as the N8900A Infiniium Offline application

06 | Keysight | N5435A Inniium Server-Based License for Inniium Oscilloscopes - Data Sheet

Key specications/system requirements

N5435A supports

– DSO/MSO9000 Series
– DSO/MSO9000-H Series

Ordering information

– DSO/MSO S-Series
– DSO/DSA90000A Series

– DSO/DSA90000-X Series
– DSO/DSA90000-Q Series

– DSO/DSA Z-Series
– N8900A Infiniium Offline

Model Description

N5435A Infiniium application server license

Option 001 EZJIT Plus jitter analysis

Option 002 EZJIT jitter analysis

Option 003 Serial data analysis

Option 004 InfiniiScan

Option 005 User-defined function

Option 006 I2C/SPI triggering and decode

Option 008 Ethernet electrical compliance

Option 009 PCI Express electrical compliance for Gen 1 and 2

Option 011 HDMI 1.2 electrical compliance

Option 017 USB 2.0 compliance test

Option 018 XAUI electrical validation

Option 021 DDR1 compliance test

Option 022 MIPI D-PHY compliance test

Option 023 10 GBASE T automated test

Option 025 Infiniium serial data equalization

Option 026 InfiniiSim basic signal de-embedding

Option 027 InfiniiSim advanced signal de-embedding

Option 028 SATA 6G compliance

Option 030 USB 3.0 compliance

Option 031 RS-232/UART triggering and decode

Option 032 PCI Express triggering and decode

Option 033 CAN, LIN, and FlexRay triggering and decode

Option 034 USB 2.0 triggering and decode

Option 035 SATA/SAS triggering and decode

Option 036 MIPI D-PHY triggering and decode

Option 037 DDR2 and LPDDR2 compliance

Option 038 JTAG triggering and decode

Option 039 SAS-2 compliance test

Option 040 PCI Express compliance for Gen 1, 2 and 3

Option 041 DisplayPort compliance

Option 042 USB HSIC compliance

Option 043 MIPI M-PHY compliance test

Option 044 PrecisionProbe software

Option 045 Ethernet 64/66 protocol and decode

Option 046 PCI Express gen 3 protocol and decode

Option 047 DigRF protocol decode

Option 048 MIPI UniPro protocol decode

Option 049 MIPI LLI protocol decode

Model Description

Option 050 MHL compliance

Option 052 SD UHS-II card compliance

Option 053 DDR3 and LPDDR3 compliance

Option 054 SVID crigger and decode

Option 056 DDR4 compliance

Option 057 Thunderbolt compliance

Option 058 User-defined application

Option 059 10GBBase-KR compliance

Option 060 EEE and Ethernet compliance

Option 061 eMMC compliance

Option 062 BroadR-Reach compliance

Option 063 UFS protocol decode

Option 064 SSIC protocol

Option 065 MIPI CSI-3 protocol

Option 067 EZJIT Complete noise analysis

Option 068 MOST compliance

Option 070 HDMI 2.0 compliance test

Option 071 USB 3.0 protocol decode

Option 072 MIPI RFFE protocol decode

Option 073 SAS-3 compliance

Option 074 SFP+ compliance

Option 075 USB 3.1 compliance

Option 076 Infiniium Offline scope analysis software

Option 077 MultiScope for Infiniium

Option 078 40/100 GBase-CR 4/10 compliance

Option 079 100GBase-KR4 compliance

Option 080 100GBase-CR4 compliance

Option 701 DisplayPort switch matrix software

Option 702 HDMI switch matrix software

Option 703 MIPI D-PHY switch matrix software

Option 704 MIPI M-PHY switch matrix software

Option 705 PCI Express switch matrix software

Option 706 10GBase-KR switch matrix software

Option 707 SFP+ switch matrix software

Option 708 User-dened application switch matrix software

Option 709 40/100 GBase-CR 4/10 switch matrix software

Option 710 100GBase-KR4 switch matrix software

Option 711 100GBase-CR4 switch matrix software

Option 712 100GBase-T switch matrix software

07 | Keysight | N5435A Inniium Server-Based License for Inniium Oscilloscopes - Data Sheet

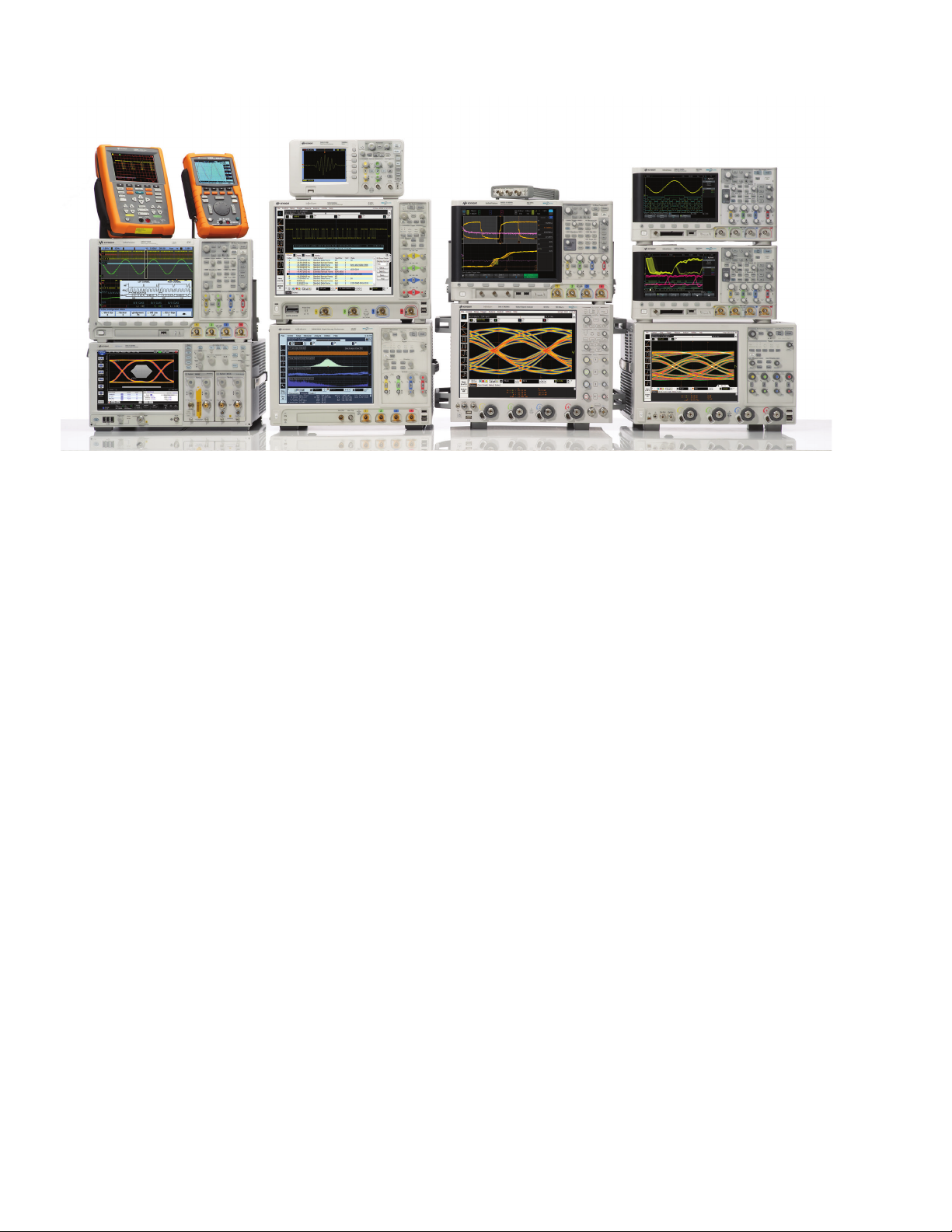

Keysight Technologies Oscilloscopes
