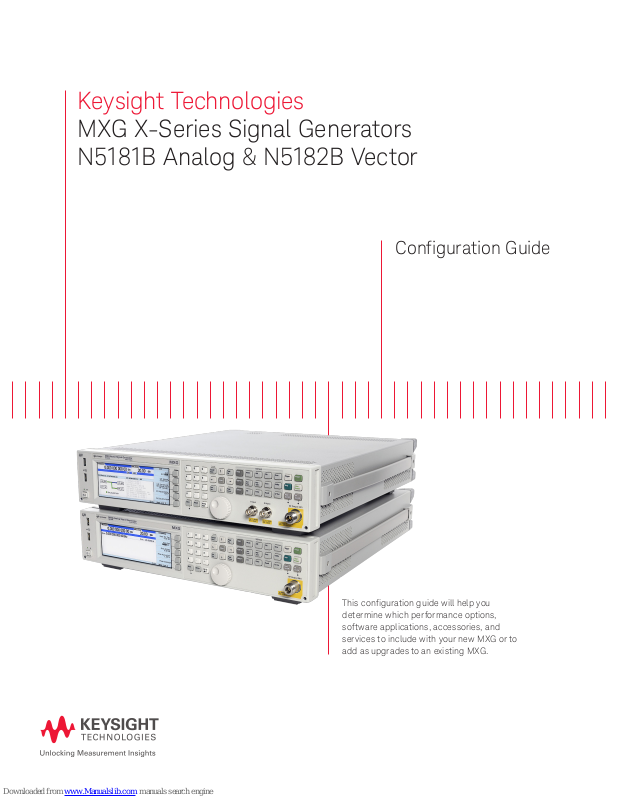

Keysight Technologies
MXG X-Series Signal Generators
N5181B Analog & N5182B Vector
Configuration Guide
This configuration guide will help you
determine which performance options,
software applications, accessories, and
services to include with your new MXG or to
add as upgrades to an existing MXG.
Page 2
02 | Keysight | MXG X-Series Signal Generators N5181B Analog & N5182B Vector - Conguration Guide
Congure Your MXG X-Series Signal Generator
This step-by-step process will help you configure your MXG signal generator and choose options to meet your requirements. For
detailed specifications, refer to the MXG signal generator data sheet (5991-0038EN).
N5181B MXG X-Series RF Analog Signal Generator
Congure your new MXG analog signal generator
Step 1. Select maximum frequency range (required option; frequency range not upgradeable)
Description Option number Additional information
Frequency range from 9 kHz to 3 GHz N5181B-5 0 3 Not compatible with 506
Frequency range from 9 kHz to 6 GHz N5181B-5 0 6 Not compatible with 503
Step 2. Choose connector conguration
Description Option number Additional information
Move all connectors to rear panel N5181B-1EM Not upgradable
Step 3. Choose performance enhancement options
Description Option number Additional information
AM, FM, phase modulation N5181B-UNT
Low phase noise N5181B-UNX Not compatible with UNY, not upgradable
Enhanced low phase noise N5181B -UN Y Not compatible with UNX, not upgradeable
Fast switching N5181B-UNZ
Narrow pulse modulation N5181B-UNW
Pulse train generator N5181B-320 Requires UNW
Multifunction generator N5181B-3 0 3
Avionics N5181B-3 02
Instrument security and removable memory card N5181B-0 06
High output power N5181B-1EA
Low specied power (< -110 dBm) N5181B -1EQ
Flexible reference input (1-50 MHz) N5181B-1ER
Expanded license key upgradability N5181B- 099 Option 099 is recommended for anyone considering future upgrades.
Option 099 simplies the upgrade process by enabling upgrades via
a license key for Options 1EA, 1EQ, and UNZ. Without Option 099,
upgrades for these options require purchase and installation of hardware
in a eld retrot kit. For more information, visit
www.keysight.com/nd/mxg_upgrades.
Step 4. Choose accessory and documentation options
Description Option number
Rack slide kit 1CR012A
Front handle kit 1CN006A
Rack mount ange kit 1CM010A
Rack mount ange kit with front handles 1CP 004A
Hard transit case N5181B-A XT
CD-ROM containing English documentation set N5181B-CD1
Service documentation, assembly and component N5181B-0BW
Page 3
03 | Keysight | MXG X-Series Signal Generators N5181B Analog & N5182B Vector - Conguration Guide
Step 5. Choose warranty and calibration options
Description Option number
Return to Keysight Warranty, 3 years Standard
Warranty Assurance Plan, Return to Keysight, 5 years R-51B-001-5Z
Warranty Assurance Plan, Return to Keysight, 7 years R-51B - 0 01-7Z
Warranty Assurance Plan, Return to Keysight, 10 years R-51B- 001-10Z
Calibration Assurance Plan, Return to Keysight, 5 years R-50C-011-5
Calibration Assurance Plan, Return to Keysight, 7 years R-50C-011-7
Calibration Assurance Plan, Return to Keysight, 10 years R-50C-011-10
Keysight Calibration + Uncertainties, 5 years R-50C-011-MU-5
Keysight Calibration + Uncertainties + Guardbanding (accredited) N5181B-A MG Only available at time of new instrument purchase
Keysight Calibration + Uncertainties + Guardbanding, 5 years R-50C-016-5
ANSI Z540-1 1994 Calibration N5181B-A 6 J Only available at time of new instrument purchase
ANSI Z540-1 1994 Calibration, 5 years R-50C-021-5
Onsite warranty – 1 year R-51C-0 01-1CU
Onsite warranty – 3 year R-51C-001-3CU
Commercial calibration certicate with test data N5181B-UK6 Only available at time of new instrument purchase
Step 6. Choose startup assistance service options
Description Option number
Remote scheduled assistance 1- 999 hours PS-S10
Daily productivity assistance PS-S20
Signal generator and source basics; half-day, maximum of
PS-T10-AS G
eight students on site
Page 4
04 | Keysight | MXG X-Series Signal Generators N5181B Analog & N5182B Vector - Conguration Guide
Upgrade your existing MXG analog signal generator
Fast license-key upgrades for options that do not require additional hardware:
1. Place an order for the upgrade with Keysight and request to receive the software
entitlement certicate through email
2. Redeem the certicate through the Web by following the instructions on the
certicate
3. Install the license le using Keysight License Manager
4. Begin using the new capability
Installation, calibration, and verification information is available at:
www.keysight.com/find/mxg_upgrades
Description Upgrade number Requirements Additional information
Instrument security and removable memory card N5181BU-006 None Hardware and license key upgrade
Expanded license key upgradability N5181BU-099 None Hardware and license key upgrade
High output power N5181BU -1E A 099 Customer installable – software, license key
Low specied power (< –110 dBm) N5181BU -1EQ 099 Customer installable – software, license key
Flexible reference input (1-50 MHz) N5181BU -1ER None Customer installable - sof tware, license key
Avionics
Multifunction generator N5181BU-303 None Customer installable – software, license key
Pulse train generator N5181BU-320 UNW Customer installable – software, license key
AM, FM, phase modulation N5181BU-UNT None Customer installable – software, license key
Narrow pulse modulation N5181BU-UNW None Customer installable – software, license key
Fast switching N5181BU-UNZ 099 Customer installable – software, license key
N5181BU-302 None
If serial number is less than MY/SG/US 5620xxxx
- return to Keysight Service Center required for
installation. If serial number is greater than or equal
to MY/SG/US 5620xxxx - customer installable software, license key.
You Can Upgrade!
Options can be added af ter your
initial purchase.
All of our X-Series
application options
are license-key
upgradeable.
UP
GRADE
Page 5
05 | Keysight | MXG X-Series Signal Generators N5181B Analog & N5182B Vector - Conguration Guide
N5182B MXG X-Series RF Vector Signal Generator
Congure your new MXG vector signal generator
Step 1. Select maximum frequency range (required option; frequency range not upgradeable)
Description Option number Additional information
Frequency range from 9 kHz to 3 GHz N5182B-503 Not compatible with 506
Frequency range from 9 kHz to 6 GHz N5182B-506 Not compatible with 503
Step 2. Choose connector conguration
Description Option number Additional information
Move all connectors to rear panel N 518 2B-1EM Not upgradable
Step 3. Choose performance enhancement options
Description Option number Additional information
AM, FM, phase modulation N5182B-UN T
Enhanced dynamic range N5182B-UNV Requires 656
Narrow pulse modulation N5182B-UNW
Low phase noise N5181B-UNX Not compatible with UNY, not upgradeable
Enhanced low phase noise N5182B-UNY
Fast switching
Internal bit error rate analyzer N5182B-UN7
Pulse train generator N5182B-320 Requires UNW
Multifunction generator N5182B-303
Avionics N5182B-302
Instrument security and removable memory card N5182B- 0 06
Internal solid-state memory N5182B-009
High output power N518 2B-1E A
Differential I/Q outputs N5 18 2B-1EL Requires 656
Low specied power (< –110 dBm) N5182B -1E Q
Flexible reference input (1-50 MHz) N5182B -1ER
LO in/out for phase coherency N5182B- 012
Expanded license key upgradability N5182B- 099 Option 099 is recommended for anyone considering future upgrades.
N5182B-UNZ
Not compatible with UNX, not upgradeable
Option 099 simplies the upgrade process by enabling upgrades via
a license key for Options 1EA, 1EQ, UNV, and UNZ. Without Option
099, upgrades for these options require purchase and installation of
hardware in a eld retrot kit. For more information, visit
www.keysight.com/nd/mxg_upgrades.
Step 4. Choose baseband generator options
Description Option number Additional information
ARB baseband generator
(80 MHz RF bandwidth, 32 MSa)
Upgrade baseband generator from 80 to 160 MHz RF
bandwidth
Upgrade baseband generator memory from
32 to 512 MSa
Upgrade baseband generator memory from 32 to 1 GSa N5182B-023 Requires 656
Upgrade baseband generator with real-time capability N5182B-66 0 Requires 656
Digital output connectivity with the N5102A N5182B-0 03 Requires 656
Digital input connectivity with the N5102A N5182B-004 Requires 656
N5182B-656
N5182B-657 Requires 656
N5182B-022 Requires 656
Page 6
06 | Keysight | MXG X-Series Signal Generators N5181B Analog & N5182B Vector - Conguration Guide
Step 5. Choose Signal Studio and embedded software
Note: The following software can be added at purchase or as an upgrade. To congure Signal Studio applications, refer to the conguration assistant at:
www.keysight.com/nd/signalstudio. For more information on Signal Studio conguration and licenses,
go to www.keysight.com/nd/SS_licensing.
Product number Description Hardware requirements Recommended hardware options
Cellular communications
N7600B Signal Studio for W-CDMA /HSPA+ (ARB and real-time) 656
403, 503, 660, UNV
660 for real-time
N7601B Signal Studio for cdma2000®/1xEV-DO (ARB and real-time) 656
403, 503, 660, UNV
660 for real-time
N7602B Signal Studio for GSM/EDGE/Evo (ARB and real-time) 656
403, 660, 503, UNV, UNZ
660 for real-time
N7612B Signal Studio for TD-SCDMA/HSDPA 656 403, 503, UNV
N7624B Signal Studio for LTE/LTE-Advanced FDD (ARB and real-time) 656
403, 506, 657, 660, UNV
660 for real-time
N7625B Signal Studio for LTE/LTE-Advanced TDD (ARB and real-time) 656
403, 506, 657, 660, UNV
660 for real-time
Wireless connectivity
N7606B Signal Studio for Bluetooth
®
656 403, 506, UNV
N7607B Signal Studio for DFS radar proles 656, 506 657
N7610B Signal Studio for short range communications 656
N7615B Signal Studio for Mobile WiMAX™ 656 403, 506, UNV
N7617B Signal Studio for WL AN 802.11a/b/g/j/p/n/ac/ah 656 403, 506, 657, UNV
Audio/video broadcasting
N7611B Signal Studio for broadcast radio 656 403, 506, UNV
N7623B Signal Studio for digital video (ARB and real-time) 656
023, 506, 660, UNV
660 for real-time
Navigation and radar
N7609B Signal Studio for Global Navigation Satellite Systems (GNSS)
(ARB and real-time)
656
660 for real-time
022, 403, 503, 660
N7620B Signal Studio for pulse building 656, UNW 403, 657, UNV, 1EA
General purpose
N5182B-403 Calibrated AWGN 656
N5182B-430 Multitone and two-tone 656
N5182B-431 Custom digital modulation 656
N5182B-432 Phase noise impairment 656
N7605B Signal Studio for real-time fading (real-time) 403, 656, 660 506, 657
N7608B Signal Studio for custom modulation 656, 506
N7614B Signal Studio for power amplier test 656
657, 660, 1EA
660 for real-time
N7621B Signal Studio for multitone distortion 656, UNV, 1EA 657
N7622B Signal Studio toolkit – free utility 656 503, UNV
N5182B
221-229
N5182B
250-259
Waveform license 5-pack 1 to 9
(purchase up to 9 packs for 45 Signal Studio waveforms)
Waveform license 50-pack 1 to 10
(purchase up to 10 packs for 500 Signal Studio waveforms)
656 503, UNV
656 503, UNV
N6171A MATLAB software 503, 656, UNV
Page 7
07 | Keysight | MXG X-Series Signal Generators N5181B Analog & N5182B Vector - Conguration Guide
Step 6. Choose accessory and documentation options
Description Option number
Rack slide kit 1CR012A
Front handle kit 1CN006A
Rack mount ange kit 1CM010A
Rack mount ange kit with front handles 1CP 004A
Hard transit case N5182B-AX T
CD-ROM containing English documentation set N5182B-CD1
Service documentation, assembly and component N5182B-0BW
Step 7. Choose warranty and calibration options
Description Option number
Return-to-Keysight warranty, 3 years Standard
Warranty Assurance Plan, Return to Keysight, 5 years R-51B-001-5Z
Warranty Assurance Plan, Return to Keysight, 7 years R-51B - 0 01-7Z
Warranty Assurance Plan, Return to Keysight, 10 years R-51B-001-10 Z
Calibration Assurance Plan, Return to Keysight, 5 years
Calibration Assurance Plan, Return to Keysight, 7 years
R-50C-011-5
R-50C-011-7
Calibration Assurance Plan, Return to Keysight, 10 years R-50C-011-10
Keysight Calibration + Uncertainties, 5 years R-50C-011-MU-5
Keysight Calibration + Uncertainties + Guardbanding (accredited) N5182B-AMG Only available at time of new instrument purchase
Keysight Calibration + Uncertainties + Guardbanding, 5 years R-50C-016-5
ANSI Z540-1 1994 Calibration N5182B-A6J Only available at time of new instrument purchase
ANSI Z540-1 1994 Calibration, 5 years R-50C-021-5
Onsite warranty – 1 year R-51C-0 01-1CU
Onsite warranty – 3 year R-51C-001-3CU
Commercial calibration certicate with test data N5182B-UK6 Only available at time of new instrument purchase
Step 8. Choose startup assistance service options
Description Option number
Remote scheduled assistance 1 - 999 hours PS-S10
Daily productivity assistance PS-S20
Page 8
08 | Keysight | MXG X-Series Signal Generators N5181B Analog & N5182B Vector - Conguration Guide
Upgrade your existing MXG vector signal generator
Fast license-key upgrades for options that do not require additional hardware:
1. Place an order for the upgrade with Keysight and request to receive the
software entitlement certicate through email
2. Redeem the certicate through the Web by following the instructions on the
certicate
3. Install the license le using Keysight License Manager
4. Begin using the new capability
Installation, calibration, and verification information is available at:
www.keysight.com/find/mxg_upgrades
Description Upgrade number Requirements Additional information
Instrument security and removable memory card N5182BU-006 None Hardware and license key upgrade
Internal solid-state memory N5182BU-009 None Customer installable – software, license key
LO in/out for phase coherency N5182BU-012 None Hardware and license key upgrade
Upgrade baseband generator memory from
32 to 512 MSa
Upgrade baseband generator memory from
32 MSa to 1 GSa
Upgrade baseband generator memory from
512 MSa to 1 GSa
Expanded license key upgradability N5182BU-099 None Hardware and license key upgrade
High output power N5182BU-1EA 099 Customer installable – software, license key
Differential I/Q outputs N5182BU-1EL 656 Customer installable – software, license key
Low specied power (< –110 dBm) N5182BU-1EQ 099 Customer installable – software, license key
Flexible reference input (1-50 MHz) N5182BU-1ER None Customer installable – software, license key
5-pack waveform license N5182BU-221 656 Customer installable – software, license key
50-pack waveform license N5182BU-250 656 Customer installable – software, license key
Avionics N5182BU-302 None If serial number is less than MY/SG/US 5620xxxx
Multifunction generator N5182BU-303 None Customer installable – software, license key
Pulse train generator N5182BU-320 UNW Customer installable – software, license key
Calibrated AWGN N5182BU-403 656 Customer installable – software, license key
Multitone and two-tone N5182BU-430 656 Customer installable – software, license key
Custom digital modulation N5182BU-431 656 Customer installable – software, license key
Phase noise impairment N5182BU-432 656 Customer installable – software, license key
ARB baseband generator
(60 MHz RF bandwidth, 32 MSa)
Upgrade baseband generator from 80 to 160 MHz
RF bandwidth
Upgrade baseband generator with real-time
capability
N5182BU-022 656 Customer installable – software, license key
N5182BU-023 656 Customer installable – software, license key
N5182BU-043 022 and 656 Customer installable – software, license key
N5182BU-656 None Customer installable – software, license key
N5182BU-657 656 Customer installable – software, license key
N5182BU-660 656 Hardware and license key upgrade
You Can Upgrade!
Options can be added af ter your
initial purchase.
All of our X-Series
application options
are license-key
upgradeable.
- return to Keysight Service Center required
for installation. If serial number is greater than
or equal to MY/SG/US 5620xxxx - customer
installable - software, license key.
UP
GRADE
Page 9
09 | Keysight | MXG X-Series Signal Generators N5181B Analog & N5182B Vector - Conguration Guide
Description Upgrade number Requirements Additional information
Digital output connectivity with the N5102A N5182BU-003 656
Digital input connectivity with the N5102A N5182BU-004 656
AM, FM, phase modulation N5182BU-UNT None Customer installable – software, license key
Enhanced dynamic range N5182BU-UNV 656, 099 Customer installable – sof tware, license key
Narrow pulse modulation N5182BU-UNW None Customer installable – software, license key
Fast switching N5182BU-UNZ 099 Customer installable – software, license key
Internal bit error rate analyzer N5182BU-UN7 None Customer installable - software, license key
Related Literature
MXG & EXG Technical Overview 5990-9957EN
MXG Data Sheet 5991-0038EN
cdma2000 is a US registered certication mark of the Telecommunications Industry Association.
WiMAX is US trademarks of the WiMAX Forum.
Bluetooth and the Bluetooth logos are trademarks owned by Bluetooth SIG, Inc., U.S.A. and licensed to
Keysight Technologies, Inc.
Page 10
10 | Keysight | MXG X-Series Signal Generators N5181B Analog & N5182B Vector - Conguration Guide
Evolving
Our unique combination of hardware, software, support, and people can help
you reach your next breakthrough. We are unlocking the future of technology.
From Hewlett-Packard to Agilent to Keysight
myKeysight
www.keysight.com/find/mykeysight
A personalized view into the information most relevant to you.
Keysight Infoline
www.keysight.com/find/Infoline
Keysight’s insight to best in class information management. Free access to
your Keysight equipment company reports and e-library.
KEYSIGHT
SERVICES
Keysight Services
www.keysight.com/find/services
Our deep offering in design, test, and measurement services deploys an
industry-leading array of people, processes, and tools. The result? We help
you implement new technologies and engineer improved processes that
lower costs.
Three-Year Warranty
www.keysight.com/find/ThreeYearWarranty
Keysight’s committed to superior product quality and lower total cost
of ownership. Keysight is the only test and measurement company with
three-year warranty standard on all instruments, worldwide. And, we provide
a one-year warranty on many accessories, calibration devices, systems and
custom products.
For more information on Keysight
Technologies’ products, applications or
services, please contact your local Keysight
office. The complete list is available at:
www.keysight.com/find/contactus
Americas
Canada (877) 894 4414
Brazil 55 11 3351 7010
Mexico 001 800 254 2440
United States (800) 829 4444
Asia Pacic
Australia 1 800 629 485
China 800 810 0189
Hong Kong 800 938 693
India 1 800 11 2626
Japan 0120 (421) 345
Korea 080 769 0800
Malaysia 1 800 888 848
Singapore 1 800 375 8100
Taiwan 0800 047 866
Other AP Countries (65) 6375 8100
Europe & Middle East
Austria 0800 001122
Belgium 0800 58580
Finland 0800 523252
France 0805 980333
Germany 0800 6270999
Ireland 1800 832700
Israel 1 809 343051
Italy 800 599100
Luxembourg +32 800 58580
Netherlands 0800 0233200
Russia 8800 5009286
Spain 800 000154
Sweden 0200 882255
Switzerland 0800 805353
Opt. 1 (DE)
Opt. 2 (FR)
Opt. 3 (IT)
United Kingdom 0800 0260637
Keysight Assurance Plans
www.keysight.com/find/AssurancePlans
Up to ten years of protection and no budgetary surprises to ensure your
instruments are operating to specification, so you can rely on accurate
measurements.
Keysight Channel Partners
www.keysight.com/find/channelpartners
Get the best of both worlds: Keysight’s measurement expertise and product
breadth, combined with channel partner convenience.
www.keysight.com/find/MXG
For other unlisted countries:
www.keysight.com/find/contactus
(BP-06-08-16)
DEKRA Certified
ISO9001 Quality Management System
www.keysight.com/go/quality
Keysight Technologies, Inc.
DEKRA Certified ISO 9001:2015
Quality Management System
This information is subject to change without notice.
© Keysight Technologies, 2013 - 2016
Published in USA, July 29, 2016
5990-9959EN
www.keysight.com
Loading...
