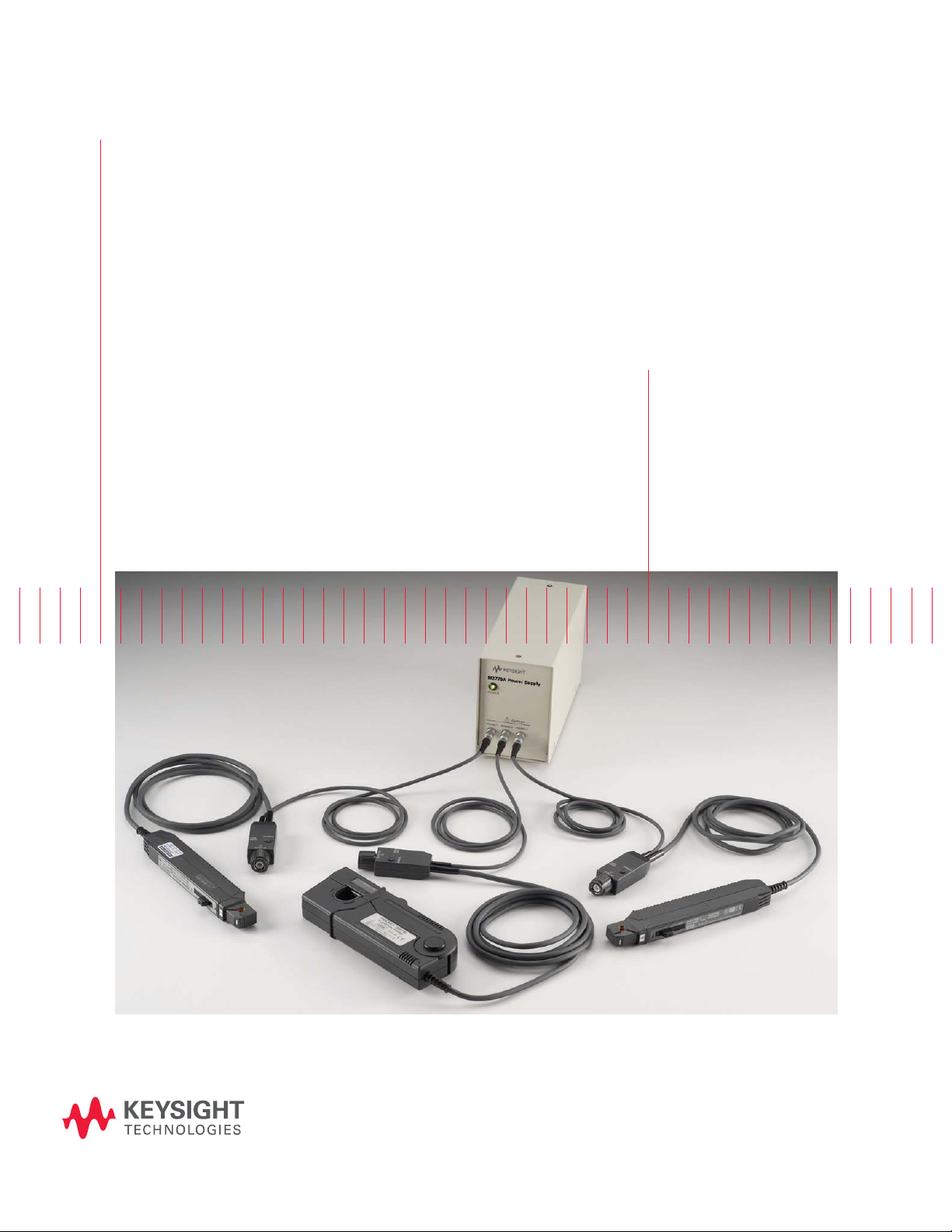

Page 1
Keysight N2780B Series
AC/DC Current Probes
A wide selection of current probes
to meet your application’s needs
Data Sheet
Page 2
02 | Keysight | N2780B Series AC/DC Current Probes A wide selection of current probes to meet your application’s needs - Data Sheet
Hybrid technology for AC and DC measurements
Using hybrid technology that includes a Hall-effect sensor and an AC current
transformer, the probes provide accurate measurement of DC or AC currents up
to 500 Arms (for model N2780B) or DC–100 MHz (for model N2783B), without
breaking into the circuit. Using split core construction, the probe easily clips on
and off of a conductor.

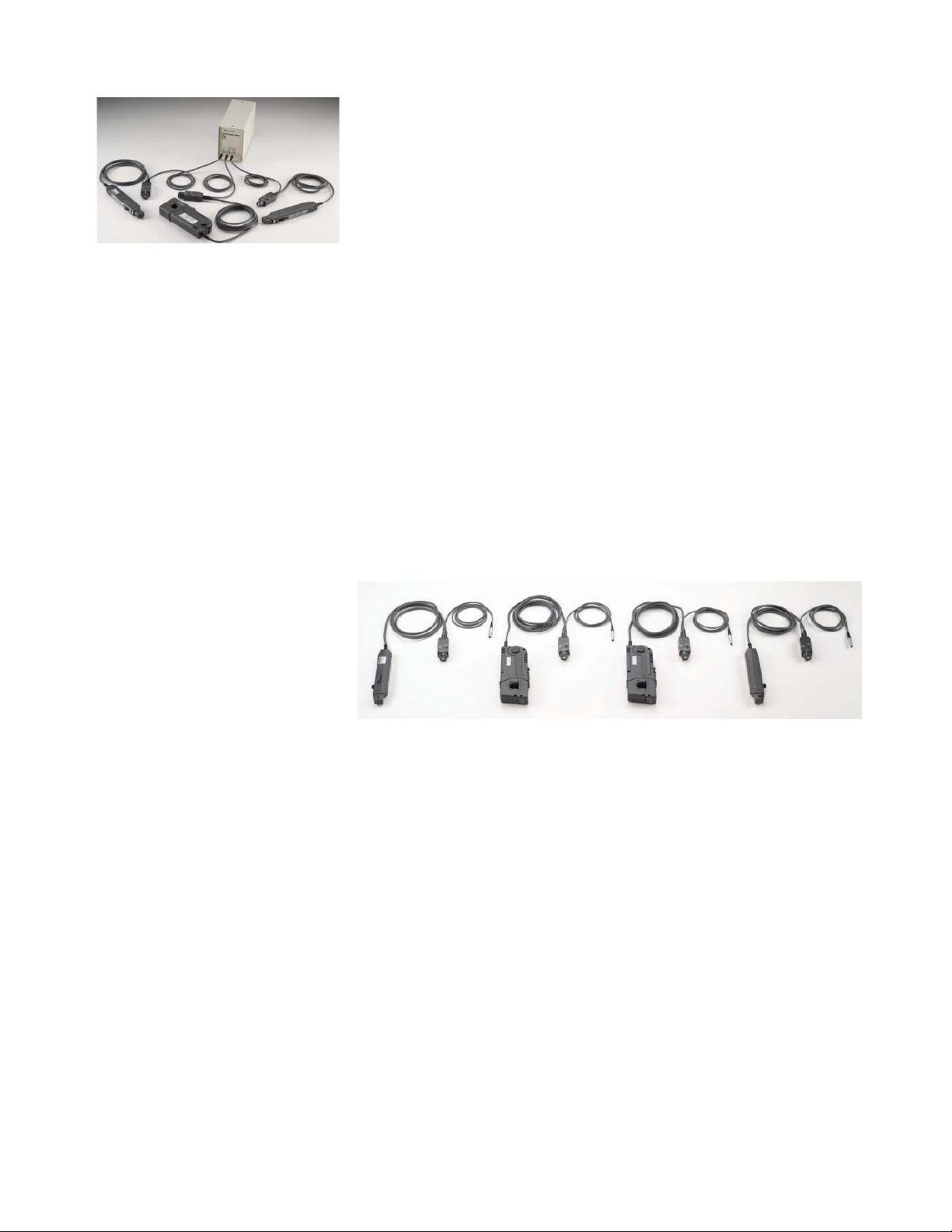

Figure 1. N2780B Series current probes
with N2779A power supply
– Various bandwidths: DC to 2 MHz,
10 MHz, 50 MHz, 100 MHz
– DC and AC measurements
– Superior 1% accuracy and high
signal-to-noise ratio
– Overload-protect function prevents
probe damage from excessive input
– Direct connection to high-
impedance 1 MΩ BNC input of
oscilloscope
– “Demagnetize” button to remove
any residual magnetism that builds
up in the magnetic core
– External power supply (N2779A)
lets you connect up to three
N278xB current probes to a
single power supply
Compatible with any oscilloscope
with a high-impedance BNC input, the
new N2780B Series current probes
offer accurate and reliable solution for
measuring DC and AC currents.
Wide range of applications
The current probes feature broad measurement ranges (up to 500 A), flat
frequency response, low noise and low insertion loss that make the probes ideal
for current measurements in areas such as measuring steady state or transient
current of motor drives, switching power supplies, inverters, controllers, sensors,
disk drives, LCD displays, electronic ballasts and amplifiers. The high signal-tonoise ratio of the N2782B and N2783B makes them ideal for making low-level
current measurements in milliampere ranges.
Accurate current measurement
A built-in DEMAG (demagnetize) function allows the removal of any residual
magnetism that has built up in the magnetic core due to power on/off switching
or excessive input current. In addition, voltage offset or temperature drift on the
probe can be easily corrected by using the zero adjustment control.
Figure 2. N2783B, N2780B, N2781B and N2782B current probe (from left to right)
Page 3
03 | Keysight | N2780B Series AC/DC Current Probes A wide selection of current probes to meet your application’s needs - Data Sheet
-10
-20
-30
-40
-50
100
10k
1M
100M
1
-60
Frequency (Hz)
Amplitude (dB)
35
30
25
20
15
10
5
10 100 1k 10k 100k 1M 10M 100M
Frequency (Hz)
Maximum input current (Arms)
100
1k 10k
100k
1M
10M
100M
Frequency (Hz)
1m
10m
100m
1
10
Input Impedance (ohm)
0.001 0.01 0.1 110 100
-6
-3
0
3
6
9
12
Input Current (A)
Deviation (%)
AC 50 Hz DC

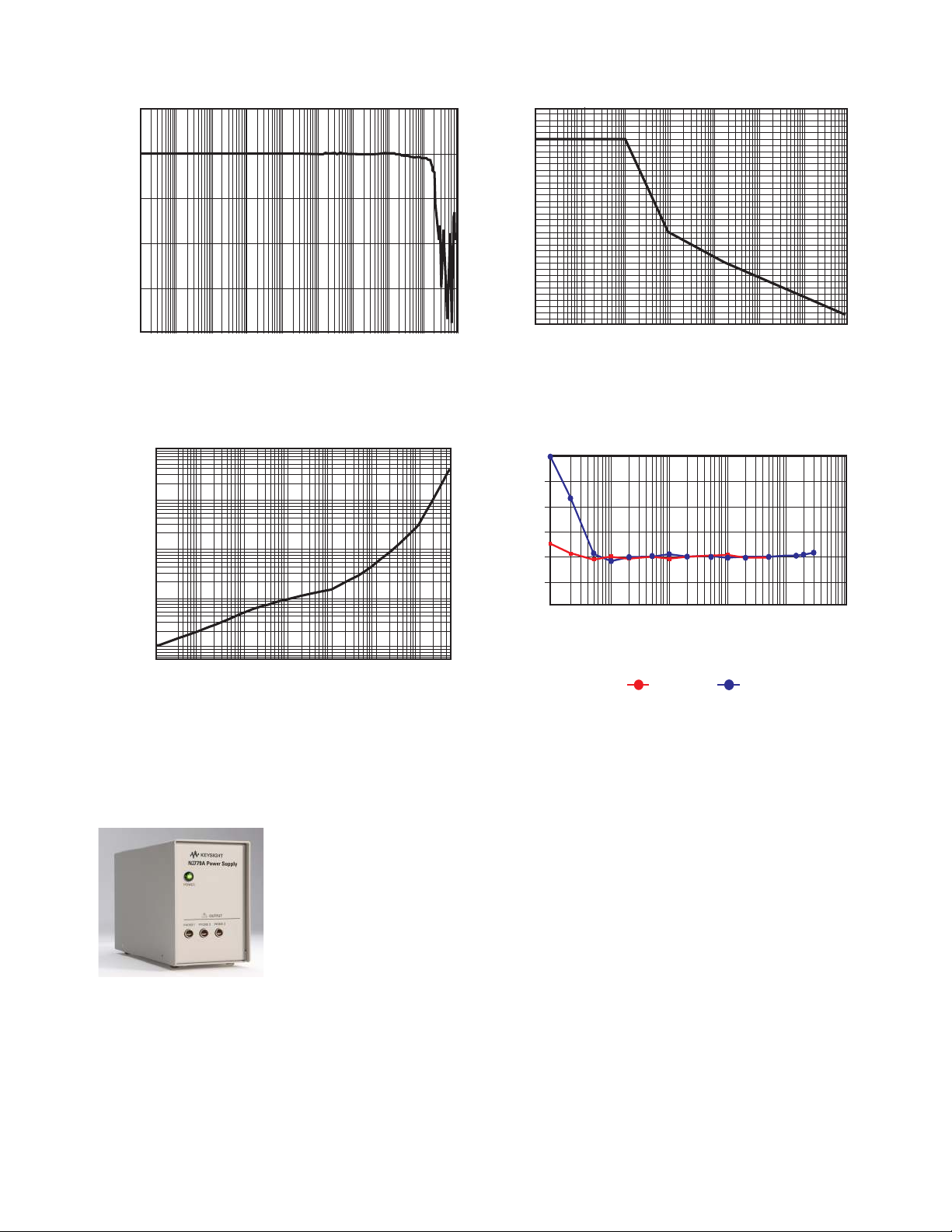

Figure 3. Frequency response of N2783B
Figure 5. Insertion impedance of N2783B
Figure 4. Continuous maximum input rating of N2783B
Figure 6. Amplitude accuracy characteristics of N2783B
Note: For the characteristic plots of other current probe models, refer to the N2780B Series current probe user’s manual.
N2779A 3-channel power supply specifications
Applicable current probes: N2780B, N2781B, N2782B, N2783B and N2774A
Number of power supply connectors: 3
Connector type: LEMO inc./FFA..0S.304.CNAC42Z
Output voltage: DC (12 V, 2.5 A)
Maximum rated power: 170 VA
Input power requirement: AC 100-240 VAC, 50/60 Hz, 125-170 VAC
Page 4
04 | Keysight | N2780B Series AC/DC Current Probes A wide selection of current probes to meet your application’s needs - Data Sheet

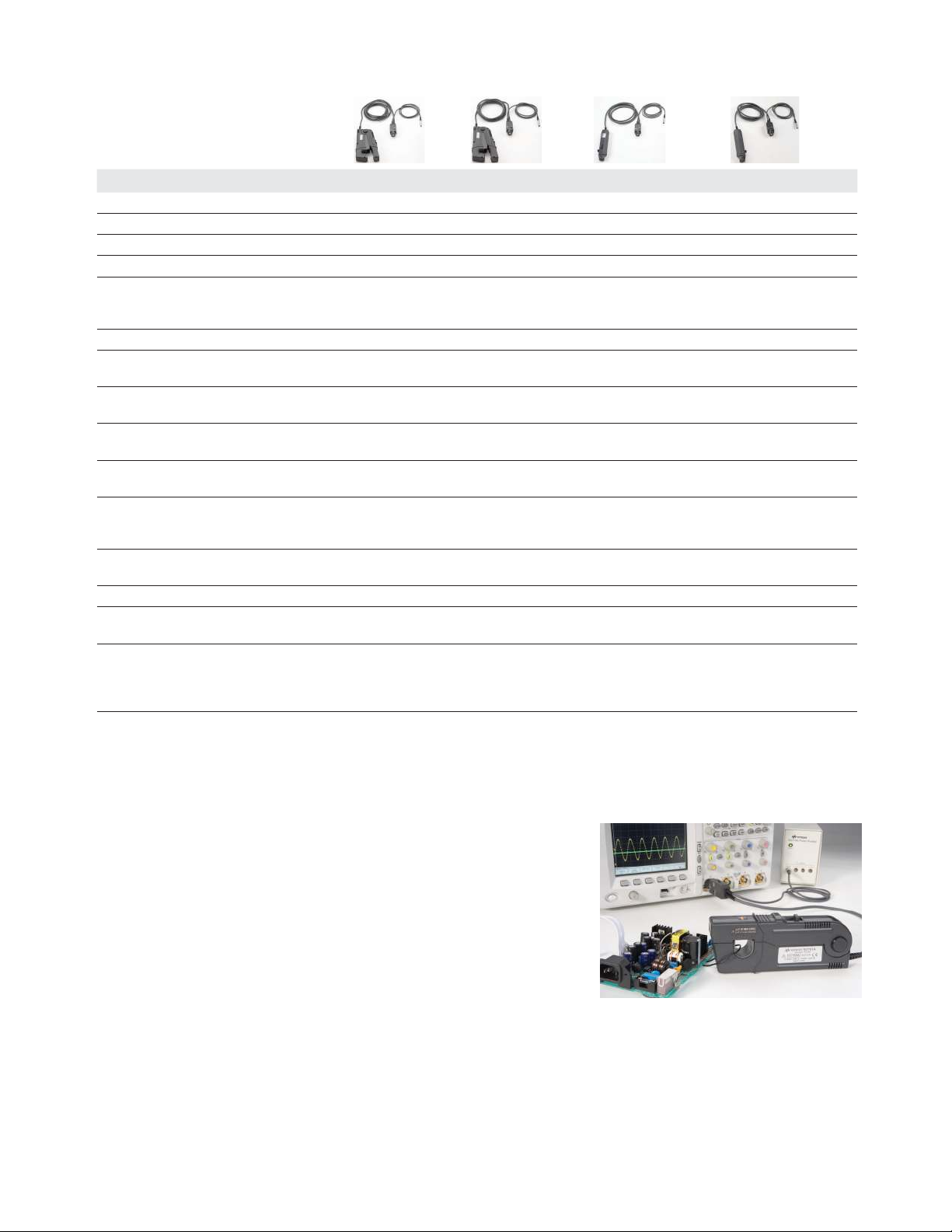

Model number N2780B N 278 1B N2782B N2783B
Bandwidth (-3dB) DC to 2 MHz DC to 10 MHz DC to 50 MHz DC to 100 MHz
Risetime 175 ns or less 35 ns or less 7 ns or less 3.5 ns or less
Maximum current (continuous) RMS 500 A 150 A 30 A 30 A
Maximum peak current (non-continuous) 700 A peak 300 A peak; 50 A peak 50 A peak
Lowest measurable current (at ±3% accuracy
at DC, scope set to 1 mV/div and
high-resolutionmode on)
Output voltage rate 0.01 V/A (100:1) 0.01 V/A (100:1) 0.1 V/A (10:1) 0.1 V/A (10:1)
Max input voltage** 600 V CAT II,
Amplitude accuracy*
(DC and 45 to 66 Hz, rated current)
Noise (measured with 20 MHz
bandwidth limit filter on the scope)
Temperature coefficient for sensitivity (within a
range of 0°C to 40 °C or 32 °F to 104 °F)
Effect of external magnetic fields
(in a DC to 60 Hz, 400 A/m magnetic field)
Maximum rated power 7.2 VA (with rated
Rated supply voltage DC ±12 V ±0.5 V DC ±12 V ±1 V DC ±12 V ±0.5 V DC ±12 V ±0.5 V
Diameter of measurable conductors 20 mm dia. (0.79” dia.) 20 mm dia. (0.79”
Diameter of measurable conductors Sensor cable:
20 mA 20 mA 5 mA 5 mA
600 V CAT II,
300 V CAT III
±1.0% rdg.
± 500 mA
Equivalent to
25 mArms or less
±2% or less ±2% or less ±2% or less ±2% or less
Equivalent to a
maximum of
800 mA
current)
Approx. 2 m (78.7”)
Power supply cable:
Approx. 1 m (39.4”)
300 V CAT III
±1.0% rdg.
± 100 mA
Equivalent to
25 mArms or less
Equivalent to a
maximum of
150 mA
5.5 VA (with rated
current)
dia.) )
Sensor cable:
Approx. 2 m (78.7”)
Power supply cable:
Approx. 1 m (39.4”)
300 V CAT I 300 V CAT I
±1.0% rdg.
± 10 mA
Equivalent to
2.5 mArms or less
Equivalent to a
maximum of 20 mA
5.6 VA (with rated current)
5 mm dia. (0.2” dia.) 5 mm dia. (0.2” dia.)
Sensor cable:
Approx. 1.5 m (78.7”)
Power supply cable:
Approx. 1 m (39.4”)
±1.0% rdg.
± 10 mA
Equivalent to
2.5 mArms or less
Equivalent to a
maximum of 5 mA
5.3 VA (with rated current)
Sensor cable
Approx. 1.5 m (78.7”)
Power supply cable:
Approx. 1 m (39.4”)
Note*: The amplitude accuracy specifications are guaranteed at 23°C ± 3°C (or 73°F ± 5°F)
**: Insulated conductor should be used.
Compatible Oscilloscopes
Any oscilloscope offering 1 MΩ BNC
input including Keysight Technologies,
Inc. 1000, 3000 InfiniiVision 2000X,
3000X, 5000, 6000 and 7000 Series,
and Infiniium 8000 and 9000 Series.
You must select the input impedance
of the oscilloscope to be 1 MΩ in order
to make accurate measurements. If the
oscilloscope you are using has a 50Ω
input impedance setting only, you can
purchase the Keysight E2697A 50Ω to 1
Ordering Information
N2780B
2 MHz/500A AC/DC current probe
N2781B
10 MHz/150A AC/DC current probe
N2782B
50 MHz/30A AC/DC current probe
N2783B
100 MHz/30A AC/DC current probe
N2779A
3-channel power supply for
N2780B Series current probes
MΩ adapter for use with the Infiniium
80000 or 90000 Series or the N5449A
high impedance probe adapter for use
with the Infiniium 90000 X-Series.
