Safety Notices
A CAUTION notice denotes a hazard.
It calls attention to an operating
procedure, practice, or the like that,
if not correctly performed or
adhered to, could result in damage
to the product or loss of important
data. Do not proceed beyond a
CAUTION notice until the indicated
conditions are fully understood and
met.
A WARNING notice denotes a hazard. It calls attention to an operating procedure, practice, or the like
that, if not correctly performed or
adhered to, could resul t in personal
injury or death. Do not proceed
beyond a WARNING notice until the
indicated conditions are fully
understood and met.
2Rack Mount Kit for 6000 X-Series Oscilloscopes
In This Guide…
This guide contains instructions for installing the Rack Mount Kit for
6000 X-Series Oscilloscopes. The Rack Mount Kit provides a support shelf and
hardware for mounting Keysight 6000 X-Series Oscilloscopes into Electronic
Industries Association (EIA) standard 19-inch (487-mm) rack cabinets. The
N2111A rack mount kit requres 7U of vertical rack space.

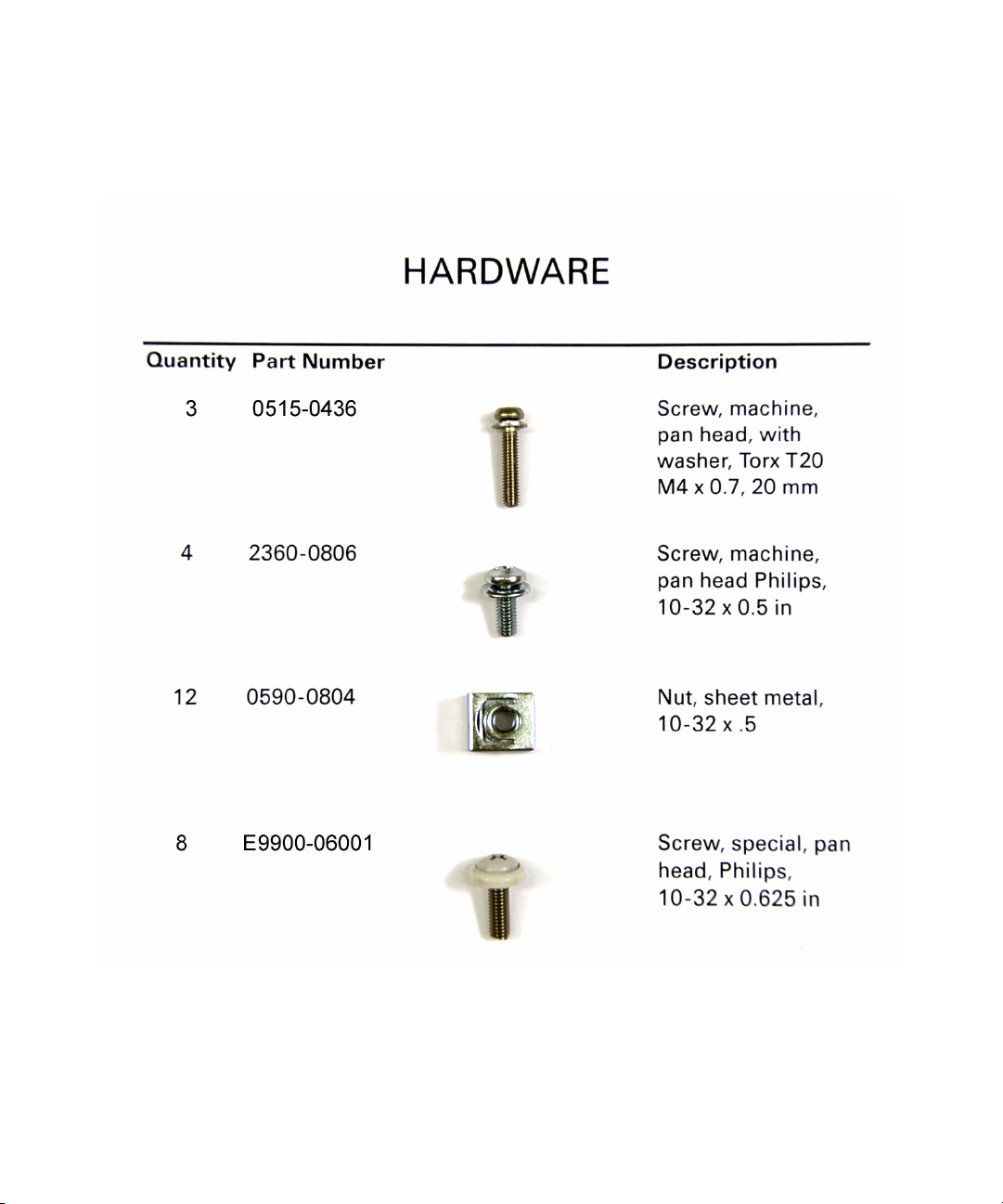

The Rack Mount Kit includes the following parts:
QuantityPart NumberDescription
1N2111-00401Rack Kit Tray
1N2111-01201Top Bracket
2N5470-03701Rail, Rack Mount
2N2111-24101Side Trim Plate
1N2111-24103Top Trim Plate
1N2111-68701Bottom Trim Plate Assembly
30515-0436Screw, machine, pan head, with washer, Torx T20
M4 x 0.7, 18 mm
42360-0806Screw, machine, pan head Philips, 10-32 x 0.5 in
120590-0804Nut, sheet metal, 10-32 x 0.5
8E9900-06001Screw, special, pan head, Philips, 10-32 x 0.625 in
Rack Mount Kit for 6000 X-Series Oscilloscopes3

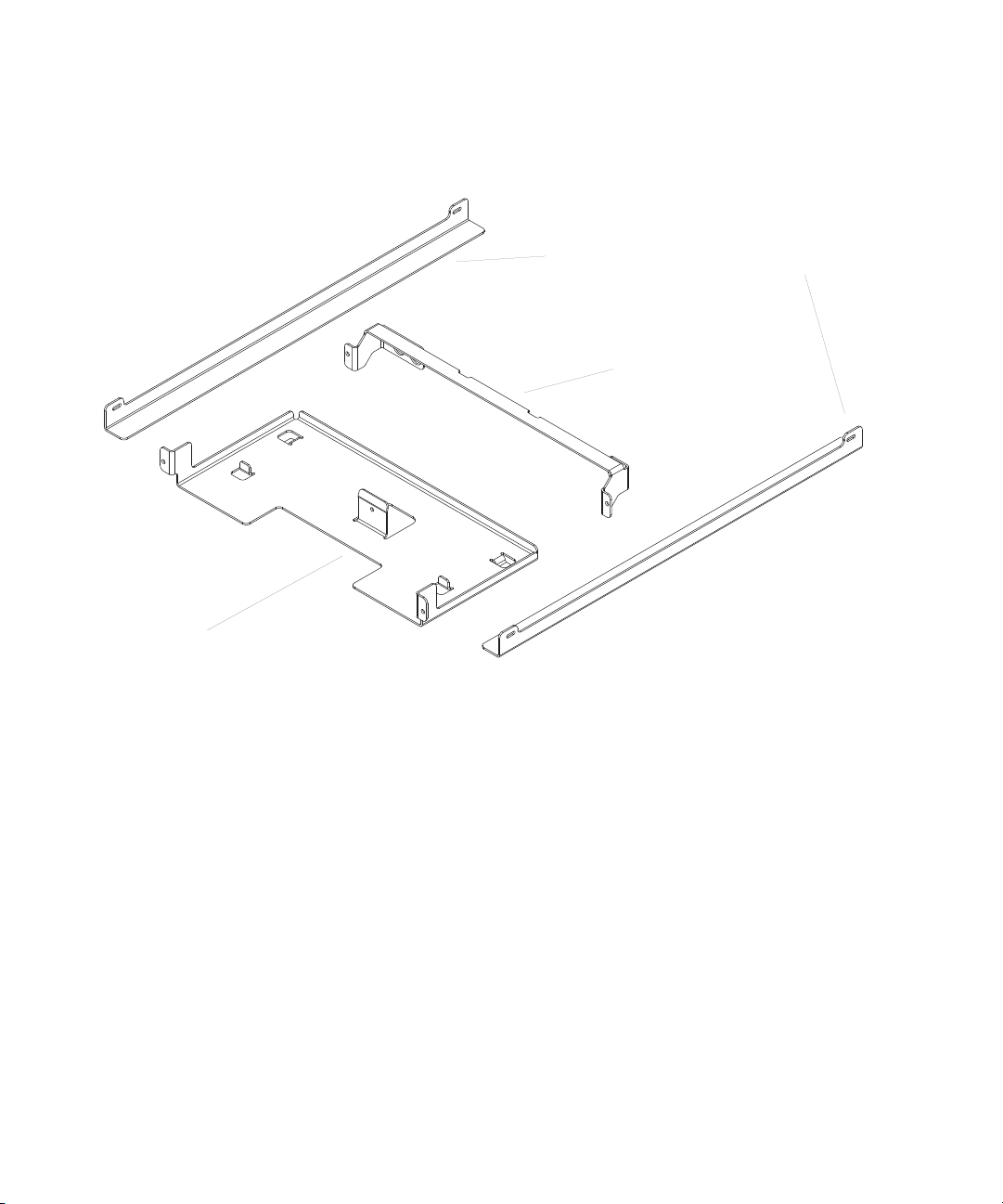

N5470-03701 Rack Mount Rail, Qty. 2
N2111-00401 Rack Kit Tray
N2111-01201 Top Bracket
4Rack Mount Kit for 6000 X-Series Oscilloscopes
N2111-68701 Bottom Trim Plate Assembly
N2111-24101 Side Trim Plate, Qty. 2
N2111-24103 Top Trim Plate
Rack Mount Kit for 6000 X-Series Oscilloscopes5
6Rack Mount Kit for 6000 X-Series Oscilloscopes
Installation
Installation
You will need the following tools to install the Rack Mount Kit:
• T20 Torx driver.
• #2 Phillips screwdriver.
To perform the installation:
1 Make sure the oscilloscope’s front feet are retracted so that the oscilloscope
stands upright (not tilted).
2 Remove the screw from the lower back center of the oscilloscope.
3 Set the oscilloscope onto the N2111-00401 Rack Kit Tray.
Rack Mount Kit for 6000 X-Series Oscilloscopes7
Installation
4 Secure the oscilloscope to the Rack Tray Assembly using one 0515-0436 screw.
0515-0436 screw
5 Remove the screws from the upper back corners of the oscilloscope.
8Rack Mount Kit for 6000 X-Series Oscilloscopes
Installation
6 Attach the N2111-01201 Top Bracket to the top of the oscilloscope using (Qty
2) 0515-0436 screws.
0515-0436 screws
Rack Mount Kit for 6000 X-Series Oscilloscopes9
Installation
Select one of
these rack holes.
7 Attach the two N5470-03701 Rack Mount Rails to your rack using (Qty. 4)
2360-0806 screws and (Qty. 4) 0590-0804 nuts.
For proper rack mount kit alignment, select one of the holes just above a
rectangular cut-out (or the bottom hole of a pair in the pair, single, pair, single,
etc., hole sequence).
10Rack Mount Kit for 6000 X-Series Oscilloscopes
Installation
Four
2360-0806 screws,
0590-0804 nuts
Rack Mount Kit for 6000 X-Series Oscilloscopes11
Installation
8 Slide the assembled oscilloscope and Rack Tray Assembly into the rack.
12Rack Mount Kit for 6000 X-Series Oscilloscopes
Installation
9 Secure the two Side Trim Plates to the rack using (Qty. 4) E9900-06001 screws
and (Qty. 4) 0590-0804 nuts. Assembly may be easier if you slightly lift the
oscilloscope to align the holes.
a Optional: If you plan to route the MSO cable through the notch in the Side
Trim Plate, route it now.
Route MSO
cable here
Four
E9900-06001 screws,
0590-0804 nuts
Rack Mount Kit for 6000 X-Series Oscilloscopes13
Installation
Two
E9900-06001 screws,
0590-0804 nuts
10 Secure the N5470-24102 Top Trim Plate to the rack using (Qty. 2)
E9900-06001 screws and (Qty. 2) 0590-0804 nuts.
14Rack Mount Kit for 6000 X-Series Oscilloscopes
11 Bottom Trim Plate:
Two
E9900-06001 screws,
0590-0804 nuts
a Optional: If you plan to connect cables from the oscilloscope to the BNC
feed-throughs, connect them now. It may be difficult to connect them after
securing the bottom trim plate.
b Secure the N2111-68701 Bottom Trim Plate Assembly to the rack using
(Qty. 2) E9900-06001 screws and (Qty. 2) 0590-0804 nuts.
Installation
You have completed installation of the Rack Mount Kit.
Rack Mount Kit for 6000 X-Series Oscilloscopes15
