Keysight M9410A/M9411A VXT PXIe
Vector Transceiver
MIMO
Measurement
Guide
Notices
Keysight Technologies, Inc. 2020
©
No part of this manual may be
reproduced in any form or by any
means (including electronic storage
and retrieval or translation into a
foreign language) without prior
agreement and written consent from
Keysight Technologies, Inc. as
governed by United States and
international copyright laws.
Trademark Acknowledgments
Manual Part Number
M9410-90016
Edition
Edition 1, April 2020
Published in China
Published by:
Keysight Technologies
No 116 Tianfu 4th Street
Chengdu, China 610041
Warranty
THE MATERIAL CONTAINED IN THIS
DOCUMENT IS PROVIDED “AS IS,”
AND IS SUBJECT TO BEING
CHANGED, WITHOUT NOTICE, IN
FUTURE EDITIONS. FURTHER, TO
THE MAXIMUM EXTENT PERMITTED
BY APPLICABLE LAW, KEYSIGHT
DISCLAIMS ALL WARRANTIES,
EITHER EXPRESS OR IMPLIED WITH
REGARD TO THIS MANUAL AND
ANY INFORMATION CONTAINED
HEREIN, INCLUDING BUT NOT
LIMITED TO THE IMPLIED
WARRANTIES OF
MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE.
KEYSIGHT SHALL NOT BE LIABLE
FOR ERRORS OR FOR INCIDENTAL
OR CONSEQUENTIAL DAMAGES IN
CONNECTION WITH THE
FURNISHING, USE, OR
PERFORMANCE OF THIS
DOCUMENT OR ANY INFORMATION
CONTAINED HEREIN. SHOULD
KEYSIGHT AND THE USER HAVE A
SEPARATE WRITTEN AGREEMENT
WITH WARRANTY TERMS
COVERING THE MATERIAL IN THIS
DOCUMENT THAT CONFLICT WITH
THESE TERMS, THE WARRANTY
TERMS IN THE SEPARATE
AGREEMENT WILL CONTROL.
Technology Licenses
The hardware and/or software
described in this document are
furnished under a license and may be
used or copied only in accordance
with the terms of such license.
U.S. Government Rights
The Software is “commercial
computer software,” as defined
by Federal Acquisition Regulation
(“FAR”) 2.101. Pursuant to FAR
12.212 and 27.405-3 and
Department of Defense FAR
Supplement (“DFARS”) 227.7202,
the U.S. government acquires
commercial computer software
under the same terms by which
the software is customarily
provided to the public.
Accordingly, Keysight provides
the Software to U.S. government
customers under its standard
commercial license, which is
embodied in its End User License
Agreement (EULA), a copy of
which can be found at
http://www.keysight.com/find/sweula
The license set forth in the EULA
represents the exclusive authority
by which the U.S. government
may use, modify, distribute, or
disclose the Software. The EULA
and the license set forth therein,
does not require or permit,
among other things, that
Keysight: (1) Furnish technical
information related to
commercial computer software
or commercial computer
software documentation that is
not customarily provided to the
public; or (2) Relinquish to, or
otherwise provide, the
government rights in excess of
these rights customarily provided
to the public to use, modify,
reproduce, release, perform,
display, or disclose commercial
computer software or
commercial computer software
documentation. No additional
government requirements
beyond those set forth in the
EULA shall apply, except to the
extent that those terms, rights, or
licenses are explicitly required
from all providers of commercial
computer software pursuant to
the FAR and the DFARS and are
set forth specifically in writing
elsewhere in the EULA. Keysight
shall be under no obligation to
update, revise or otherwise
modify the Software. With
respect to any technical data as
defined by FAR 2.101, pursuant
to FAR 12.211 and 27.404.2 and
DFARS 227.7102, the U.S.
government acquires no greater
than Limited Rights as defined in
FAR 27.401 or DFAR 227.7103-5
(c), as applicable in any technical
data.
Safety Notices
A CAUTION notice denotes a hazard. It
calls attention to an operating
procedure, practice, or the like that,
if not correctly performed or adhered
to, could result in damage to the
product or loss of important data. Do
not proceed beyond a CAUTION
notice until the indicated conditions
are fully understood and met.
A WARNING notice denotes a hazard.
It calls attention to an operating
procedure, practice, or the like that,
if not correctly performed or adhered
to, could result in personal injury or
death. Do not proceed beyond a
WARNING notice until the indicated
conditions are fully understood and
met.
Where to Find the Latest Information
Documentation is updated periodically. For the latest information about these products, including instrument software
upgrades, application information, and product information, browse to one of the following URLs, according to the name
of your product:
http://www.keysight.com/find/m9410a
http://www.keysight.com/find/m9411a
To receive the latest updates by email, subscribe to Keysight Email Updates at the following URL:
http://www.keysight.com/find/MyKeysight
Information on preventing instrument damage can be found at:
www.keysight.com/find/PreventingInstrumentRepair
Is your product software up-to-date?
Periodically, Keysight releases software updates to fix known defects and incorporate product enhancements. To search
for software updates for your product, go to the Keysight Technical Support website at:
http://www.keysight.com/find/techsupport
3
4
1 Overview
Introduction 10
Hardware Requirement 11
Controller Memory Requirement 11
Software Requirement 12
2 MIMO Connection and Launch
Hardware Connection 14
Launch ModularTRX Application for MIMO Measurement 15
Contents
Switch to Basic Mode from MIMO Measurement 17
3 Basic Operation
Viewing Key Descriptions 20
Setting RF Source parameters 20
Saving and Recalling States 21
Selecting Source Output 21
Setting Frequency and Power (Amplitude) 22
4 Waveform Operation
Waveform File Basics 24
Instrument Memory 24
Dual ARB Player 24
Storing, Loading, and Playing a Waveform Segment 25
Loading a Waveform Segment into ARB memory 25
Deleting a Waveform Segment on Internal Disk 26
Deleting a Waveform Segment from ARB memory 26
Playing a Waveform Segment 27
Saving a Waveform Settings & Parameters 28
Viewing and Modifying Header Information 29
M9410A/M9411A MIMO Measurement Guide 5
Contents
Using Waveform Markers 31
Waveform Marker Concepts 31
Marker Signal Response 32
Marker File Generation 32
Marker Point Edit Requirements 32
Saving Marker Polarity and Routing Settings 32
Selecting which Marker to output 32
Viewing a Marker Pulse 32
Setting Marker Polarity 33
Licensing 34
Signal Studio 34
N7631C Signal Studio Pro for 5G NR 34
N7617C Signal Studio for WLAN 802.11 34
Waveform multi-pack licensing 35
Installing an Option N7650B–22x/25x Waveform 5/50–Pack Licensing 36
Licensing a Source Waveform File 36
Waveform Licensing Interface 37
Waveform Multi–Pack Licensing Status Messages 39
Other menu functions under Multi–Pack Licenses 39
Generate a Waveform File with Signal Studio 40
Generate a Waveform File with N7631C Signal Studio for 5G NR 40
5 Making MIMO Measurements
Making a WLAN MIMO measurement in TRX Application 44
Sources Configuration 44
Analyzers Configuration 46
Making a 5G NR/WLAN MIMO measurement in 89600 VSA 49
Source Configuration in TRX application 49
Set M9410A/M9411A in Keysight Connection Expert 49
89600 VSA Software Configuration 51
Running VSA Software 51
Configuring VSA Software 52
Use VSA Software Dynamic Help 58
6 M9410A/M9411A MIMO Measurement Guide
6 Troubleshooting
Troubleshooting 60
"Reference Unlock" error after application startup 60
MIMO Features Disabled 60
Licenses 60
A time–based license stops working 60
Cannot load a time–based license 60
Contacting Keysight Technologies 61
Contents
M9410A/M9411A MIMO Measurement Guide 7
Contents
8 M9410A/M9411A MIMO Measurement Guide
Keysight M9410A/M9411A VXT PXIe Vector Transceiver
MIMO Measurement Guide
1 Overview
This chapter provides a brief introduction of MIMO measurement, and the
hardware/software requirement to perform a MIMO measurement with
M9410A/M9411A modules.
“Introduction” on page 10
“Hardware Requirement” on page 11
“Software Requirement” on page 12
9
Introduction
Overview
Introduction
To support higher order Multiple-Input Multiple-Output (MIMO)
implementation, the characterization of the design becomes more
complicated. Therefore, the tests become even more complicated.
The MIMO modulation analysis measurement enables engineers to
characterize their MIMO designs by providing signal formats demodulation and
the EVM performance results for multiple channels, cross-channel and
streams. It can also display the results in time-domain or frequency-domain.
The measurement provides simultaneous measurements for multiple channels
when connecting to multiple instruments.
This MIMO measurement guide is to demonstrate the WLAN and 5G NR MIMO
measurement (4x4) capabilities in M9410A/M9411A VXT PXIe Vector
Transceiver.
In the case of MIMO, which is most often used in R&D, the M9410A/M9411A
modules with M9010A/M9019A chassis provides the multiple transceivers
needed for simultaneous test of all MIMO channels. The multiple transceivers
for simultaneous test of all MIMO channels provide full and complete set of
MIMO metrics and the test speed is fast since each channel is captured in
parallel.
For more details on hardware, firmware, software, and documentation features
and options, refer to the Keysight Technologies website at:
http://www.Keysight.com/find/m9410a
http://www.Keysight.com/find/m9411a
10 MIMO Measurement Guide
Overview
Hardware Requirement
Hardware Requirement
The 4x4 MIMO measurement requires the hardware items as below.
— M9010A/M9019A Chassis
— M9037A Controller with 16 GB memory/External Controller with 16 GB
memory or greater.
— M9300A Reference
— 4 M9410A/M9411A modules with option MMO
— 4 SMB to MMPX cables (M9410-60009) for M9300A Reference connection
— SMA cables (Y1814A) or antennas for DUT connection
— 1 x Mouse and 1 x keyboard or a PC to remote control
M9010A chassis provides 10 slots which supports maximum 4 x M9410A modules
installation. M9019A chassis provides 18 slots which supports 4 x M9410A/M9411A
modules installation.
Make sure the M9300A reference is installed in timing slot of the chassis. The timing
slot of M9010A chassis is slot 6. The timing slot of M9019A chassis is slot 10.
Controller Memory Requirement
The MIMO measurement requires a large amount of physical memory usage. If
you use M9037A embedded controller, option M9037A-M16 (16 GB memory)
is required for the MIMO measurement. If you use an external PC controller,
please make sure the physical memory is 16 GB or greater for a better
performance in MIMO measurement.
MIMO Measurement Guide 11
Overview
Software Requirement
Software Requirement
The WLAN MIMO measurement requires the software as below.
— Keysight ModularTRX software version M.25.63 or above
— N9077EM0E/N9077EM1E WLAN measurement application
— Keysight Connection Expert (included in ModularTRX software, optional)
— Keysight PathWave Vector Signal Analysis - 89600 VSA (optional)
— 89601200C Basic vector signal analysis and hardware connectivity
— 89601B7RC Wireless connectivity Modulation Analysis Or
— 89601BHXC High throughput WLAN Modulation Analysis
— N7617EMBC Signal Studio for WLAN 802.11, waveform playback (optional)
The 5G NR MIMO measurement requires the software as below.
— Keysight ModularTRX software version M.25.63 or above
— Keysight Connection Expert (included in ModularTRX software)
— Keysight PathWave Vector Signal Analysis (89600 VSA)
— 89601200C Basic vector signal analysis and hardware connectivity
— 89601BHNC 5G NR Modulation Analysis
— N7631EMBC Signal Studio for 5G NR, waveform playback (optional)
12 MIMO Measurement Guide
Keysight M9410A/M9411A VXT PXIe Vector Transceiver
MIMO Measurement Guide
2 MIMO Connection and Launch
This chapter introduces the related hardware connection and software launch
for MIMO measurement with M9410A/M9411A modules. For information about
M9410A/M9411A related operation, refer to M9410A/M9411A Getting Started
Guide and Online Help.
— “Hardware Connection” on page 14
— “Launch ModularTRX Application for MIMO Measurement” on page 15
13
MIMO Connection and Launch
M9037A
controller
M9410A
transceiver
x 4
M9300A
Reference
Hardware Connection
Hardware Connection
Option MMO supports 2x2, 3x3, 4x4 MIMO measurement. For 4x4 MIMO
measurement, 4 M9410A/M9411A modules are needed to conduct 4x4 MIMO.
Please refer to the following procedure to setup all the hardware for 4x4 MIMO
measurement.
1. Refer to M9410A/M9411A Getting Started Guide to install M9037A
controller, M9300A reference and 4 M9410/M9411A modules into the
M9019A chassis. Make sure the M9300A reference is installed in timing slot.
For M9019A chassis, the timing slot is slot 10.
2. Connect the M9300A Reference 100 MHz Out port to each
M9410A/M9411A 100 MHz In port with SMB to MMPX cable
(M9410-60009) as figure below.
3. Connect the DUT according to your test need with SMA cables.
4. Connect a mouse and a keyboard to the controller or use a PC to remote
control.
To use MIMO function properly with option MMO, all the M9410A/M9411A
modules must be installed in one chassis.
14 MIMO Measurement Guide
MIMO Connection and Launch
Launch ModularTRX Application for MIMO Measurement
Launch ModularTRX Application for MIMO Measurement
To use this feature with M9410A/M9411A, you need enable MIMO function
before launching the Modular TRX application. The MIMO configure tool is
needed to enable the MIMO feature, the MIMO configure tool is located in
"C:\Program
Refer to the procedures below to launch the TRX application for MIMO
measurement. Please ensure all the needed modules have been installed
properly before the operation below.

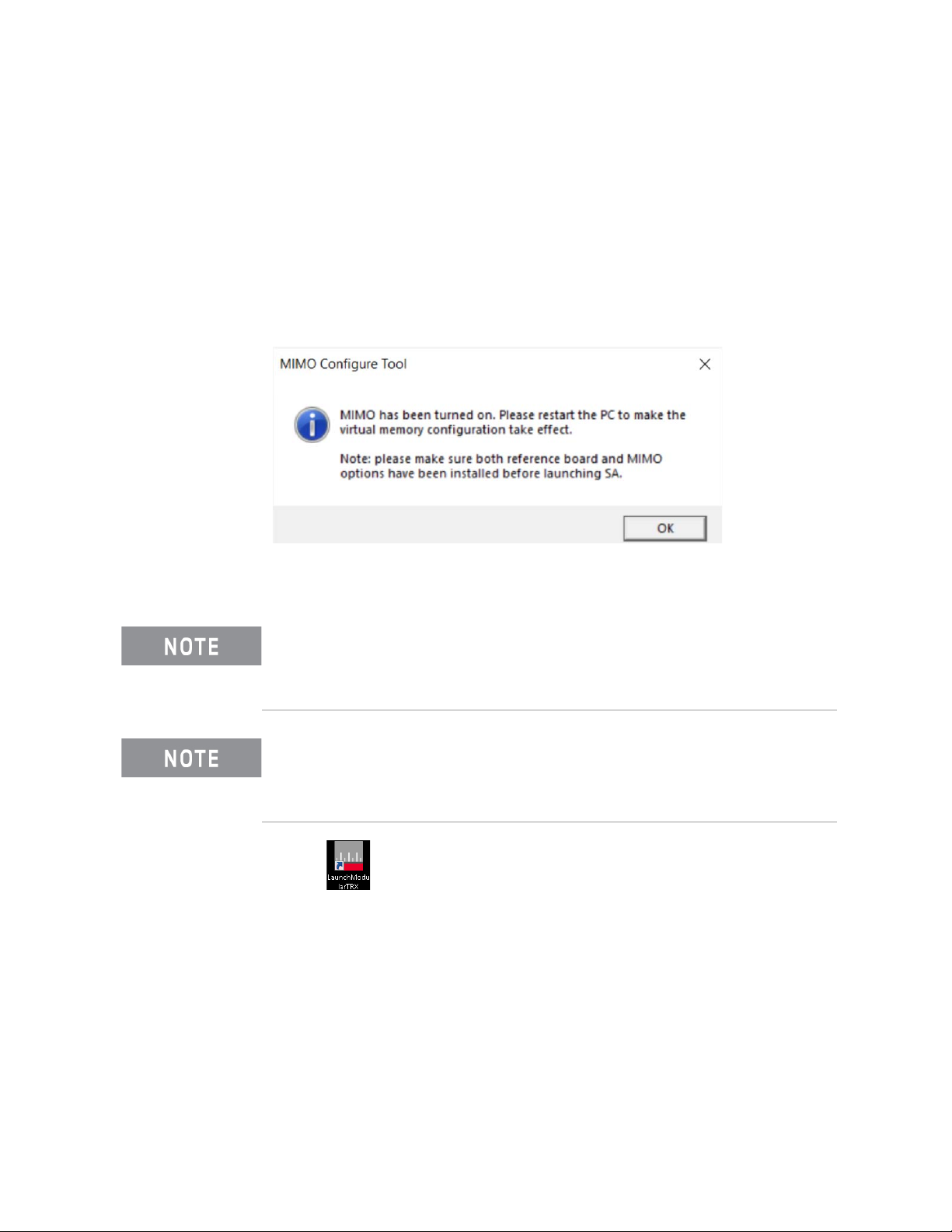

1. Double-click MimoTurnOnTool.exe, a window will pop up as below:
Files\Keysight\X-Series\VXT2".
2. Click OK and restart the controller to make the virtual memory configuration
take effect.
If your ModularTRX application is launched in normal mode previously, the
first two steps are required for MIMO measurement. if your ModularTRX
application is launched in MIMO mode previously, please skip the first two
steps and launch the application directly from step 3.
Click Input/Output > RF Source Tab to check the current status of your
ModularTRX application. If the Source Sync sub-menu is accessible, the
application is in MIMO measurement status. If the Source Sync sub-menu is
invalid, the application is in basic mode.
3. Click to start the application launcher. All the installed modules will
be shown as "Idle" status in the launcher window as below. Select all the
needed modules for MIMO measurement in the launcher. Click Run
Selected and the TRX applications of all the selected modules will be
launched immediately.
MIMO Measurement Guide 15
MIMO Connection and Launch
Launch ModularTRX Application for MIMO Measurement
In this MIMO measurement, 4 TRX applications will be launched in your
controller.
The M9300A reference will be enabled automatically during the TRX
launching process for MIMO measurement. Please close the M9300A SFP
(Software Front Panel) program before launching the TRX application for
MIMO measurement.
If a module is already running, Run Selected will be disabled as below.
To locate the needed application window from other similar ones, check the
slot information in the upper-left corner as the figure below.
16 MIMO Measurement Guide
MIMO Connection and Launch
Launch ModularTRX Application for MIMO Measurement
Switch to Basic Mode from MIMO Measurement
To disable MIMO feature and switch back to basic mode, please follow the
procedures below.
1. Turn off all the TRX application windows for the modules used in MIMO
measurement.
2. Run "C:\Program Files\Keysight\X-Series\VXT2\MimoTurnOffTool.exe" in
the controller, a window will pop up as below:
3. Click to run the M9300A Soft Front Panel software. Click Connect
and the reference will be available for all the connected modules.
4. Restart the launcher and the TRX application will switch back to the basic
mode.
For the further information about TRX launcher configuration, please refer to
M9410A/M9411A Getting Started Guide for details.
MIMO Measurement Guide 17
MIMO Connection and Launch
Launch ModularTRX Application for MIMO Measurement
18 MIMO Measurement Guide
Keysight M9410A/M9411A VXT PXIe Vector Transceiver
MIMO Measurement Guide
3 Basic Operation
This chapter introduces fundamental front panel operation. If you are familiar
with the basic operations listed as below, you can skip this chapter and go
directly to Chapter 4, “Waveform Operation”, on page 23. For further
operation of ModularTRX application on M9410A/M0411A, refer to the Online
Help or Getting Started Guide
— “Viewing Key Descriptions” on page 20
— “Setting RF Source parameters” on page 20
— “Saving and Recalling States” on page 21
— “Selecting Source Output” on page 21
— “Setting Frequency and Power (Amplitude)” on page 22
19
Loading...
