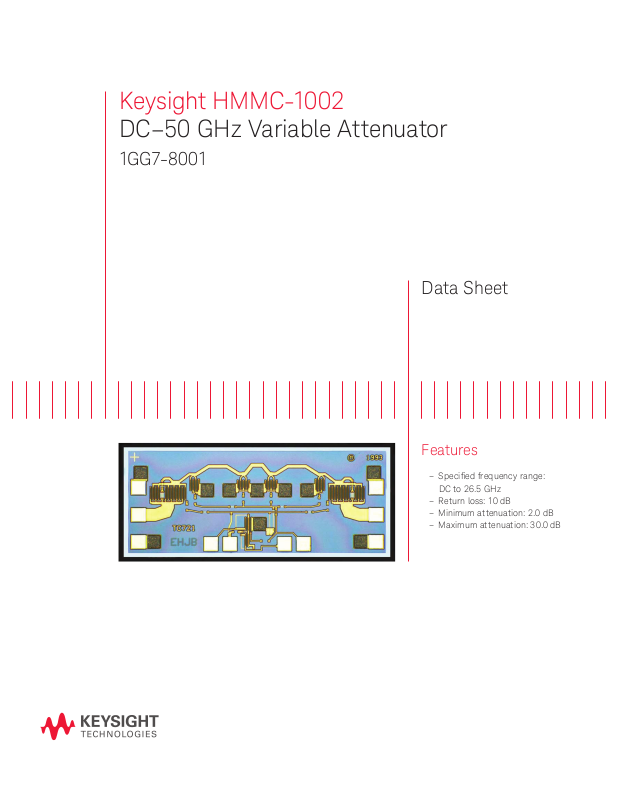

Page 1

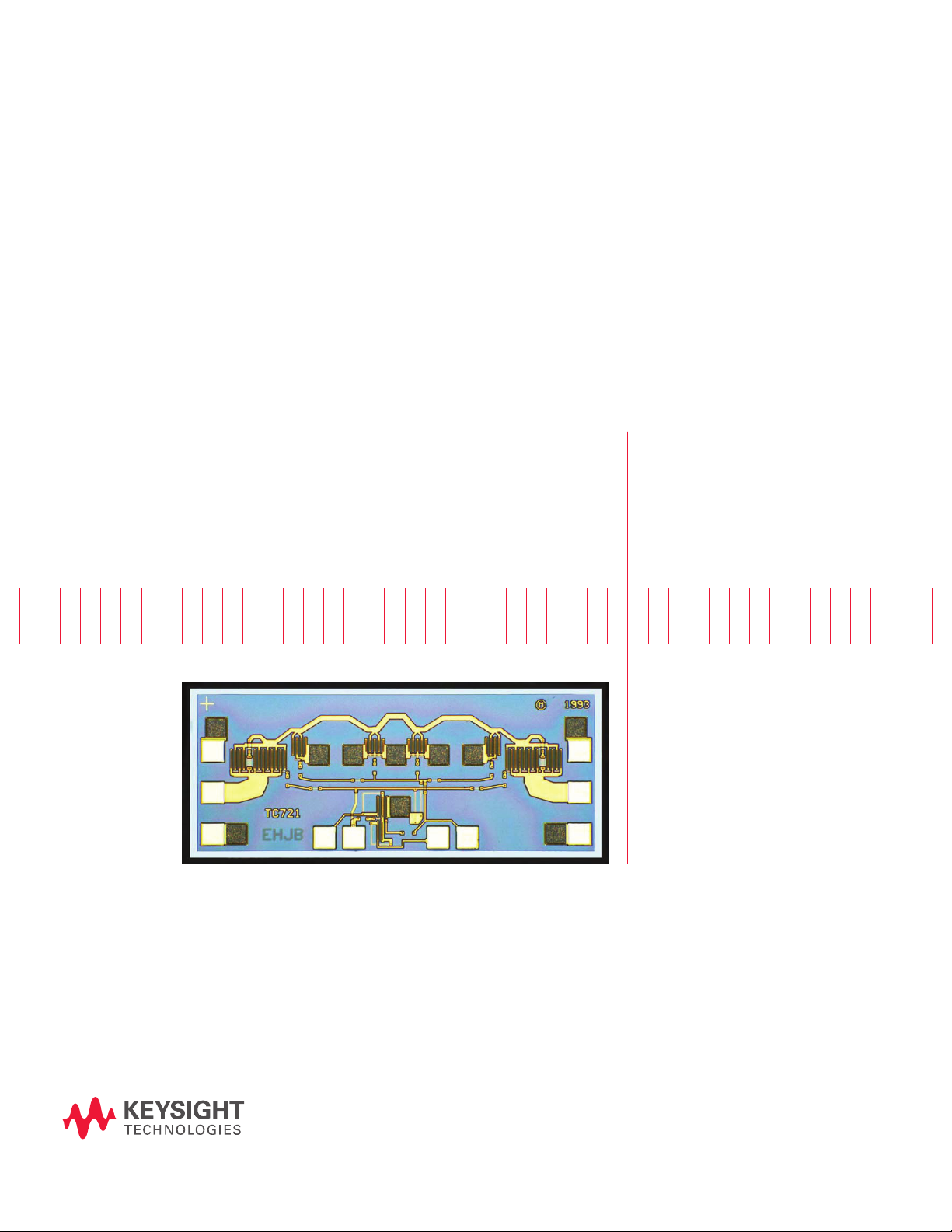

Keysight HMMC-1002
DC–50 GHz Variable Attenuator
1GG7-8001
Data Sheet
Features
– Specied frequency range:
DC to 26.5 GHz
– Return loss: 10 dB
– Minimum attenuation: 2.0 dB
– Maximum attenuation: 30.0 dB
Page 2
02 | Keysight | HMMC-1002 DC–50 GHz Variable Attenuator - Data Sheet
Description
The HMMC-1002 is a monolithic, voltage variable, GaAs IC attenuator that operates
from DC to 50 GHz. It is fabricated using WPTC’s MMICB process which features an MBE
epitaxial layer, backside ground vias, and FET gate lengths of approximately 0.4 µm. The
variable resistive elements of the HMMC-1002 are two 750 µm wide series FETs and four
200 µm wide shunt FETs. The distributed topology of the HMMC-1002 minimizes the
parasitic effects of its series and shunt FETs, allowing the HMMC-1002 to exhibit a wide
dynamic range across its full bandwidth. An on-chip DC reference circuit may be used
to maintain optimum VSWR for any attenuation setting or to improve the attenuation
versus voltage linearity of the attenuator circuit.

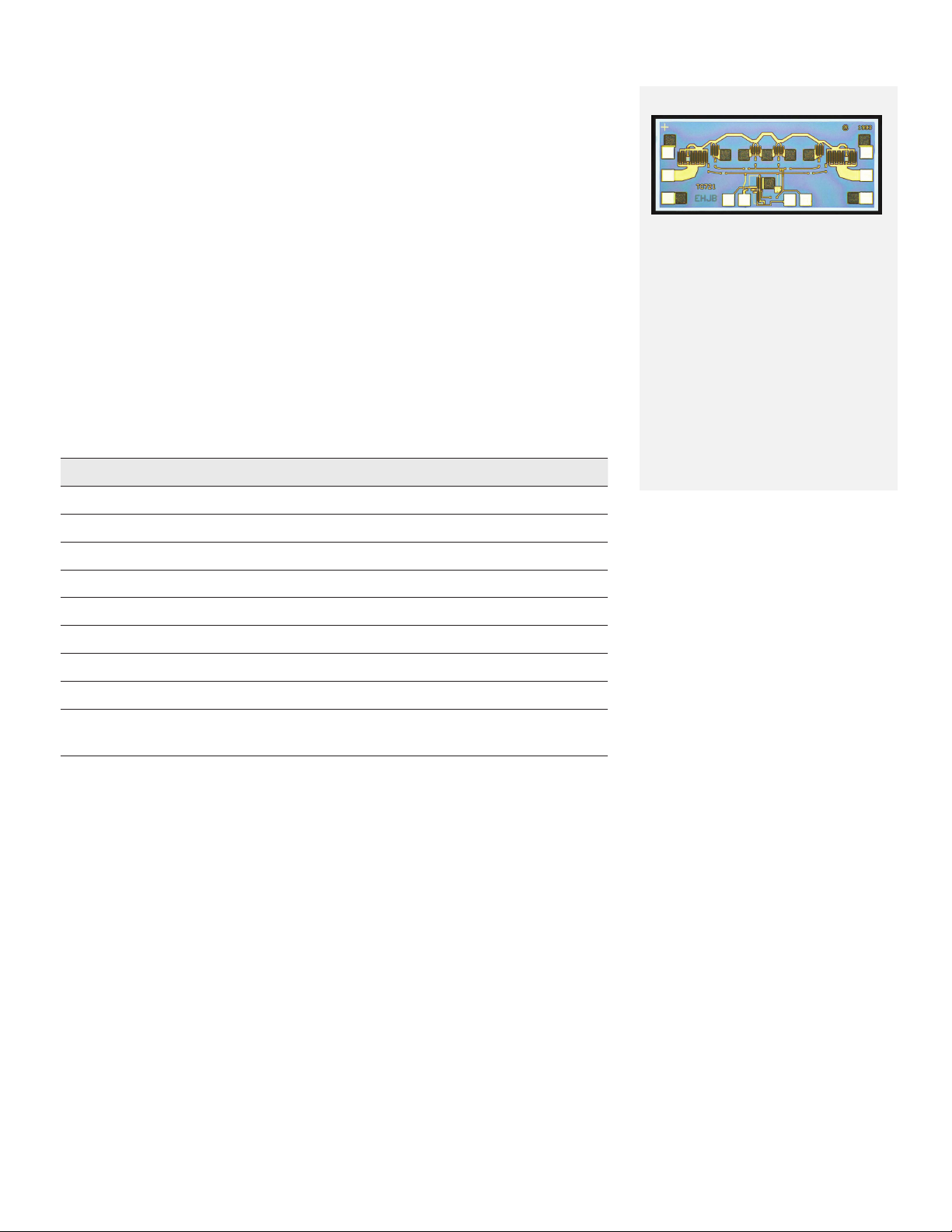

Absolute Maximum Ratings
Symbol Parameters/conditions Minimum Maximum Units
1
Chip size:
1470 x 610 µm (57.9 x 24.0 mils)
Chip size tolerance:
±10 µm (±0.4 mils)
Chip thickness:
127 ± 15 µm (5.0 ± 0.6 mils)
RF pad dimensions:
60 x 70 µm (2.4 x 2.8 mils) or larger
DC pad dimensions:
75 x 75 µm (3.0 x 3.0 mils) or larger
V
V
V
V
P
T
T
T
T
DC-RF
1
2
DC
in
mina
maxa
stg
max
DC voltage to RF ports –0.6 +1.6 Volts
V1 control voltage –5.0 +0.5 Volts
V2 control voltage –5.0 +0.5 Volts
DC in/DC out –0.6 +1.0 Volts
RF input power 17 dBm
Minimum ambient operating temperature –55 °C
Maximum ambient operating temperature +125 °C
Storage temperature –65 +165 °C
Maximum assembly temperature
+300 °C
(for 60 seconds maximum)
1. Operation in excess of any one of these conditions may result in damage to this device
Page 3
03 | Keysight | HMMC-1002 DC–50 GHz Variable Attenuator - Data Sheet
DC Specications/Physical Properties
(TA = 25 °C)
Symbol Parameters/conditions Minimum Typical Maximum Units
I
V1
I
V2
V
p
V1 control current, (V1 = –4 V) 5.3 9.3 12 mA
V2 control current, (V2 = –4 V) 5.3 9.3 12 mA
Pinch-off voltage, (V2, W/V1 = 0 V)
(Four 200 µm wide shunt FETs, V
= 1 V @ RF
, IDD = 5 mA)
in
–0.6 –1.3 –2.5 Volts
DD
Electrical Specications
1
(TA = 25 °C, Z0 = 50 Ω)
Parameters/conditions Frequency (GHz) Minimum Typical Maximum Units
Minimum attenuation,
|S21|( V
= 0 V, V2 = –4 V)
1
Input/output return loss @
minimum attenuation setting,
(V
= 0 V, V2 = –4 V)
1
Maximum attenuation
|S21|( V
= –4 V, V2 = 0 V)
1
Input/output return loss @
maximum attention setting,
(V
= –4 V, V2 = 0 V)
1
DC power dissipation,
(V
= –5 V, V2 = –5 V)
1
(does not include input signals)
1.5 1.0 2.4 dB
8.0 1.4 2.4 dB
20.00 1.7 2.4 dB
26.5 2.0 2.4 dB
50.0 3.9 dB
< 26.5 10 16 dB
< 50.0 8 dB
1.5 27 30 dB
8.0 27 38 dB
20.0 27 38 dB
26.5 27 40 dB
50.0 35 dB
< 26.5 8 10 dB
< 50.0 10 dB
152 mW
1. Attenuation is a positive number; whereas, S21 as measured on a network analyzer would be a
negative number.
Page 4
04 | Keysight | HMMC-1002 DC–50 GHz Variable Attenuator - Data Sheet
Applications
The HMMC-1002 is designed to be used as a gain control block in an ALC assembly. Because
of its wide dynamic range and return loss performance, the HMMC-1002 may also be used as a
broadband pulse modulator or single-pole single-throw, non-reective switch.
Operation
The attenuation value of the HMMC-1002 is adjusted by applying negative voltage to V2. At any
attenuation setting, optimum VSWR is obtained by applying negative voltage to V
negative voltage (V
establishes the attenuation level. Applying negative voltage (V
) to the gates of the shunt FETs sets the source-to-drain resistance and
2
) to the gates of the series FETs
1
optimizes the input and output match for different attenuation settings. In some applications, a
single setting of V
range (V
). For any HMMC-1002 the values of V1 may be adjusted so that the device attenuation
2
versus voltage is monotonic for both V
may provide sufcient input and output match over the desired attenuation
1
and V2; however, this will slightly degrade the input and
1
output return loss.
The attenuation and input/output match of the HMMC-1002 may also be controlled using
only a single input voltage by utilizing the on-chip DC reference circuit and the driver circuit
shown in Figure 4. This circuit optimizes VSWR for any attenuation setting. Because of process
variations, the values of V
, R
, and RL are different for each wafer if optimum performance is
REF
REF
required. Typical values for these elements are given. The ratio of the resistors R
mines the sensitivity of the attenuation versus voltage per formance of the attenuator.
. Applying
1
and R2 deter-
1
Assembly Techniques
GaAs MMICs are ESD sensitive. ESD preventive measures must be employed in all aspects of
storage, handling, and assembly.
MMIC ESD precautions, handling considerations, die attach and bonding methods are critical
factors in successful GaAs MMIC performance and reliability.
The Keysight Technologies, Inc. application note GaAs MMIC ESD, Die Attach and Bonding
Guidelines, literature number 5991-3484EN, provides basic information on these subjects.
Additional References
2-26.5 Variable Gain Amplier Using HMMC-5021/22/26 and HMMC-1002 GaAs MMIC
Components, Application Note, literature number 5991-3543EN
HMMC-1002 Attenuator: Attenuation Control, Application Note,
literature number 5991-3555EN
DC-50 GHz Variable Attenuator: S-Parameters, Application Note,
literature number 5991-3556EN
HMMC-1002 DC-50 GHz Variable Attenuator: Switching Speed Limitations, Application Note,
literature number 5991-3557EN
HMMC-1002 50 GHz Attenuator 0-50 GHz Performance, Technical Overview,
literature number 5991-3554EN
Page 5
05 | Keysight | HMMC-1002 DC–50 GHz Variable Attenuator - Data Sheet

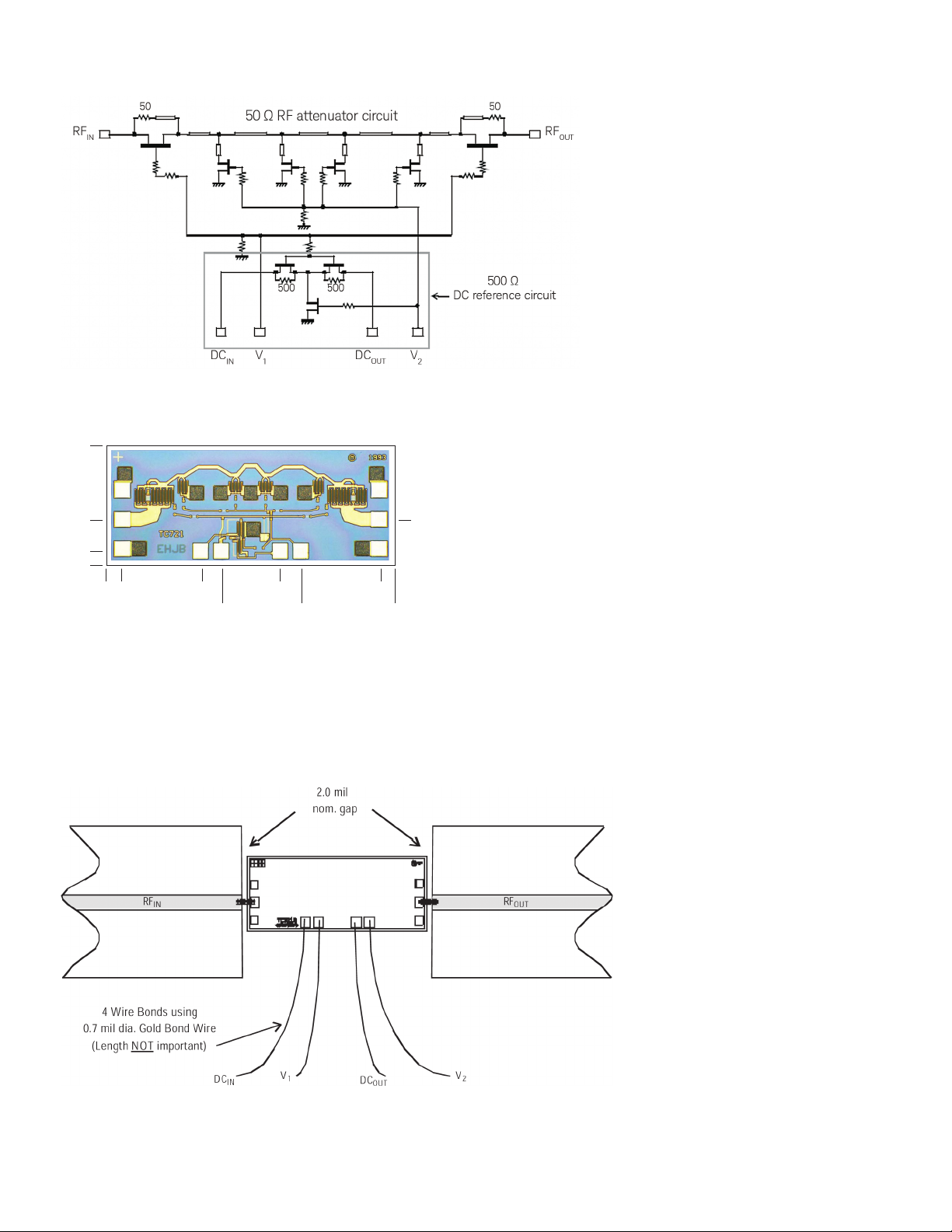

Figure 1. Schematic
610
RF
IN
70
0
0 476
75
DC
IN
V1
584
DC
V2
OUT
887
994 1470
OUT
139 5
RF
233233
Notes:
1) All dimensions in microns and shown to center of bond pad.
2) DCin, V1, DC
3) RF input and output bonding pads are 60 x 70 microns.
, and V2 bonding pads are 75 x 75 microns.
out
4) Chip thickness: 127 ± 15 µm.
Figure 2. Bonding pad locations
Figure 3. Assembly diagram
Page 6
06 | Keysight | HMMC-1002 DC–50 GHz Variable Attenuator - Data Sheet
To
To
To
DC In
To
V
V
1

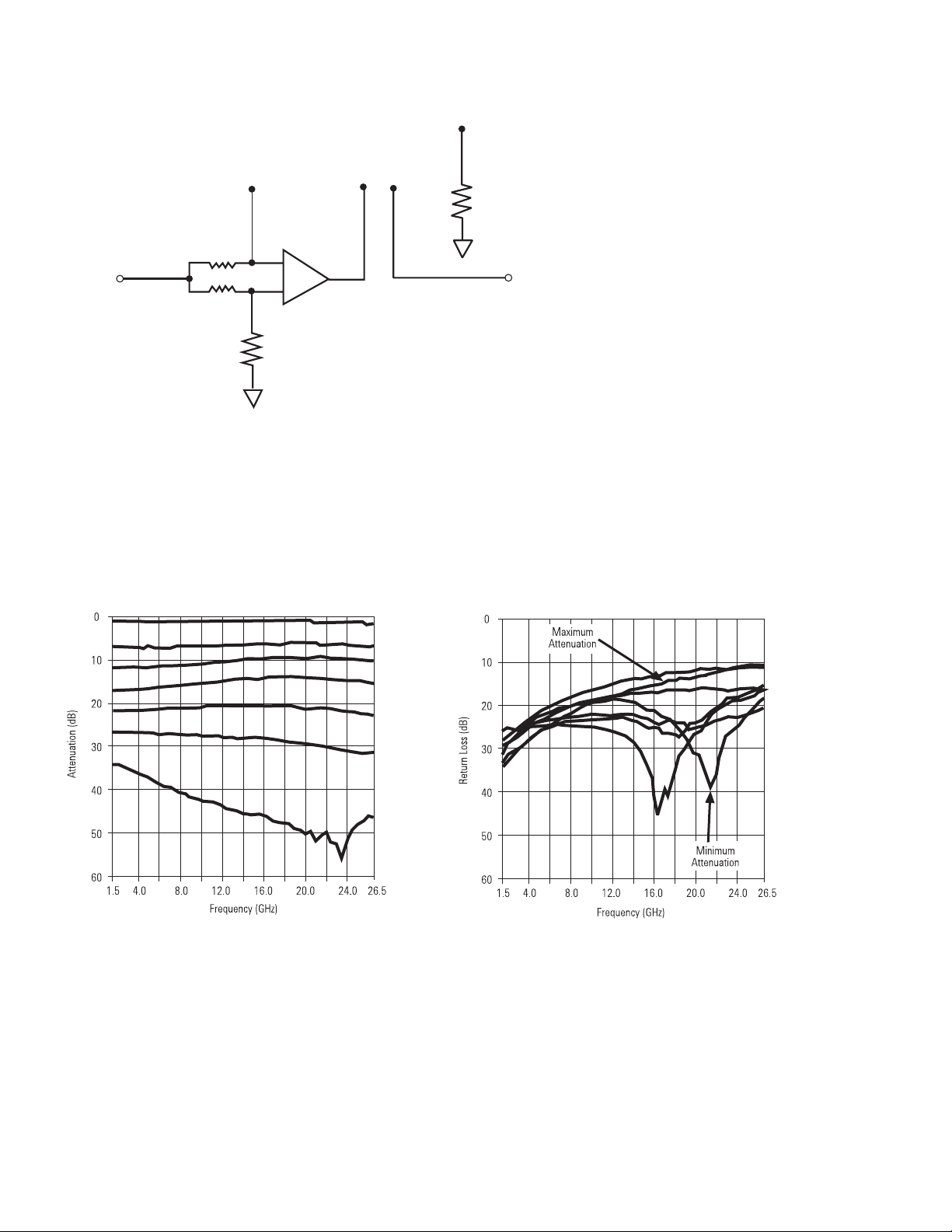

Figure 4. Attenuator driver
DC Out
2
R
L
(400W - 500Ω)
500 Ω
V
REF
(-.4V to -1.0V)
500 Ω
Typical Performance
Op. Amp
A
–
+
B
R
REF
(350Ω - 500Ω)
V
IN
(0V to -4.0V)
Figure 5. Attenuation vs. frequency
1
1. Data obtained from on-wafer measurements. T
chuck
= 25°C.
Figure 6. Output return loss vs. frequency
1
Page 7
07 | Keysight | HMMC-1002 DC–50 GHz Variable Attenuator - Data Sheet

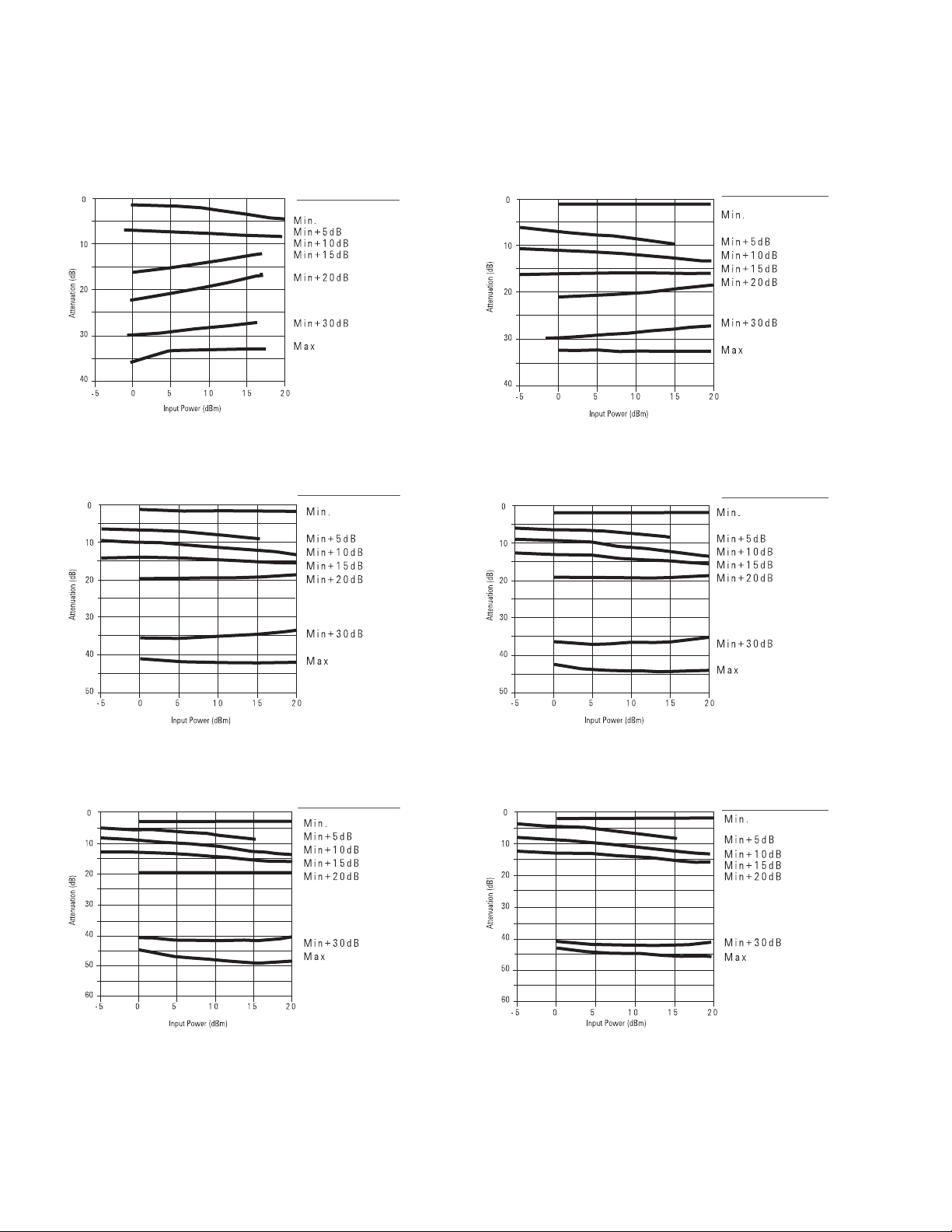

Typical Power Performance
(NOTE: All attenuation settings were done at 1 GHz)
Figure 7. Attenuation vs. input power @ 50.0 MHz
Attenuation setting
1
Attenuation setting
Figure 8. Attenuation vs. input power @ 2.0 GHz
Attenuation setting
1
Attenuation setting
Figure 9. Attenuation vs. input power @ 10.0 GHz
1
Attenuation setting
Figure 11. Attenuation vs. input power @ 18.0 GHz
1
1. Data taken with the device mounted in connectorized package
Figure 10. At tenuation vs. input power @ 14.0 GHz
Figure 12. At tenuation vs. input power @ 22.0 GHz
1
Attenuation setting
1
Page 8
08 | Keysight | HMMC-1002 DC–50 GHz Variable Attenuator - Data Sheet

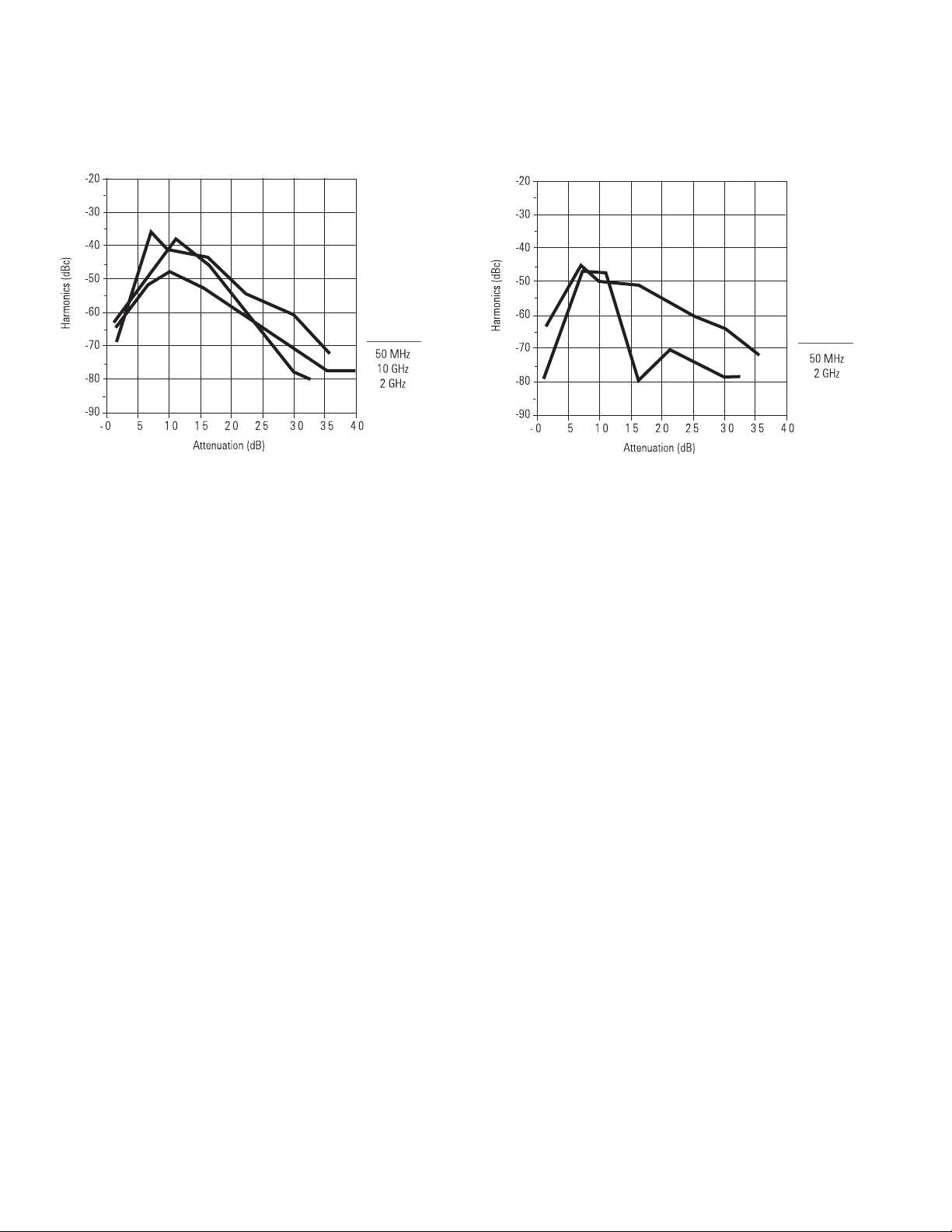

Typical Harmonic Performance
Fundamental
frequency
Figure 13. Second harmonic suppression vs. attenuation, input power = 0.0 dBm
1. Data taken with the device mounted in connectorized package
1
Figure 14. Third harmonic suppression vs. attenuation, input power = 0.0 dBm
Fundamental
frequency
1
Page 9
09 | Keysight | HMMC-1002 DC–50 GHz Variable Attenuator - Data Sheet

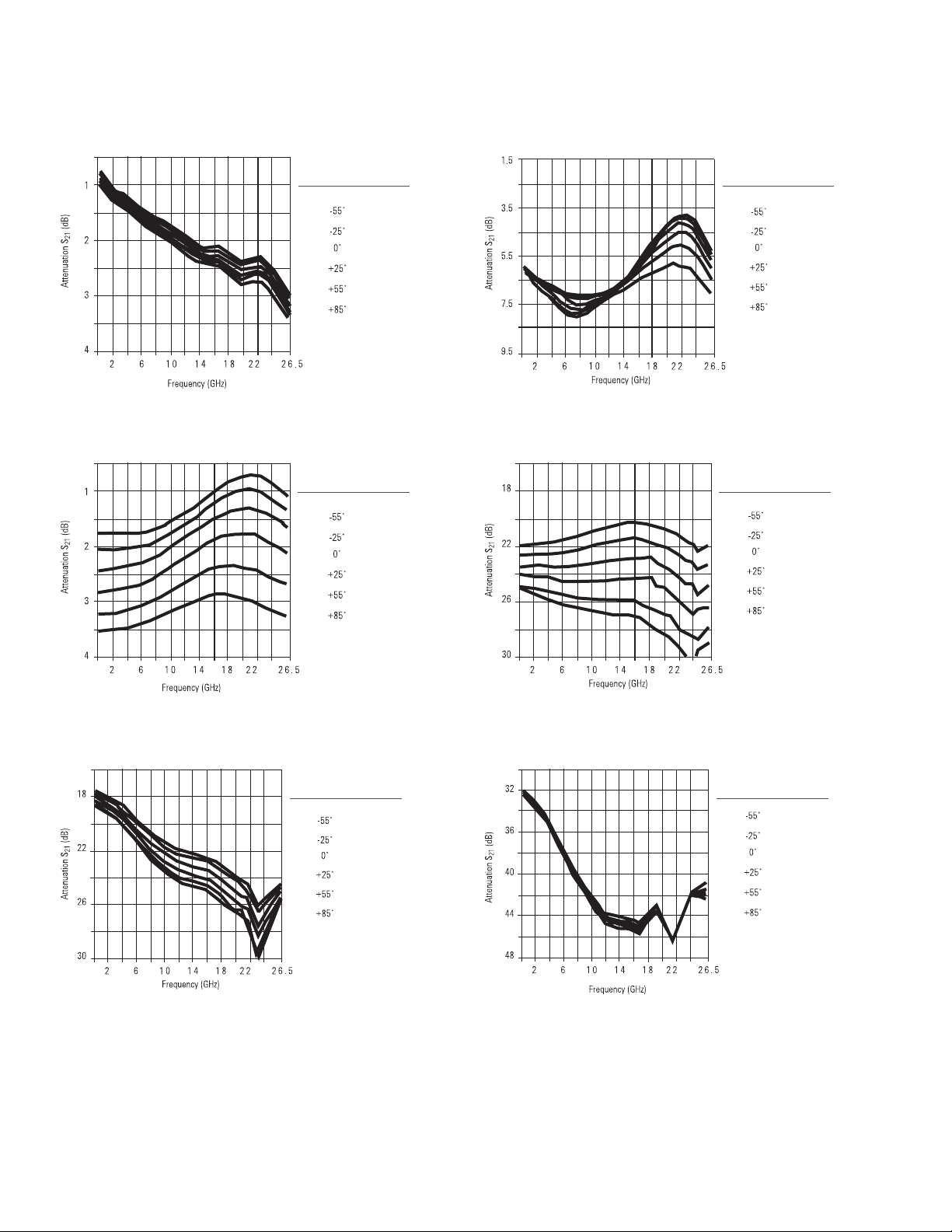

Typical Temperature Performance
Temperature setting Temperature setting
Figure 15. At tenuation vs. temperature @ minimum attenuation
Temperature setting Temperature setting
Figure 17. Attenuation vs. temperature @ 10 dB at tenuation
1
Temperature setting Temperature setting
1
Figure 16. At tenuation vs. temperature @ 5 dB attenuation
Figure 18. At tenuation vs. temperature @ 20 dB attenuation
1
1
Figure 19. At tenuation vs. temperature @ 30 dB attenuation
1
1. Data taken with the device mounted in connectorized package
Figure 20. Attenuation vs. temperature @ maximum attenuation
1
Page 10
10 | Keysight | HMMC-1002 DC–50 GHz Variable Attenuator - Data Sheet
This data sheet contains a variety of typical and guaranteed performance data.
The information supplied should not be interpreted as a complete list of circuit
specications. Customers considering the use of this, or other Keysight GaAs ICs,
for their design should obtain the current production
myKeysight
www.keysight.com/find/mykeysight
A personalized view into the information most relevant to you.
www.axiestandard.org
AdvancedTCA® Extensions for Instrumentation and Test (AXIe) is an
open standard that extends the AdvancedTCA for general purpose and
semiconductor test. Keysight is a founding member of the AXIe consortium.
www.lxistandard.org
LAN eXtensions for Instruments puts the power of Ethernet and the
Web inside your test systems. Keysight is a founding member of the LXI
consortium.
www.pxisa.org
PCI eXtensions for Instrumentation (PXI) modular instrumentation delivers a
rugged, PC-based high-performance measurement and automation system.
Three-Year Warranty
www.keysight.com/find/ThreeYearWarranty
Keysight’s commitment to superior product quality and lower total cost
of ownership. The only test and measurement company with three-year
warranty standard on all instruments, worldwide.
Keysight Assurance Plans
www.keysight.com/find/AssurancePlans
Up to five years of protection and no budgetary surprises to ensure your
instruments are operating to specification so you can rely on accurate
measurements.
www.keysight.com/quality
Keysight Technologies, Inc.
DEKRA Certified ISO 9001:2008
Quality Management System
Keysight Channel Partners
www.keysight.com/find/channelpartners
Get the best of both worlds: Keysight’s measurement expertise and product
breadth, combined with channel partner convenience.
For more information on Keysight
Technologies’ products, applications or
services, please contact your local Keysight
office. The complete list is available at:
www.keysight.com/find/contactus
Americas
Canada (877) 894 4414
Brazil 55 11 3351 7010
Mexico 001 800 254 2440
United States (800) 829 4444
Asia Pacic
Australia 1 800 629 485
China 800 810 0189
Hong Kong 800 938 693
India 1 800 112 929
Japan 0120 (421) 345
Korea 080 769 0800
Malaysia 1 800 888 848
Singapore 1 800 375 8100
Taiwan 0800 047 866
Other AP Countries (65) 6375 8100
Europe & Middle East
Austria 0800 001122
Belgium 0800 58580
Finland 0800 523252
France 0805 980333
Germany 0800 6270999
Ireland 1800 832700
Israel 1 809 343051
Italy 800 599100
Luxembourg +32 800 58580
Netherlands 0800 0233200
Russia 8800 5009286
Spain 0800 000154
Sweden 0200 882255
Switzerland 0800 805353
Opt. 1 (DE)
Opt. 2 (FR)
Opt. 3 (IT)
United Kingdom 0800 0260637
For other unlisted countries:
www.keysight.com/find/contactus
(BP-06-23-14)
This information is subject to change without notice.
© Keysight Technologies, 2013 - 2014
Published in USA, August 3, 2014
5989-6201EN
www.keysight.com
Loading...
