Page 1

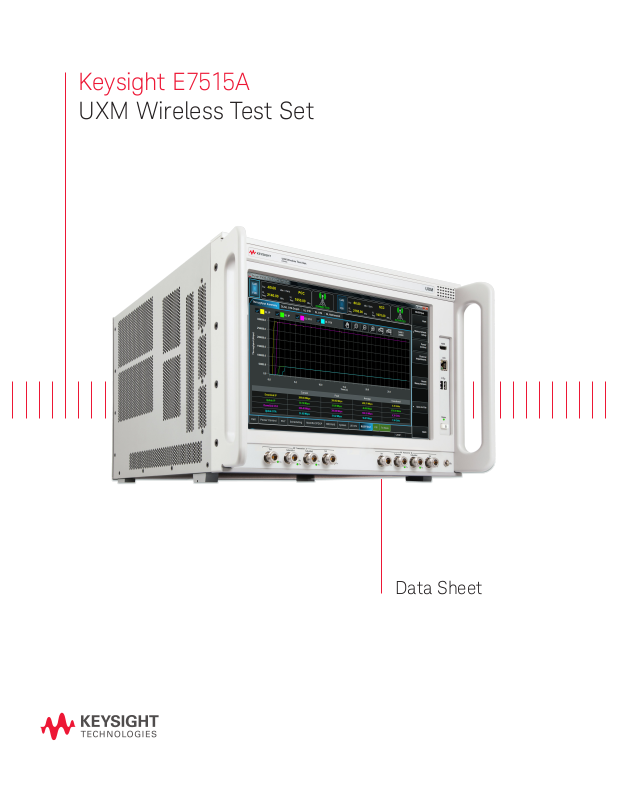

Keysight E7515A
UXM Wireless Test Set
Data Sheet
Page 2
02 | Keysight | E7515A UXM Wireless Test Set - Data Sheet
Make a Clear Call
The team looks to you: will a new chipset or UE pass the crucial tests? Clarity comes
from accumulated insights, and that’s the idea behind the Keysight Technolgies, Inc.
UXM wireless test set. The UXM is the most highly integrated signaling test set created
for functional and RF design validation in the 4G era and beyond. It provides the capabilities you need to test the newest designs, delivering LTE-Advanced category 7 now
and handling increasingly complex test cases in the future. When the team counts on
you, count on the UXM to help you assess design readiness with greater condence and
make a clear call.
Denitions and Conditions
Specication
Specications describe the performance parameters covered by the product warranty
and are valid from 15 to 35 °C unless otherwise noted.
Typical
Typical describes additional product performance information that is not covered by the
product warranty. It is performance beyond specications that 95 percent of the units
exhibit with a 95 percent condence level. This data, shown in italics, does not include
measurement uncertainty, and is valid only at room temperature, 23 °C.
Nominal
Nominal values indicate expected performance, or describe product performance that is
useful in the application of the product, but are not covered by the product warranty.
The test set will meet its specications when
– The test set is within its calibration cycle
– The test set has been stored at an ambient temperature within the allowed operating
range for at least two hours before being turned on; if it had previously been stored
at a temperature range inside the allowed storage range, but outside the allowed
operating range
– The test set has been turned on for at least 30 minutes
Page 3
03 | Keysight | E7515A UXM Wireless Test Set - Data Sheet
Vector Signal Analyzer Performance
Frequency and time specication
Operating frequency range
E7517A-504
E7515A-506
Frequency setting resolution 100 kHz
Frequency accuracy See Timebase specications
VSWR all RF inputs
300 MHz to 2.0 GHz
> 2.0 to 5.0 GHz
> 5.0 to 6.0 GHz
Amplitude and range specications
CW level accuracy (–65 to +8 dBm)
300 MHz to 3.5 GHz
> 3.5 to 6.0 GHz
Level atness ±0.3 dB typical over 100 MHz bandwidth
Noise oor
For combined Tx and Rx
For separate Tx and Rx
Residual responses
< –100 dBm
< –90 dB below power setting
Spurious responses
300 MHz to 3.3 GHz
> 3.3 to 6.0 GHz
Inherent EVM, input signal
–39 to +30 dBm, 20 MHz, 64QAM OFDM 2% RMS typical over 20 MHz bandwidth
Phase noise –90 dBc/Hz at 10 kHz offset nominal
Maximum CW input level at connectors
TxRx1 and TxRx2 +33 dBm nominal
300 MHz to 3.9 GHz
300 MHz to 6.0 GHz
1.4 nominal
1.5 nominal
1.8 nominal
±0.5 dB typical
±0.8 dB typical
< –140 dBm/Hz nominal
< –150 dBm/Hz nominal
< –10 dBm nominal
< –10 dBm nominal
< –55 dBm nominal
< –40 dBm nominal
Page 4
04 | Keysight | E7515A UXM Wireless Test Set - Data Sheet
Vector Signal Generator Performance
Frequency and time specication < +30 dBm nominal
Operating frequency range
E7515A-504
E7515A-506
Frequency setting resolution 100 kHz
Frequency accuracy See Timebase specications
VSWR all RF inputs
300 MHz to 2.0 GHz
> 2.0 to 5.0 GHz
> 5.0 to 6.0 GHz
Amplitude and range specications
CW output power range
TxRx1, TxRx2
Tx1, Tx2
300 MHz to 5.0 GHz
5.0 to < 6.0 GHz
CW output level accuracy (TxRx1, TxRx2 and Tx1, Tx2)
300 MHz to 3.5 GHz
> 3.5 to 6.0 GHz
Output level setting resolution 0.1 dB
Output level settling time ± 1.0 dB within 25 µs nominal
Output atness ± 0.3 dB typical over 100 MHz bandwidth
Residual EVM: peak-to-average ratios less than 15 dB 2% typical over 20 MHz bandwidth
Adjacent channel power ≤ –45 dBc nominal
Carrier feed through (IQ mismatch) < –40 dBc of DAC full scale nominal
Harmonics
Attenuation of 2
nd
harmonic TxRx1, TxRx2
300 MHz to 4.0 GHz, power < –10 dBm
> 4.0 to 6.0 GHz, power < –10 dBm
Attenuation of 2
nd
harmonic Tx1, Tx2
300 MHz to 4.0 GHz, power < 0 dBm
> 4.0 to 6.0 GHz, power < 0 dBm
Attenuation of 3
nd
harmonic TxRx1, TxRx2
300 MHz to 3.0 GHz, power < –10 dBm
> 3.0 to 6.0 GHz, power < –10 dBm
Attenuation of 3
rd
harmonic Tx1, Tx2
300 MHz to 3.0 GHz, power < 0 dBm
> 3.0 to 6.0 GHz, power < 0 dBm
Attenuation of non-harmonics TxRx1, TxRx2
300 MHz to 6.0 GHz, –10 dBm > power > –40 dBm > 40 dB nominal
Attenuation of non-harmonics Tx1, Tx2
300 MHz to 6.0 GHz, –10 dBm > power > –40 dBm > 40 dB nominal
I/Q image rejection < –40 dB in 20 MHz bandwidth nominal
Phase noise –90 dB at 10 kHz of fset nominal
Maximum reverse power
TxRx1, TxRx2
Tx1, Tx2
300 MHz to 3.9 GHz
300 MHz to 6.0 GHz
1.4 nominal
1.5 nominal
1.8 nominal
–110 to –7 dBm nominal
–110 to +7 dBm nominal
–110 to +5 dBm nominal
± 0.5 dB typical
± 0.8 dB typical
(or the absolute limit of –50 dBm/MHz)
> 30 dB nominal
> 45 dB nominal
> 30 dB nominal
> 45 dB nominal
> 40 dB nominal
> 55 dB nominal
> 40 dB nominal
> 55 dB nominal
< +33 dBm nominal
< +30 dBm nominal
Page 5
05 | Keysight | E7515A UXM Wireless Test Set - Data Sheet
Instrument Specications
Input power requirements
Voltage and frequency 100/120/220/240 VAC, 50/60 Hz, nominal
Power consumption 1100 W max
Size and weight
Dimensions (H x W x L)
Without feet and handles
With feet and handles
Weight
1-c ell
2-cell
Operating temperature 5 to 45 °C, 30 g/m³ absolute humidity, 5 to 85% non-condensing relative humidity
Storage temperature 40 to +65 °C, 50 g/m³ absolute humidity, 5 to 85% non-condensing relative humidity
Altitude Up to 2000 m
Radiated leakage due to RF generator < 2.5 µV induced in a resonant dipole antenna one inch from any surface except the under-
EMC Complies with European EMC Directive 2004/108/EC
Mechanical resistance EN60068-2-6, EN60068-2-27, EN60068-2-64
Safety Complies with European Low Voltage Directive 2006/95/EC
RF connections
Tx1, Tx2 N-type female, 50 Ω nominal
TxRx1, TxRx2 N-type female, 50 Ω nominal
Other connectors and interfaces
Display/Manual user interface 15.4 in (391 mm) active matrix, color, 1280 x 800 pixel resolution TFT-LCD at panel dis-
USB ports
Front panel
Rear
LAN (local area network) ports One external, 1 Gbps, LAN port rear panel
305 mm x 435 mm x 445 mm
321 mm x 435 mm x 504 mm
33 kg
36 kg
side and rear panel set RF generator output frequency and output level of –40 dBm typical
– IEC/EN 61326-1
– CISPR Pub 11 Group 1, class A
– AS/NZS CISPR 11
– ICES/NMB-001
– This ISM device complies with Canadian ICES-001.
Cet appareil ISM est conforme a la norme NMB-001 du Canada.
– 급 기기 (업무용 방송통신기 자재)
이기기는 업무용(A급) 전자파 적합기기로서 판매자 또는 사용자는 이 점을
주의하시기 바라며, 가정외의 지역에서 사용하는 것을 목적으로 합니다.
– IEC/EN 61010-1, 3rd edition
– Canada: CAN/CSA C22.2 No. 61010-1012
– USA: UL std no. 61010-1, 3rd Edition
– Acoustic statement (European Machinery Directive 2002/42/EC, 1.7.4.2u)
Acoustic noise emission, LpA <70 dB, Operator position, Normal operation mode, Per
ISO 7779
play with touch panel controls; single-touch capacitive touch-screen; HDMI port
2 USB 2.0 ports
2 USB 2.0 ports
One external, 1 Gbps, LAN port front panel
Page 6
06 | Keysight | E7515A UXM Wireless Test Set - Data Sheet
Instrument Specications (continued)
Digital data acquisition
General memory budgets and considerations
RCB available memory
Memory allocation for digital acquisition
Basic acquisitions
IQ data acquisition channels
Samples rates
Maximum sample storage
Fixed size buffers per channel and allocation
Single or dual channel (RF Carrier)
Single or dual channel (RF Input)
Maximum digitalized data size 128 MB per channel
Trigger control Immediate, event-based Ethernet
Source selection
RF Input (1 & 2)
RF Carrier (1 & 2)
Channel emulation
Antenna conguration 1x1, 1x2, 2x2, 4x2
3GPP LTE Rel 8 for RF fading proles Bypass
Gaussian noise generator
Independent channels 2
Antenna output No channel
Power spectral density
Combined Tx and Rx
Separate Tx and Rx
Digital frequency offset –49.6 to 49.6 MHz
Bandwidth selection
LTE 1.08, 2.7, 4.5, 9.0, 13.5, 18.0 MHz
Continuous wave generation
Independent channels 2
Antenna output No channel
Digital frequency offset –50 to 50 MHz
512 MB
256 MB
2 (one per BS Rx antenna)
30.72 MSa/s, 122.88 MSa/s
32 MSa per BS Rx antenna
30.72 MHz: 1092 ms
122.88 MHz: 273 ms
100 MHz bandwidth (122.88 MSa/s)
20 MHz bandwidth (30.72 MSa/s)
EPA 5
EVA 5
EVA 70
ETU 70
ETU 300
HST
CQI
Channel 1
Channel 2
Channel 1 and 2
–189 to –81 dBm/Hz
–179 to 71 dBm/Hz
Channel 1
Channel 2
Channel 1 and 2
Page 7
07 | Keysight | E7515A UXM Wireless Test Set - Data Sheet
Instrument Specications (continued)
Arbitrary wave generation
Independent channels 2
Antenna output No channel
Channel 1
Channel 2
Channel 1 and 2
Peak envelope power
Combined (300 MHz to 6 GHz)
Separate (300 Mhz to 5 GHz)
Separate (> 5 to 6 GHz)
Maximum waveform size 64 MB per channel
Time base
Standard frequency reference
Maximum frequency drift
Short term stability
Warm-up time
External clock time reference
Connector type SMA connector SYNC IN, rear panel
Frequency
Sine wave
Square wave (greater than 40% ON duty cycle)
Input voltage range
Impedance
Format alignment trigger
External connector SMA Channel 0
Trigger duration congurable according format
LTE
Trigger offset delay In terms of 1/6 of the period of the sample
Trigger period congurable according format
LTE 1 to 10240 packets
Generic trigger
External connector SMA Channel 1, 2, 3 (Input, Output)
Arm channel for receiving trigger Only input channels
External trigger generation Only output channels
Warranty and calibration
Standard warranty Three years
Recommended calibration cycle One year
–110 to +7 dBm
–110 to +7 dBm
–110 to +5 dBm
± 0.7 ppm/year
± 0.005 ppm
1 minute to be ± 0.1 ppm at 25 ºC
10 MHz
10 MHz
0.4 to 2 Vpp
50 Ω nominal
Where samples resolution = (1/30.72) x 10
0 to 30719 samples
-6
Page 8
08 | Keysight | E7515A UXM Wireless Test Set - Data Sheet
LTE FDD Measurements
Modulation and channels
Signal structure FDD frame structure Type 1
Signal bandwidth 1.4, 3, 5, 10, 15, 20 MHz
LTE power measurements
Level range (BW 20 MHz, OFDM, 64QAM) –45 to +30 dBm, RMS
LTE channel power accuracy
300 MHz to 3.5 GHz, input amplitude
≥ 3.5 to 6.0 GHz
LTE adjacent channel power
E-UTRA
UTRA
LTE spectrum emissions mask < –60 dB nominal
LTE occupied bandwidth
1.4, 3 MHz
5, 10 MHz
15, 20 MHz
LTE Tx On/Off level accuracy ± 1.5 dB nominal
LTE frequency and EVM
Frequency error ± 15 Hz nominal
EVM See General Analyzer specication
± 0.5 dB nominal
± 1.3 dB nominal
> 50 dB nominal
> 52 dB nominal
30 kHz nominal
100 kHz nominal
100 kHz nominal
LTE TDD Measurements
Modulation and channels
Signal structure FDD frame structure Type 2
Signal bandwidth 1.4, 3, 5, 10, 15, 20 MHz
LTE power measurements
Level range (BW 20 MHz, OFDM, 64QAM) –45 to +30 dBm, RMS
CW channel power level accuracy
300 MHz to 3.5 GHz, input amplitude
> 3.5 to 6.0 GHz
LTE adjacent channel power
E-UTRA
UTRA
LTE spectrum emissions mask < –60 dB nominal
LTE occupied bandwidth
1.4, 3 MHz
5, 10 MHz
15, 20 MHz
LTE Tx On/Off level accuracy ± 1.5 dB nominal
LTE frequency and EVM
Frequency error ± 15 Hz nominal
EVM See General Analyzer specication
± 0.5 dB nominal
± 1.3 dB nominal
> 50 dB nominal
> 52 dB nominal
30 kHz nominal
100 kHz nominal
100 kHz nominal
Page 9
09 | Keysight | E7515A UXM Wireless Test Set - Data Sheet
myKeysight
www.keysight.com/find/mykeysight
A personalized view into the information most relevant to you.
Three-Year Warranty
www.keysight.com/find/ThreeYearWarranty
Keysight’s commitment to superior product quality and lower total cost
of ownership. The only test and measurement company with three-year
warranty standard on all instruments, worldwide.
Keysight Assurance Plans
www.keysight.com/find/AssurancePlans
Up to five years of protection and no budgetary surprises to ensure your
instruments are operating to specification so you can rely on accurate
measurements.
www.keysight.com/quality
Keysight Technologies, Inc.
DEKRA Certified ISO 9001:2008
Quality Management System
www.keysight.com/find/uxm
www.keysight.com/find/e7515a
For more information on Keysight
Technologies’ products, applications or
services, please contact your local Keysight
office. The complete list is available at:
www.keysight.com/find/contactus
Americas
Canada (877) 894 4414
Brazil 55 11 3351 7010
Mexico 001 800 254 2440
United States (800) 829 4444
Asia Pacic
Australia 1 800 629 485
China 800 810 0189
Hong Kong 800 938 693
India 1 800 112 929
Japan 0120 (421) 345
Korea 080 769 0800
Malaysia 1 800 888 848
Singapore 1 800 375 8100
Taiwan 0800 047 866
Other AP Countries (65) 6375 8100
Europe & Middle East
Austria 0800 001122
Belgium 0800 58580
Finland 0800 523252
France 0805 980333
Germany 0800 6270999
Ireland 1800 832700
Israel 1 809 343051
Italy 800 599100
Luxembourg +32 800 58580
Netherlands 0800 0233200
Russia 8800 5009286
Spain 0800 000154
Sweden 0200 882255
Switzerland 0800 805353
Opt. 1 (DE)
Opt. 2 (FR)
Opt. 3 (IT)
United Kingdom 0800 0260637
For other unlisted countries:
www.keysight.com/find/contactus
(BP-07-01-14)
This information is subject to change without notice.
© Keysight Technologies, 2014
Published in USA, July 31, 2014
5991-4634EN
www.keysight.com
Loading...
