Keysight E5810B
LAN/GPIB/USB
Gateway
Quick Start Guide

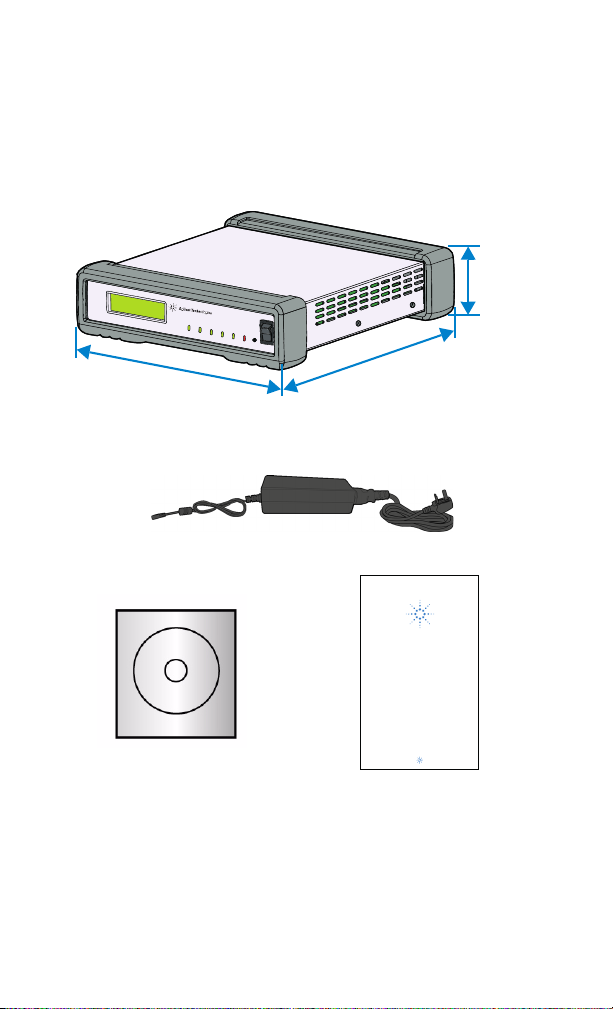

E5810B LAN/GPIB/USB Gateway
60 mm
238 mm
226.5 mm
Agilent E5810B
LAN/GPIB/USB
Gateway
Quick Start Guide
Agilent Technologies
Power cord and adapter
Keysight Automation-Ready
CD with Keysight IO Libraries
Suite
Printed Quick Start Guide
(this manual)
Standard Shipped Items
Standard Shipped Items
E5810B
LAN/GPIB/USB Gateway
POWER
LAN
GPIB
USB
RS232
l
FAULT
PRESET
o
Keysight E5810B LAN/GPIB/USB Gateway
2 E5810B Quick Start Guide
E5810B LAN/GPIB/USB Gateway
2345 78
9
1
6
162738495
123 4 5
14253
NOTE
Front Panel at a Glance
E5810B
LAN/GPIB/USB Gateway
GPIB USB RS232LAN FAULT POWER
Front panel display RS-232 LED indicator
Power LED indicator FAULT LED indicator
LAN LED indicator Preset button
GPIB LED indicator Power ON/OFF switch
USB LED indicator
Back Panel at a Glance
Front Panel at a Glance
l
o
PRESET
+12VDC
LAN
2.0A
RS232
1
956
GPIB
1
13
N10149
ICES/NMB-001
ISM GRP 1-A
KCC-REM-ATi-
WCIOP
DC power port RS-232 port
LAN port GPIB port
USB port
For the complete list of all the functions and descriptions, refer
to Chapter 1, “E5810B Description” in the E5810B
User’s Guide.
E5810B Quick Start Guide 3
E5810B LAN/GPIB/USB Gateway
Before Installing the E5810B
Before Installing the E5810B
Check your PC
The E5810B is supported on the following operating systems.
• Windows® XP
• Windows Vista
• Windows 7
• Windows 8
• Windows Server 2008 R2
• Windows Server 2012
Microsoft® Internet Explorer 6 or greater is required (Internet
Explorer 7 or greater is recommended for Windows Vista,
Windows 7, Windows 8, Windows Server 2008 R2, and
Windows Server 2012).
Rack-mount the E5810B (optional)
You can mount the E5810B on a standard EIA rack using the
Rack Mount Kit (E5810-00100) or equivalent. The E5810B is
one standard half-rack unit wide and one standard rack unit
high. Refer to the Rack Mount Installation Note (
for more information.
E5810B related documentation
• Keysight E5810B LAN/GPIB/USB Gateway User's Guide
(E5810-90004) contains more detailed information on the
E5810B configurations, installation process, and
troubleshooting.
• Keysight IO Libraries Suite Quick Start Guide
description of the Keysight IO Libraries Suite.
• Keysight IO Libraries Suite Help
information on the Keysight IO Libraries Suite.
• Keysight VISA Help
Instrument Software Architecture (VISA) library.
• Keysight SICL Help
Instrument Control Library (SICL) for Windows.
[1]Click the IO icon on the Windows taskbar notification area and
select Documentation to obtain the related documentation.
®
[1]
describes the Keysight Virtual
[1]
describes the Keysight Standard
E5810-99100)
[1]
provides a
[1]
provides detailed usage
4 E5810B Quick Start Guide
E5810B LAN/GPIB/USB Gateway
To G P IB i ns tr u me nt
E5810B
To RS-232 instrument
To U S BT M C i ns t ru me nt
To AC power
Router/switch/hub
To a P C
To a P C
To an E nt e rp r i se
network
To a P C
NOTE
Installing the E5810B
Connect the E5810B to the network
Installing the E5810B
+12VDC
LAN
2.0A
RS232
1
956
GPIB
KCC-REM-ATi-
WCIOP
1
N10149
13
ICES/NMB-001
ISM GRP 1-A
The figure above shows a typical network and instrument
connections for the E5810B.
Before connecting the E5810B to an Enterprise network, you
will need to get some network configuration and network
addressing parameters from the system administrator in your
IT department.
Refer to “Network information" on page 6 for the
suggested steps.
E5810B Quick Start Guide 5
E5810B LAN/GPIB/USB Gateway
NOTE
Installing the E5810B
Network information
Before connecting the E5810B to an Enterprise network,
obtain the E5810B serial number and Ethernet (MAC) address
printed on a label at the bottom panel of the E5810B. Fill up the
information in the E5810B LAN/GPIB/USB Gateway
Information as shown below.
E5810B LAN/GPIB/USB Gateway Information
Serial number: ____________________________
Ethernet (MAC) address: ____________________________
Default values
(for system administrator)
Provide this information to your system administrator and
request for the Enterprise network information as
shown below.
Enterprise Network Information
Does the network support DHCP? Yes ____ No ____
If No, provide – IP address (static): _____._____._____._____
Subnet mask: _____._____._____._____
Gateway IP address: _____._____._____._____
Does the network support DNS? Yes ____ No ____
If Yes, provide – E5810B hostname: _____________________
DNS server (IP address) _____._____._____._____
DHCP: Enabled at power-on
Hostname: No hostname configured
If the Enterprise network does not support DHCP, refer to
“Configure the E5810B using a local network" on page 10 to
configure the E5810B using a local network.
6 E5810B Quick Start Guide

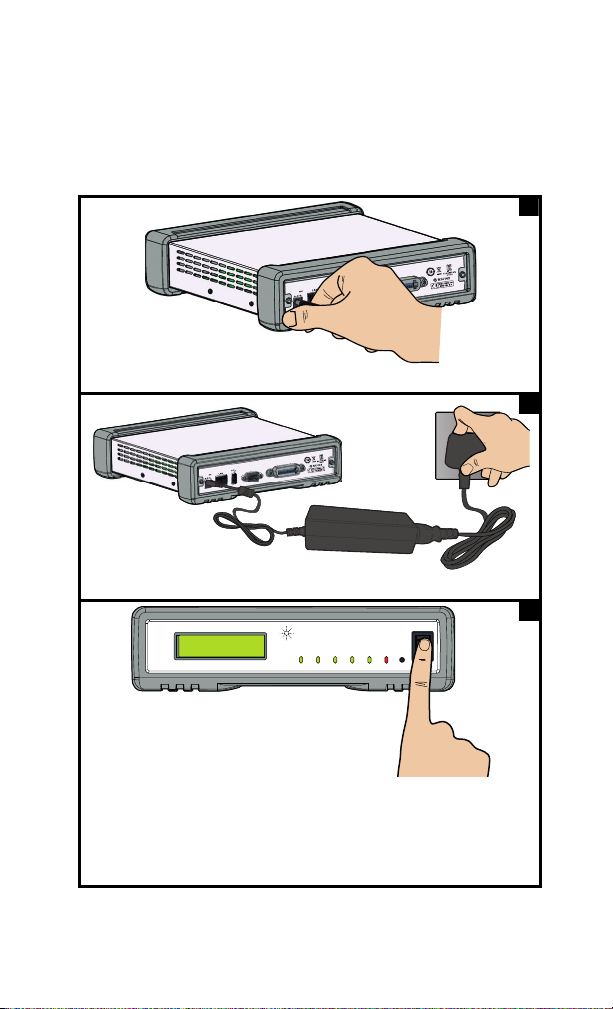

Power-on the E5810B
GPIB
RS232
+12VDC
2.
0A
Plug the E5810B power adapter to the E5810B DC power port.
1
GPIB
RS232
+12VDC
2.
0A
Plug the power cord into an AC outlet and switch on the AC outlet.
2
Press the Power ON/OFF switch to power on the E5810B.
The E5810B will start to search for a DHCP server, and an IP address
will be displayed on the front panel display.
If there is no IP address displayed, refer to “Troubleshooting the
E5810B" on page 17.
3
E5810B LAN/GPIB/USB Gateway
Installing the E5810B
E5810B
GPIB USB RS232LAN FAULT POWER
LAN/GPIB/USB Gateway
l
o
PRESET
E5810B Quick Start Guide 7
E5810B LAN/GPIB/USB Gateway
NOTE
Configuring the E5810B
Configuring the E5810B
Display the E5810B Welcome page
Go to your Web browser and type http://<hostname> or
http://<IP address> at the address line.
<hostname> The host name (if known) of the E5810B.
<IP address> The current E5810B IP address
(for example 169.254.58.10) is displayed
on the E5810B front panel display.
If the E5810B Welcome page does not display correctly, you
may need to change your Web browser settings.
Refer to Chapter 4, “Checking the Web browser settings” in
the E5810B User’s Guide for more information.
8 E5810B Quick Start Guide
E5810B LAN/GPIB/USB Gateway
1
2
4
3
123
4
Configuring the E5810B
Verify instrument communication
Select Find & Query Instruments from the E5810B Welcome
page and enter the password. The default password is E5810.
Select Find to list all the instruments connected to the E5810B.
The selected connected instrument will be highlighted.
Select Device Clear, *IDN?, Read STB, or SYS:ERR? to query the
selected connected instrument.
Display the responses from the predefined queries and
inputted commands.
Insert an instrument specific command in the Instrument
Command line to interact with the connected instrument. Select
Send, Receive, or Query as required.
E5810B Quick Start Guide 9
E5810B LAN/GPIB/USB Gateway
E5810B
Switch/hub
To a P C
Local Network Using a Switch or Hub
Local Network Using a Crossover Cable
E5810B
To a P C
LAN crossover cable
Configuring the E5810B
Configure the E5810B using a local network
If the Enterprise network does not support DHCP, the E5810B
will use the default static IP address (169.254.58.10) when
connected to the Enterprise network. This IP address may not
be available on the Enterprise network.
For correct operation on a non-DHCP Enterprise network, you
must first use a local network to configure the E5810B. There
are two typical local network configurations as shown below.
10 E5810B Quick Start Guide
+12VDC
2.0A
+12VDC
LAN
2.0A
LAN
RS232
1
956
RS232
1
956
GPIB
GPIB
KCC-REM-ATi-
WCIOP
1
N10149
13
ICES/NMB-001
ISM GRP 1-A
KCC-REM-ATi-
WCIOP
1
N10149
13
ICES/NMB-001
ISM GRP 1-A
E5810B LAN/GPIB/USB Gateway
1 Select View & Modify Configuration from the E5810B
Welcome page to display the E5810B current configuration.
2 Select Modify Configuration and enter the password to
configure the E5810B. The default password is E5810.
3 Set the DHCP setting to OFF, and update the IP Address,
Subnet Mask, and Default Gateway with the parameters
provided by your system administrator in “Network
information" on page 6.
4 If you are using Domain Name Server (DNS), enter the DNS
IP address and hostname provided by your system
administrator.
5 Select Save and then select Reboot E5810B to save
the configuration.
6 Disconnect the E5810B from the local network and connect
the E5810B to the Enterprise network.
Configuring the E5810B
E5810B Quick Start Guide 11
E5810B LAN/GPIB/USB Gateway
NOTE
Configuring Instruments via IO Libraries Suite
Configuring Instruments via IO Libraries Suite
Install Keysight IO Libraries Suite
You must have Administrator privileges to install Keysight IO
Libraries Suite Connection Expert.
You should install the Keysight IO Libraries Suite as your first
step before installing the hardware because it installs the
necessary software and drivers to control your instruments.
If possible, always use the most recent version of the Keysight
IO Libraries Suite. This version supports the newest interfaces
and operating systems, and has the most advanced features.
• Refer to the IO Libraries Web page at
www.keysight.com/find/iosuite or the IO Libraries
Suite Readme for the minimum system requirements.
• Insert the Keysight Automation-Ready CD in your CD-ROM
drive or download and install the IO Libraries software from
www.keysight.com/find/iosuite.
• You will see the IO icon on the Windows taskbar notification
area after the IO Libraries suite is successfully installed.
12 E5810B Quick Start Guide
Configuring Instruments via IO Libraries Suite
1
2
3
4
1
234
E5810B LAN/GPIB/USB Gateway
Configure a remote GPIB interface
1 Launch Keysight Connection Expert from the Start menu or
the Start Screen (Windows 8).
2 Select Add Interface > Remote GPIB to display the Remote
GPIB Interface dialog box.
Locate the E5810B on the local subnet.
Insert the hostname or the IP address shown on the E5810B
display to locate the E5810B if it is not located in the same subnet.
The interface name must be similar to the name shown in the GPIB
SICL Interface Name at the E5810B Welcome page.
Verify the connectivity and configuration. A message will be
displayed on the dialog box once the connection to the interface is
established and verified.
E5810B Quick Start Guide 13
E5810B LAN/GPIB/USB Gateway
1
2
3
4
1
2
3
4
Configuring Instruments via IO Libraries Suite
Configure a remote USB interface
1 Launch Keysight Connection Expert from the Start menu or
the Start Screen (Windows 8).
2 Select Add Interface > Remote USB to display the Remote
USB Interface dialog box.
Locate the E5810B on the local subnet.
Insert the hostname or the IP address shown on the E5810B
display to locate the E5810B if it is not located in the same subnet.
The interface name must be similar to the name shown in the USB
SICL Interface Name at the E5810B Welcome page.
Verify the connectivity and configuration. A message will be
displayed on the dialog box once the connection to the interface is
established and verified.
14 E5810B Quick Start Guide
Configuring Instruments via IO Libraries Suite
1
2
3
4
1
2
3
4
E5810B LAN/GPIB/USB Gateway

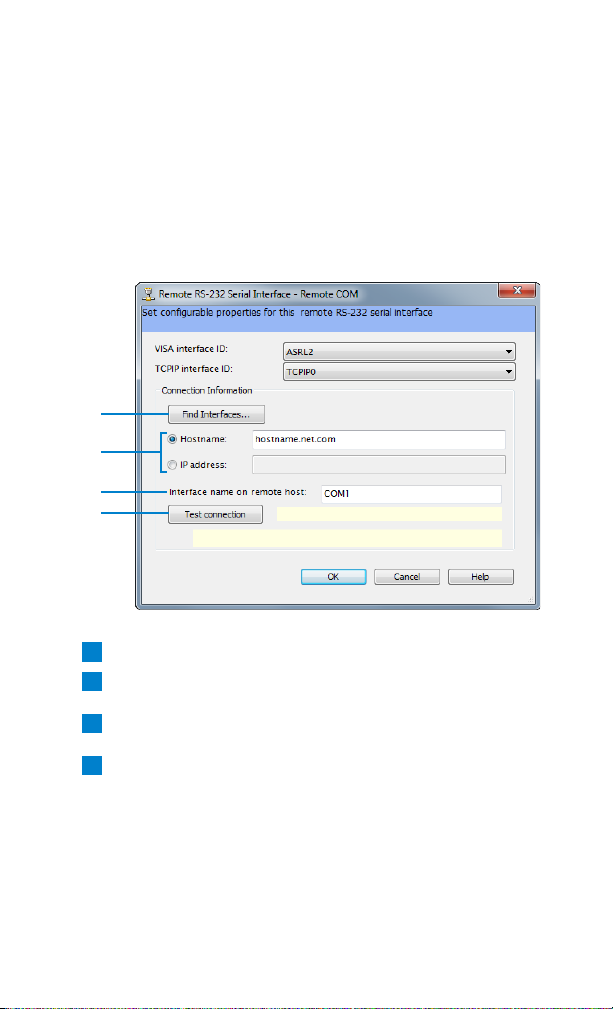

Configure a remote RS-232 serial interface
1 Launch Keysight Connection Expert from the Start menu or
the Start Screen (Windows 8).
2 Select Add Interface > Remote RS-232 to display the
Remote RS-232 Serial Interface dialog box.
Locate the E5810B on the local subnet.
Insert the hostname or the IP address shown on the E5810B
display to locate the E5810B if it is not located in the same subnet.
The interface name must be similar to the name shown in the
RS-232 SICL Interface Name at the E5810B Welcome page.
Verify the connectivity and configuration. A message will be
displayed on the dialog box once the connection to the interface is
established and verified.
E5810B Quick Start Guide 15
E5810B LAN/GPIB/USB Gateway
NOTE
Configuring Instruments via IO Libraries Suite
Verify instrument communication
1 Launch Keysight Connection Expert from the Start menu or
the Start Screen (Windows 8).
2 Right-click on the remote interface instrument and select
Send Commands To This Instrument to display the Keysight
Interactive IO dialog box.
3 Use the default command, *IDN? and select Send & Read to
query the remote interface instrument.
4 The remote interface instrument identification information
will appear on the Instrument Session History.
You can also program the remote interface instruments using
Keysight VISA, VISA COM, or SICL. Refer to “E5810B related
documentation" on page 4 for more information.
16 E5810B Quick Start Guide
E5810B LAN/GPIB/USB Gateway
Troubleshooting the E5810B
Troubleshooting the E5810B
Check the E5810B LED indicators
Status Possible cause Corrective action
All LEDs OFF No AC power to the E5810B. Check the AC power
Power – ON
FAULT – ON
Power – ON
LAN (back panel) –
OFF
Power – ON
LAN – ON (flashes)
GPIB, USB, and/or
RS-232 – OFF
(during instrument
activity)
If the FAULT LED indicator is
turned ON for more than 10
seconds, there may be
hardware failure.
No communication from the
PC to the E5810B using LAN.
There is communication from
the PC to the E5810B using
LAN. However, there is no
communication to the GPIB,
USB, or RS-232 instruments.
Check the network
connection.
Contact Keysight for
instructions to return
the E5810B.
Check the E5810B
LAN connection.
Check the GPIB, USB,
or RS-232 connection
and configuration.
Symptom Possible cause Corrective action
Cannot access
E5810B Web access
Improper network
installation.
Missing or improper
setup of network
addresses.
Check the network
installation or contact your
system administrator.
Refer to “Network
information" on page 6.
E5810B Quick Start Guide 17
E5810B LAN/GPIB/USB Gateway
Troubleshooting the E5810B
Symptom Possible cause Corrective action
Incorrect Web browser
settings.
Incorrect password. Unknown or forgotten
password.
Refer to Chapter 4,
“Checking the Web
browser settings” in the
E5810B User’s Guide for
more information.
Press the Preset button
>10 seconds to reset the
E5810B to the factory
default settings.
Check the connected instruments
Symptom Possible cause Corrective action
Unable to
communicate from
the E5810B Web
access
Unable to
communicate
programmatically
Intermittent or missing
GPIB, USB, and/or
RS-232 connection.
GPIB, USB, and/or
RS-232 device power is
not turned on or a
defective GPIB, USB,
and/or RS-232 device.
RS-232 interface is not
configured for the
attached device.
VISA/SICL is not
configured.
Incorrect VISA/SICL
address.
Check the GPIB, USB,
and/or RS-232 cable.
Ensure that the GPIB, USB,
and/or RS-232 device
power is turned on and the
device is operating properly.
Change the E5810B RS-232
interface attributes to
match the RS-232 device
attributes (baud rate
and parity).
Refer to the E5810B User’s
Guide for more information.
Check the VISA/SICL
address being used.
18 E5810B Quick Start Guide
www.keysight.com
Contact us
To obtain service, warranty, or technical
assistance, contact us at the following phone
or fax numbers:
United States:
(tel) 800 829 4444 (fax) 800 829 4433
Canada:
(tel) 877 894 4414 (fax) 800 746 4866
China:
(tel) 800 810 0189 (fax) 800 820 2816
Europe:
(tel) 31 20 547 2111
Japan:
(tel) 0120 (421) 345 (fax) 0120 (421) 678
Korea:
(tel) (080) 769 0800 (fax) (080) 769 0900
Latin America:
(tel) (305) 269 7500
Ta i w an :
(tel) 0800 047 866 (fax) 0800 286 331
Other Asia Pacific Countries:
(tel) (65) 6375 8100 (fax) (65) 6755 0042
Or visit Keysight World Wide Web at:
www.keysight.com/find/assist
Product specifications and descriptions in this
document are subject to change without
notice. Always refer to the Keysight Web site
for the latest revision.
This information is subject to change without notice.
© Keysight Technologies 2013, 2015
Edition 2, January 2015
*E5810-90002*
E5810-90002
www.keysight.com
Loading...
