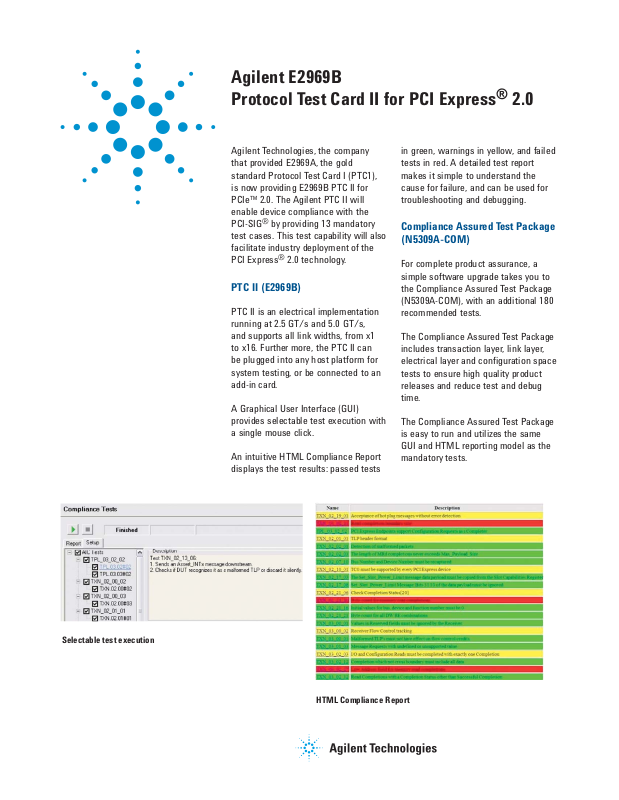

Keysight E2969B Datasheet

Agilent E2969B
Protocol Test Card II for PCI Express

®

2.0

Agilent Technologies, the company
that provided E2969A, the gold
standard Protocol Test Card I (PTC1),
is now providing E2969B PTC II for
PCIe™ 2.0. The Agilent PTC II will
enable device compliance with the
PCI-SIG® by providing 13 mandatory
test cases. This test capability will also
facilitate industry deployment of the
PCI Express® 2.0 technology.

PTC II (E2969B)

PTC II is an electrical implementation
running at 2.5 GT/s and 5.0 GT/s,
and supports all link widths, from x1
to x16. Further more, the PTC II can
be plugged into any host platform for
system testing, or be connected to an
add-in card.

A Graphical User Interface (GUI)
provides selectable test execution with
a single mouse click.

An intuitive HTML Compliance Report
displays the test results: passed tests

in green, warnings in yellow, and failed
tests in red. A detailed test report
makes it simple to understand the
cause for failure, and can be used for
troubleshooting and debugging.

Compliance Assured Test Package
(N5309A-COM)

For complete product assurance, a
simple software upgrade takes you to
the Compliance Assured Test Package
(N5309A-COM), with an additional 180
recommended tests.

The Compliance Assured Test Package
includes transaction layer, link layer,
electrical layer and configuration space
tests to ensure high quality product
releases and reduce test and debug
time.

The Compliance Assured Test Package
is easy to run and utilizes the same
GUI and HTML reporting model as the
mandatory tests.

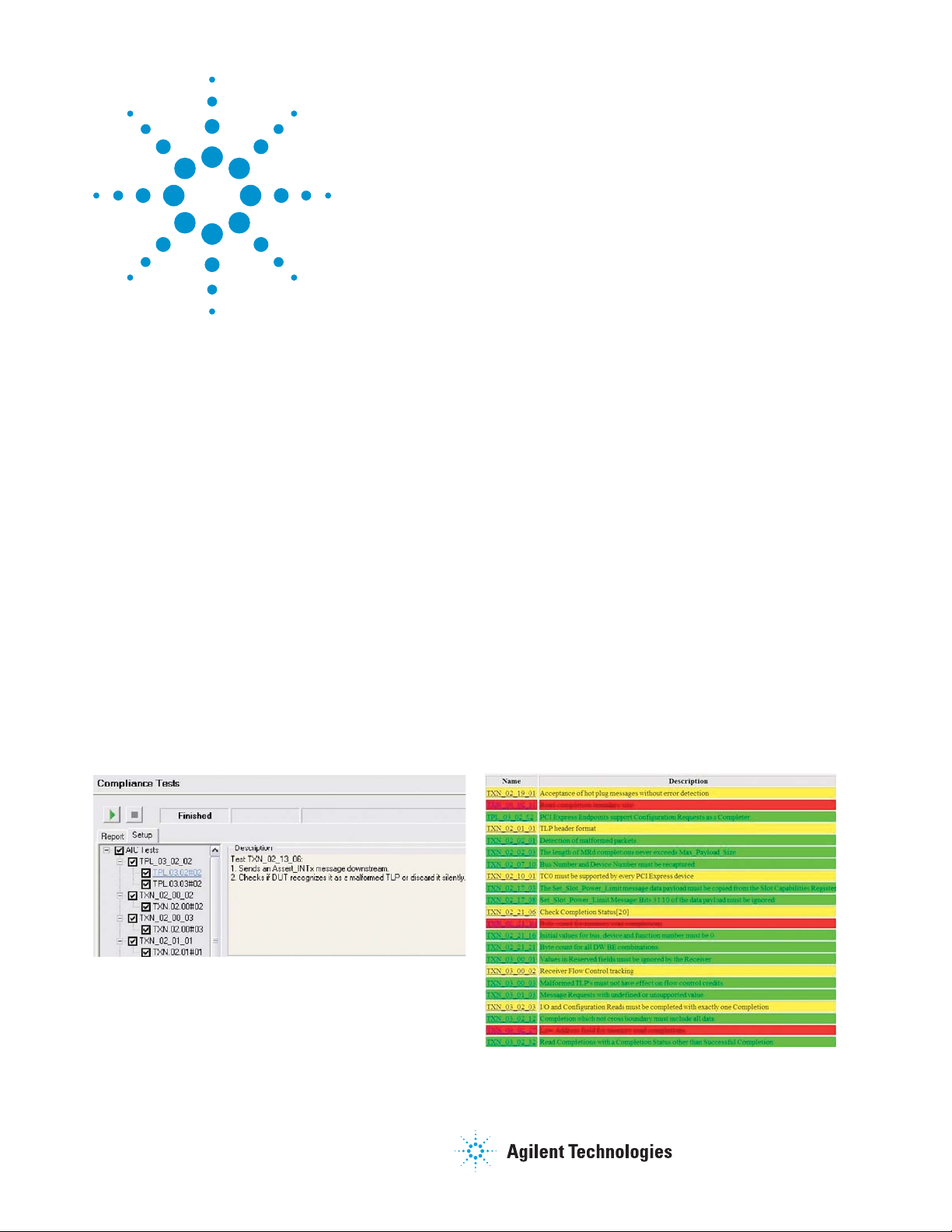

Selectable test execution

HTML Compliance Report

t

www.agilent.com

Simple upgrade use model

The same hardware can even become
a full exerciser and LTSSM Tester for
PCI Express 1.x or 2.0 with a simple
software upgrade. The LTSSM Tester
enables error injection and analysis
for the link and transaction layers. The
full exerciser also allows configuration
space emulation and power
management testing capabilities.

Configuration Guide

Product
number Description

E2969B Protocol Test Card 2.0

(includes N5309A-PTC
software for all 22 PCI-SIG
required tests)

Software options

N5309A-COM Compliance Assured Test

Package

N5309A-EX2 PCI Express 2.0 Exerciser

and LTSSM Tester

PCI Express, PCIe and PCI-SIG are registered trademarks of PCI-SIG.

Remove all doubt

Our repair and calibration services
will get your equipment back to you,
performing like new, when promised.
You will get full value out of your Agilent
equipment throughout its lifetime. Your
equipment will be serviced by Agilent­trained technicians using the latest
factory calibration procedures, automated
repair diagnostics and genuine parts. You
will always have the utmost confidence
in your measurements.

Agilent offers a wide range of additional
expert test and measurement services
for your equipment, including initial
start-up assistance, onsite education
and training, as well as design, system
integration, and project management.

For more information on repair and
calibration services, go to:

www.agilent.com/find/removealldoubt

Related literature

Publication title Publication type Publication number

The Agilent Test Portfolio for PCI Express 2.0

Agilent E2960B Series for PCI Express 1.0 & 2.0

Agilent E2960B Series for PCI Express 2.0

Agilent E2960B Series for PCI Express 2.0
x1 through x16 Gen 2 Ready Analyzer

Brochure 5989-5594EN

Brochure 5989-5610EN

Data Sheet 5989-5660EN

Photo Card 5989-6395EN
