Keysight Add 4-Port Capability User Manual

Keysight - Add 4-Port Capability
Upgrade Kit for
Version 6, Single-Source
Synthesizers

To Upgrade PNA N5224B or N5225B Option 219
to Option 419

Upgrade Kit Order Number: N5224BU-619 or
N5225BU- 619

Keysight Kit Number: N5225-60119

Installation Note

Notices

© Keysight Technologies, Inc. 2011 ­2020

No part of this manual may be
reproduced in any form or by any
means (including electronic storage
and retrieval or translation into a
foreign language) without prior
agreement and written consent from
Keysight Technologies, Inc. as
governed by United States and
international copyright laws.

Trademark Acknowledgments

Manual Part Number

N5225-90119

Edition

Edition 1, December 2020

Printed in USA/Malaysia

Published by:
Keysight Technologies

1400 Fountaingrove Parkway
Santa Rosa, CA 95403

Warranty

THE MATERIAL CONTAINED IN THIS
DOCUMENT IS PROVIDED “AS IS,”
AND IS SUBJECT TO BEING
CHANGED, WITHOUT NOTICE, IN
FUTURE EDITIONS. FURTHER, TO
THE MAXIMUM EXTENT PERMITTED
BY APPLICABLE LAW, KEYSIGHT
DISCLAIMS ALL WARRANTIES,
EITHER EXPRESS OR IMPLIED WITH
REGARD TO THIS MANUAL AND
ANY INFORMATION CONTAINED
HEREIN, INCLUDING BUT NOT
LIMITED TO THE IMPLIED
WARRANTIES OF
MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE.
KEYSIGHT SHALL NOT BE LIABLE
FOR ERRORS OR FOR INCIDENTAL
OR CONSEQUENTIAL DAMAGES IN
CONNECTION WITH THE
FURNISHING, USE, OR
PERFORMANCE OF THIS
DOCUMENT OR ANY INFORMATION
CONTAINED HEREIN. SHOULD
KEYSIGHT AND THE USER HAVE A
SEPARATE WRITTEN AGREEMENT
WITH WARRANTY TERMS
COVERING THE MATERIAL IN THIS

DOCUMENT THAT CONFLICT WITH
THESE TERMS, THE WARRANTY
TERMS IN THE SEPARATE
AGREEMENT WILL CONTROL.

Technology Licenses

The hardware and/or software
described in this document are
furnished under a license and may be
used or copied only in accordance
with the terms of such license.

U.S. Government Rights

The Software is “commercial
computer software,” as defined
by Federal Acquisition Regulation
(“FAR”) 2.101. Pursuant to FAR

12.212 and 27.405-3 and
Department of Defense FAR
Supplement (“DFARS”) 227.7202,
the U.S. government acquires
commercial computer software
under the same terms by which
the software is customarily
provided to the public.
Accordingly, Keysight provides
the Software to U.S. government
customers under its standard
commercial license, which is
embodied in its End User License
Agreement (EULA), a copy of
which can be found at

http://www.keysight.com/find/sweula

The license set forth in the EULA
represents the exclusive authority
by which the U.S. government
may use, modify, distribute, or
disclose the Software. The EULA
and the license set forth therein,
does not require or permit,
among other things, that
Keysight: (1) Furnish technical
information related to
commercial computer software
or commercial computer
software documentation that is
not customarily provided to the
public; or (2) Relinquish to, or
otherwise provide, the
government rights in excess of
these rights customarily provided
to the public to use, modify,
reproduce, release, perform,
display, or disclose commercial
computer software or
commercial computer software
documentation. No additional

government requirements
beyond those set forth in the
EULA shall apply, except to the
extent that those terms, rights, or
licenses are explicitly required
from all providers of commercial
computer software pursuant to
the FAR and the DFARS and are
set forth specifically in writing
elsewhere in the EULA. Keysight
shall be under no obligation to
update, revise or otherwise
modify the Software. With
respect to any technical data as
defined by FAR 2.101, pursuant
to FAR 12.211 and 27.404.2 and
DFARS 227.7102, the U.S.
government acquires no greater
than Limited Rights as defined in
FAR 27.401 or DFAR 227.7103-5
(c), as applicable in any technical
data.

Safety Notices

A CAUTION notice denotes a hazard. It
calls attention to an operating
procedure, practice, or the like that,
if not correctly performed or adhered
to, could result in damage to the
product or loss of important data. Do
not proceed beyond a CAUTION
notice until the indicated conditions
are fully understood and met.

A WARNING notice denotes a hazard.
It calls attention to an operating
procedure, practice, or the like that,
if not correctly performed or adhered
to, could result in personal injury or
death. Do not proceed beyond a
WARNING notice until the indicated
conditions are fully understood and
met.

Keysight Add 4-Port Capability Upgrade Kit
Upgrade Kit Number: N5225-60119

Installation Note

Description of the Upgrade

This upgrade converts your N5224B or N5225B Option 219 2-port analyzer to
an N5224B or N5225B Option 419 4-port analyzer by adding:

— an additional 26.5 GHz source board

— an additional 13.5 GHz source synthesizer board

— two additional 40 GHz doublers

—an additional mixer brick

— two additional receiver couplers and brackets

— two additional test port couplers

— two additional bias tees and brackets

— two additional source attenuators and brackets

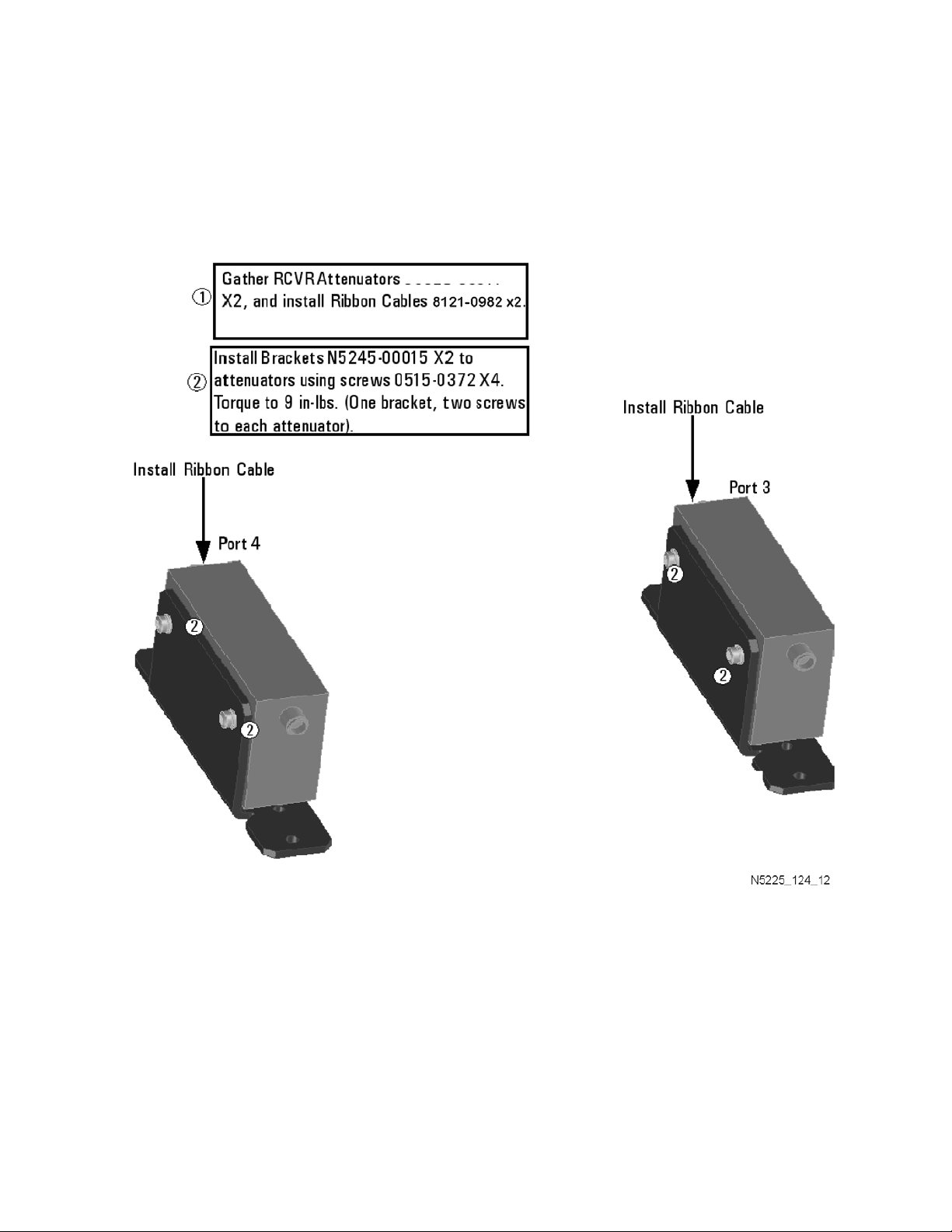

— two additional receiver attenuators and brackets

— an additional cable guard for front panel jumpers

—a splitter

— a 3 dB pad

— a modified front panel

— new cables

Refer to “Overview of the Installation Procedure” on page 15.

This repair must be done at a service center or a self-maintainer service
center! Refer to “Getting Assistance from Keysight” on page 4.

3

-

Getting Assistance from Keysight

Getting Assistance from Keysight

Installing this upgrade kit requires special skills and experience. If you think
you may not be qualified to do the work, or need advice, contact Keysight.

Contacting Keysight

Assistance with test and measurements needs and information on finding a
local Keysight office are available on the Web at:

http://www.keysight.com/find/assist

If you do not have access to the Internet, please contact your Keysight field
engineer.

In any correspondence or telephone conversation, refer to the Keysight
product by its model number and full serial number. With this information,
the Keysight representative can determine whether your product is still
within its warranty period.

If You Have Problems With the Upgrade Kit Contents

Keysight stands behind the quality of the upgrade kit contents. If you have
problems with any item in the kit, refer to www.keysight.com and the Contact

Keysight () link.

4 Installation Note N5225-90119

Getting Prepared

Getting Prepared

The PNA contains extremely sensitive components that can be ruined if
mishandled. Follow instructions carefully when making cable connections,
especially wire harness connections.

The person performing the work accepts responsibility for the full cost of
the repair or replacement of damaged components.

IMPORTANT!

— This document contains references to legacy and new A25 HMA26.5

— To verify your instrument’s A25 HMA26.5 Multiplier/Amplifier, refer to

— The A27/A28 mixer bricks might be a legacy part number 5087-7323

Multiplier/Amplifier and A27/A28 mixer brick assemblies. Your model
instrument may have either legacy assemblies or the new parts
installed.

“Verify the Model/Version of HMA26.5 Installed” on page 6.

(with (x2) discrete 3dB attenuators, 08490-60039) or new part number
5087-7417 (with integrated 3 dB attenuators).

— See also your instrument’s PDF Service Guide a.

a. See “Downloading the Online PNA Service Guide” on page 7.

To successfully install this upgrade kit, you will need the following:

—A license key - refer to “License Key Redemption” below.

— A PDF copy or a paper copy of the PNA Service Guide - refer to

“Downloading the Online PNA Service Guide” below.

— An ESD-safe work area - refer to “Protecting Your Workspace from

Electrostatic Discharge” below.

— Correct tools - refer to “Tools Required for the Installation” on page 9.

— Enough time - refer to “About Installing the Upgrade” on page 9.

— Test equipment for the post-upgrade adjustments and full instrument

calibration. To view the equipment list, click the Chapter 3 bookmark “Tests
and Adjustments” in the PDF Service Guide

1

.

1. See “Downloading the Online PNA Service Guide” on page 7.

Installation Note N5225-90119 5

-

Getting Prepared

License Key Redemption

If you are unfamiliar with the licensing process, refer to the

http://literature.cdn.keysight.com/litweb/pdf/N5242-90024.pdf.

The enclosed Software Entitlement Certificate is a receipt, verifying that
you have purchased a licensed option for the PNA of your choice. You must
now use a Keysight Web page to request a license key file for the
instrument that will receive the option.

To enable the option product(s), you must request license key(s) file from the
Keysight Software Manager:

http://www.keysight.com/find/softwaremanager:

To complete the request, you will need to gather the following information:

— From the certificate

— Order number

— Certificate number

— From your instrument

(Instrument information is available in the network analyzer - on the
toolbar, click Help, then click About Network Analyzer.)

— Model number

— Serial number

Using the information just gathered, you must request license key(s) from the
Keysight Software Manager:

http://www.keysight.com/find/softwaremanager.

You will need to provide an email address, to which Keysight will promptly
email your license key file. Refer to “License Key Redemption” on page 6.

Verify the License Contents

Refer to the license message you received from Keysight:

If the model number, serial number, or option number do not match those on
the license message you received from Keysight, you will not be able to install
the license key file. If this is the case you received from Keysight, you will not
be able to install the license key file. If this is the case, contact Keysight for
assistance. Refer to “Getting Assistance from Keysight” on page 4.

Verify the Model/Version of HMA26.5 Installed

This upgrade kit contains components for use with PNA models using the
legacy HMA26.5 part number 5086-7765. If your PNA has the newer HMA26.5
part number N5240-60101 installed you may discard these parts:

6 Installation Note N5225-90119

Getting Prepared

— A26 splitter 5067-4086

— W52 N5245-20013

— W53 N5245-20023

— W54 N5245-20022

(If you have the legacy 5086-7765 HMA26.5, please discard the N5245-20195
semi-rigid cables. Refer to Figure 1 on page 7.)

The new N5240-60101 HMA26.5 has the splitter integrated into the assembly.
Refer to Figure 1 on page 7.

Figure 1 Comparison of Legacy HMA26.5 (5087-7765) and New HMA26.5

(N5240-60101)

Downloading the Online PNA Service Guide

To view the online Service Guide for your PNA model number, use the following
steps:

1. Go to www.keysight.com.

2. In the Search box, enter the model number of the analyzer (Ex: N5242A)
and click Search.

3. Click Technical Support > Manuals.

4. Click Service Manual.

5. Click the service guide title to download the PDF file.

6. When the PDF of the Service Guide is displayed, scroll through the
Contents section bookmarks to locate the information needed.

Installation Note N5225-90119 7

-

Getting Prepared

Protecting Your Workspace from Electrostatic Discharge

For information, click on the Chapter 1 bookmark, “Electrostatic Discharge
Protection” in the PDF Service Guide

1

.

1. See “Downloading the Online PNA Service Guide” on page 7.

8 Installation Note N5225-90119

Getting Prepared

ESD Equipment Required for the Installation

Description Keysight Part Number

ESD grounding wrist strap 9300-1367

5-ft grounding cord for wrist strap 9300-0980

2 x 4 ft conductive table mat and 15-ft grounding wire 9300-0797

ESD heel strap (for use with conductive floors) 9300-1308

Tools Required for the Installation

Description Qty Part Number

T-6 TORX driver - set to 4 in-lbs (0.45 N.m) 1 N/A

T-8 TORX driver - set to 6 in-lbs (0.68 N.m) 1 N/A

T-10 TORX driver - set to 9 in-lbs (1.02 N.m) 1 N/A

T-20 TORX driver - set to 21 in-lbs (2.38 N.m) 1 N/A

5/16-in (8 mm) nutsetter or open end torque wrench- set to 10 in-lbs
(1.13 N.m)

3/16-in (5 mm) nutsetter or open end torque wrench - set to 6 in-lbs
(0.68 N.m)

5/8-in (16 mm) nutsetter or open end torque wrench - set to 21 in-lbs
(2.38 N.m)

9 mm nutsetter or open end torque wrench - set to 21 in-lbs (2.38 N.m) 1 N/A

1-in (25.4 mm) torque wrench - set to 72 in-lbs (8.15 N.m) 1 N/A

1N/A

1N/A

1N/A

Use a 5/16-in torque wrench set to 10 in-lbs on all cable connections
except the front and rear panel bulkhead connectors. On these, use a 5/16
inch nutsetter or open end torque wrench set to 21 in-lb.

About Installing the Upgrade

Products affected N5224B or N5225B Option 219

Installation to be performed by Keysight service center or personnel qualified by Keysight

Estimated installation time 5 hours

Estimated adjustment time 0.5 hours

Estimated full instrument calibration time 4.5 hours

Installation Note N5225-90119 9

-

Items Included in the Upgrade Kit

Items Included in the Upgrade Kit

Check the contents of your kit against the following list. If any part is missing or
damaged, contact Keysight Technologies. Refer to “Getting Assistance from

Keysight” on page 4.

Table 2 Contents of Upgrade Kit N5225-60119

Ref
Desig.

- Installation note (this document) 1 N5225-90119

- Software Entitlement Certificate 1 5964-5145

- China RoHS Addendum for kits 1 9320-6722

A10 26.5 GHz source (2) board 1 5087-7342

A12 40 GHz doubler assembly port 3 2 5087-7349

A13 40 GHz doubler assembly port 4

A17 13.5 GHz (source 2) synthesizer board 1 N5240-60074

A26a

A28 Mixer brick (2) 1 5087-7417

A30 Test port 3 reference coupler 2 5087-7760

A31 Test port 4 reference coupler

A34 Test port 3 coupler 2 5087-7793

A35 Test port 4 coupler

Splitter 1 5067-4086

Description Qty Part Number

A39 Test port 3 source attenuator 2 33325-60022

A40 Test port 4 source attenuator

A43 Test port 3 bias tee 2 5087-7789

A44 Test port 4 bias tee

A47 Test port 3 receiver attenuator 2 33325-60023

A48 Test port 4 receiver attenuator

- Machine screw, M3.0 x 6, flat head (to attach front frame to coupler plate) 2 0515-1946

- Machine screw, M3.0 x 14, pan head (to attach bias tee to bracket) 4 0515-2994

- Machine screw, M2.0 x 6, flat head (8 to attach two reference couplers to brackets) 8 0515-1602

Machine screw, M2.5 x 20, pan head (4 to attach A34 and A35 reference coupler

­assemblies to test set deck)

10 Installation Note N5225-90119

4 0515-0374

Items Included in the Upgrade Kit

Table 2 Contents of Upgrade Kit N5225-60119

Ref
Desig.

Machine screw, M4.0 x 10, pan head (2 each to attach the following boards to the

-

analyzer chassis: A17 13.5 GHz synthesizer board, A10 26.5 GHz source board, A12
40 GHz doubler assembly port 3, and A13 40 GHz doubler assembly port 4.)

Machine screw, M3.0 x 6, pan head (4 to attach A47 and A48 receiver attenuator

-

assembly to test set deck; 4 to attach A39 and A40 source attenuator assembly to
test set deck.

- Machine screw, M3.0 x 12, pan head (1 to attach cable bracket to test set deck. 2 0515-0664

Machine screw, M3.0 x 8, pan head (3 to attach shield to A28 mixer brick; 8 to attach

­two src attn and two rcvr attn to brackets; 4 to attach bias tee brackets to deck)

- Machine screw, M2.5 x 16, pan head (2 to attach splitter to mixer brick) 2 0515-2007

- Machine screw, M3.0 x 25, pan head (3 to attach A28 mixer brick to block) 3 0515-0667

- Machine screw, M3.0 x 20, flat head (2 to attach bracket to A10 26.5 GHz source) 2 0515-2078

- Machine screw, M3.0 x 18, pan head (1 to attach bracket to A10 26.5 GHz source) 1 0515-0666

- Test set front plate, 4-port 1 N5224-00005

- Front panel overlay (label), 4-port 1 N5227-80020

Description Qty Part Number

7 0515-0380

8 0515-0430

12 0515-0372

- Dress panel, lower 4-port 1 N5240-00009

- 2.4 mm dust cap for A28 mixer brick 1 N5247-20138

- Gap pad (between mixer brick A28 and shield) 4 N5245-20125

- Gap pad (between each test coupler and the test set front plate) 4 E4403-20033

- Shield, mixer brick 1 N5245-00023

A69 3 dB pad, attached to R4 connector on A28 mixer brick 1 08490-60039

- 50 ohm load, attached to A13 40 GHz doubler 1 1250-4261

- Vibration mount (between couplers 1 & 3, and 2 & 4) 2 0460-2725

- Mounting nuts (for port 3 & 4 test port couplers) 2 5022-1087

- Cable guard, center jumper cables 1 N5242-00049

- Cable clamp. 6 1400-1334

- Cable tie wrap 6 1400-0249

- Dust caps for test ports 2 1401-0214

- Bracket for bias tee 2 N5245-00011

- Bracket for reference coupler 2 N5245-00017

- Bracket for cables 1 N5245-00022

Installation Note N5225-90119 11

-

Items Included in the Upgrade Kit

Table 2 Contents of Upgrade Kit N5225-60119

Ref
Desig.

Description Qty Part Number

- Bracket for receiver attenuator and source attenuator 4 N5245-00015

- Bracket for A10 26.5 GHz source (2) board 1 N5247-20136

W2

RF cable, A10 source (2) P1 to A17 13.5 GHz source (2) synthesizer J1207
(4-port)

1 N5245-20100

W7 RF cable, A10 source (2) P5 to A12 port 3 doubler 1 N5245-20034

W8 RF cable, A10 source (2) P3 to A13 port 4 doubler 1 N5245-20035

W9 RF cable, A10 source (2) P4 to A12 port 3 doubler 1 N5245-20032

W10 RF cable, A12 port 3 doubler to A13 port 4 doubler 1 N5245-20033

W13 RF cable, A12 port 3 doubler to W14 1 N5245-20036

W14 RF cable, A30 port 3 receiver coupler to W13 1 N5245-20043

W15 RF cable, A13 port 4 doubler to W16 1 N5245-20036

W16 RF cable, A31 port 4 receiver coupler to W15 1 N5245-20044

W21 RF cable, A29 port 1 receiver coupler to A37 reference mixer switch 1 N5245-20008

W22 RF cable, A33 port 1 coupler to front-panel Port 1 CPLR ARM 1 N5245-20014

W25 RF cable, A30 port 3 receiver coupler to front-panel REF 3 SOURCE 1 N5245-20116

W26 RF cable, A34 port 3 coupler to front-panel Port 3 CPLR ARM 1 N5245-20015

W29 RF cable, A31 port 4 receiver coupler to front-panel REF 4 SOURCE 1 N5245-20117

W30 RF cable, A35 port 4 coupler to front-panel Port 4 CPLR ARM 1 N5245-20018

W34 RF cable, A36 port 2 coupler to front-panel Port 2 CPLR ARM 1 N5245-20019

W36 RF cable, Front panel jumper 6 N5245-20155

W44 RF cable, REF 3 RCVR R3 IN to A28 mixer brick (R3) 1 N5245-20020

W45 RF cable, REF 4 RCVR R4 IN to A28 mixer brick (R4) 1 N5245-20191

W46 RF cable, REF 2 RCVR R2 IN to A27 mixer brick (R2) – (4-port only) 1 N5245-20115

a

W52

W53

W54

RF cable, A25 HMA26.5 to A26 splitter 1 N5245-20013

a

RF cable, A26 splitter to A27 mixer brick 1 N5245-20023

a

RF cable, A26 splitter to A28 mixer brick 1 N5245-20022

W62 RF cable, A27 mixer brick (R1) to A24 IF multiplexer (P411) 1 N5242-60021

W63 RF cable, A27 mixer brick (R2) to A24 IF multiplexer (P412) 1 N5242-60022

W65 RF cable, A28 mixer brick (D) to A24 IF multiplexer (P801) 1 N5242-60024

12 Installation Note N5225-90119

Items Included in the Upgrade Kit

Table 2 Contents of Upgrade Kit N5225-60119

Ref
Desig.

Description Qty Part Number

W66 RF cable, A28 mixer brick (R4) to A24 IF multiplexer (P414) 1 N5242-60019

W67 RF cable, A28 mixer brick (R3) to A24 IF multiplexer (P413) 1 N5242-60020

W68 RF cable, A28 mixer brick (C) to A24 IF multiplexer (P601) 1 N5242-60023

W70 RF cable, A24 IF multiplexer board P203 to A16 SPAM board J2 1 N5242-60013

W72 RF cable, A24 IF multiplexer board P603 to A16 SPAM board J5 1 N5242-60015

W77

RF cable, A14 frequency reference board J7 to A17 13.5 GHz (source 2) synthesizer
board J5 (Located on bottom of board.)

1 N5242-60030

W84 RF cable, A33 port 1 coupler to A42 port 1 bias tee 1 N5245-20085

W85 RF cable, A30 port 3 receiver coupler to A39 port 3 source attenuator 1 N5245-20026

W86 RF cable,

A39 port 3 source attenuator to front-panel Port 3 SOURCE OUT

1 N5245-20027

W87 RF cable, Port 3 CPLR THRU to A43 port 3 bias tee 1 N5245-20089

W88 RF cable, A43 port 3 bias tee to A34 port 3 coupler 1 N5245-20086

W89 RF cable, A31 port 4 receiver coupler to A40 port 4 source attenuator 1 N5245-20026

W90 RF cable,

A40 port 4 source attenuator to front-panel Port 4 SOURCE OUT

1 N5245-20028

W91 RF cable, Port 4 CPLR THRU to A44 port 4 bias tee 1 N5245-20090

W92 RF cable, A44 port 4 bias tee to A35 port 4 coupler 1 N5245-20088

W96 RF cable, A45 port 2 bias tee to A36 port 2 coupler 1 N5245-20087

W99 RF cable, Port 3 RCVR C IN to A47 port 3 receiver attenuator 1 N5245-20073

W100 RF cable, A47 port 3 receiver attenuator to A28 mixer brick (C) 1 N5245-20066

W101 RF cable, Port 4 RCVR D IN to A48 port 4 receiver attenuator 1 N5245-20074

W102 RF cable, A48 port 4 receiver attenuator to A28 mixer brick (D) 1 N5245-20075

b

W203

RF cable, A25 HMA26.5 (top) to A28 mixer block (top)

1 N5245-20195

- Ribbon cable, A23 test set motherboard J547 to A39 port 3 source attenuator 2 N5245-60006

- Ribbon cable, A23 test set motherboard J548 to A40 port 4 source attenuator

- Ribbon cable, A23 test set motherboard J206 to A47 port 3 receiver attenuator 2 N5245-60026

- Ribbon cable, A23 test set motherboard J207 to A48 port 4 receiver attenuator

- Ribbon cable, A23 test set motherboard J552 to A28 mixer brick (2) J52 1 N5247-60015

- Wire harness, A43 port 3 bias tee to A23 test set motherboard J543

2P/O bias tee

- Wire harness, A44 port 4 bias tee to A23 test set motherboard J544

Installation Note N5225-90119 13

-

Items Included in the Upgrade Kit

a. The A26 splitter (5067-4086) and N5245-20013, N5245-20022, N5245-20023, N545-20101, and

N5245-20150 cables are only used with a legacy HMA26.5 p/n: 5087-7765. If you are unclear which HMA26.5
assembly your PNA has installed, refer to Chapter 7 Repairs and

Figure 1 on page 7 and for details on A26 split-

ter and cabling, refer to your option-model in Chapter 6 "2-Port Configurations, Serial Number Prefix <6021" and
"4-Port Configuration, Serial Number Prefix <6021".

b. The N5245-20195 cable is used only with instruments that have a newer HMA26.5 installed. If your PNA has a legacy

5087-7765 HMA26.5 assembly installed, then this cable can be discarded. If you are unclear which HMA26.5 assembly your
PNA has installed, refer to Figure 1 on page 7.

Extra quantities of items such as protective plastic caps, screws, cable ties,
and cable clamps may be included in this upgrade kit. It is normal for some
of these items to remain unused after the upgrade is completed.

14 Installation Note N5225-90119

Installation Procedure for the Upgrade

Installation Procedure for the Upgrade

The network analyzer must be in proper working condition prior to installing
this option. Any necessary repairs must be made before proceeding with this
installation.

This installation requires the removal of the analyzer’s protective
outer covers. The analyzer must be powered down and
disconnected from the mains supply before performing this
procedure.

Overview of the Installation Procedure

“Step 1. Obtain a Keyword and Verify the Information.”

“Step 2. Remove the Outer Cover.”

“Step 3. Remove the Inner Cover.”

“Step 4. Remove the Front Panel Assembly.”

“Step 5. Remove the A23 Test Set Motherboard.”

“Step 6. Remove Some Bottom-Side (Test Set) Cables.”

“Step 7. Remove the A27 Mixer Brick Assembly.”

“Step 8. Assemble the A28 Mixer Brick Assembly.”

“Step 9. Install the A27/A28 Mixer Brick Assemblies.”

“Step 10. Assemble the A34 and A35 Reference Coupler Assemblies.”

“Step 11. Install the A34 and A35 Reference Coupler Assemblies.”

“Step 12. Assemble the A47 and A48 Receiver Attenuator Assemblies.”

“Step 13. Install the A47 and A48 Receiver Attenuator Assemblies.”

“Step 14. Assemble the A39 and A40 Source Attenuator Assemblies.”

“Step 15. Install the A39 and A40 Source Attenuator Assemblies.”

“Step 16. Install the Bias Tee Brackets.”

“Step 17. Install the A43 and A44 Bias Tees.”

“Step 18. Assemble the A33 - A36 Test Port Coupler Assemblies.”

“Step 19. Install the LED Boards, Bulkhead Connectors, and Test Port Coupler
Assemblies to the 4-Port Test Set Front Plate.”

“Step 20. Install the 4-Port Coupler Plate Assembly to the Deck.”

“Step 21. Assemble and Install the A12 and A13 40 GHz Doubler Assemblies.”

“Step 22. Install Bracket to A10 Source Assembly.”

“Step 23. Assemble the A10 26.5 GHz Source 2 Assembly.”

Installation Note N5225-90119 15

-

Installation Procedure for the Upgrade

“Step 24. Install the A10 26.5 GHz Source 2 Assembly and Cables.”

“Step 25. Install the A17 13.5 GHz (Source 2) Synthesizer Board and Cables.”

“Step 26. Install the Cable Bracket Mount.”

“Step 27. Install Some Bottom-Side (Test Set) Cables.”

“Step 28. Secure the Front Panel Bulkhead Connectors.”

“Step 29. Install Cables on IF Multiplexer Board.”

“Step 30. Reinstall the A23 Test Set Motherboard.”

“Step 31. Install Cables on the A23 Test Set Motherboard.”

“Step 32. Replace the Front Panel’s Lower Dress Panel.”

“Step 33. Reinstall Front Panel Assembly.”

“Step 34. Install the Overlay.”

“Step 35. Install the Front Panel Jumper Cables.”

“Step 36. Position the Cables and Wires to Prevent Pinching.”

“Step 37. Reinstall the Inner Cover.”

“Step 38. Reinstall the Outer Cover.”

“Step 39. Remove Option 219 License.”

“Step 40. Enable Options 419.”

“Step 41. Perform Post-Upgrade Adjustments and Calibration.”

“Step 42. Prepare the PNA for the User.”

16 Installation Note N5225-90119

Installation Procedure for the Upgrade

Step 1.Obtain a Keyword and Verify the Information

Follow the instructions on the Software Entitlement Certificate supplied to
obtain a license key for installation of this upgrade. Refer to “License Key

Redemption” on page 6.

Verify that the model number, serial number, and option number information
on the license key match those of the instrument on which this upgrade will be
installed.

If the model number, serial number, or option number do not match those on
your license key, you will not be able to install the option. If this is the case,
contact Keysight for assistance before beginning the installation of this
upgrade. Refer to “Contacting Keysight” on page 4.

Once the license key file has been received and the information verified, you
can proceed with the installation at step 2.

If the model number, serial number, or option number do not match those
on your license key file, you will not be able to install the option. If this is
the case, contact Keysight for assistance before beginning the installation
of this upgrade. Refer to “Contacting Keysight” on page 4.

Step 2. Remove the Outer Cover

For instructions, click the Chapter 7 bookmark “Removing the Covers” in the
PDF Service Guide

1

.

Step 3. Remove the Inner Cover

For instructions, click the Chapter 7 bookmark “Removing the Covers” in the
PDF Service Guide

1

.

Step 4. Remove the Front Panel Assembly

For instructions, click the Chapter 7 bookmark “Removing and Replacing the
Front Panel Assembly” in the PDF Service Guide

Step 5. Remove the A23 Test Set Motherboard

For instructions, click the Chapter 7 bookmark “Removing and Replacing the
A23 test set motherboard” in the PDF Service Guide

1

.

1

.

1. See “Downloading the Online PNA Service Guide” on page 7.

Installation Note N5225-90119 17

-

Installation Procedure for the Upgrade

Step 6. Remove Some Bottom-Side (Test Set) Cables

Be careful not to damage the center pins of the semirigid cables. Some
flexing of the cables may be necessary but do not over-bend them.

When removing a cable, also remove the plastic cable clamp, if present. It
is normal for some of the cable clamp’s adhesive to remain.

1. Place the analyzer bottom-side up on a flat surface.

Remove the following cables. To see an image showing the location of these
cables, click the Chapter 6 bookmark “Bottom RF Cables, Standard 2-Port

Configuration, Option 200, S/N Prefixes <6021” in the PDF Service Guide

These cables may be discarded - they will not be reinstalled.

— W21 (N5245-20118) A29 port 1 receiver coupler to A37 reference

mixer switch

1

.

— W22 (N5245-20025) A33 port 1 coupler to front-panel REF 1 CPLR

ARM

— W34 (N5245-20024) A36 port 2 coupler to front-panel REF 2 CPLR

ARM

— W46 (N5245-20119) A27 mixer brick (R2) to

IN

– (2-port only)

front-panel REF 2 RCVR R2

— W62 (N5242-60025) A27 mixer brick (R1) to A24 IF multiplexer (P601)

— W63 (N5242-60026) A27 mixer brick (R2) to A24 IF multiplexer (P801)

— W70 (N5247-60024) A24 IF multiplexer board P203 to A16

SPAM board J5

— W72 (N5247-60023) A24 IF multiplexer board P603 to A16

SPAM board J2

— W80 (N5245-20048) A25 HMA26.5 to A27 mixer brick

— W84 (N5245-20046) A33 port 1 coupler to A42 port 1 bias tee

— W96 (N5245-20047) A36 port 2 coupler to A45 port 2 bias tee

These cables must be saved - they will be reinstalled.

— W12 (N5245-20050) A29 port 1 receiver coupler to W11

— W18 (N5245-20049) A32 port 2 receiver coupler to W17

— W36 (N5245-20155) Front panel jumpers (quantity = 6)

NOTE: Remove and save the cable guards for the front panel jumpers.

1. See “Downloading the Online PNA Service Guide” on page 7.

18 Installation Note N5225-90119

Installation Procedure for the Upgrade

5087-7417

5087-7417

Step 7. Remove the A27 Mixer Brick Assembly

Remove the A27 mixer brick assembly from the PNA. For instructions, click the
Chapter 7 bookmark, “Removing and Replacing the A27 and A28 Mixer Bricks”

1

in the PDF Service Guide

.

Step 8. Assemble the A28 Mixer Brick Assembly

1. Follow the instruction shown in Figure 2. New parts are listed in Table 2 on

page 10 of this document.

Figure 2 A27/A28 Mixer Brick Assembly (5087-7417, N5245-20125, 0515-0667,

N5247-20138)

Installation Note N5225-90119 19

-

Installation Procedure for the Upgrade

2. Follow the two instructions shown in Figure 3.

Figure 3 A28 Mixer Brick Shield Installation (N5245-00023, 0515-0372)

20 Installation Note N5225-90119

Installation Procedure for the Upgrade

3. Follow the two instructions shown in Figure 4.

Figure 4 A26 Splitter

1

Installation (5067-4086, 0515-2007)

1. The A26 splitter (5067-4086) and N5245-20013, N5245-20022, N5245-20023, N545-20101, and N5245-20150

cables are only used with a legacy HMA26.5 p/n: 5087-7765. If you are unclear which HMA26.5 assembly your
PNA has installed, refer to Chapter 7 Repairs and

Figure 1 on page 7 and for details on A26 splitter and cabling,

refer to your option-model in Chapter 6 "2-Port Configurations, Serial Number Prefix <6021" and "4-Port Config­uration, Serial Number Prefix <6021".

Installation Note N5225-90119 21

-

Installation Procedure for the Upgrade

4. Connect the gray flexible cables to the A28 mixer in the order shown in

Figure 4-1. The other ends of the cables will be connected when the IF

board is reinstalled later.

Figure 4-1 A28 Mixer Brick Cable Installation (N5242-60019, N5242-60020,

N5242-60023, N5242-60024)

1, 2

1. The A26 splitter (5067-4086) and N5245-20013, N5245-20022, N5245-20023, N545-20101, and N5245-20150

cables are only used with a legacy HMA26.5 p/n: 5087-7765. If you are unclear which HMA26.5 assembly your
PNA has installed, refer to Chapter 7 Repairs and

Figure 1 on page 7 and for details on A26 splitter and cabling,

refer to your option-model in Chapter 6"2-Port Configurations, Serial Number Prefix <6021" and "4-Port Configu­ration, Serial Number Prefix <6021".

2. Attenuator 08490-60039 is shown in the figure, but is not included in this upgrade and not required with the
A28 mixer brick (5087-7417).

22 Installation Note N5225-90119

Installation Procedure for the Upgrade

Step 9. Install the A27/A28 Mixer Brick Assemblies

Reinstall the A27 mixer brick cables, and then install the A27/A28 mixer brick
assembly, reusing the four existing screws. For instructions, click the Chapter 7
bookmark, “Removing and Replacing the A27 and A28 Mixer Bricks” in the PDF

1

Service Guide

. New parts are listed in Table 2 on page 10 of this document.

Step 10. Assemble the A34 and A35 Reference Coupler Assemblies

Follow the instructions shown in Figure 5 and Figure 6. New parts are listed in

Table 2 on page 10 of this document.

Figure 5 A34 Reference Coupler Port 3 Assembly (0515-7760, 5087-7760,

N5245-00017)

1. See “Downloading the Online PNA Service Guide” on page 7.

Installation Note N5225-90119 23

-

Installation Procedure for the Upgrade

Figure 6 A35 Reference Coupler Port 4 Assembly (0515-7760, 5087-7760,

N5245-00017)

24 Installation Note N5225-90119

Installation Procedure for the Upgrade

Step 11. Install the A34 and A35 Reference Coupler Assemblies

Follow the instructions shown in Figure 7. New parts are listed in Table 2 on

page 10 of this document.

Figure 7 A34 and A35 Reference Coupler Assemblies Installation (0515-0374)

1, 2

1. The A26 splitter (5067-4086) and N5245-20013, N5245-20022, N5245-20023, N545-20101, and N5245-20150

cables are only used with a legacy HMA26.5 p/n: 5087-7765. If you are unclear which HMA26.5 assembly your
PNA has installed, refer to Chapter 7 Repairs and
refer to your option-model in Chapter 6"2-Port Configurations, Serial Number Prefix <6021" and "4-Port Configu­ration, Serial Number Prefix <6021".

2. Attenuator 08490-60039 is shown in the figure, but is not included in this upgrade and not required with the
A28 mixer brick (5087-7417).

Installation Note N5225-90119 25

Figure 1 on page 7 and for details on A26 splitter and cabling,

-

33325-60023

Installation Procedure for the Upgrade

Step 12. Assemble the A47 and A48 Receiver Attenuator Assemblies

Follow the instructions shown in Figure 8. New parts are listed in Table 2 on

page 10 of this document.

Figure 8 A47 and A48 Receiver Attenuators Assembly (33325-60023, 8121-0982,

N5245-00015, and 0515-0372)

26 Installation Note N5225-90119

Installation Procedure for the Upgrade

Step 13. Install the A47 and A48 Receiver Attenuator Assemblies

Follow the instructions shown in Figure 8-1. New parts are listed in Table 2 on

page 10 of this document.

Figure 8-1 A47 and A48 Receiver Attenuator Assemblies Installation (0515-0430)

1, 2

1. The A26 splitter (5067-4086) and N5245-20013, N5245-20022, N5245-20023, N545-20101, and N5245-20150

cables are only used with a legacy HMA26.5 p/n: 5087-7765. If you are unclear which HMA26.5 assembly your
PNA has installed, refer to Chapter 7 Repairs and
refer to your option-model in Chapter 6"2-Port Configurations, Serial Number Prefix <6021" and "4-Port Configu­ration, Serial Number Prefix <6021".

2. Attenuator 08490-60039 is shown in the figure, but is not included in this upgrade and not required with the
A28 mixer brick (5087-7417).

Installation Note N5225-90119 27

Figure 1 on page 7 and for details on A26 splitter and cabling,

-

33325-60022

Installation Procedure for the Upgrade

Step 14. Assemble the A39 and A40 Source Attenuator Assemblies

Follow the instructions shown in Figure 9. New parts are listed in Table 2 on

page 10 of this document.

Figure 9 A39 and A40 Source Attenuators Assembly (33325-60022, N5245-60006,

N5245-00015, and 0515-0372)

28 Installation Note N5225-90119

Installation Procedure for the Upgrade

Step 15. Install the A39 and A40 Source Attenuator Assemblies

Follow the instructions shown in Figure 10. New parts are listed in Table 2 on

page 10 of this document.

Figure 10 A39 and A40 Source Attenuator Assemblies Installation (0515-0430)

Installation Note N5225-90119 29

-

Installation Procedure for the Upgrade

Step 16. Install the Bias Tee Brackets

Follow the instruction in Figure 11 to install the brackets for the A43 and A44
bias tees. New parts are listed in Table 2 on page 10 of this document.

Figure 11 Bias Tee Brackets Installation (N5245-00011, 0515-0372)

30 Installation Note N5225-90119

Installation Procedure for the Upgrade

0515-2994

Step 17. Install the A43 and A44 Bias Tees

Follow the instruction in Figure 12 to install the A43 and A44 bias tees. New
parts are listed in Table 2 on page 10 of this document.

Figure 12 A43 and A44 Bias Tees Installation (5087-7789, 0515-2994)

Installation Note N5225-90119 31

-

Installation Procedure for the Upgrade

Step 18. Assemble the A33 - A36 Test Port Coupler Assemblies

1. Remove the A33 test port 1 coupler and A36 test port 2 coupler from the
PNA. For instructions, click the Chapter 7 bookmark, “Removing and

Replacing the A33 - A36 Test Port Couplers” in the PDF Service Guide

2. Using pliers, remove the adhesive bumper on the A33 test port 1 coupler
and on the A36 test port 2 coupler.

3. Follow the two instructions shown in Figure 13. New parts are listed in

Table 2 on page 10 of this document.

Figure 13 A33 - A36 Test Port Coupler Assembly (E4403-20033, 0460-2725,

5087-7793)

1

.

32 Installation Note N5225-90119

Installation Procedure for the Upgrade

Step 19. Install the LED Boards, Bulkhead Connectors, and Test Port
Coupler Assemblies to the 4-Port Test Set Front Plate

1. Remove two screws from each LED board and remove the boards from the
2-port test set front plate of the PNA.

2. Remove the 2-port test set front plate from the test set deck. Keep the
screws for reuse later.

3. Follow the two instructions shown in Figure 14.

Figure 14 LED Board Assemblies and Test Port Coupler Assemblies Installation

(N5240-60058, 5224-00005, 5087-7793, N5225-60001)

Installation Note N5225-90119 33

-

Installation Procedure for the Upgrade

Step 20. Install the 4-Port Coupler Plate Assembly to the Deck

Follow the four instructions shown in Figure 15.

Figure 15 Coupler Plate Assembly Installation (0515-0372, 0515-1227)

34 Installation Note N5225-90119

Installation Procedure for the Upgrade

1250-4261

Step 21. Assemble and Install the A12 and A13 40 GHz Doubler
Assemblies

Follow the instructions shown in Figure 16.

Figure 16 A12 and A13 40 GHz Doubler Installation (5087-7349, 1250-4261,

N5245-20036)

Installation Note N5225-90119 35

-

Installation Procedure for the Upgrade

Step 22. Install Bracket to A10 Source Assembly

Follow the two instructions shown in Figure 17.

Figure 17 A10 Source 2 Assembly Bracket Installation (5087-7342, N5247-20136,

0515-0375, 0515-2078, 0515-0666)

36 Installation Note N5225-90119

Installation Procedure for the Upgrade

Step 23. Assemble the A10 26.5 GHz Source 2 Assembly

Follow the four instructions shown in Figure 18.

Figure 18 A10 Source 2 Assembly (5087-7342, N545-20032, N5245-20034,

N5245-20035)

Installation Note N5225-90119 37

-

Installation Procedure for the Upgrade

Step 24. Install the A10 26.5 GHz Source 2 Assembly and Cables

Follow the four instructions shown in Figure 19.

Figure 19 A10 Source 2 Assembly Installation (N5245-20033, 0515-0380)

38 Installation Note N5225-90119

Installation Procedure for the Upgrade

Step 25. Install the A17 13.5 GHz (Source 2) Synthesizer Board and
Cables

1. Install new gray cable W77 (N5242-60030) to connector J5 of the new
A17 (source 2) synthesizer board (N5240-60074). The loose end of the
cable will be connected on the A14 frequency reference board (J7) after
the A17 board has been installed in the analyzer.

2. Install the A17 board into slot 2 in the motherboard. Secure the board into
the chassis using two screws (0515-0380). To see an image showing the
location of the A17 board in the motherboard, click the Chapter 6

1

bookmark “Top Assemblies, All Options” in the PDF Service Guide

3. Connect cable W2 (N5245-20100) between the A10 source 2 board and
the A17 (source 2) synthesizer board, positioning the cable in the wire
looms. Tighten the cable connectors to 10 in-lbs using a 5/16-in torque
wrench.

4. Connect the loose end of new gray flex cable W77 (N5242-60030) on the
A14 frequency reference board (J7). (The other end of this cable was
previously connected to J5 of the source 2 synthesizer board.)

.

Step 26. Install the Cable Bracket Mount

1. Follow the two instructions shown in Figure 20. New parts are listed in

Table 2 on page 10 of this document.

Figure 20 Cable Bracket Mount Installation (N5245-00022, 0515-0664, N5245-20036)

1. See “Downloading the Online PNA Service Guide” on page 7.

Installation Note N5225-90119 39

-

Installation Procedure for the Upgrade

Step 27. Install Some Bottom-Side (Test Set) Cables

Follow instructions carefully when making cable connections, especially
wire harness connections. Incorrect connections can destroy components,
resulting in additional customer costs.

Be careful not to damage the center pins of the semirigid cables. Some
flexing of the cables may be necessary but do not over-bend them.

Use a 5/16-in torque wrench set to 10 in-lbs on all cable connections
except the front and rear panel bulkhead connectors. On these, use a 9
mm nutsetter or open end torque wrench set to 21 in-lb.

Cables that are to be reinstalled are designated with “reuse.”

Semirigid Cables Required for Upgrading to an Option 419 PNA

To see images showing the location of these cables, click the Chapter 6
bookmark “Bottom RF Cables, 4-Port, Option 419, S/N Prefixes <6021” in the

1

PDF Service Guide

. New parts are listed in Table 2 on page 10.

— W96 (N5245-20087) A45 port 2 bias tee to A36 port 2 coupler

— W92 (N5245-20088) A44 port 4 bias tee to A35 port 4 coupler

— W84 (N5245-20085) A33 port 1 coupler to A42 port 1 bias tee

— W88 (N5245-20086) A43 port 3 bias tee to A34 port 3 coupler

— W25 (N5245-20116) A30 port 3 receiver coupler to front-panel REF 3

SOURCE OUT

* As shown in Figure 21, install two clamps (part number 1400-1334) to
secure W25 (N5245-20116).

1. See “Downloading the Online PNA Service Guide” on page 7.

40 Installation Note N5225-90119

Installation Procedure for the Upgrade

Figure 21 Location of W25 Cable Securing Clamp

— W29 (N5245-20117) A31 port 4 receiver coupler to front-panel REF 4

SOURCE OUT

* As shown in Figure 21, install clamp part number 1400-1334 to secure
W29 (N5245-20117).

— W85 (N5245-20026) A30 port 3 receiver coupler to A39 port 3 source

attenuator

— W89 (N5245-20026) A31 port 4 receiver coupler to A40 port 4 source

attenuator

— W34 (N5245-20019) A36 port 2 coupler to front-panel Port 2 CPLR AR

— W46 (N5245-20115) REF 2 RCVR R2 IN to A27 mixer brick (R2) – (4-port

only)

— W30 (N5245-20018) A35 port 4 coupler to front-panel Port 4 CPLR ARM

— W101 (N5245-20074) Port 4 RCVR D IN to A48 port 4 receiver attenuator

— W90 (N5245-20028)

A40 port 4 source attenuator to front-panel Port 4

SOURCE OUT

— W91 (N5245-20090) Port 4 CPLR THRU to A44 port 4 bias tee

— W45 (N5245-20191) REF 4 RCVR R4 IN to A28 mixer brick (R4)

Installation Note N5225-90119 41

-

Installation Procedure for the Upgrade

— W99 (N5245-20073) Port 3 RCVR C IN to A47 port 3 receiver attenuator

— W87 (N5245-20089) Port 3 CPLR THRU to A43 port 3 bias tee

— W26 (N5245-20015) A34 port 3 coupler to front-panel Port 3 CPLR ARM

— W86 (N5245-20027)

A39 port 3 source attenuator to front-panel Port 3

SOURCE OUT

— W44 (N5245-20020) REF 3 RCVR R3 IN to A28 mixer brick (R3)

* As shown in Figure 22, install two cable ties (part number 1400-1334) to

secure W44.

Figure 22 Location of Cable Ties to Secure W44 (N5245-20020, 1400-0249)

— W22 (N5245-20014) A33 port 1 coupler to front-panel Port 1 CPLR ARM

— W21 (N5245-20008) A29 port 1 receiver coupler to A37 reference mixer

switch

* If the screws that attach the reference mixer switch to the test set deck
were loosened, torque these screws now to 9 in-lbs.

* As shown in Figure 23, install a cable tie (part number 1400-1334) to

secure W21.

42 Installation Note N5225-90119

Installation Procedure for the Upgrade

Figure 23 Location of Cable Tie to Secure W21 (N5245-20008)

— W102 (N5245-20075) A48 port 4 receiver attenuator to A28 mixer brick (D)

— W100 (N5245-20066) A47 port 3 receiver attenuator to A28 mixer brick (C)

— W18 (reuse) (N5245-20049) A32 port 2 receiver coupler to W17

— W12 (reuse) (N5245-20050) A29 port 1 receiver coupler to W11

— W16 (N5245-20044) A31 port 4 receiver coupler to W15

— W14 (N5245-20043) A30 port 3 receiver coupler to W13

Install New Cable(s) – A21 HMA26.5 to A23/A24 Mixer Brick

If your instrument has a new HMA26.5 (N5240-60101) installed:

(If you have a legacy HMA26.5 (5087-7765) installed, you can discard this
cable.)

— W203 (N5245-20195) RF cable, A24 mixer brick (top connector) to A21

HMA25.6 A24 mixer brick (top connector)

Installation Note N5225-90119 43

-

Installation Procedure for the Upgrade

You will need to remove the cap that is installed on the HMA26.5 top
connector, before connecting the other end of the W203 cable. You can
discard the cap.

See also, “Verify the Model/Version of HMA26.5 Installed” on page 6.

If your instrument has a legacy HMA26.5 (5087-7765) installed:

(If you have a new HMA26.5 (N5240-60101) installed, you can discard these
cables.)

— W52 (N5452-20013) A21 HMA26.5 to A22 splitter

NOTE: Tighten both screws on the splitter to 9 in-lbs.

— W53 (N5245-20023) A22 splitter to A24 mixer brick

— W54 (N5245-20022) A22 splitter to A23 mixer brick

(If you have the legacy 5086-7765 HMA26.5, please discard N5245-20195
semi-rigid cable. Refer to Figure 1 on page 7.)

See also, “Verify the Model/Version of HMA26.5 Installed” on page 6.

1

1. The N5245-20195 cable is used only with instruments that have a newer HMA26.5
installed. If your PNA has a legacy 5087-7765 HMA26.5 assembly installed, then
this cable can be discarded. If you are unclear which HMA26.5 assembly your PNA
has installed, refer to Figure 1 on page 7.

44 Installation Note N5225-90119

Installation Procedure for the Upgrade

Step 28. Secure the Front Panel Bulkhead Connectors

Follow the instruction shown in Figure 24 in this document.

Figure 24 Bulkhead Connections, Front Panel

Installation Note N5225-90119 45

-

Installation Procedure for the Upgrade

Step 29. Install Cables on IF Multiplexer Board

Install the following gray flexible cables in the order listed. Mixer brick cables
were connected to the mixer bricks earlier in this procedure, but the other ends
of these cables still require a connection. To see images showing the location
of these cables, click either of the Chapter 6 bookmarks “Bottom RF Cables,

4-Port, Option 419, S/N Prefixes <6021” in the PDF Service Guide
are listed in Table 2 on page 10.

— W70 (N5242-60013) A24 IF multiplexer board P203 to A16 SPAM board J2

— W72 (N5242-60015) A24 IF multiplexer board P603 to A16 SPAM board J5

— W62 (N5242-60021) A27 mixer brick (R1) to A24 IF multiplexer (P411)

— W63 (N5242-60022) A27 mixer brick (R2) to A24 IF multiplexer (P412)

— W65 (N5242-60024) A28 mixer brick (D) to A24 IF multiplexer (P801)

— W66 (N5242-60019) A28 mixer brick (R4) to A24 IF multiplexer (P414)

1

. New parts

— W67 (N5242-60020) A28 mixer brick (R3) to A24 IF multiplexer (P413)

— W68 (N5242-60023) A28 mixer brick (C) to A24 IF multiplexer (P601)

Step 30. Reinstall the A23 Test Set Motherboard

For instructions on reinstalling the board, click the Chapter 7 bookmark
“Removing and Replacing the A23 test set motherboard” in the PDF Service

1

Guide

.

Step 31. Install Cables on the A23 Test Set Motherboard

Follow instructions carefully when making cable connections, especially
wire harness connections. Incorrect connections can destroy components,
resulting in additional customer costs.

If not already done in a previous step, install the following new ribbon cables in
the order listed. To see an image showing their locations, click the Chapter 6
bookmark “Bottom Ribbon Cables and Wire Harnesses, 4-Port, Option 419” in

1

the PDF Service Guide

— Ribbon cable (N5247-60015) from A28 mixer brick (2) J52 to A23 test

set motherboard J552

. New parts are listed in Table 2 on page 10.

— Ribbon cable (part of bias tee), A43 port 3 bias tee to A23 test set

motherboard J543

— Ribbon cable (part of bias tee), A44 port 4 bias tee to A23 test set

motherboard J544

1. See “Downloading the Online PNA Service Guide” on page 7.

46 Installation Note N5225-90119

Installation Procedure for the Upgrade

— Ribbon cable (N5245-60026), A47 port 3 receiver attenuator to A23 test

set motherboard J206

— Ribbon cable (N5245-60026), A48 port 4 receiver attenuator to A23 test

set motherboard J207

— Ribbon cable (N5245-60006), A39 port 3 source attenuator to A23 test

set motherboard J547

— Ribbon cable (N5245-60006), A40 port 4 source attenuator to A23 test

set motherboard J548

Step 32. Replace the Front Panel’s Lower Dress Panel

Before the front panel’s lower dress panel can be replaced, the 2-port lower
dress panel and the lower front panel label must be removed from the front
panel assembly. Refer to Figure 25 on page 48. New parts are listed in Table 2

on page 10.

1. Remove the 2-Port lower front panel label (item

2. Remove the 10 screws (save the screws for reuse) from the 2-port dress

panel and remove the dress panel (item

3. Reassemble the front panel’s lower dress panel assembly with the new
4-port dress panel (N5240-00009) by reversing the order of step 2 in the
instructions previously followed.

IMPORTANT! To avoid possible damage to the lower front panel overlay
(label), do not attempt to attach the lower front panel label until “Step 34.

Install the Overlay” on page 49.

➁ and ③ respectively).

➀).

Installation Note N5225-90119 47

-

Installation Procedure for the Upgrade

Figure 25 Replacing the Front Panel’s Lower Dress Panel and label

Step 33. Reinstall Front Panel Assembly

For instructions on reinstalling the front panel assembly, click the Chapter 7
bookmark “Removing and Replacing the Front Panel Assembly” in the PDF

1

Service Guide

— Be sure to install the two new screws (0515-1946) in the front panel, next to

test ports 3 and 4. Torque these screws to 9 in-lbs.

1. See “Downloading the Online PNA Service Guide” on page 7.

48 Installation Note N5225-90119

.

Installation Procedure for the Upgrade

Step 34. Install the Overlay

To see an image of the front panel overlay (N5227-80020) click the Chapter 6
bookmark “Front Panel Assembly, Front Side, All Options” in the PDF Service

1

Guide

. New parts are listed in Table 2 on page 10.

1. Remove the protective backing from the new front panel overlay
(N5227-80020).

2. Loosely place the overlay in the recess on the lower front panel.

3. Placing two fingers at the middle, press the overlay firmly onto the frame
while sliding your fingers in opposite directions towards the ends of the
overlay. Repeat on all areas of the overlay.

Step 35. Install the Front Panel Jumper Cables

Install twelve W36 front panel jumper cables (N5245-20155) - use 6 new
jumpers and reuse 6 old jumpers. To see an image of the front panel jumper
cables, click the Chapter 7 bookmark “Removing and Replacing the Front

Panel Assembly” in the PDF Service Guide

1

.

Step 36. Position the Cables and Wires to Prevent Pinching

On the top side of the PNA, carefully position the grey flex cables so they can’t
be pinched between the covers and the rails.

On the bottom side of the PNA, carefully fold or push down the ribbon cables
and wires so they can’t be pinched between the hardware and the outer cover.
Ribbon cables and wires must never be positioned on top of hardware.

Step 37. Reinstall the Inner Cover

For instructions, click the Chapter 7 bookmark “Removing the Covers” in the
PDF Service Guide

1

.

Step 38. Reinstall the Outer Cover

For instructions, click the Chapter 7 bookmark “Removing the Covers” in the

1

PDF Service Guide

.

Installation Note N5225-90119 49

-

Installation Procedure for the Upgrade

Step 39. Remove Option 219 License

Procedure Requirements

— The analyzer must be powered up and operating to perform this procedure.

— The Network Analyzer program must be running.

— A keyboard and mouse must be connected to the network analyzer.

Option 219 License Removal Procedure

1. To start the Keysight License Manager, press Start > Keysight License
Manager > Keysight License Manager . A Keysight License Manager dialog
box will appear.

2. Right click the on the desired option and click Delete.

3. In the Keysight License Manager dialog box that appears, press or click
Yes to confirm delete.

4. A message displays stating that the option removal was successful.

50 Installation Note N5225-90119

Installation Procedure for the Upgrade

Step 40. Enable Options 419

For this step, you will need a USB flash drive.

A single license file may contain more than one feature.

Procedure Requirements

— The analyzer must be powered up and operating to perform this procedure.

— The Network Analyzer program must be running.

— A keyboard and mouse must be connected to the network analyzer.

— Refer to the license message you received from Keysight: Verify that the

analyzer’s model and serial numbers match those on the license message
you received from Keysight.

Option Enable Procedure

1. Locate the email(s) from Keysight which contain license file attachments.

These emails are a result of “Step 1. Obtain a Keyword and Verify the

Information” on page 17.

2. Copy the license file(s) from the email(s) to the root directory of the USB
flash drive.
More than one license file may be copied to the USB flash drive.

A single license file may contain more than one feature.

3. Insert the USB flash drive to the PNA’s USB drive slot, within 5 seconds,
the PNA should display a small "New licenses installed" message.

Else, load the license key file(s), manually move your license file(s) to
C:\Program Files\Agilent\ licensing. It may take Keysight License
Manager an extra ~5 seconds to enable the licenses.

4. Verifying and editing the license file:

For these steps, refer to the example in Figure 25-1 on page 52.

5. Verify your USB flash drive is connected to a PC.

6. Open your license file using a text read/write program similar to Notepad.

7. If you have more than one licensed feature, delete the feature that is not

required for this upgrade. (e.g., in this case N5242B-423 is the correct
upgrade. So, N5242B-422 is to be deleted from the text file.)

Installation Note N5225-90119 51

-

Installation Procedure for the Upgrade

Figure 25-1 Editing a Keysight License File Using a Text Editor.

Note: This figure may not contain your specific features and is an example

only. In this example N5242B-422 is the incorrect feature. N5242B-423 is the
correct feature.

8. Re-save the text license file to the root directory of your USB flash drive.

9. Verify that only the single correctly edited text license file is in the root

directory of your USB drive.

10.Eject your USB flash drive and remove the USB flash drive from your PC.

Attempting to re-install a license file that is already installed may generate
a “Corrupt Media” error message. Ignore this message.

11.Disconnect the USB flash drive from the PNA.

12.On the analyzer, click or press to open the KLM software from your PNA’s
Windows taskbar by pressing Start > More Programs > Keysight License
Manager folder > Keysight License Manager and verify the options are

correct.

Option Verification Procedure

Once the analyzer has restarted and the Network Analyzer program is again
running:

1. Start the Network Analyzer program.

2. Once the Network Analyzer program is running:

52 Installation Note N5225-90119

Installation Procedure for the Upgrade

— Press Help > About NA and verify that Option 419 is listed in the

PNA application.

If the options have not been enabled or if the option 219 license has not
been removed, contact Keysight Technologies. Refer to “Getting

Assistance from Keysight” on page 4.

3. After successful installation of all upgrades, some features require some
adjustments to ensure the instrument meets its specified performance.
Refer to the following Web site: http://na.support.keysight.com/pna.

Installation Note N5225-90119 53

-

Installation Procedure for the Upgrade

Step 41. Perform Post-Upgrade Adjustments and Calibration

Adjustments

The following adjustments must be made due to the hardware changes of the
analyzer.

— EE default adjustment: Src 2 Synth Only

— synthesizer bandwidth adjustment (only run if the EE default adjustment is

not sufficient)

—source adjustment

— IF gain adjustment

— receiver characterization

—receiver adjustment

— IF response adjustment (Option S93090xA/B, S93093A/B, or S93094A/B

Only)

These adjustments are described in the PNA Service Guide and in the PNA
on-line HELP. A list of equipment required to perform these adjustments is also
found in the service guide.

To view this service guide information, click the Chapter 3 bookmark “Tests

1

and Adjustments” in the PDF Service Guide

.

After the specified adjustments have been performed, the analyzer should
operate and phase lock over its entire frequency range.

EEPROM Backup

The analyzer uses arrays of correction constants to enable the analyzer to
produce accurate, leveled source signals and receive clean test signals. These
constants are stored in non-volatile EEPROM memory and in flash memory
files.

The adjustments listed here generate new correction constants. The analyzer
must have a backup of this new data in case any of the data becomes
corrupted.

To store the backup data, perform these steps:

— Navigate to the EEPROM Backup Utility, located at:

— Windows 7 -- C:\Program Files (x86)\Keysight\Network

Analyzer\Service\eebackup.exe

— Windows 10 -- C:\Program Files\Keysight\Network

Analyzer\Service\eebackup.exe

— Run the program.

1. See “Downloading the Online PNA Service Guide” on page 7.

54 Installation Note N5225-90119

Installation Procedure for the Upgrade

— Click Backup EEPROM.

— Click Backup TSMB Mem.

— Click Backup Synth Mem. (Applies to Version 7 Synthesizers Only)

— Click Exit when the program has finished.

Figure 26 EEPROM Backup Menu

Operator’s Check

Perform the Operator’s Check to check the basic functionality of the analyzer.
For instructions, click the Chapter 3 bookmark “Tests and Adjustments” in the

1

PDF Service Guide

.

If you experience difficulty with the basic functioning of the analyzer, contact
Keysight. Refer to “Contacting Keysight” on page 4.

Calibration

Although the analyzer functions, its performance relative to its specifications
has not been verified. It is recommended that a full instrument calibration be
performed using the analyzer’s internal performance test software. To view
information on the performance test software, click the Chapter 3 bookmark

1

“Tests and Adjustments” in the PDF Service Guide

.

1. See “Downloading the Online PNA Service Guide” on page 7.

Installation Note N5225-90119 55

-

Installation Procedure for the Upgrade

Step 42. Prepare the PNA for the User

1. If necessary, reinstall front jumper cables.

2. Install the cable guards, pushing them over the front jumper cables until
the cushioning material touches the front panel of the PNA.

3. Install the dust caps on the test ports.

4. Clean the analyzer, as needed, using a damp cloth.

56 Installation Note N5225-90119

Installation Note Xxxxx-xxxxx 3

This information is subject to change
without notice.
© Keysight Technologies 2009-2020

Edition 1, December 2020

www.keysight.com
