Keysight 849 Series, 8491A, 1158 Series, 8490D, 8491B Operating And Service Manual

Keysight 8490D/G, 8491A/B,
8493A/B/C Coaxial Fixed
Attenuators

Keysight 11581A, 11582A,
11583C Attenuator Sets

Operating and
Service Manual

Notices

CAUTION

WARNING

Copyright Notice

© Keysight Technologies 2014 - 2018
No part of this manual may be reproduced in

any form or by any means (including electronic
storage and retrieval or translation into a for­eign language) without prior agreement and
written consent from Keysight Technologies as
governed by United States and international
copyright laws.

Manual Part Number

08491-90077

Edition

Edition 6, November 27, 2018

Printed in:

Printed in Malaysia

Published by:

Keysight Technologies
Bayan Lepas Free Industrial Zone,
11900 Penang, Malaysia

Technology Licenses

The hard ware and/or software described in
this document are furnished under a license
and may be used or copied only in accordance
with the terms of such license.

Declaration of Conformity

Declarations of Conformity for this product
and for other Keysight products may be down­loaded from the Web. Go to http://www.key-

sight.com/go/conformity. You can then search

by product number to find the latest Declara­tion of Conformity.

U.S. Government Rights

The Software is “commercial computer soft­ware,” as defined by Federal Acquisition Regu­lation (“FAR”) 2.101. Pursuant to FAR 12.212
and 27.405-3 and Department of Defense FAR
Supplement (“DFARS”) 227.7202, the U.S.
government acquires commercial computer
software under the same terms by which the
software is customarily provided to the public.
Accordingly, Keysight provides the Software to
U.S. government customers under its standard
commercial license, which is embodied in its
End User License Agreement (EULA), a copy of
which can be found at http://www.key-

sight.com/find/sweula. The license set forth in

the EULA represents the exclusive authority by
which the U.S. government may use, modify,
distribute, or disclose the Software. The EULA
and the license set forth therein, does not
require or permit, among other things, that
Keysight: (1) Furnish technical information
related to commercial computer software or
commercial computer software documenta­tion that is not customarily provided to the
public; or (2) Relinquish to, or otherwise pro­vide, the government rights in excess of these
rights customarily provided to the public to
use, modify, reproduce, release, perform , dis­play, or disclose commercial computer soft­ware or commercial computer software
documentation. No additional government
requirements beyond those set forth in the
EULA shall apply, except to the extent that
those terms, rights, or licenses are explicitly
required from all providers of commercial
computer software pursuant to the FAR and
the DFARS and are set forth specifically in
writing elsewhere in the EULA. Keysight shall
be under no obligation to update, revise or
otherwise modify the Software. With respect
to any technical data as defined by FAR 2.101,
pursuant to FAR 12.211 and 27.404.2 and
DFARS 227.7102, the U.S. government
acquires no greater than Limited Rights as
defined in FAR 27.401 or DFAR 227.7103-5 (c),
as applicable in any technical data.

Warranty

THE MATERIAL CONTAINED IN THIS DOCU­MENT IS PROVIDED “AS IS,” AND IS SUBJECT
TO BEING CHANGED, WITHOUT NOTICE, IN
FUTURE EDITIONS. FURTHER, TO THE MAXI­MUM EXTENT PERMITTED BY APPLICABLE
LAW, KEYSIGHT DISCLAIMS ALL WARRAN­TIES, EITHER EXPRESS OR IMPLIED, WITH
REGARD TO THIS MANUAL AND ANY INFOR­MATION CONTAINED HEREIN, INCLUDING
BUT NOT LIMITED TO THE IMPLIED WARRAN­TIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE. KEYSIGHT
SHALL NOT BE LIABLE FOR ERRORS OR FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES
IN CONNECTION WITH THE FURNISHING,
USE, OR PERFORMANCE OF THIS DOCU­MENT OR OF ANY INFORMATION CONTAINED
HEREIN. SHOULD KEYSIGHT AND THE USER
HAVE A SEPARATE WRITTEN AGREEMENT
WITH WARRANTY TERMS COVERING THE
MATERIAL IN THIS DOCUMENT THAT CON­FLICT WITH THESE TERMS, THE WARRANTY
TERMS IN THE SEPARATE AGREEMENT
SHALL CONTROL.

Safety Information

A CAUTION notice denotes a hazard. It calls
attention to an operating procedure, practice,
or the like that, if not correctly performed or
adhered to, could result in damage to the
product or loss of important data. Do not pro­ceed beyond a CAUTION notice until the indi­cated conditions are fully understood and met.

A WARNING notice denotes a hazard. It calls
attention to an operating procedure, practice,
or the like that, if not correctly performed or
adhered to, could result in personal injury or
death. Do not proceed beyond a WARNING
notice until the indicated conditions are fully
understood and met.

2 Keysight 849x and 1158x Operating and Service Manual

Printing Copies of Documentation from the Web

To print copies of documentation from the Web, download the PDF file from the Keysight web site:

–Go to http://www.keysight.com.

– Enter the document’s part number (located on the Notices page) in the Quick Search box.

– Click GO.

– Click on the hyperlink for the document.

– Click the printer icon located in the tool bar.

Waste Electrical and Electronic Equipment (WEEE) Directive

This instrument complies with the WEEE Directive marking requirement. This affixed product label
indicates that you must not discard this electrical or electronic product in domestic household
waste.

Product category:

With reference to the equipment types in the WEEE directive Annex 1, this instrument is classified
as a “Monitoring and Control Instrument” product.

The affixed product label is as shown below.

Do not dispose in domestic household waste.

To return this unwanted instrument, contact your nearest Keysight Service Center, or visit http://

about.keysight.com/en/companyinfo/environment/takeback.shtml for more information.

Sales and Technical Support

To contact Keysight for sales and technical support, refer to the support links on the following
Keysight websites:

– www.keysight.com/find/attenuators

(product-specific information and support, software and documentation updates)

– www.keysight.com/find/assist

(worldwide contact information for repair and service)

Keysight 849x and 1158x Operating and Service Manual 3

THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK.

4 Keysight 849x and 1158x Operating and Service Manual

Table of Contents

Printing Copies of Documentation from the Web . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Waste Electrical and Electronic Equipment (WEEE) Directive . . . . . . . . . . . . . . . . . . . . 3

Product category: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Sales and Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

List of Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

List of Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Attenuator overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Optional calibration data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Attenuator sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Initial inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Returning attenuators under warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Operating Instruction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Operator’s check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Using oscillator and SWR meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Using network analyzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Making Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

8490D/G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

8491A/B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

8493A/B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

8493C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Performance Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Service Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Keysight 849x and 1158x Operating and Service Manual 5

THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK.

6 Keysight 849x and 1158x Operating and Service Manual

List of Figures

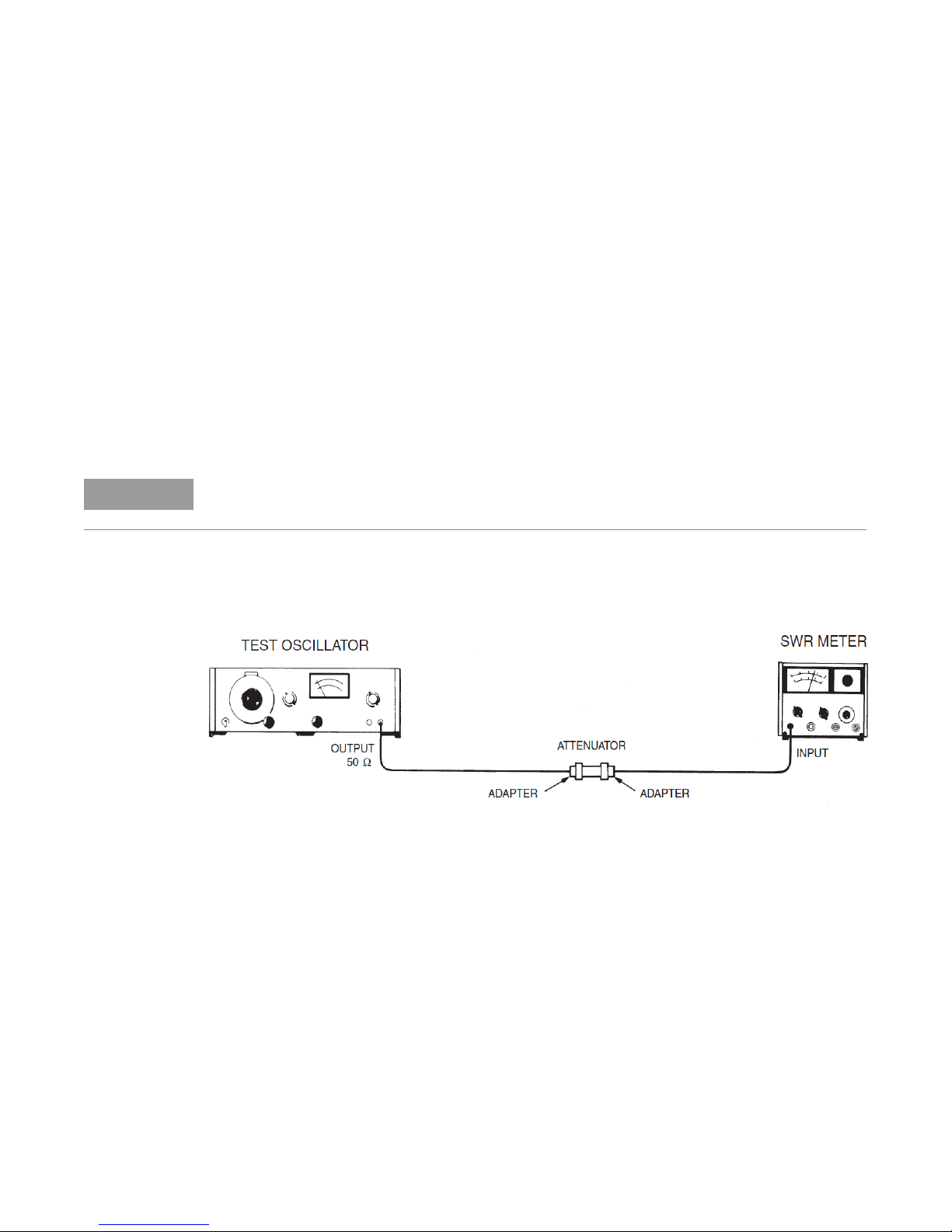

Figure 1 Equipment setup using oscillator and SWR meter . . . . . . . . . . . . . . . 21

Figure 2 Equipment setup using network analyzer . . . . . . . . . . . . . . . . . . . . . . 23

Figure 3 2.4-mm/1.85mm connector diagram . . . . . . . . . . . . . . . . . . . . . . . . . 24

Figure 4 Type-N connector diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Figure 5 SMA connector diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

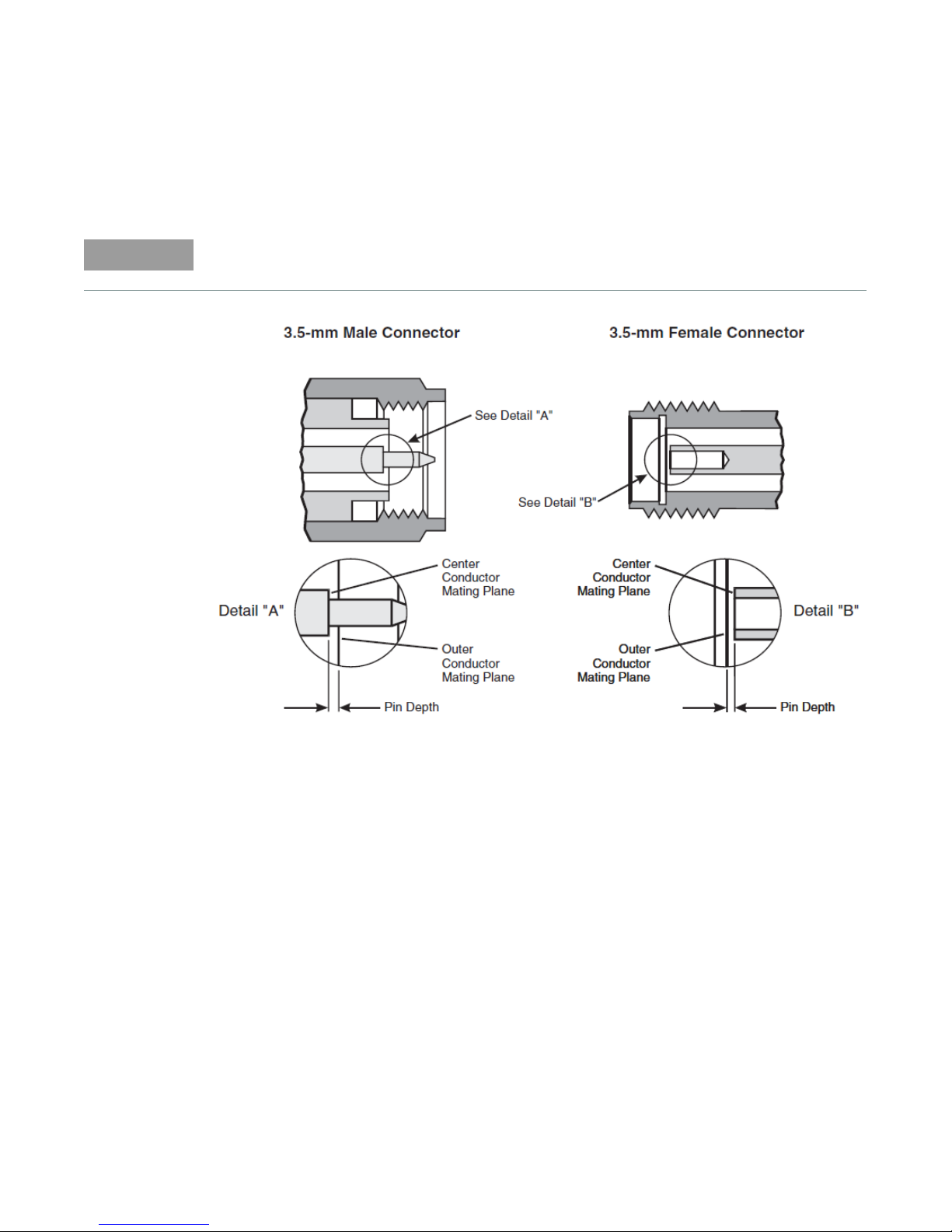

Figure 6 3.5-mm connector diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Keysight 849x and 1158x Operating and Service Manual 7

THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK.

8 Keysight 849x and 1158x Operating and Service Manual

List of Tables

Table 1 List of coaxial fixed attenuators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Table 2 List of coaxial fixed attenuators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Table 3 Specifications for 8490D coaxial fixed attenuator . . . . . . . . . . . . . . . . 13

Table 4 Specifications for 8490G coaxial fixed attenuator . . . . . . . . . . . . . . . . 14

Table 5 Specifications for 8491A and 8493A coaxial fixed attenuators . . . . . . 15

Table 6 Specifications for 8491B and 8493B coaxial fixed attenuators . . . . . . 16

Table 7 Specifications for 8493C coaxial fixed attenuator . . . . . . . . . . . . . . . . 17

Table 8 Accuracy of insertion loss measurements (S
Table 9 Accuracy of reflection coefficient measurements (S

, S12) . . . . . . . . . . . . . . 18

21

, S22) . . . . . . . . 18

11

Table 10 849x coaxial fixed attenuator and 1158x attenuator sets environmental

specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Table 11 SWR verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Keysight 849x and 1158x Operating and Service Manual 9

THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK.

10 Keysight 849x and 1158x Operating and Service Manual

General Information

Attenuator overview

The 8490D/G, 8491A/B, and 8493A/B/C are small, light-weight, low-power, 50-ohm coaxial fixed
attenuators.

The attenuators cover broad frequency ranges and choice of connector types. Each model comes
with Options to accommodate various attenuation values as shown in Table 1.

Table 1 List of coaxial fixed attenuators

Model Option Frequency range Connector type

8490D 003, 006, 010, 020, 030, 040 DC to 50 GHz 2.4 mm (m), (f)

8490G 003, 006, 010, 020, 030, 040 DC to 67 GHz 1.85mm (m), (f)

8491A 003, 006, 010, 020, 030, 040, 050, 060 DC to 12.4 GHz Type N (m), (f)

8491B 003, 006, 010, 020, 030, 040, 050, 060 DC to 18 GHz Type N (m), (f)

8493A 003, 006, 010, 020, 030 DC to 12.4 GHz SMA 3 mm (m), (f)

8493B 003, 006, 010, 020, 030 DC to 18 GHz SMA 3 mm (m), (f)

8493C 003, 006, 010, 020, 030, 040 DC to 26.5 GHz 3.5 mm (m), (f )

The Option number indicates the attenuation value. For example, Option 003 indicates 3 dB
attenuation, Option 010 indicates 10 dB attenuation, and so on.

Features

– Ruggedness, reliability, and small size make these attenuators useful both on the bench and in

– Accuracy and low SWRs make the attenuators well suited for extending the range of sensitive

– Each attenuator is tested with a vector network analyzer for attenuation, and a plot of actual

systems applications.

power meters for higher power measurements and applications such as calibration standards

and RF substitution measurements.

attenuation values is printed on the label attached to the body of the attenuator (except for the

8490D/G and 8493C).

Keysight 849x and 1158x Operating and Service Manual 11

Optional calibration data

Option UK6 calibration data, which is generated by a network analyzer, provides a tabulated list of
attenuations and reflection coefficients in which the number of frequency points provided depends
on the model number and frequency range. Option UK6 calibration data is available when
attenuators are first purchased and recalibrations are available through Keysight Technologies
Service Centers.

Attenuator sets

The 11581A, 11582A, and 11583C are boxed sets of four coaxial fixed attenuators of 3, 6, 10, and
20 dB as shown in Tab le 2.

Each attenuator set comes with a printed calibration report that gives the actual attenuation and
reflection coefficient of each port at frequencies from 100 MHz to 12.4 GHz for 11581A, 100 MHz
to 18 GHz for 11582A, and 100 MHz to 26.5 GHz for 11583C, at increments from 100 to 500 MHz.

Tab le 2 List of coaxial fixed attenuators

Model Contents Frequency range

11581A 8491A (3, 6, 10, and 20 dB) DC to12.4 GHz

11582A 8491B (3, 6, 10, and 20 dB) DC to 18 GHz

11583C 8493 C (3, 6, 10, and 20 dB) DC to 26.5 GHz

12 Keysight 849x and 1158x Operating and Service Manual

Specifications

The specifications refer to the performance standards or limits against which the coaxial fixed
attenuators are tested.

Table 3 Specifications for 8490D coaxial fixed attenuator

Minimum attenuation in dB Maximum attenuation in dB

[a]

Option

003 2.5 3.9 4.8

006 5.4 6.9 7.8

010 9.4 10.9 11.3

020 19.2 21.3 21.7

030 29.2 31.3 31.7

040 38.2 42.5 42.5

[a]

Option

003 1.15 1.25 1.45

006 1.15 1.25 1.45

010 1.15 1.25 1.45

DC to 50 GHz DC to 26.5 GHz 26.5 to 50 GHz

Maximum SWR

DC to 26.5 GHz 26.5 to 40 GHz 40 to 50 GHz

020 1.15 1.25 1.45

030 1.15 1.25 1.45

040 1.08 1.15 1.25

Maximum input power 1 W avg, 100 W pk

Connectors (50 Ω)2.4 mm

Dimension (length)

Diameter 0.312 in. (8 mm)

[a] Option numbers indicate the attenuation values. For example, Option 003 indicates 3 dB attenuation, Option 010 indicates 10 dB

attenuation and so on.

1.06 in. (27 mm) for Options 003, 006, 010, 020

1.14 in. (29 mm) for Options 030, 040

Keysight 849x and 1158x Operating and Service Manual 13

Tab le 4 Specifications for 8490G coaxial fixed attenuator

Minimum

attenuation in dB

Option

[a]

DC to 67 GHz DC to 26.5 GHz 26.5 to 50 GHz 50 to 67 GHz

003 2.5 3.9 4.4 4.8

006 5.4 6.9 7.4 7.8

010 9.4 10.9 11.1 11.3

020 19.2 21.3 21.5 21.7

030 29.2 31.3 31.5 31.7

040 38.0 42.5 42.5 42.5

Option

[a]

DC to 26.5 GHz 26.5 to 40 GHz 40 to 50 GHz

003 1.15 1.25 1.45

006 1.15 1.25 1.45

010 1.15 1.25 1.45

020 1.15 1.25 1.45

030 1.15 1.25 1.45

040 1.08 1.15 1.25

Maximum input power 1 W avg, 100 W pk

Maximum attenuation in dB

Maximum SWR

Connectors (50 Ω)1.85 mm

Dimension (length)

1.06 in. (27 mm) for Options 003, 006, 010, 020

1.10 in. (28 mm) for Options 030, 040

Diameter 0.312 in. (8 mm)

[a] Option numbers indicate the attenuation values. For example, Option 003 indicates 3 dB attenuation, Option 010 indicates 10 dB

attenuation and so on.

14 Keysight 849x and 1158x Operating and Service Manual

Table 5 Specifications for 8491A and 8493A coaxial fixed attenuators

Attenuation accuracy in dB

[a]

Option

003 ± 0.3

006 ± 0.3

010 ± 0.5

020 ± 0.5

030 ± 1.0

[b]

040

[b]

050

[b]

060

SWR

Option

[a]

DC to 8 GHz 8 to 12.4 GHz

003 1.25 1.35

006 1.2 1.3

010 1.2 1.3

020 1.2 1.3

DC to 12.4 GHz

± 1.5

± 1.5

± 2.0

030 1.2 1.3

040

050

060

[b]

[b]

[b]

1.2 1.3

1.2 1.3

1.2 1.3

Maximum input power 2 W avg, 100 W pk

Connectors (50 Ω)

8491A: Type N

[c]

8493A: SMA

[d]

Dimension (length) 8491A: 2-7/16 in. (67 mm) 8493A: 1-9/16 in. (40 mm)

Diameter 8491A: 13/16 in. (21 mm) 8493A: 1/2 in. (13 mm)

[a] Option numbers indicate the attenuation values. For example, Option 003 indicates 3 dB attenuation, Option 010 indicates 10 dB

attenuation and so on.

[b] Options 040, 050, and 060 are not available for 8493A.

[c] Mate with MIL-C-71 and MIL-C-39012 connectors.

[d] Miniature SMA type.

Keysight 849x and 1158x Operating and Service Manual 15

Tab le 6 Specifications for 8491B and 8493B coaxial fixed attenuators

Attenuation accuracy in dB

[a]

Option

003 ± 0.3 ± 0.3

006 ± 0.3 ± 0.4

010 ± 0.6 ± 0.6

020 ± 0.6 ± 1.0

030 ± 1.0 ± 1.0

[b]

040

[b]

050

[b]

060

[a]

Option

003 1.25 1.3 1.5

006 1.2 1.3 1.5

010 1.2 1.3 1.5

DC to 12.4 GHz 12.4 to 18 GHz

± 1.5 ± 1.5

± 1.5 ± 1.5

± 2.0 ± 2.0

SWR

DC to 26.5 GHz 26.5 to 40 GHz 40 to 50 GHz

020 1.2 1.3 1.5

030 1.2 1.3 1.5

040

050

060

[b]

[b]

[b]

1.2 1.3 1.5

1.2 1.3 1.5

1.2 1.3 1.5

Maximum input power 2 W avg, 100 W pk

Connectors (50 Ω)

8491A: Type N

[c]

8493A: SMA

[d]

Dimension (length) 8491A: 2-7/16 in. (67 mm) 8493A: 1-9/16 in. (40 mm)

Diameter 8491A: 13/16 in. (21 mm) 8493A: 1/2 in. (13 mm)

[a] Option numbers indicate the attenuation values. For example, Option 003 indicates 3 dB attenuation, Option 010 indicates 10 dB

attenuation and so on.

[b] Options 040, 050, and 060 are not available for 8493B.

[c] Mate with MIL-C-71 and MIL-C-39012 connectors.

[d] Miniature SMA type.

16 Keysight 849x and 1158x Operating and Service Manual

Table 7 Specifications for 8493C coaxial fixed attenuator

Attenuation Accuracy in dB

[a]

Option

003 ± 0.5 ± 1.0

006 ± 0.6 ± 0.6

010 ± 0.3 ± 0.5

020 ± 0.5 ± 0.6

030 ± 0.7 ± 1.0

040 ± 1.0 ± 1.3

[a]

Option

003 1.10 1.15 1.25

006 1.10 1.15 1.27

010 1.10 1.15 1.25

020 1.10 1.15 1.25

030 1.10 1.15 1.25

040 1.10 1.15 1.25

Maximum input power 2 W avg, 100 W pk

Connectors (50 Ω)3.5 mm

DC to 18 GHz 18 to 26.5 GHz

SWR

DC to 8 GHz 8 to 12.4 GHz 12.4 to 26.5 GHz

Dimension (length)

1-15/16 in. (33.8 mm) for Options 003, 006, 010, 020
1-7/16 in. (36.8 mm) for Options 030, 040

Diameter 5/16 in. (8 mm)

[a] Option numbers indicate the attenuation values. For example, Option 003 indicates 3 dB attenuation, Option 010 indicates 10 dB

attenuation and so on.

Table 8 and Tab le 9 apply to the following boxed sets of four attenuators.

– The 11581A attenuator set contains a 3, 6, 10, and 20 dB 8491A.

– The 11582A attenuator set contains a 3, 6, 10, and 20 dB 8491B.

– The 11583C attenuator set contains a 3, 6, 10, and 20 dB 8493C.

Keysight 849x and 1158x Operating and Service Manual 17

Tab le 8 Accuracy of insertion loss measurements (S

Attenuation DC to 4 GHz 4 to 12 GHz 12 to 18 GHz

3 dB ± 0.01 dB ± 0.06 dB ± 0.11 dB

6 dB ± 0.01 dB ± 0.07 dB ± 0.11 dB

10 dB ± 0.01 dB ± 0.07 dB ± 0.12 dB

20 dB ± 0.01 dB ± 0.08 dB ± 0.13 dB

21

, S12)

Tab le 9 Accuracy of reflection coefficient measurements (S

Female Male

Model 4 to 12 GHz 12 to 18 GHz 4 to 12 GHz 12 to 18 GHz

11581A ± 0.006 dB - ± 0.006 dB -

11582A ± 0.006 dB ± 0.010 dB ± 0.006 dB ± 0.006 dB

11583C ± 0.007 dB ± 0.007 dB ± 0.007 dB ± 0.007 dB

11

, S22)

18 Keysight 849x and 1158x Operating and Service Manual

Environmental Specifications

The 849x coaxial fixed attenuators and 1158x attenuator sets are designed to fully comply with
Keysight Technologies’ product operating environmental specifications as shown Tab le 10 .

Table 10 849x coaxial fixed attenuator and 1158x attenuator sets environmental

specifications

Operating 0 °C to +55 °C |95% relative at 40 °C |4,600 meters (15,000 feet)

Storage –55 °C to +85 °C |95% relative at 40 °C |15,300 meters (50,000 feet)

Temperature Humidity Altitude

Keysight 849x and 1158x Operating and Service Manual 19

Installation

Initial inspection

1 Inspect the shipping container for damage. If the shipping container or cushioning material is

damaged, it should be kept until the contents of the shipment have been checked for
completeness and the instrument has been checked both mechanically and electrically.

– Check for mechanical damage such as scratches or dents.

– Procedures for checking electrical performance are given under “Operator's Check” or

“Performance Tests”.

2 If the contents are incomplete, if there is mechanical damage or defect, or if the instrument

does not pass the electrical performance test, contact the nearest Keysight Technologies Sales
and Service office. Refer to the Service and Support information in the front matter of this
manual. Keysight Technologies will arrange for repair or replacement of the damaged or
defective equipment. Keep the shipping materials for the carrier's inspection.

3 If you are returning the instrument under warranty or for service, repackaging the instrument

requires original shipping containers and materials or their equivalents. Keysight Technologies
can provide packaging materials identical to the original materials. Refer to Service and
Support information in the front matter of this manual for the Keysight Technologies nearest
you. Attach a tag indicating the type of service required, return address, model number, and
serial number. Mark the container FRAGILE to insure careful handling. In any correspondence,
refer to the instrument by model number and serial number.

Returning attenuators under warranty

“Bad contacts” attenuators are returnable under warranty while “burned out” attenuators are not.
These terms are defined as follows:

– “Bad contacts”: Attenuation is within specifications at 8 GHz or higher; attenuation is at least

3 to 5 dB higher than specification at DC and 1 kHz.

– “Burned out”: Attenuation is at least 3 to 5 dB higher than specification at DC and entire rated

frequency range.

20 Keysight 849x and 1158x Operating and Service Manual

Operating Instruction

NOTE

Operator’s check

The operator's check is supplied to allow the operator to make a quick check of the attenuators
prior to use or if a failure is suspected.

Using oscillator and SWR meter

Description

The attenuator is driven from a 50-ohm signal source at 1 kHz. The output level from the
attenuator is detected by a narrow-bandwidth voltmeter (that is, the SWR meter). A reference level
is set up on the detector using a through connection in place of the attenuator. The attenuator is
then inserted and the change in the detector level is noted. This checks the low frequency
accuracy of the attenuator.

The SWR meter used in this check is calibrated for a square-law detector and therefore the range
changes and errors (read in dB) are twice that indicated by the meter.

Quick-check procedure

1 Connect the equipment as shown in the Figure 1 except remove the attenuator and connect the

adapters directly together.

Figure 1 Equipment setup using oscillator and SWR meter

1 Set the test oscillator to 0.3 Vrms at 1 kHz.

2 Set the SWR meter range to 2 dB (expanded) or for the 3 dB, 6 dB, and 10 dB (expanded) as

appropriate and adjust its bandwidth to the center of the adjustment range. Fine tune the

oscillator frequency to obtain maximum meter indication. Adjust the oscillator output to obtain

the SWR meter reading in the table below.

3 Connect the attenuator into the system, adjust the SWR meter range switch as listed in

Table 11, and verify that the SWR meter indicates within the limits as shown Ta ble 11.

Keysight 849x and 1158x Operating and Service Manual 21

Tab le 11 SWR verification

Attenuation (dB) SWR meter range (dB)

Meter indication (dB)

Minimum Actual Maximum

0 (system cal)

2 (or 10)

[a]

Set to 0.5 (or 0.0)

3101.35 1.65

6120.85 1.15

10 14 0.75 1.25

20 12 0.25 0.75

30 16 1.00 2.00

40 22 -0.25 1.25

50 26 0.75 2.25

60 32 -0.50 1.50

[a] Set SWR meter range to 10 dB and power level to 0.0 dB for 3 dB, 6 dB, and 10 dB attenuators only.

[a]

22 Keysight 849x and 1158x Operating and Service Manual

Using network analyzer

Description

All four s-parameters of the attenuator are measured using a network analyzer that is already
calibrated with the necessary settings.

Quick-Check Procedure

Use correct cables and adapters on the test ports of the network analyzer. This depends on the
type of the attenuator being checked. The equipment setup is as illustrated in Figure 2.

1 Calibrate the network analyzer with appropriate settings and setup necessary.

2 Measure the S21 or/and S12 of the attenuator. Compare with the specification to verify its

electrical performance.

3 Measure the S11 and S22 of the attenuator. Compare with the specification to verify its

electrical performance.

Figure 2 Equipment setup using network analyzer

Keysight 849x and 1158x Operating and Service Manual 23

Making Connections

The attenuators should not bear any force or weight contributed by other devices connected to
them. The attenuators are bidirectional, that is, the signal may be inserted from either end.

8490D/G

The 8490D 2.4-mm connectors mate with other 2.4-mm connectors of the opposite sex.

The 8490G 1.85-mm connectors mate with other 1.85-mm connectors of the opposite sex.

Figure 3 2.4-mm/1.85mm connector diagram

24 Keysight 849x and 1158x Operating and Service Manual

8491A/B

NOTE

The 8491A/B type-N connectors mate with all type-N connectors whose dimensions conform to
IEE STD 287.

Do not mate with 0.071 inch diameter pin male connector. Damage will result.

Figure 4 Type-N connector diagram

Keysight 849x and 1158x Operating and Service Manual 25

8493A/B

The 8493A/B has a male SMA jack on one end and a female SMA on the other. These connectors
mate with the opposite sex SMA connectors

Figure 5 SMA connector diagram

26 Keysight 849x and 1158x Operating and Service Manual

8493C

NOTE

The 8493C has a male 3.5-mm connector on one end and a female 3.5-mm connector on the other
side. These connectors mate with the opposite sex 3.5-mm or SMA connectors.

Continued mating with SMA connectors could degrade the 3.5-mm connector.

Figure 6 3.5-mm connector diagram

Keysight 849x and 1158x Operating and Service Manual 27

Performance Test

The attenuators can be tested to the accuracy of the specifications with a network analyzer or
equivalent equipment of suitable accuracy. If a network analyzer is available, test the instrument
using the procedure in the analyzer’s operating manual.

28 Keysight 849x and 1158x Operating and Service Manual

Service Instructions

Repair

The 8490D/G, 8491A/B the 8493A/B/C attenuators are not recommended for repair since the
cards must be mounted in cartridges to test and testing costs more than a replacement attenuator.

Maintenance

The connectors, particularly the connector faces, must be kept clean. This is especially true of the
8493A/B/C.

For instruction on connecting and care of your connectors, refer to the Microwave Connector Care
Quick Reference Card (08510-90360).

Keysight 849x and 1158x Operating and Service Manual 29

THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK.

30 Keysight 849x and 1158x Operating and Service Manual

This information is subject to change
without notice. Always refer to the
Keysight website for the latest
revision.

© Keysight Technologies 2014 - 2018
Edition 6, November 27, 2018

Printed in Malaysia

*08491-90077*

08491-90077

www.keysight.com
