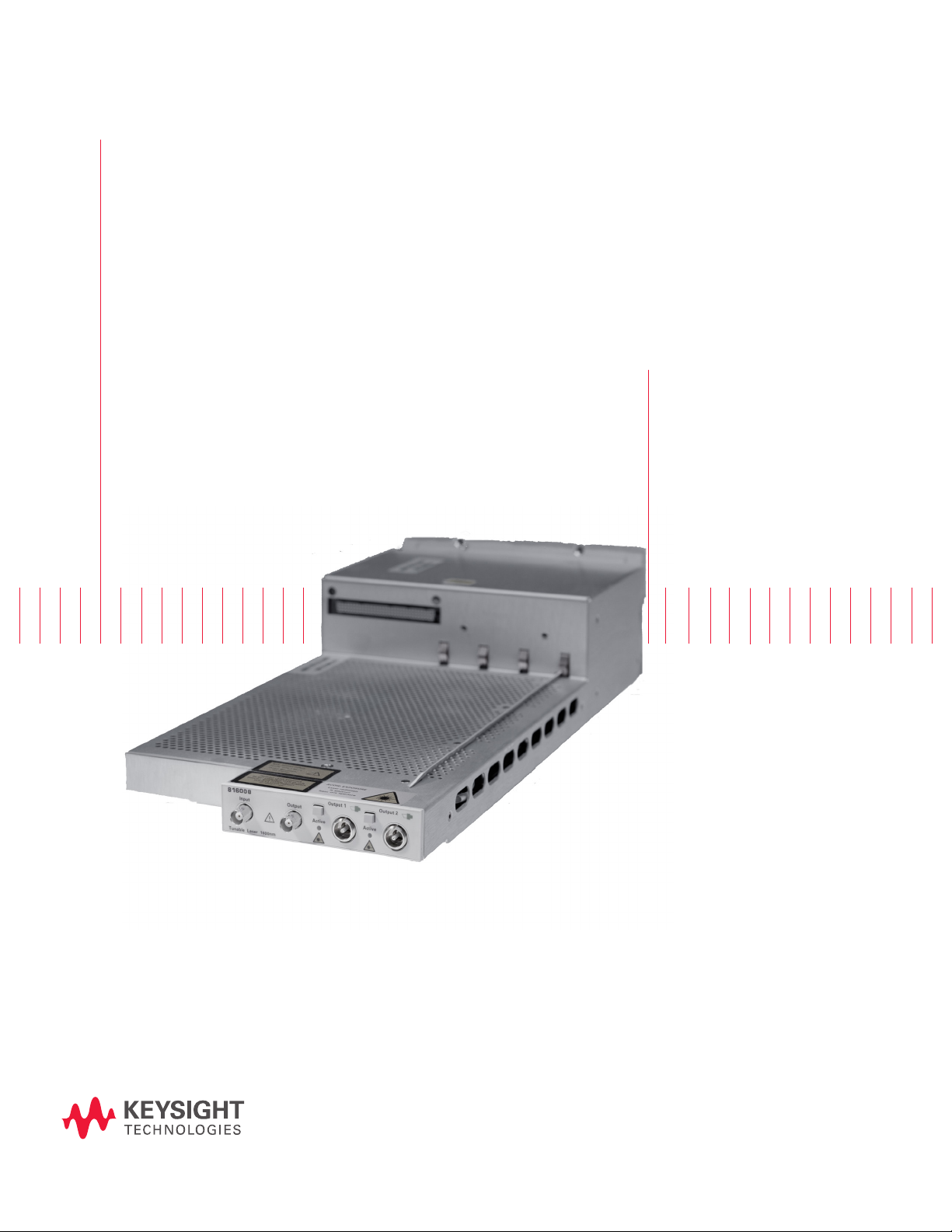

Page 1

Keysight Technologies

81600B Tunable Laser Source Family

Data Sheet

Page 2

Introduction

The Keysight Technologies, Inc. 81600B Tunable Laser Source Family offers the full wavelength range from 1260 nm to 1640 nm with no wavelength gaps. This provides test instrumentation with maximum flexibility.

Investing in the Keysight 81600B Tunable Laser Source Family can realize the cost efficiency and performance required to test components for coarse and dense wavelength division multiplexing (CWDM, DWDM) and passive optical networks (PON).

Page 3

Keysight 81600B Tunable Laser Source Family

The Keysight 81600B Tunable Laser Source Family consists of seven modules that fit into the bottom slot of the Keysight 8164B Lightwave Solution Mainframe.

The 81600B Option 200 and 201 Allband Tunable Laser Sources are the flagship models, featuring the widest tuning range of 200 nm, respectively 185 nm, with a single laser and a 70 dB/nm signal-to-source spontaneous emission ratio (signal-to-SSE ratio). The excellent low-SSE performance typically allows crosstalk measurements of better than 70 dB/nm signal-to-source spontaneous emission ratio (signal-to-SSE ratio). This and the high signal power permit measurements of wavelength isolation to 100 dB, most often limited by power meter sensitivity.

Full wavelength range from 1260 nm to 1640 nm

The Keysight 81600B Tunable Laser Source Family offers the full wavelength range from 1260 nm to 1640 nm with no wavelength gaps. The N7700A software suite has a measurement engine for IL and PDL that can combine the sweeps of up to 3 tunable laser wavelength ranges. Such a setup can be used for testing CWDM multiplexers.

O-band models for the latest applications

The 81600B options 130 and 132 cover the wavelength range from 1260 nm to 1375 nm for an important set of applications. With the PMF output fiber, these are a good match for testing and developing components with silicon photonics technology. And especially with lowSSE, the Option 130 is the best tool for testing wavelength filters for LR4 components.

Integrated solutions for swept-wavelength spectral measurements

The 81600B is supported with the N7700A software suite for spectral measurements of insertion loss, polarization dependent loss and dispersion in combination with power meters and polarization instruments. These provide optimal sweptwavelength accuracy dynamic range. See the N7700A brochure for details.

Low SSE output port for high dynamic range

The 81600B option 201, 200, 160, 150, 140 and 130 Tunable Laser Sources are equipped with two optical outputs.

The low-SSE output port of the dual-output models delivers a signal with ultra-low source spontaneous emission. It enables accurate crosstalk measurement of DWDM, CWDM and PON wavelength filtering components by producing light only at the desired wavelength.

The second output port provides high optical power, adjustable over a power range of more than 60 dB via a built-in optical attenuator.

High power output for multipurpose component tests

The Keysight 81600B Options 142 and 132 provide one output port with high stimulus power for applications where the SSE level is not critical.

The 81600B Option 142 can also be equipped with a built-in optical attenuator, so providing an adjustable power range of 60 dB.

Built-in wavelength meter for optimum tuning precision

The Keysight 81600B Tunable Laser Source Family includes a built-in real time wavelength meter which realizes an absolute wavelength accuracy of ± 10 pm (typical ± 3.6 pm) as a standalone instrument.

Specied performance in the

continuous sweep mode

As manufacturing yield expectations becomes more and more stringent, it is important that all instruments deliver optimum performance under all measurement conditions.

The Keysight 81600B Tunable Laser Source Family can sweep as fast as 80 nm/s with specified accuracy during the sweep.

Realize the cost efciency and performance benets in

WDM component tests

The testing of optical filters is based on a generic principle, namely the stimulus-response test. The stateof-the-art approach is a wavelengthresolved stimulus-response measurement utilizing a tunable laser source that is capable of fast and precise sweeps across the entire wavelength range, and optical power meters.

For DWDM components, high wavelength accuracy and dynamic range are critical. For CWDM and PON components, a wide wavelength range, dynamic range and tight costing are key targets. If the investment in the test solution can be shared among many different type of filters, the contribution to each individual filter is minimized. In this way, cost targets for CWDM and PON components can be met without sacrificing accuracy.

Investing in the Keysight 81600B Tunable Laser Source Family can realize both the cost efficiency and performance benefits required.

Polarization maintaining ber for the test of integrated optical devices

The 81600B Tunable Laser Source Family is ideal for characterizing integrated optical devices. Its PMF output ports provide a well-defined state of polarization to ensure constant measurement conditions for waveguide devices. A PMF cable easily connects to an external optical modulator.

Page 4

81600B Option 201 All-Band Tunable Laser, 1455 nm to 1640 nm, Low SSE 81600B Option 200 All-Band Tunable Laser, 1440 nm to 1640 nm, Low SSE

Keysight 81600B Option 201, 200

Wavelength range 1455 nm to 1640 nm (81600B Option 201)

1440 nm to 1640 nm (81600B Option 200) Wavelength resolution 0.1 pm, 12.5 MHz at 1550 nm Mode-hop free tunability Full wavelength range; see page 10 for conditions to assure mode-hop free continuous

sweeps Maximum sweep speed 80 nm/s

Stepped mode Continuous sweep mode (typical)

Absolute wavelength accuracy Relative wavelength accuracy

± 10 pm, typical ± 3.6 pm ± 4.0 pm ± 4.6 pm ± 6.1 pm

± 5 pm, typical ± 2 pm ± 2.4 pm ± 2.8 pm ± 4.0 pm Wavelength repeatability ± 0.8 pm, typical ± 0.5 pm ± 0.3 pm ± 0.4 pm ± 0.7 pm Wavelength stability 4 (typical) ≤ ± 1 pm, 24 hours Linewidth (typical), coherence control off 100 kHz Effective linewidth (typical), coherence

> 50 MHz (1475 nm to 1625 nm, at max. constant output power) control on Maximum output power (continuous power during sweep)

Output 1 (low SSE) Output 2 (high power)

≥ +3 dBm peak (typical)

≥ +2 dBm (1520 nm to 1610 nm)

≥ –2 dBm (1475 nm to 1625 nm)

≥ –7 dBm

Attenuation Max. 60 dB Power repeatability (typical) ± 0.003 dB Power stability

± 0.01 dB, 1 hour

Typical ± 0.03 dB, 24 hours Power linearity ± 0.1 dB ± 0.1 dB (± 0.3 dB in attenuation mode) Power atness versus wavelength ± 0.25 dB 3, typical ± 0.1 dB ± 0.3 dB 3, typical ± 0.15 dB

Continuous sweep mode

At 5 nm/s At 40 nm/s At 80 nm/s Dynamic power reproducibility (typical) ± 0.005 dB ± 0.01 dB ± 0.015 dB Dynamic relative power atness (typical) ± 0.01 dB ± 0.02 dB ± 0.04 dB Side-mode suppression ratio (typical) ≥ 60 dB (1520 nm to 1610 nm) Signal to source spontaneous emission

ratio

Output 1 (low SSE) Output 2 (high power)

≥ 70 dB/nm (1520 nm to 1610 nm) ≥ 48 dB/nm (1520 nm to 1610 nm)

≥ 80 dB/0.1 nm (typical, 1520 nm to

1610 nm)

≥ 66 dB/nm (typical, 1475 nm to 1625 nm) ≥ 43 dB/nm (1475 nm to 1625 nm)

≥ 60 dB/nm (typical)

Signal to total source spontaneous emission ratio

Relative intensity noise (RIN) (0.1 to 6 GHz) (typ.)

≥ 65 dB (1520 nm to 1610 nm)

≥ 57 dB (typical)

–145 dB/Hz (1520 nm to 1610 nm)

At 5 nm/s At 40 nm/s At 80 nm/s

≥ +9 dBm peak (typical) ≥ +8 dBm (1520 nm to1610 nm) ≥ +4 dBm (1475 nm to 1625 nm) ≥ –1 dBm

≥ 58 dB/0.1 nm (typical, 1520 nm to 1610 nm)

≥ 37 dB/nm

≥ 30 dB (typical, 1520 nm to 1610 nm)

1. Valid for one month and within a ± 4.4 K temperature range after automatic wavelength zeroing.

2. At maximum output power as specified per wavelength range.

3. Wavelength range 1455 nm to 1640 nm (81600B Option 201); 1440 nm to 1630 nm (81600B Option 200).

4. At constant temperature ± 1 K.

5. Wavelength range 1455 nm to 1640 nm (81600B Option 201); 1440 nm to 1640 nm (81600B Option 200).

81600B-201: v2.4 81600B-200: v2.3

Page 5

81600B Option 160 Tunable Laser Source, 1495 nm to 1640 nm, Low SSE

Keysight 81600B Option 160

Wavelength range 1495 nm to 1640 nm

Wavelength resolution 0.1 pm, 12.5 MHz at 1550 nm

Mode-hop free tunability full Full wavelength range; see page 10 for conditions to assure mode-hop free continuous sweeps

Maximum sweep speed 80 nm/s

Stepped mode Continuous sweep mode (typical)

At 5 nm/s At 40 nm/s At 80 nm/s

Absolute wavelength accuracy

Relative wavelength accuracy

Wavelength repeatability ± 0.8 pm, typical ± 0.5 pm ± 0.3 pm ± 0.4 pm ± 0.7 pm

Wavelength stability 3 (typical) ≤ ± 1 pm, 24 hours

Linewidth (typical), coherence control off 100 kHz

Effective linewidth (typical), coherence control on

Maximum output power (continuous power during sweep)

Attenuation

Power repeatability (typical)

Power stability

Power linearity

Power atness versus wavelength

Dynamic power reproducibility (typical) ± 0.005 dB ± 0.01 dB ± 0.015 dB

Dynamic relative power atness (typical) ± 0.01 dB ± 0.02 dB ± 0.04 dB

Side-mode suppression ratio (typical) 2 ≥ 40 dB (1520 nm to 1610 nm)

Signal to source spontaneous emission

ratio

Signal to total source spontaneous emission ratio

Relative intensity noise (RIN) (0.1 to 6 GHz) (typical)

± 10 pm, typical ± 3.6 pm ± 4.0 pm ± 4.6 pm ± 6.1 pm

± 5 pm, typical ± 2 pm ± 2.4 pm ± 2.8 pm ± 4.0 pm

> 50 MHz (1510 nm to 1620 nm, at max. constant output power)

Output 1 (low SSE) Output 2 (high power)

≥ –2 dBm peak (typical) ≥ +7 dBm peak (typical) ≥ –4 dBm (1520 nm to 1610 nm) ≥ +5 dBm (1520 nm to 1610 nm) ≥ –6 dBm (1510 nm to 1620 nm) ≥ +3 dBm (1510 nm to 1620 nm) ≥ –7 dBm (1495 nm to1640 nm) ≥ –1 dBm (1495 nm to 1640 nm)

Max. 60 dB

± 0.003 dB

± 0.01 dB, 1 hour Typical ± 0.03 dB, 24 hours ± 0.1 dB ± 0.1 dB (± 0.3 dB in attenuation mode)

± 0.25 dB, typical ± 0.1 dB

± 0.3 dB, typical ± 0.15 dB

(1495 nm to 1630 nm)

Continuous sweep mode

At 5 nm/s At 40 nm/s At 80 nm/s

Output 1 (low SSE) Output 2 (high power)

≥ 64 dB/nm (1520 nm to1610 nm) ≥ 45 dB/nm (1520 nm to 1610 nm)

≥ 74 dB/0.1 nm

(typical, 1520 nm to 1610 nm)

≥ 55 dB/0.1 nm (typical, 1520 nm to 1610 nm)

≥ 62 dB/nm (typical, 1510 nm to 1620 nm) ≥ 42 dB/nm (1510 nm to 1620 nm)

≥ 59 dB/nm (typical, 1495 nm to 1640 nm) ≥ 37 dB/nm (1495 nm to 1640 nm)

≥ 59 dB (1520 nm to 1610 nm) ≥ 27 dB (typical, 1520 nm to 1610 nm)

≥ 56 dB (typical, 1495 nm to 1640 nm)

–145 dB/Hz (1520 nm to 1610 nm)

1. Valid for one month and within a ± 4.4 K temperature range after automatic wavelength zeroing.

2. At maximum output power as specified per wavelength range.

3. At constant temperature ± 1 K.

81600B-160: v2.3

Page 6

81600B Option 150 Tunable Laser Source, 1450 nm to 1590 nm, Low SSE

Keysight 81600B Option 150

Wavelength range 1450 nm to 1590 nm Wavelength resolution Wavelength resolution 0.1 pm, 12.5 MHz at 1550 nm Mode-hop free tunability Full wavelength range; see page 10 for conditions to assure mode-hop free continuous sweeps Maximum sweep speed 80 nm/s

Stepped mode Continuous sweep mode (typical)

Absolute wavelength accuracy Relative wavelength accuracy

± 10 pm, typical ± 3.6 pm ± 4.0 pm ± 4.6 pm ± 6.1 pm

± 5 pm, typical ± 2 pm ± 2.4 pm ± 2.8 pm ± 4.0 pm Wavelength repeatability ± 0.8 pm, typical ± 0.5 pm ± 0.3 pm ± 0.4 pm ± 0.7 pm Wavelength stability 3 (typical) ≤ ± 1 pm, 24 hours Linewidth (typical), coherence

100 kHz control off Effective linewidth (typical),

> 50 MHz (1480 nm to 1580 nm, at max. constant output power) coherence control on Maximum output power (continuous power during sweep)

Output 1 (low SSE) Output 2 (high power)

≥ –1 dBm peak (typical) ≥ +7 dBm peak (typical)

≥ –3 dBm (1520 nm to 1570 nm) ≥ +5 dBm (1520 nm to 1570 nm)

≥ –6 dBm (1480 nm to 1580 nm) ≥ +4 dBm (1480 nm to 1580 nm)

≥ –7 dBm (1450 nm to 1590 nm) ≥ –1 dBm (1450 nm to 1590 nm)

Attenuation Max 60 dB Power repeatability (typical) ± 0.003 dB Power stability

± 0.01 dB, 1 hour

Typical ± 0.03 dB, 24 hours Power linearity ± 0.1 dB ± 0.1 dB (± 0.3 dB in attenuation mode) Power atness versus wavelength ± 0.2 dB, typical ± 0.1 dB ± 0.3 dB, typical ± 0.15 dB

Continuous sweep mode

At 5 nm/s At 40 nm/s At 80 nm/s Dynamic power reproducibility

± 0.005 dB ± 0.01 dB ± 0.015 dB (typical)

Dynamic relative power atness

± 0.01 dB ± 0.02 dB ± 0.04 dB (typical) Side-mode suppression ratio

(typical) Signal to source spontaneous emission ratio

≥ 40 dB (1480 nm to 1580 nm)

Output 1 (low SSE) Output 2 (high power)

≥ 65 dB/nm (1520 nm to 1570 nm) ≥ 45 dB/nm (1520 nm to 1570 nm)

≥ 75 dB/0.1 nm (typical, 1520 nm to 1570 nm) ≥ 55 dB/0.1 nm (typical, 1520 nm to 1570 nm)

≥ 61 dB/nm (typical, 1480 nm to 1580 nm) ≥ 42 dB/nm (1480 nm to 1580 nm)

≥ 59 dB/nm (typical, 1450 nm to 1590 nm) ≥ 37 dB/nm (1450 nm to 1590 nm)

Signal to total source spontaneous emission ratio

Relative intensity noise (RIN) (0.1 to 6 GHz) (typical)

≥ 60 dB (1520 nm to 1570 nm)

≥ 50 dB (typical, 1450 nm to 1590 nm)

–145 dB/Hz (1480 nm to 1580 nm)

At 5 nm/s At 40 nm/s At 80 nm/s

≥ 30 dB (typical, 1520 nm to 1570 nm)

1. Valid for one month and within a ± 4.4 K temperature range after automatic wavelength zeroing.

2. At maximum output power as specified per wavelength range.

3. At constant temperature ± 1 K.

81600B-150: v2.3

Page 7

81600B Option 140 Tunable Laser Source, 1370 nm to 1495 nm, Low SSE

Keysight 81600B Option 140

Wavelength range

Wavelength resolution

Mode-hop free tunability full

Maximum sweep speed

Absolute wavelength accuracy

Relative wavelength accuracy

Wavelength repeatability ± 0.8 pm, typical ± 0.5 pm ± 0.3 pm ± 0.4 pm ± 0.7 pm

Wavelength stability 4 (typical) ≤ ± 1 pm, 24 hours

Linewidth (typical), coherence control off 100 kHz

Effective linewidth (t ypical), coherence control on

Maximum output power (continuous power during sweep)

Attenuation Max 60 dB

Power repeatability (typical) ± 0.003 dB

Power stability

Power linearity ± 0.1 dB (1420 nm to 1495 nm) ± 0.3 dB (1420 nm to 1495 nm)

Power atness versus wavelength ± 0.2 dB ± 0.3 dB

Dynamic power reproducibility (typical) ± 0.005 dB ± 0.01 dB ± 0.015 dB

Dynamic relative power atness (typical)

Side-mode suppression ratio

(typical)

Signal to source spontaneous emission

ratio

Signal to total source spontaneous emis-

sion ratio

Relative intensity noise (RIN) (0.1 to 6 GHz) (typical)

1. Valid for one month and within a ± 4.4 K temperature range after automatic wavelength zeroing.

2. At maximum output power as specified per wavelength range.

3. Valid for absolute humidity of 11.5 g/m3 (For example, equivalent to 50% relative humidity at 25 °C).

4. At constant temperature ± 1 K.

81600B-140: v2.4

1370 nm to 1495 nm

0.1 pm, 15 MHz at 1450 nm

Full wavelength range; see page 10 for conditions to assure mode-hop free continuous sweeps

80 nm/s (1372 nm to 1495 nm)

Stepped mode Continuous sweep mode (typical)

At 5 nm/s At 40 nm/s At 80 nm/s

± 10 pm, typical ± 3.6 pm ± 4.0 pm ± 4.6 pm ± 6.1 pm

± 5 pm, typical ± 2 pm ± 2.4 pm ± 2.8 pm ± 4.0 pm

> 50 MHz (1430 nm to 1480 nm, at max. constant output power)

Output 1 (low SSE) Output 2 (high power)

≥ –4.5 dBm peak (typical) ≥ +5.5 dBm peak (typical)

≥ –5 dBm (1430 nm to 1480 nm) ≥ +5 dBm (1430 nm to 1480 nm)

≥ –7 dBm (1420 nm to 1480 nm) ≥ +3 dBm (1420 nm to 1480 nm)

≥ –13 dBm (1370 nm to 1495 nm) ≥ –3 dBm (1370 nm to 1495 nm)

± 0.01 dB, 1 hour (1420 nm to 1495 nm)

Typical ± 0.01 dB, 1 hour (1370 nm to 1420 nm)

Typical ± 0.03 dB, 24 hours

Typical ± 0.1 dB (1370 nm to 1420 nm) Typical ± 0.3 dB (1370 nm to 1420 nm)

Typical ± 0.1 dB (1420 nm to 1495 nm) Typical ± 0.2 dB (1420 nm to 1495 nm)

Typical ± 0.2 dB (1370 nm to 1420 nm) Typical ± 0.3 dB (1370 nm to 1420 nm)

Continuous sweep mode

At 5 nm/s At 40 nm/s At 80 nm/s

± 0.01 dB ± 0.015 dB ± 0.03 dB

≥ 40 dB (1430 nm to 1480 nm)

Output 1 (low SSE) Output 2 (high power)

≥ 63 dB/nm (1430 nm to 1480 nm) ≥ 73 dB/0.1 nm (typical, 1430 nm to 1480 nm) ≥ 61 dB/nm (1420 nm to 1480 nm) ≥ 55 dB/nm (typical, 1370 nm to 1495 nm)

≥ 60 dB (1430 nm to 1480 nm) ≥ 28 dB (typical, 1430 nm to 1480 nm)

≥ 58 dB (1420 nm to 1480 nm)

≥ 53 dB (typical, 1370 nm to 1495 nm)

–145 dB/Hz (1430 nm to 1480 nm)

≥ 42 dB/nm (1430 nm to 1480 nm) ≥ 52 dB/0.1 nm (typical, 1430 nm to 1480 nm) ≥ 40 dB/nm (1420 nm to 1480 nm) ≥ 35 dB/nm (typical, 1370 nm to 1495 nm)

Page 8

81600B Option 130 Tunable Laser Source, 1260 nm to 1375 nm, Low SSE

Keysight 81600B Option 130

Wavelength range 1260 nm to 1375 nm

Wavelength resolution 0.1 pm, 17.7 MHz at 1300 nm

Mode-hop free tunability Full wavelength range; see page 10 for conditions to assure mode-hop free continuous sweeps

Maximum sweep speed 80 nm/s

Stepped mode Continuous sweep mode (typical)

At 5 nm/s At 40 nm/s At 80 nm/s

Absolute wavelength accuracy

Relative wavelength accuracy

Wavelength repeatability ± 0.8 pm, typical ± 0.5 pm ± 0.3 pm ± 0.4 pm ± 0.7 pm

Wavelength stability 4 (typical) ≤ ±1 pm, 24 hours

Linewidth (typical), coherence control off 100 kHz

Effective linewidth (t ypical), coherence control on> 50 MHz (1270 nm to 1350 nm, at max. constant output power)

± 10 pm, typical ± 3.6 pm ± 4.0 pm ± 4.6 pm ± 6.1 pm

± 5 pm, typical ± 2 pm ± 2.4 pm ± 2.8 pm ± 4.0 pm

Maximum output power (continuous power during sweep)

Output 1 (low SSE) Output 2 (high power)

≥ –4 dBm peak (typical) ≥ +5 dBm peak (typical)

≥ –6 dBm (1290 nm to 1370 nm) ≥ +4 dBm (1290 nm to 1370 nm)

≥ –9 dBm (1270 nm to 1375 nm) ≥ +1 dBm (1270 nm to 1375 nm)

≥ –13 dBm (1260 nm to 1375 nm) ≥ –3 dBm (1260 nm to 1375 nm)

Attenuation Max 60 dB

Power repeatability (typical) ± 0.003 dB

Power stability

± 0.01 dB, 1 hour (1260 nm to 1350 nm)

Typical ± 0.01 dB, 1 hour (1350 nm to 1375 nm)

Typical ± 0.03 dB, 24 hours

Power linearity ± 0.1 dB (1260 nm to 1350 nm) ±0.3 dB (1260 nm to 1350 nm)

Typical ± 0.1 dB (1350 nm to 1375 nm) Typical ± 0.3 dB (1350 nm to 1375 nm)

Power atness versus wavelength ± 0.2 dB ± 0.3 dB

Typical ± 0.1 dB (1260 nm to 1350 nm) Typical ± 0.15 dB (1260 nm to 1350 nm)

Typical ± 0.2 dB (1350 nm to 1375 nm) Typical ± 0.3 dB (1350 nm to 1375 nm)

Continuous sweep mode

At 5 nm/s At 40 nm/s At 80 nm/s

Dynamic power reproducibility (typical) ± 0.005 dB ± 0.01 dB ± 0.015 dB

Dynamic relative power atness (typical) ± 0.01 dB ± 0.02 dB ± 0.04 dB

Side-mode suppression ratio (typical)

Signal to source spontaneous emission ratio

(typical)

≥ 40 dB (1290 nm to 1370 nm)

Output 1 (low SSE) Output 2 (high power)

≥ 63 dB/nm (1290 nm to 1370 nm) ≥ 42 dB/nm (1290 nm to 1370 nm)

≥ 61 dB/nm (1270 nm to 1375 nm) ≥ 40 dB/nm (1270 nm to 1375 nm)

≥ 55 dB/nm (1260 nm to 1375 nm) ≥ 35 dB/nm (1260 nm to 1375 nm)

Signal to total source spontaneous emission ratio (typical)

≥ 58 dB (1290 nm to 1370 nm) ≥ 26 dB (1290 nm to 1370 nm)

≥ 56 dB (1270 nm to 1375 nm)

≥ 51 dB (1260 nm to 1375 nm)

Relative intensity noise (RIN) (0.1 to 6 GHz) (typical)

–140 dB/Hz (1270 nm to 1375 nm)

1. Valid for one month and within a ± 4.4 K temperature range after automatic wavelength zeroing.

2. At maximum output power as specified per wavelength range.

3. Valid for absolute humidity of 11.5 g/m3 (For example, equivalent to 50% relative humidity at 25 °C).

4. At constant temperature ± 1 K.

81600B-130: v1.0

Page 9

81600B Option 142 Tunable Laser Source, 1370 nm to 1495 nm, High Power

Keysight 81600B Option 142

Wavelength range 1370 nm to 1495 nm

Wavelength resolution 0.1 pm, 15 MHz at 1450 nm

Mode-hop free tunability Full wavelength range; see page 10 for conditions to assure mode-hop free continuous sweeps

Maximum sweep speed 80 nm/s (1372 nm to 1495 nm)

Stepped mode Continuous sweep mode (typical)

At 5 nm/s At 40 nm/s At 80 nm/s

Absolute wavelength accuracy

Relative wavelength accuracy

Wavelength repeatability ± 0.8 pm, typical ± 0.5 pm ± 0.3 pm ± 0.4 pm ± 0.7 pm

Wavelength stability 4 (typical) ≤ ± 1 pm, 24 hours

Linewidth (typical), coherence control off 100 kHz

Effective linewidth (t ypical), coherence control on> 50 MHz (1430 nm to 1480 nm, at max. constant output power)

± 10 pm, typical ± 3.6 pm ± 4.0pm ± 4.6 pm ± 6.1 pm

± 5 pm, typical ± 2 pm ± 2.4 pm ± 2.8 pm ± 4.0 pm

Maximum output power (continuous power during sweep)

With option 003

≥ +8.5 dBm peak (typical)

≥ +7.5 dBm (1430 nm to 1480 nm)

≥ +5 dBm (1420 nm to 1480 nm)

≥ 0 dBm (1370 nm to 1495 nm)

Reduced by 1.5 dB

Power repeatability (typical) ± 0.003 dB

Power stability

± 0.01 dB, 1 hour (1420 nm to 1495 nm)

Typical ± 0.01 dB, 1 hour (1370 nm to 1420 nm)

Typical ± 0.03 dB, 24 hours

Power linearity

With option 003

Power atness versus wavelength

With option 003

± 0.1 dB (1420 nm to 1495 nm)

Typical ± 0.1 dB (1370 nm to 1420 nm)

Add ± 0.2 dB

± 0.2 dB

Typical ± 0.1 dB (1420 nm to 1495 nm)

Typical ± 0.2 dB (1370 nm to 1420 nm)

Add ± 0.1 dB

Continuous sweep mode

At 5 nm/s At 40 nm/s At 80 nm/s

Dynamic power reproducibility (typical) ± 0.005 dB ± 0.01 dB ± 0.015 dB

Dynamic relative power atness (typical) ± 0.01 dB ± 0.015 dB ± 0.03 dB

Side-mode suppression ratio (typical)

≥ 40 dB (1430 nm to 1480 nm)

Signal to source spontaneous emission ratio 2≥ 42 dB/nm (1430 nm to 1480 nm)

≥ 52 dB/0.1 nm (typical, 1430 nm to 1480 nm)

≥ 40 dB/nm (1420 nm to 1480 nm)

≥ 35 dB/nm (typical, 1370 nm to 1495 nm)

Signal to total source spontaneous emission ratio (typical)

Relative intensity noise (RIN) (0.1 to 6 GHz) (typical)

≥ 28 dB (1430 nm to 1480 nm)

–145 dB/Hz (1430 nm to 1480 nm)

1. Valid for one month and within a ± 4.4 K temperature range after automatic wavelength zeroing.

2. At maximum output power as specified per wavelength range.

3. Valid for absolute humidity of 11.5 g/m3 (For example, equivalent to 50% relative humidity at 25 °C).

4. At constant temperature ± 1 K.

81600B-142: v2.4

Page 10

81600B Option 132 Tunable Laser Source, 1260 nm to 1375 nm, High Power

Keysight 81600B Option 132

Wavelength range 1260 nm to 1375 nm

Wavelength resolution 0.1 pm, 17.7 MHz at 1300 nm

Mode-hop free tunability Full wavelength range; see page 10 for conditions to assure mode-hop free continuous

sweeps

Maximum sweep speed 80 nm/s

Stepped mode Continuous sweep mode (typical)

At 5 nm/s At 40 nm/s At 80 nm/s

Absolute wavelength accuracy

Relative wavelength accuracy

Wavelength repeatability ± 0.8 pm, typical ± 0.5 pm ± 0.3 pm ± 0.4 pm ± 0.7 pm

Wavelength stability 2 (typical) ≤ ± 1 pm, 24 hours

Linewidth (typical), coherence control off 100 kHz

Effective linewidth (typical), coherence control on

Maximum output power (continuous power during sweep)

Power repeatability (typical) ± 0.003 dB

Power stability

Power linearity ± 0.1 dB (1260 nm to 1350 nm)

Power atness versus wavelength ± 0.2 dB

Dynamic power reproducibility (typical) ± 0.005 dB ± 0.01 dB ± 0.015 dB

Dynamic relative power atness (typical) ± 0.01 dB ± 0.015 dB ± 0.03 dB

Side-mode suppression ratio (typical)

Signal to source spontaneous emission

ratio

Signal to total source spontaneous emission ratio (typical)

Relative intensity noise (RIN) (0.1 to 6 GHz) (typical)

± 10 pm, typical ± 3.6 pm ± 4.0 pm ± 4.6 pm ± 6.1 pm

± 5 pm, typical ± 2 pm ± 2.4 pm ± 2.8 pm ± 4.0 pm

> 50 MHz (1270 nm to 1350 nm, at max. constant output power)

≥ +9 dBm peak (typical)

≥ +7 dBm (1290 nm to 1370 nm)

≥ +3 dBm (1270 nm to 1375 nm)

≥ 0 dBm (1260 nm to 1375 nm)

± 0.01 dB, 1 hour (1260 nm to 1350 nm)

Typical ± 0.01 dB, 1 hour (1350 nm to 1375 nm)

Typical ± 0.03 dB, 24 hours

Typical ± 0.1 dB (1350 nm to 1375 nm)

Typical ± 0.1 dB (1260 nm to 1350 nm)

Typical ± 0.2 dB (1350 nm to 1375 nm)

Continuous sweep mode

At 5 nm/s At 40 nm/s At 80 nm/s

≥ 40 dB (1270 nm to 1375 nm)

≥ 45 dB/nm (1290 nm to 1370 nm)

≥ 55 dB/0.1 nm (typical, 1290 nm to 1370 nm)

≥ 40 dB/nm (1270 nm to 1375 nm)

≥ 35 dB/nm (typical, 1260 nm to 1375 nm)

≥ 28 dB (1290 nm to 1370 nm)

–145 dB/Hz (1270 nm to 1375 nm)

1. Valid for one month and within a ± 4.4 K temperature range after automatic wavelength zeroing.

2. At maximum output power as specified per wavelength range.

3. Valid for absolute humidity of 11.5 g/m3 (For example, equivalent to 50% relative humidity at 25 °C).

4. At constant temperature ± 1 K.

81600B-132: v2.4

Page 11

Conditions

Storage temperature –40 °C to +70 °C

Operating temperature +10 °C to +35 °C

Humidity < 80% R.H. at +10 °C to +35 °C, non-condensing

Specications apply for wavelengths not equal to any water absorption line.

Warm-up time 1 h; immediate operation after boot up

Output power

Specications are valid at the following output power levels:

Options 201, 200, 160 and 150 ≥ –7 dBm (for Output 1); ≥ –1 dBm (for Output 2, –60 dB in attenuation mode)

81600B Option 140 and 130 ≥ –13 dBm (for Output 1); ≥ –3 dBm (for Output 2, –60 dB in attenuation mode)

81600B Option 142 ≥ –3 dBm; ≥ –4.5 dBm (with Option 003: –60 dB in attenuation mode)

81600B Option 132 ≥ 0 dBm

Continuous sweep mode

Specications are valid for mode-hop free sweeping. Maximum 50 nm at constant output power levels as follows:

81600B Option 200, 201 1475 nm to 1620 nm; ≥ –2 dBm (for Output 1); ≥ +4 dBm (for Output 2)

81600B Option 160 1510 nm to 1620 nm; ≥ –6 dBm (for Output 1); ≥ +3 dBm (for Output 2)

81600B Option 150 1520 nm to 1570 nm; ≥ –6 dBm (for Output 1); ≥ +3 dBm (for Output 2)

81600B Option 140 1430 nm to 1480 nm; ≥ –9 dBm (for Output 1); ≥ 0 dBm (for Output 2)

81600B Option 130 1300 nm to 1350 nm; ≥ –9 dBm (for Output 1); ≥ +1 dBm (for Output 2)

81600B Option 142 1430 nm to 1480 nm; ≥ –3 dBm; ≥ +1.5 dBm (with Option 003)

81600B Option 132 1300 nm to 1350 nm; ≥ +3 dBm

Operating temperature within +20 °C and +35 °C

Page 12

General Specications and Supplementary Characteristics

Supplementary performance characteristics

Internal digital modulation

50% duty cycle, 200 Hz to 300 kHz

Displayed wavelength represents average wavelength.

Modulation output TTL reference signal

External digital modulation

> 45% duty cycle, delay time

< 300 ns, 200 Hz to 1 MHz

Displayed wavelength represents average wavelength.

Modulation input TTL signal

External analog modulation

≥ ±15% modulation depth, 5 kHz to 20 MHz

Modulation input 5 Vp-p

External wavelength locking

> ± 70 pm at 10 Hz

> ± 7 pm at 100 Hz

Modulation input ± 5 V

Coherence control

For measurements on components with 2 m long patch cords and connectors with 14 dB return loss, the effective linewidth results in a

typical power stability of < ± 0.025 dB over 1 minute by signicantly reducing interference effects in the test setup.

General

Output isolation (typical)

50 dB

Return loss (typical)

60 dB (Option 072)

40 dB (Option 071)

Polarization maintaining ber (Option 071, 072)

Fiber type Panda

Orientation TE mode in slow axis, in line with connector key

Polarization extinction ratio

16 dB typical

14 dB typical (Option 200, 201)

Recommended re-calibration period

2 years

Page 13

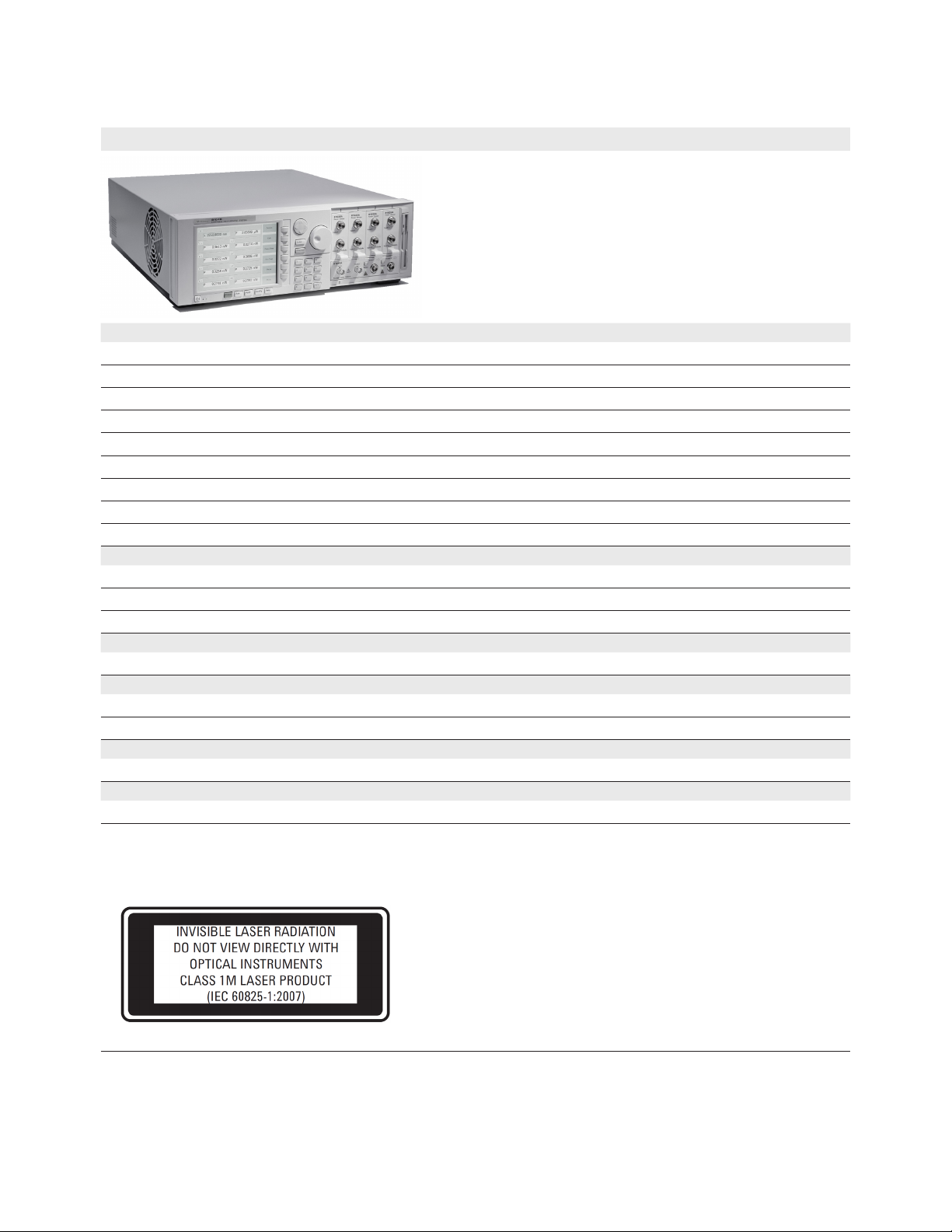

Ordering Information

Lightwave solution mainframe 8164B

Tunable laser module: 81600B

One of the following is required:

Option 200 All-band tunable laser source 1440 nm to 1640 nm, low SSE

Option 201 All-band tunable laser source 1455 nm to 1640 nm, low SSE

Option 160 Tunable laser source 1495 nm to 1640 nm, low SSE

Option 150 Tunable laser source 1450 nm to 1590 nm, low SSE

Option 140 Tunable laser source 1370 nm to 1495 nm, low SSE

Option 130 Tunable laser source 1260 nm to 1375 nm, low SSE

Option 142 Tunable laser source 1370 nm to 1495 nm, high power

Option 132 Tunable laser source 1260 nm to 1375 nm, high power

Connector option

One of the following is required:

Option 071 PMF, straight contact output connector

Option 072 (recommended) PMF, angled contact output connector

Other option

Option 003 Built-in optical attenuator, 60 dB attenuation (for Option 142)

Connector interface

One Keysight 81000xI-series connector interface is required for Options 142 and 132

Two Keysight 81000xI-series connector interfaces are required for Options 201, 200, 160, 150, 140 and 130

Custom-made TLS

A 1650 nm Tunable Laser Source is available on request. Please contact your local Keysight Sales Of ce.

Laser safety information

All laser sources specied by this data sheet are classied as Class 1M according to IEC 60825-1 (2007).

All laser sources comply with 21 CFR 1040.10 except for deviations pursuant to Laser Notice No. 50, dated 2007, June 24.

Page 14

14 | Keysight | 81600B Tunable Laser Source Family - Data Sheet

myKeysight

www.keysight.com/find/mykeysight

A personalized view into the information most relevant to you.

www.axiestandard.org

www.lxistandard.org

LAN eXtensions for Instruments puts the power of Ethernet and the Web inside your test systems. Keysight is a founding member of the LXI consortium.

Three-Year Warranty

www.keysight.com/find/ThreeYearWarranty

Keysight’s commitment to superior product quality and lower total cost of ownership. The only test and measurement company with three-year warranty standard on all instruments, worldwide.

Keysight Assurance Plans www.keysight.com/find/AssurancePlans

Up to five years of protection and no budgetary surprises to ensure your instruments are operating to specification so you can rely on accurate measurements.

www.keysight.com/go/quality

Keysight Technologies, Inc. DEKRA Certified ISO 9001:2008 Quality Management System

Keysight Channel Partners www.keysight.com/find/channelpartners

Get the best of both worlds: Keysight’s measurement expertise and product breadth, combined with channel partner convenience.

www.keysight.com/find/tls

For more information on Keysight Technologies’ products, applications or services, please contact your local Keysight office. The complete list is available at: www.keysight.com/find/contactus

Americas

Canada (877) 894 4414 Brazil 55 11 3351 7010 Mexico 001 800 254 2440 United States (800) 829 4444

Asia Pacic

Australia 1 800 629 485 China 800 810 0189 Hong Kong 800 938 693 India 1 800 112 929 Japan 0120 (421) 345 Korea 080 769 0800 Malaysia 1 800 888 848 Singapore 1 800 375 8100 Taiwan 0800 047 866 Other AP Countries (65) 6375 8100

Europe & Middle East

Austria 0800 001122 Belgium 0800 58580 Finland 0800 523252 France 0805 980333 Germany 0800 6270999 Ireland 1800 832700 Israel 1 809 343051 Italy 800 599100 Luxembourg +32 800 58580 Netherlands 0800 0233200 Russia 8800 5009286 Spain 800 000154 Sweden 0200 882255 Switzerland 0800 805353

Opt. 1 (DE) Opt. 2 (FR) Opt. 3 (IT)

United Kingdom 0800 0260637

For other unlisted countries: www.keysight.com/find/contactus

(BP-09-04-14)

This information is subject to change without notice. © Keysight Technologies, 2013 - 2014 Published in USA, August 3, 2014 5989-7321EN

www.keysight.com
