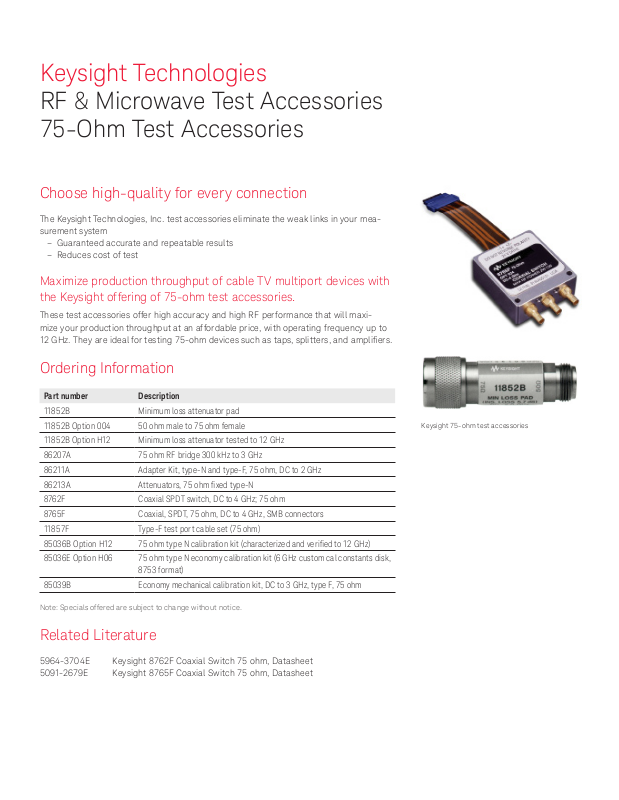

Keysight Technologies
RF & Microwave Test Accessories
75-Ohm Test Accessories
Choose high-quality for every connection
The Keysight Technologies, Inc. test accessories eliminate the weak links in your measurement system
– Guaranteed accurate and repeatable results
– Reduces cost of test
Maximize production throughput of cable TV multiport devices with
the Keysight offering of 75-ohm test accessories.
These test accessories offer high accuracy and high RF per formance that will maximize your production throughput at an af fordable price, with operating frequency up to
12GHz.Theyareidealfortesting75-ohmdevicessuchastaps,splitters,andampliers.
Ordering Information
Part number Description
11852B Minimum loss attenuator pad
11852B Option 004 50 ohm male to 75 ohm female
11852B Option H12 Minimum loss attenuator tested to 12 GHz
86207A 75 ohm RF bridge 300 kHz to 3 GHz
86211A Adapter Kit, type-N and type-F, 75 ohm, DC to 2 GHz
86213A Attenuators, 75 ohm xed type-N
8762F Coaxial SPDT switch, DC to 4 GHz; 75 ohm
8765F Coaxial, SPDT, 75 ohm, DC to 4 GHz, SMB connectors
11857F Type-F test port cable set (75 ohm)
85036B Option H12 75 ohm type N calibration kit (characterized and veried to 12 GHz)
85036E Option H06 75 ohm type N economy calibration kit (6 GHz custom cal constants disk,
8753 format)
85039B Economy mechanical calibration kit, DC to 3 GHz, type F, 75 ohm
Note: Specials offered are subject to change without notice.
Related Literature
5964-3704E Keysight 8762F Coaxial Switch 75 ohm, Datasheet
5091-2679E Keysight 8765F Coaxial Switch 75 ohm, Datasheet
Keysight 75-ohm test accessories
