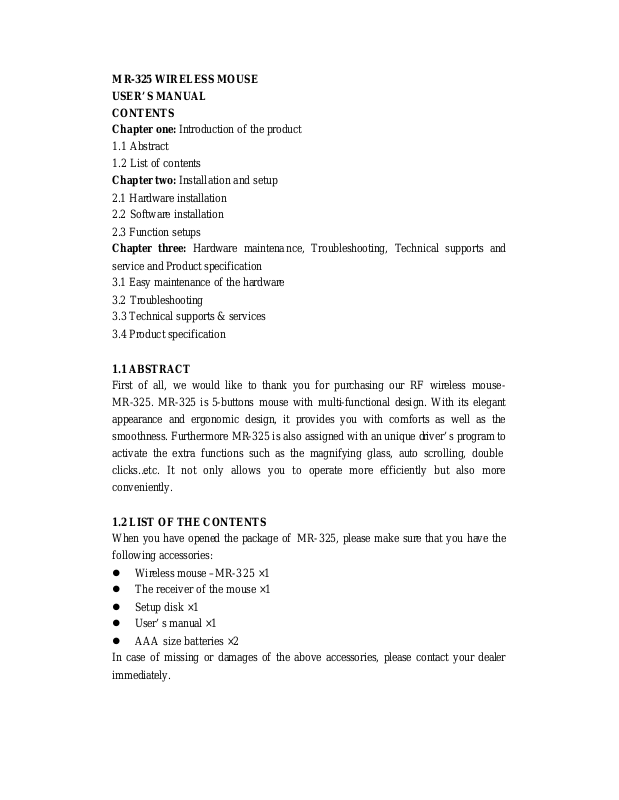

MR-325 WIRELESS MOUSE
USER’S MANUAL
CONTENTS
Chapter one: Introduction of the product
1.1 Abstract
1.2 List of contents
Chapter two: Installation and setup
2.1 Hardware installation
2.2 Software installation
2.3 Function setups
Chapter three: Hardware maintena nce, Troubleshooting, Technical supports and
service and Product specification
3.1 Easy maintenance of the hardware
3.2 Troubleshooting
3.3 Technical supports & services
3.4 Product specification
1.1 ABSTRACT
First of all, we would like to thank you for purchasing our RF wireless mouseMR-325. MR-325 is 5-buttons mouse with multi-functional design. With its elegant
appearance and ergonomic design, it provides you with comforts as well as the
smoothness. Furthermore MR-325 is also assigned with an unique driver’s program to
activate the extra functions such as the magnifying glass, auto scrolling, double
clicks…etc. It not only allows you to operate more efficiently but also more
conveniently.
1.2 LIST OF THE CONTENTS
When you have opened the package of MR-325, please make sure that you have the
following accessories:
l Wireless mouse –MR -325 ×1
l The receiver of the mouse ×1
l Setup disk ×1
l User’s manual ×1
l AAA size batteries ×2
In case of missing or damages of the above accessories, please contact your dealer
immediately.
2.1 HARDWARE INSTALLATION
Please follow the steps below in order to install your wireless mouse
Firstly please switch off your computer and then connect the receiver (PS2 or USB) to
your PC.
Secondly please check the back of the receiver if the frequency channel has been
switch to CH1 (factory setting).
Finally open the lid of the battery at the back of the wireless mouse and check if the
frequency channel has been switched to CH1 then all you have to do now is to put
two of AAA size batteries into the mouse itself.
(P.S. You are also free to switch the frequency channel to CH2 under one condition in
which both of the mouse and the receiver have to be switched to the same channels. If
one is CH1 and other is CH2 then the wireless mouse won’t be able to activate.)
2.2 SOFTWARE INSTALLATION
The attached setup disk “MR SERIES 5.1” is capable of supporting a different
editions of DOS 5.0 plus, WINDOWS3.1/95/98/2000NT/ME/XP. This setup disk
not only installs the driver program needed for mouse but also provides a various
functions. Once the procedure of the hardware installation has been done, you will be
able to process the software installation and firstly please put the setup disk in the disk
drive and carry out the process of A:\setup.exe then finally follow the steps below:
Step1:
The “WELCOME” icon will be showing to you and please follow the instructions to
complete the installation. Please click on the “NEXT”.
Step2: Choose the location that you wish to save this program (C:/ or D:/).
Step3: The program can be installed according to the individual demand and it
means that you will be able to save the program folder (ie mouse) to one of the
existing folders.
Step4: When you have finished the duplications of the files, please restart your
computer and this will finish your installation.
2.3 FUNCTION SETUPS
After you have finished the installation of the driver, a folder named MOUSE will be
established. It will contain two files called MOUSE 5.1 and UNISTALL MOUSE
5.1. Afterward when you have activated WINDOWS system, this mouse will always
exist in the system.
2.31 THE FILE OF MOUSE 5.1
Please move the cursor to the file called MOUSE 5.1 and double click on the item.
Following there will be a picture of a white mouse and yo u then move to this item and
double click it in order to activate the function setups of MOUSE 5.1 .
2.32 SETUPS OF THE BUTTONS AND THE SCROLLING WHEEL
Once the setup program MOUSE 5.1 has been activated, you may also setup the
special functions on the buttons that was originally attached in this setup program:
Choose “BUTTON” selection, you could then setup the functions for the 3rd, 4th and
5th button according to your own personal favorites, for example you have the
functions such as Auto scrolling , Universal scrolling, Double Click …etc.
2.33 SETUP THE FUNCTION FOR WHEEL SCROLLING
Choose “WHEEL” selection and this is mainly providing the setup function for
wheel mode as well as the wheel speed. If the program has the supports from
INTELLI-MOUSE syste m, it is then capable of providing smooth operation for the
mouse. For the program without such support will lead to a result of not able to
activate the function of the wheel. In regards to the setup of the wheel speed, you will
be able to definite the number of rolling line or pages according to your personal
favorites.
CHAPTER THREE: MAINTANCE OF THE HARDWARE AND
TROUBLESHOOTING
3.1 EASY SOFTWARE MAINTANCE:
If the moving speed of the mouse is not working smoothly or moving with an
abnormal speed, you will need to clean up the ball and the rolling axle of the mouse
itself. Here are the cleaning procedures:
Step1: Firstly you need to remove the lid of the mouse by turning it to clock-wise
direction and get the ball out from the mouse.
Step2: You can see there are 3 black rolling axles in the hole where it is used to place
the ball. The parts having the most contacts with the ball usually attracts more stains
and dusts. Please use the cotton bar to clean them. In case of the tough stains, please
clean it with alcohol solution. (Please prevent the cotton from remaining on the rolling
axles)
Step3: Use a piece of clean cloth to wipe out all the stains on ball, then place it back
with the lid covered and lock it by turning it to the anti clock-wise direction.
3.2 TROUBLESHOOTING
When your mouse is not able to work properly, please try the following procedures in
order to fix the problems.
Step1: Please make sure that the transmitter and the receiver are switched to the same
channels. (Both of them need to set in the position of either CH1 or CH2)
Step2: Please make sure that the connection between the receiver and your PC is
connected properly. At the same time, please check if there is any electronic device
around the mouse receiver. As it might ha ve the influences on the transmission
Step3: Please double check the model no, current of the batteries.
Step4: If your desktop is the metal-based surface, you will need to reduce the
transmitting distance in order to obtain the best results. We also suggest that you use it
with a mouse pad and on other hand the receiver need to be at standing position.
Step5: The distance between the mouse and the receiver has to keep less than 1.5M.
In case of the interruption, you could choose to change the frequency channel to solve
the interruption.
3.3 TECHNICAL SUPPORTS AND SERVICES
When you have purchased our products and having problems regarding to the setups
or installation, please refer to this user’s manual. If your problems still can’t be solved,
please do not hesitate to contact us immediately through telephone, fax or even e -mail.
We will do the best we can to assist you.
3.4 PRODUCT SPECIFICATION
Product Specification
Description Commodity Wireless Mouse
Port Type PS/2 or USB
Hardware Resolution 700 DPI
Conductive Radio Frequency
Frequency 26.69 ~ 27.2 MHz
(Typical) 27.045MHz/27.195MHz
Modulation FSK UP to 100%
Number Of Channels 2 CH
Operation Distance 5 Feet
Work Power Range DC 1.77V ~ 3.5V
Power Supply AAA Size Batteries x 2
Battery Life Over 240 Hours
Switch Life Over 1,000,000
Consumption <10mA(working)
Storage Temperature -20°C ~ 70°C
Working Temperature 0°C ~ 40°C
System Requirement IBM PC Compatible
Safty Certification CE, FCC
