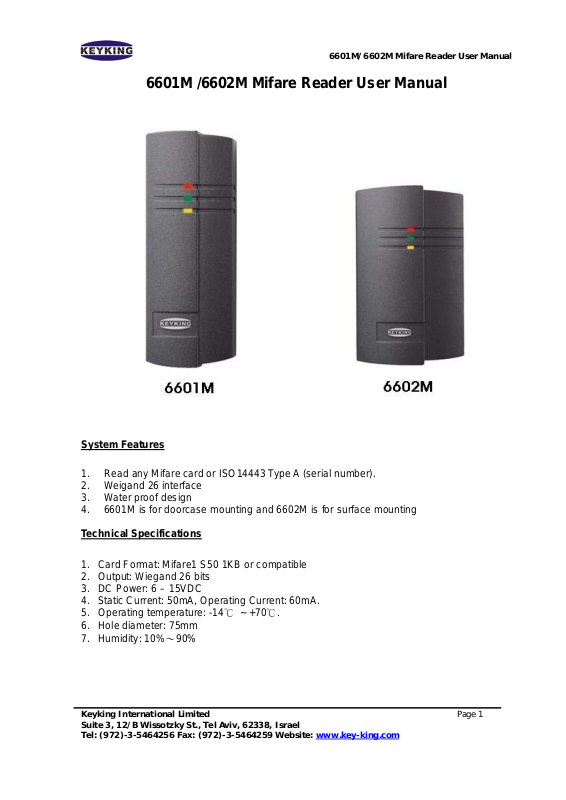

6601M/6602M Mifare Reader User Manual
6601M /6602M Mifare Reader User Manual
System Features
1. Read any Mifare card or ISO14443 Type A (serial number).
2. Weigand 26 interface
3. Water proof design
4. 6601M is for doorcase mounting and 6602M is for surface mounting
Technical Specifications
1. Card Format: Mifare1 S50 1KB or compatible
2. Output: Wiegand 26 bits
3. DC Power: 6 – 15VDC
4. Static Current: 50mA, Operating Current: 60mA.
5. Operating temperature: -14℃ ~ +70℃.
6. Hole diameter: 75mm
7. Humidity: 10%～90%
Keyking International Limited
Suite 3, 12/B Wissotzky St., Tel Aviv, 62338, Israel
Tel: (972)-3-5464256 Fax: (972)-3-5464259 Website: www.key-king.com
Page 1
6601M/6602M Mifare Reader User Manual
Connection Pin Assignment
Controller Wire No. Reader wire color Wiegand 26/34 bits wire definition
1 Black Ground (GND)
2 Yellow Green LED
3 Green Data0 (Data0)
4 White Data1 (Data1)
5 Red Power supply (Vcc): +6V~+15V
Note: Do not use the same source of power supply for the electrical door lock and
readers to avoid electrical sparkle interference.
Installation for Surface mounting
1. Drill into the wall for 2 holes (diameter=6mm, depth=32mm), and drill for another hole of
1/2 inch.
2. Drill the reader’s wire through the hole, and use screw (6*22mm) to peg the reader
module.
3. Cover the reader module with reader case. When you hear “Ka”, it’s OK.
Note: For 6601M, you may also inset it into the doorframe.
