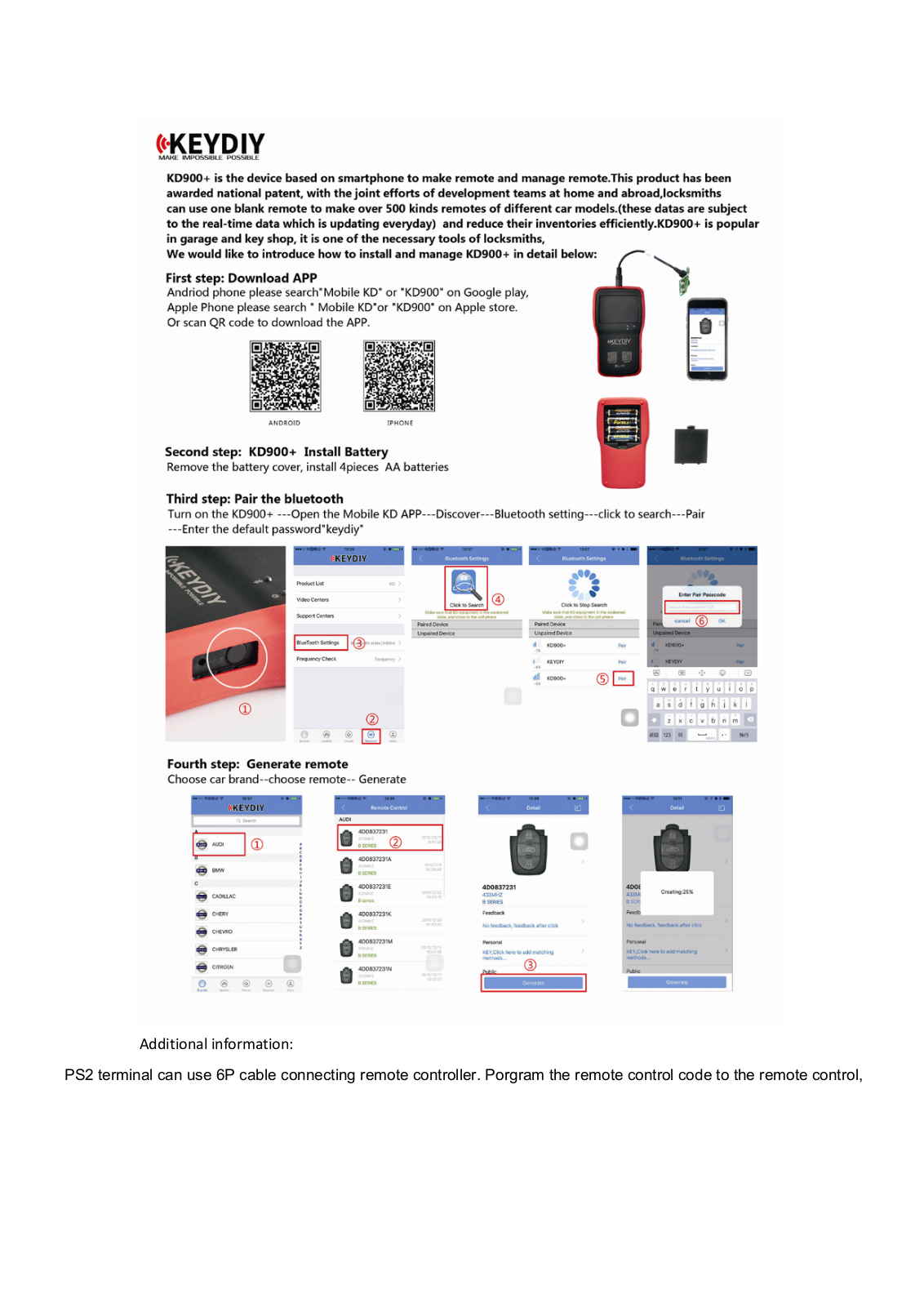

KEYDIY TECH KD900 User Manual

Additional information:

PS2 terminal can use 6P cable connecting remote controller. Porgram the remote control code to the remote control,

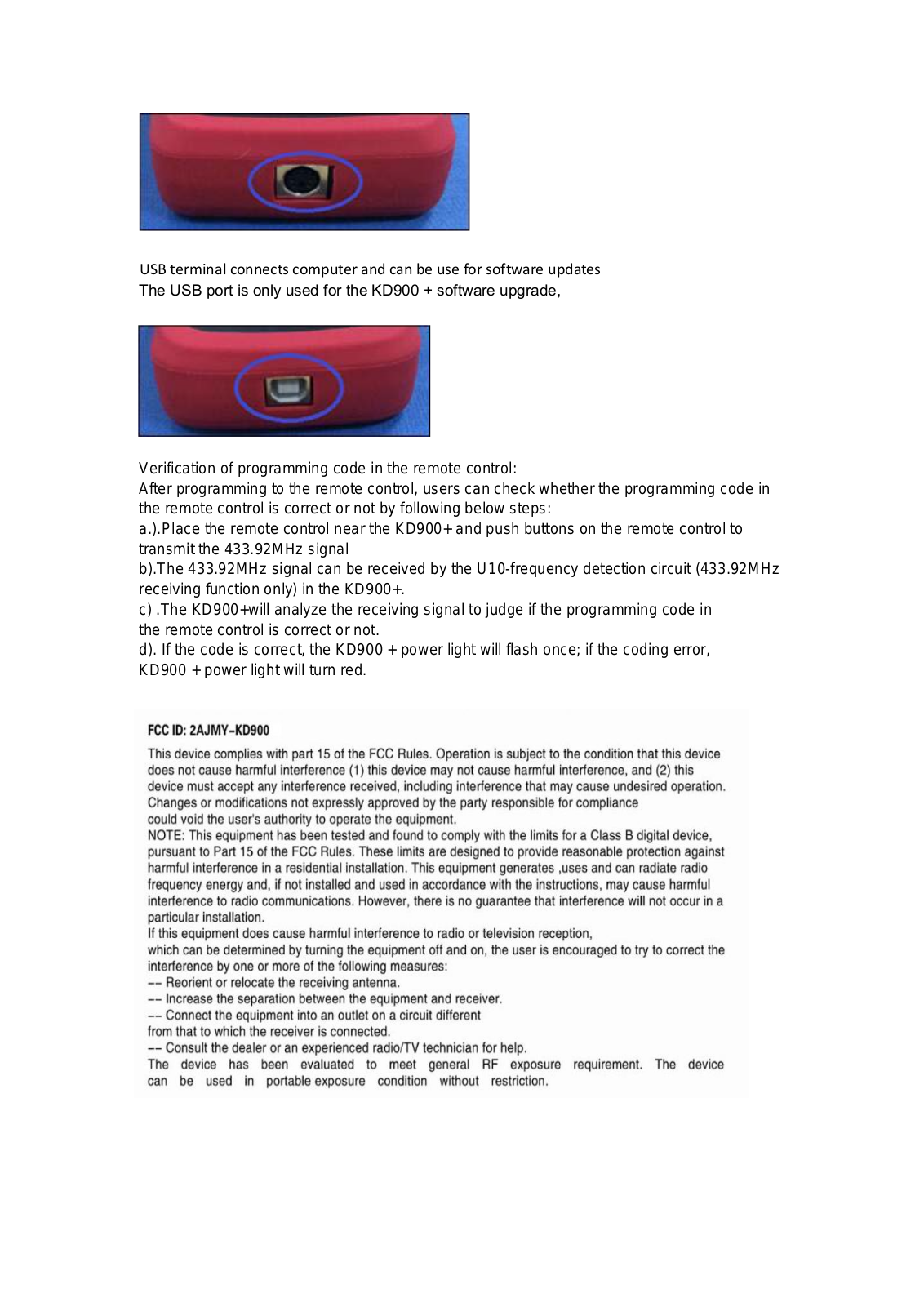

USB

terminal connects computer and can be use for software updates

The USB port is only used for the KD900 + software upgrade,

Verification of programming code in the remote control:
After programming to the remote control, users can check whether the programming code in
the remote control is correct or not by following below steps:
a.).Place the remote control near the KD900+ and push buttons on the remote control to
transmit the 433.92MHz signal
b).The 433.92MHz signal can be received by the U10-frequency detection circuit (433.92MHz
receiving function only) in the KD900+.
c) .The KD900+will analyze the receiving signal to judge if the programming code in
the remote control is correct or not.
d). If the code is correct, the KD900 + power light will flash once; if the coding error,
KD900 + power light will turn red.
