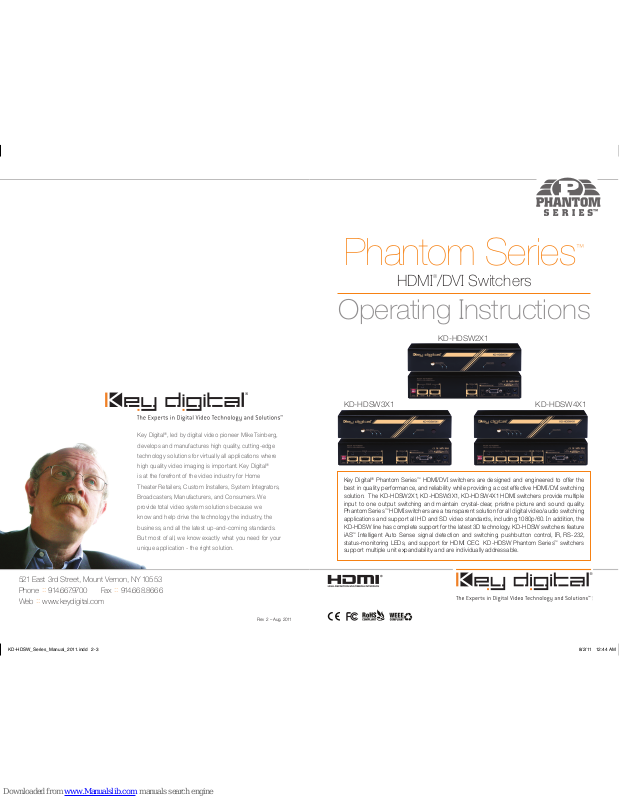

Key Digital Phantom KD-HDSW2X1, Phantom KD-HDSW3X1, Phantom KD-HDSW4X1 Operating Instructions Manual

521 East 3rd Street, Mount Vernon, NY 10553
Phone :: [phone] Fax :: [phone]
Web :: www.keydigital.com

Key Digital®, led by digital video pioneer Mike Tsinberg,

develops and manufactures high quality, cutting-edge

technology solutions for virtually all applications where

high quality video imaging is important. Key Digital

®

is at the forefront of the video industr y for Home

Theater Retailers, Cu stom Installers, System Integrators,

Broadcasters, Manu facturers, and Consumers. We

provide

total video system solutions because we

know and help drive the technology, the industry, the

business, and all the latest up-and-coming standards.

But most of all, we know exactly what you need for your

unique application - the right solution.

Rev 2 – Aug. 2011

Operating Instructions

KD-HDSW2X1

KD-HDSW3X1 KD-HDSW4X1

Key Digital® Phantom Series™ HDMI/DVI switchers are designed and engineered to offer the
best in quality, performance, and reliability while providing a cost effective HDMI/DVI switching
solution. The KD-HDSW2X1, KD-HDSW3X1, KD-HDSW4X1 HDMI switchers provide multiple
input to one output switching and maintain crystal-clear, pristine picture and sound quality.
Phantom Series™ HDMI switchers are a transparent solution for all digital video/audio switching
applications and support all HD and SD video standards, including 1080p/60. In addition, the
KD-HDSW line has complete support for the latest 3D technology. KD-HDSW switchers feature
iAS™ Intelligent Auto Sense signal detection and switching, pushbutton control, IR, RS-232,
status-monitoring LEDs, and support for HDMI CEC. KD-HDSW Phantom Series™ switchers
support multiple unit expandability, and are individually addressable.

Phantom Series

™

HDMI®/DVI Switchers

KD-HDSW_Series_Manual_2011.indd 2-3 8/2/11 12:44 AM

Page 4 Page 1

Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

About KD-HDSW2X1; KD-HDSW3X1; KD-HDSW4X1. . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

DVI Applications for KD-HDSW2X1; KD-HDSW3X1; KD-HDSW4X1. . . . . . . . . . . . . . . . . . . . . . 2

Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Installation and Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Push Button Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

IR Emitter Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

RS-232 Control and Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Multiple KD-HDSW Unit Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Addressing Buttons / Units via IR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Addressing Buttons / Units via RS-232 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

EDID Control Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Using iAS

™

Intelligent Auto Sense . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Firmware Upgrades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Mechanical / Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Important Product Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

How to Contact Key Digital

®

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

© 2009 Key Digital, Inc. All rights reserved.

Quick Setup Guide

½ Step 1: Find a safe and convenient location to mount or place your KD-HDSW unit
½ Step 2: Begin with the KD-HDSW unit and all input/output devices turned off with power cables

removed

½ Step 3: Connect your HDMI or DVI-D source devices to the input ports of your KD-HDSW unit
½ Step 4: Connect your HDMI or DVI-D display to the output port of your KD-HDSW unit
½ Step 5: Connect the desired IR or RS-232 control inputs to your KD-HDSW unit
½ Step 6: Be sure the Operation Mode Switch is set to the “Normal” position
½ Step 7: Connect power to the KD-HDSW unit
½ Step 8: Power on input/output devices

Note: No signal conversion is done on the KD-HDSW2X1; KD-HDSW3X1; KD-HDSW4X1.

If input signal is HDMI output signal will be HDMI. If input signal is DVI output signal will be DVI.

HDMI/DVI

HDMI/DVI

HDMI/DVI

*

Plasma TV

HDMI/DVI

*

HDMI/DVI

*

HDMI/DVI

*

HDMI/DVI

*

HDMI/DVI

*

HDMI/DVI

*

HDMI/DVI

*

HDMI/DVI

*

HDMI/DVI

*

Plasma TV

Blu-Ray

DVD Player

Cable Box

Satellite Box

KD-HDSW4X1

KD-HDSW4X1

RS-232 Control

Serial IR

Optical IR

Serial IR

Optical IR

RS-232 Control

Optical IR

Optical IR

*To connect DVI use Key Digital® HDMI to DVI adapters, part numbers KD-FMHDMI and KD-MFHDMI

*To connect DVI, use HDMI to DVI adapters

Always follow the instructions provided in this Operating Manual.
