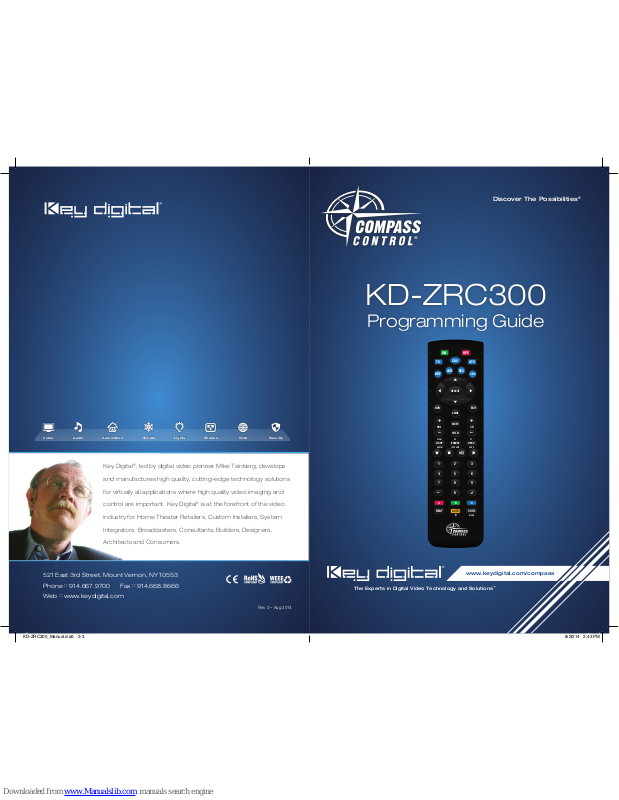

Key Digital KD-ZRC300 Programming Manual

521 East 3rd Street, Mount Vernon, NY 10553

Phone :: [phone] Fax :: [phone]

Web :: www.keydigital.com

Key Digital®, led by digital video pioneer Mike Tsinberg, develops

and manufactures high quality, cutting-edge technology solutions

for virtually all applications where high quality video imaging and

control are important. Key Digital

®

is at the forefront of the video

industry for Home Theater Retailers, Custom Installers, System

Integrators,

Broadcasters, Consultants, Builders, Designers,

Architects and Consumers.

Rev 0 – Aug 2014

KD-ZRC300

Programming Guide

Discover The Possibilities

®

The Experts in Digital Video Technology and Solutions

™

www.keydigital.com/compass

Video

Audio Automation

Security

Lights Shades

Climate Web

TV ATV

CBX

BRP

L/S/H

ON

OFF

AVR SEC

SELECT

DVR

GUIDE

EXIT

VOL

+

–

+

–

CH

MUTE

PREV CH

LIGHT

SHADES

HVAC

1 2 3

4 5 6

7 8 9

0

–

HEAT COOL

ZOOM

AV PC

D

AM/FM INT RADIO

SURR

MENU

A B C

AUTO

KD-ZRC300_Manual.indd 2-3 8/20/14 2:43 PM

Table of Contents

About KD-ZRC300 ........................................................1

Connectivity.............................................................. 2

How It Works.............................................................3

KD-ZRC300 Remote Overviiew and Connections .................................4

Default Button Assignment ..................................................5

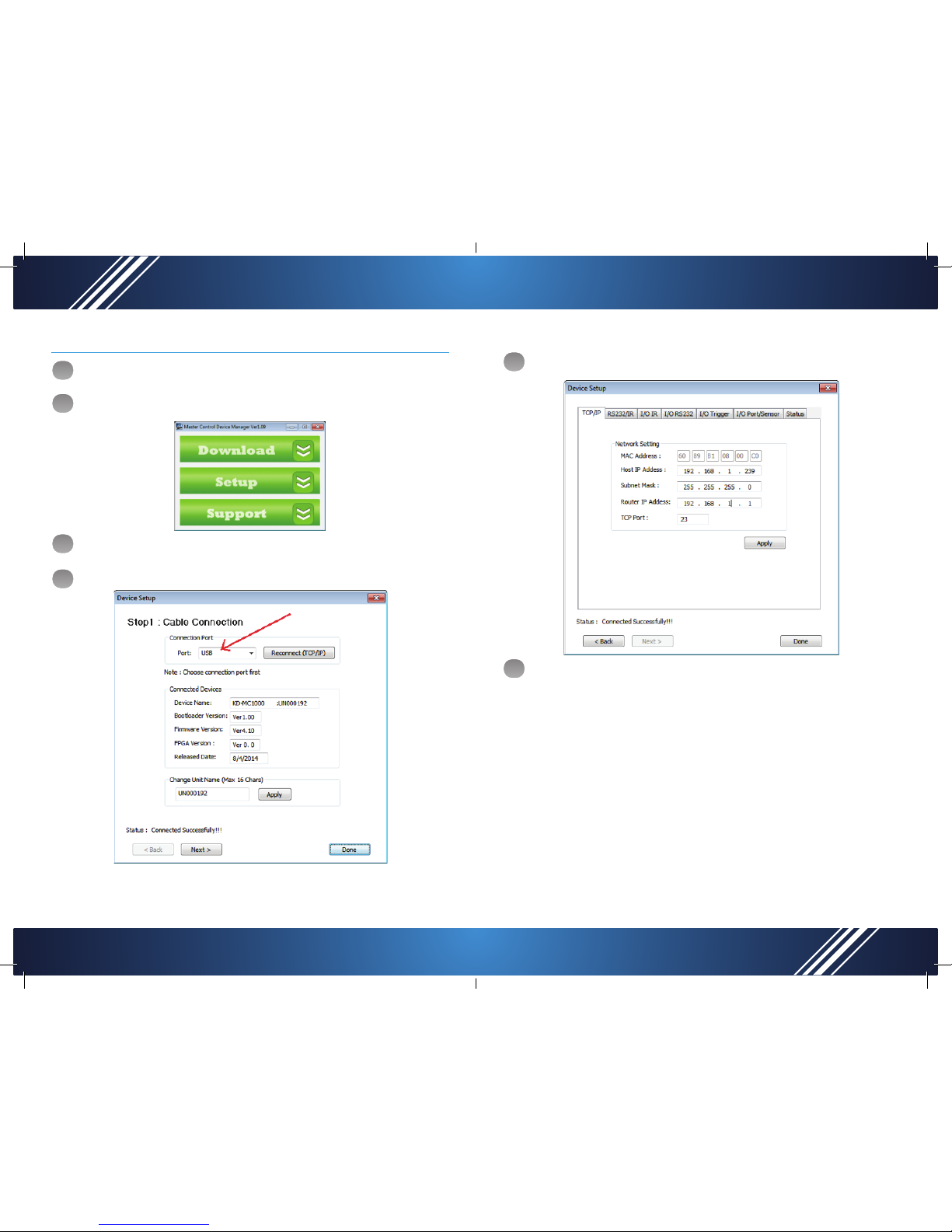

Setup Master Controller IP address ............................................6

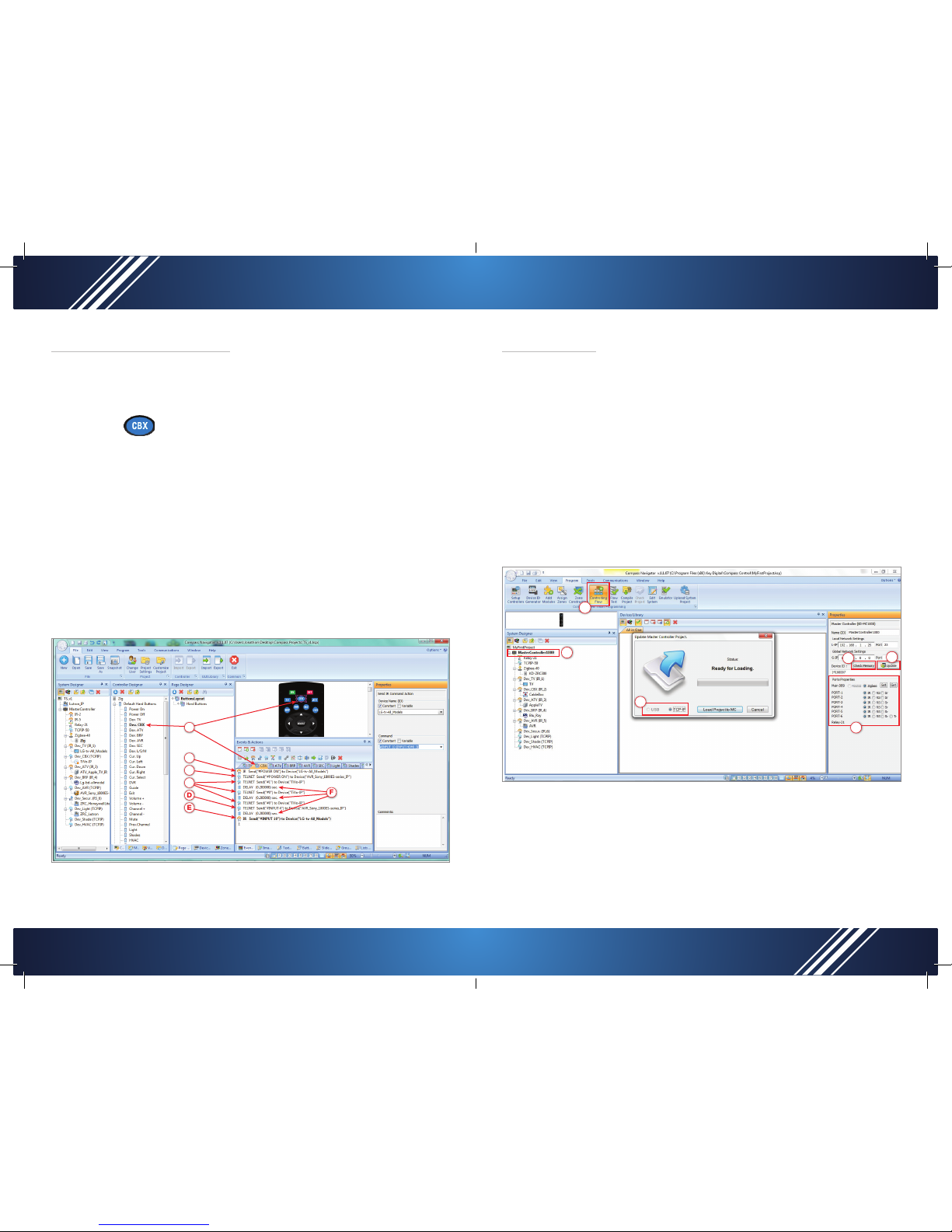

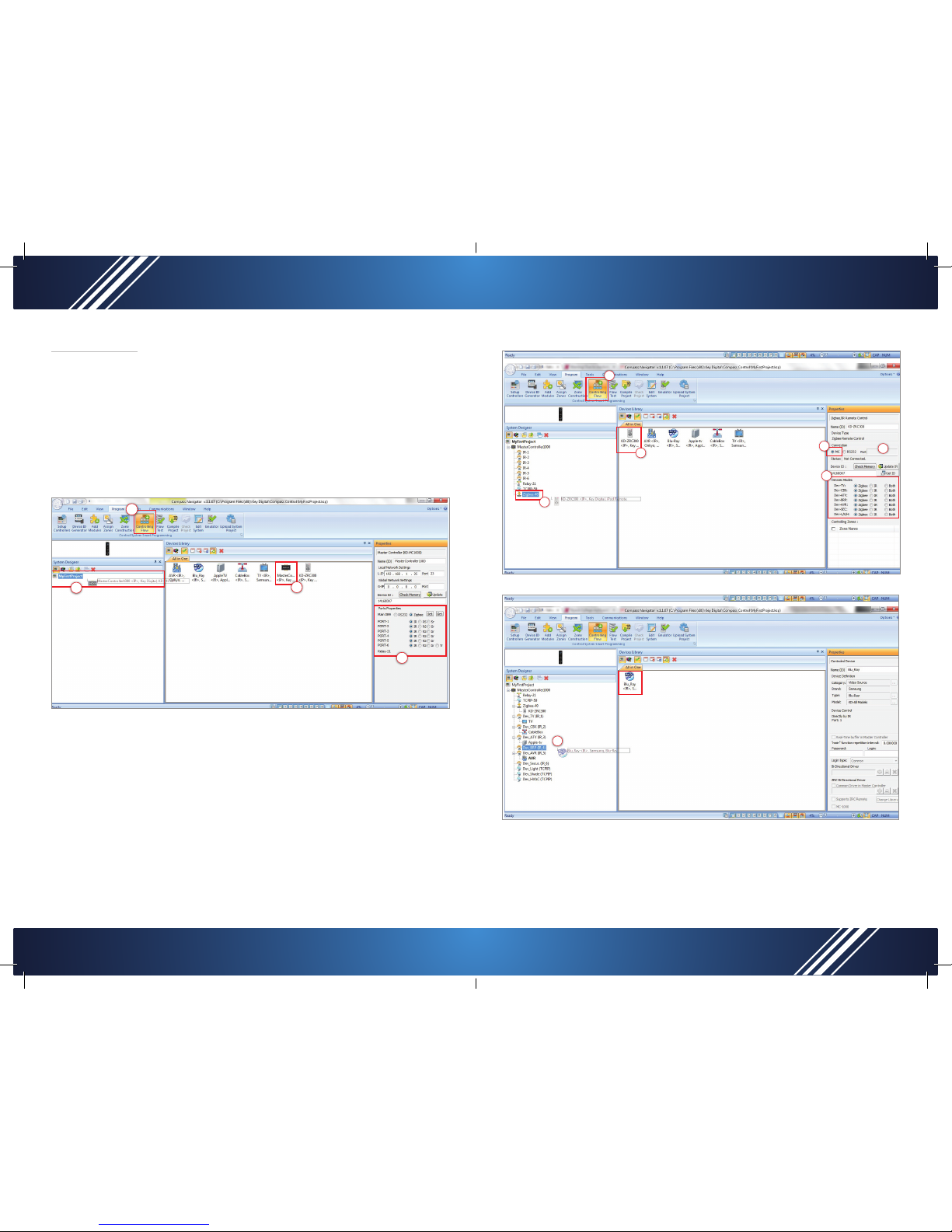

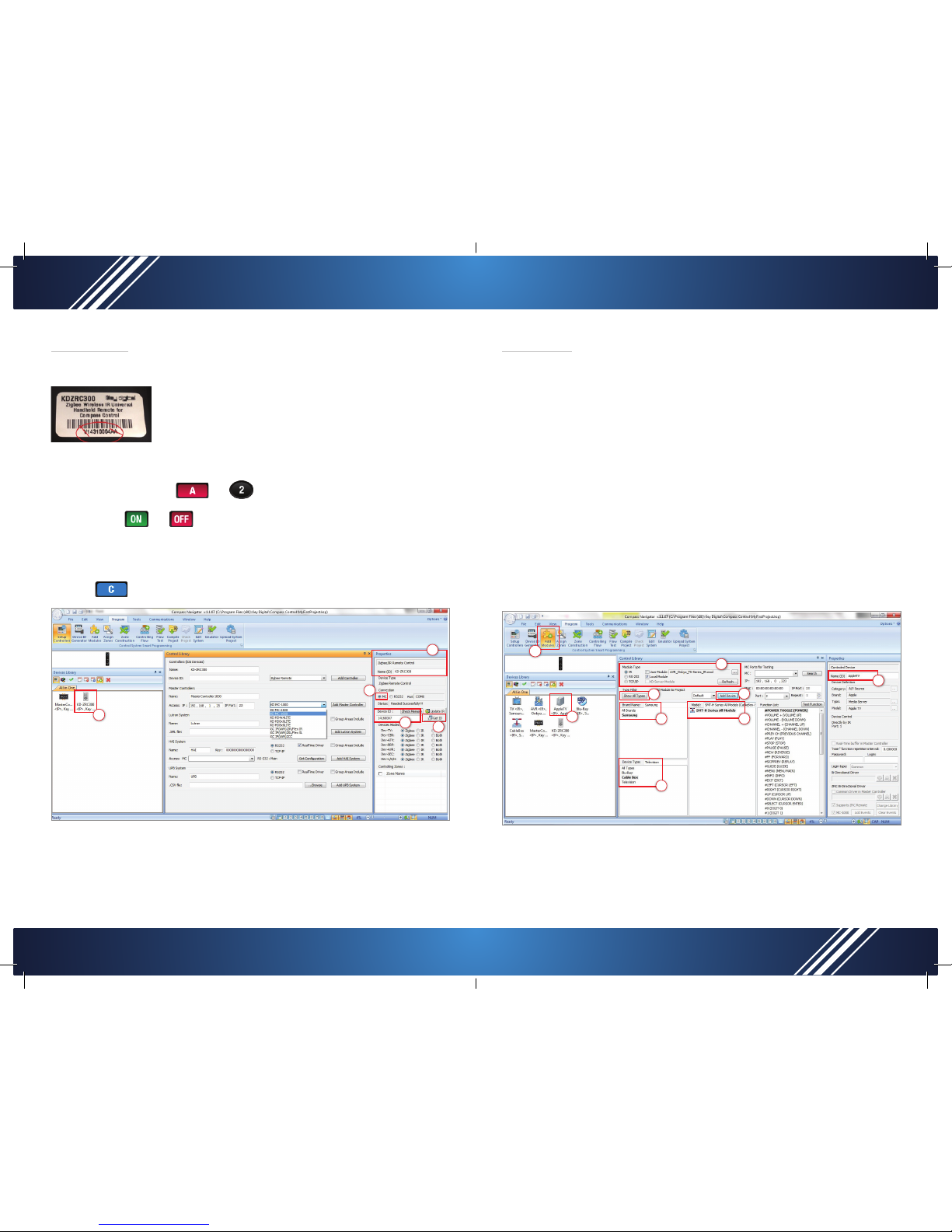

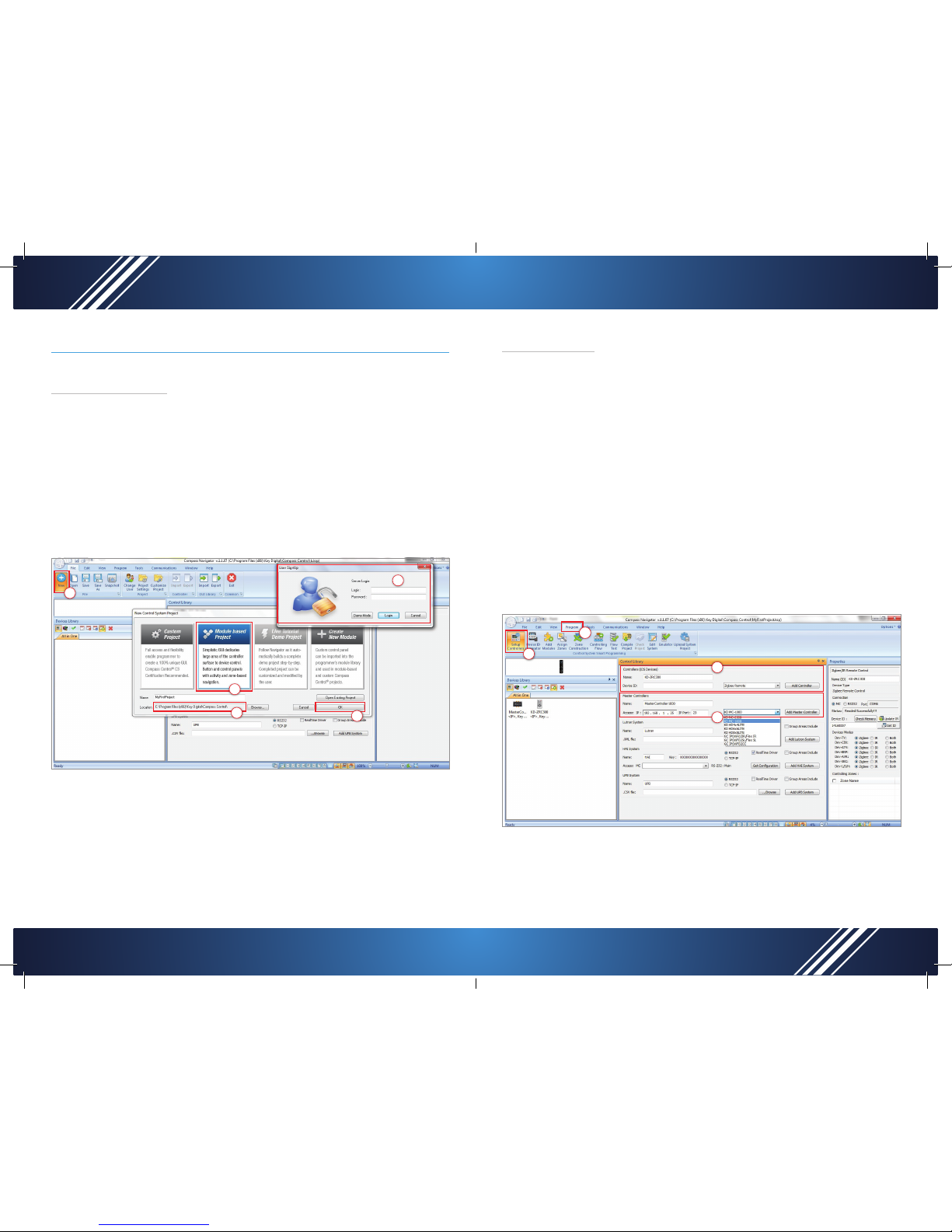

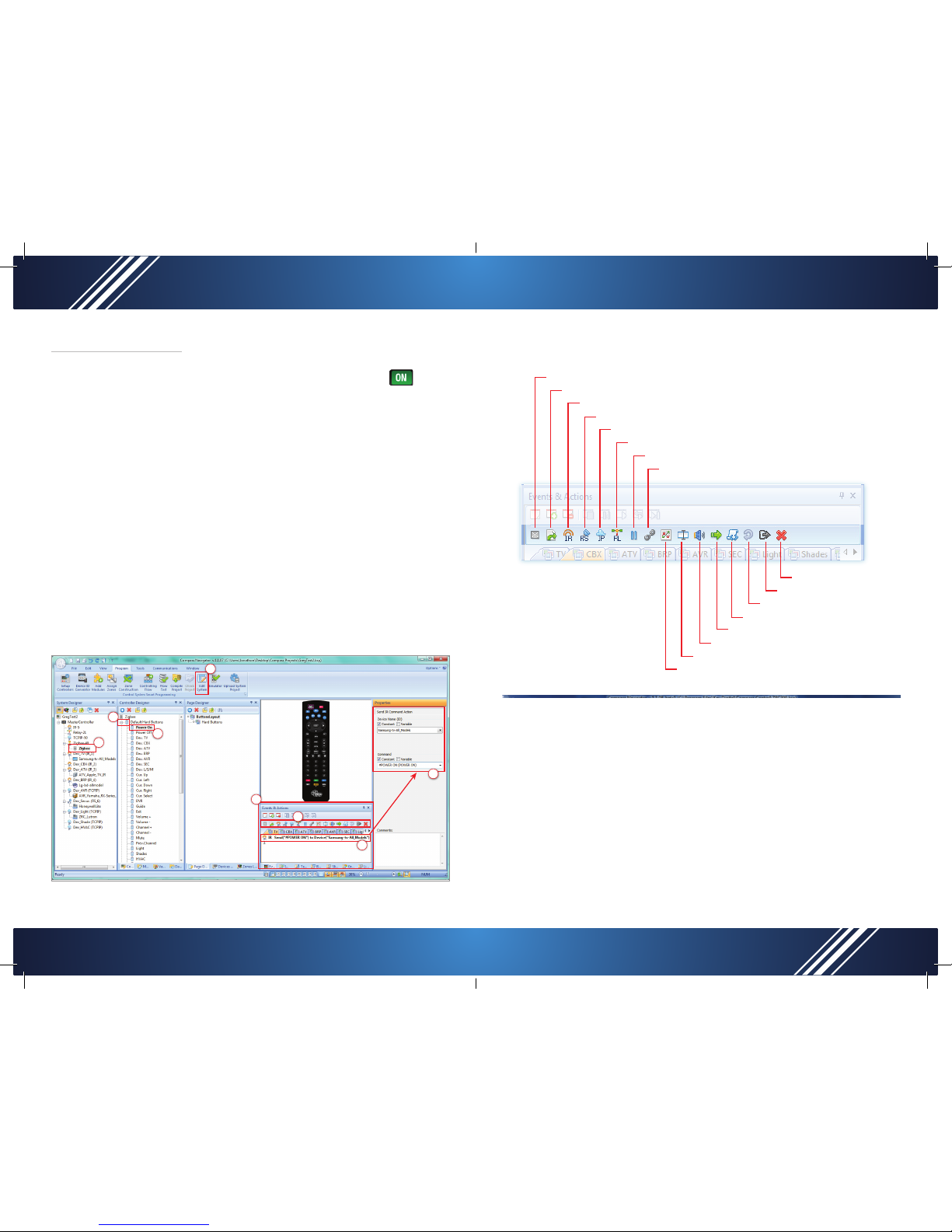

Programming.............................................................8

Safety Instructions ........................................................16

How to Contact Key Digital

®

................................................17

Warranty Information ......................................................17

© 2014 Key Digital, Inc. All rights reserved. ZigBee is a registered trademark of ZigBee Alliance.

About KD-ZRC300

KD-ZRC300 features ZigBee wireless communication, as well as line-of-sight IR support,
and is the first universal remote control from Key Digital’s Compass Control

®

series.

Key Features

› 48 Programmable Hard Buttons:

For IR and/or RF ZigBee® commands programmable

with Compass Navigator

™

PC Software

› Programming Support:

Unlimited macro and variable actions

› ZigBee

®

Signal Transmission:

Up to 100’ through walls, doors and floors

› Device Control:

Up to 7 devices with line-of-sight IR control or up to 9 devices with

RF Wireless 2.4 GHz ZigBee

®

control

› Backlight:

Motion detected automatic backlighting. The backlight
will turn on when movement is detected and will stay on for five
seconds after movement has stopped.

› USB:

Recharging Batteries

› RS-232:

Programming

› Multiple System Modes:

» Idle Mode: Power Saving mode while remote is not in use

» Active Mode: Device switches to Active Mode after a button

is pressed or motion is detected. Stays in Active Mode for
5 seconds.

» Low Battery Mode: Activated when the battery has dropped

below 2.4V. Backlighting and Configuration Mode are
unavailable.

» Configuration Mode: To setup and configure the remote

› Indication Keys (On/Off):

» Low Battery indicator: Power OFF LED blinks every one second

while in active mode

» Battery Charging indicator: Power ON LED blinks every one

second while in active mode

» Full Charge indicator: Both Power ON and OFF LEDs blink every

one second while in active mode

» Configuration Mode indicator: Both Power ON and OFF LEDs

are steadily illuminated

› 7 Device Keys:

The selected Device Key LED will remain illuminated

to indicate which device is selected

› For more information regarding KD-ZRC300’s key features, visit:

http://keydigital.com/items.asp?itemCode=KDZRC300&Company=Key

1

TV ATV

CBX

BRP

L/S/H

ON

OFF

AVR SEC

SELECT

DVR

GUIDE

EXIT

VOL

+

–

+

–

CH

MUTE

PREV CH

LIGHT

SHADES

HVAC

1 2 3

4 5 6

7 8 9

0

–

HEAT COOL

ZOOM

AV PC

D

AM/FM INT RADIO

SURR

MENU

A B C

AUTO

KD-ZRC300_Manual.indd 4-1 8/20/14 2:43 PM

Connectivity

The KD-ZRC300 remote communicates with the KD-ZRX200 transceiver via wireless ZigBee
signals. The KD-ZRX200 transceiver allows for communication from up to 100 feet away with
signals extending through most walls, floors and doors. The KD-MC1000 Master Controller
must also be connected in the system. Connect the KD-ZRX200 to the KD-MC1000’s ZigBee
RS-232 I/O port using the supplied 3.5mm 4 conductor stereo male to male cable or using a
fabricated wire that may be up to 100 ft. long.

3.5mm 4 conductor cable

KD-ZRX200KD-MC1000

Pair KD-ZRC300 ZigBee remote with KD-ZRX200 transceive antenna.

1. Connect The KD-ZRX200 ZigBee port to the RS-232 ZigBee port on the KD-MC1000

(make sure KD-MC1000 is powered on)

2. Hold down the Pair button located underneath the KD-ZRX200 ZigBee transceiver.

Blue lights will begin to flash.

3. As the KD-ZRX200 lights flash, hold down the

and buttons on the

KD-ZRC300 remote until the blue lights stop flashing.

4. The KD-ZRC300 and KD-ZRX200 connected to KD-MC1000 are now paired.

How It Works

KD-CCKIT1000 Master Controller Kit: Includes KD-MC1000 Master

Controller, KD-ZRC300 ZigBee® Wireless 2.4 Ghz & IR Universal Handheld

Remote & KD-ZRX200 ZigBee

®

Wireless 2.4 Ghz to RS-232 Tx & Rx

TV ATV

CBX

BRP

L/S/H

ON

OFF

AVR SEC

SELECT

Faceplate: High Gloss Black

Back: Rubberized Finish

Buttons: High Gloss Black

Colors:

Green PMS 355C

Red PMS 199C

Blue PMS 300C

Yellow PMS 1235C

Black

White

DVR

GUIDE

EXIT

VOL

+–+

–

CH

MUTE

PREV CH

LIGHT

SHADES

HVAC

1 2 3

4 5 6

7 8 9

0

–

HEAT COOL

ZOOM

AV PC

D

AM/FM INT RADIO

SURR

MENU

Sasha 4.10.2014

v.2

A B C

AUTO

KD-ZRC300:

Zigbee Wireless 2.4 Ghz

IR

Universal Handheld Remote

KD-ZRX200: Zigbee
Wireless 2.4 Ghz to
RS-232 TX & RX

Compass Navigator™ PC Software:
Visual Design & Programming of the
Compass Control

®

System

KD-MC1000: Master Controller
(Wired/LAN, Supports up to 8 Ports)

Single Zone Demo System that Utilizes KD-CCKIT1000:

Ethernet

AVR

Satellite

Apple TV

KD-MC1000

WiFi Router

(Only Necessary
for iOS Control)

Blu-Ray

KD-ZRX200

HDMI

IR

HDMI

HDMI

HDMI

IR

RJ45

RJ45

RS-232

IR

TV ATV

CBX

BRP

L/S/H

ON

OFF

AVR SEC

SELECT

DVR

GUIDE

EXIT

VOL

+–+

–

CH

MUTE

PREV CH

LIGHT

SHADES

HVAC

1 2 3

4 5 6

7 8 9

0

–

HEAT COOL

ZOOM

AV PC

D

AM/FM INT RADIO

SURR

MENU

A B C

AUTO

KD-ZRC300

ZigBee RF

HDMI

IR

KD-CATHD300Lite

Rx

KD-CATHD300Lite

Tx

HDMI

CAT5e/6

IR

2 3

KD-ZRC300_Manual.indd 2-3 8/20/14 2:43 PM

KD-ZRC300 Remote Overview and Connections

TV ATV

CBX

BRP

L/S/H

ON

OFF

AVR SEC

SELECT

DVR

GUIDE

EXIT

VOL

+

–

+

–

CH

MUTE

PREV CH

LIGHT

SHADES

HVAC

1 2 3

4 5 6

7 8 9

0

–

HEAT COOL

ZOOM

AV PC

D

AM/FM INT RADIO

SURR

MENU

A B C

AUTO

IR Light

The remote can be used for line-of-sight
IR control or as a Zigbee wireless
remote control

Indication Keys

Low Battery indicator: Power OFF LED
blinks every second while in active mode.

Battery Charging indicator: Power ON LED
blinks every second while in active mode.

Full Charge indicator: Both Power ON and
OFF LEDs blink every second while in
active mode.

Configuration Mode indicator: Both Power
ON and OFF LEDs are steadily illuminated

Device Keys

There are 7 device keys. The selected
Device Key LED will remain illuminated to
indicate which device is selected

Backlight

The backlight will turn on when movement
is detected and will stay on for five seconds
after movement has stopped

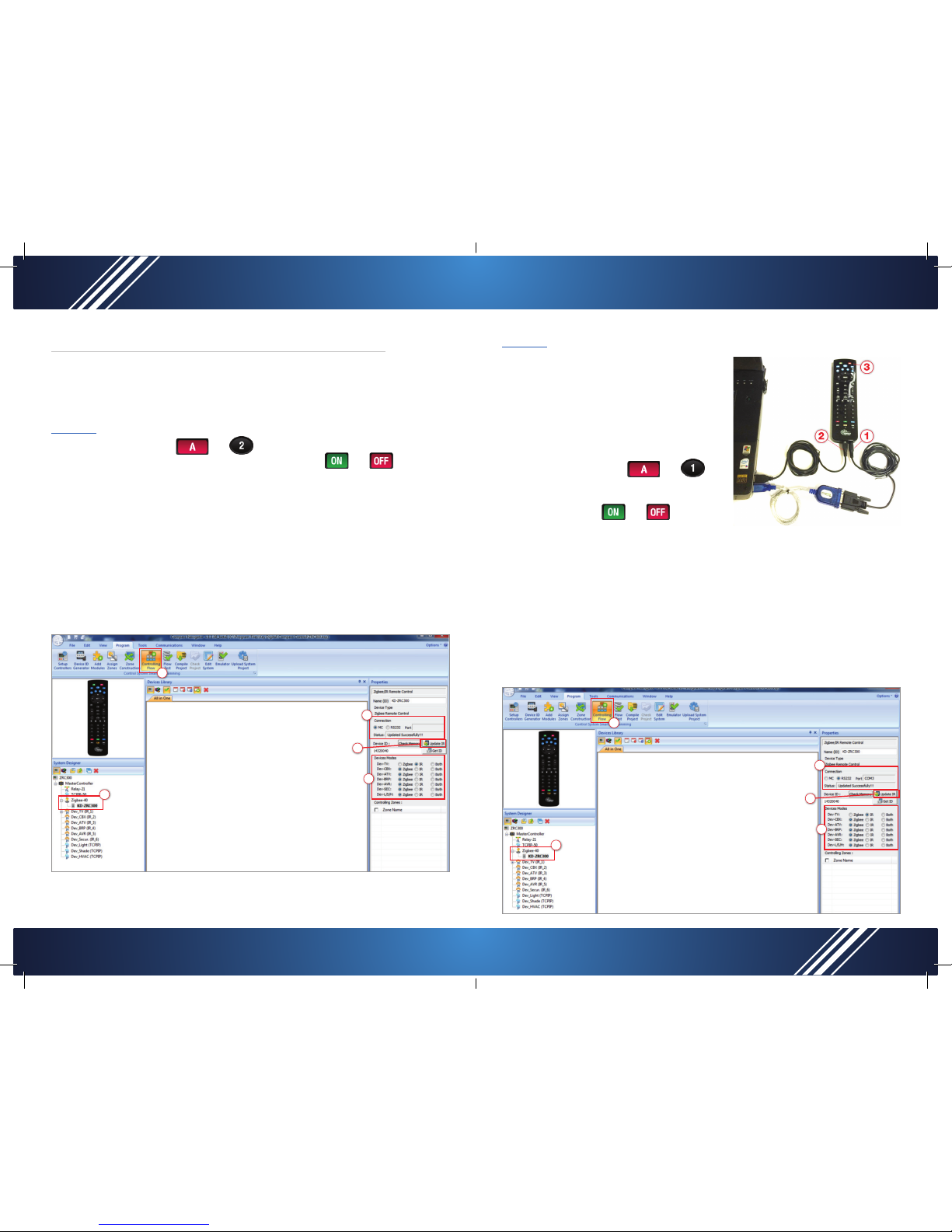

Function Keys

“A” + “1” Key: Sets configuration
mode through the RS-232 port on the
handheld remote

“A” + “2” Key: Sets configuration
mode through the Zigbee Receiver

“A” + “C” Key: To pair to ZigBee Receiver
“C” Key: To cancel any configuration

mode

System Modes

Idle Mode: Power Saving mode while
remote is not in use

Active Mode: Device switches to Active
Mode after a button is pressed or motion
is detected. It stays in Active Mode for
5 seconds.

Low Battery Mode: When the battery has
dropped below 2.4V the remote switches
to Low Battery Mode. Back lighting and
Configuration Mode are unavailable.

Configuration Mode: To setup and configure
the remote

Micro USB

Used to charge
the two 1.5v
rechargeable
Alkaline batteries

RS-232 Port

Used for configuring
the Zigbee remote.
Note: USB cable
must be connected
to micro USB
connector)

3.5mm Stereo
Phone Jack Pinout:

Tip: TxD, Ring: RxD,
Sleeve: Ground

Default Button Assignment

ON/OFF

Turns on / off selected dev ice

TV Selection

Sets remote to co ntrol TV

Cable Box Selection (Switch)

Sets Cable Box as sou rce for display
and remote will control C able box

Blu-Ray Player Sele ction (Switch)

Sets Blu-ray Player as source for display
and remote will control Blu-Ray player

Audio/Video Receiver (Switch)

Sets AVR as source for dis play
and remote will con trol AVR

DVR & Guide

Used for Cable box co mmands

Light*

Sets remote mode to Lighting Control

Shades*

Sets remote mode to Shade control

Video Control Button s

Rewind / Stop / Play (Pause) / Fas t-forward

Function Button “A”

Programmable button
Defaults to Red / “A” but ton for cable boxes

Security Mode Select ion

Remote will contro l Security

Light/Shade/HVAC Mo de Selection

Remote mode is se t to LSH.
MUST SELECT FROM

LIGHT / SHADE / HVAC below.

Control Arrows and Select

Navigates Up/Down /Left/Right
Selects current option

Exit

Exits current menu for sele cted source

Mute

Mutes selected sourc e

Prev Ch

Switches back to Previous Channel

Volume (Up/Down)

Adjusts Volume for Selected Device

Channel (Up/Down)

Adjusts Channel for Selected Device

HVAC*

Sets remote mode to HVAC Control

Numerical Buttons ( 0 to 9 + Enter)

Numbered buttons for general use

Function Button “B”

Programmable button. Default s to
Green / “B” button for cable boxes.

Function Button “C”

Programmable button. Default s to
Blue / “C” button for cable b oxes

Heat

In HVAC, sets thermosta t to Heat Mode

Apple TV (Switch)

Sets Apple TV as source for display
and remote will c ontrol Apple TV

Cool

In HVAC, sets thermosta t to Cool Mode

AUTO (Function Button D)

In HVAC, sets thermostat to Auto Mode.
Defaults to Yellow / “D” butto n
for cable boxes.

*Must be preceded by L/S/H button press

4 5
