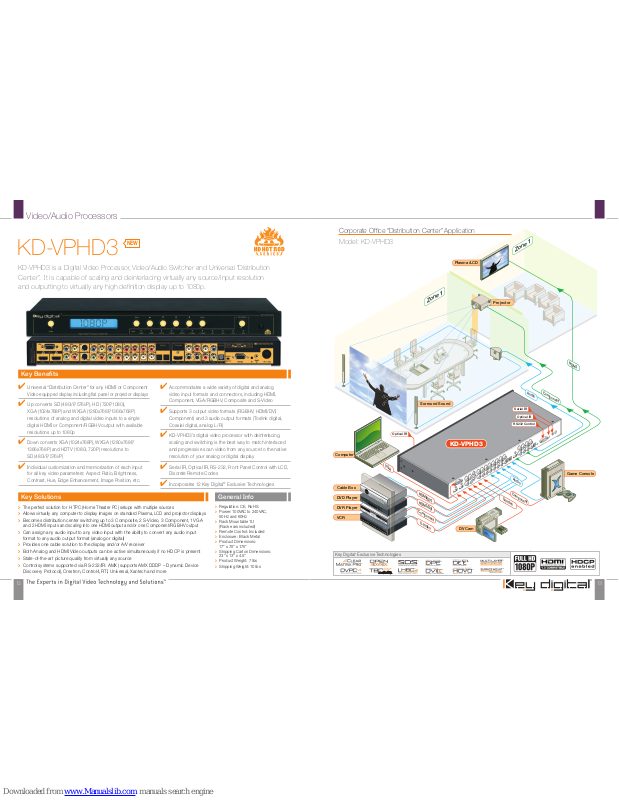

Key Digital KD-VPHD3 Specifications
12
13
Plasma/LCD
Audi
o
Surround Sound
DV Cam
VCR
DVR Player
Cable Box
RS232 Control
Serial IR
DVD Player
Game Console
Projector
Zo
ne
1
Zo
ne
1
Optical IR
Optical IR
KD-VPHD3
Computer
HDM
I/D
VI
VGA
HDM
I/D
VI
Componen
t
S-
Vide
o
Component
S-
Vide
o
HD
MI
Component
Audi
o
KD-VPHD3 is a Digital Video Processor, Video/Audio Switcher and Universal “Distribution
Center”.
It is capable of scaling and deinterlacing virtually any source/input resolution
and outputting to virtually any high definition display up to 1080p.
Corporate Office “Distribution Center” Application
Model: KD-VPHD3
4 Universal “Distribution Center” for any HDMI or Component
Video equipped display including flat panel or projector displays
4 Up-converts SD (480i/P, 576i/P), HD (720P, 1080i),
XGA (1024x768P) and WXGA (1280x768P, 1366x768P)
resolutions of analog and digital video inputs to a single
digital HDMI or Component/RGBHV output with available
resolutions up to 1080p
4 Down converts XGA (1024x768P), WXGA (1280x768P,
1366x768P) and HDTV (1080i, 720P) resolutions to
SD (480i/P, 576i/P)
4 Individual customization and memorization of each input
for all key video parameters: Aspect Ratio, Brightness,
Contrast, Hue, Edge Enhancement, Image Position, etc.
4 Accommodates a wide variety of digital and analog
video input formats and connectors, including HDMI,
Component, VGA/RGBHV, Composite and S-Video
4 Supports 3 output video formats (RGBHV, HDMI/DVI,
Component) and 3 audio output formats (Toslink digital,
Coaxial digital, analog L/R)
4 KD-VPHD3’s digital video processor with deinterlacing,
scaling and switching is the best way to match interlaced
and progressive scan video from any source to the native
resolution of your analog or digital display
4 Serial IR, Optical IR, RS-232, Front Panel Control with LCD,
Discrete Remote Codes
4 Incorporates 12 Key Digital
®
Exclusive Technologies
Key Benefits
Key Solutions General Info
The perfect solution for HTPC (Home Theater PC) setups with multiple sources
Allows virtually any computer to display images on standard Plasma, LCD and projector displays
Becomes distribution center switching up to 3 Composite, 2 S-Video, 3 Component, 1 VGA
and
2 HDMI inputs and scaling into one HDMI output and/or one Component/RGBHV output
Can assign any audio input to any video input with the ability to convert any audio input
format to any audio output format (analog or digital)
Provides one cable solution to the display and/or A/V receiver
Both Analog and HDMI Video outputs can be active simultaneously if no HDCP is present
State-of-the-art picture quality from virtually any source
Control systems supported via RS-232/IR: AMX (supports AMX DDDP – Dynamic Device
Discovery Protocol), Crestron, Control4, RTI, Universal, Xantech and more
›
›
›
›
›
›
›
›
Regulation: CE, RoHS
Power: 100VAC to 240VAC,
50Hz and 60Hz
Rack Mountable 1U
(Rack ears included)
Remote Control: Included
Enclosure: Black Metal
Product Dimensions:
17” x 7.5” x 1.75”
Shipping Carton Dimensions:
23” x 13” x 4.5”
Product Weight: 7 lbs
Shipping Weight: 10 lbs
›
›
›
›
›
›
›
›
›
Video/Audio Processors
KD-VPHD3
Key Digital® Exclusive Technologies
