Audi
o
Plasma TV
Surround Sound
DV Cam
VCR
DVR Player
Cable Box
RS232 Control
Serial IR
DVD Player
Game Console
Projector
Zo
ne
1
Zo
ne
1
Optical IR
Optical IR
KD-VPHD2
HDM
I/D
VI
HDM
I/D
VI
Componen
t
S-
Vide
o
Component
S-
Vide
o
HD
MI
Component
Audi
o
KD-VPHD2

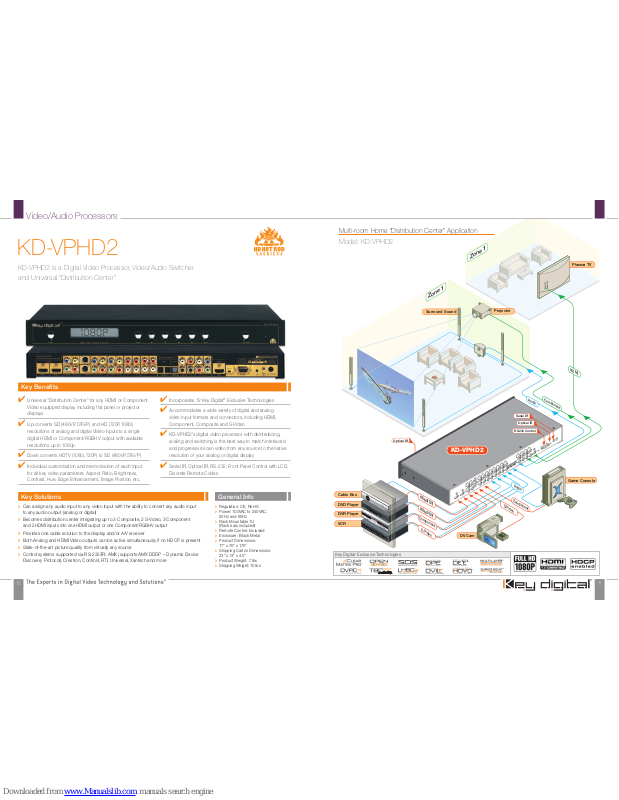

KD-VPHD2 is a Digital Video Processor, Video/Audio Switcher
and Universal “Distribution Center”
Multi-room Home “Distribution Center” Application
Model: KD-VPHD2
4 Universal “Distribution Center” for any HDMI or Compone nt
Video equipped display including flat panel or projector
displays
4 Up-converts SD (480i/P, 576i/P) and HD (720P, 1080i)
resolutions of analog and digital Video inputs to a single
digital HDMI or Component/RGBHV output with available
resolutions up to 1080p
4 Down converts HDT V (1080i, 720P) to SD (480i/P, 576i/P)
4 Individual customization and memorization of each input
for all key video parameters: Aspect Ratio, Brightness,
Contrast, Hue, Edge Enhancement, Image Position, etc.
4 Incorporates 12 Key Digital
®
Exclusive Technologies
4 Accommodates a wide variety of digital and analog
video input formats and connectors, including HDMI,
Component, Composite and S-Video
4 KD-VPHD2’s digital video processor with deinterlacing,
scaling and switching is the best way to match interlaced
and progressive scan video from any source to the native
resolution of your analog or digital display
4 Serial IR, Optical IR, R S-232, Front Pane l Control with LCD,
Discrete Remote Codes
Key Benefits
Key Digital® Exclusive Technologies
Key Solutions General Info
Can assign any audio input to any video input with the ability to convert any audio input
to any audio output (analog or digital)
Becomes distribution center integrating up to 3 Compos ite, 2 S-Video, 3 Component
and
2 HDMI inputs into one HDMI output or one Component/RGBHV output
Provides one cable solution to the display and/or A/V receiver
Both Analog and HDMI Video outputs can be active simultaneously if no HDCP is present
State-of-the-art picture quality from virtually any source
Control syste ms supported via RS-232/IR: AMX (supports AMX DDDP – Dynamic Device
Discovery Protocol), Crestron, Control4, RTI, Universal, Xantech and more
›
›
›
›
›
›
Regulation: CE, RoHS
Power: 100VAC to 240VAC,
50Hz and 60Hz
Rack Mountable 1U
(Rack ears included)
Remote Control: Included
Enclosure: Black Metal
Product Dimensions:
17” x 7.5” x 1.75”
Shipping Carton Dimensions:
23” x 13” x 4.5”
Product Weight: 7 lbs
Shipping Weight: 10 lbs
›
›
›
›
›
›
›
›
›
Video/Audio Processors
