This addendum describes additional features of Key Digital® FatBoy Series™
KD-MSWCAT8X8 and KD-MSWCAT4X4 spotlighting integration with KD-VACRX
and KD-CVARX Receiver Baluns.

KD-MSWCAT8x8
KD-MSWCAT4x4

Component/VGA with Audio via CAT5 Matrix Switchers

Page 2

© 2010 Key Digital, Inc. All rights reserved.

The following new features have been added to both
the KD-MSWCAT8x8 and KD-MSWCAT4x4 products:

Key Features

» Allows the use of either KD-VACRX or KD-CVARX receive Baluns

» KD-CVARX can be used with a Digital or Analog Audio Input (Analog Output only)

» Can now route IR signals when in Component mode via unused “H” (Horizontal sync)

signal path

Key Benefits

» Can mix both KD-VACRX and KD-CVARX Baluns on single unit

» Control display or other local (room) components by sending IR through KD-VACRX and

KD-CVARX Baluns

» Allows use of KD-CVARX Baluns when Digital Audio and RS232 Output isn’t required

Additional Key Features

» Front panel LED input/output assignment confirmation

» Easily controlled via IR Remote (included) with discrete codes, Serial IR, and RS-232

» Slim 1U Rack chassis for space conservation

RS232 Commands:

The following new RS232 commands have been added to provide control for the new features:

½ ‘SPCVTx’ - Video Type command: where x = 0 or 1 (0 = Component, 1 = RGBHV)

» Note: default is component.

» This command determines whether unit will switch Component or RGBHV signals.

» Example: To switch the unit from Component to RGBHV mode, enter the command;

‘SPCVT1’

» (Please note that a system reboot is required after a ‘Video Type’ switch for the settings to

take effect)

½ ‘SPOxxSRyy’ – IR Switching command: where xx = Output number, yy = Input number.

» This command directs the IR path from your chosen input to your chosen output

independent of your A/V routing.

» Example: to direct the IR path from input 4 to output 2, issue the command: ‘SPO02SR04’

» NOTE: for expansion configurations, total number of inputs will be limited to 8

(or 4 for KD-MSWCAT4x4

» The default assignments for IR routing are Input 1 to Output 1, Input 2 to Output 2 etc.

½ ‘SP C C5T hh’ - CAT5 Output Type Mask: where hh = hex value for selecting which outputs will

have KD-VACRX Balun and which will have KD-CVARX Baluns (0-VAC, 1-CVA) ‘0’ is the default
setting

» This command tells the unit which type of Balun is connected to each output number. A

selected output will choose the KD-CVARX Balun; an unselected output chooses the KD­VACRX Balun (default).

Page 1

» See the hex value/binary number conversion table to generate the proper number to enter

for this value.(pg. 4)

» The status display through RS-232 has been updated to reflect the changes.

» Output:

» 01 : Video= 01, Audio= 01, IR= 01 : Active : Mute Interval= 00

Balun= VAC : V= 50 B= 20 L= 12 M= 12 T= 12 LP= 00

» 02 : Video= 02, Audio= 02, IR= 02 : Active : Mute Interval= 00

Balun= VAC : V= 50 B= 20 L= 12 M= 12 T= 12 LP= 00

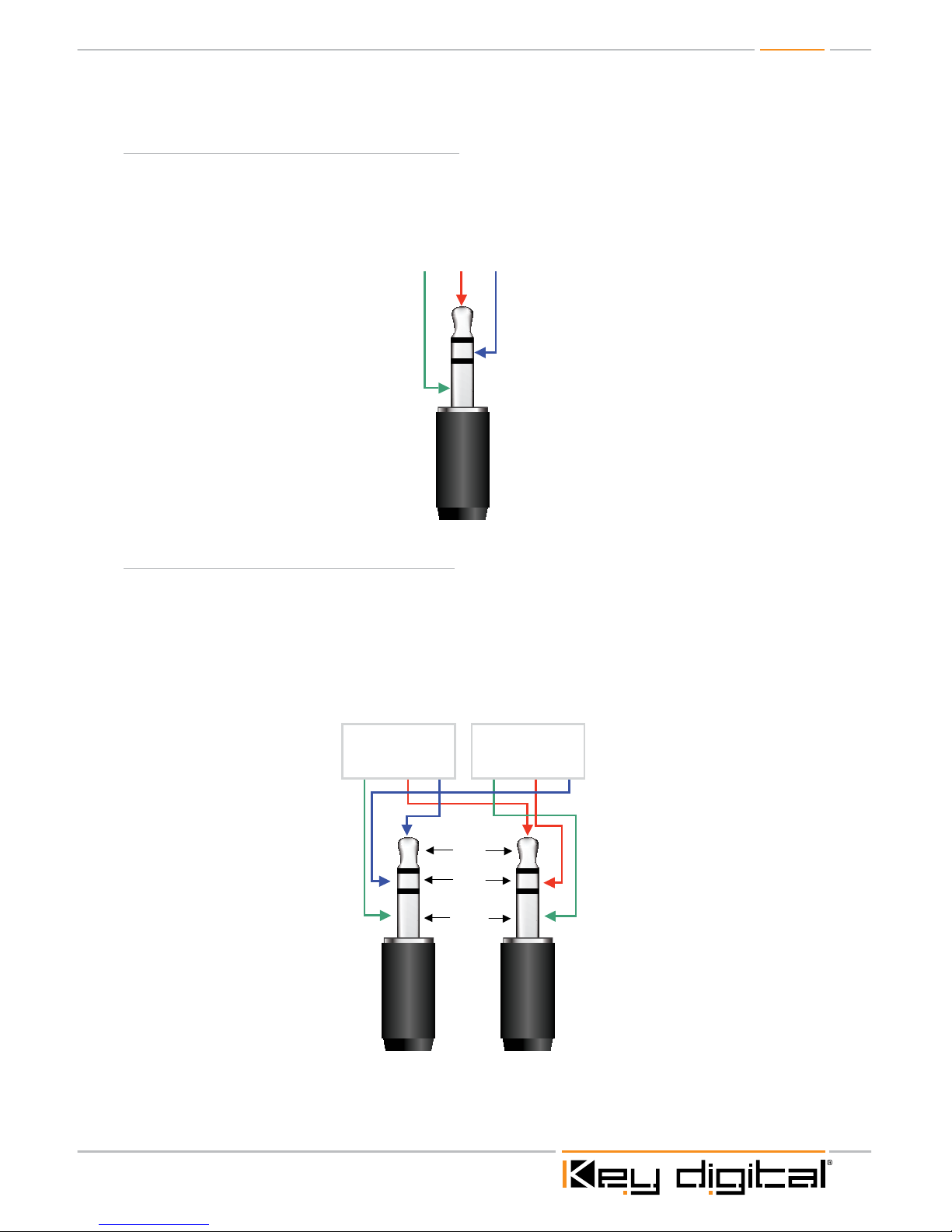

Pin out for using KD-CVARX Baluns with KD-MSWCAT8X8 / 4X4

Please note that to utilize the KD-CVARX Baluns you will need to terminate your CAT5 cabling
using the following pin out:

1 1

2 2

3 3

4 4

5 5

6 6

7 7

8 8

KD-MSWCAT8X8 / 4X4 KD-CVARX

IR routing through KD-MSWCAT8X8 / 4X4:

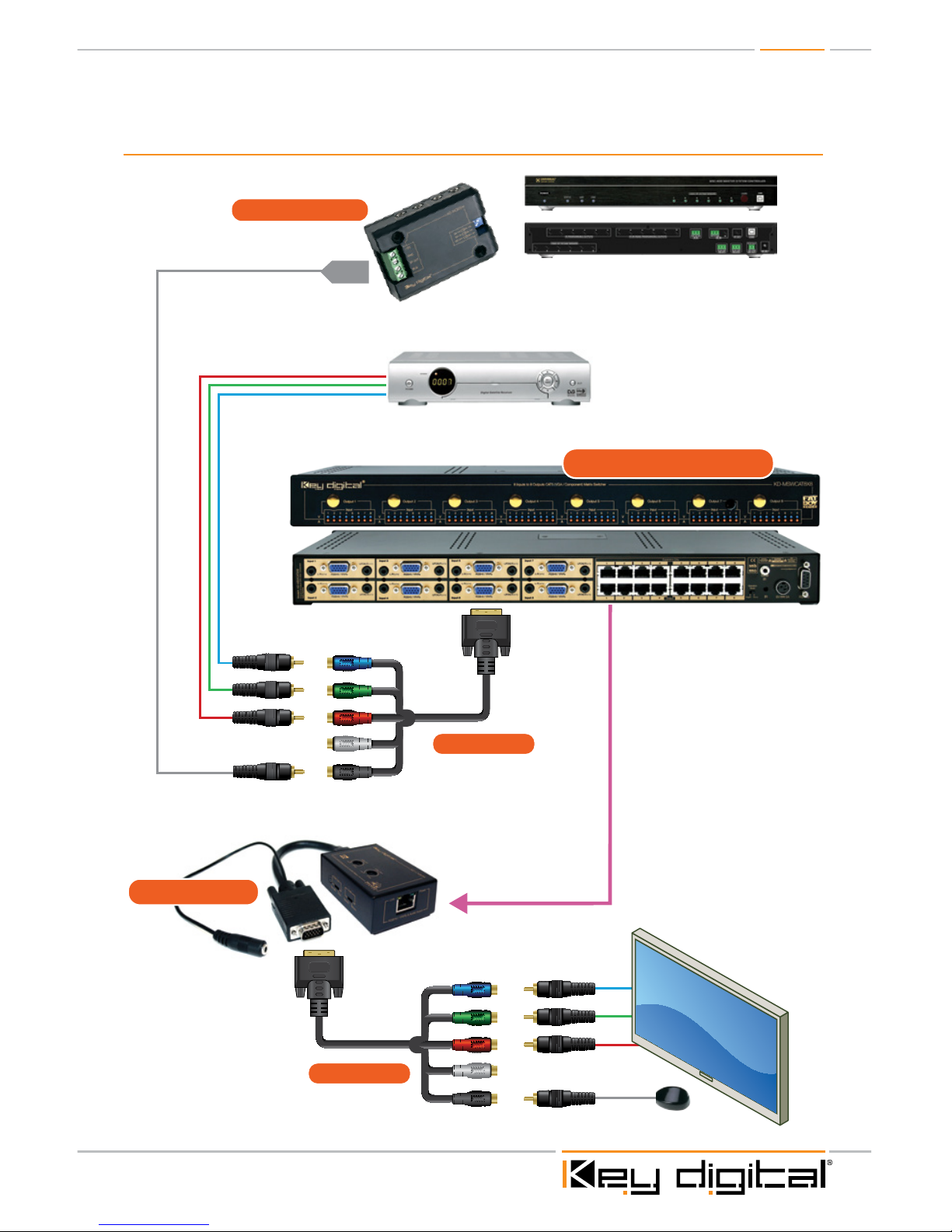

In order to send IR signals through the KD-MSWCAT8X8/4X4, you will need to follow the
configuration described below.

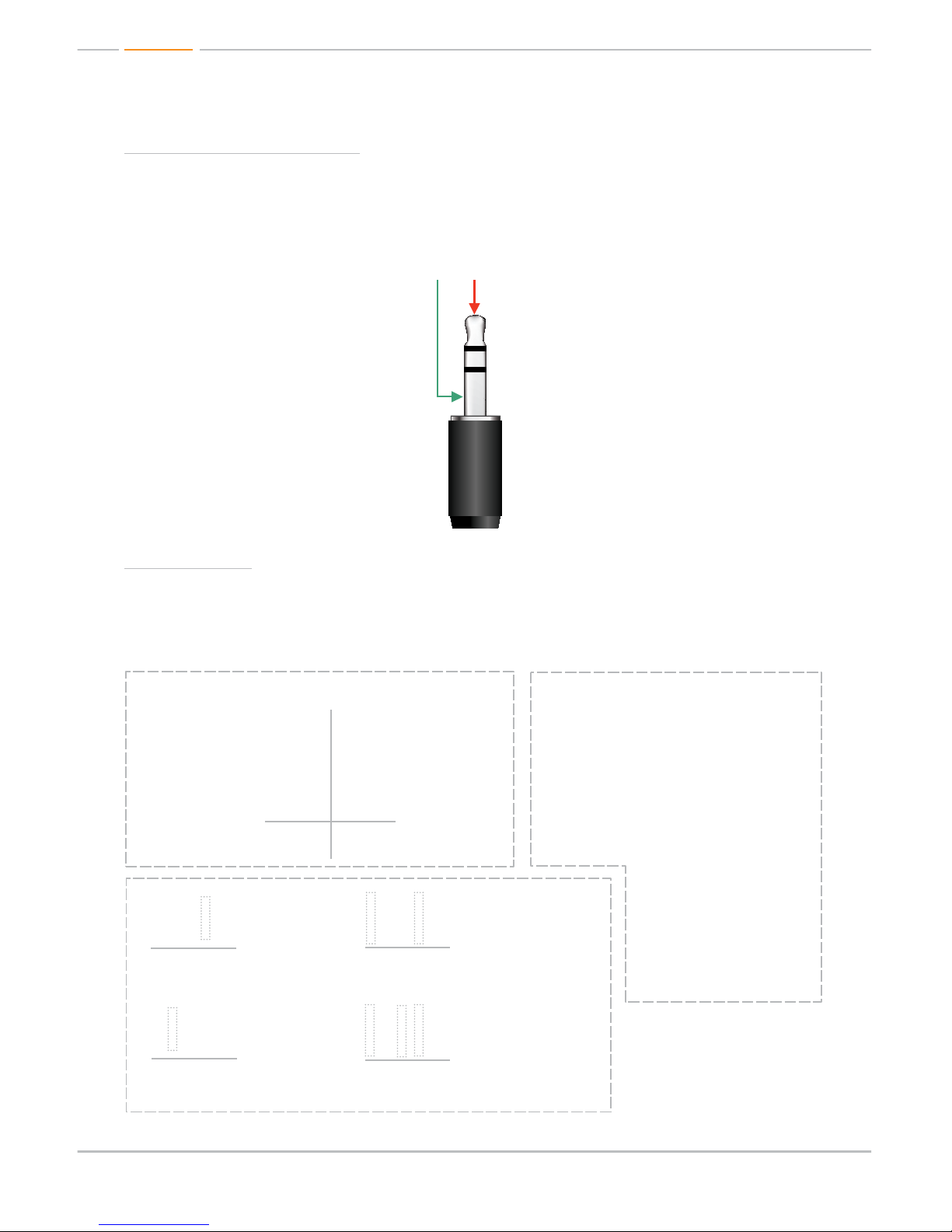

½ To input IR signals, you will need to convert your powered IR distributions

output to an RCA type connector. Typically you can use a mono 3.5mm jack
to RCA adapter (as shown).

½ Using a standard RCA male to male cable, connect this RCA to the unused ‘H’ or Horizontal

Sync input going into the switch. The supplied breakout cable is used for Component signals

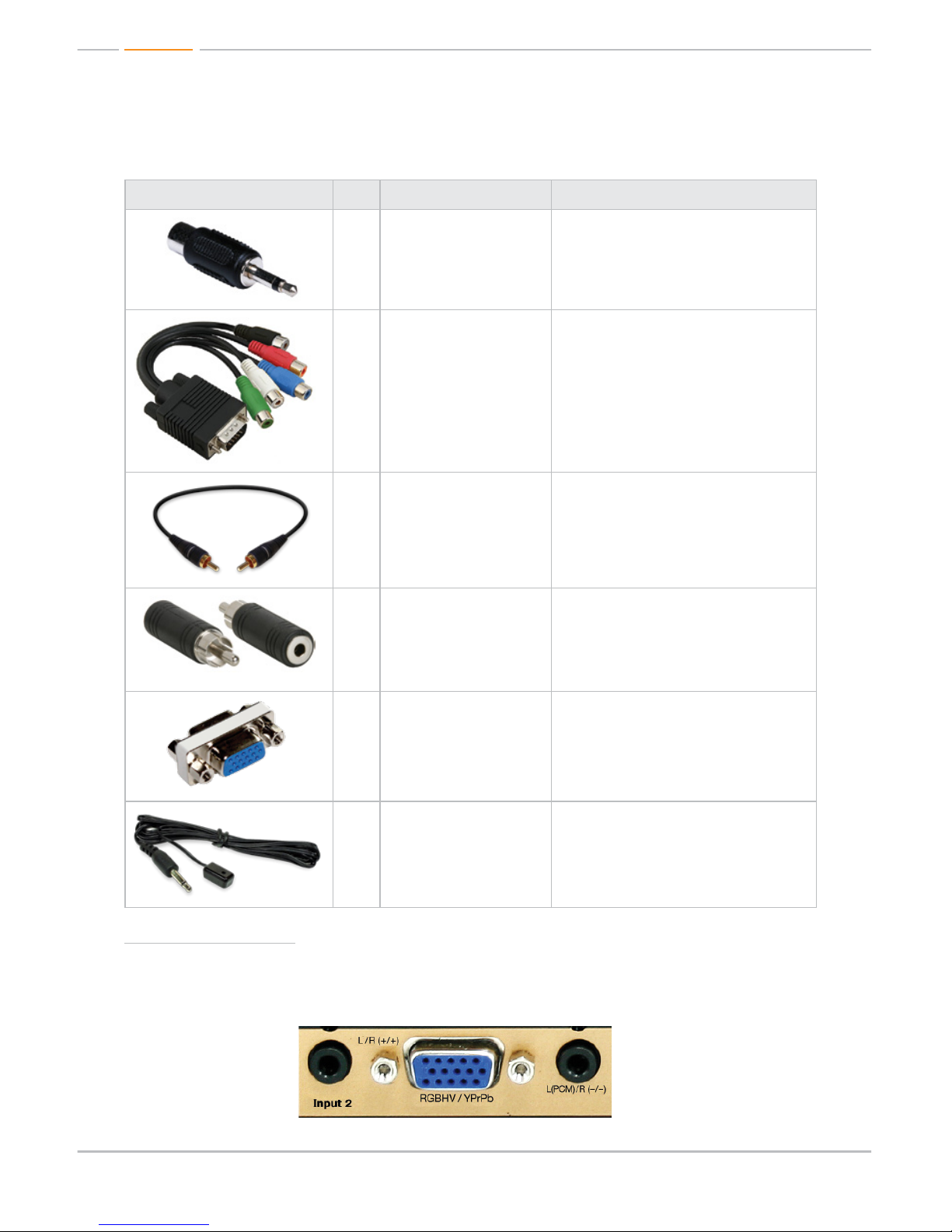

and has 3 RCA connections. You will need a 5 RCA to VGA (Part number KD-VACBL not
included) breakout connector for both Switch and Balun. (Total of 2 per signal, see complete
parts list below).

½ NOTE: When using the KD-CVARX Baluns, you will need to supply a female

to female HD15 gender changer to connect the Balun to the breakout cable
(KD-VACBL) this changer is not needed for the KD-VACRX Baluns.

½ At the Balun side, plug an RCA to 3.5mm female mono jack adapter into the

unused ‘H’ or Horizontal output coming off the HD15 to 5 RCA breakout cable from the Balun.
You may plug your emitter directly into this adapter which can then be placed onto your display
or any other device you wish to control. You may repeat this for each IR signal you wish to route
through the KD-MSWCAT8X8/4X4.
