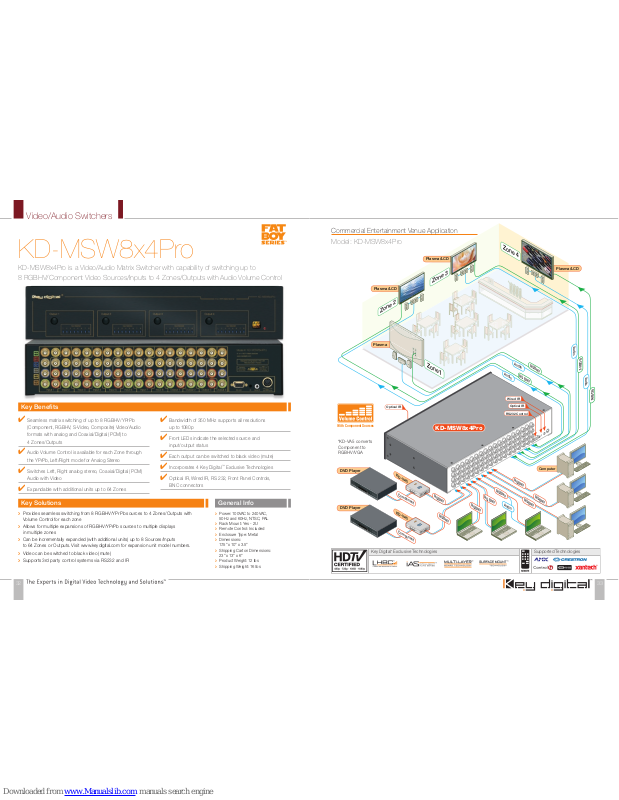

Key Digital KD-MSW8X4Pro Specifications
32
33
RG
B
HV
RG
B
HV
RG
BH
V
R
GBHV
Audi
o
KD-MSW8x4Pro
Plasma/LCD
Plasma
Plasma/LCD
Plasma/LCD
KD-
VA
5
DVD Player
Component
RG
BH
V
KD-
VA
5
DVD Player
Component
RG
BH
V
RG
BH
V
RG
BH
V
RG
BH
V
RG
BH
V
RG
BH
V
RG
BH
V
Computer
Audi
o
Audi
o
Au
d
io
Audi
o
RS232 Control
Wired IR
Optical IR
Optical IR
Zo
ne
2
Zo
ne
3
Z
one
4
Z
one
1
*KD-VA5 converts
Component to
RGBHV/VGA
With Component Sources
KD-MSW8x4Pro
KD-MSW8x4Pro is a Video/Audio Matrix Switcher with capability of switching up to
8 RGBHV/Component Video Sources/Inputs to 4 Zones/Outputs with Audio Volume Control
Commercial Entertainment Venue Application
Model: KD-MSW8x4Pro
4 Seamless matrix switching of up to 8 RGBHV/YPrPb
(Component, RGBHV, S-Video, Composite) Video/Audio
formats with analog and Coaxial/Digital (PCM) to
4 Zones/Outputs
4 Audio Volume Control is available for each Zone through
the YPrPb, Left/Right mode for Analog Stereo
4 Switches Left, Right analog stereo, Coaxial/Digital (PCM)
Audio with Video
4 Expandable with additional units up to 64 Zones
4 B andwidth of 350 MHz supports all resolutions
up to 1080p
4 Front LEDs indicate the selected source and
input/output status
4 Each output can be switched to black video (mute)
4 Incorporates 4 Key Digital
™
Exclusive Technologies
4 Optical IR, Wired IR, RS 232, Front Panel Controls,
BNC connectors
Key Benefits
Key Solutions General Info
Provides seamless switching from 8 RGBHV/YPrPb sources to 4 Zones/Outputs with
Volume Control for each zone
Allows for multiple expansions of RGBHV/YPrPb sources to multiple displays
in multiple zones
Can be incrementally expanded (with additional units) up to 8 Sources/Inputs
to 64 Zones or Outputs. Visit www.keydigital.com for expansion unit model numbers.
Video can be switched to black video (mute)
Supports 3rd party control systems via RS232 and IR
›
›
›
›
›
Power: 100VAC to 240VAC,
50Hz and 60Hz, NTSC, PAL
Rack Mount: Yes - 2U
Remote Control: Included
Enclosure Type: Metal
Dimensions:
17.5” x 10” x 3.5”
Shipping Carton Dimensions:
23” x 13” x 6”
Product Weight: 12 lbs
Shipping Weight: 16 lbs
›
›
›
›
›
›
›
›
Key Digital® Exclusive Technologies Supported Technologies
Video/Audio Switchers
