Key Digital KD-MSV8X8 Specifications

30

31

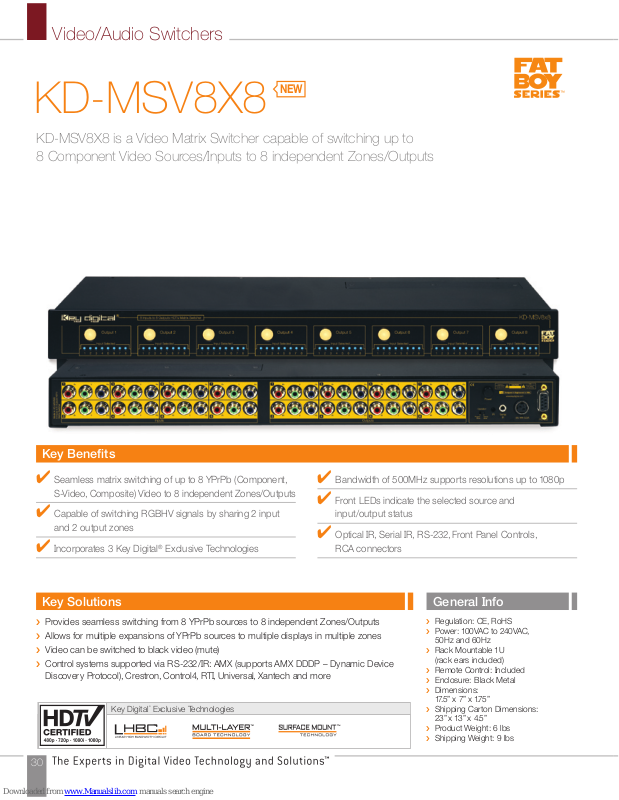

KD-MSV8X8

KD-MSV8X8 is a Video Matrix Switcher capable of switching up to
8 Component Video Sources/Inputs to 8 independent Zones/Outputs

4 Seamless matrix switching of up to 8 YPrPb (Component,

S-Video, Composite) Video to 8 independent Zones/Outputs

4 Capable of switching RGBHV signals by sharing 2 input

and 2 output zones

4 Incorporates 3 Key Digital

®

Exclusive Technologies

4 Bandwidth of 500MHz supports resolutions up to 1080p
4 Front LEDs indicate the selected source and

input/output status

4 Optical IR, Serial IR, RS-232, Front Panel Controls,

RCA connectors

Key Benefits

Key Solutions General Info

Provides seamless switching from 8 YPrPb sources to 8 independent Zones/Outputs

Allows for multiple expansions of YPrPb sources to multiple displays in multiple zones

Video can be switched to black video (mute)

Control systems supported via RS-232/IR: AMX (supports AMX DDDP – Dynamic Device
Discovery Protocol), Crestron, Control4, RTI, Universal, Xantech and more

›

›

›

›

Regulation: CE, RoHS
Power: 100VAC to 240VAC,
50Hz and 60Hz
Rack Mountable 1U
(rack ears included)
Remote Control: Included
Enclosure: Black Metal
Dimensions:

17.5” x 7” x 1.75”
Shipping Carton Dimensions:
23” x 13” x 4.5”
Product Weight: 6 lbs
Shipping Weight: 9 lbs

›

›

›

›

›

›

›

›

›
