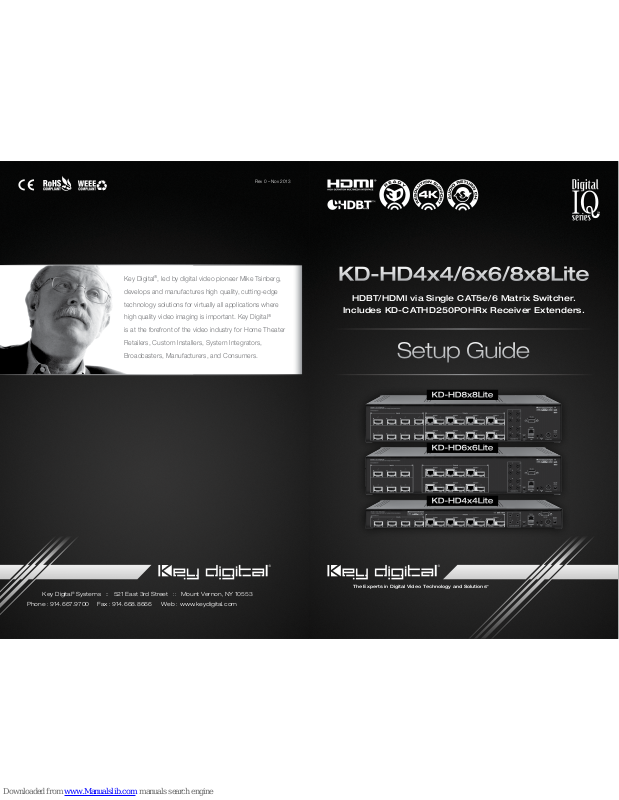

Key Digital KD-HD4x4, KD-HD6x6, KD-HD8x8Lite Setup Manual

The Experts in Digital Video Technology and Solutions

™

Key Digital®, led by digital video pioneer Mike Tsinberg,

develops and manufactures high quality, cutting-edge

technology solutions for virtually all applications where

high quality video imaging is important. Key Digital

®

is at the forefront of the video industry for Home Theater

Retailers, Custom Installers, System Integrators,

Broadcasters, Manufacturers, and Consumers.

Key Digital® Systems :: 521 East 3rd Street :: Mount Vernon, NY 10553

Phone : [phone] Fax : [phone] Web : www.keydigital.com

Rev 0 – Nov 2013

HDBT/HDMI via Single CAT5e/6 Matrix Switcher.

Includes KD-CATHD250POHRx Receiver Extenders.

KD-HD4x4/6x6/8x8Lite

Setup Guide

KD-HD8x8Lite

KD-HD6x6Lite

KD-HD4x4Lite

4 1

Table of Contents

About KD-HD4x4/6x6/8x8Lite .................................................. 1

Connections, Buttons and LEDs ................................................ 2

Application Example ......................................................... 3

Quick Setup Guide .......................................................... 4

KD-CATHD250POHRx Baluns.................................................. 4

Extending and Routing Control Signals ........................................... 5

Settings................................................................... 6

Remote Control ............................................................. 7

RS-232 Commands ......................................................... 8

Firmware Upgrade Procedure ................................................. 13

Audio Return Channel ....................................................... 15

Specications ............................................................. 16

Important Product Warnings & Safety Instructions: ................................. 17

How to Contact Key Digital

®

.................................................. 18

Warranty Information ........................................................18

About KD-HD4x4/6x6/8x8Lite

Key Digital® Digital IQ Series™ KD-HD4x4/6x6/8x8Lite are HDBaseT® Lite HDMI Matrix
Switchers capable of switching up to 8 HDMI Video Sources/Inputs to up to 8 Independent
Zones/Outputs via Single CAT5e/6.

Advanced HDMI

®

Features

› 3D – Capability to pass 3D stereoscopic signal formats
› 4K – 4096x2160/24 video resolution support for commercial applications such as Digital Movie

Theaters, CAD, Post Production, Graphics, etc.

› Audio Return Channel (ARC) – Allows audio to be returned from display back to HDMI source

for amplication and display

Key Features

› Features both HDMI and CAT5e/6 (RJ45) outputs, both are active simultaneously
› Transmits 1080p/60, 1080p/24, 1080i, 720p signals up to 210 ft. Transmits 4k/Ultra HD signals

up to 120 ft. when used with KD-CATHD250POHRx Receiver extenders and approved Key Digital
CAT5e/6 cabling. Compatible with third-party CAT5e/6 with lesser distance performance.

› Supports all SD, HD, and VESA resolutions up to 1080p (60Hz & 50Hz), 4K/Ultra HD & ARC
› Internal EDID Library features 12 default EDID congurations, in addition to Native EDID data for

any Output/Display

› Full Buffer

™

Technology – Full matrix buffering of HDCP and EDID for seamless switching and

viewing of any source/input to any display/output, regardless of multiple output viewing relation

› TMDS re-clocking –

support long HDMI or CAT5e/6 connections and daisy chain congurations

› RJ45 outputs utilize the HDBaseT

®

format

› Control routing enables bi-directional IR and RS-232 control signal extension
› Serial IR, Optical IR, Front Panel & RS-232 control. Supports major control systems such as

Compass Control

®

, AMX®, Control4®, Crestron®, RTI®, Universal®.

› Includes 4/6/8 KD-CATHD250POHRx Receiver Extenders
› Fully automatic CAT5e/6 cable equalization
› 8/12/16 active outputs (4/6/8 HDMI/DVI and 4/6/8 CAT5e/6) enable exible integration
› Supports switching of lossless compressed digital audio:

» Dolby

®

TrueHD, Dolby® Digital Plus and DTS™-HD Master Audio

Accessories

› 4/6/8/ KD-CATHD250POHRx Receiver Extenders
› Two external power supplies. Matrix: +6V/11.6A

(70W); KD-CATHD250POHRx:+12V/6A (70W)

› IR Remote control; HDMI Cable Clips (8/12/16); 6 ft.

USB Data Cable

Rack Mounting:

› Secure the rack ears to each side of the

KD-HD4x4/6x6/8x8Lite

with the supplied hardware,

then, fasten the unit to the rack rails with the included machine screws.

Slide Clip on
to Screw

Loosen Screw

Secure Screw

Insert Key Digital

®

HDMI® Cable

Fasten HDMI Cable to Clip
with Cable Tie

1

2

3

4

5

© 2013 Key Digital, Inc. All rights reserved.

2 3

Connections, Buttons and LEDs

Rear Panel Connections:

HDMI Inputs & LEDs

I/O
Ports

HDMI & CAT5e/5 Outputs & LEDs

Power

Operation
Mode

RS-232 Port

Power POHSerial IRIR EyeUSB

TCP/IP

Connections

› HDMI Inputs: Located on the left side of the

back panel. The Inputs have a blue LED that
will illuminate when a source is connected and
synced.

› HDMI & CAT5e/6 Outputs: Located in the

middle of the back panel. The Outputs have
a blue LED that will illuminate when a output
device is connected and synced.

› The RS-232, Serial IR, Optical IR Sensor,

Operation Mode Switch, TCP/IP, USB and
Power connections are located on the right

side of the back panel.

› I/O Ports: Located to the right of the Outputs.
› The Operation Mode switch is used to update the unit’s rmware, which is done via RS-232,

USB or TCP/IP. The rmware version as well as all RS-232 commands is available through the

RS-232 command ‘H’. A detailed list of RS-232 commands is available later in this guide.

› If newer rmware is made available, complete updating instructions will be included with it. Check

the Key Digital website for any rmware updates.

Front Panel Buttons and LEDs

IR Eye

Input LEDs

Output Select Buttons

› There are 4/6/8 Output buttons along the front panel.
› Pressing an output button will select the next HDMI input.
› A blue LED will indicate which Input has been selected for each Output.
› There is also an Optical IR window located on the right side of the front panel for IR remote

control signals.

Application Example

CAT5e/6

CAT5e/6

CAT5e/6

CAT5e/6

CAT5e/6

CAT5e/6

CAT5e/6

CAT5e/6

Blu-Ray

HDMI

Satellite STB DVD-HD PS3 AppleTVCable Boxes 1-3

HDMI

HDMI

HDMI

HDMI

HDMI

HDMI

HDMI

HDMI

KD-HD8x8Lite

HDMI

Single CAT5e/6

IR

RS232 Control

Serial IR

Optical IR

USB

TCP/IP

IR

Display 5

210 ft.

HDMI

IR

KD-CATHD250POH

Display 6

210 ft.

HDMI

IR

KD-CATHD250POH

Display 7

210 ft.

HDMI

IR

KD-CATHD250POH

Display 8

210 ft.

HDMI

IR

KD-CATHD250POH

Display 1

210 ft.

HDMI

IR

KD-CATHD250POH

Display 2

210 ft.

HDMI

IR

KD-CATHD250POH

Display 3

210 ft.

HDMI

IR

KD-CATHD250POH

Display 4

210 ft.

HDMI

IR

KD-CATHD250POH

KD-MC2500

Master Controller

Mirrored HDMI

4 5

Quick Setup Guide

1. Begin with the KD-HD4x4/6x6/8x8Lite and all input/output devices turned off and power
cables removed.

2. Connect HDMI sources to the appropriate input ports on the KD-HD4x4/6x6/8x8Lite.

3. Connect CAT5e/6 outputs to the KD-CATHD250POHRx extenders via CAT5e/6 cables, then
connect the extenders to the output devices (display, projector, AV Receiver, etc).

4. Connect HDMI outputs to the appropriate output device (outputs will mirror CAT5e/6).

5. Connect both power supplies (one for the Matrix and one for the POH Extenders) to the KD­HD4x4/6x6/8x8Lite and all other input and output devices and turn them on.

6. Operate the KD-HD4x4/6x6/8x8Lite switcher via front panel buttons, IR Remote, Serial IR or
RS-232 control.

Operation:

After performing the setup above, the unit is ready for operation.

There are several options for controlling the unit. Commands can be issued via IR remote control,
RS-232, TCP/IP or by using the front panel buttons. Note that the advanced commands are
available only via the RS-232 protocol.

KD-CATHD250POHRx Baluns

If you will be utilizing the KD-CATHD250POHRx extender, please follow this procedure.

› One CAT5e/6 UTP or STP cable needs to be used.
› Use the shortest possible HDMI cable when connecting the Extender to the Display. Key Digital

recommends cables 6 ft. or shorter for optimum performance.

› Ensure the CAT cable is run directly from the switcher to the Extender.
› Do not use patch panels, punch downs, keystones, couplers, wall plates, etc..

› Key Digital recommends the use of CAT5e/6 STP cable with shielded RJ45 connectors

for optimum performance and distances from your Extender.

Extending and Routing Control Signals

› The KD-HD4x4/6x6/8x8Lite feature powerful and useful control routing features. The switchers

have the ability to matrix control signals just like they can audio and video signals.

› KD-HD4x4/6x6/8x8Lite can consolidate incoming IR/RS-232 signals to control any display/output

connected via CAT5/6 or via HDMI (control signal extension via HDMI only available with Key
Digital Commercial HiFi ProS cables).

› KD-HD4x4/6x6/8x8Lite can consolidate incoming IR/RS-232 signals to control any source/input

connected via HDMI, with Key Digital’s Commercial HiFi ProS cables.

› IR and RS-232 control signals are bi-directional, and may ow from the matrix to the zone or from

the zone to the matrix.

› The default signal path for control signals is to route IR control signals from Expansion I/O Port 1

to RJ45 output 1…Expansion I/O Port 8 to RJ45 Output 8 (the path and control signal type can
be manipulated by using the desired RS-232 command).

› When connecting the IR Emitter to the device you wish to control, make sure to nd the IRreceiver

area on the device

Control Signal Extension from External I/O Ports:

The default setting for control signal extension is to route IR signals from Expansion I/O Port 1 to
RJ45 output 1…Expansion I/O Port 8 to RJ45 Output 8 (the path and control signal type can be
manipulated by using the desired RS-232 command). When routing control signals to/from an
HDMI input/output, Key Digital’s HiFiProS cable must be used.

› Point-to-Point control routing is established by using commands containing “IRR” or “RSS”.

› Point-to-Many control routing is established by using commands containing “IR” or “RS”.

Extension I/O and Digital Audio Output (ARC) Port Conguration

Supports IR or RS-232 routing or ARC output. See chart below for 3.5mm jack conguration:

Tip Ring

IR TX or RX None

RS232 TxD RxD

ARC NONE ARC OUT

Note: If ARC is enabled, IR and RS-232 signal routing will be disabled.

Point-to-Point IR Control Routing:

› To congure the path of IR control signals from an External I/O Port to an RJ45 output, use the

command “SPOC xx IRR 1 S yy”. xx=IR destination, yy=IR source

› To congure the path of IR control signals from an External I/O Port to an HDMI output, use the

command “SPOH xx IRR 1 S yy”. xx=IR destination, yy=IR source

› To congure the path of IR control signals from an External I/O Port to an HDMI input, use the

command “SPI xx IRR 1 S yy”. xx=IR destination, yy=IR source

Point-to-Point RS-232 Control Routing:

› To congure the path of RS-232 control signals from an External I/O Port to an RJ45 output, use

the command “SPOC xx RSS 1 S yy”. xx=RS-232 destination, yy=RS-232 source
