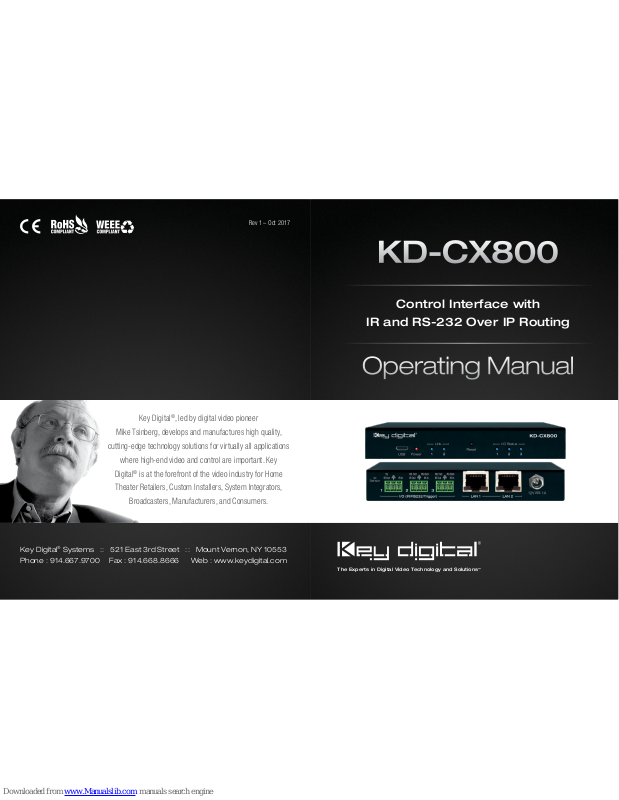

Key Digital KD-CX800 Operating Manual

The Experts in Digital Video Technology and Solutions

™

Operating Manual

Rev 1 – Oct 2017

Key Digital® Systems :: 521 East 3rd Street :: Mount Vernon, NY 10553

Phone : [phone] Fax : [phone] Web : www.keydigital.com

Key Digital®, led by digital video pioneer

Mike Tsinberg, develops and manufactures high quality,

cutting-edge technology solutions for virtually all applications

where high-end video and control are important. Key

Digital

®

is at the forefront of the video industry for Home

Theater Retailers, Custom Installers, System Integrators,

Broadcasters, Manufacturers, and Consumers.

Control Interface with

IR and RS-232 Over IP Routing

KD-CX800

14

Introduction

KD-CX800 is a control over IP device with three multi-function control ports supporting
bi-directional RS-232, IR out (emitter), IR in (sensor or hardwire), voltage trigger, or
voltage sensor.

About KD-CX800

KD-CX800 is very flexible, with four supported modes of use:

› Mode 1: Control gateway for Enterprise AV Over IP system

» Enables more third-party control options than other HD Over IP systems
» Accepts commands from third-party control systems or Compass Control

®

» Supports generic RS-232, TCP/IP, and IR Key Digital matrix switching command

strings

› Mode 2: Compass Control® Master Controller

» Supports communication to/from licensed iOS and Android devices
» Flexible port configuration (IR, RS-232, trigger, sensor) set in

Compass Navigator™ program

» IR learner/sensor built-in
» Supports up to two real-time bi-directional RS-232 ports
» TCP/IP device control direct from iOS/Android controller – no ports used

› Mode 3: Third-Party Control via KeyCode Open API

» Cost-effective control expansion with advanced third-party control systems
» Adds reliable hardware interface to network-based control apps
» Enables IR, RS-232, and voltage device control
» Robust API allows for bi-directional communication

› Mode 4: Control Extension via IP

» Carry any supported combination of IR, RS-232, and voltage triggers over the network
» Extends control signals up to 400ft / 121m. Greater distances possible with

adapters.

» Supports systems with or without network switches

Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Connections & LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Usage Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Web Control Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

KeyCode Open API Specification . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Important Product Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

How to Contact Key Digital® . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Warranty Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

© 2017 Key Digital, Inc. All rights reserved.

Always follow the instructions provided in this Operating Manual.
Please check the Key Digital Website for the most up-to-date Manual.

Please use weblink or the QR code to
download current version of the manual:

http://www.keydigital.com/Downloads/KD-CX800/
KD-CX800_Manual.pdf

32

› Hardwired IR input

» Compatible ports: 1, 2, and 3
» Supports serial (hardwired) IR input with modulated IR signal
» Supported signal level: 0V – 12V
» Supported IR frequency: 20kHz – 100kHz
» NOTE: Supports maximum of one (1) IR input at any time (sensor and

hardwired)

› IR output

» Compatible ports: 1, 2, and 3
» Supported signal level: 0V – 11.4V
» Supported IR frequency: 20kHz – 100kHz

› RS-232

» Compatible ports: 2 and 3
» Supported output signal level: 0V – 11.4V
» Supported input signal level: -12V – 12V
» Does not support H/W Flow Control
» Maximum baud rate is 115200bps
» Supports up to 2 real-time ports

› Voltage Trigger:

» Compatible ports: 1, 2, and 3
» Supported signal level:

» Low: 0V (ground) fixed
» High: 3.3V – 11.4V

» Does not support relay or contact closure functionality
» Does not support extension of digital data

Connections & LEDs

The three multi-function I/O ports can be configured as IR sensor, IR input, IR emitter,
RS-232, voltage trigger, or voltage sensor. However, there are limitations per port:

I/O Port IR Sensor IR Input IR Emitter Serial RS-232 Trigger

1 Yes Yes Yes No Yes

2 No Yes Yes Yes Yes

3 No Yes Yes Yes Yes

I/O port configurations:

›

Note:

KD-CX800 must be set
to Compass Control Master
Controller mode if you wish to
learn IR remote commands

IR sensor

» Compatible port: I/O Port 1
» Used for IR input or IR learning
» Supported signal level: 0V – 5V
» Supported IR frequency: 20kHz – 60kHz
» IR Sensor (included) pinout:

Pin # (Phoenix) Wire Color Wire Signal

1 Red Power 5V

2 Black Ground

3 White IR Signal

54

Usage Modes

Mode 1:
RS-232/IR/TCP-IP gateway for third-party control of Enterprise AV Over
IP system

› KD-CX800 can be used to control Key Digital’s Enterprise AV Over IP system via

RS-232, TCP-IP, or IR.

› The KD-CX800 will listen for RS-232, TCP-IP, or IR commands from the third-party

control processor/PC and executes the appropriate switching command.

› Default (fixed) I/O port configurations:

» I/O Port 1: IR Sensor IN
» I/O Port 2: RS-232
» I/O Port 3: Compass Control

®

or Key Code Open API

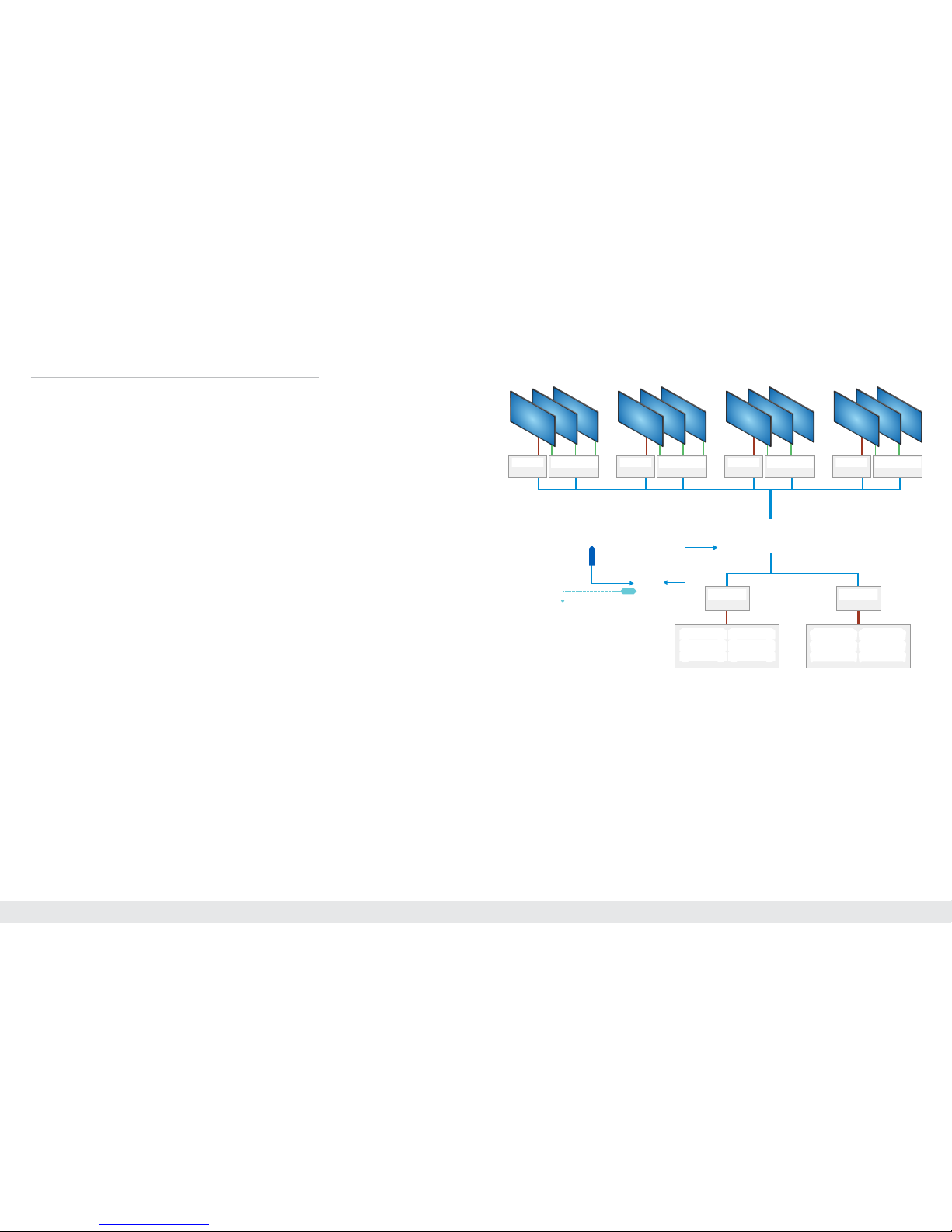

Application Example

KD-CX800

IR Sensor

or

Hard-Wired IR

IR

TCP/IP

TCP/IP

IR/RS-232

Smart Network Switch

TCP/IP

TCP/IP

IR/RS-232 or TCP-IP

CompassControl®, AMX,

Crestron, Control4, Elan,

RTI, Savant, URC, etc.

Digital

Signage

HDMI

KD-IP120Tx

Digital

Signage

HDMI

KD-IP120Tx

Flight Info

PC

HDMI

KD-IP120Tx

Computer

HDMI

KD-IP120Tx

KD-IP120Rx

HDMI

KD-IP120Rx

HDMI

KD-IP120Rx

HDMI

KD-IP120Rx

HDMI

KD-IP120Rx

HDMI

KD-IP120Rx

HDMI

› Voltage Sensor

» Compatible ports: 1, 2, and 3:
» Supported signal level:

» Low: -12V – 2V
» High: 2V – 12V

» Uninterrupted voltage sensing updated every 5ms
» Voltage trigger is very low bandwidth. Does not support extension of digital data.

Power

› POE or traditional power supply (screw-type)

» 12/V1A (12W) power supply included
» PoE supported on either LAN port
» OK to connect external power supply plus PoE

LAN ports

› KD-CX800 must be connected to the network via hardwire IP connection (no wi-fi)
› The two (2) LAN ports act as an unmanaged network switch

» Support IGMP with connection of IGMP supported network switch

» See Key Digital’s Verified Network Switch document for list of network

switches verified to support Enterprise AV HD Over IP system.

› Supports 10/100BaseT up to 100Mbps
› Supports PoE
› Default IP address: 192.168.1.239

76

› IR command sequence:

»X, Video Mode, Y, Video Mode

» X = Output / Rx number
» Y = Input / Tx number

» X and Y may be up to 4 button presses (1 – 9999)
» X may be 0 to switch all outputs
» Y may be the UP or DOWN keys to select the next or previous Input
» Y may be the LEFT key to select the pass-thru input (ie 1 to 1, 2 to 2, etc) for

the entire system

» Must be used with “0” as value for X (all outputs)
» If system has more outputs than inputs, the pass-thru begins at

input 1 again

Load completed Enterprise AV system file into KD-CX800

› Open Enterprise AV Tool software
› Select desired system file from Switching drop-down menu
› Press Network Scan to view system Rx and Tx units in respective windows

» Ensure that all Input and Output assignments are completed.

See Creating Switcher System section.

»

Press Download button

» Enter IP address of KD-CX800 as set via web control interface or

device manager software

KD-CX800

TCP/IP

Smart Network Switch

Connectivity

› KD-CX800 must be on the network, connected to either LAN port 1 or LAN port 2

» If controlling via RS-232, connect from third-party control processor or

computer into I/O port 2

» If controlling via IR, connect to IR Sensor or IR In on I/O port 1
› Any Enterprise AV Tx or Rx unit can be connected to LAN port 1 or 2 if needed
› Port 3 is available for Compass Control or KeyCode Open API mode

Supported RS-232 & TCP-IP commands from third-party control system

› Use KD-CX800 as an RS-232, IR, or TCP-IP control gateway
› All commands require a carriage return at the end of the string
› The baud rate is adjustable, with 57,600 bits per second as the default
› KD-CX800 accepts all existing Key Digital matrix switching command strings:

Command Structure Note

SPOxxSIyy Already Supported. Similar to KD-Pro8x8CC.

SPOASIyy All outputs select input yy

SPO<sp>xx<sp>yy Similar to KD-HD16x16ProK

SPO<sp>A<sp>yy

xxByy. Similar to KD-16x16CS. Requires “.”

xxAll.

Bxxyy. Similar to KD-MSW8x4Pro. Requires “.”

Supported IR commands and sequence

› KD-CX800 can be used as an IR gateway to control Key Digital’s Enterprise AV Over

IP system.

› Supported remote: KD-REMOTEHM88 (sold separately)

98

Application Example

KD-CX800

Laptop 1

CAT5e/6

HDMI

HDMI

HDMI

HDMI

Laptop 2

Apple TV

HDMI

HDMI

RS-232

IR Trigger

Network

Router

iOS/Android Controller

Motorized Screen

2nd Display

WiFi

KD-ProCL1

MultiView Switcher

KD-X222

KD-X222

HDMI

Video Conferencing

IR

IR

Additional Links & Info

› Create a Key Digital dealer profile to begin training on the Compass Control® system:
› http://www.keydigital.com/dealerSignUp_v2.asp

Mode 2: Compass Control® Master Controller

› KD-CX800 can be used as a Master Controller for Key Digital’s Compass Control®

system

› KD-CX800 lives on the network and communicates with iOS or Android controllers to

execute IR, RS-232, TCP-IP, or Voltage control commands and sends status values of
connected bi-directional devices for a rich GUI.

› I/O ports, 1, 2, and 3 are configured in any possible type according to the loaded

Compass Navigator project.

› Use as many KD-CX800 units as needed. Can also be used in combination with

other Compass Control master controller units

› KD-CX800 does not support loaded scheduled events or the Compass Control Zigbee

remote.

» Use model KD-MC1000 if those functionalities are needed.
