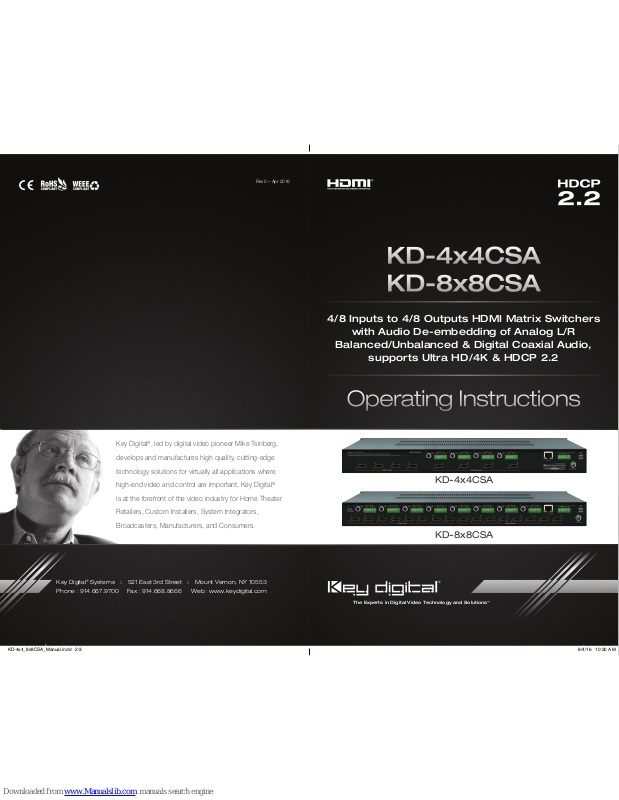

Key Digital KD-4x4CSA, KD-8x8CSA Operating Instructions Manual

Key Digital®, led by digital video pioneer Mike Tsinberg,

develops and manufactures high quality, cutting-edge

technology solutions for virtually all applications where

high-end video and control are important. Key Digital

®

is at the forefront of the video industry for Home Theater

Retailers, Custom Installers, System Integrators,

Broadcasters, Manufacturers, and Consumers.

4/8 Inputs to 4/8 Outputs HDMI Matrix Switchers

with Audio De-embedding of Analog L/R

Balanced/Unbalanced & Digital Coaxial Audio,

supports Ultra HD/4K & HDCP 2.2

The Experts in Digital Video Technology and Solutions

™

Operating Instructions

Rev 0 – Apr 2016

Key Digital® Systems :: 521 East 3rd Street :: Mount Vernon, NY 10553

Phone : [phone] Fax : [phone] Web : www.keydigital.com

KD-4x4CSA
KD-8x8CSA

KD-4x4CSA

KD-8x8CSA

KD-4x4_8x8CSA_Manual.indd 2-3 8/4/16 10:30 AM

4 1

Table of Contents

About KD-4x4CSA/KD-8x8CSA ................................................ 1

Application Example ......................................................... 2

Quick Setup Guide .......................................................... 3

Installation and Operation ..................................................... 3

Connections, Buttons and LEDs ................................................ 4

Settings and Adjustments ..................................................... 6

Communication Protocol ...................................................... 8

Specifications ............................................................. 10

Important Product Warnings & Safety Instructions .................................. 11

How to Contact Key Digital ................................................... 12

Warranty Information ........................................................12

About KD-4x4CSA/KD-8x8CSA

Key Digital’s KD-4x4CSA/KD-8x8CSA switchers are designed and engineered to offer the best in

quality, performance, and reliability, while providing a cost-effective HDMI switching solution. The

KD-4x4CSA/KD-8x8CSA HDMI matrix switchers are capable of switching 4/8 independent Inputs/

Sources to 4/8 independent Outputs/Zones and feature de-embedding of HDMI audio for external

distribution. KD-4x4CSA/KD-8x8CSA support all SD, HD, VESA and Ultra HD/4K video standards,

including UHD/4K, 1080p/60, 1920x1200, 3D, and HDCP 2.2.

Key Features

› HDMI Matrix Switching:

4/8 HDMI sources to 4/8 HDMI outputs

› HDCP Licensing:

Fully licensed and compatible with HDCP 2.2

› Resolution Support:

Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA).

› Ultra HD/4K Support:

4096x2160 or 3840x2160 30Hz at 4:4:4 and 60Hz at 4:2:0

› HDR (High Dynamic Range):

More life-like images through a greater range of luminance levels

› Deep Color Support:

Up to UHD/4K 30Hz 4:2:2/12 bits or 60Hz 4:2:0/8 bit

› Audio De-Embedder:

Audio from the selected HDMI input is de-embedded through the Coax

digital (PCM) or Analog L/R Balanced/Unbalanced

› 3D Ready:

Capability to pass 3D stereoscopic signal formats

› Full Buffer System

™

: Manages TMDS re-clocking / signal re-generation, HDCP authentication

to source & display, and EDID Control handshake

› EDID:

Internal library with 15 default EDID configurations for input, in addition to native EDID data

for any Output/Display

› TMDS re-clocking:

Support for long HDMI connectivity using Key Digital® HDMI cables

› Lossless Compressed Digital Audio:

Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master

Audio

™

, and Dolby Atmos

› Control:

Front panel buttons/LEDs, Serial IR, Optical IR, RS-232 Control, and TCP/IP Control

› Control System Support:

Key Digital app ready. Compass Control ready. Fully controllable by

all IR, RS-232, and TCP/IP supported control systems via open API.

Accessories

› Power Supply:

» KD-4x4CSA - KD-PS12V2A 12V/2A DC Power Jack, Screw In Type

» KD-8x8CSA - KD-PS12V5A 12V/5A DC Power Jack, Screw-In Type

› Rack Ears
› Remote Control
› 5/9 6-Pin Terminal Blocks

Rack Mounting:

› Secure the rack ears to each side of the KD-4x4CSA/KD-8x8CSA with the supplied hardware and

then fasten the unit to the rack rails with the included machine screws.

© 2016 Key Digital, Inc. All rights reserved.

Always follow the instructions provided in this Operating Manual.

Please check the Key Digital Website for the most up-to-date Manual.

KD-4x4_8x8CSA_Manual.indd 4-1 8/4/16 10:30 AM

2 3

Application Example

Quick Setup Guide

› Step 1: Find a safe and convenient location to mount or place KD-4x4CSA/KD-8x8CSA unit

› Step 2: Begin with the KD-4x4CSA/KD-8x8CSA unit and all input/output devices turned off with

power cables removed

› Step 3: Connect your HDMI sources to the input ports of KD-4x4CSA/KD-8x8CSA unit

› Step 4: Connect your HDMI displays to the output ports of KD-4x4CSA/KD-8x8CSA unit

› Step 5: Before connecting power supply to power outlet, screw-in the power supply to the

KD-4x4CSA/KD-8x8CSA unit

› Step 6: After all connections are made, plug-in power supply to power outlet

› Step 7: Power on input/output devices

› Step 8: Operate the KD-4x4CSA/KD-8x8CSA switcher via front panel buttons, Serial IR, Optical

IR, RS-232, and TCP/IP Control.

Installation and Operation

Before permanently securing the unit for final installation, test for proper operation of the unit and
cables in your system. It is recommended that you leave enough ventilation space to provide
sufficient airflow and cooling.

Push Button Control

The KD-4x4CSA/KD-8x8CSA unit may be controlled via the push
buttons on the front of the unit. Choose which output to change
and then select the desired input by pressing the corresponding
“Input Select” button. The front LED indicators (1, 2, 3, 4/5, 6, 7, 8)
correspond to the input that has been selected for each output.

IR Remote Control

The KD-4x4CSA/KD-8x8CSA may also be operated using the
IR Remote provided with the unit (The remote is powered by a
CR2025 Battery). The KD-4x4CSA/KD-8x8CSA switcher features
an IR sensor on the front of the unit for reception of signals.

IR Emitter Control

The IR Sensor on the front panel may also accept signals from a
Compass Control Master Controller or from a 3rd party control
system. When using a Master Controller or 3rd party control
system, the IR Emitter must be mounted over the IR Sensor on
the front of the KD-4x4CSA/KD-8x8CSA unit. The other end of
the cable is connected to the Multi-function I/O port on the Master
Controller or the IR Extender/IR Connecting Block of the 3rd party
control system.

Satellite x3

Visualizer

Red-Ray

Laptop

Laptop

Ultra HD/4K

Digital Signage

Multi-Zone Amp

HDMI

HDMI

HDMI

HDMI

RS-232

RS-232

HDMI

HDMI

IR/RS232

HDMI

HDMI

HDMI

IR

WiFi Router

RJ45

RJ45

WiFi

x3

Reception Area

Displays

Displays

Projector

IR

HDMI

Boardroom

IR

HDMI

Huddle Room

Audio

HDMI

HDMI

CAT5e/6

KD-ProCL1

x2

KD-MC1000

Master Controller

x4

KD-X411ProK

x4

KD-X411ProK

x5

KD-X411ProK

KD-8x8CSA
