Keyboard CD-3830 installation Guide

Download

Page 1

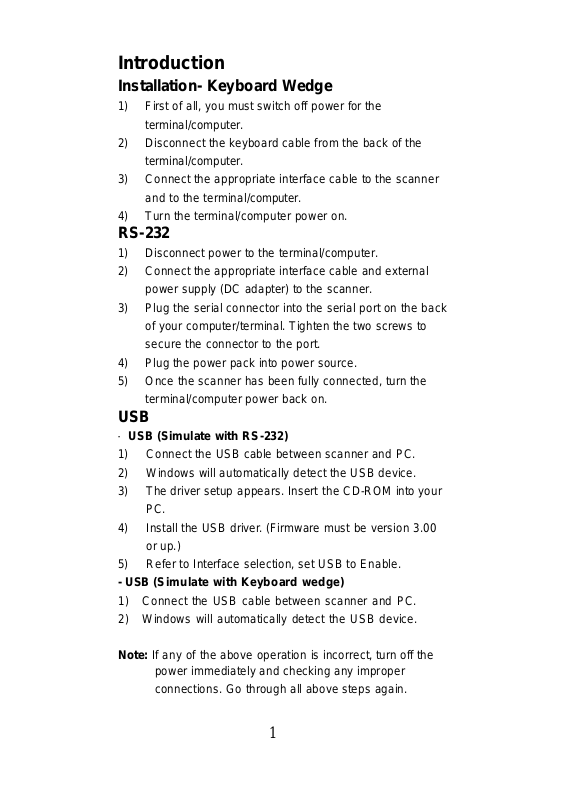

Introduction

Installation- K ey bo a rd We dg e

1) First of all, you must switch off power for the terminal/computer.

2) Disconnect the keyboard cable from the back of the terminal/computer.

3) Connect the appropriate interface cable to the scanner and to the terminal/computer.

4) Turn the terminal/computer power on.

RS-232

1) Disconnect power to the terminal/computer.

2) Connect the appropriate interface cable and external power supply (DC adapter) to the scanner.

3) Plug the serial connector into the serial port on the back of your computer/terminal. Tighten the two screws to secure the connector to the port.

4) Plug the power pack into power source.

5) Once the scanner has been fully connected, turn the terminal/computer power back on.

USB

- USB (Simulate with RS-232)

1) Connect the USB cable between scanner and PC.

2) Windows will automatically detect the USB device.

3) The driver setup appears. Insert the CD-ROM into your

PC.

4) Install the USB driver. (Firmware must be version 3.00

or up.)

5) Refer to Interface selection, set USB to Enable.

- USB (Simulate with Keyboard wedge)

1) Connect the USB cable between scanner and PC.

2) Windows will automatically detect the USB device.

Note: If any of the above operation is incorrect, turn off the

power immediately and checking any improper connections. Go through all above steps again.

Page 2

Default Setting for each barcode shown

as below:

Code Type

UPC-A VV VA UPC-E VV VE EAN-13 VV VF EAN-8 VV VFF Code-39 V * Interleaved 2 of 5 Industrial 2 of 5 Matrix 2 of 5 B Codabar % Code-128 VV # Code-93 V &

Read

Enable

VV i

Checksum

erification

Enable

--i

Checksum

Code

Transmission

Enable

Code-11 V One digit O MSI/Plessey V @ UK/Plessey V @ Telepen S Standard 2 of 5 - - i RSS-14 R4 RSS-Limited RL RSS-Expanded RX

China Post Italian Pharmacode.

Page 3

Posifl ex CD-3830 - 1D Barcode scanner

Specification Model CD-3830

Operational

Light Source 660 nm Visible Red LED Optical System 2048 pixel CCD

(Charge-coupled device)

Depth of Scan Field 0-250 mm

(CODE 39, PCS=90%, 20mils) Scanning Width 120 mm Scan Speed 200 scans/sec Resolution 0.1mm(4mils) Code39,PCS=90%, Print Contrast 30% or more Scanning Angle Front: 60° Rear: 60° Yaw: 75° Decode Capability Autodiscriminates all standard

barcodes; Other symbologies can be

ordered optionally Beeper Operation 7 tones or no beep Indicator Green led

Mechanical

Length 182 mm Width-handle 26 mm Wi d th-head 74 mm Depth-handle 51 mm Depth-head 35 mm

Page 4

Weight 160 g (cable not includ ed) Cable – K/B wedge Straight 2.0 m Cable – universal

Straight 2.3 m

type Connector type RJ-45 phone jack connector Case material ABS plastic Cushion material Rubber

Electrical

Input Voltage 5 VDC ± 0.25V Power – Operating 1275 mW Power – Standby 600 mW Cur re nt – Ope ra t in g 255 mA @ 5 VDC Curr en t – Standby 120 mA @ 5 VDC DC Transformers Class 2; 5VDC @ 450 mA Agency listing UL, FCC Class A

Environmental

Operating

0℃ to 45℃ (32℉ to 113℉)

Temperature Storage -40℃ to 60℃

(-40℉ to 140℉)

Humidity 5% to 90% relative humidity,

non-condensing Light Level Up to 60000 Lux Shock 1.5m drop onto concrete Contaminants Seals to resist airborne particulate

Ventilation

contaminants

None required

Page 5

Programming

Manual (Reading special barcode) DOS

Programming

command through RS -232, Windows

method

configuration program Program upgrade Enabled by built-in flash memory Programmable characteristics

Code type selection, check digit

selection Decoding option Decoding

option Transmitted character delay,

Heade r selection, trailer selection,

message suffix, good read beep tone

and volume, scanner trigger selection

Keyboard emulation type

(intermessage delay, keyboard type

and keyboard language)

Serial interface type (ACK/NAK,

Xon/Xoff, RTS/CTS, good read LED

control, start/stop bits)

Page 6

Programming the Posiflex CD-3830

To program the CD-3830, you must scan a series of programming barcode in the correct order. Fold out the back cover of this manual. You will see a table of alphanumeric barcodes, which are used to program the various options presented.

To program each option, you must:

1. Scan the Program barcode on the parameter setting part.

2. Enter the option mode by scanning the Option Bar Code

(also on the Parameter setting part).

3. To the right of the op t ion barcode, the necessary

alphanumeric inputs are listed. Scan these alphanumeric entries from the back fold out page. To confirm above steps, you must scan the Finish barcode on the back fold out page.

4. Once you have finished programming. Scan the Exit

barcode, listed on the lower right hand corner of each parameter setting part.

Page 7

Program Barcode

Program

Option Bar Code Option Alphanumeric Entry

Interface

selection

Option Barcode

Keyboard Wedge

RS-232

Wand emulation

USB

Keyboard/RS-232

Auto detection

reserved

Exit Barcode

00*

Exit

Back Fold Out

Finish barcode

Page 8

Interface Selection

This decoder build-in scanner comes in one model and supports interfaces such as keyboard wedge, RS232 serial wedge, wand emulation, and the latest USB interface. In most of the cases, simply selecting an appropriate cable with a device code will work for a specific interface. Interface selection: You can change factory interface default for other type interface. By plugging different cables, setting right interface, then the scanner will be changed to another interface. However, you must make sure which cable you need. Keyboard/RS232/UBS Auto detection: By setting this function, it will automatically select the Keyboard wedge or RS-232 or UBS interface for user.

Program

Option Bar Code Option Alphanumeric

Entry

Interface selection

Keyboard Wedge RS-232 Wand emulation USB Keyboard /RS232/USB Auto detection Reserved

00 01 02 03

Note:

* -Default

Exi

Page 9

Keyboard wedge

As a keyboard interface, the scanner supports most of the popular PCs and IBM terminals. The installation of the wedge is a fairly simple process without any changes of software or hardware.

Keyboard Type: Select keyboard type connector of your host computer. Scanner must be selected to the appropriate host interface cable converter.

Program

Option Bar Code Option Alphanumeric

Entry

Keyboard type

IBM AT, PS/2 Reserved Reserved Reserved Reserved Reserved Reserved

00 01

02 03 04 05 06

Exi

Page 10

Keyboard wedge

Keyboard Layout: The selecting of keyboard layout

supports many country languages other than USA keyboard layout. First you need to confirm country language that you desire. In DOS, using command “keyb” to select the desirable keyboard layout or in WINDOWS entry “Control” then pops “Keyboard” to select country at “language” item. For details, please refer to your DOS or WINDOWS user’s manual. Keyboard Speed: By selecting, you can change output speed of scanner to match with host computer. Generally, set

00 or 01 in working high speed. If some output characters of barcode have been lost, you may need to set 05 or 06 to match your host keyboard speed. Function Key: Set Enable, scanner can output code as pressing function-key i n your application program while the barcode data contain ASCII value between 0116 to 1F16. Refer to ASCII table, page 89. Numeric Key: The Keypad has to be selected if your application program is only keypad numeric code acceptable. So, scanner will output code as press numeric keypad when it read numeric digit. (The keypad is in the right side of keyboard, and Num Lock control key is also on.) If

Alt+Keypad is selected, Caps Lock and output will be independent.

Page 11

Program

Option Bar Code Option Alphanumeric

Entry

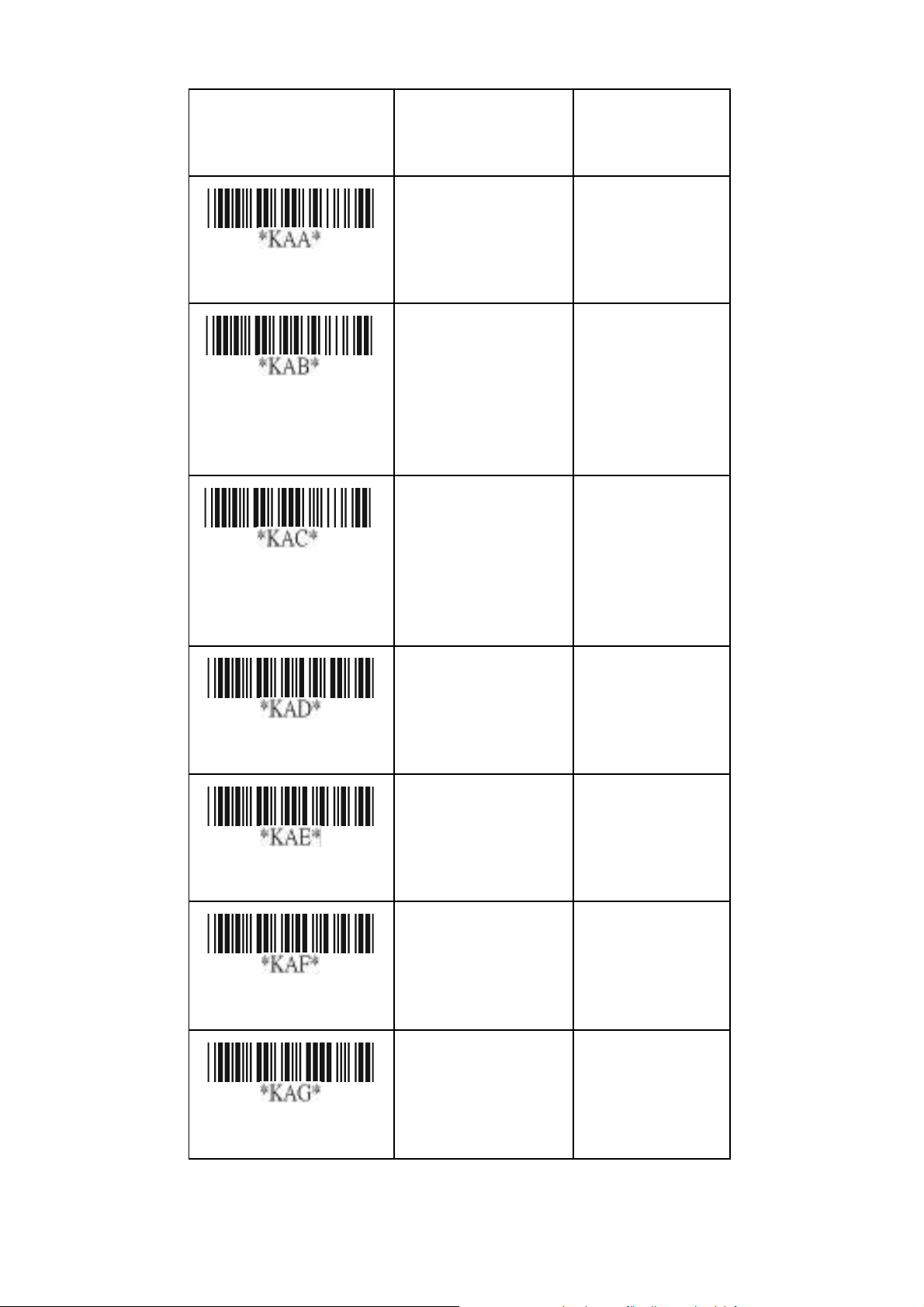

Keyboard layout

USA Belgium Danish France Germany Italian Portuguese Spanish Swedish Switzerland UK

00 01

02 03 04 05 06 07 08 09 10

Keyboard speed

Function key

Latin American 0-8 0 : high clock rate 8 : low clock rate Disable

Enable

Alphabetic key Numeric keypad

11 00-08

01*

00 01

Page 12

Numeric key (Num lock state

only) Alt+Keypad 02

Keyboard wedge

Caps Lock: By selecting Caps Lock or No Caps Lock,

scanner can get Caps Lock status.

Power-on simulation: All of the PCs check the keyboard status during power-on selftest. It is recommended to Enable function if you are working without keyboard installatio n. It simulates keyboard timing and pass keyboard present status to the PC during power -on.

Inte r-character delay: This delay is inserted after each data characters transmitted. If the transmission speed is too high, the system may not be able to receive all characters. Adjust it and try out suited delay to make system work properly.

Exi

Block transmission delay: It is a delay timer between

barcode data output. The feature is used to transfer continually with shorter barcode data or multi-field scanning.

Page 13

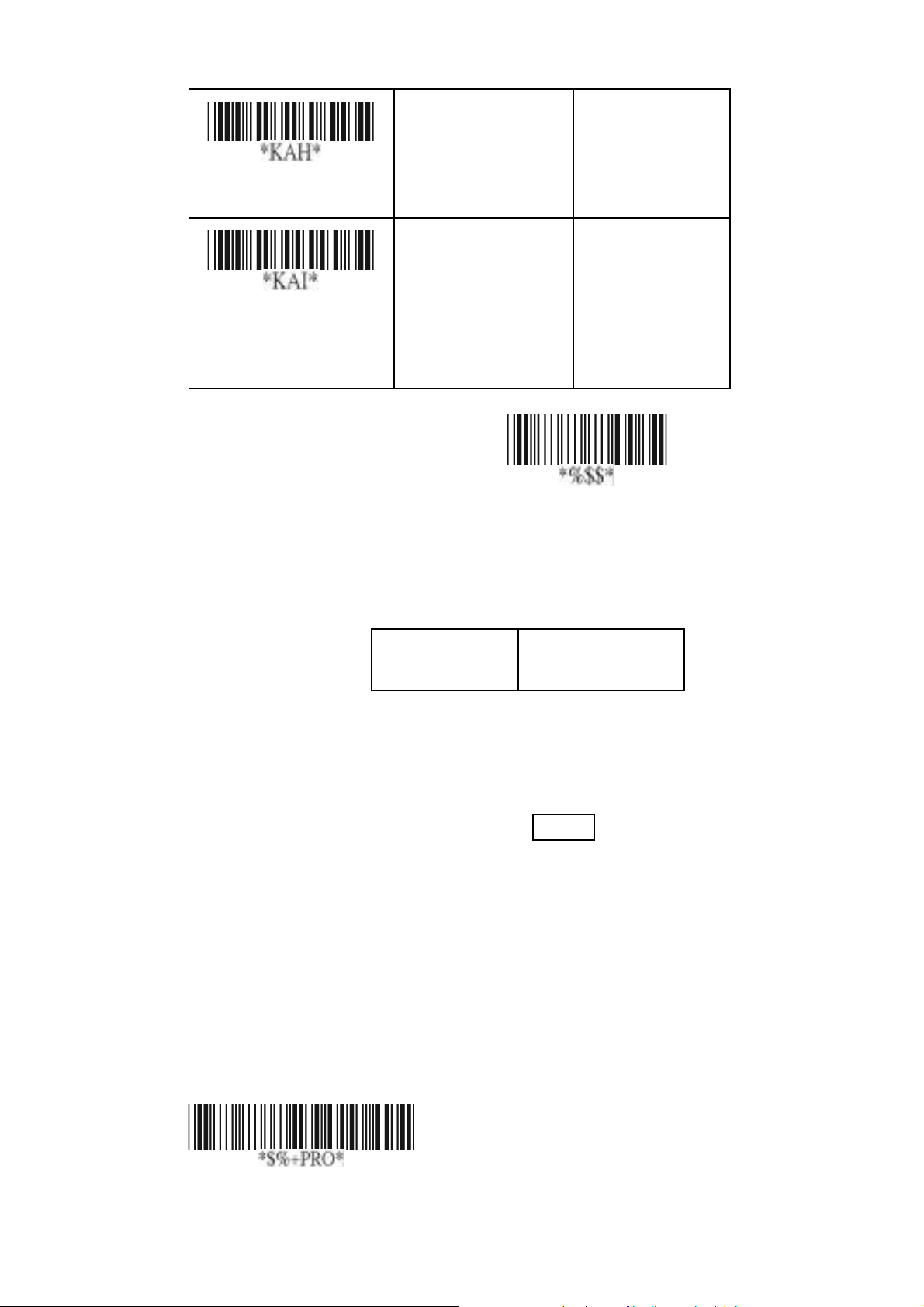

Program

Option Bar Code Option Alphanumeric

Entry

Caps lock

Power-on simulation

Inter-character delay

Caps lock”ON” Caps lock”OFF”

Disable Enable

00- 99 ms ec 00-99

00-99 10 msec 00-99

00 01

10*

Block transmission delay

RS-232

CTS: Clear To Send (Hardware Signal) RTS: Request To Send (Hardware Signal)

Exi

Page 14

Xon: Transmi t On (ASCII Code 11 16) Xoff: Transmit Off (ASCII Code13

Flow control: None-Th e communication only uses TxD and RxD signals

without regard for any hardware or software handshaking protocol. RTS/CTS-If the scanner wants to send the barcode data to host computer, it will issue the RTS signal first, wait for the CTS signal from the host computer, and then perform the normal data communication. If there is no replied CTS signal from the host computer after the timeout (Response Delay) duration, the scanner will issue a 5 warning beeps. Xon/Xoff- When the host computer is unable to accept data, it sends a Xoff code to inform the scanner to suspend data transmission, and Xon to continue. ACK/NAK- When the ACK/NAK protocol is used, the

16)

scanner waits for an ACK (acknowledge) or (not acknowledge) from the host computer after data transmission, and will resend in response to a NAK.

Inter-character delay: It is delay time between data ch ara c ter’s da t a o u t p u t . I t i s a l s o s a m e a s Inter-char. delay o f keyboard wedge.

Block transmission delay: It is a delay time between barcode data output. It is also same as B loc k transmission

delay of ke yboard wedge.

Response delay: This delay is used for serial communication of the scanner to waiting for handshaking acknowledgment from the host computer.

Program

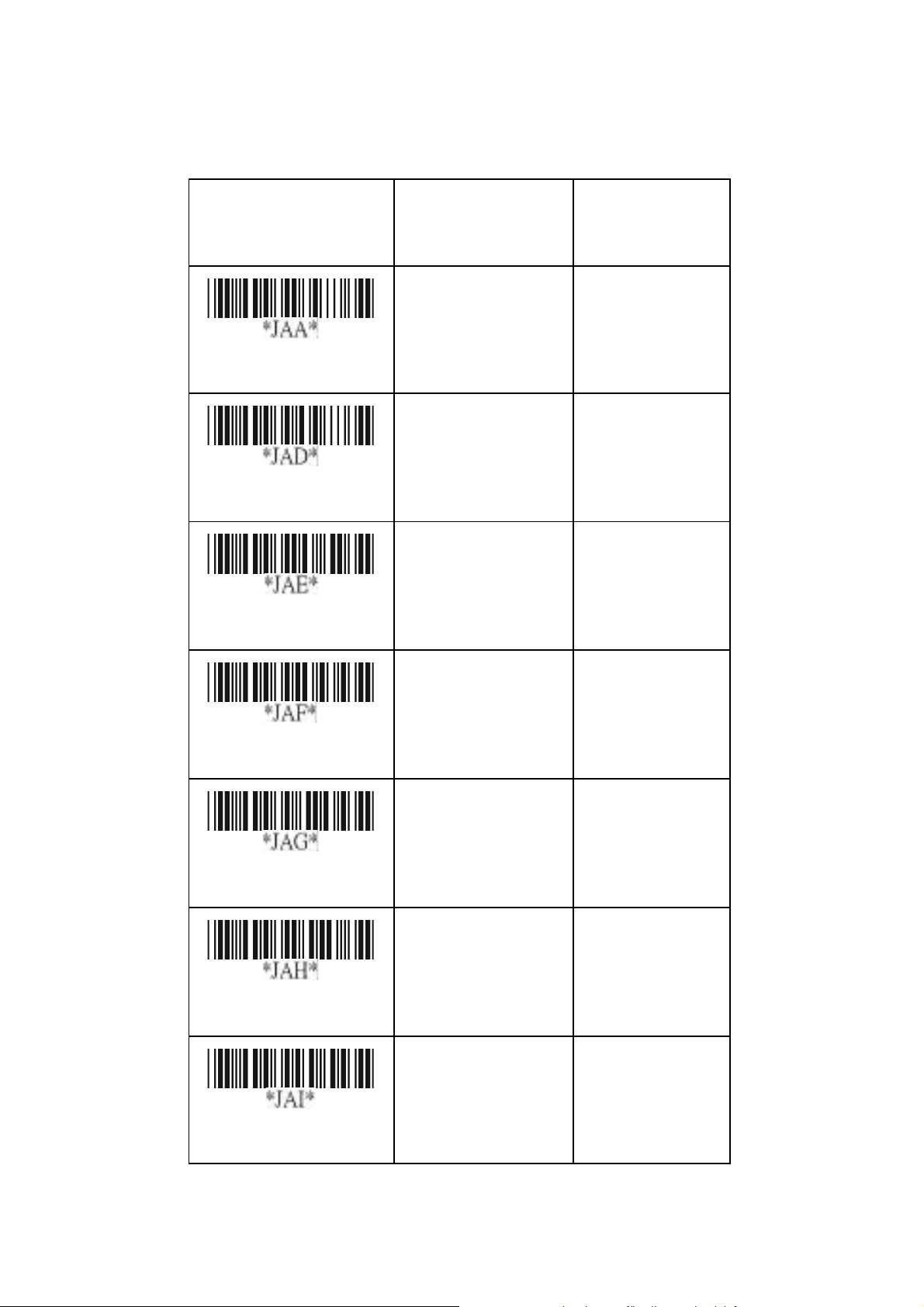

Page 15

Option Bar Code Option Alphanumeric

Entry

Flow control

Inter-character delay

Block transmission delay

None RTS/CTS Xon/Xoff ACK/NAK 00- 99 (msec)

00- 99 (10 msec)

00 01 02 03 00-99

00-99

Response delay

00-99 (100 msec)

00-99

Exi

Program

Page 16

Option Bar Code Option Alphanumeric

Entry

Baud rate

Parity

300 BPS 600 BPS 1200 BPS 2400 BPS 4800 BPS 9600 BPS 19200 BPS 38400 BPS None Odd Even

00 01 02 03 04 05 06 07 00 01 02

Data bit

Stop bit

Wand Emulation

Bar/space polarity:

8 bits 7 bits

One bit Two bits

00 01

Exi

High/low- Black will be transmitted as a high voltage level

(+5) and space as low level (0V).

Page 17

Low/high- Black will be transmitted as a low voltage level

(0V) and space as high level (+5).

Initial polarity: You must make sure what is Initial polarity of your wand decode device in stand -by (idle). So, initial signal state as a High voltage level (+5) or Low voltage level (0V).

Program

Option Bar Code Option Alphanumeric

Entry

Bar/space polarity

Initial polarity

High/low Low/high

Low High

00 01

Exi

Wand Emulation

Output speed: This setting is same as serial transmission

baud rate, and it must be approbated your wand decode resolution. The unit of speed is a width of minimum narrow

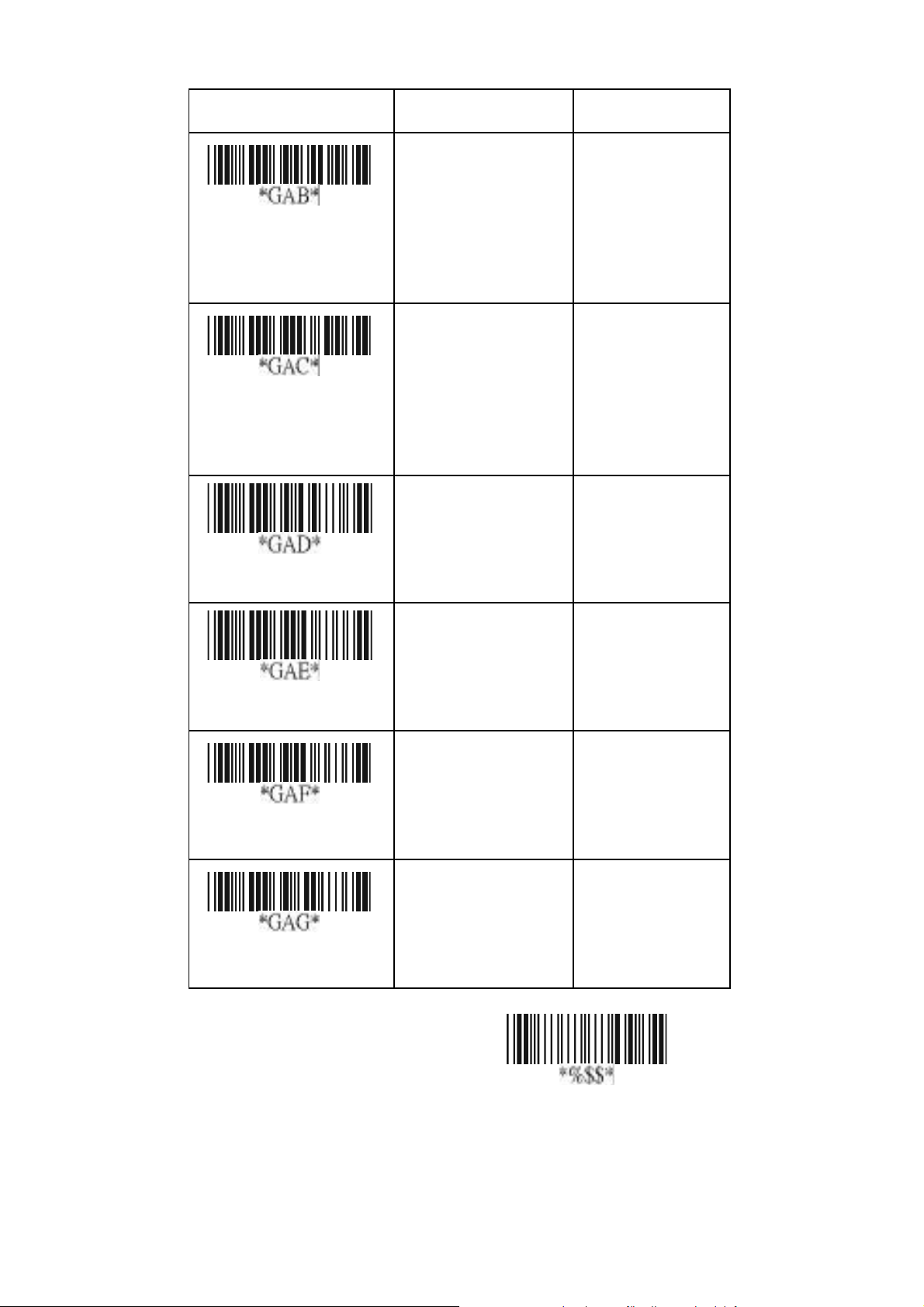

Page 18

bar.

Margin delay: It is a timer of zone like space zone of barcode label margin. The width of margin time will be added before and after in each barcode data automatically when it is transmitted.

Transmit delay: It is a delay time between barcode data out p ut . It i s th e sa m e a s Bloc k tra n s mi s s io n delay of keyboard wedge.

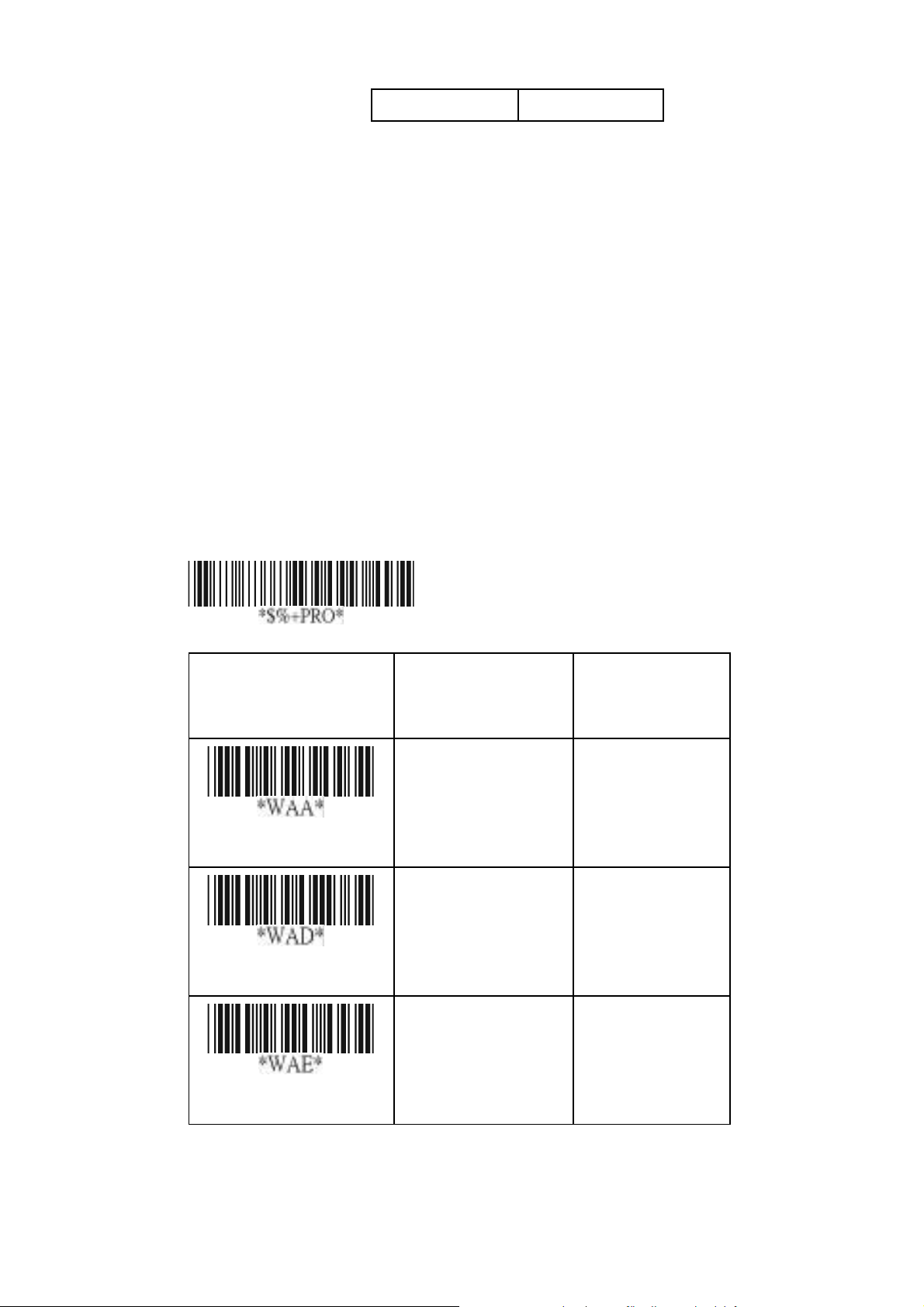

Program

Option Bar Code Option Alphanumeric

Output speed

620 pps 1250 pps 2500 pps 5000 pps 10000 pps 20000 pps *pps: pixel per second

00 01 02 03 04 05

Entry

Reserved

00*

Page 19

Reserved

Margin delay

Transmit delay

00- 99 (10 pixel)

00- 99 (10 msec)

00-99

Exi

Scan

Scanning mode: Good-read off-The trigger button must be pressed to

activate scanning. The light source of scanner stops scanning when there is a successful reading or no code is decoded after the Stand-by duration elapsed.

Page 20

Momentary-The trigger button acts as a switch. Press button to activate scanning and release button to stop scanning. Alternate-The trigger button acts as a toggle switch. Press button to activate or stop scanning. Timeout off-The trigger button must be pressed to activate scanning, and scanner stops scanning when no code is decoded after the Stand-by duration elapsed. Continue-The scanner always keeps reading, and it does not matter when trigger button is pressed or duration is elapsed.

Same Barcode delay time: If the barcode has been scanned twice, then only the first barcode will be accepted.

Double confirm: If it is enabled, the scanner will require a several times successful decoding to confirm the barcode data. The more confirming times required the more inhibitive mis s-reading code will be shown. If you set Double confirm, the Multi field scan E nable function won’t be able to work.

Program

Option Bar Code Option Alphanumeric

Good-read off Momentary

00 01

Entry

Page 21

Scanning mode Alternate

Stand-by duration

Same barcode delay time

Timeout off Continue 01-99 (second) 00-99

01- 99 (10 msec) 01- 99

00-99

(00: no double

03 04

50*

00-09 00

Double confirm

confirm)

Exi

Scan

Multi field scan: The scanner can be read many sets of

barcode data on the same scanning line at the same time, even if they are different kinds of barcode symbology. Global min./max. code length: Global Minimum and Maximum length can be set to qualify data entry. The length is defined as the actual barcode data length to be sent. Label with length exceeds these limits will be rejected. Make sure that the Minimum length setting is no greater than the

Page 22

Maximum length setting, or other w i se the labels of the symbology will not be readable. In particular, you can set the same value for both Minimum and Maximum reading length to force the fixed length barcode decoded. The values of setting have no effect on certain symbologies with fixed length. Notes 1): Please set the min/max length if you have special

demand for individual barcode.

2): Include the Check sum digits if you want to set Global min/max code length.

Inverted image scan: Set Enabled t he scanner will scan both black/white barcode with white/black background. CTS trigger: This operation enabled an external device to control scanning. The CTS trigger is controlled by apply an external trigger signal to the CTS input. When active, this signal causes scanning to begin as the scanner’s trigger was depressed. Position indication: This function can indicate the specific location before scanning. You can also set up the time of indication.

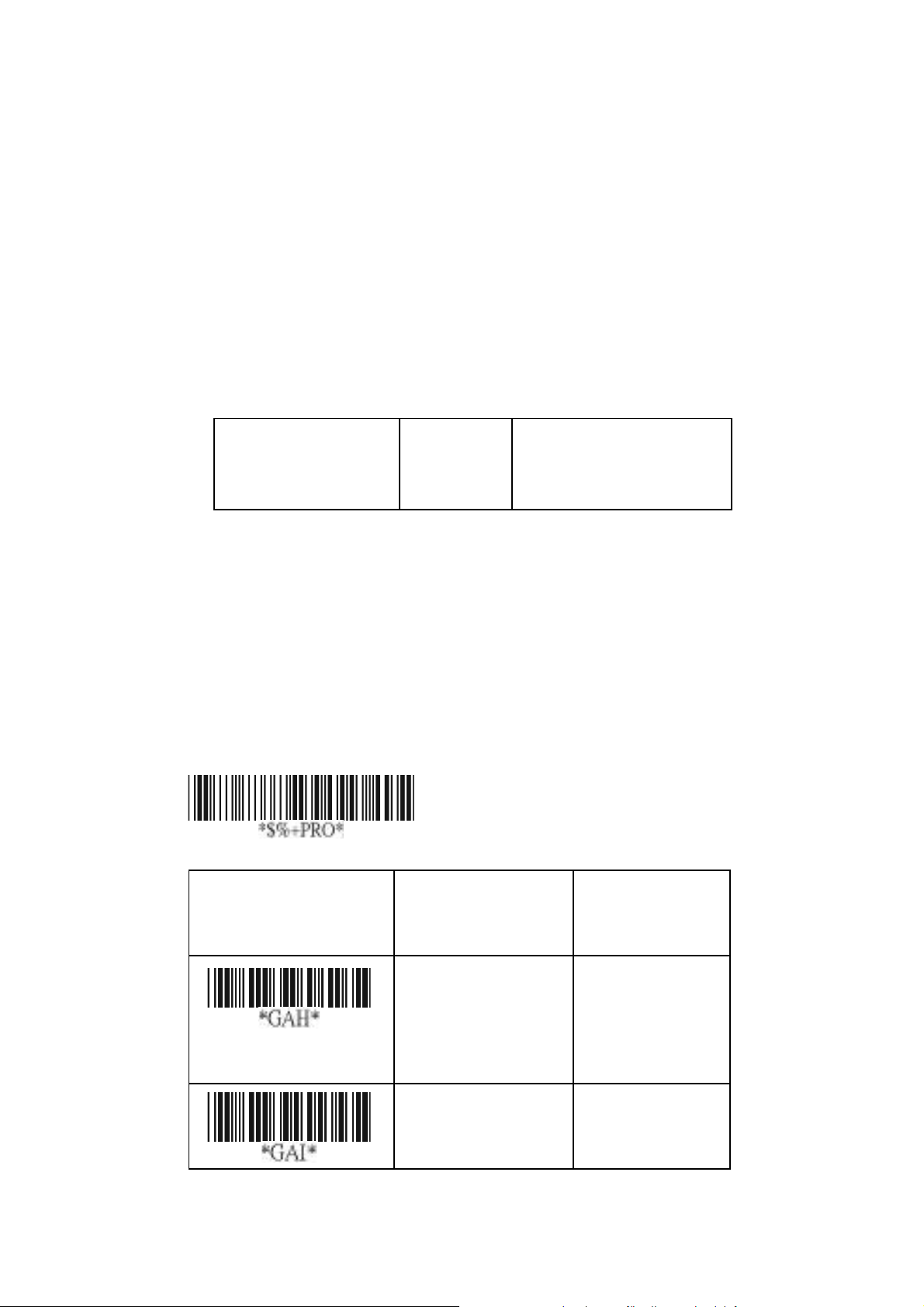

Program

Option Bar Code Option Alphanumeric

Entry

Disable Enable

Multi field scan

00 01

Global min. code length

00-63 00-63

04*

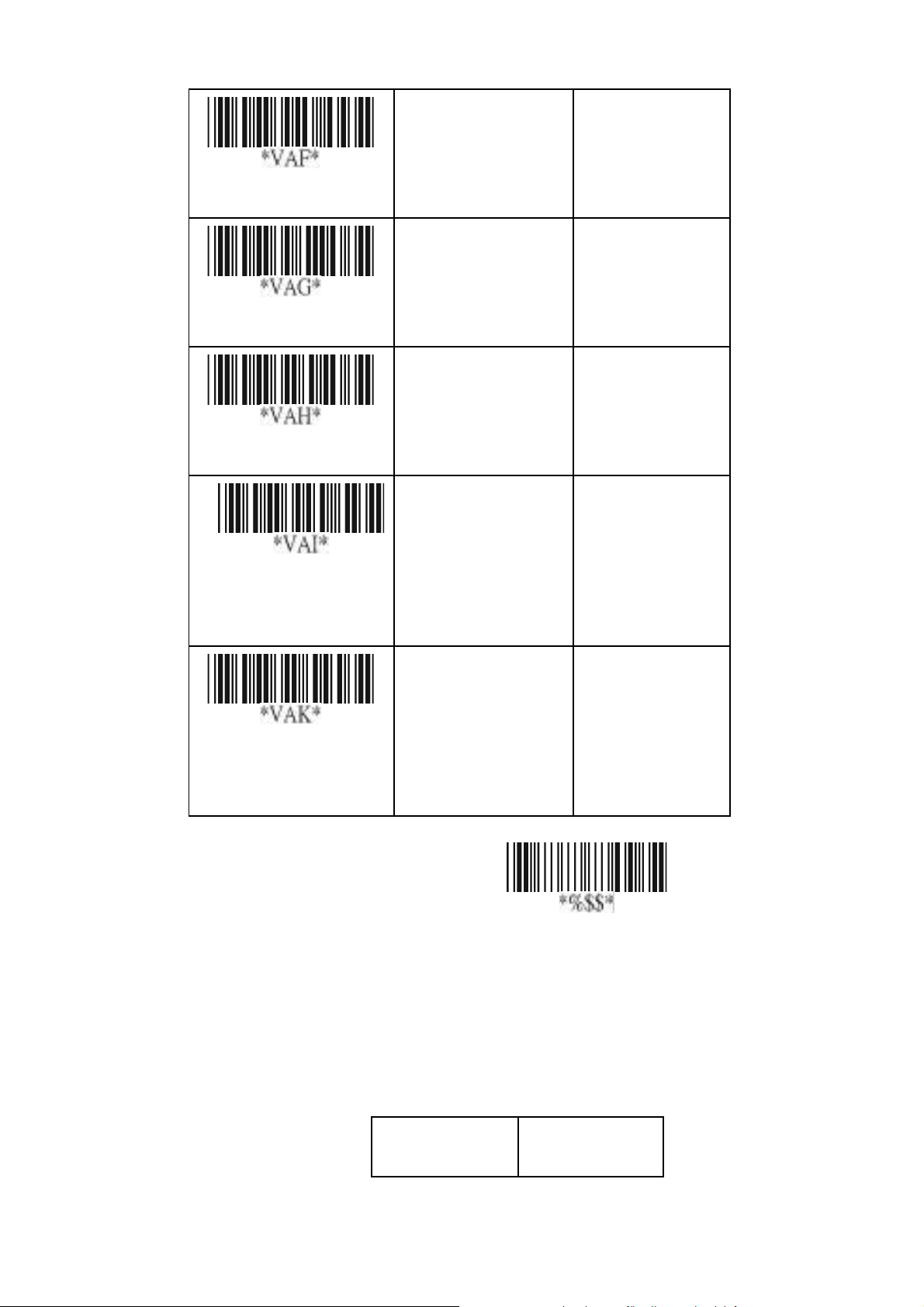

Page 23

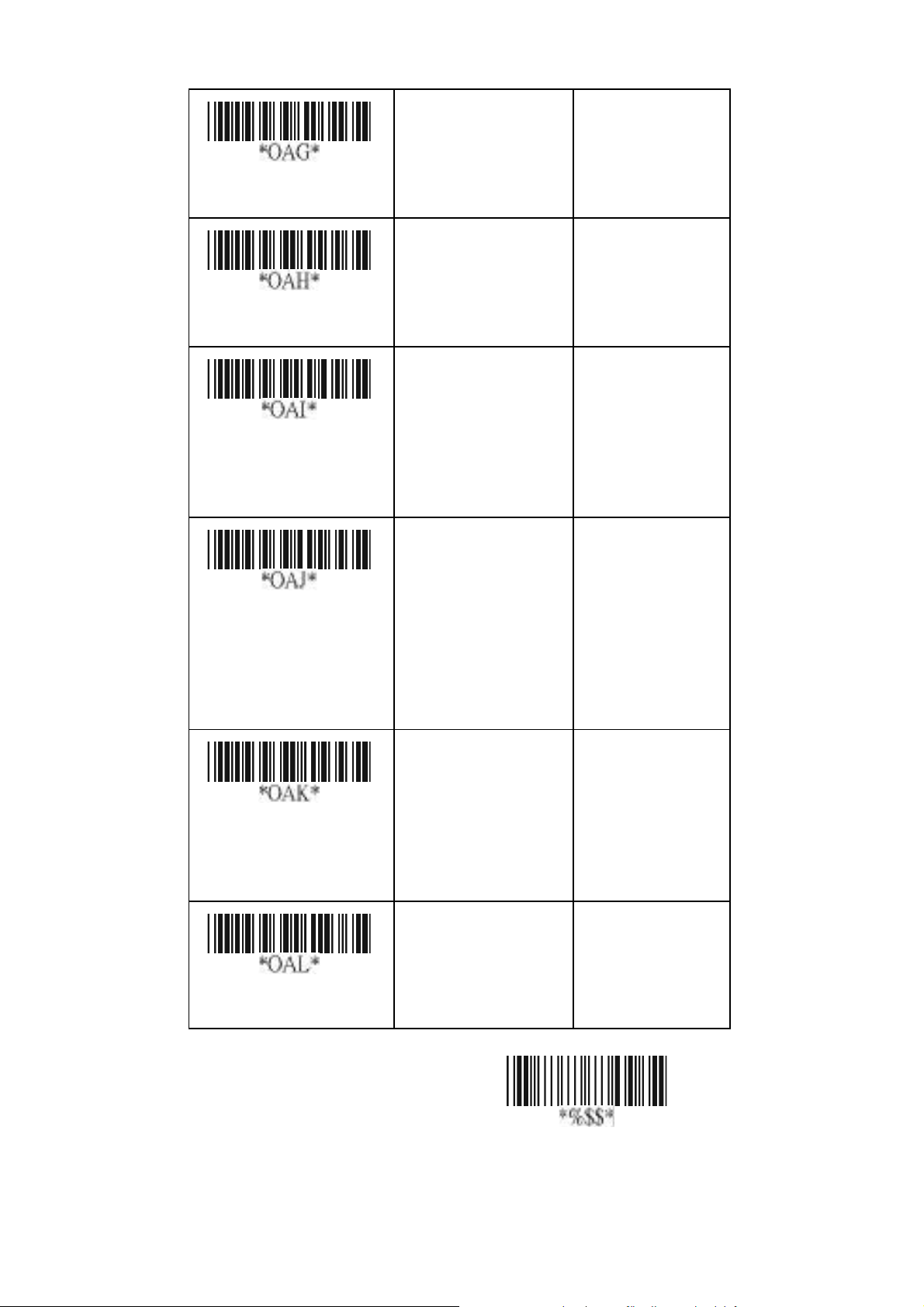

Global max.code length

00-63 04-63

Inverted image scan

CTS trigger

Position indication

Disable Enable

Disable 30 second 60 second 90 second 120 second

00 01

02 03 04

150 second 180 second Continue

Indication

Power on alert: After power- on the scanner it will generate

an alert signal to indicate a successful self-tes t.

LED indication: After each successful reading, the LED above the scanner will ligh t u p to indicate a good barcode reading.

05 06 07

Exi

Page 24

Buzzer indication: After each successful reading, the scanner will beep buzzer to indicate a good barcode reading, and its Beep loudness, Beep tone freq. and Beep tone

duration are adjustable.

Beep loudness/Beep tone freq./Beep tone duration: You can adjust Beep Loudness, Beep tone and Be ep duration for a good reading upon favorite usage.

Program

Option Bar Code Option Alphanumeric

Entry

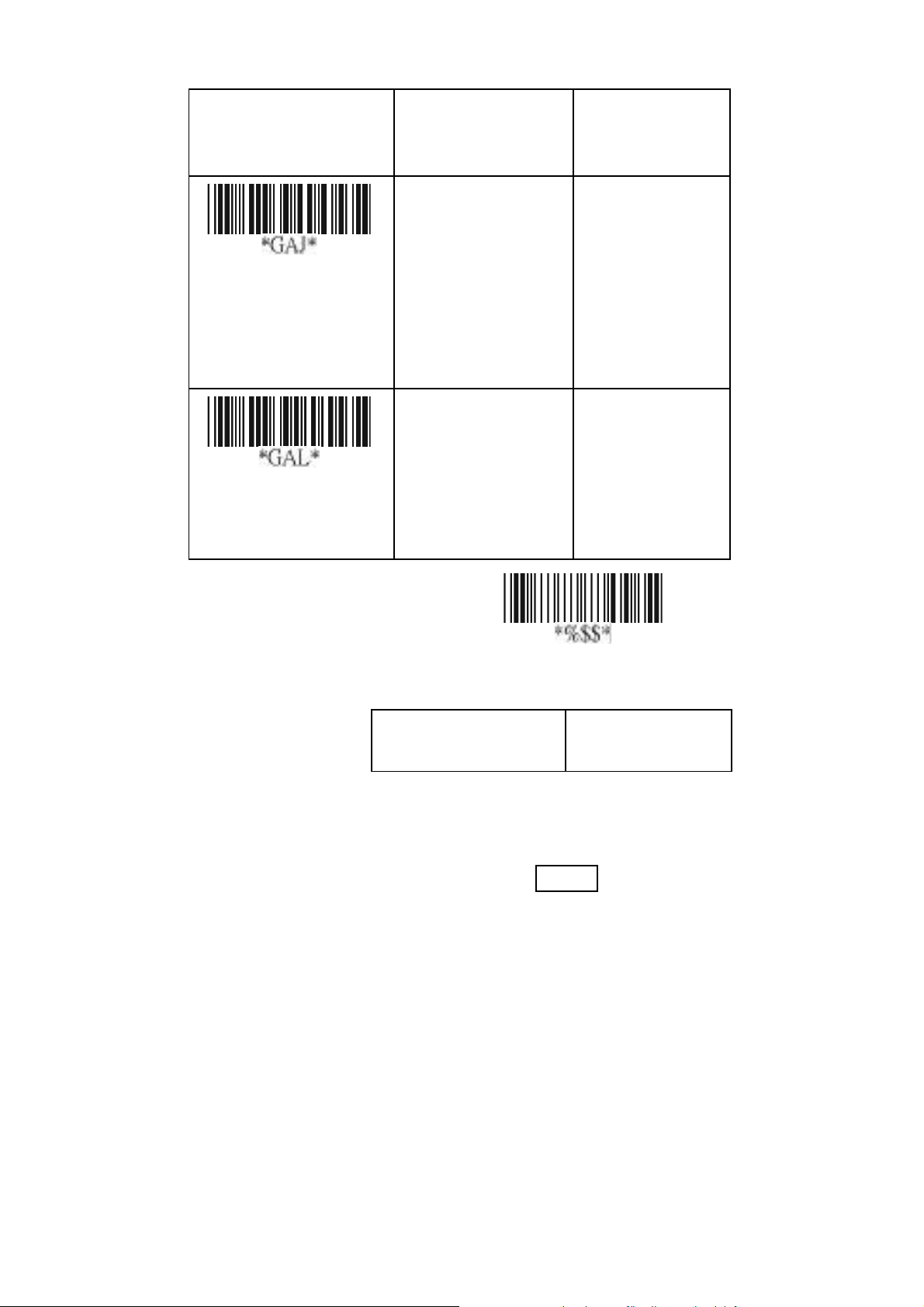

Page 25

Disable

Power on alert

LED indication

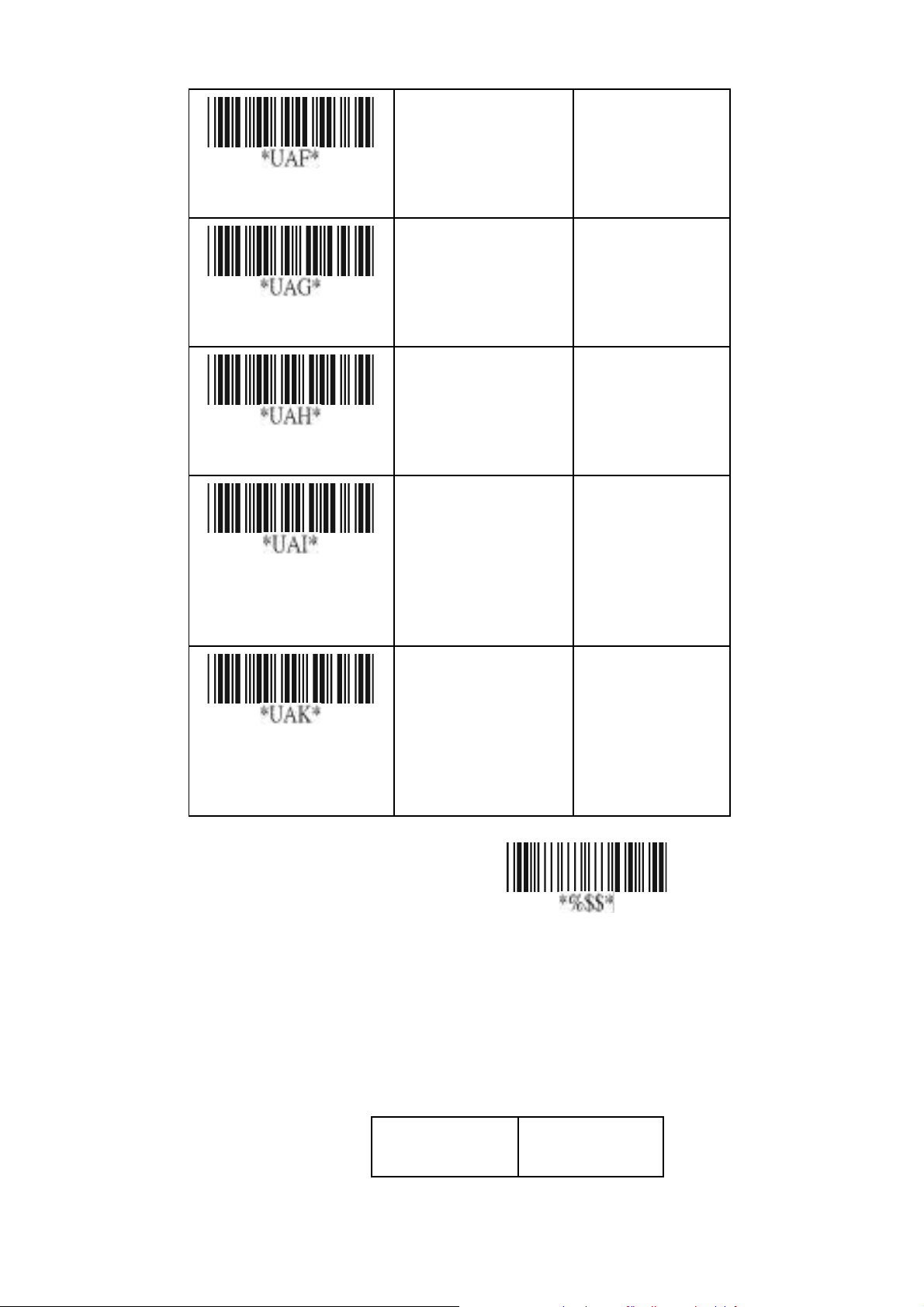

Buzzer indication

Beep loudness

Enable

Disable Enable

00-07 00-07

00 01*

07*

Beep tone freq.

Beep tone duration

UPCA

Read: Format

00- 99 (100Hz) 00-99

26*

00- 99 (10 msec) 00- 99

Leading

Data Digits

Exi

Check

Zero Check-sum transmission: By setting Enable, c h e cks sum will be transmitted.

(11 Digits)

Digit

Page 26

Truncate leading/ending: The leading or ending digits of barcode data characters can be truncated when these values are set to no n-zer o. It will beep instead of reading anything when the truncate value is more than the barcode data digits or the value of Truncate Leading is overlapped with that of the Ending. The maximum value of truncate digits is 15. Code ID setting: CodeID setting is a character used to represent the symbol upon a succeeding reading. A Code ID

setting is prefixed to the data begin or end transmitted if the feature is selected. If you want application to transmit Code ID, you must set Code ID transmission to Enable fi rst . Re fer to Code ID transmission. Insertion group selection: The scanner offer one or two insertion group for own symbology. By setting one or two digits to indicate which insertion group you want to insert. You may refer to Character insertion. Example: Group 2 → set 02 or 20.

Group 1 and 4 → set 14 or 41.

Program

Option Bar Code Option Alphanumeric

Disable Enable

Read

Disable

00 01

Entry

Check-sum verification

Enable

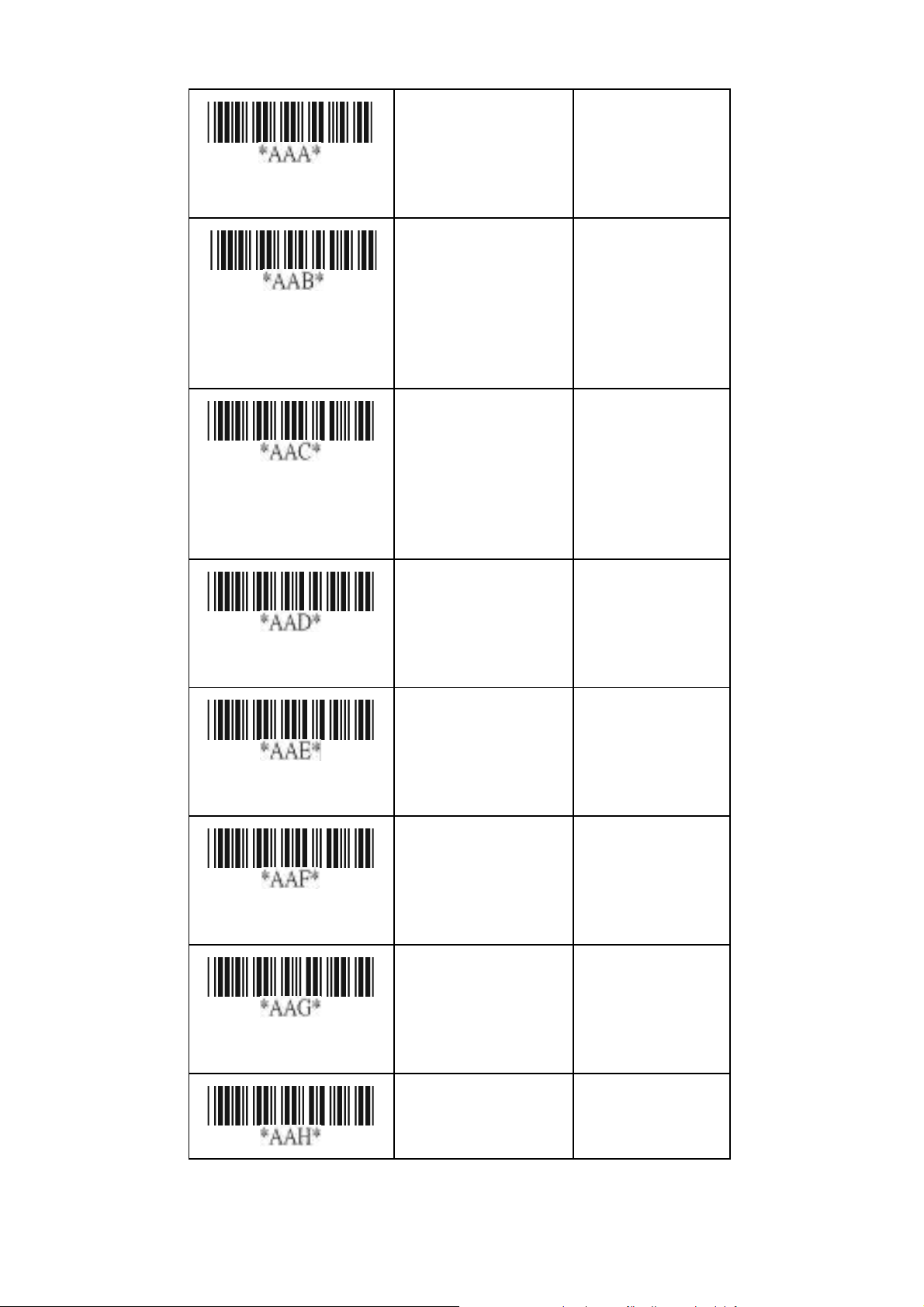

Page 27

Disable

Check-sum ransmission

Max.code length

Min.code length

Enable

00-64 00-64

0-15 00-15

64*

Truncate leading

Truncate ending

Code ID setting

Insert group selection

0-15 00-15

00*

00-ffH ASCII code

00-44 00-44

00-ffH

< A >*

00*

UPCA

Exi

Page 28

Supplement digits: The Supplement digits barcode is the

supplemental 2 or 5 characters for WPC code. Format

Leading

Zero

Truncate Leading zero: The leading “0” digits of UPCA data characters can be truncated when the function is enabled.

Option Bar Code Option Alphanumeric

Data Digits

(11 Digits)

Check

Digit

Program

None 2 digits

Supplement Digits

2 or 5 or

UCC / EAN 128

Entry

00 01

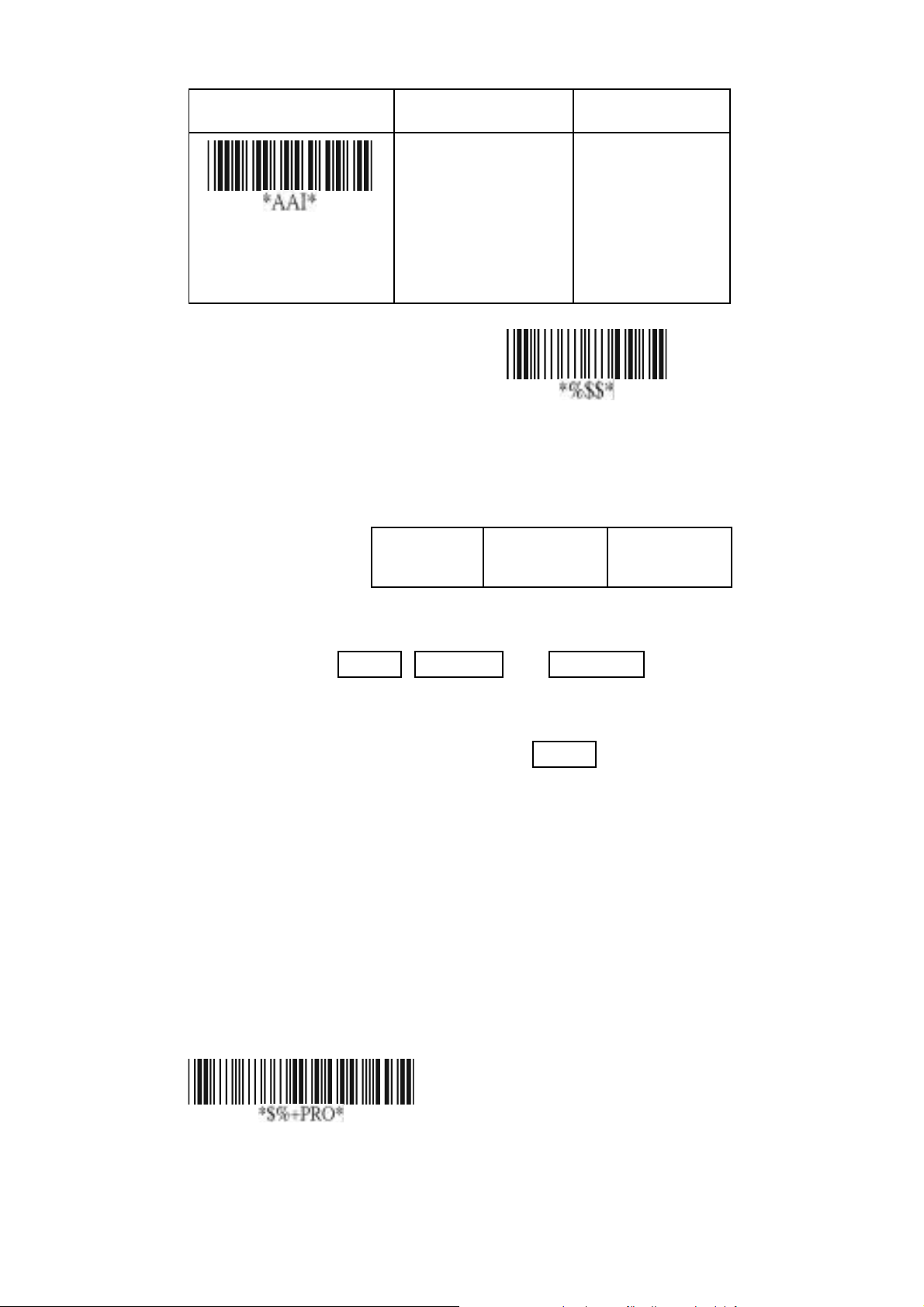

Supplement digits

Truncate Leading zero

The

5 digits UCC/EAN 128 Auto detection Disable Enable

02 03 04 00

Exi

UPCE

Page 29

Read: Format

Leading

Zero Check-sum verification: The checksum of EAN-13 is optional and made as the sum of the numerical value of the data digits.

Check-sum transmission: By setting Enable, c h e cks sum will be transmitted.

Program

Option Bar Code Option Alphanumeric

Data Digits (6

Digits)

Check

Digits

Entry

Read

Check-sum verification

Check-sum transmission

Disable Enable

00 01*

Exi

Page 30

UPCE

Truncate leading/ending: Refer to Truncate leading/ending

of UPCA.

Code Id setting: Refer to Code ID setting of UPCA.

Insertion group selection: R efe r to Insertion group

selection of UPCA.

Supplement digits:

Format

Leading

Zero

Truncate Leading zero: Refer to Truncate Leading zero of UPCA.

Expansion: The expansion function is used only for UPCE and EAN- 8 code reading. It extends to 13-digits with “ 0” digits when the feature is enabled. Example: Barcode “0123654” Output: “0012360000057”

Data Digits

(6 Digits)

Program

Check

Digit

Supplement Digits

2 or 5 or

UCC/EAN 128

Option Bar Code Option Alphanumeric

Entry

0-15 00-15

Truncate leading

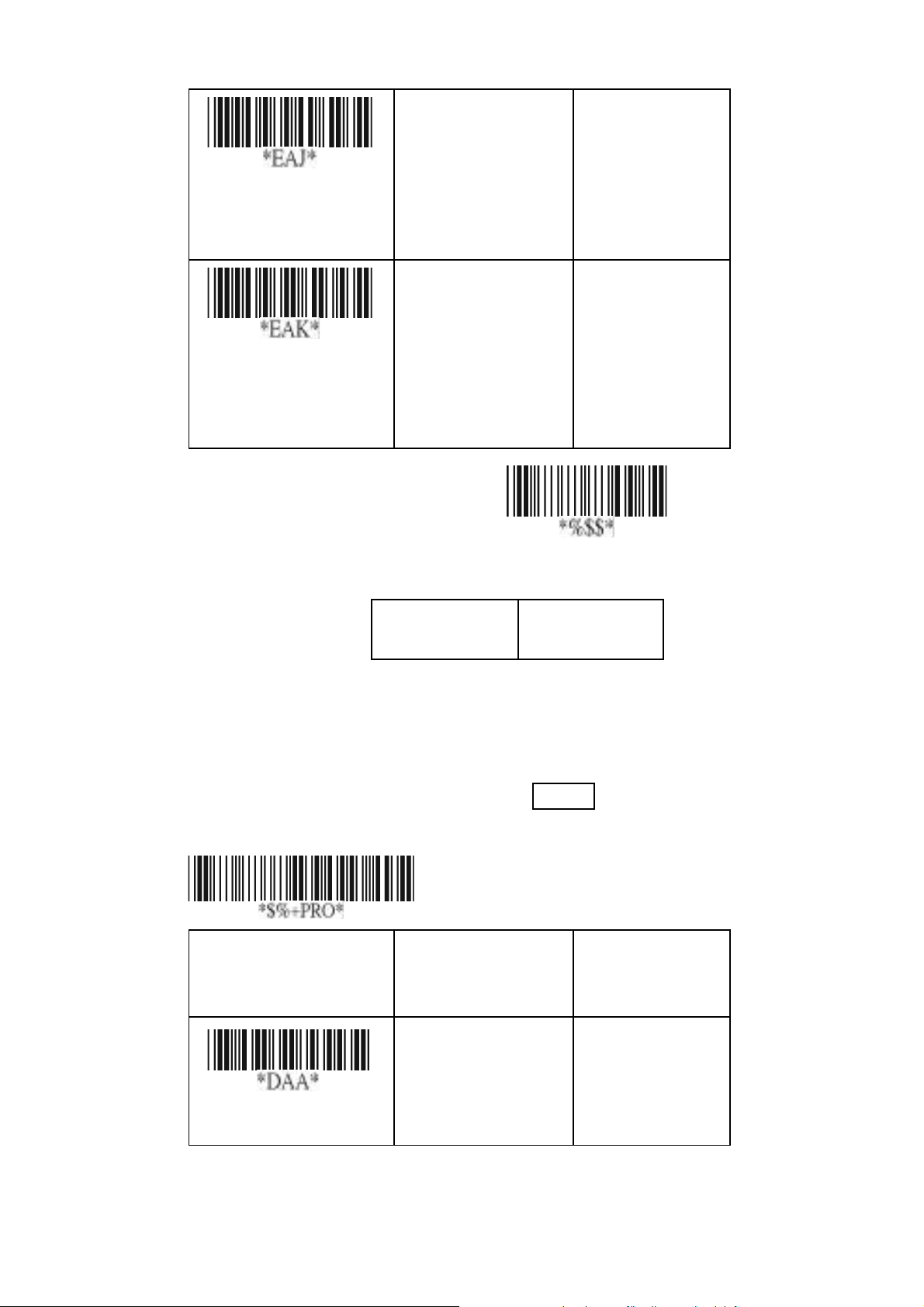

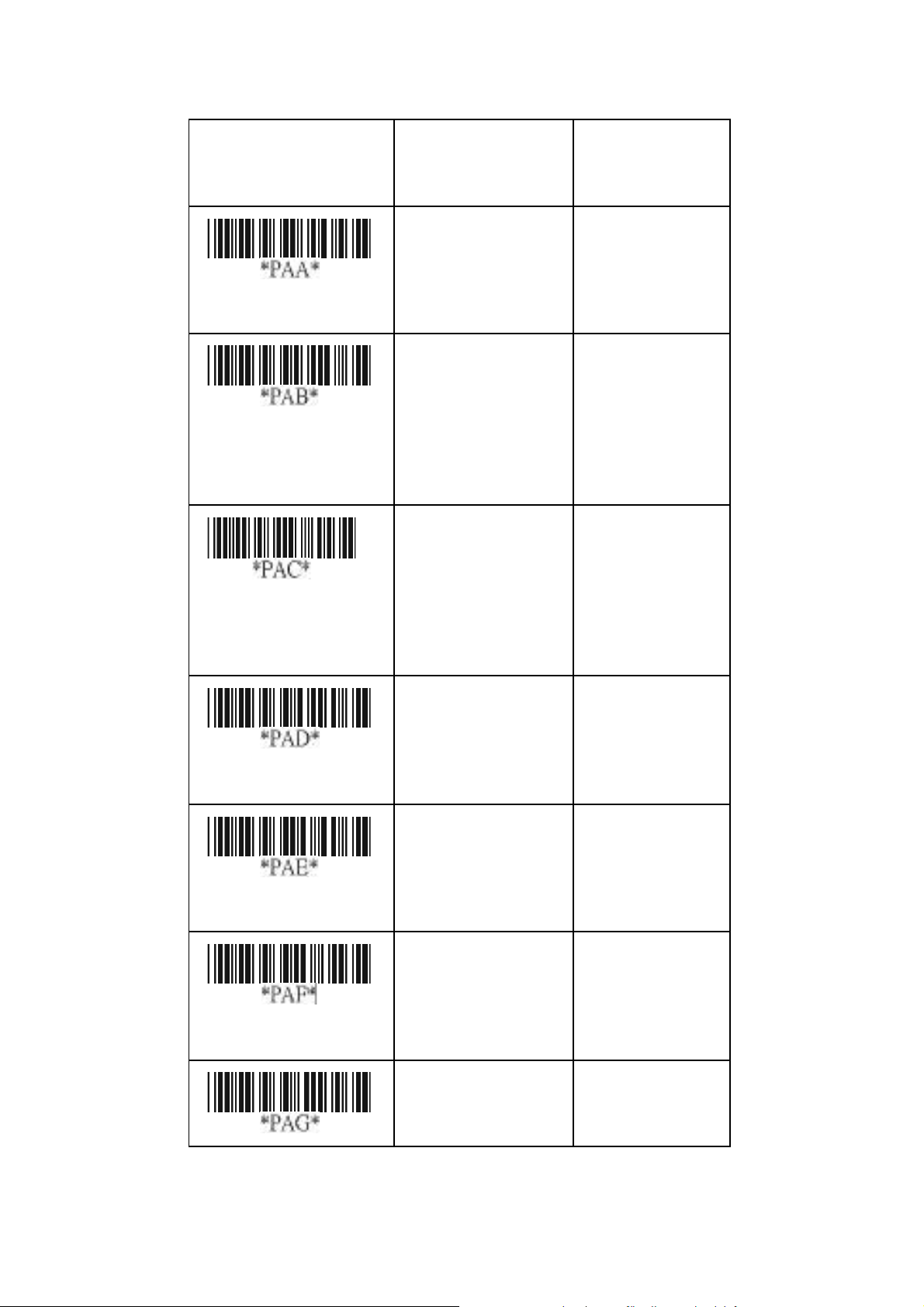

Page 31

Truncate ending

0-15 00-15

Code ID setting

Insert group selection

Supplement digits

00-ffH ASCII code

00-44 00-44

None 2 digits 5 digits UCC/EAN 128

00- ffH < E >

00*

00 01

02 03

Truncate Leading zero

Expansion

Auto detection Disable Enable

Disable Enable

04 00

00 01

Exi

Page 32

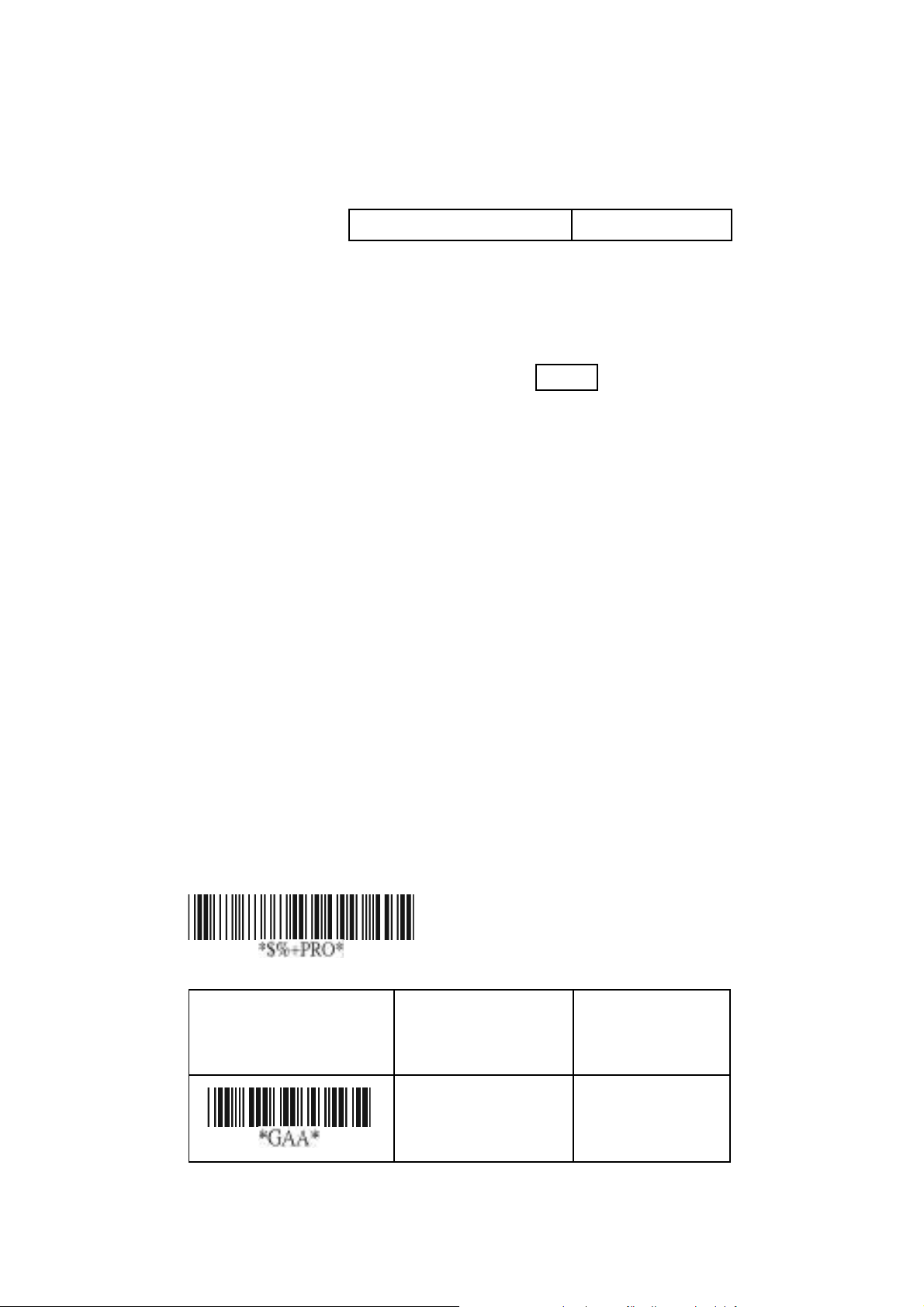

EAN-13

Read: Format

Data Digits (12 Digits) Check Digits Check-sum verification: The checksum of EAN-13 is optional and made as the sum of the numerical value of the data digits.

Check-sum transmission: By setting Enable, c h e cks sum will be transmitted.

Max./Min. code length: Each symbology has own Max./Min. Code Length. They can be set to qualify data entry. If their Max./Min. Code Length is zero, the Global Min./Max. Code Length is in effect. The length is defined as to the actual barcode data length to be sent. Label with length exceeds these limits will be rejected. Make sure that the Minimum length setting is no greater than the Maximum length setting, or ot h e r w ise all the labels of the symbology will not be readable. In particular, you can see the same value for both Minimum and Maximum reading length to force the fixed length barcode decoded.

Truncate leading/ending: Refer to Truncate leading/ending of UPCA.

The

Program

Option Bar Code Option Alphanumeric

Entry

Disable Enable

00 01

Page 33

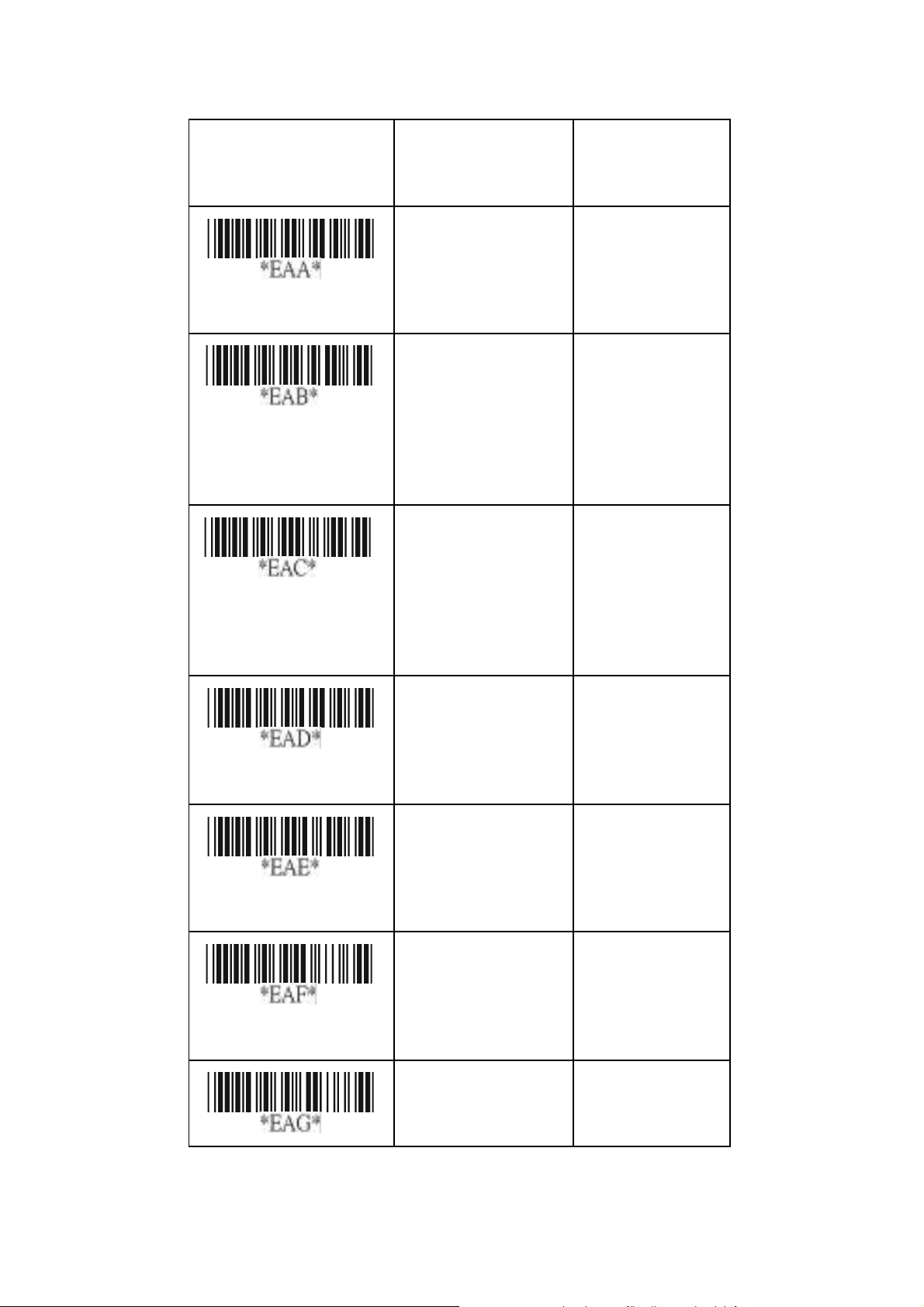

Read

Check-sum verification

Check-sum transmission

Max.code length

Disable Enable

00-64 00-64

00 01*

64*

Min.code length

Truncate leading

Truncate ending

00-64 00-64

01*

0-15 00-15

Exi

Page 34

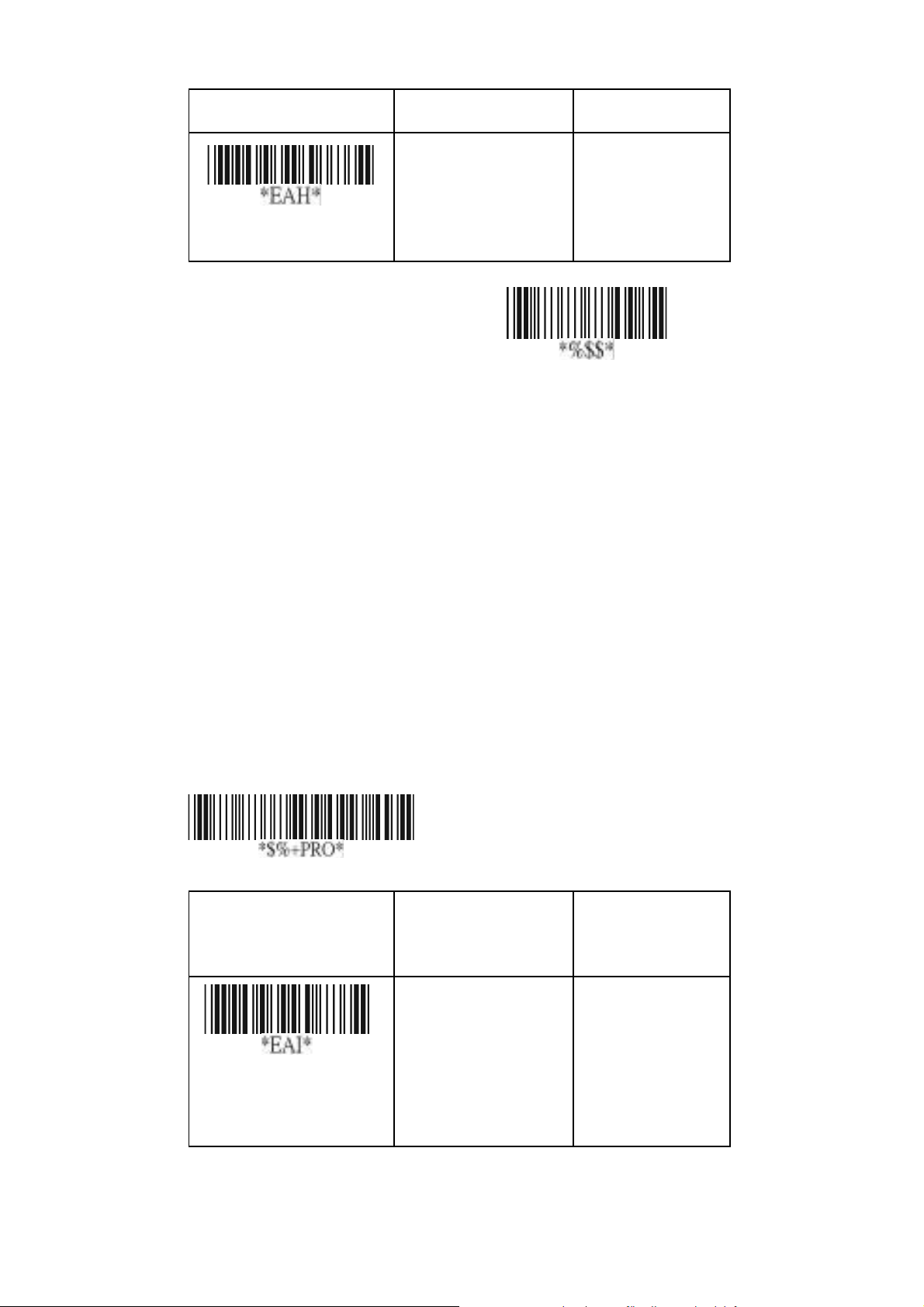

EAN-13

Code Id setting: Refer to Code ID setting of UPCA.

Insertion group selection: R efe r to Insertion group

selection of UPCA.

Supplement digits:

Format

Data Digits

(12 Digits)

ISBN/ISSN: The ISBN (International Standard Book Number) and ISSN (International Standard Serial Number) are two kinds of barcode for book and magazines. The ISBN is 10 digits with leading “978 ” and the ISSN is 8 digits with leading “977” of the “EAN-13” symbology. Example: Barcode “9789572222720” - Output: “9572222724” Example: Barcode “9771019248004” - Output: “10192484”

Check

Digits

Program

Supplement Digits

2 or 5 or

UCC / EAN 128

Option Bar Code Option Alphanumeric

Entry

00-ffH ASCII code

Code ID setting

00-44 00-44

00- ffH < F >

Page 35

Insert group selection

Supplement digits

ISBN/ISSN conversion

EAN-8

None 2 digits 5 digits UCC/EAN 128 Auto detection Disable Enable

00 01

02 03 04

00 01

Exi

Read: Format

Data Digits

(7 Digits) Check-sum verification: The checksum of EAN-8 is optional and made as the sum of the numerical value of the data digits. Check-sum transmission: By setting Enable, c h e cks sum will be transmitted. Max./Min. code length: Refer to Max./Min. code length of EAN-13. Truncate leading/ending: Refer to Truncate leading/ending of UPCA.

Code Id setting: Refer to Code ID setting of UPCA Insertion group selection: R efe r to Insertion group

selection of UPCA.

Check

Digits

Page 36

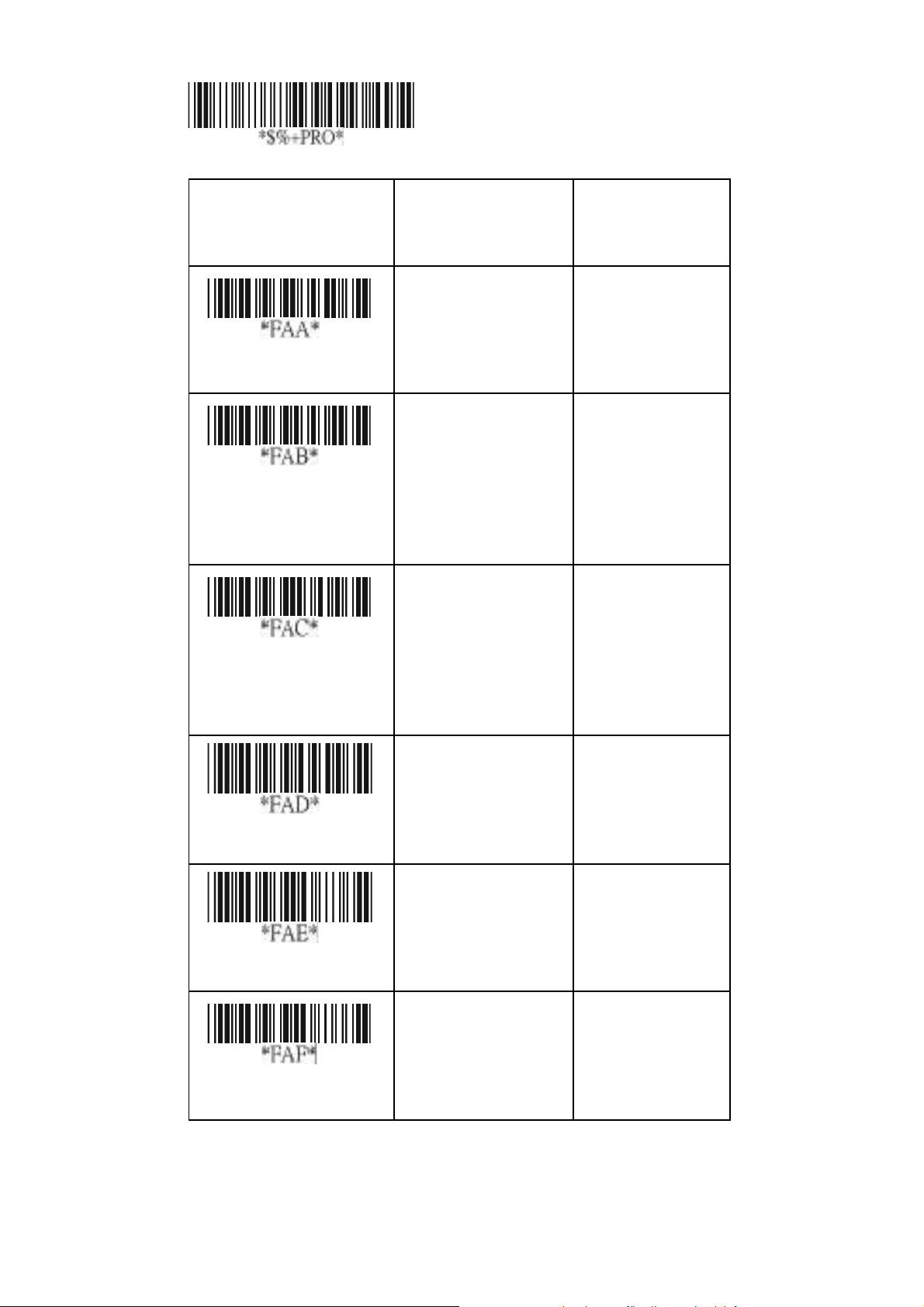

Option Bar Code Option Alphanumeric

Read

Check-sum verification

Program

Disable Enable

00 01*

Entry

Check-sum transmission

Max.code length

Min.code length

Disable Enable

00-64 00-64

0-15 00-15

00 01

Truncate leading

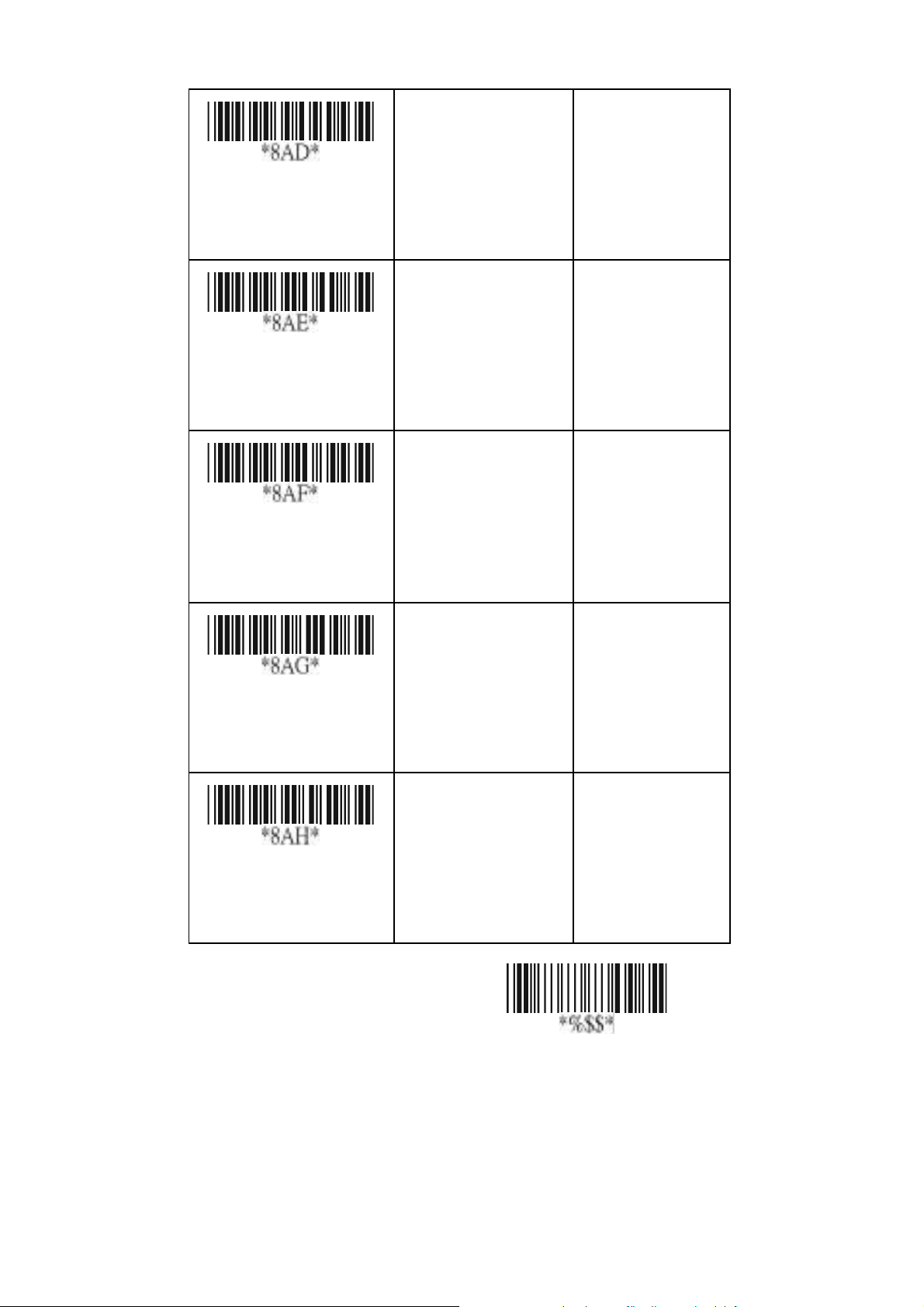

Page 37

Truncate ending

0-15 00-15

Two characters 00-ffH ASCII

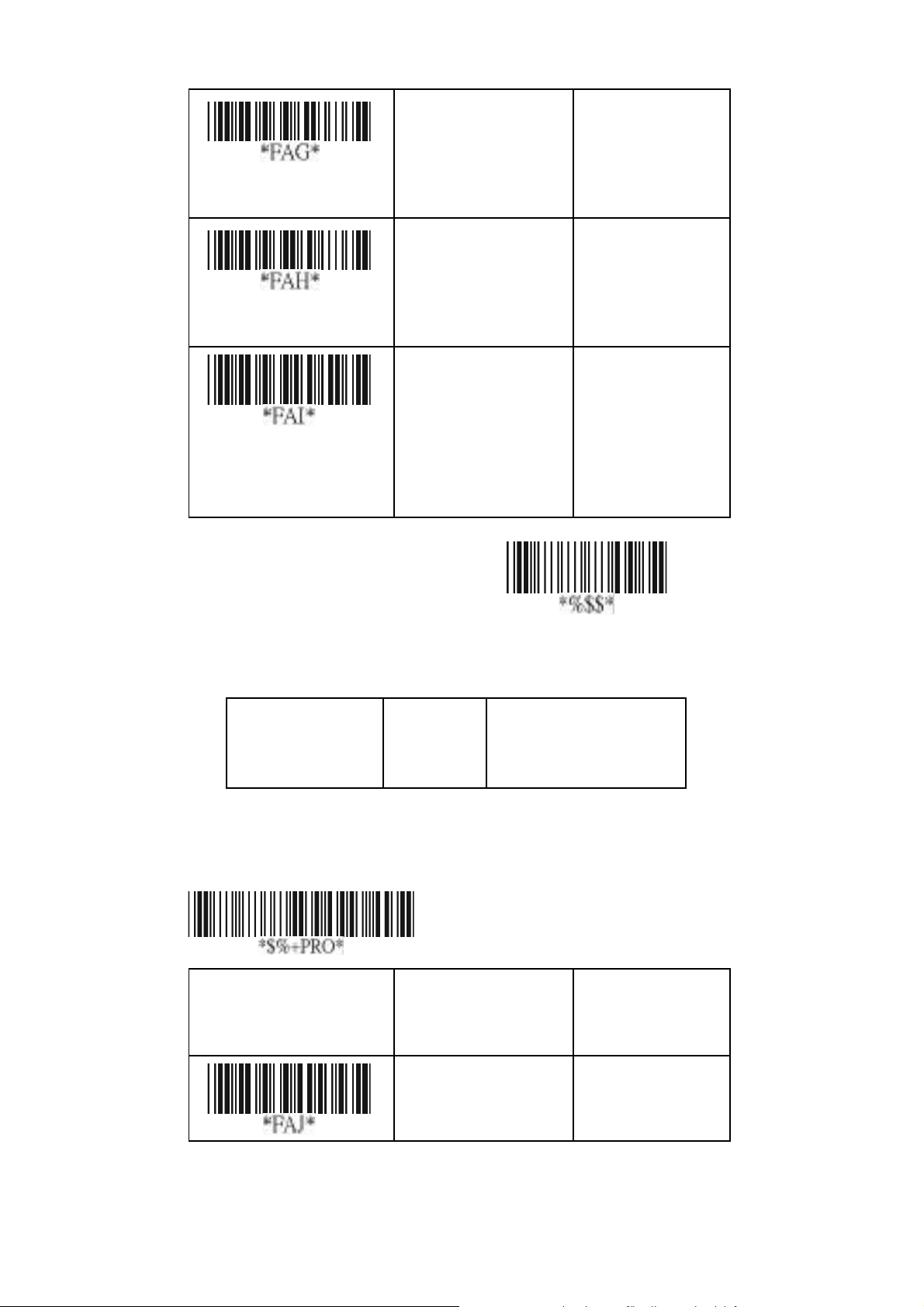

Code ID setting

Insert group selection

code 00-44 00-44

EAN-8

Supplement digits: Format

00-ffH, 00-f f H < FF >

00*

Exi

Data Digits

(7 Digits)

Truncate Leading zero: Refer to Truncate Leading zero of UPCE. Expansion: Refer to Expansion of UPCE.

Option Bar Code Option Alphanumeric

Check

Digits

Program

None 2 digits

Supplement Digits

2 or 5 or

UCC/EAN 128

Entry

00 01

Page 38

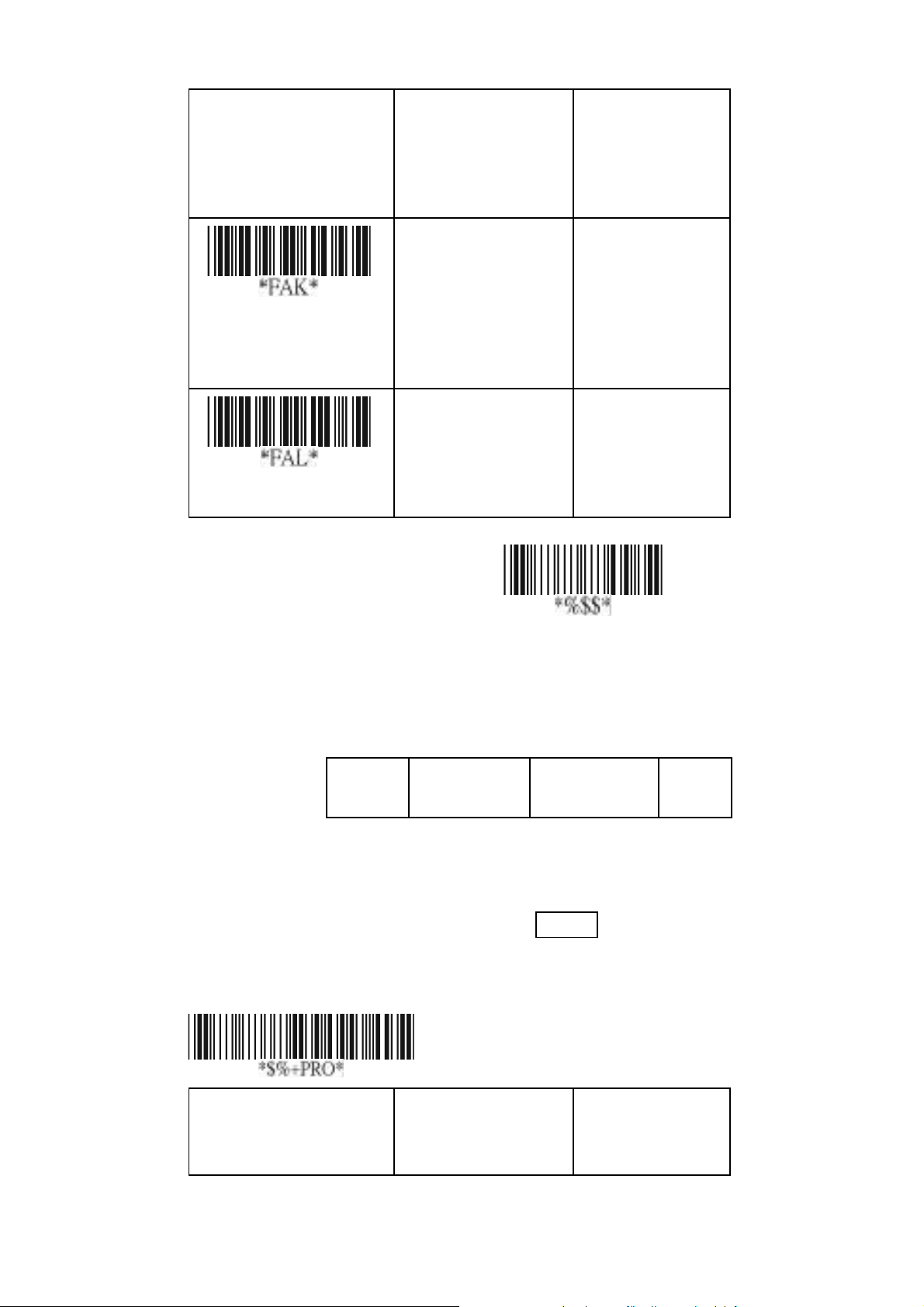

Supplement digits 5 digits

Truncate L eading zero

Expansion

UCC/EAN 128 Auto detection Disable Enable

Disable Enable

03 04

00 01

Exi

Code 39

Read: Format

Start

“★” Check-sum verification: The checksum of Code-39 is optional and made as the sum module 43 of the numerical value of the data digits. Check-sum transmission: By setting Enable, c he cksum will be transmitted.

Data Digits

( Variable)

Program

Checksum

(Optional)

End

“★”

Option Bar Code Option Alphanumeric

Entry

Page 39

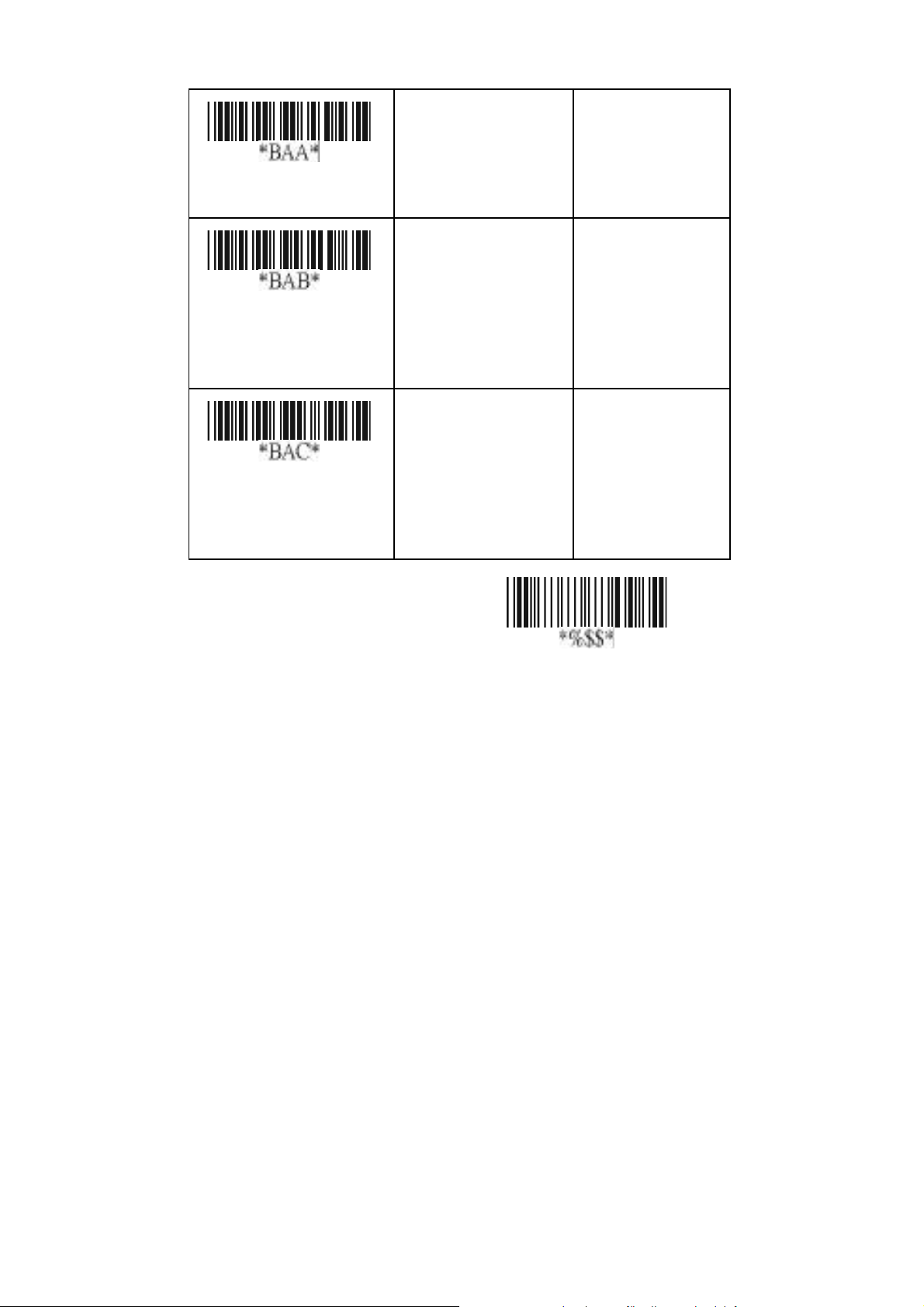

Disable

Read

Check-sum verification

Check-sum transmission

Enable

Disable Enable

00 01

Code 39

Max./Min. code length: Each symbology has own Max./Min.

Code Length. They can be set to qualify data entry. If their Max./Min. Code Length is zero, the Global Min./Max. Code Length is in effect. The length is de fined as to the actual barcode data length to be sent. Label with length exceeds these limits will be rejected. Make sure that the Minimum length setting is no greater than the Maximum length setting, or ot h e r w ise all the labels of the symbology will not be readable. In particular, you can see the same value for both Minimum and Maximum reading length to force the fixed length barcode decoded.

Truncate leading/ending: Refer to Truncate leading/ending of UPCA.

Exi

Code Id setting: Refer to Code ID setting of UP CA.

Page 40

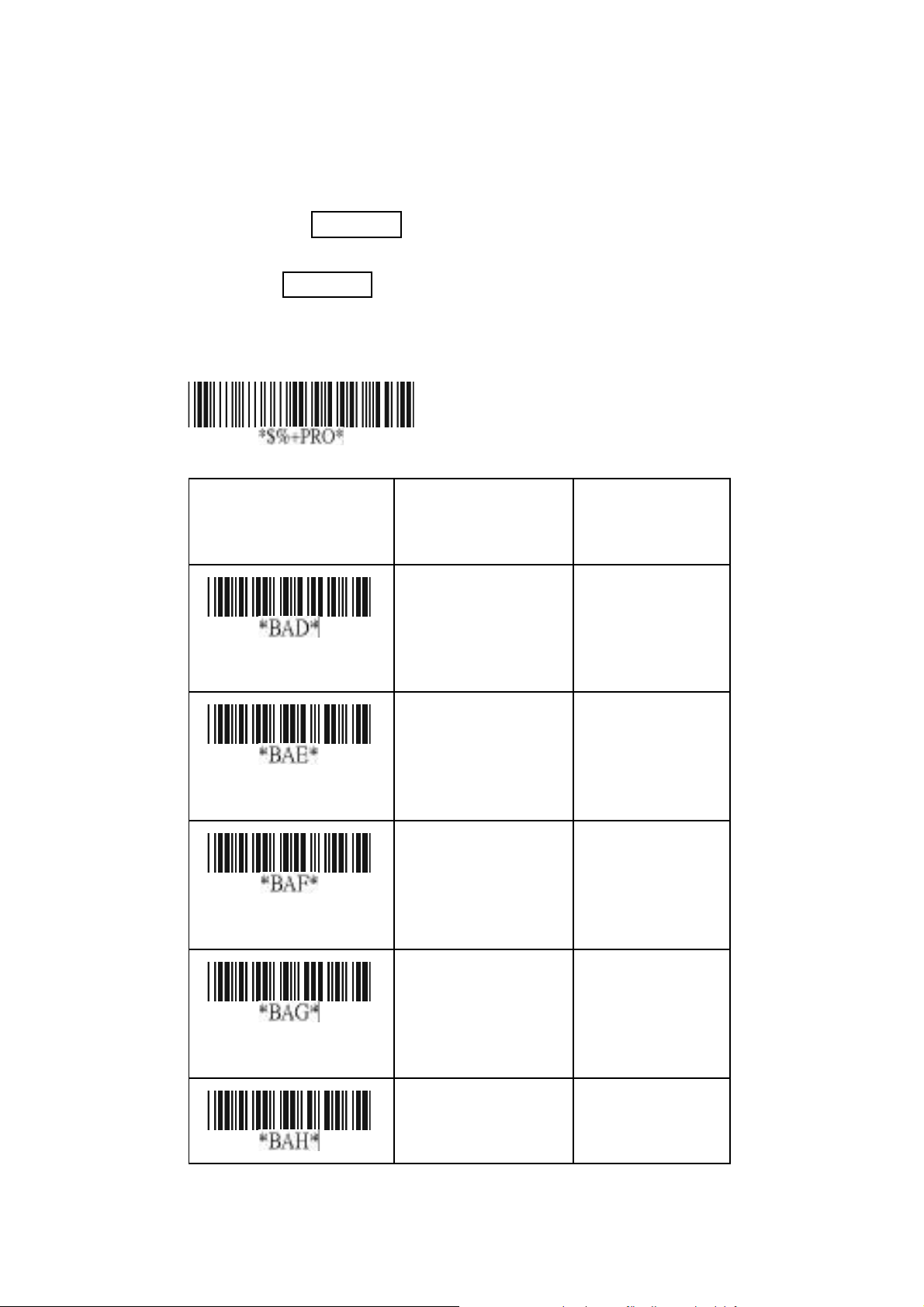

Insertion group selection: R efe r to Insertion group selection of UPCA.

Format: The Full ASCII Code-39 is an enhanced set of Code-39 that is the data with total of 128 characters to represent Full ASCII code. It is combined one of the digits +, %, $ and/ with one of the alpha digits (A to Z).

Program

Option Bar Code Option Alphanumeric

Entry

Max. code length

Min. code length

Truncate leading

00-64 00-64

0-15 00-15

00*

0-15 00-15

Truncate ending

00-ffH ASCII code

00- ffH <

* >

Page 41

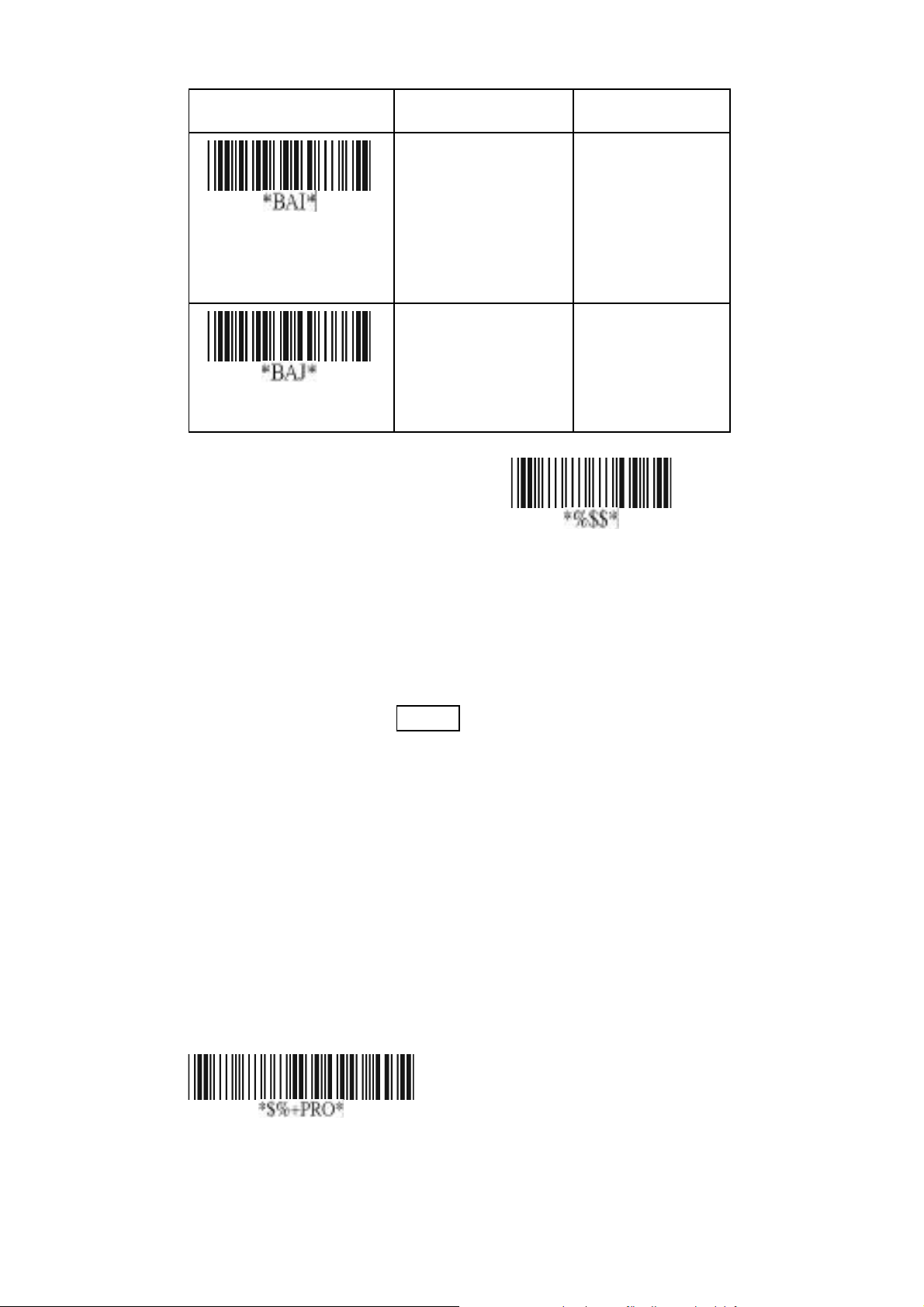

Code ID setting

Insert group selection

00-44 00-44

00*

Standard Full ASCII

Format

00 01

Exi

Code 39

Append: This function allows several symbols to be

concatenates and be treat as one single data entry. The scanner will not transmit the embedded appending code (space for Code-39). If Enable and other symbols were read again with the appended code, then codes will be transmitted without Code ID, Preamble and Prefix. When a symbol was decoded without the appended code, the data will be transmitted without Code ID and Prefix, but the Postamble Suffix codes are appended. This function is used when the first number of code 39 is a space. Example: □123456.

Start/end transmission: The start and end characters of Code-39 are“★”. You can transmit all data digits including two “★”.

Program

Page 42

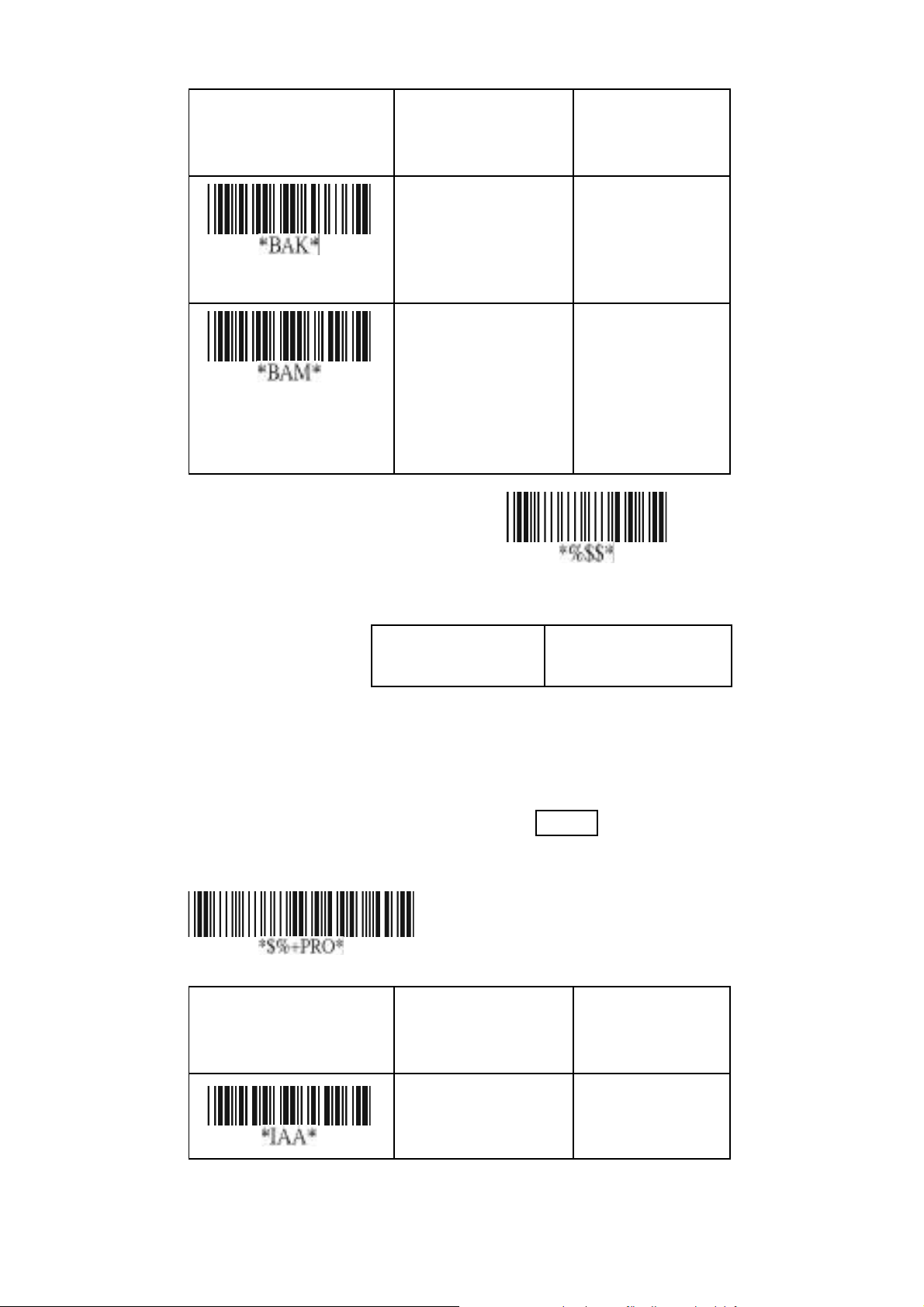

Option Bar Code Option Alphanumeric

Entry

Disable Enable

Append

Disable

Enable Start/end transmission

Interleaved 2 of 5

Read: Format

Data Digits

00 01

Checksum

Exi

(Variable)

Check-sum verification: The checksum is made as the sum module 10 of the nume rica l values of all data digits.

Check-sum transmission: By setting Enable, c h e cksum will be transmitted.

Program

Option Bar Code Option Alphanumeric

Disable

(Optional)

Entry

Enable

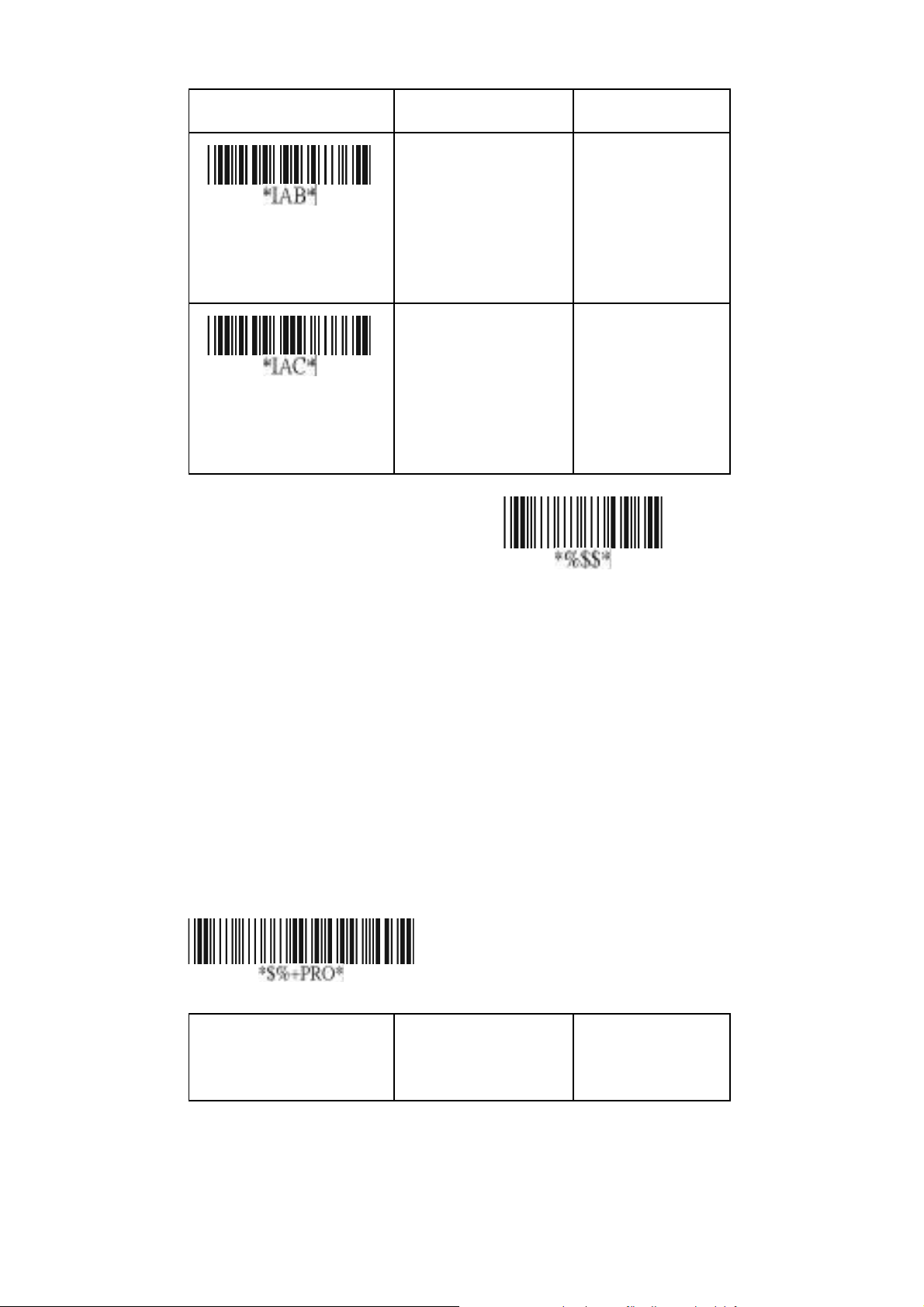

Page 43

Read

Disable

Enable Check-sum verification

Disable

Enable Check-sum transmission

Interleaved 2 of 5

00 01*

00 01

Exi

Max./Min. code length: Refer to Max./Min. code length of

Code-39.

Truncate leading/ending: Refer to Truncate leading/ending of UPCA.

Code Id setting: Refer to Code ID setting of UPCA.

Insertion group selection: Ref er t o Insertion group

selection of UPCA.

Program

Option Bar Code Option Alphanumeric

Entry

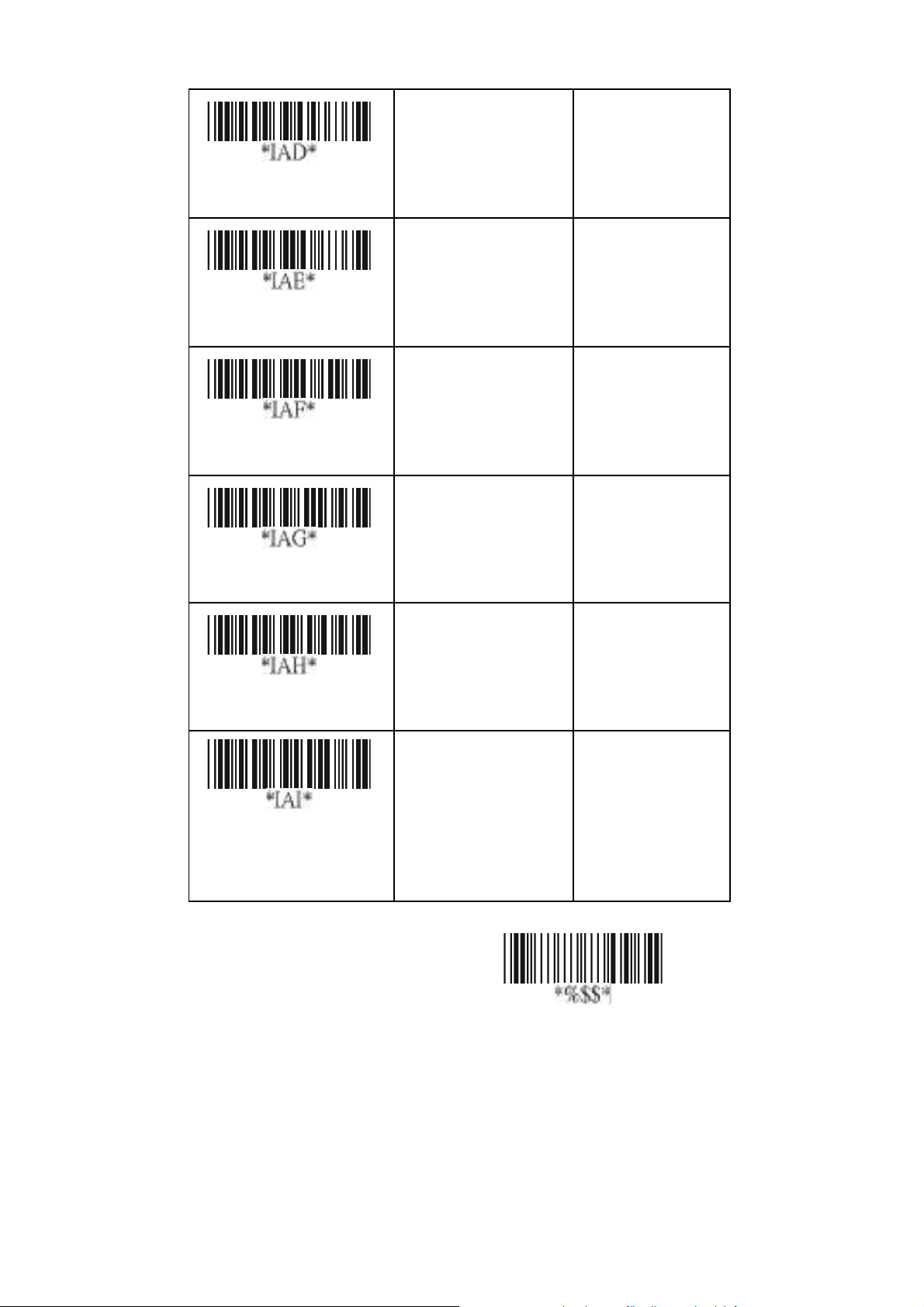

Page 44

Max. code leading

Min. code leading

Truncate leading

00-64 00-64

0-15 00-15

00*

0-15 00-15

00*

Truncate ending

Code ID setting

Insert group selection

00-ffH ASCII

code

00-44 00-44

00- ffH *

Exi

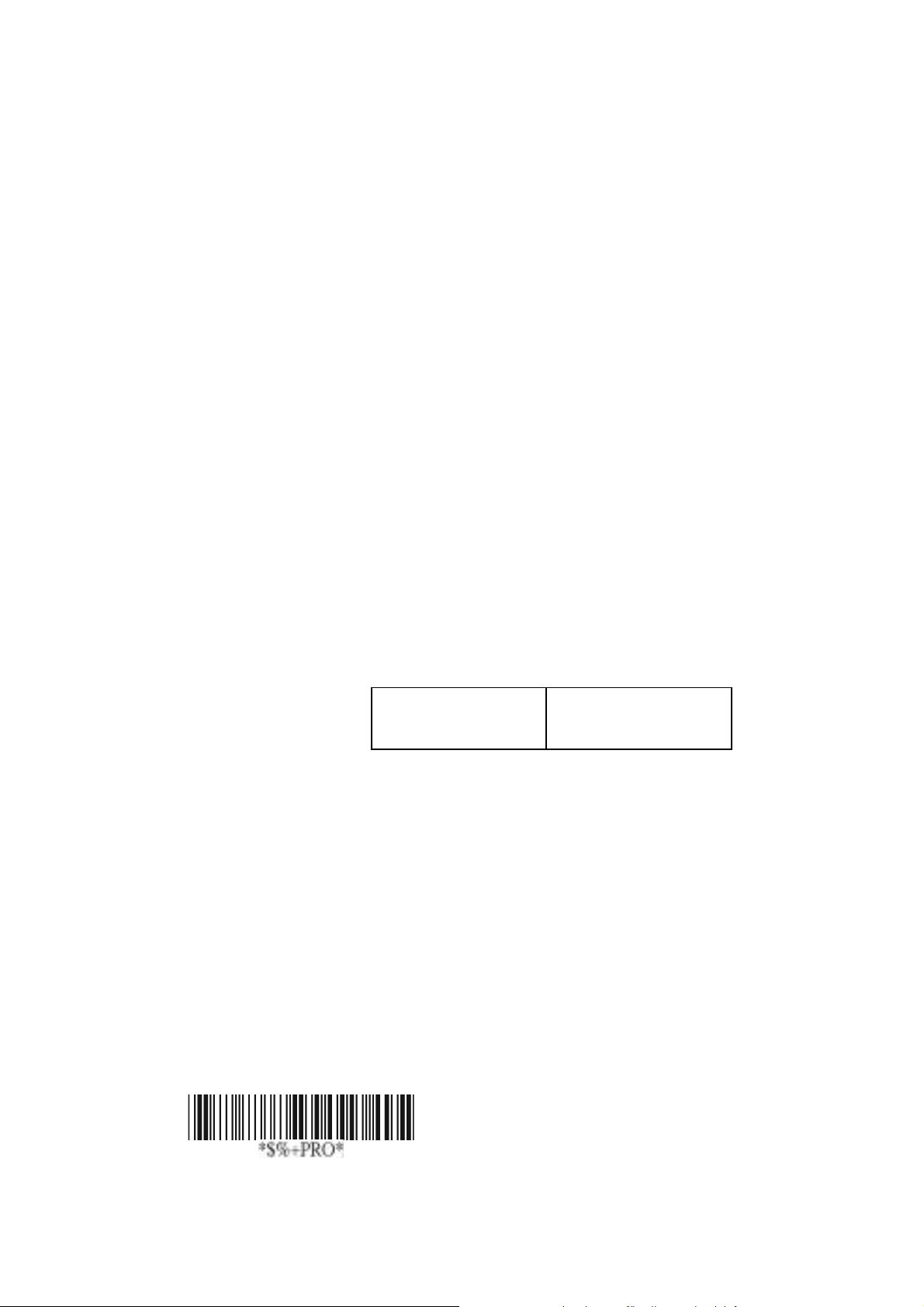

Page 45

Industrial 2 of 5

Read: Format

Data Digits

(Variable)

Max./Min. code length: Refer to Max./Min. code length of Code-39.

Truncate leading/ending: Refer to Truncate leading/ending of UPCA.

Code Id setting: Refer to Code ID setting of UPCA.

Insertion group selection: R efe r to Insertion group

selection of UPCA.

Program

Checksum

(Optional)

Page 46

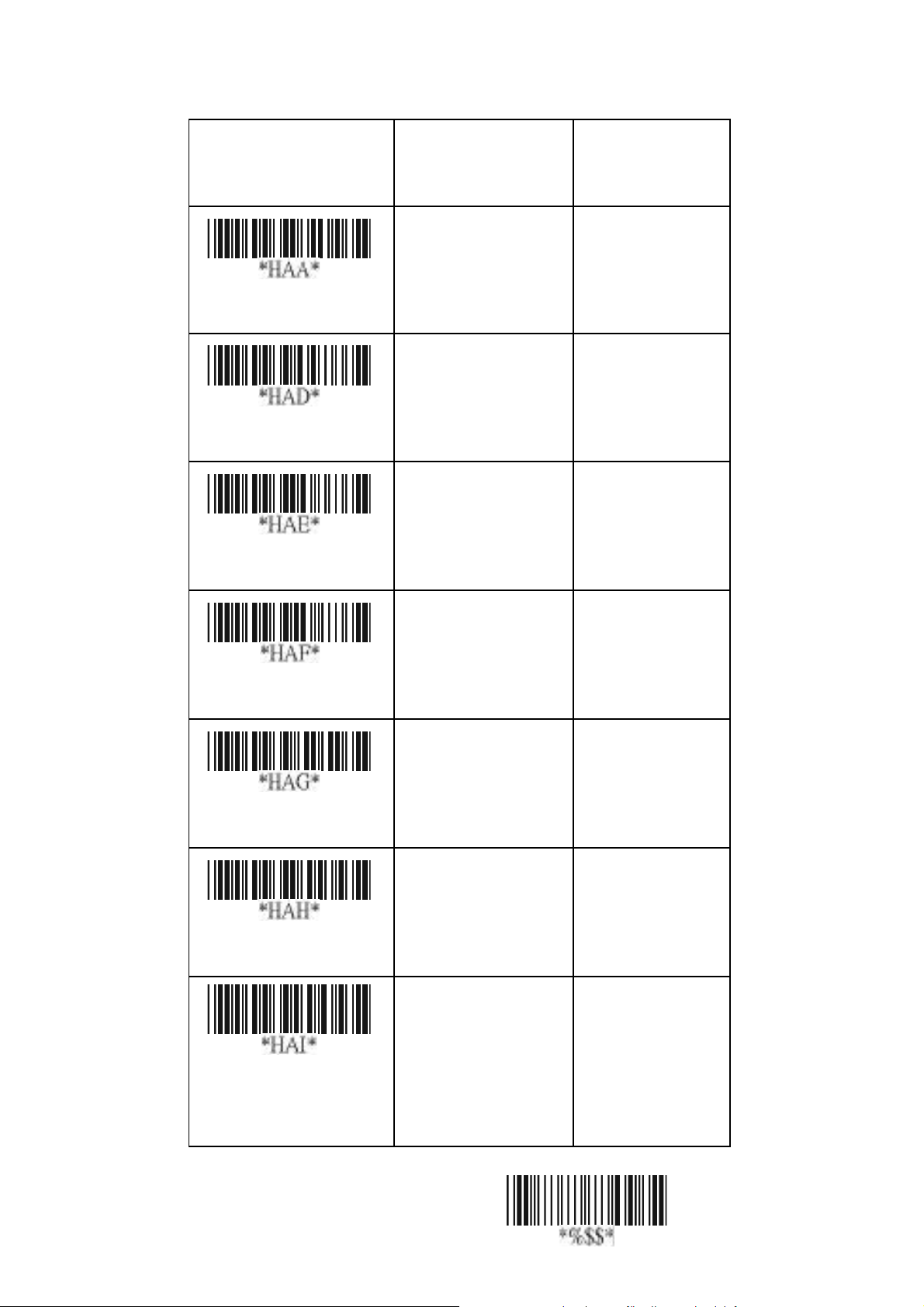

Option Bar Code Option Alphanumeric

Entry

Read

Max. code length

Min. code length

Disable

Enable

00-64 00-64

0-15 00-15

00 01

00*

Truncate leading

Truncate ending

Code ID setting

Insert group selection

0-15 00-15

00-ffH ASCII

code

00-44 00-44

00- ffH *

Exi

Page 47

Matrix 2 of 5 Eur

Read: Format

Data Digits

(Variable) Checksum Verification: The checksum is made as the sum module 10 of the numerical values of all data digits. Checksum Transmission: By setting Enable, c h ecksum will be transmitted. Max./Min. code length: Refer to Max./Min. code length of Code-39. Truncate leading/ending: Refer to Truncate leading/ending of UPCA.

Code Id setting: Refer to Code ID setting of UPCA. Insertion group selection: R efe r to Insertion group

selection of UPCA.

Checksum

(Optional)

Program

Page 48

Option Bar Code Option Alphanumeric

Entry

Read

Checksum

Verification

Checksum

Transmission

Disable Enable

00 01

Max. code length

Min. code length

Truncate leading

00-64 00-64

00*

0-15 00-15

Page 49

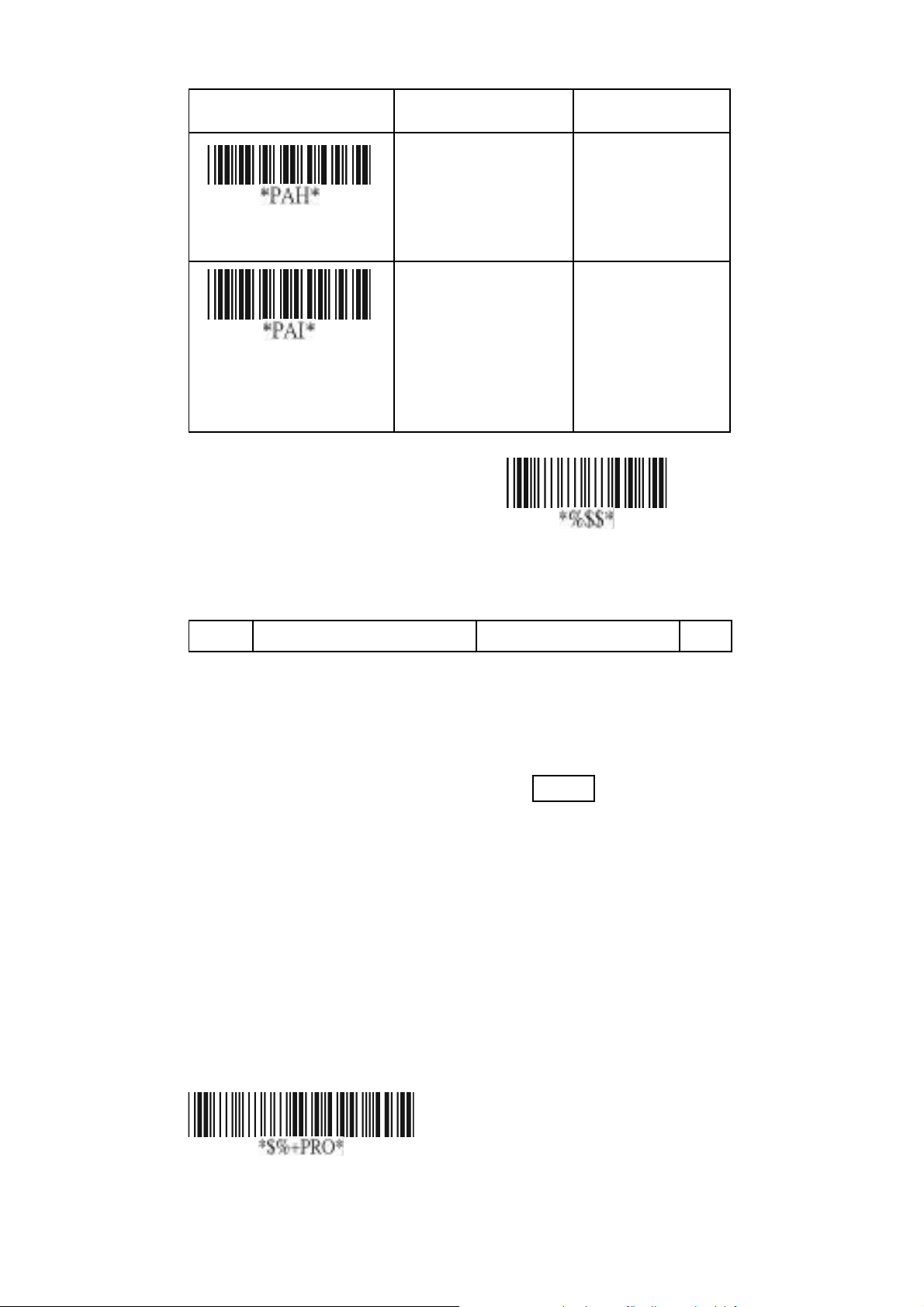

Truncate ending

Code ID setting

Insert group selection

Codabar

Read: Format

00-ffH ASCII code

00-44 00- 44

00- ffH *

Exi

Start Data Digits (Variable) Checksum (Optional) End

Checksum Ve rification: The checksum is made as the sum module 16 of the numerical values of all data digits.

Checksum Transmission: By setting Enable, c h ecksum will be transmitted.

Max./Min. code length: Refer to Max./Min. code length of Code-39.

Trunca te l ead ing/ending: Refer to Truncate leading/ending of UPCA.

Code Id setting: Refer to Code ID setting of UPCA.

Program

Page 50

Option Bar Code Option Alphanumeric

Entry

Read

Checksum Verification

Checksum Transmission

Disable Enable

00 01

Max. code length

Min. code length

Truncate leading

00-64 00-64

00*

0-15 00-15

Page 51

Truncate ending

Code ID setting

Codabar

00-ffH ASCII code

00- ffH < % >*

Exi

Insertion group selection: R efe r to Insertion group

selection of UPCA. Start/End type: The Codabar has four pairs of Start/End pattern; you may select on e pair to ma tc h y o ur application. Start/End Transmission: Refer to Start/End Transmission of Code 39.

Program

Option Bar Code Option Alphanumeric

Entry

00-44 00-44

00*

Insert group selection

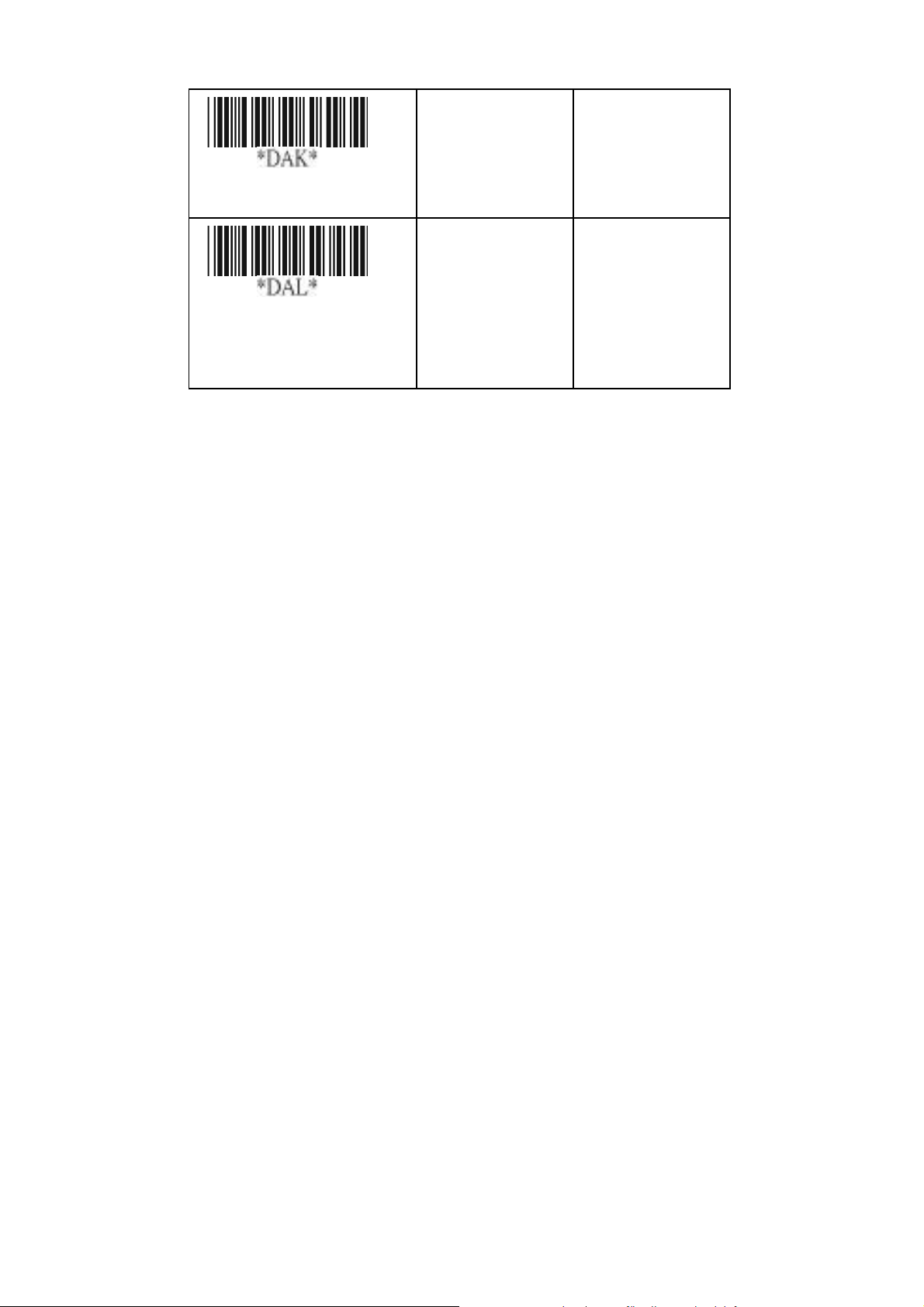

Page 52

ABCD/ABCD

Start/End type

Start/End transmission

Code-128

Read: Format

abcd/abcd ABCD/TN*E Abcd/tn*e Disable Enable

01 02 03

00 01

Exi

Data Digits

(Variable)

Checksum Verification: The checksum is made as the sum module 103 of all data digits.

Checksum Transmission: By setting Enable, c h ecksum will be transmitted.

Program

Option Bar Code Option Alphanumeric

Disable

Checksum

(Optional)

Entry

Enable

Read

Page 53

Disable

Enable Checksum Verification

Disable

Enable

Checksum Transmission

Code-128

Max./Min. code length: Refer to Max./Min. code length of

Code-39.

00 01

Exi

Truncate leading/ending: Refer to Truncate leading/ending

of UPCA.

Code Id setting: Refer to Code ID setting of UPCA. Insertion group selection: R efe r to Insertion group

selection of UPCA. Format: The Code- 128 can be translated to UCC/EAN-128 format if it starts with FNC1 character. The first FNC1 will be trans l a t ed to “]C1”,and next to be a field s eparator code as <GS>(1D ]C1 Data <G S> Data Checksum Append: When the function is enabled, it won't show the

data immediately if scanner read the barcode includes FN C2 code. It will show all data until it read the barcode, which doesn't have FNC2 code. Fie ld separator code: This feature is only used for UCC/EAN-128 format. This Field s eparator code means you

16).

can reassign second or after a FNC1 for your usage. The default of ASCII code is <GS>(1D

Program

16).

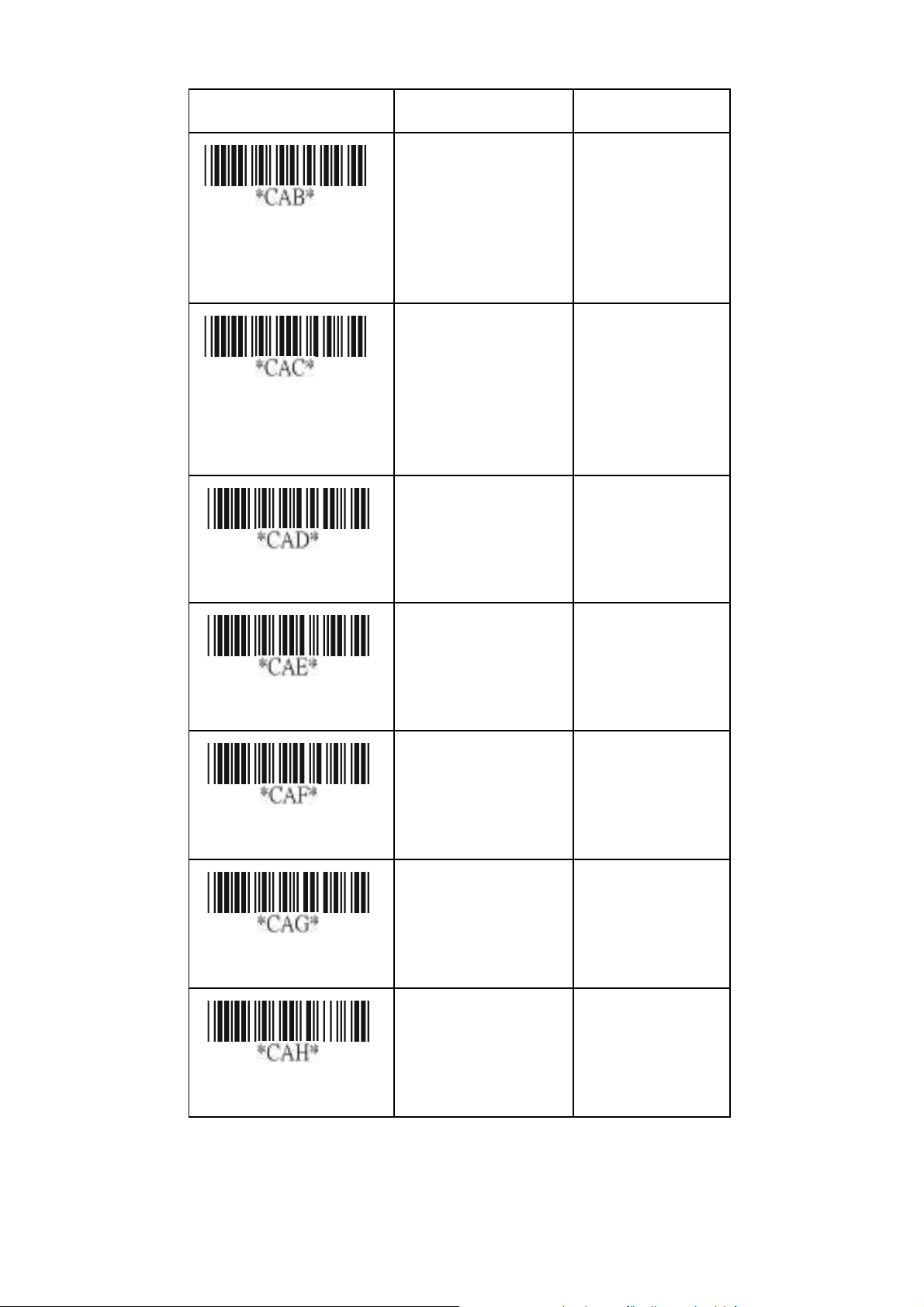

Page 54

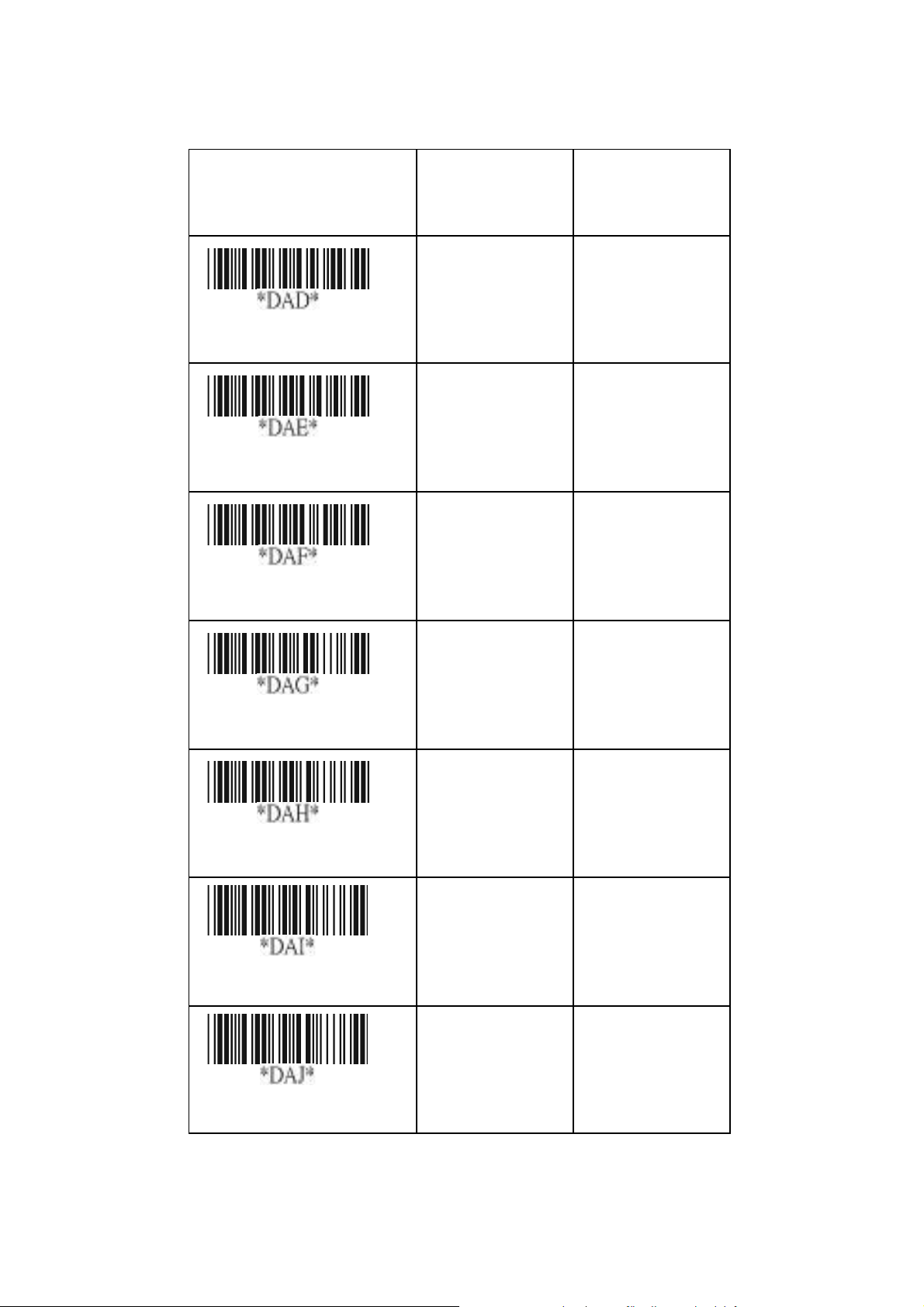

Option Bar Code Option Alphanumeric

Entry

00-64 00-64

00*

Max. code length

00-64 00-64

Min. code length

0-15 00-15

Truncate leading

Truncate ending

Code ID setting

Insert group selection

0-15 00-15

00-ffH ASCII code

00-44 00-44

Standard UCC/EAN-12 8

00-ffH < # >

00*

00 01

Format

Page 55

Disable

Append

UCC/EAN-12 8 ID setting

Enable

00-ffH ASCII code

00-ffH < # >

Page 56

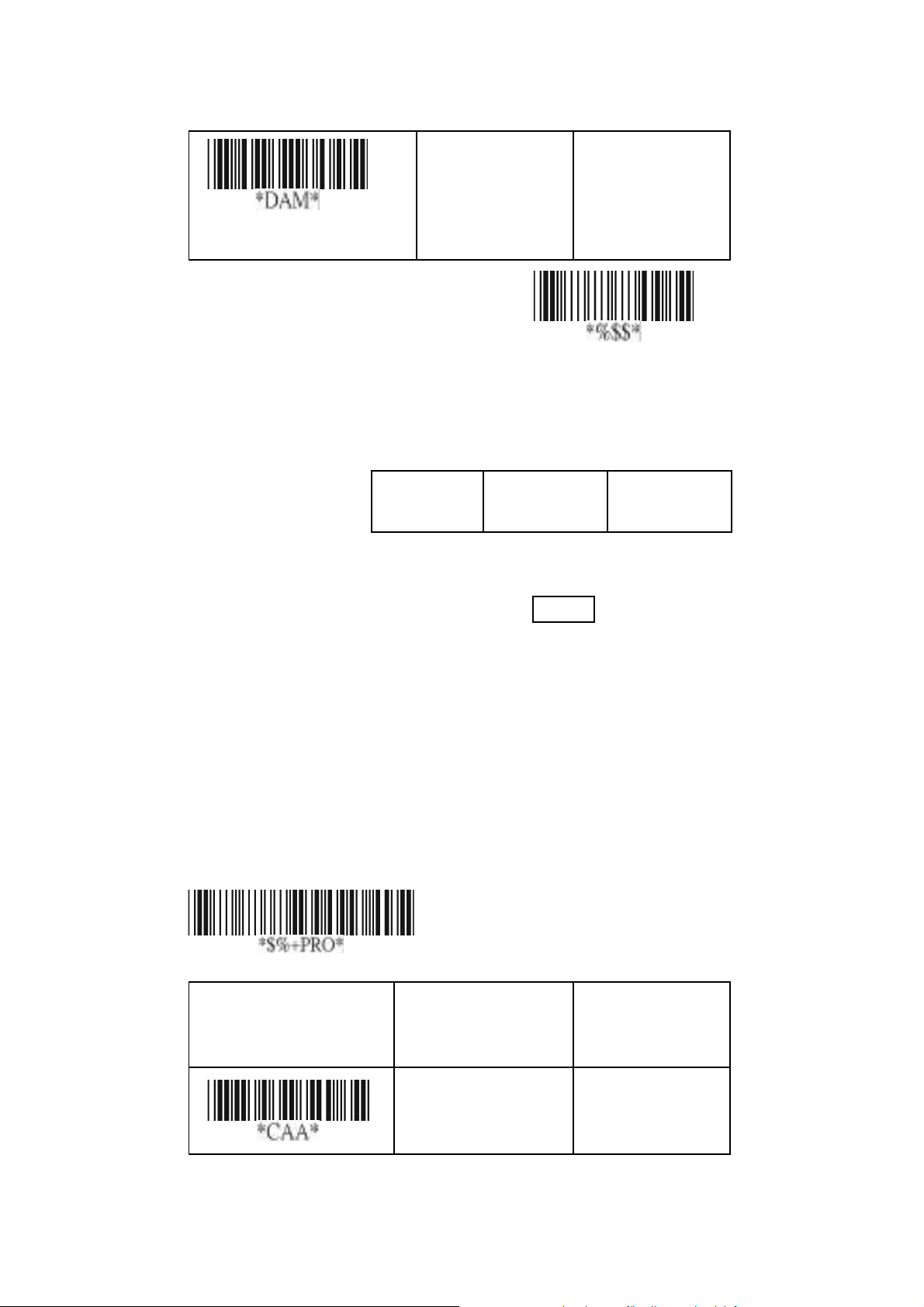

00-ffH ASCII

00- ffH

Field separator code

code

1DH

Exi

Code-93

Read: Format

Data Digits

(Variable) Checksum Verification: The checksum is made as the sum module 47 of the numerical values of all data digits. Checksum Transmission: By setting Enable, c h ecksum will be transmitted.

Checksum1

(Optional)

Checksum2

(Optional)

Max./Min. code length: Refer to Max./Min. code length of Code-39. Truncate leading/ending: Refer to Truncate leading/ending of UPCA.

Code Id setting: Refer to Code ID setting of UPCA. Insertion group selection: R efe r to Insertion group

selection of UPCA.

Program

Option Bar Code Option Alphanumeric

Entry

Disable

Enable

Page 57

Read

Checksum Verification

Checksum Transmission

Max. code length

Disable Enable (t wo digits)

Disable Enable

00-64 00-64

00 01

00*

Min. code length

Truncate leading

Truncate ending

00-64 00-64

00*

0-15 00-15

00-ffH ASCII code

00- ffH < & >

Code ID setting

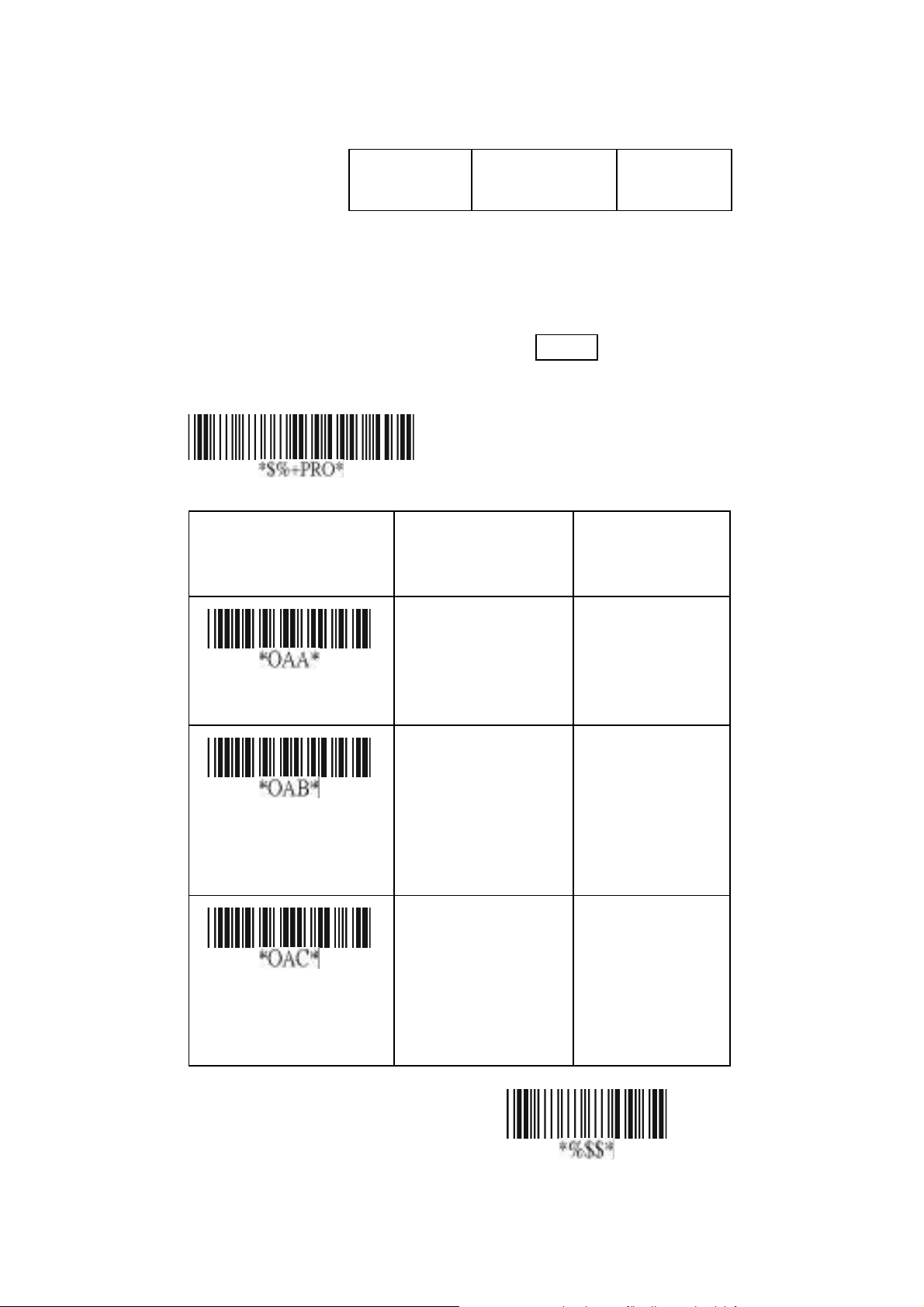

Page 58

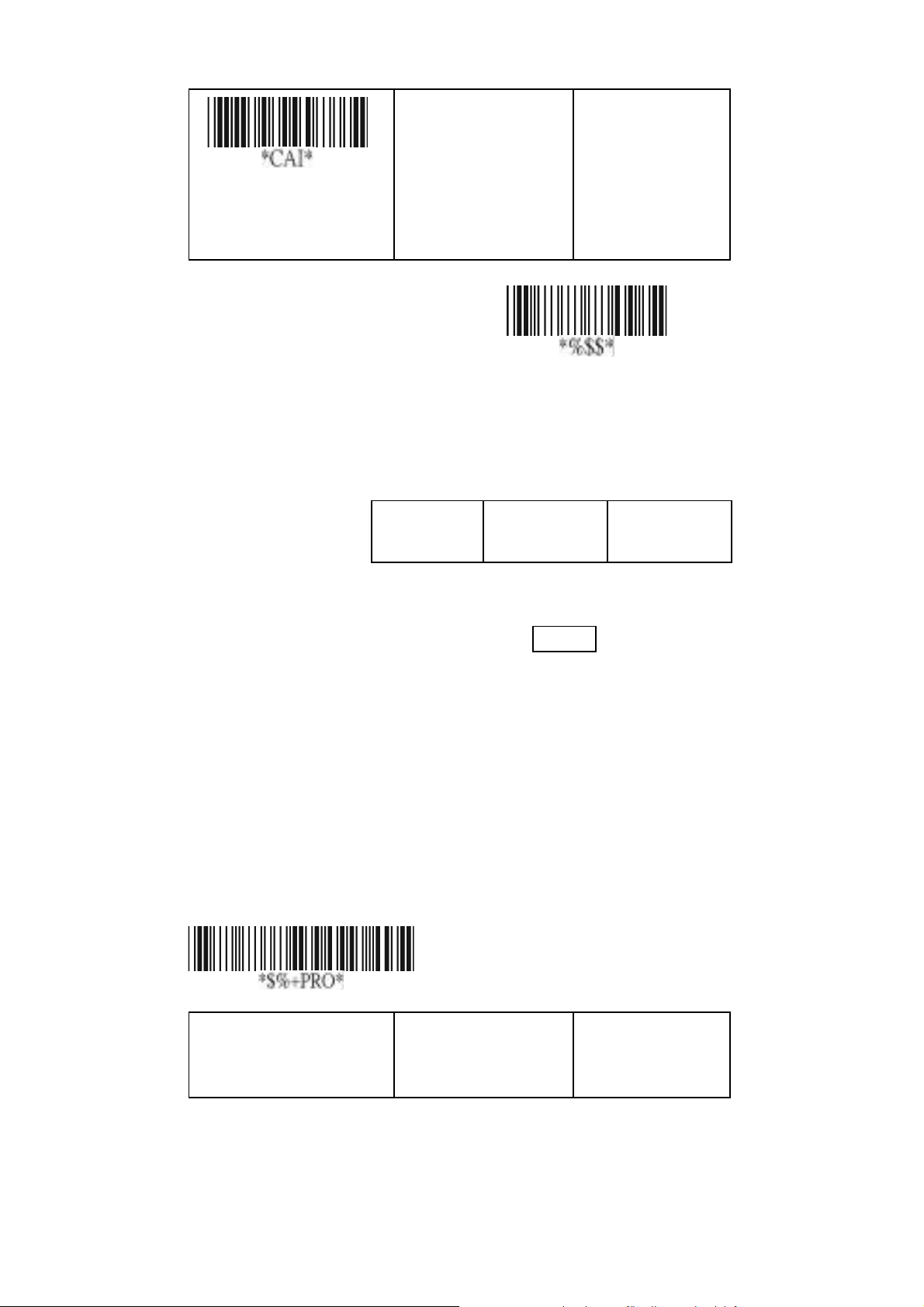

Insert group selection

Code-11

Read: Format

00-44 00-44

Exi

Data Digits

(Variable) Checksum Verification: The checksum is presented as the sum module 11 of all data digits. Checksum Transmission: By setting Enable, checksum1 and checksum2 will be transmitted upon your selected checksum verification method. Max./Min. code length: Refer to Max./Min. code length of Code-39. Truncate leading/ending: Refer to Truncate leading/ending of UPCA.

Code Id setting: Refer to Code ID setting of UPCA. Insertion group selection: R efe r to Insertion group

selection of UPCA.

Checksum1

(Optional)

Checksum2

(Optional)

Program

Option Bar Code Option Alphanumeric

Entry

Page 59

Disable

Read

Checksum Verification

Checksum

Transmission

Enable

Disable One digit Two digits

Disable Enable

00-64 00-64

00 01

Max. code length

Min. code length

Truncate leading

Truncate ending

00-64 00-64

0-15 00-15

00*

00-ffH ASCII code

00-ffH <O>

Page 60

Code ID setting

Insert group selection

MSI/plessey

Read: Format

00-44 00-44

00*

Exi

Data Digits

(Variable) Checksum Verification: The MSI/Plessey has one or two optional checksum digits. The checksum is presented 3 kinds of method Mod10, Mod10/10 and Mod 11/10. The checksum1 and checksum2 will be calculated as the sum module 10 or 11 of the data digits. Checksum Transmission: By setting Enable, checksum1 and chec k s um 2 will be transmitted upon your selected checksum verification method. Max./Min. code length: Refer to Max./Min. code length of Code-39. Truncate leading/ending: Refer to Truncate leading/ending of UPCA.

Code Id setting: Refer to Code ID setting of UPCA . Insertion group selection: R efe r to Insertion group

Checksum1

(Optional)

Checksum2

(Optional)

selection of UPCA.

Program

Page 61

Option Bar Code Option Alphanumeric

Entry

Read

Checksum Verification

Checksum Transmission

Disable Enable

Disable Mod 10 Mod 10/10 Mod 11/10 Disable Enable

00 01

02 03

00 01

Max. code length

Min. code length

Truncate leading

00-64 00-64

00*

00-64 00-64

00*

0-15 00-15

00*

0-15 00-15

00*

Truncate ending

Page 62

00-ffH ASCII

00-ffH

Code ID setting

Insert group selection

UK/plessey

code

00-44 00-44

< @ >

Exi

Read: Format

Data Digits

(Variable) Checksum Verification: The UK/Plessey has one or two optional checksum digits. The checksum1 and checksum2 will be calculated as the sum module 10 or 11 of the data digits. Checksum Transmission: By setting Enable, ch e cksum will be transmitted. Max./Min. code length: Refer to Max./Min. code length of Code-39. Truncate leading/ending: Refer to Truncate leading/ending of UPCA.

Code Id setting: Refer to Code ID setting of UPCA. Insertion group selection: Refe r to Insertion group

Checksum1+2

(Optional)

selection of UPCA.

Program

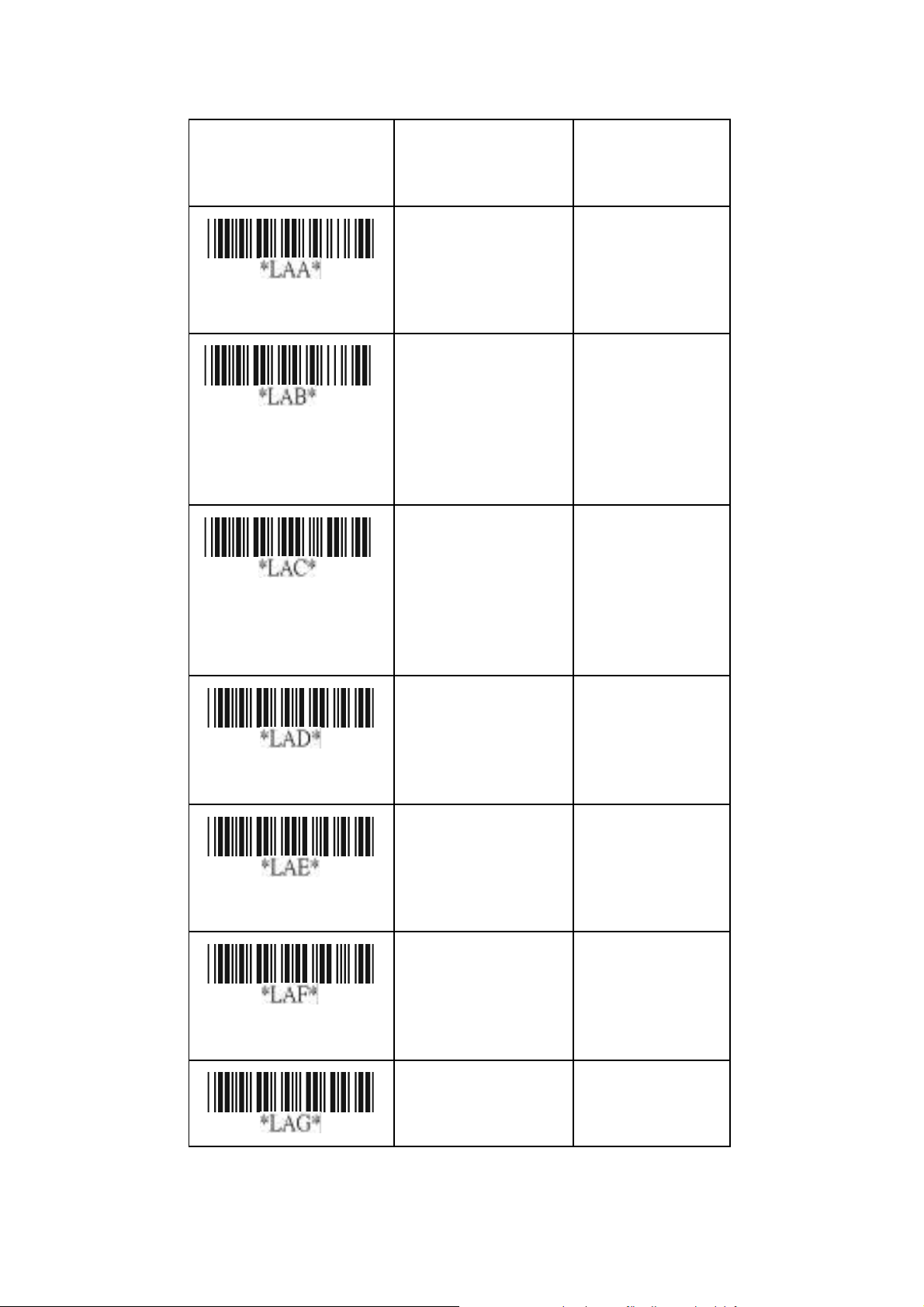

Page 63

Option Bar Code Option Alphanumeric

Entry

Read

Checksum Verification

Checksum Transmission

Disable Enable

00 01

Max. code length

Min. code length

Truncate leading

00-64 00-64

00*

0-15 00-15

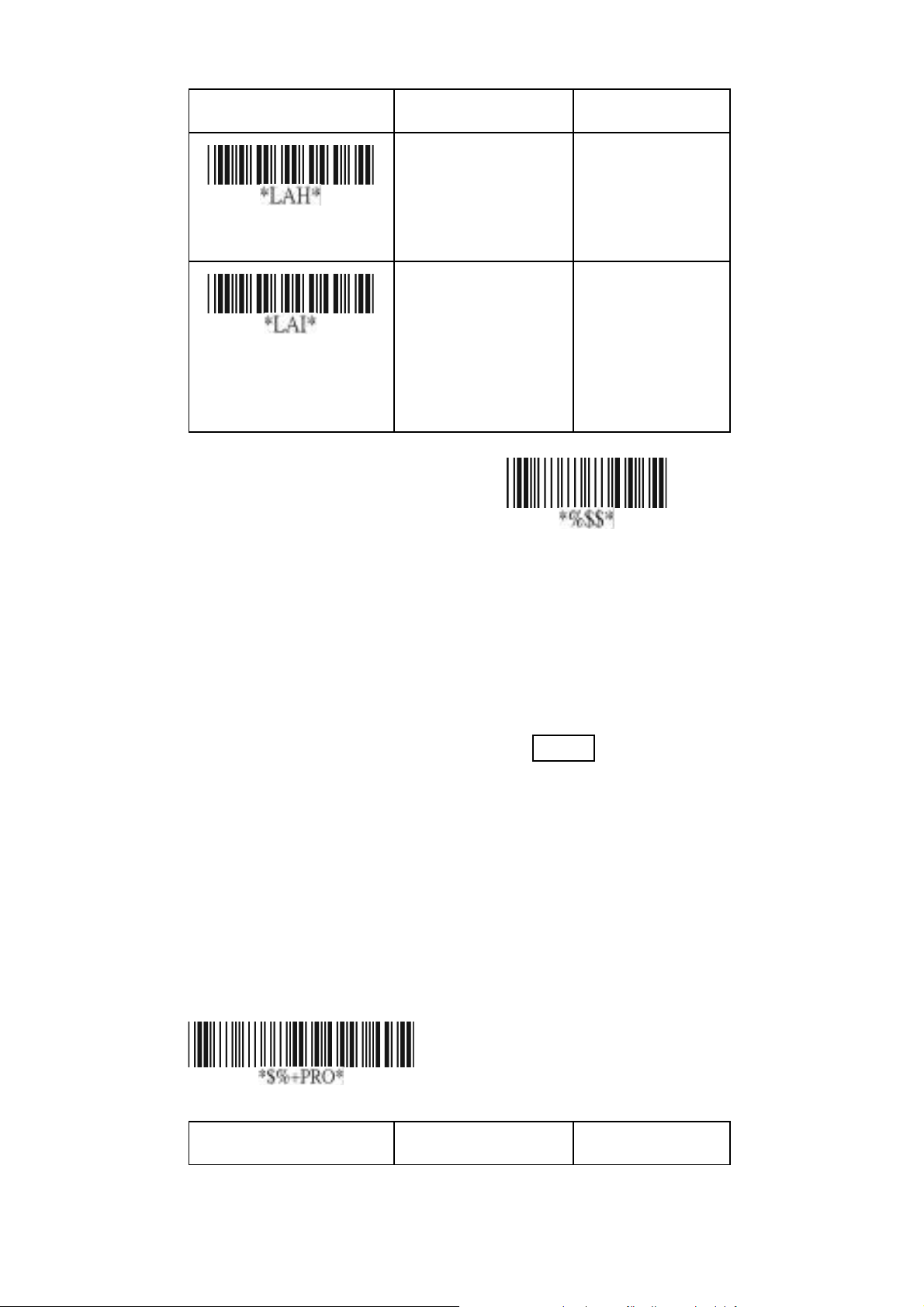

Page 64

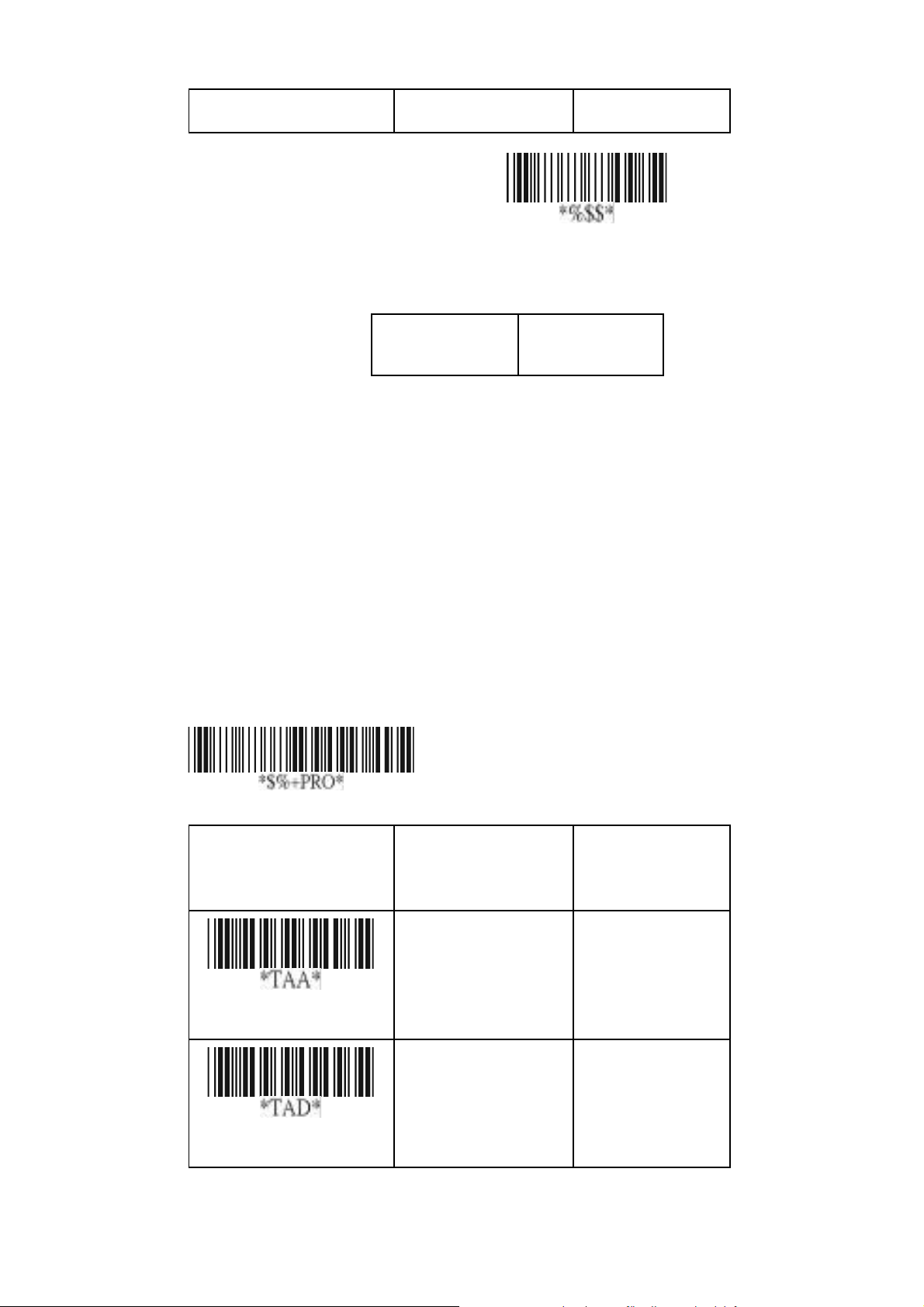

Truncate ending

Code ID setting

Insert group selection

Telepen

00-ffH ASCII code

00-44 00-44

00-ffH <@ >*

Exi

Read: IATA (International Air Transport Association). Checksum Verification: The checksum is presented as the

sum module 10 or 11 of the data digits. Checksum Transmission: By setting Enable, ch ecksum will be transmitted. Max./Min. code length: Refer to Max./Min. code length of Code-39. Truncate leading/ending: Refer to Truncate leading/ending of UPCA.

Code Id setting: Refer to Code ID setting of UPCA. Insertion group selection: Refe r to Insertion group

selection of UPCA.

Program

Option Bar Code Option Alphanumeric

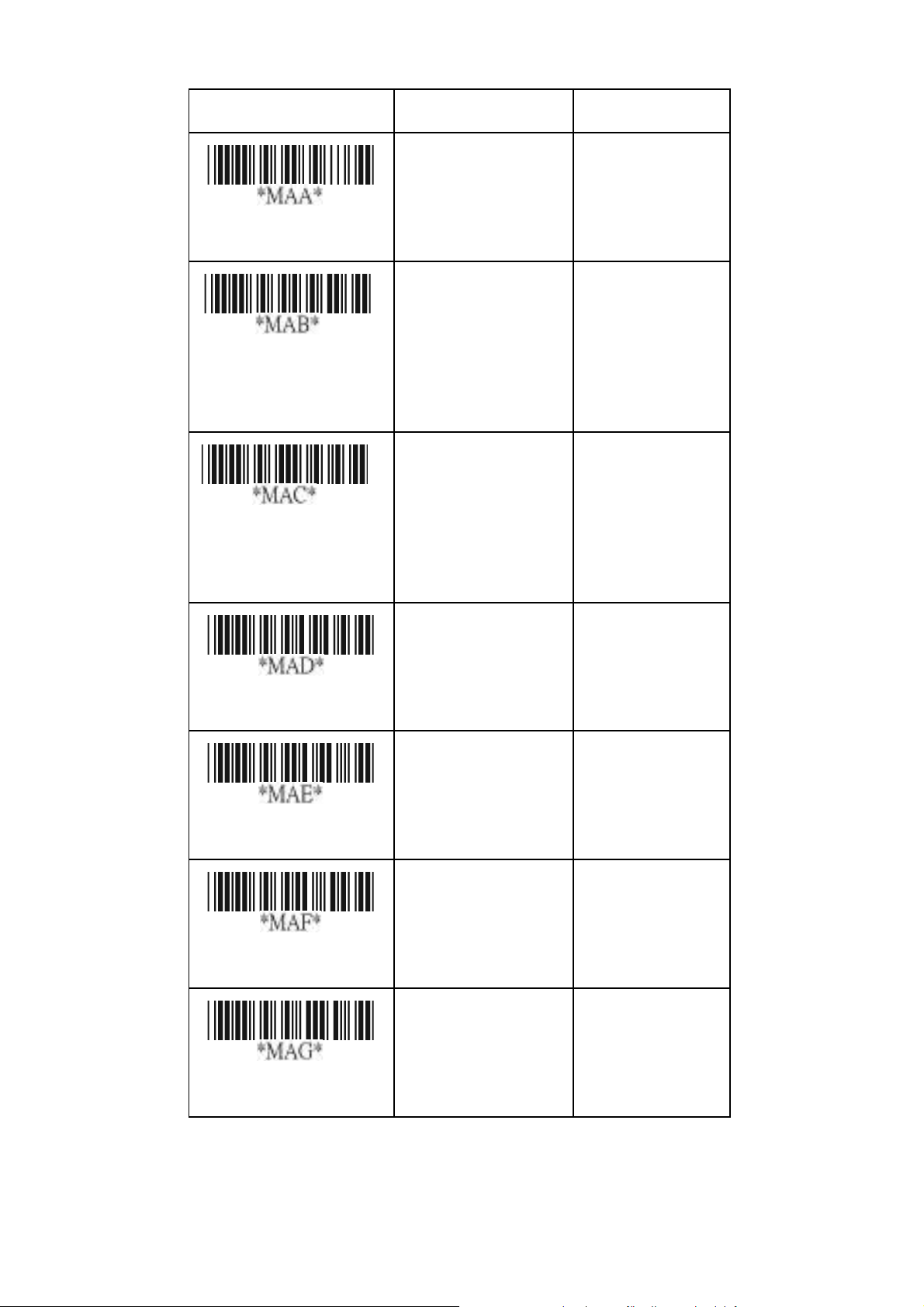

Page 65

Entry

Read

Checksum

Verification

Checksum Transmission

Disable Enable

00 01

Max. code length

Min. code length

Truncate leading

00-64 00-64

00*

00-64 00-64

0-15 00-15

Truncate ending

Page 66

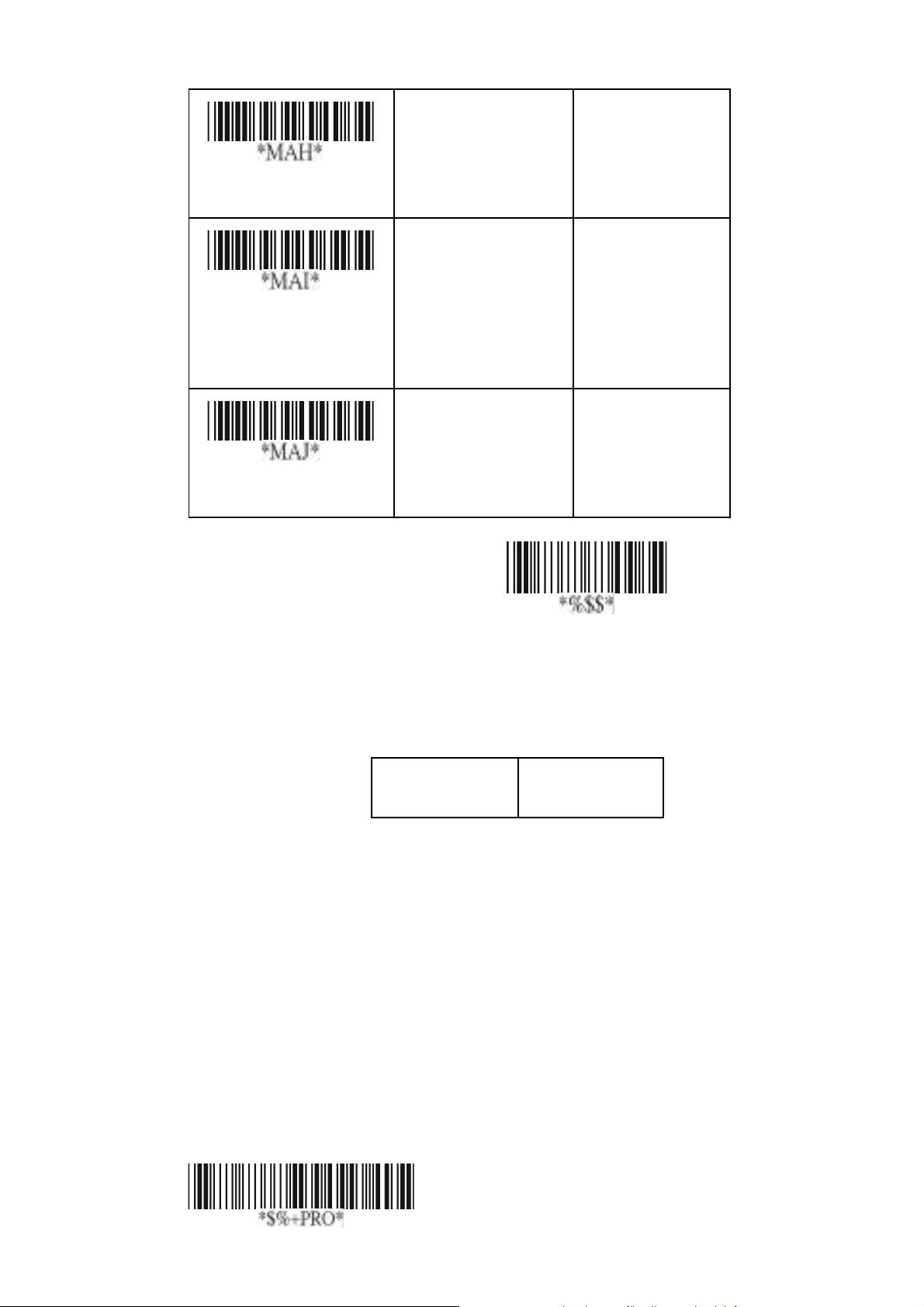

00-ffH ASCII

00-ffH

Code ID setting

Insert group selection

Format

code

00-44 00-44

Numeric only Full ASCII only

<S >

00* 01

Exi

Standard 2 of 5

Read: Format

Data Digits

(Variable)

Max./Min. code length: Refer to Max./Min. code length of Code-39.

Truncate leading/ending: Refer to Truncate leading/ending of UPCA.

Code Id setting: Refer to Code ID setting of UPCA.

Insertion group selection: R efe r to Insertion group

Checksum1

(Optional)

selection of UPCA.

Program

Page 67

Option Bar Code Option Alph an u meric

Entry

Read

Max. code length

Min. code length

Disable Enable

00-64 00-64

0-15 00-15

00 01

00*

Truncate leading

Truncate ending

Code ID setting

Insert group

0-15 00-15

00-ffH ASCII code

00-44 00-44

00-ffH

00*

Page 68

selection

RSS-14

Exi

Read: Format

Data Digits

(Variable) Max./Min. code length: Refer to Max./Min. code length of Code-39. Truncate leading/ending: Refer to Truncate leading/ending of UPCA.

Code Id setting: Refer to Code ID setting of UPCA. Insertion group selection: R efe r to Insertion group

selection of UPCA. UCC/EAN 128 emulation: Refer to Transmission (P89), Code ID transmission must be set as AIM ID enable. Then ]C1 will be identified as prefix of barcode data

Checksum1

(Optional)

transmission.

Program

Option Bar Code Option Alphanumeric

Entry

Disable Enable

Read

00-64 00-64

00 01

Max. code length

Page 69

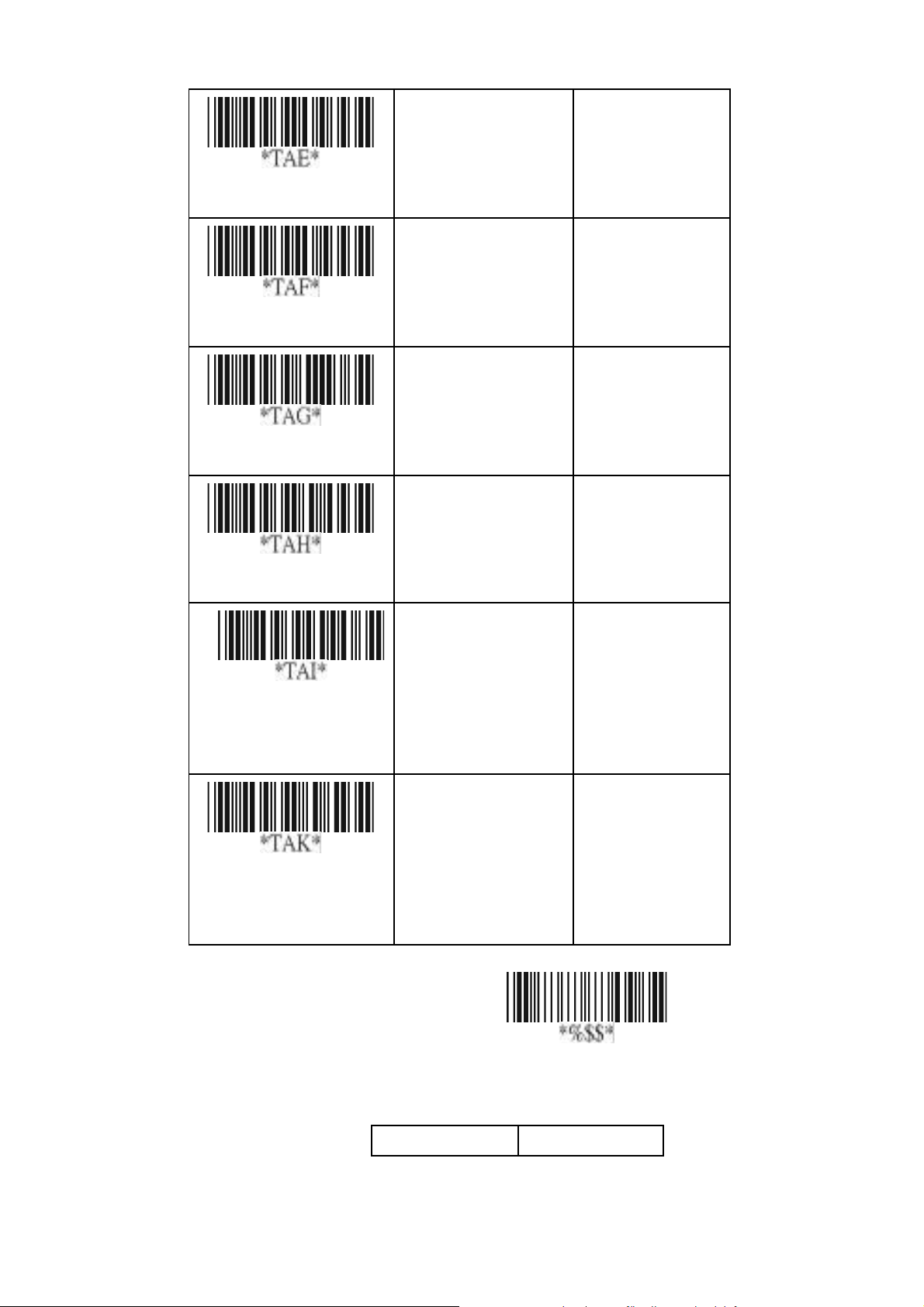

Min. code length

Truncate leading

Truncate ending

00-64 00-64

0-15 00-15

00*

Code ID setting

Insert group selection

UCC/EAN128 emulation

00-ffH ASCII code

00-44 00-44

Disable Enable

00-ffH < R4 >*

00*

00 01

RSS-Limited

Read: Format

Data Digits Checksum1

Exi

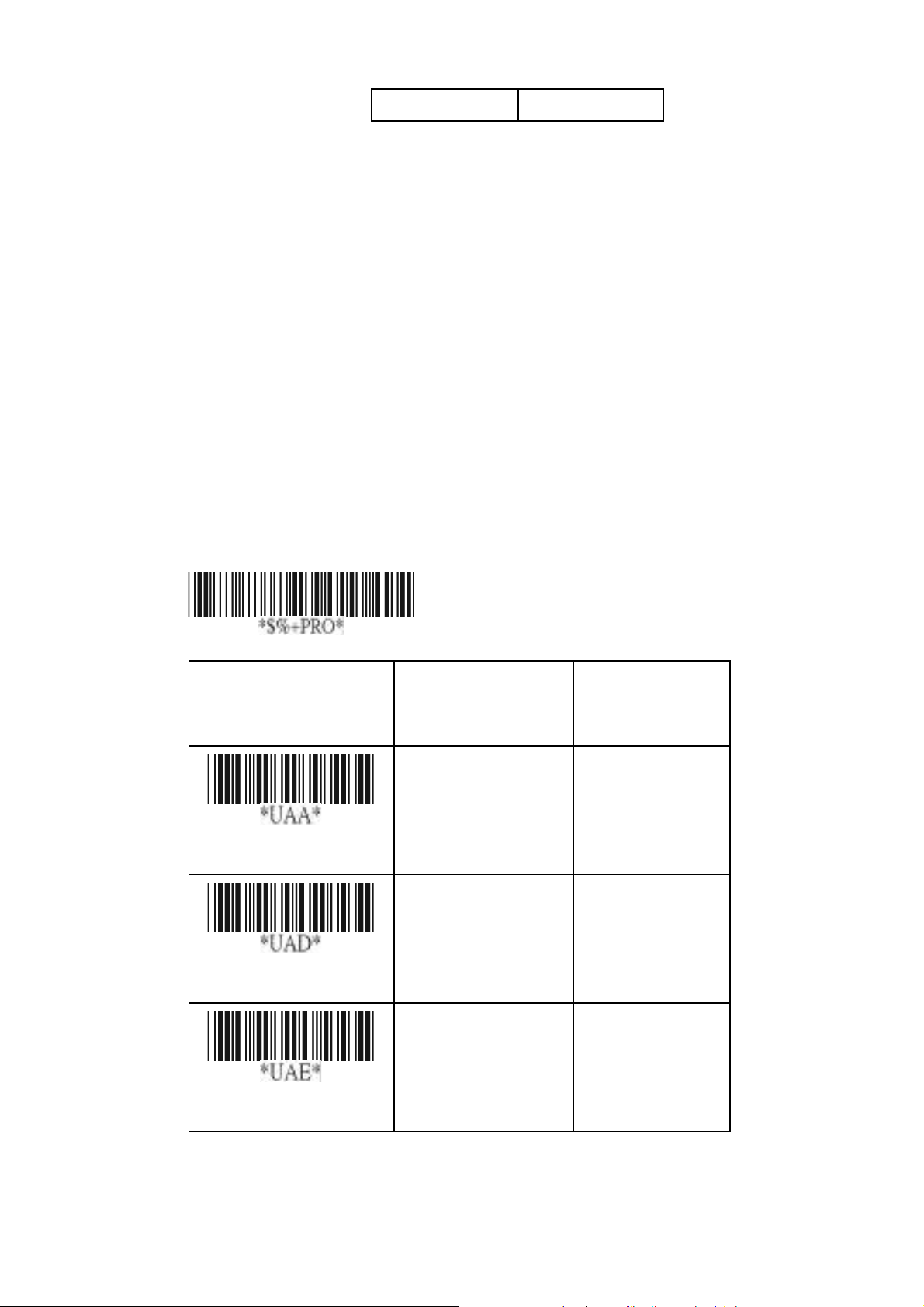

Page 70

(Variable) (Optional)

Max./Min. code length: Refer to Max./Min. code length of Code-39.

Truncate leading/ending: Refer to Truncate leading/ending of UPCA.

Code Id setting: Refer to Code ID setting of UPCA.

Insertion group selection: R efe r to Insertion group

selection of UPCA.

UCC/EAN 128 emulation: Refer to UCC/EAN 128 emulation of RSS -14.

Program

Option Bar Code Option Alphanumeric

Entry

Disable Enable

Read

00-64 00-64

Max. code length

00-64 00-64

00 01

Min. code length

Page 71

Truncate leading

Truncate ending

0-15 00-15

Code ID setting

Insert group selection

UCC/EAN128 emulation

00-ffH ASCII code

00-44 00-44

Disable Enable

00-ffH < RL >*

00*

00 01

Exi

RSS-Expanded

Read: Format

Data Digits

(Variable)

Checksum1

(Optional)

Page 72

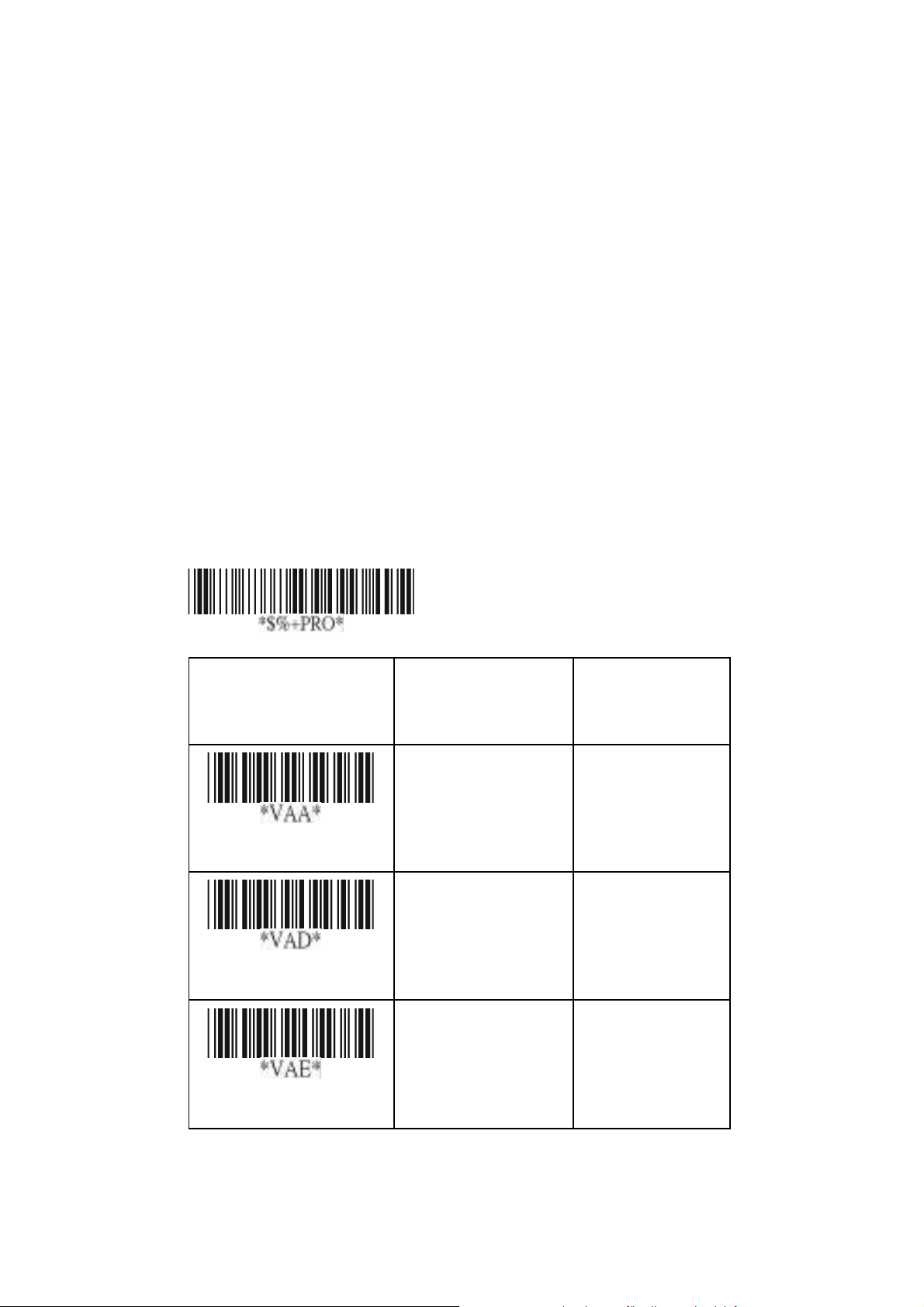

Max./Min. code length: Refer to Max./Min. code length of Code-39.

Truncate leading/ending: Refer to Truncate leading/ending of UPCA.

Code Id setting: Refer to Code ID setting of UPCA.

Insertion group selection: R efe r to Insertion group

selection of UPCA.

UCC/EAN 128 emulation: Refer to UCC/EAN 128 emulation of RSS -14.

Program

Option Bar Code Option Alphanumeric

Entry

Disable Enable

Read

00-64 00-99

Max. code length

00-64 00-99

00 01

Min. code length

Page 73

Truncate leading

Truncate ending

0-15 00-15

Code ID setting

Insert group selection

UCC/EAN128 emulation

00-ffH ASCII code

00-44 00-44

Disable Enable

00-ffH < RX >*

00*

00 01

Exi

China Post

Read: Format

Data Digits

(Variable)

Checksum1

(Optional)

Page 74

Max./Min. code length: Refer to Max./Min. code length of Code-39.

Truncate leading/ending: Refer to Truncate leading/ending of UPCA.

Code Id setting: Refer to Code ID setting of UPCA.

Insertion group selection: R efe r to Insertion group

selection of UPCA.

Program

Option Bar Code Option Alphanumeric

Read

Max. code length

Min. code length

Entry

Disable Enable

00-64 00-64

0-15 00-15

00 01

11*

Truncate leading

Page 75

Truncate ending

0-15 00-15

Code ID setting

Insert group selection

00-ffH ASCII code

00-44 01-44

00- ffH < t >

Exi

Italian Pharmacode

Read: Format

Data Digi t s Checksum1

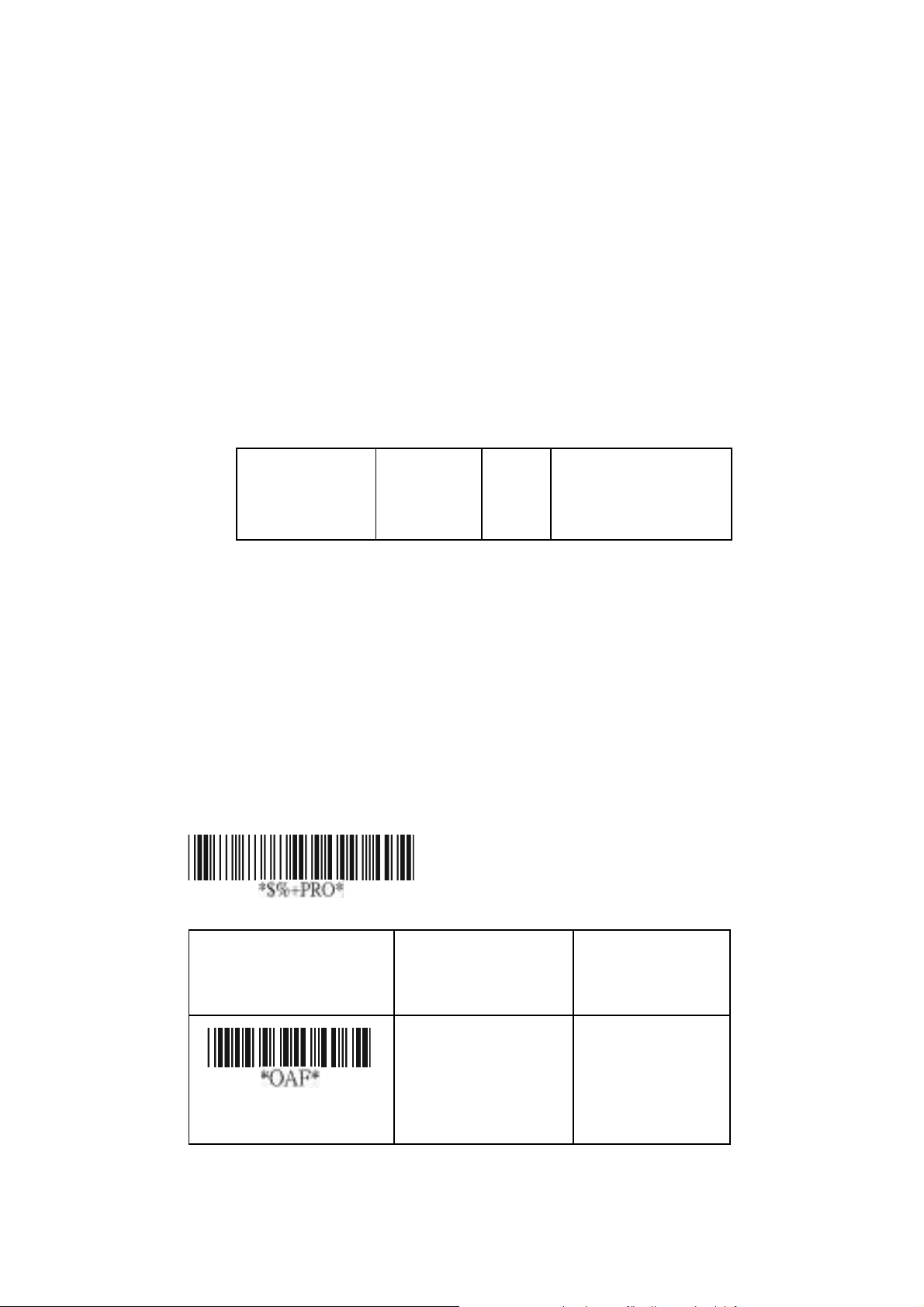

Page 76

(Variable) (Optional)

Max./Min. code length: Refer to Max./Min. code length of Code-39.

Truncate leading/ending: Refer to Truncate leading/ending of UPCA.

Code Id setting: Refer to Code ID setting of UPCA.

Insertion group selection: Re fe r to Insertion group

selection of UPCA.

Leading “A”: If this function is enabled, each prefix of data shall be A.

Program

Option Bar Code Option Alphanumeric

Entry

Disable Enable

Read

00-64 00-64

Max. code length

00-64 00-64

00 01

Min. code length

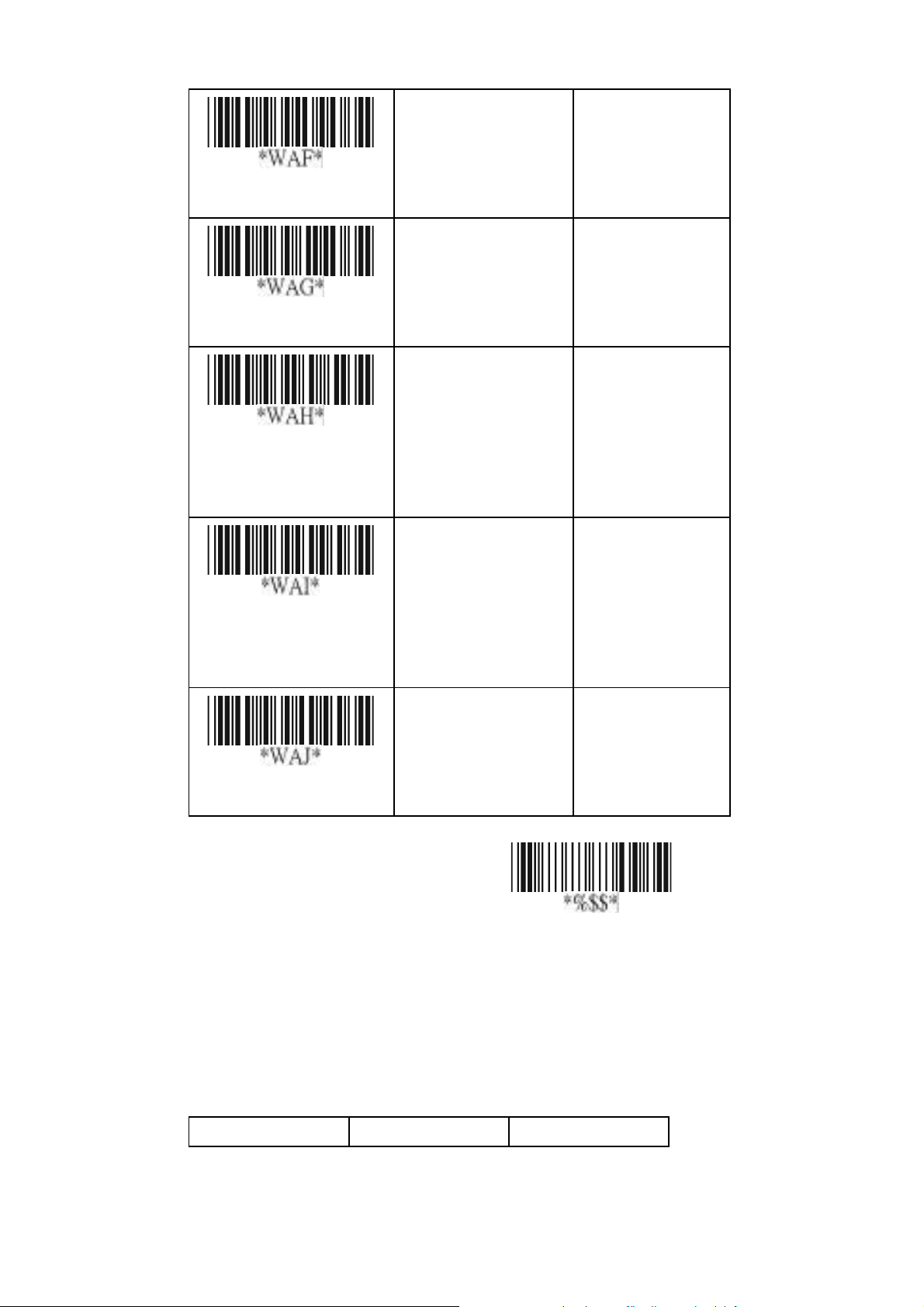

Page 77

Truncate leading

Truncate ending

0-15 00-15

Code ID setting

Insert group selection

Leading “A”

00-ffH ASCII code

00-44 00-44

Disable Enable

01-ffH *

00 01

Exi

String setting

Prefix characters: Up to 22 ASCII characters may be sent

before data digits.

Prefix Data Digits Suffix

Suffix characters: Up to 22 ASCII characters may be sent

Page 78

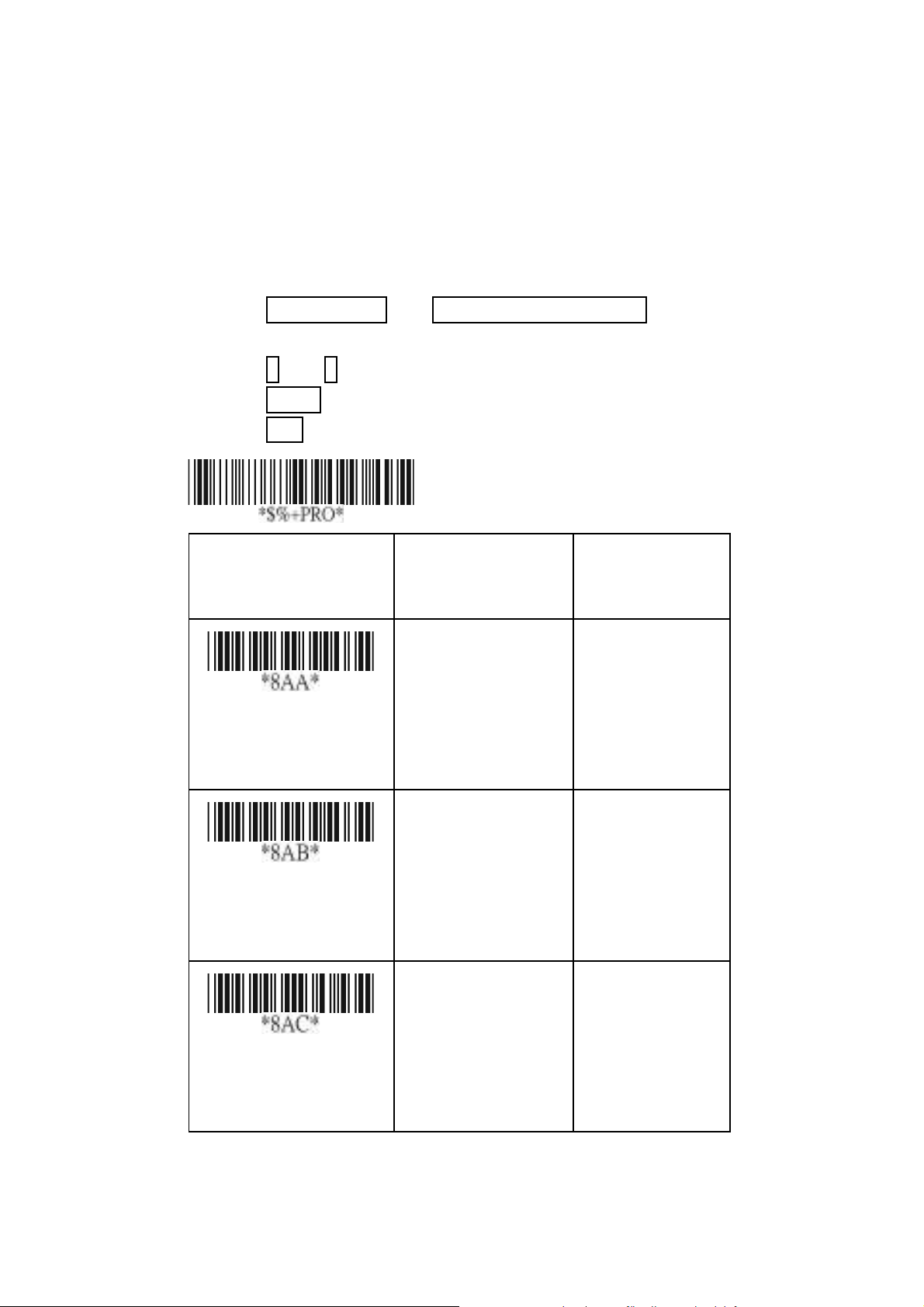

after data digits. Preamble/ Postamble characters: They are appended to the data automatically when each barcode is decoded. Example: Add a prefix/suffix or preamble/postamble for all symbologies. In this example, you are sending a $ symbol as a prefix for all symbologies.

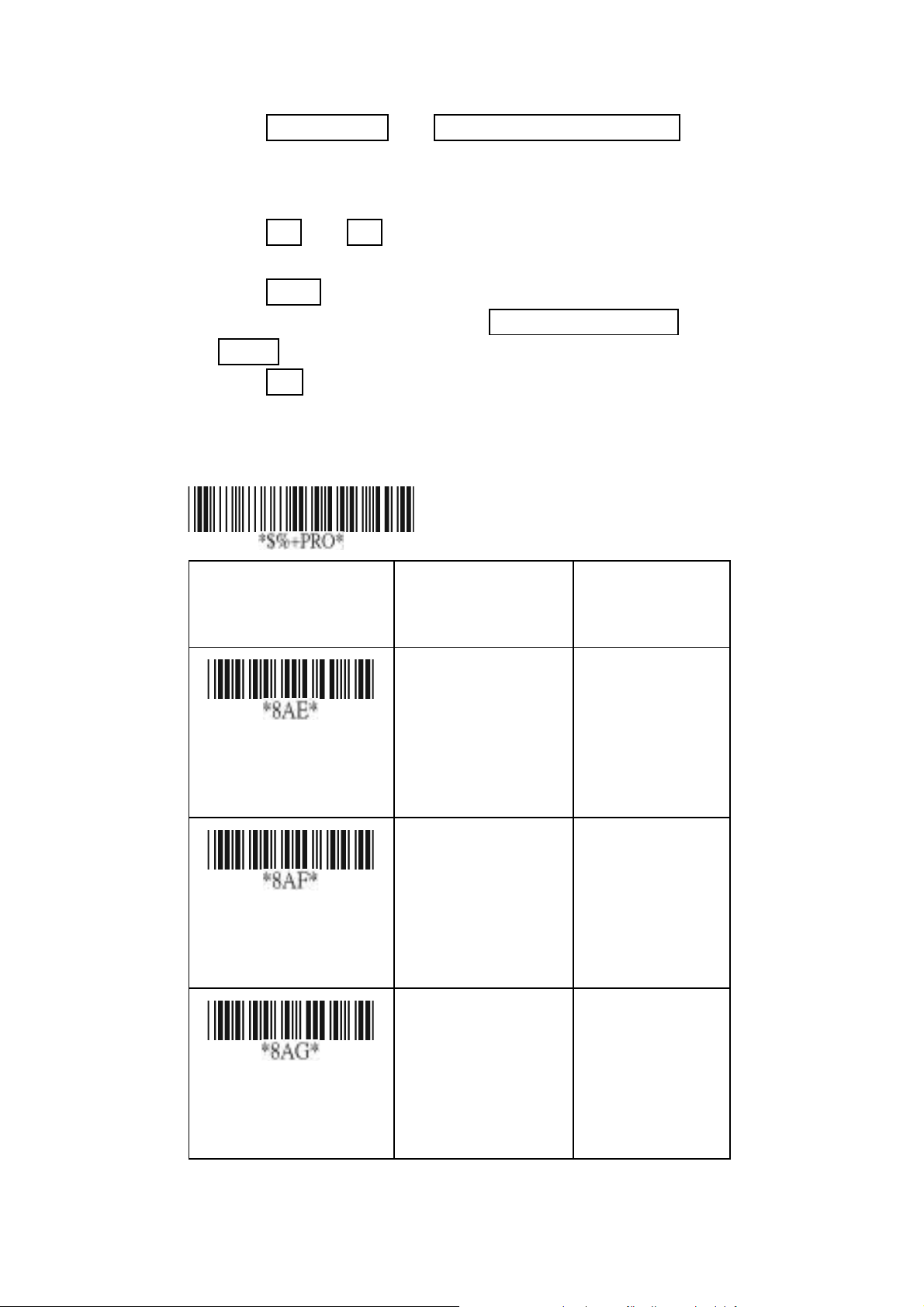

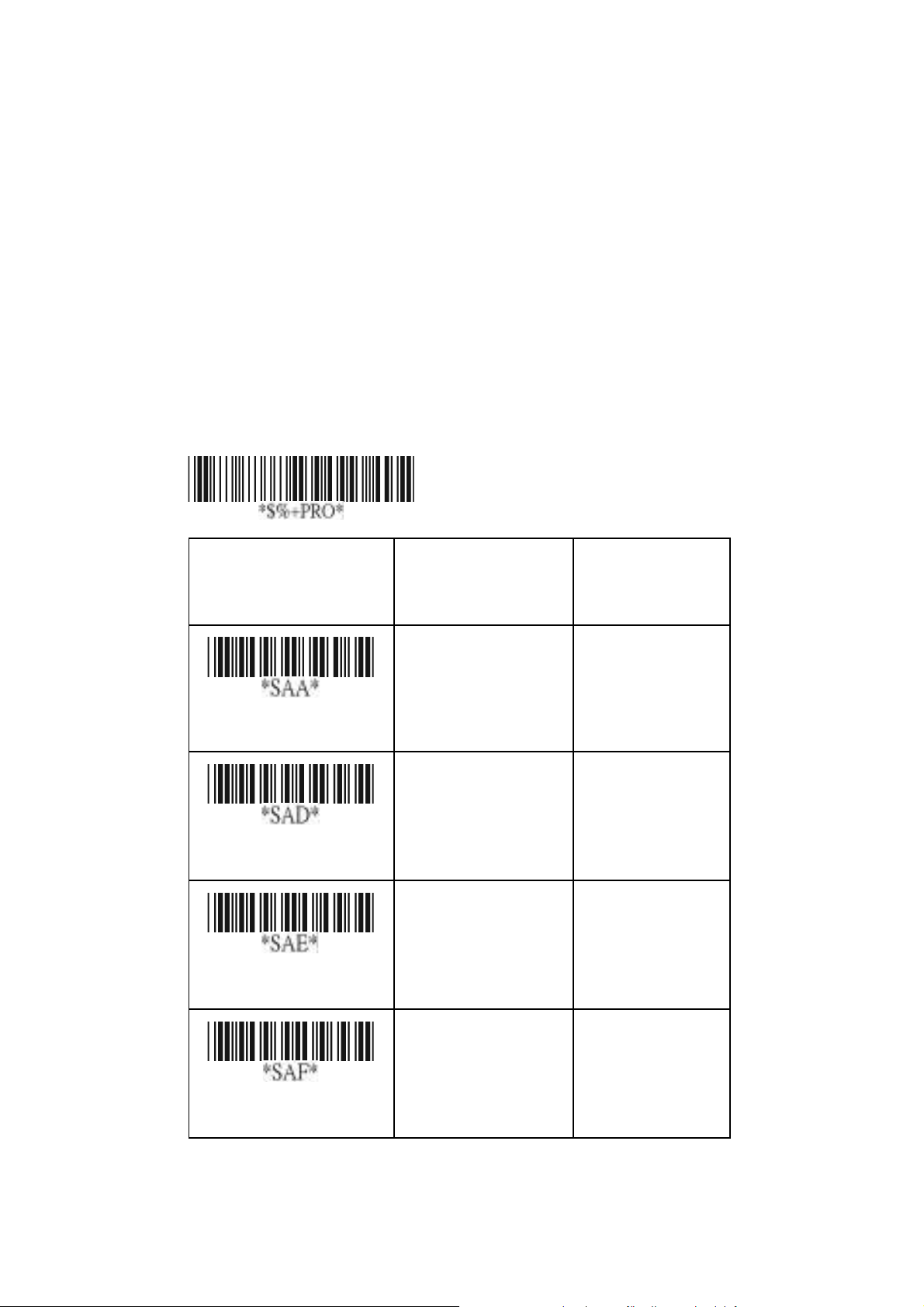

Steps:

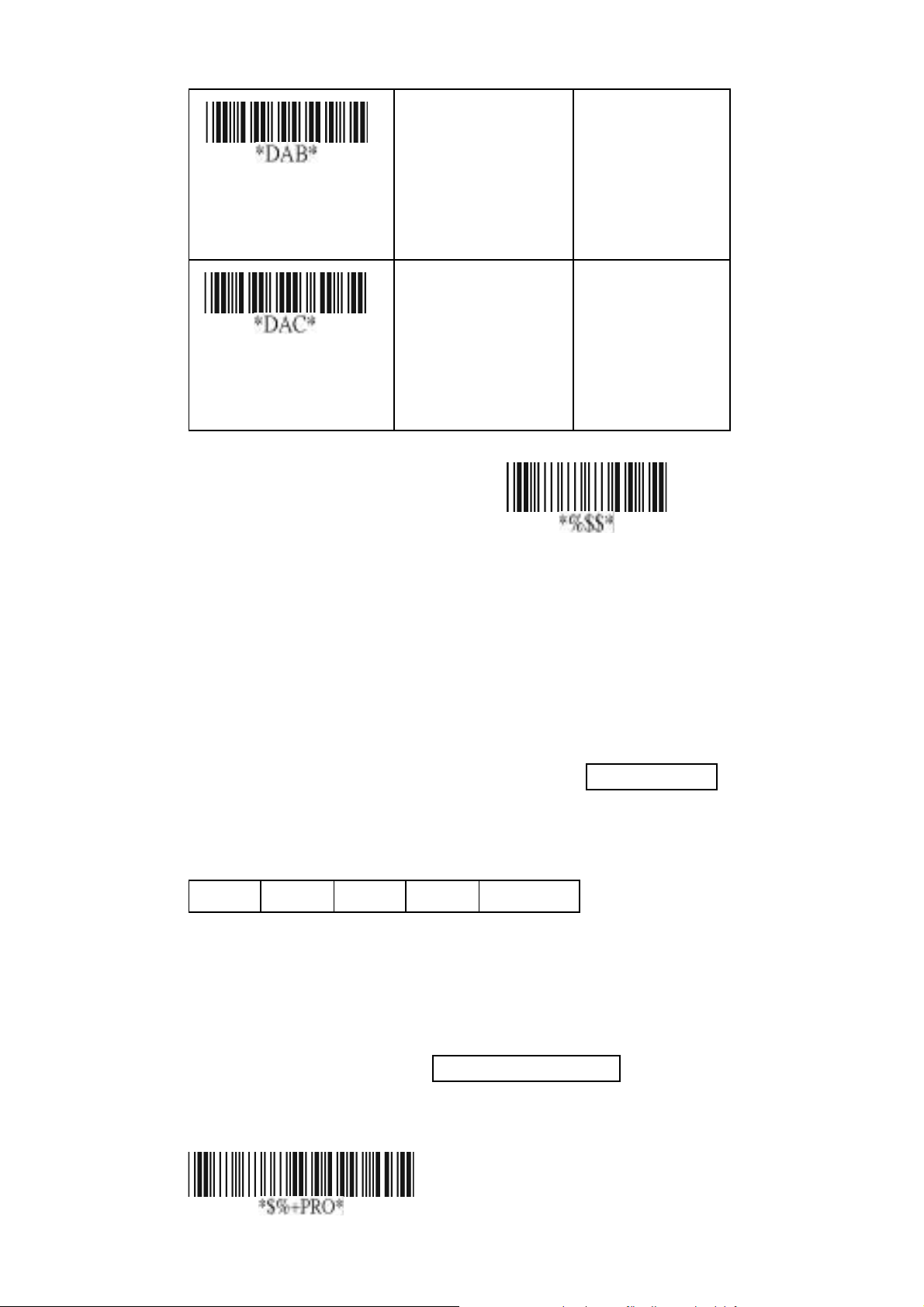

1) Scan Programming and Prefix characters setting barcode.

2) Use the ASCII code table to find the value of $→24.

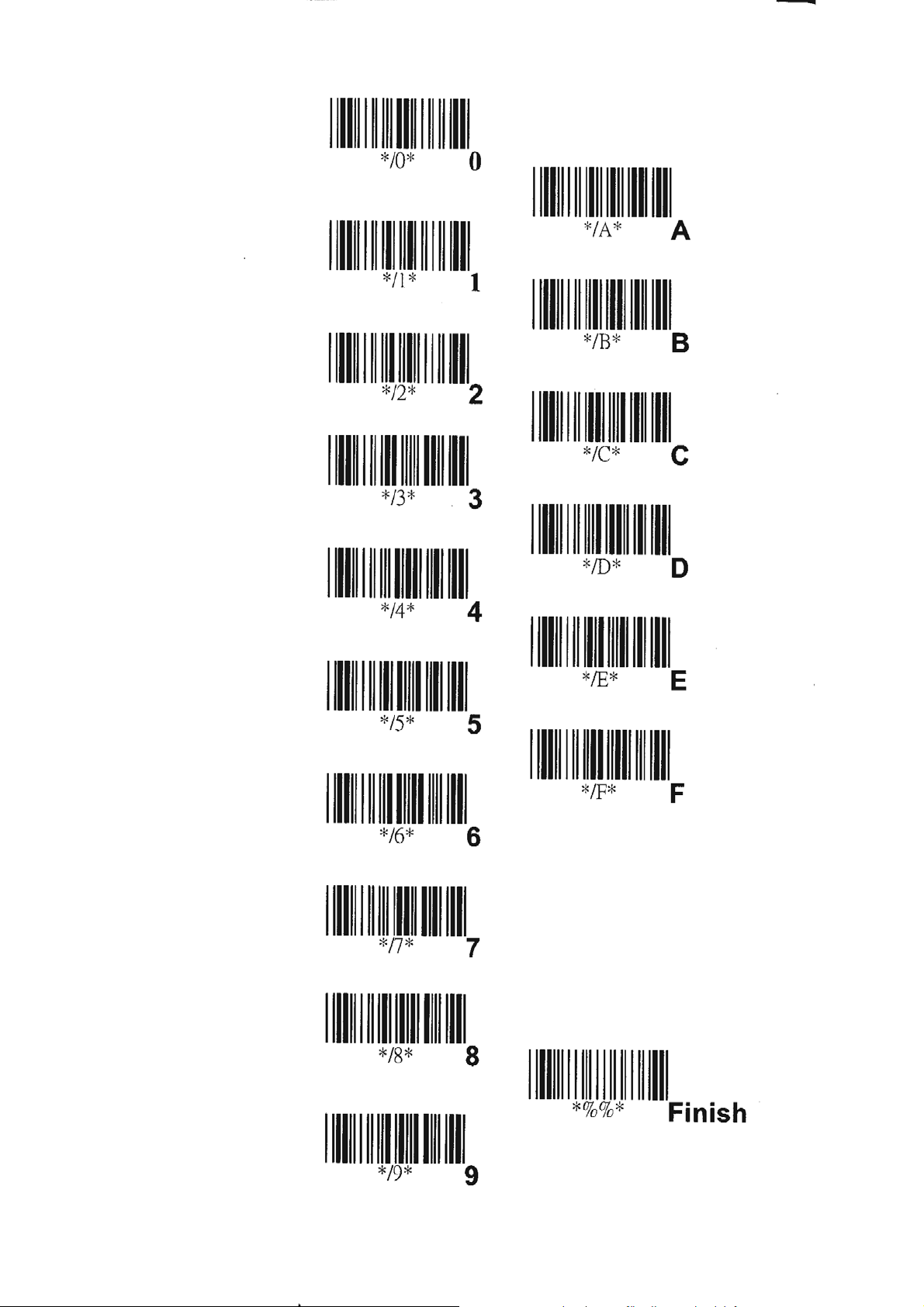

3) Scan 2 and 4 from the barcode on the fold out back page.

4) Scan Finish from the barcode on the fold out page.

5) Scan Exit barcode.

Program

Option Bar Code Option Alphanumeric

Entry

None

1-22 characters Prefix characters setting

None

1-22 characters Suffix characters setting

None

00 00-ffH ASCII code

0D 00-ffH ASCII code

Preamble characters setting

1-22 characters

00-ffH ASCII code

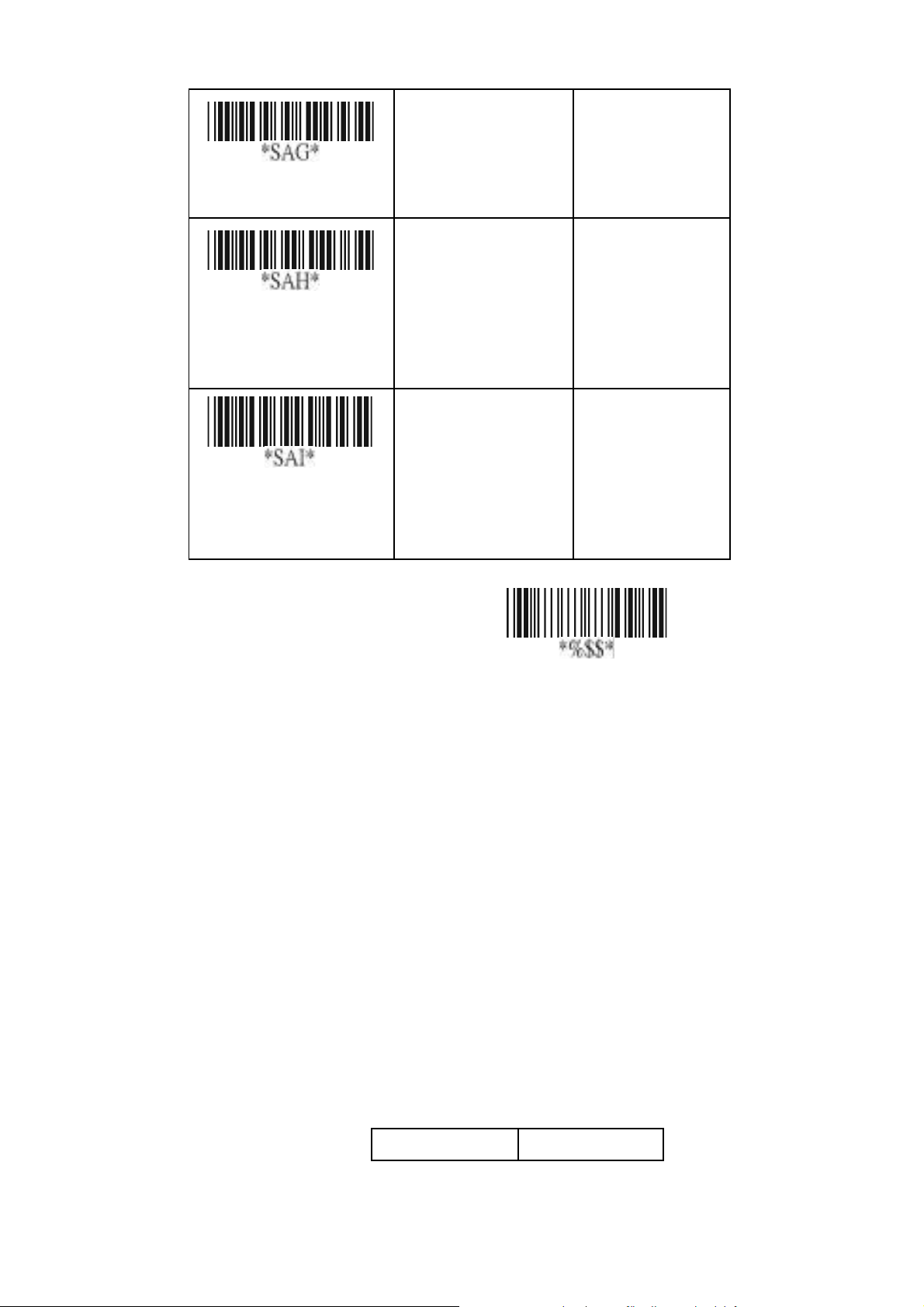

Page 79

None

Postamble characters setting

Insert G1 characters setting

Insert G2 characters setting

1-22 characters

None

1-22 characters

None

1-22 characters

00-ffH ASCII code

00 00-ffH ASCII code

00-ffH ASCII code

Insert G3 characters setting

Insert G4 characters setting

String setting

None

1-22 characters

None

1-22 characters

00 00-ffH ASCII

code

00 00-ffH ASCII

code

Exi

Insert G1/G2/G3/G4 character setting: The scanner offer 4

positions and 4 characters to insert among the symbol. Example: Barcode “1 2 3 4 5 6”.

Output- Barcode “1 2 A B 3 4 C D 5 6”.

Page 80

Step s:

1) Scan Programming and Insert G1 cha racters setting barcode.

2) Use the ASCII code table to find the value of A →41,B→

42.

3) Scan 4, 1 and 4, 2 from the barcode on the fold out back page.

4) Scan Finish from the barcode on the fold out page.

5) Repeat the s am e p ro c edure in Insert G2 characters

setting.

6) Scan Exit barcode.

7) Insert data group 1-4 position. Please refer to Chapter-

Transmission, page 65 and in specific barcode that you want to use.

Program

Option Bar Code Option Alphanumeric

Entry

None

1-22 characters Insert G1 characters setting

None

1-22 characters Insert G2 characters setting

None

00 00-ffH ASCII

code

00 00-ffH ASCII

code

Insert G3 characters setting

1-22 characters

00-ffH ASCII code

Page 81

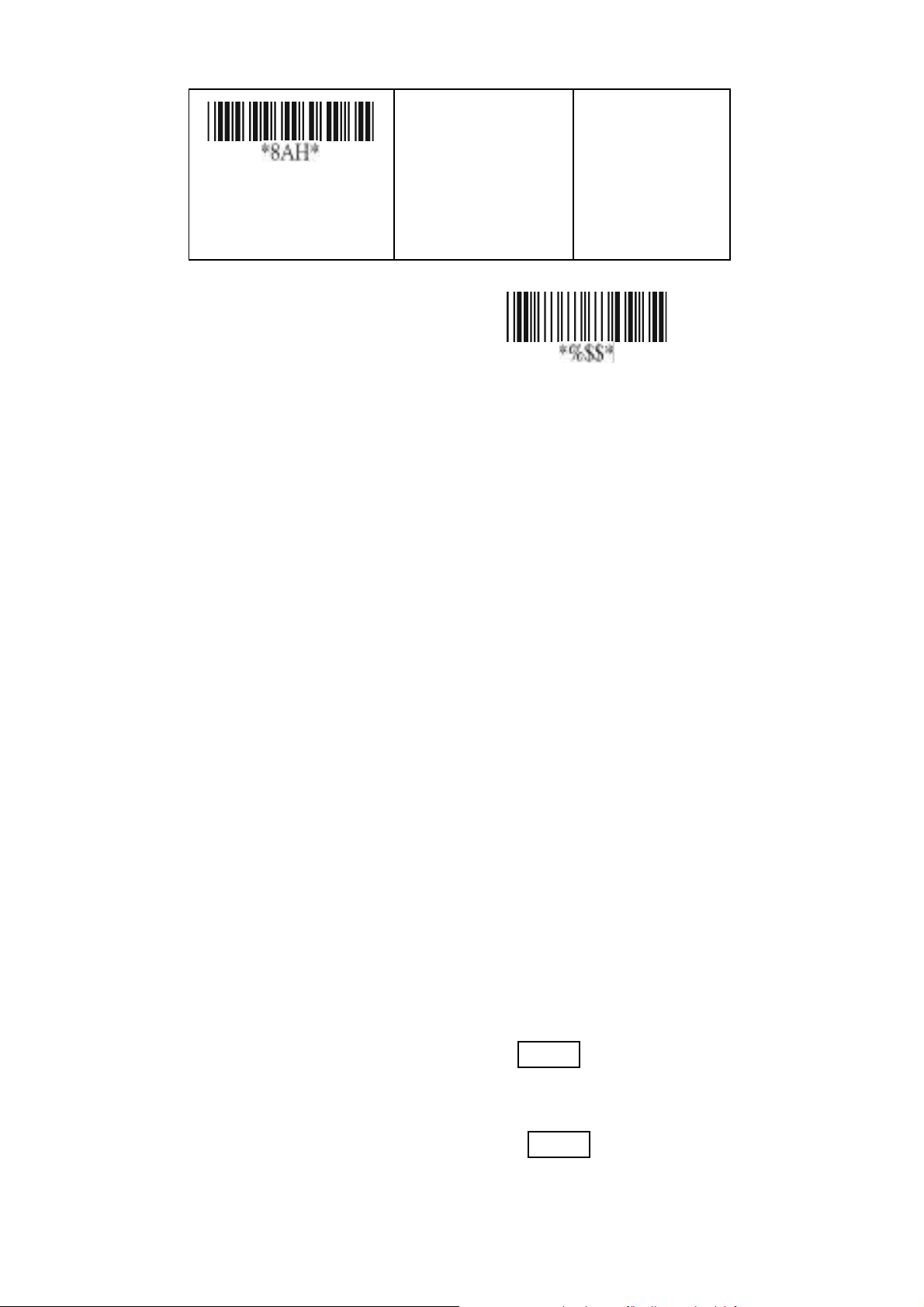

None

Insert G4 characters setting

1-22 characters

00-ffH ASCII code

Exi

Transmission

Preamble transmission: By setting Enable , Prea mble will

be appended before the data transmitted.

Postamble transmission: By setting Enable , Po stam ble will

Page 82

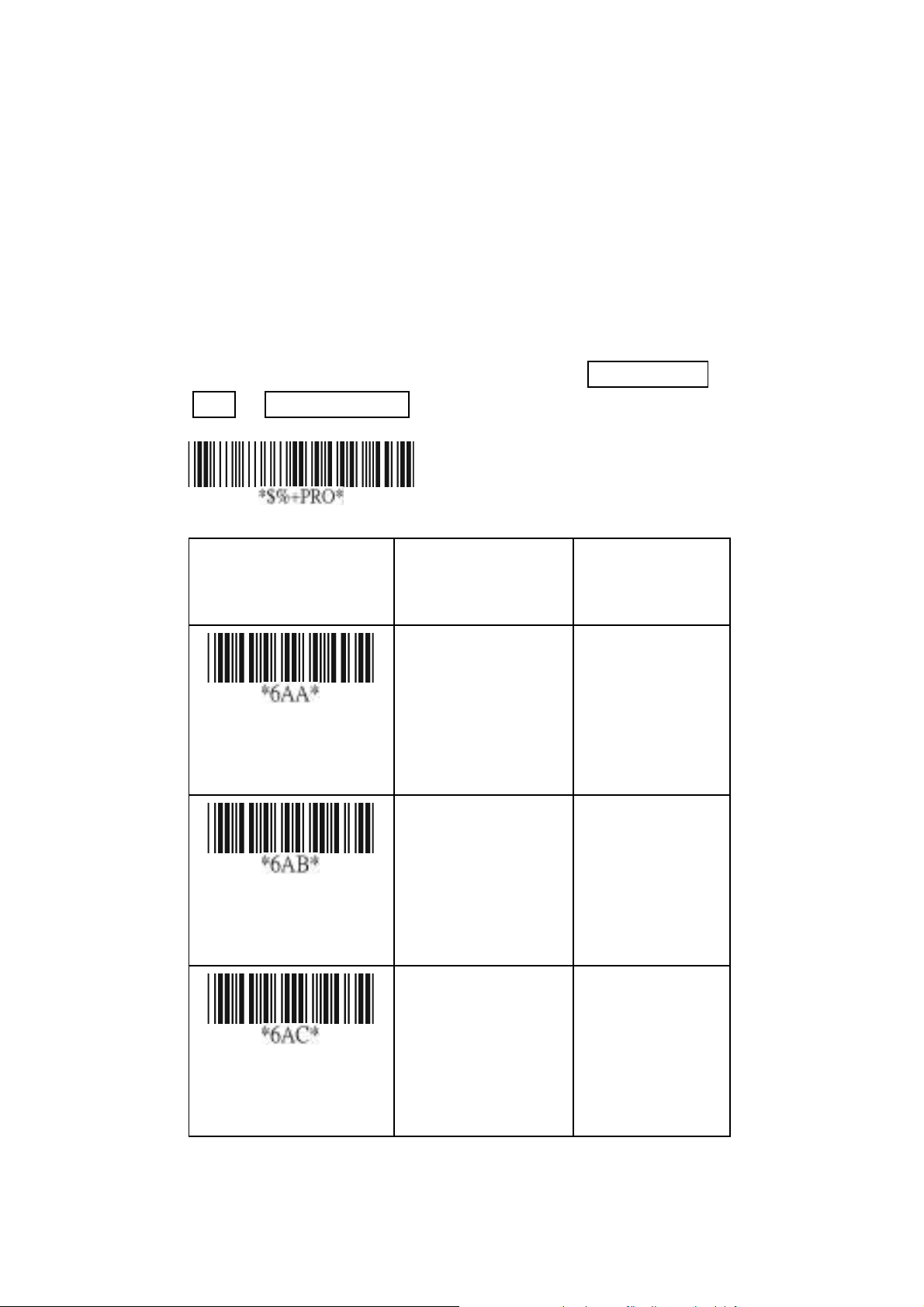

be appended after the data is transmitted.

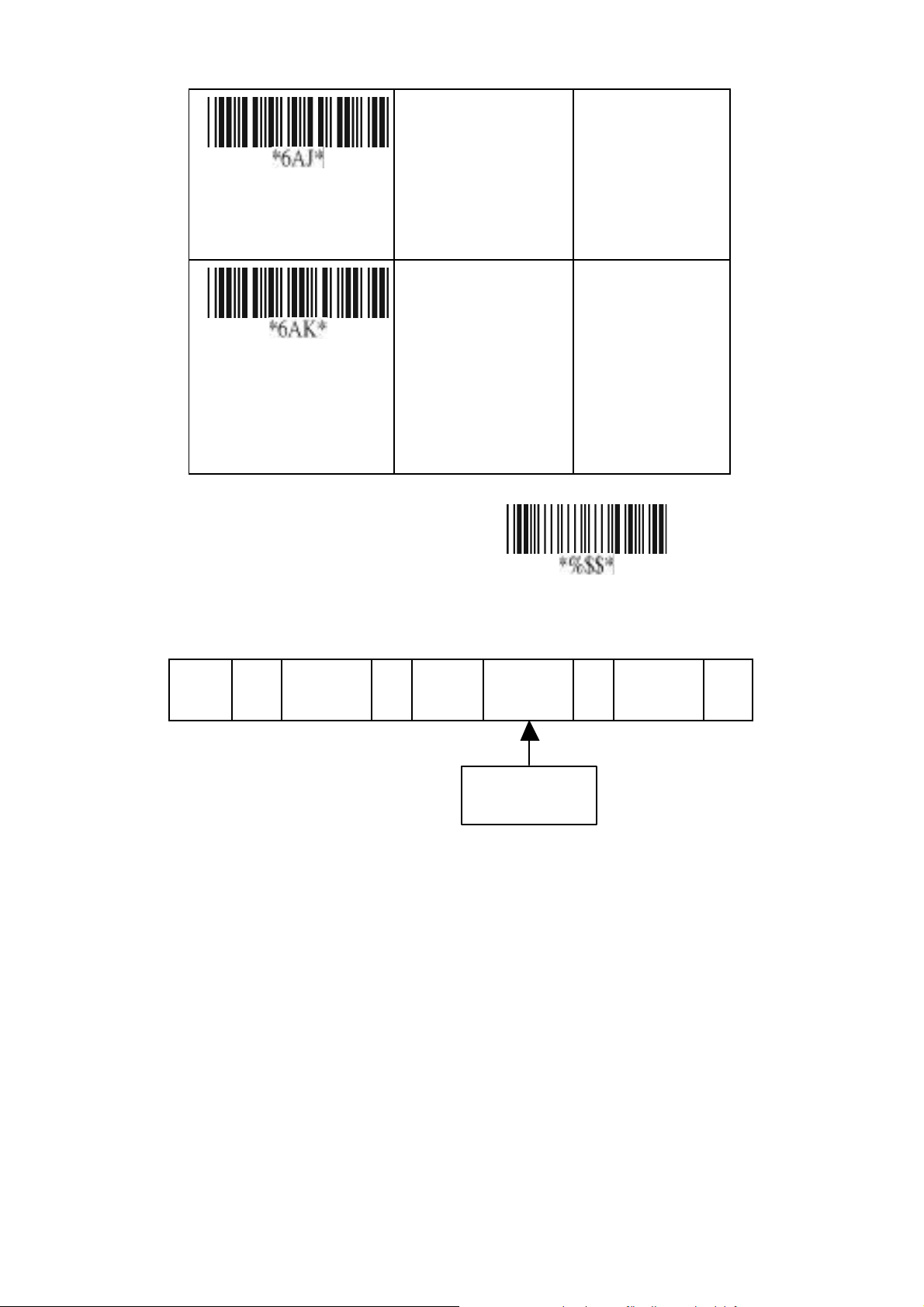

Insert data group 1-4 position: The scanner offers 4 positions to insert among the symbol. The position default value is “00” to indicate no character insertion. Beside, make sure insertion positions are not greater than the symbols; otherwise the insertion data is not effective .

Code ID position: Upon your usage, the transmitting position of Code ID can be selected to place Bef or e Code

Data or After Code D a t a when it i s transmitted.

Program

Option Bar Code Option Alphanumeric

Entry

Disable

Enable Preamble transmission

Disable

Enable Postamble transmission

00-64

00 01

00-64

Insert data group 1 position

(00: no insertion)

Page 83

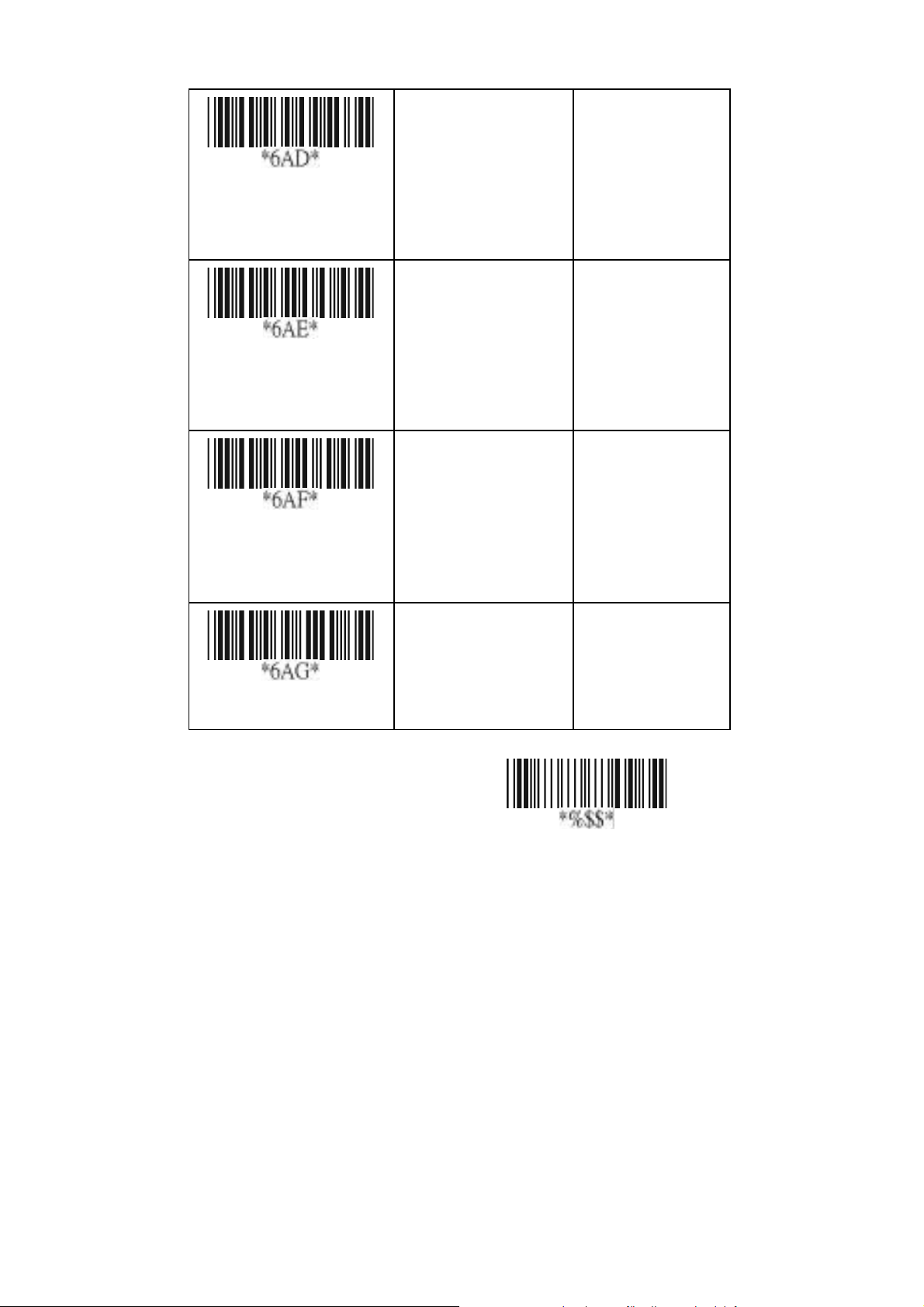

00-64

Insert data group 2 position

Insert data group 3 position

Insert data group 4 position

(00: no insertion)

00-64

(00: no insertion)

00-64

(00: no insertion)

00-64 00*

00-64

Code ID position

Transmission

Before code data

After code data

00 01

Exi

Code ID transmission: If your application is needed to

transmit Code ID, you must set this to Proprietary ID or AIM ID.

Page 84

Code length transmission: A number of data digits can be transmitted before the code data when Enable is selected. The total length of the barcode is the number of barcode data except Truncate Leading/Ending Digits. And the length is a number with two digits.

Code name transmission: This function is to show unknown barcode symbologies that include all readable symbologies of the scanner. When Enable is selected, Code Name will be transmitted before code data, you will know what kind of barcode symbology is.

Case conversion: Under the barcode, you can set the alphabet in either upper case or lower case.

Program

Option Bar Code Option Alphanumeric

Entry

Code ID transmission

Code length

Disable

Proprietary ID

AIM ID

Disable

Enable

00 01

transmission

Page 85

Disable

Code name transmission

Case conversion

Enable

Disable

Upper case

Lower case

*For barcode

data only

00 01 02

Exi

Format of barcode data tra nsmission:

Pre fix Name Preamble ID

Code

Length

Barcode

Insert groups

Test Chart

data

ID Postamble Suffix

Page 86

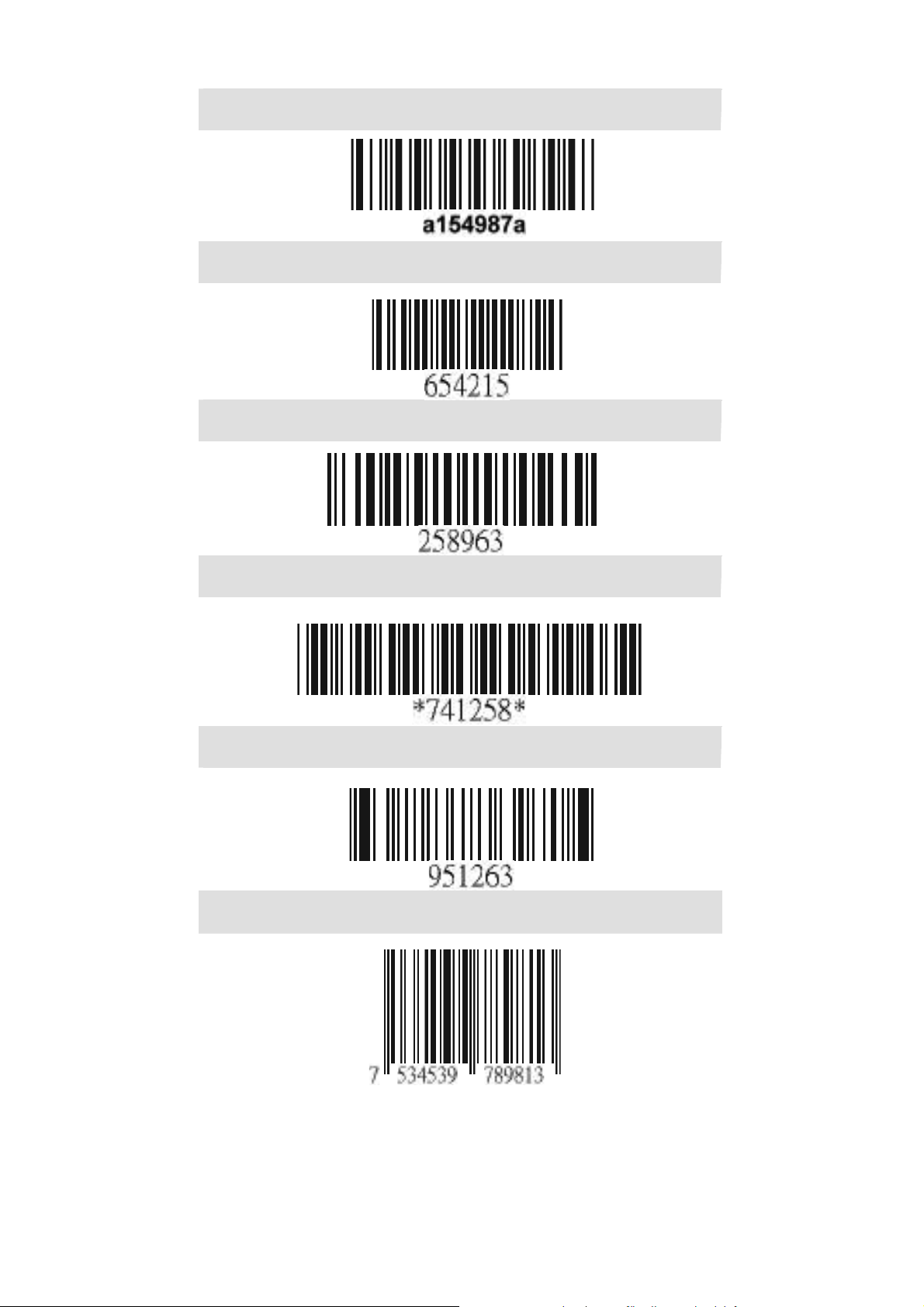

CODABAR-PARA

CODE-1 1 P A R A

CODE -128 PARA

CODE-39 PARA

CODE-93 PARA

EAN-1 3 P A R A

Page 87

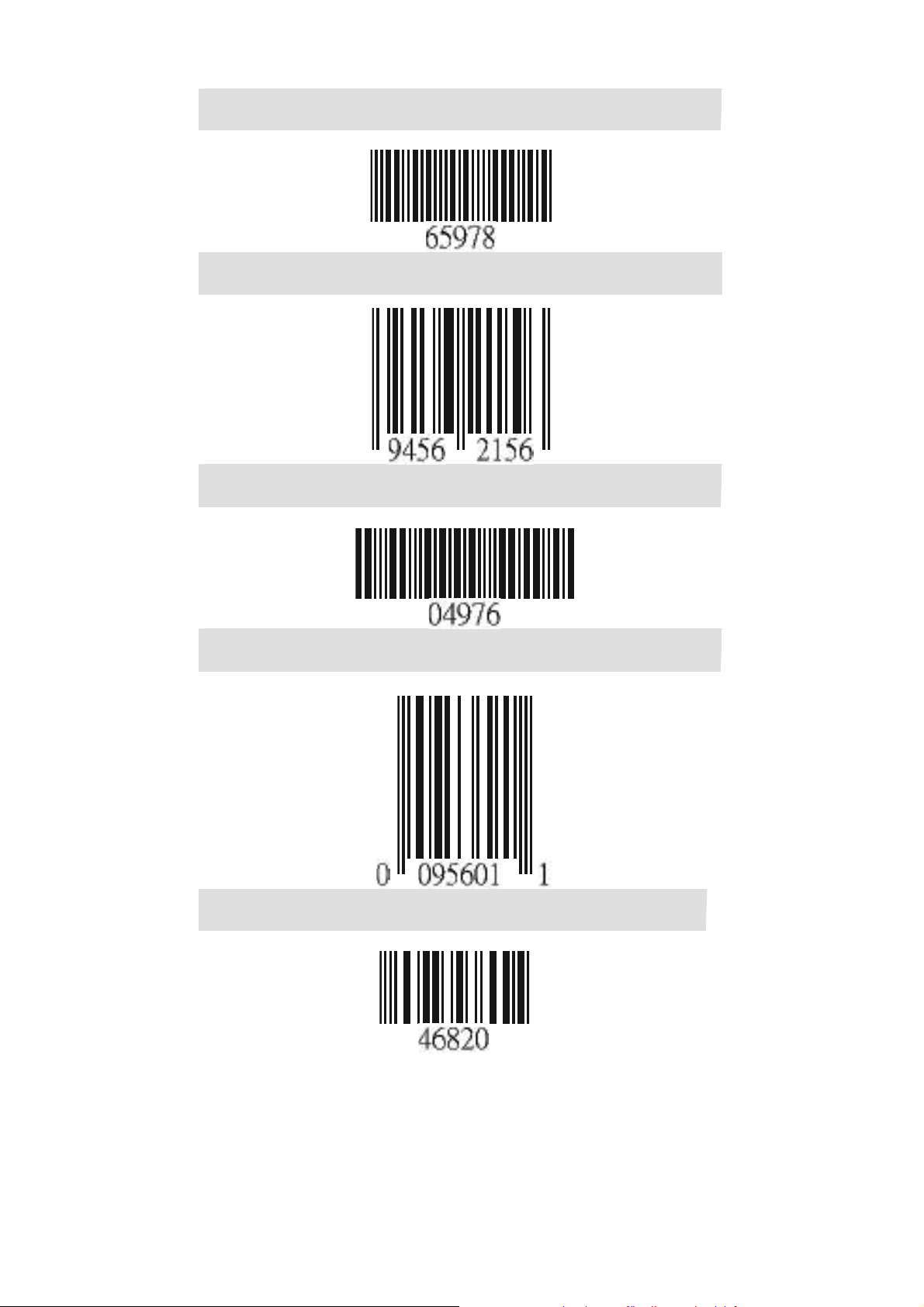

STANDRAD-25 P AR A

EAN-8 PARA

INDUSTRIAL-25 PARA

UPCE PARA

INTERLEAVED-25 PARA

Page 88

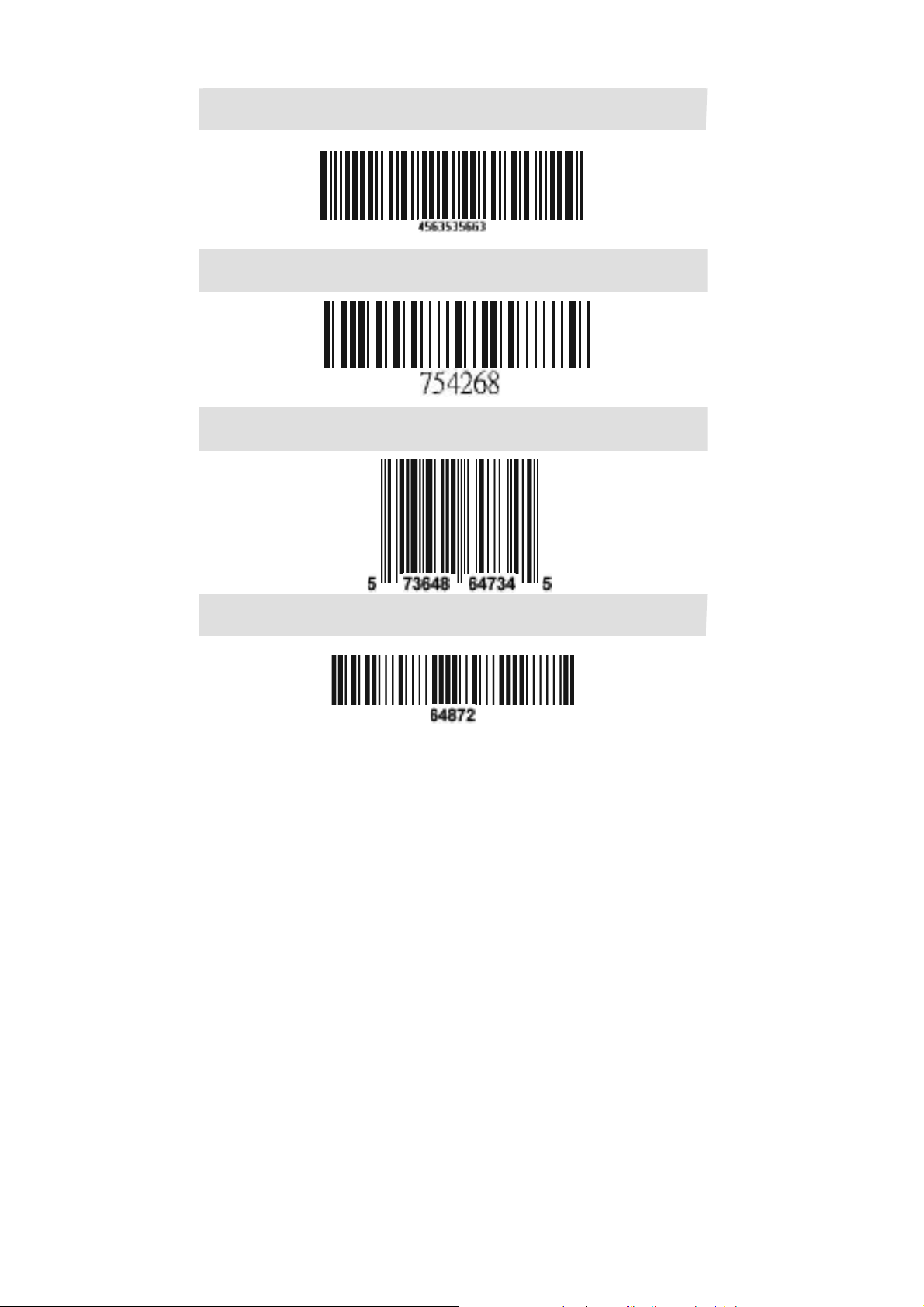

MATRIX 25 PARA

MSI/PLESSEY PARA

UPCA PARA

UK/PLESSEY PARA

Page 89

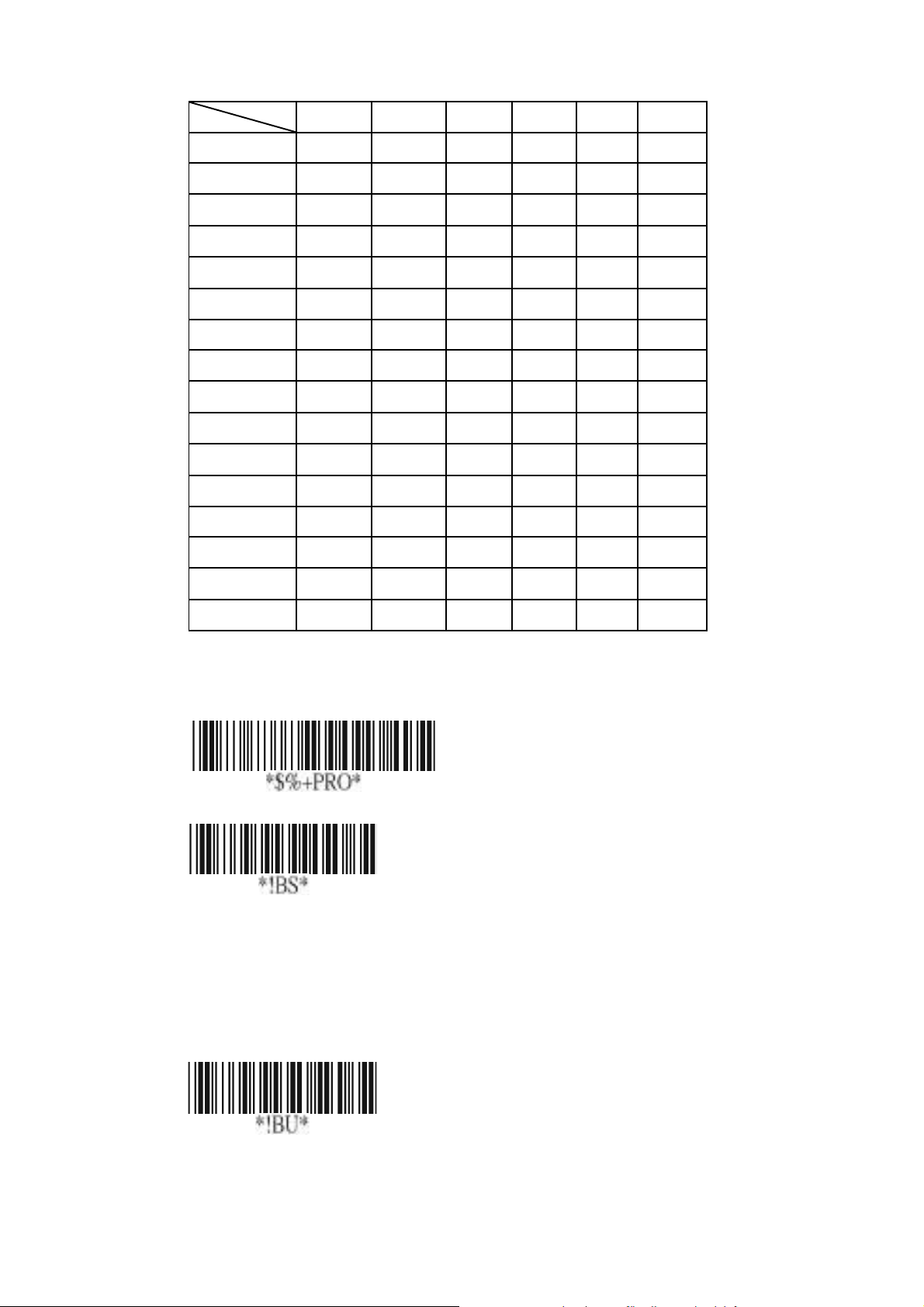

ASCII Code Table

Note: For keyboard wedge only.

L H

0 Null NUL DLE 1 Up F1 SOH DC1 2 Down F2 STX DC2 3 Left F3 ETX DC3 4 Right F4 EOT DC4 5 PgUp F5 ENQ NAK 6 PgDn F6 ACK SYN 7 F7 BEL ETB 8 Bs F8 BS CAN 9 Tab F9 HT EM A F10 LF SUB B Home Esc VT ESC C End F11 FF FS D Enter F12 CR GS

0 1 0 1

E Insert Ctrl+ SO RS F Delete Alt+ SI US

Page 90

L H

0 SP 0 @ P ` p 1 ! 1 A Q a q 2 “ 2 B R b r 3 # 3 C S c s 4 $ 4 D T d t 5 % 5 E U e u 6 & 6 F V f v 7 ‘ 7 G W g w 8 ( 8 H X h x 9 ) 9 I Y i y A ★ : J Z j z B + ; K [ k ﹛ C ， < L  l ︱ D - = M ] m ﹜

2 3 4 5 6 7

E . > N ^ n ∼ F / ? O _ o DEL

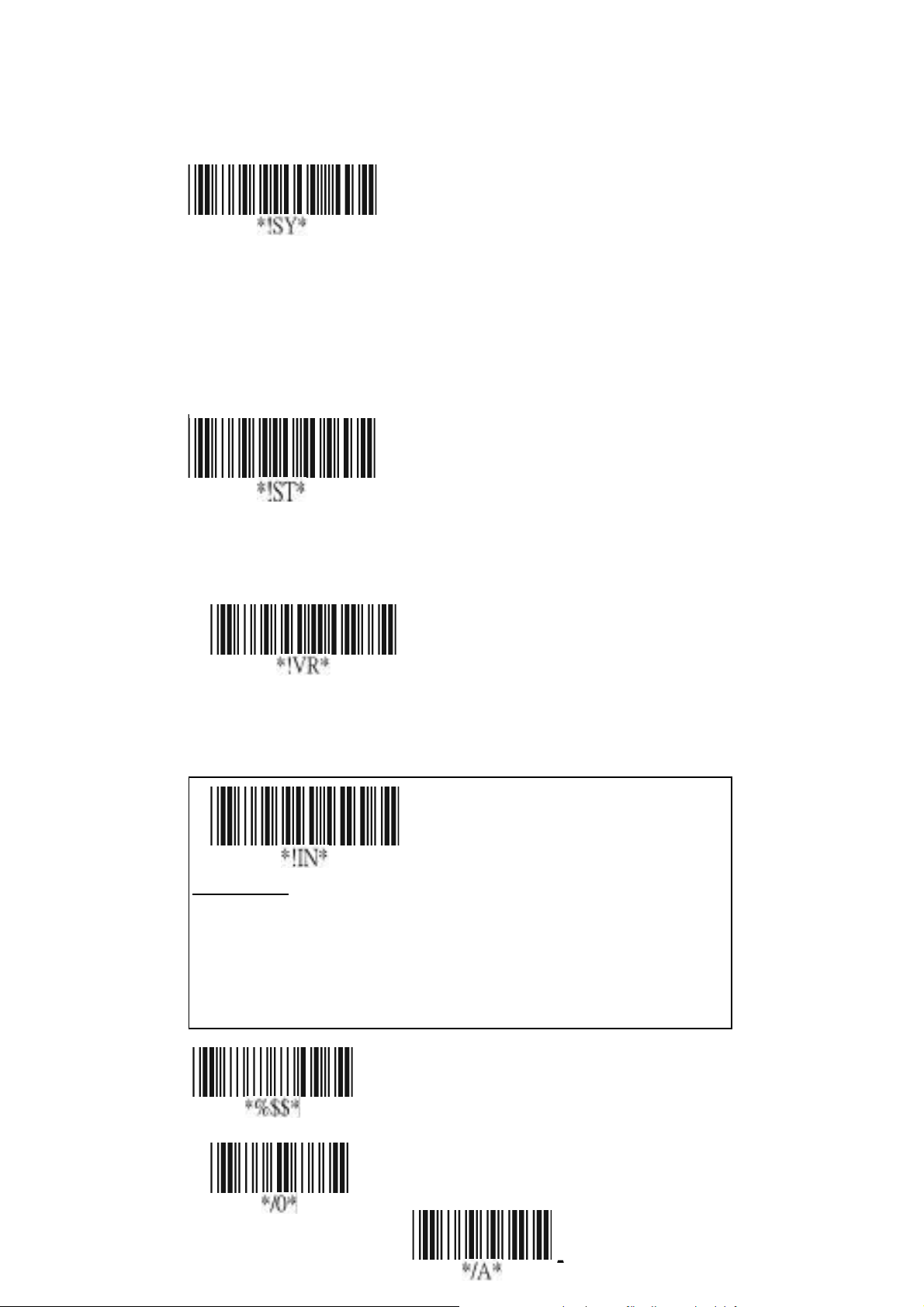

Parameter Setting List

Program

Barcode standard parameter setting list

If you wish to display the current configuration of your CD-3830, scanner over the hos t terminal/computer, scan the Barcode standard parameter setting list bar code.

Unique parameter list

Page 91

If you wish to display the unique parameter setting list, scan the unique paramet er li st b ar co de

System parameter setting list

If you wish to display the product information and revision number for your CD-3830 sc anner over the host terminal/computer, scan the System parameter setting list bar code.

String setting list

If you wish to display the string format list, scan the String setti ng list bar code.

Firmware version list

If you wish to display the firmware version, scan the Firmware version list.

WARNING

If you wish to return the CD-3830 to all the factory default settings, scan the Default value initialization bar code.

: Default value initialization

Exit

Page 92
