Suzhou Haixin Electromechanical Industrial Equipment Co., Ltd
Tel: 0512-68088345 Fax: 0512-65583326
Website: www.kesd.net E-mail: kesd@kesd.net
Address: No. 625, Binhe Road, High-tech Zone, Suzhou City
Service hotline: 400-888-9280
Product executing standard: Q/320505KESD01
Thank for your patronage!
Before using this product, please read
this operating manual carefully so as to
correctly use it. Please keep it properly
after reading for later consultation.
Ion Fan Operating Manual KF-06W
Content
Ⅰ. Product Details 1
Ⅱ. Product feature 3
Ⅲ. Product Appearance Dimension Figure 3
Ⅳ. Product Property Parameters 4
Ⅴ. Product General Assembly Drawing 5
Ⅵ. Rear Label Description 6
Ⅶ. Product Explosive View 7
Ⅷ. Assembly & Operation 8
Ⅸ. Matters Needing Attention 10
Ⅹ. Maintenance 12
Ⅺ. After-sales Service 14
Ⅻ. Common Fault Elimination 15
ⅩⅢ. Packing List 17
I. Product Details
KESD KF-06W is a kind of dedicated device for eliminating static
electricity, belonging to one type of ion fan series with characteristics
of simple installation, steady work and fast static electricity
eliminating speed. It is an ideal product widely used in static
electronic products, electronic assembly line, packaging and small
product molding, etc. industries.
This machine is a kind of portable ion fan, using small fan to produce
iron airflow.
The front air window of the machine is straight line grid type, making
the wind blown out have linearity, increasing static electricity
eliminating effect. Before maintenance, the fan is convenient for
disassembly.
The machine spray point is easy for disassembly; meanwhile, you
needn’t to worry about secondary pollution resulting from the dust
produced during cleaning tungsten needle.
This machine is designed for some sensitive electronic components
and electrostatic leakage, etc. problems. It can also be used in the
environment with some problems caused by static electricity, for
example, occasions of static electricity adsorption, malposition of
components and parts due to electrostatic interaction and colloid
adhered due to static electricity.
This machine can produce ion airflow in set area. The time needed for
static electricity neutralization depends on many factors, mainly
having two facotrs:
First, effective distance; in effective distance, ions in air constantly
neutralize with each other; positive negative ions attract each other
due to static electricity; when phase collides, electric charge
transforms and irons reintegrate.
Second, air flow velocity; in the situation of fast air flow, irons also
flow fast before recombination; set wind speed to the highest speed,
the fastest neutralization effect can be obtained.
Use this machine in the electronic products production region; this
area must be covered by ion wind as far as possible and regional
electric charge might be neutralized by iron wind.
Ⅱ
. Product Features
Automatic Ion Balance System, the average iron speed is within
0±10V.
Special tungsten alloy design, not likely to be worn for long term
use.
Unique appearance design, making the fan work condition realize
visual management.
Spray point components and front air window can be flexiblly
disassembled, convenient for cleaning, maintenance and
replacement.
Unique network power socket, convenient for series connection
and wiring.
Ⅲ

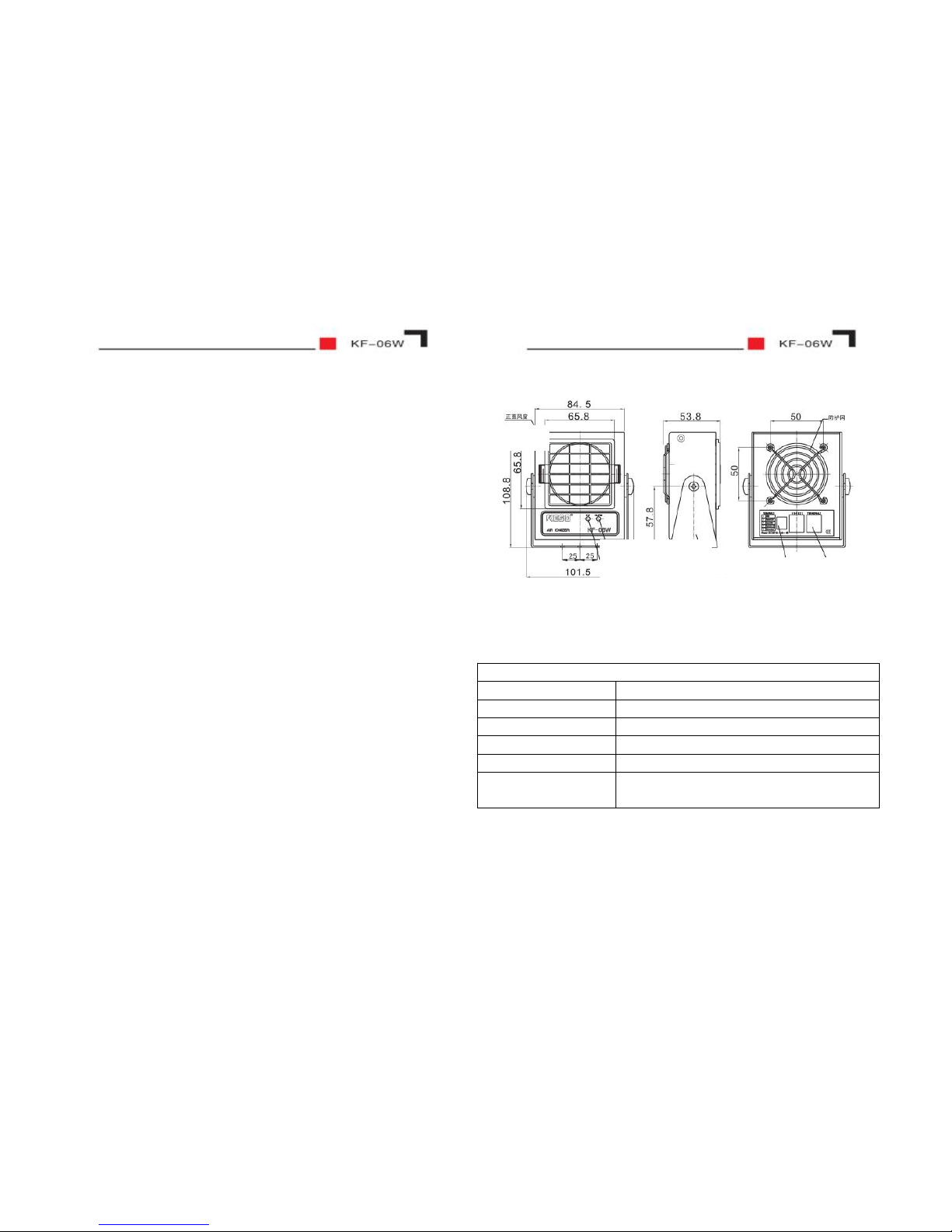

. Product External Dimension Drawing
Ⅳ. Product Property Parameters
1. Specification
Specification
Operating Voltage
DC24V
Operating Temperature
0℃-40℃
Decay Time
About 1.3s (200mm)
Weight
0.45kg
Air Volume
0.55-0.71m3/min
Ion Balance
Automatic iron balance system within 0+10V
(20cm place)
Abnormal indication la mp
(red)
High voltage power supply
indication lamp (green)
SupportDCpower port
Air fan system combi nation
port
Front a ir window
2. Test Result
Decay Test Conditions
Operating voltage: DC24V
Testing Voltage：±1000V-±100V
Environment Temperature: 23℃±2℃
Distance
200mm
300mm
Decay
Time
Positive
1.3s
1.9s
Negative
1.4s
2s
Offset
Voltage
Positive
<0±10V
Negative
Note: destaticizing property is determined according to America
specification EOS/ESD-STM3.1-2000.
Test data will be changed due to the environment in test.
Ⅴ. Product General Assembly Drawing
Ⅵ. Rear Label Description
Shell
Nut
Support frame
Front air window
Indicator light
Ⅶ. Product Explosive View
S.n.
Name
S.n.
Name
1
Front air window
8
Bolt
2
Front shroud
9
Support frame
3
Bolt M3X4
10
Rubber gasket
4
Spray point component
11
Bolt M6X8
5
Fan12High voltage generator
6
Back shroud
13
Network type power
interface
7
Rear air window
protecting net

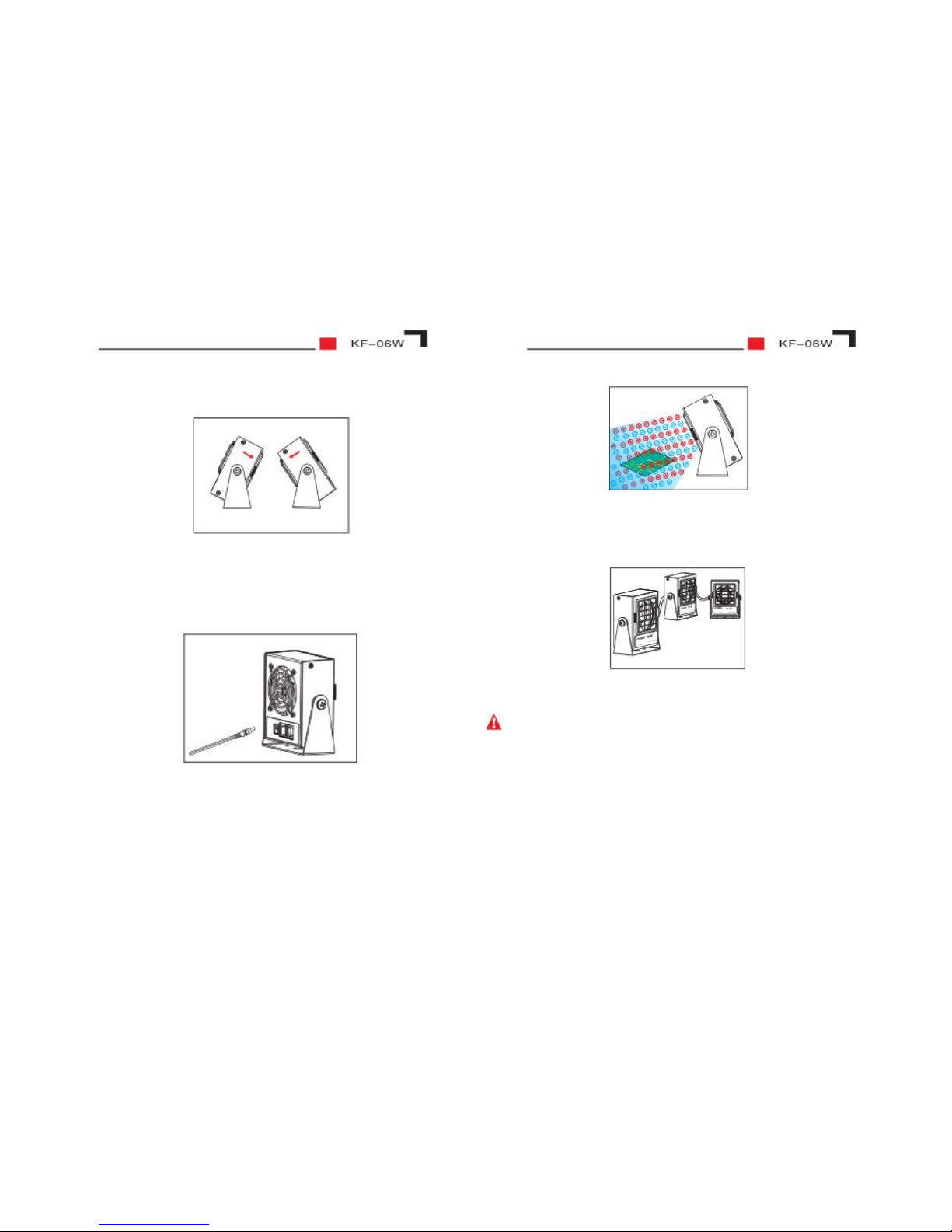

Ⅷ. Installation and Operation
(1) This design is convenient for installation. Its base can be fixed to a
surface with bolts, such as wall or shelf; if the base is fixed to a
certain place, fix it with M6 (1/4 inch) screws or bolts.
(2) This machine is placed in a position less than 300mm from the
working area or the article to be neutralized, and this area may be
covered by ion wind.
(3) This machine body can be rotated in 360 degree range.
2. Operation
(1) After connecting the DC stabilized voltage supply to the main
engine, insert the power plug into AC power socket.
(2) Within effective range, direct the fan to the article and adjust the
angle, then static electricity can be eliminated.
(3) Can use this product in series at the same time, convenient for
wiring.
Ⅸ. Matters Needing Attention
Danger
(1) The spray point has high voltage and may result in electric shock;
please never contact spray point on power-up state.
(2) When checking, cleaning and maintaining products, please be sure
to shut off the power; otherwise, it may result in electric shock.
(3) Please definitely not change product; otherwise, it may cause
personnel injury, electric shock or fire hazard, etc. accidents due to
abnormal operation.
Warning
(1) The spray point top is very sharp; please pay attention to safety
when using it. Once using it improperly, it may cause bodily injury.
(2) On the state of power on, please not contact the spray point;
otherwise, it may cause electric shock or abnormal operation.
(3) Please don’t damage the power line
Once damaging the power line, forcibly bending, pulling or winding
the power line, or stacking heavy articles or clamping the power line,
fire hazard, electric shock or abnormal operation may be caused due
to electric leakage or bad electric conduction.
Attention
（ 1 ） Ion fan may generate ozone into air in work. Please don’t
directly close your face to the blow-off nozzle of products to check
ozone; otherwise, it may cause nose or throat, etc. position ache.
(2) The service life of the spray point is varied due to operating
environment. If the operating environment is bad (i.e. environment
with too high temperature) or the spray point hasn’t been washed for a
long time, its performance may be declined; therefore, must maintain
it regularly.
(3) Please note impulse current will be flowed in when opening the
power supply.
Ⅹ
. Maintenance
Carry out brifely description to the daily cleaning and maintenance of
KF-06W ion fan and set forth specific operation method to conduct
reason analysis and maintenance description for some problems that
may appear so as to make the work performance of the iron fan
always in good state and extend its service life to the extreme extent.
When running the iron fan, dust in air may flow into the fan with
gasflow, stick to the air window and tungsten needle frame, etc.
structures, especially adsorbing to the live parts to make the tungsten
needle passivate and the discharge effect decline sharply, seriously
influencing the property of the iron fan. Therefore, eliminate the dust
regularly.
Daily Maintenance
1. Cleaning of the front air window
a. Demount the air window and remove the dust sticks to the front and
rear of the air window with static brush, as shown in following figure.
b. Wipe the air window with non-dust cloth dipped with alcohol until
it is clean.
2. Cleaning of the tungsten needle (spray point)
a. Abrasively cleaning the tungsten needle tip with fine grit sandpaper
as shown in figure.
b. Wipe and clean the tungsten needle with cotton bud dipped with
alcohol as shown in following figure.
Ⅺ
. After-sales Service
1. Maintenance period
The warranty period of the product sold by the company is one year.
Within one year since the product is sold, any fault caused due to its
component materials and process problems should be repaired by the
company freely (except quick-wear parts).
2. Service after Warranty Period
All products sold by the company will still be reparied free of labor
cost after warranty period to protect customer’s interest.
The company maintains the right of modifying the above product
property parameters and technology at any time without further
notification.
Ⅻ. Common Fault Elimination
KF-06W Common fault elimination
Common fault
Cause analysis
Solutions
1. Not energized
The indicator light
is off and the fan
doesn’t run after
power on.
1. Power contact is
poor or damaged.
2. Lead contact in the
machine is bad or
falls off.
1. Reinsert or replace
power supply.
2. Re-connect
internal lead.
2. The indicator
1. The connecting
1. Re-connect the
light is on; there is
high voltage output,
but the fan doesn’t
rotate or the rotating
speed is not stable.
line is broken.
2. High voltage
control panel is
damaged
lead.
2. Replace the control
panel.
3. The machine is
running normally,
but no high voltage
is generated.
1. The base plate is
damaged.
2. Connecting line is
disconnected.
3. Ion generator is
damaged.
1. Replace base plate.
2. Re-connect the
lead.
3. Replace the ion
generator.
4.The machine is
running normally,
but the electrostatic
property is bad.
1. Spray point is dirt
and aged.
2. High voltage
control plate property
is poor.
1. Clean and replace
tungsten needle
frame.
2. Replace control
panel.
If the above faults are found, don’t eliminate it by yourself;
please contact our company.
ⅩⅢ. Packing List
1. Ion fan
One set
2. Power supply
One
2. Specification
One
4. Warranty card
One
3. Test report
One copy
6. Certificate of conformity
One
