Operating manual Compact balance
KERN FXN
Version 1.0
11/2014
GB
D-72336 Balingen
Fax: +49-[0]7433-9933-149
FXN-N-BA-e-1410
KERN FXN-N
Compact balance
GB
Version 1.0 11/2014
Operating manual
Contents
1 Technical data ............................................................................................ 3
1.1 Dimensions............................................................................................................................. 4
2 Appliance overview .................................................................................... 5
2.1 Overview of display ................................................................................................................ 5
2.1.1 Not verifiable models .............................................................................................................. 5
2.2 Keyboard overview ................................................................................................................. 6
3 Basic Information (Gen eral) ...................................................................... 7
3.1 Proper use .............................................................................................................................. 7
3.2 Improper Use ......................................................................................................................... 7
3.3 Warranty ................................................................................................................................. 7
3.4 Monitoring of Test Resources ................................................................................................ 7
4 Basic Safety Precauti o ns .......................................................................... 8
4.1 Pay attention to the instructions in the Operation Manual ..................................................... 8
4.2 Personnel training .................................................................................................................. 8
5 Transport and storage ............................................................................... 8
5.1 Testing upon acceptance ....................................................................................................... 8
5.2 Packaging / return transport ................................................................................................... 8
6 Unpacking, Setup and Commissioning .................................................... 9
6.1 Installation Site, Location of Use ............................................................................................ 9
6.2 Unpacking and placing ......................................................................................................... 10
6.2.1 Scope of delivery .................................................................................................................. 11
6.3 Battery operation .................................................................................................................. 11
6.4 Initial Commissioning ........................................................................................................... 13
7 Adjustment ............................................................................................... 13
7.1 Adjusting............................................................................................................................... 13
7.1.1 Adjustment ........................................................................................................................... 14
8 Operation .................................................................................................. 15
8.1 Weighing .............................................................................................................................. 15
8.2 Taring ................................................................................................................................... 15
8.3 Background illumination ....................................................................................................... 16
9 The menu .................................................................................................. 17
9.1 Navigation in the menu ........................................................................................................ 17
9.2 Menu overview ..................................................................................................................... 18
9.3 Set auto-OFF function .......................................................................................................... 19
10 Error messages ........................................................................................ 20
11 Instant help ............................................................................................... 21
12 Servicing, maintenance, disposal ........................................................... 22
12.1 Cleaning ............................................................................................................................... 22
12.2 Servicing, maintenance ........................................................................................................ 22
12.3 Disposal................................................................................................................................ 22
2 FXN-N-BA-e-1410

1 Tech nical data

KERN
Weighing range (max) 3 kg 6 kg 15 kg 30 kg Readability (d) 1 g 2 g 5 g 10 g Reproducibility 1 g 2 g 5 g 10 g Linearity 2 g 4 g 10 g 20 g Recommended adjustment
weight, not added (class) Stabilization time (typical) 2 sec.
Units g, kg, lb, oz, Warm-up time 10 min. Electric Supply Battery operation: 6 x 1.5V Size D Auto-Off (rechargeable
battery) Display type LCD, digit height 25 mm
FXN
3K -3
3 kg
(M3)
FXN
6K -3
6 kg
(M3)
15 min., 5 min., 3 min., off
FXN
10K -3
15 kg
(M3)
FXN
30K -2
30 kg
(M3)
Operating temperature 0° C …. + 40° C Humidity of air 25 % - 95 % (non-condensing) Dimensions of weighing
plate (Stainless steel) (mm)
Casing dimensions 240 x 280 x 120 Dimensions, completely
assembled (mm) Weight kg (net) 4.0
IP protection IP68 to DIN 60529
236 x 195
240 x 280 x 120
FXN-N-BA-e-1410 3

1.1 Dimensions

4 FXN-N-BA-e-1410

2 Appliance overview

2.1 Overview of displa y

2.1.1 Not verifiable models

Display Designation Description
Zeroing display
Should the balance not display exactly zero despite empty scale pan, press the
button. The balance will be set to zero after a
short standby time.
Stability display Scales are in a steady state Net weight display Net weight will be displayed
Capacity display Battery
Display Weighing unit kg Displayed weight in kg
Full battery capacity
FXN-N-BA-e-1410 5
Switch-over gross

2.2 Keyboard overview

Button Designation Function
ON-button, zero button
Switch-on, set to zero
OFF-button Switching Off
TARE button Tare balance
Unit button Switch-over units
Switch-over button
weight / net weight
6 FXN-N-BA-e-1410

3 Basic Information (General)

3.1 Proper use

The balance you purchased is intended to determine the weighing value of material to be weighed. It is intended to be used as a “non-automatic balance”, i.e. the material to be weighed is manually and carefully placed in the centre of the weighing pan. As soon as a stable weighing value is reached the weighing value can be read.

3.2 Improper Use

Do not use balance for dynamic weighing. In the event that small quantities are removed or added to the material to be weighed, incorrect weighing results can be displayed due to the “stability compensation“. (Example: Slowly draining fluids from a container on the balance.) Do not leave permanent load on the weighing pan. This may damage the measuring system. Impacts and overloading exceeding the stated maximum load (max) of the balance, minus a possibly existing tare load, must be strictly avoided. Balance may be damage by this. Never operate balance in explosive environment. The serial version is not explosion protected. The structure of the balance may not be modified. This may lead to incorrect weighing results, safety-related faul ts and dest r ucti on o f the balance. The balance may only be used according to the described conditions. Other areas of use must be released by KERN in writing.

3.3 Warranty

Warranty claims shall be voided in case
Our conditions in the operation manual are ignored The appliance is used outside the described uses The appliance is modified or opened Mechanical damage or damage by media, liquids, natural wear and tear The appliance is improperly set up or incorrectly electrically connected The measuring system is overloaded

3.4 Monitoring of Test Resource s

In the framework of quality assurance the measuring-related properties of the balance and, if applicable, the testing weight, must be checked regularly. The responsible user must define a suitable interval as well as type and scope of this test. Information is available on KERN’s home page (www.kern-sohn.com with regard to the monitoring of balance test substances and the test weights required for this. In KERN’s accredited DKD calibration laboratory test weights and balances may be calibrated (return to the national standard) fast and at moderate cost.
FXN-N-BA-e-1410 7
Carefully read this operation manual before setup and commissioning,
The original German is binding.

4 Basic Safety Precautions

4.1 Pay attention to the instr uc t ions in the Operation Manual

even if you are already familiar with KERN balances. All language versions contain a non-binding translation.

4.2 Personnel training

The appliance may only be operated and maintained by trained personnel.

5 Transport and storage

5.1 Testing upon acceptance

When receiving the appliance, please check packaging immediately, and the appliance itself when unpacking for possible visible damage.

5.2 Packaging / return transport

Keep all parts of the original packaging for a possibly required return. Only use original packaging for returning. Prior to dispatch disconnect all cables and remove loose/mobile
parts.
Reattach possibly supplied transport securing devices. Secure all parts such as the glass wind screen, the weighing
platform, power unit etc. against shifting and damage.
8 FXN-N-BA-e-1410

6 Unpacking, Setup and Commissioning

6.1 Installation Site, Locat ion of Use

The balances are designed in a way that reliable weighing results are achieved in common conditions of use. You will work accurately and fast, if you select the right location for your balance.
Therefore, observe the following for the installation site:
Place scales on a stable, even surface; Avoid extreme heat as well as temperature fluctuation caused by installing
next to a radiator or in the direct sunlight;
Protect the balance against direct draughts due to open windows and
doors;
Avoid jarring during weighing; Protect the balance against high humidity, vapours and dust; Do not expose the device to extreme dampness for longer periods of time.
Non-permitted condensation (condensation of air humidity on the appliance) may occur if a cold appliance is taken to a considerably warmer environment. In this case, acclimatize the appliance for ca. 2 hours at room temperature.
Avoid static charge of goods to be weighed or weighing container.
Major display deviations (incorrect weighing results) may be experienced should electromagnetic fields (e.g. due to mobile phones or radio equipment), static electricity accumulations or instable power supply occur. Change location or remove source of interference.
FXN-N-BA-e-1410 9

6.2 Unpacking and placing

Level balance with foot screws until the air bubble of the water balance is in the prescribed circle.
Membrane for protection type IP68
Battery compartment
Access to
Pressure compensation
Carefully remove the balance from the packaging, remove plastic cover and setup balance at the intended workstation.
membrane
10 FXN-N-BA-e-1410

6.2.1 Scope of delivery Serial accessories:

Balance Weighing pan Operating manual 4 x 1.5V size D batteries

6.3 Battery operation

The operating time of the batteries with background illumination is 200 h, without background illumination 250 h. In menu you can activate the AUTO-OFF function, see chap. 9.3. According to menu settings, the balance switches automatically off in order to spare the battery.
Insert rechargeable battery:
Open battery compartment. Move both levers 90° to the left
FXN-N-BA-e-1410 11
Insert 4 x 1.5V size D batteries.
Close the battery compartment
cover.
Move both levers 90° to the right
Ensure that the cables are not
squeezed.
12 FXN-N-BA-e-1410

7 Adjustment

6.4 Initial Commissioning

In order to obtain exact results with the electronic balances, your balance must have reached the operating temperature (see warming up time chap. 1). For this warm-up period the scale must be connected to the power supply (batteries). The accuracy of the balance depends on the local acceleration of gravity. Strictly observe hints in chapter Adjustment.
As the acceleration value due to gravity is not the same at every location on earth, each balance must be coordinated - in compliance with the underlying physical weighing principle - to the existing acceleration due to gravity at its place of location (only if the balance has not already been adjusted to the location in the factory). This adjustment process must be carried out for the first commissioning, after each change of location as well as in case of fluctuating environment temperature. To receive accurate measuring values it is also recommended to adjust the balance periodically in weighing operation.

7.1 Adjusting

Carry out adjustment as close as possible to the maximum load of the scales )see chap. 1 „Technical data“). The accuracy of the adjustment weight must correspond approximately to or, if possible, be better than, the readability d of the balance. Info about test weights can be fou nd on the Internet at: http://www.kern-sohn.com
Procedure when adjusting:
Observe stable environmental conditions. A warming up time (see chapter 1) is required for stabilization.
FXN-N-BA-e-1410 13
Operation
The adjustment weight to be used appears.

7.1.1 Adjustment

Start balance by pressing . Press and at the same time in weighing mode.
01 FnC appears
Select 02 EC using button . Confirm with button
Confirm by pressing the button (the displayed
adjustment weight flashes)
Place the adjustment weight Confirm by pressing the button
In case of successful adjustment the balance beeps 3
times.
14 FXN-N-BA-e-1410

8 Operation

8.1 Weighing

Start balance by pressing . The balance will carry out a self-test As soon as the weight display shows „0.0“ and the triangle symbol above the
stability display appears, the scale is ready for weighing.
However, you can reset the weighing scale to zero by pressing
the button.
Switch off balance using .
The „0.0“ display disappears and the balance is switched off.

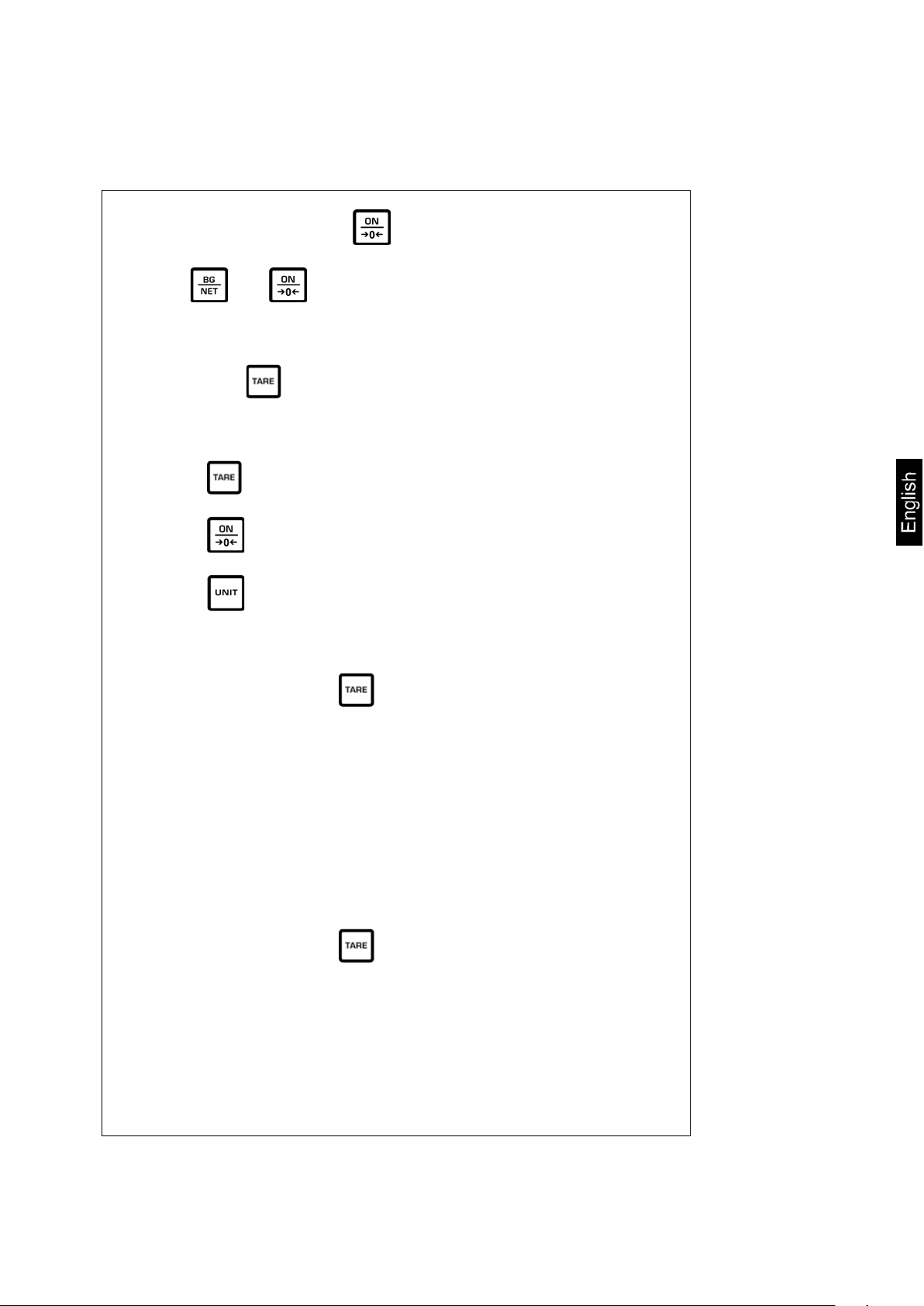

8.2 Taring

The tare weight of any preloads can be deducted by pressing a button so that the actual weight of the weighed material is displayed in subsequent weighings.
Put on weighing receptacles and press .
The zero display appears, and above the reset symbol the stability symbol and the net weight symbol the triangle appears. The weight of the container is now internally saved.
Place goods to be weighed in the weighing container.
The net weight of the goods to be weighed is displayed.
The weight of the weighing container will be displayed as a minus number (=gross weight) after removing the weighing container.
FXN-N-BA-e-1410 15
0.0
The tare weight is saved until it is deleted. Remove the load from the balance and press . The zero display appears
and the triangle above the net weight symbol vanishes.
Gross weight:
Press as long as the weighing container and the
object to be weighed are on the weighing plate.
Remove the object to be weighed as well as the weighing
container. The gross weight is displayed as a negative value.

8.3 Background illumination

Start balance by pressing .
Press and at the same time in weighing
mode.
01 FnC appears
Confirm by pressing  FnC 0 0 appears
Select FNC 01 using and button.
Confirm with button bl on/ off appears
P ress t he button to make the required setting
and acknowledge by .
Switch on and switch off the balance.
16 FXN-N-BA-e-1410

9 The menu

9.1 Navigation in the menu

Start balance by pressing
In weighing mode press the and the button at the
same time.
01 FnC appears
Use the button to change between the main menu items.
Use the button to select the desired menu. Enter the respective number for the required menu.
Use the button to change between the numeric values.
Use the button to increase the number.
Use the button to reduce the number.
Confirm by pressing the button
FXN-N-BA-e-1410 17
Menu item
Function

9.2 Menu overview

01 FnC Access to the settings and functions of the balance.
FnC 01 Setting of background lighting
FnC 02 Setting Auto-off function
FnC 03 Hi / Lo / OK function. (Check weighing)
FnC 04 Reset to standard setting
FnC 05 Not documented
FnC 06 HOLD function
FnC 07 Not documented
02 EC External adjustment
18 FXN-N-BA-e-1410

9.3 Set auto-OFF function

Start balance by pressing
Press and at the same time in weighing mode. 01 FnC appears
Confirm with button FnC 0 0 appears
Use the button to change between the numeric values.
Use the button to increase the number.
Use the button to reduce the number. Now enter FnC 02
Confirm by pressing the button Now select between the following values:
- 0: No Auto-off function
- 1: After one minute the balance switches off automatically.
- 2: After 2 minutes the balance switches off automatically.
- 9: After 9 minutes the balance switches off automatically.
Confirm by pressing the button Now switch the balance off and on.
FXN-N-BA-e-1410 19

10 Error messages

Display Description Remedy E1 Zero range exceeded Unload the balance
E2 Resetting range has not been
reached.
oL Overload
Check if the correct weighing plate has been used.
Unload the balance and adjust again
20 FXN-N-BA-e-1410
isplayed weight is permanently

11 Instant help

In case of an error in the program process, briefly turn off the balance and disconnect from power supply. The weighing process must then be restarted from the beginning.
Fault Possible cause
The displayed weight does not glow. The balance is not switched on.
Batteries are inserted incorrectly or empty No batteries inserted.
The d changing
-
The weighing value is obviously wrong
Should other error messages occur, switch balance off and then on again. If the error message remains inform manufacturer.
Draught/air movement Table/floor vibrations Weighing pan has contact with other
objects.
Electromagnetic fi elds / stati c c har g i ng
(choose different location/switch off interfering device if possible)
The display of the balance is not at zero Adjustment is no longer correct. Great fluctuations in temperature.
The balance is on an uneven surface. Electromagnetic fi elds / stati c c har g i ng
(choose different location/switch off interfering device if possible)
FXN-N-BA-e-1410 21

12 Servicing, maintenance, disposal

12.1 Cleaning

Before cleaning, please remove batteries from the appliance
Please do not use aggressive cleaning agents (solvents or similar agents), but a cloth dampened with mild soap suds. Ensure that no liquid penetrates into the device and wipe with a dry soft cloth. Loose residue sample/powder can be removed carefully with a brush or manual vacuum cleaner.
Spilled weighing goods must be removed immediately.

12.2 Servicing, maintenance

The appliance may only be opened by trained service technicians who are authorized by KERN. Before opening, disconnect from power supply.

12.3 Disposal

Disposal of packaging and appliance must be carried out by operator according to valid national or regional law of the location where the appliance is used.
22 FXN-N-BA-e-1410
Loading...
