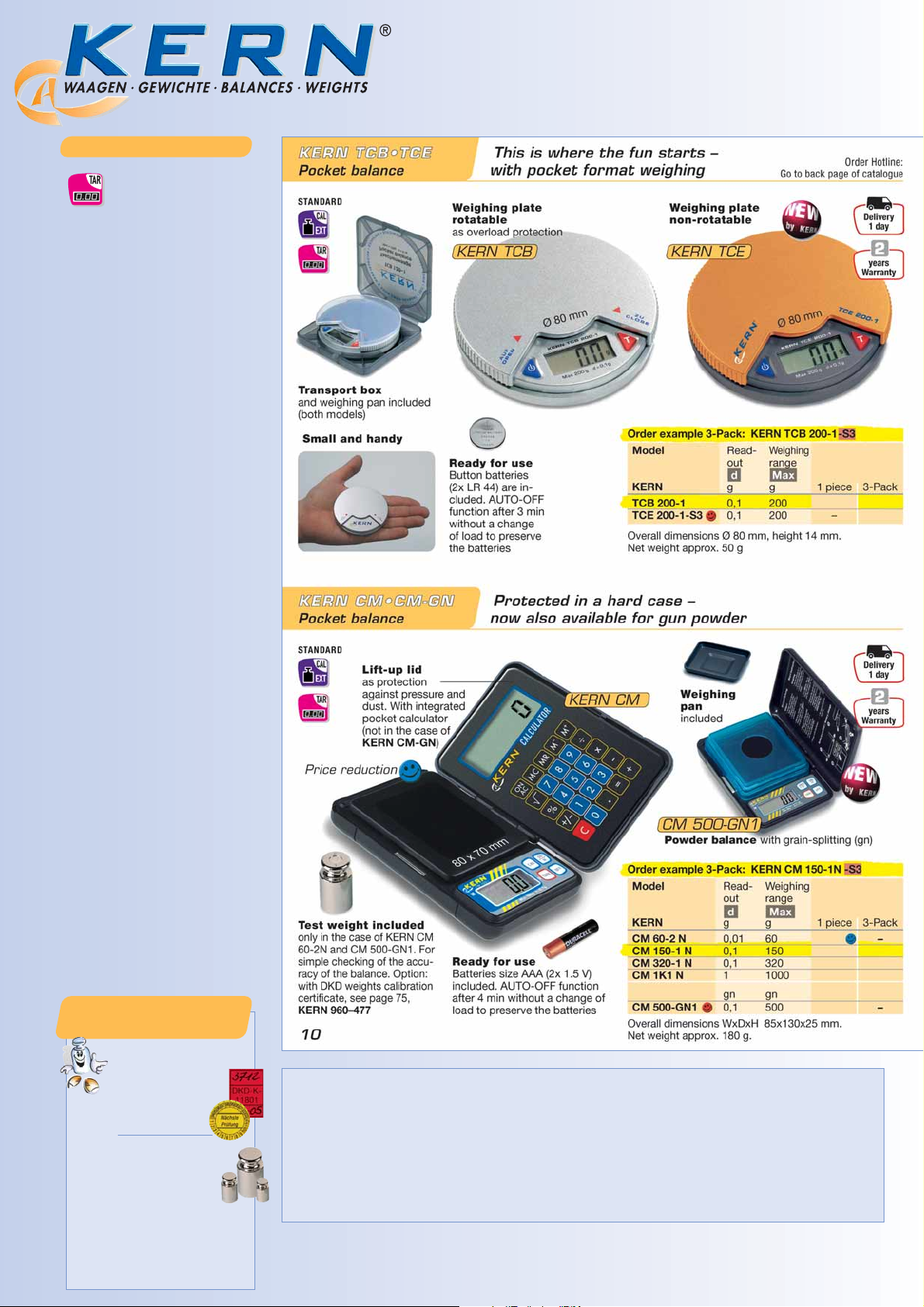

TCB
Pocket Balance
Standard
Tare: put back displayed
value to ”0“ during weighing
process, e.g. to add or remove
weighing material from a container.
ZEP_EP_TCB_GB_051
KERN – Your DKD
Calibration Partner
issues DKD calibration
certificates for
balances and test
weights in its own
accreditated laboratories.
It is internationally valid.
DKD = German
Calibration
Service
Your specialist dealer
GB
Telefon 00 49-[0] 74 33 -99 33 - 0
Telefax 00 49- [0 ] 74 33-99 33 - 146
e-mail: info@ kern-sohn.com
Internet: www.kern-sohn.com
KERN & SOHN GMBH
Postfach 40 52
D-72336 Balingen
KERN is manufacturer of test
weights in the international
classes of accuracy E1,
E2, F1, F2, M1, M2, M3,
from 1 mg up to 2000 kg
TCB
Technical Data
Measurement data TCB 200-1 TCE 200-1
Reproducibility 0,1g 0,1g
Linearity +/-0,2g +/-0,2g
Stabilisation time (s) 22
Sensity drift (°C) 5*10^-6 5*10^-6
Verifcation data
Verification class -Verification value -Minimum load -Verification in the factory possible --
Ambient conditions
Permissible temperature +10... +30°C +10... +30°C
Permissible humidity max. 85% (not condensating) max. 85% (not condensating)
Piece counting
Minimum weight -Reference quantity --
Basic equipment
Protective working cover -Accumulator -Battery-supply 2 x LR44, 10h operation time 2 x LR44, 10h operation time
Auto-Off After 3min After 3min
Stand-by -Mains adapter Battery Battery
Filter steps -Type of balance display LCD LCD
Digit height of balance display 9mm 9mm
Levelling feet, level indicator -Weighing units gg
Freely programmable weighing units -Internal adjusting weight -External test weight, included -Recommended adjusting weight 100g (M3) 100g (M3)
Explosion protection --
Dimensions / materials / weights
Dim. of weighing plate (WxDxH / Ø, mm) 80 80
Dimensions of terminal (WxDxH, mm) -Dimensions of casing (WxDxH, mm) 80x14 80x14
Material of casing Plastic Plastic
Dim. of draught guard (WxDxH / ØxH, mm)
--
Material of draught guard -Dimensions of packaging (WxDxH, mm) 93x18x98 116x105x69
Gross weight (kg) 0,1 0,35
Net weight (kg) 0,05 0,15
! Our balances are not suitable for use in areas of high humidity or where there is a danger of
explosion for models with protection class < IP 65.
! All relevant electrical regulations must be observed.
