Operating manual
Price calculating balance
KERN RFE
Version 1.1
2018-01
GB
RFE-BA-e-1811
2 RFE-BA-e-1811
GB
KERN RFE
Version 1.1 2018-01
Operating manual
Price calculating balance
Contents
1 Technical data ................................................................................................ 4
1.1 Dimensions ................................................................................................................................. 5
2 Declaration of conformity ............................................................................. 5
3 Appliance overview ....................................................................................... 6
3.1 Overview of display .................................................................................................................... 7
3.2 Keyboard overview ..................................................................................................................... 8
4 Basic Information (General ) ........................................................................ 10
4.1 Proper use ................................................................................................................................ 10
4.2 Improper Use ............................................................................................................................ 10
4.3 Warranty ................................................................................................................................... 10
4.4 Monitoring of Test Resources .................................................................................................. 10
5 Basic Safety Precauti on s ............................................................................ 11
5.1 Pay attention to the instructions in the Operation Manual........................................................ 11
5.2 Personnel training ..................................................................................................................... 11
6 Transport and storage ................................................................................. 11
6.1 Testing upon acceptance ......................................................................................................... 11
6.2 Packaging / return transport ..................................................................................................... 11
7 Unpacking, Setup and Commissioning ..................................................... 12
7.1 Installation Site, Location of Use .............................................................................................. 12
7.2 Unpacking ................................................................................................................................. 12
7.2.1 Placing ...................................................................................................................................... 12
7.2.2 Scope of delivery / serial accessories: ..................................................................................... 13
7.3 Mains connection ...................................................................................................................... 13
7.4 Rechargeable battery operation ............................................................................................... 13
7.5 Initial Commissioning ................................................................................................................ 14
7.6 Tripod........................................................................................................................................ 14
7.7 Adjustment ................................................................................................................................ 15
7.8 Verification ................................................................................................................................ 17
7.8.1 Adjustment switch and seals .................................................................................................... 18
7.9 Checking the balance verification settings ............................................................................... 18
8 The menu ...................................................................................................... 19
8.1 Access to menu: ....................................................................................................................... 19
8.2 Menu overview ......................................................................................................................... 20
9 Operation ...................................................................................................... 23
9.1 Turn on/off ................................................................................................................................ 23
9.2 Zeroing ..................................................................................................................................... 23
9.3 Weighing with tare .................................................................................................................... 23
9.4 Overload warning ..................................................................................................................... 24
10 Weighing with price determination ............................................................ 25
10.1 Basic price entry via keyboard ................................................................................................. 25
10.2 Memory for basic price (PLU = Price look up) .......................................................................... 26
10.2.1 Direct PLU memory locations............................................................................................... 26
10.2.2 Indirect PLU memory locations ............................................................................................ 28
10.2.3 Calculating the change ......................................................................................................... 30
RFE-BA-e-1811 3
11 Additional useful functions ......................................................................... 32
11.1 Display background illum ination ............................................................................................... 32
11.2 AUTO-OFF ............................................................................................................................... 33
11.3 Date and time ........................................................................................................................... 33
12 RS 232 interface ........................................................................................... 35
12.1 Technical data .......................................................................................................................... 35
12.2 Pin allocation of balance output bushing: ................................................................................. 35
12.3 Data output format .................................................................................................................... 36
12.4 Printout examples: .................................................................................................................... 38
13 Servicing, maintenance, disposal .............................................................. 39
13.1 Cleaning ................................................................................................................................... 39
13.2 Servicing, maintenance ............................................................................................................ 39
13.3 Disposal .................................................................................................................................... 39
14 Instant help ................................................................................................... 40
14.1 Error messages ........................................................................................................................ 41
4 RFE-BA-e-1811
1 Technical data
KERN RFE 6K3M RFE 15K3M RFE 30K3M
Weighing range (max) 3 kg / 6 kg 6 kg / 15 kg 15 kg / 30 kg
Readability (d) 1 g / 2 g 2 g / 5 g 5 g / 10 g
Minimum load (Min) 20 g 40 g 100 g
Verification value (e) 1 g / 2g 2 g / 5g 5 g / 10 g
Verification class III III III
Reproducibility 1 g / 2 g 2 g / 5 g 5 g / 10 g
Linearity ± 3 g / ± 6 g ± 6 g /± 15 g ± 15 g / ± 30 g
Recommended adjusting
weight (not supplied)
6 kg (M1) 15 kg (M1) 30 kg (M1)
Stabilization time 2 s
Heating time
(operating temperature)
10 min
Net weight (kg) 4.1
Basic price, can be switched
over
€/kg; €/100 g
Admissible
ambient temperature
-10° C to 40° C
Weighing surface (mm) 230 x 300
Tripod height (mm) 395
Auto-Off (battery; min.) 3, 5, 15, 30
Allowable air humidity 0 % - 80 % (non-condensing)
Electric Supply
Mains adapter 220 V – 240 V AC 50 Hz
balance 12 V, 500 mA
Rechargeable battery
(optional)
6 V, 4 Ah
Operating period - background illumination OFF:
60 h
RFE-BA-e-1811 5
1.1 Dimensions
2 Declaration of conformity
The current EC/EU Conformity declaration can be found online in:
www.kern-sohn.com/ce
For verified weighing scales (= weighing scales assessed for conformity) a
declaration of conformity is included in the scope of delivery.
6 RFE-BA-e-1811
3 Appliance overview
Models without post-mounted display:
Models with post-mounted display:
1. Bubble level
2. Weighing pan
3. Post-mounted display
4. Mains adapter connection
5. RS 232 interface
6. Footscrews
7. A djustment switch
RFE-BA-e-1811 7
3.1 Overview of display
1
Weight
2
Taring value
3
Basic price
4
Sales price
5 Storage battery status display
6
Bubble level
Stability display
ZERO
Zeroing display
Battery symbol
€/kg Basic price in €/kg
€/100 g Basic price in €/100 g
AUTO CLEAR
Set basic price is deleted automatically when balance is
unloaded
8 RFE-BA-e-1811
3.2 Keyboard overview
Selection
Function
~
• Numerical keys, PLU-keys
• Delete
~
• Direct PLU k eys
• PLU key
or
• Numeric keys 4 and 6
• Scroll up (4) or down (6) in the menu
• For activated function, the set basic price is automatically
deleted when the balance is unloaded.
• Display background illumination
• Switch-over unit € / kg € / 100g
• Turn on/off balance
• Calculating the change
RFE-BA-e-1811 9
• Issue to external device
• Taring
• In menu: Confirm
• Zeroing
• In menu: Exit menu
• Numeric key 0
10 RFE-BA-e-1811
4 Basic Information (General)
4.1 Proper use
The balance you purchased is intended to determine the weighing value of material
to be weighed. It is intended to be used as a “non-automatic balance”, i.e. the
material to be weighed is manually and carefully placed in the centre of the weighing
pan. As soon as a stable weighing value is reached the weighing value can be read.
4.2 Improper Use
Do not use balance for dynamic weighing. In the event that small quantities are
removed or added to the material to be weighed, incorrect weighing results can be
displayed due to the “stability compensation“. (Example: Slowly draining fluids from a
container on the balance.)
Do not leave permanent load on the weighing pan. This may damage the measuring
system.
Impacts and overloading exceeding the stated maximum load (max) of the balance,
minus a possibly existing tare load, must be strictly avoided. Balance may be
damaged by this.
Never operate balance in explosive environment. The serial version is not explosion
protected.
The structure of the balance may not be modified. This may lead to incorrect
weighing results, safety-related faul ts and destruction of the balanc e.
The balance may only be used according to the described conditions. Other areas of
use must be released by KERN in writing.
4.3 Warranty
Warranty claims shall be voided in case
• Our conditions in the operation manual are ignored
• The appliance is used outside the described uses
• The appliance is modified or opened
• Mechanical damage or damage by media, liquids, natural wear and tear
• The appliance is improperly set up or incorrectly electrically connected
• The measuring system is overloaded
4.4 Monitoring of Test Resources
In the framework of quality assurance the measuring-related properties of the
balance and, if applicable, the testing weight, must be checked regularly. The
responsible user must define a suitable interval as well as type and scope of this test.
Information is available on KERN’s home page (www.kern-sohn.com with regard to
the monitoring of balance test substances and the test weights required for this. In
KERN's accredited DKD calibration laboratory test weights and balances may be
calibrated (return to the national standard) fast and at moderate cost.
RFE-BA-e-1811 11
5 Basic Safety Precautions
5.1 Pay attention to the instructions in the Operation Manual
Carefully read this operation manual before setup and
commissioning,
even if you are already familiar with KERN balances.
5.2 Personnel training
The appliance may only be operated and maintained by trained personnel.
6 T ransport and storage
6.1 Testing upon acceptance
When receiving the appliance, please check packaging immediately, and the
appliance itself when unpacking for possible visible damage.
6.2 Packaging / return transport
Keep all parts of the original packaging for a possibly
required return.
Only use original packaging for returning.
Prior to dispatch disconnect all cables and remove
loose/mobile parts.
Reattach possibly supplied transport securing devices.
Secure all parts such as the glass wind screen, the
weighing platform, power unit etc. against shifting and
damage.
12 RFE-BA-e-1811
7 Unpacking, Setup and Commis sioning
7.1 Installation Site, Location of Use
The balances are designed in a way that reliable weighing results are achieved in
common conditions of use.
You will work accurately and fast, if you select the right location for your balance.
On the installation site observe the following:
• Place the balance on a firm, level surface;
• Avoid extreme heat as well as temperature fluctuation caused by installing
next to a radiator or in the direct sunlight;
• Protect the balance against direct draughts due to open windows and doors;
• Avoid jarring during weighing;
• Protect the balance against high humidity, vapours and dust;
• Do not expose the device to extreme dampness for longer periods of time.
Non-permitted condensation (co nd ens a ti on o f air humidi ty on the appliance)
may occur if a cold appliance is taken to a considerably warmer environment.
In this case, acclimatize the disconnected appliance for ca. 2 hours at room
temperature.
• Avoid static charge of goods to be weighed or weighing container.
If electro-magnetic fields or static charge occur, or if the power supply is unstable
major deviations on the display (incorrect weighing results) are possible. In that case,
the location must be changed.
7.2 Unpacking
Carefully remove the balance from the packaging, remove plastic cover and setup
balance at the intended workstation.
7.2.1 Placing
Level balance with foot screws until the air bubble of the
water balance is in the prescribed circle.
RFE-BA-e-1811 13
7.2.2 Scope of delivery / serial accessories:
• Balance
• Mains adapter
• Operating manual
• Tripod with screws
7.3 Mains connection
Power is supplied via the external mains adapter. The stated voltage value must be
the same as the local voltage.
Only use KERN original mains adapter. Using other makes requires consent by
KERN.
7.4 Rechargeable battery operation
The rechargeable battery is charged via the delivered power supply.
Before the first use, the battery should be charged by connecting it to the mains
power supply for at least 12 hours. Two symbols show the capacity of the
rechargeable battery:
• In the display the symbol
• The LED display above the loading battery status display
*
Description
red:
Battery is almost discharged
green:
Rechargeable battery completely reloaded
yellow:
Charging storage battery
* Loading battery status of the rechargeable battery with this symbol is only correctly
displayed, when the balance is supplied with energy not via the mains adapter.
14 RFE-BA-e-1811
7.5 Initial Commissioning
In order to obtain exact results with the electronic balances, your bala nce mus t have
reached the operating temperature (see warming up time chap. During this warming
up time the balance must be connected to the power supply (mains, accumulator or
battery).
The accuracy of the balance depends on the local acceleration of gravity.
Strictly observe hints in chapter Adjustment.

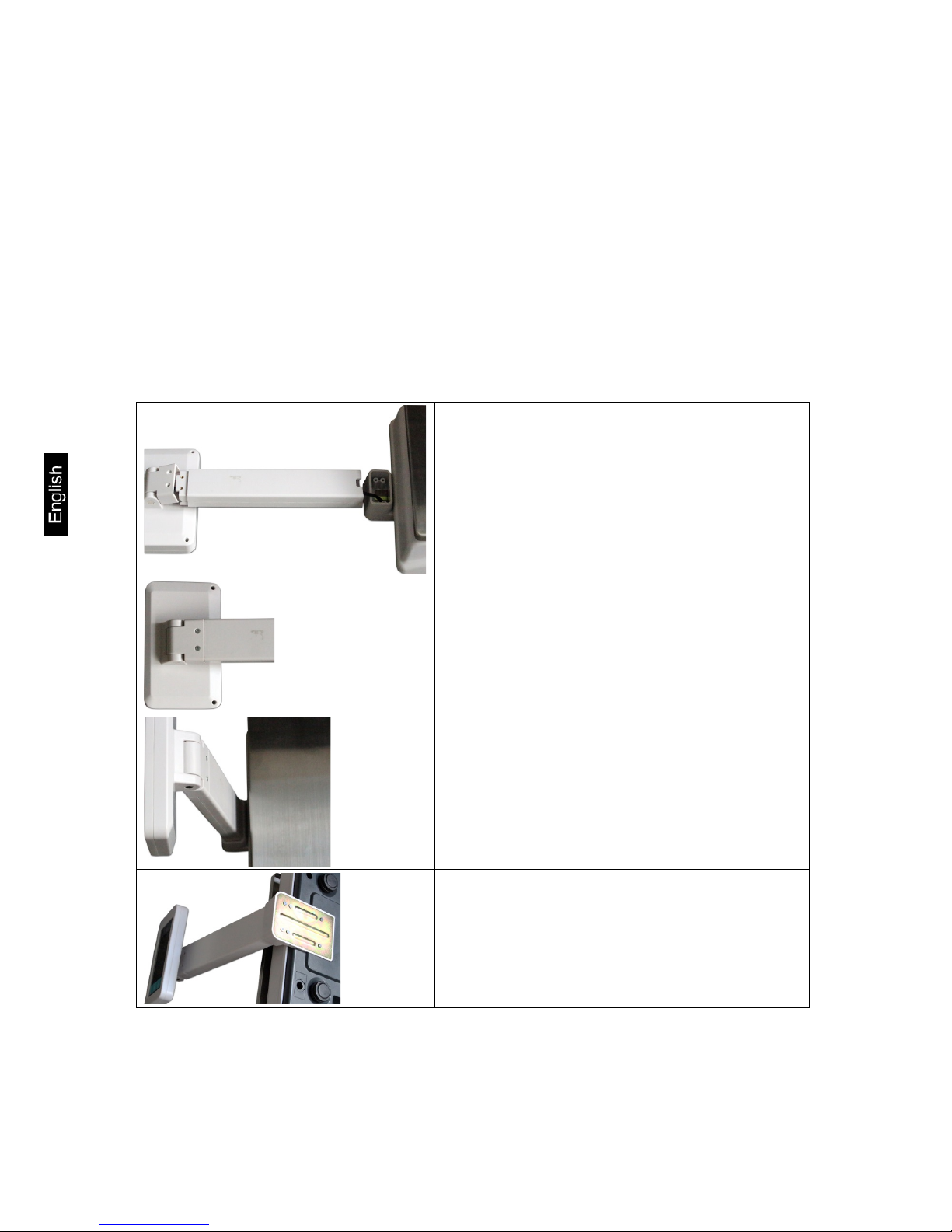

7.6 Tripod
Delivery volume includes a tripod for setting the display unit higher.
Assembly:
Lead the cable of the display unit through the
tripod.
Screw down the tripod at the display unit
Plug the tripod in the tripod foot at the
platform
Screw the tripod at the lower side of the
platform
RFE-BA-e-1811 15
7.7 Adjustment
As the acceleration value due to gravity is not the same at every location on earth,
each balance must be coordina ted - in compliance with the underlying physical
weighing principle - to the existing acceleration due to gravity at its place of location
(only if the balance has not already been adjusted to the location in the factory). This
adjustment process must be carried out for the first commissioning, after each
change of location as well as in case of fluctuating environment temperature. To
receive accurate measuring values it is also recommended to adjust the balance
periodically in weighing operation.
The adjustment is locked for verified balances. Carrying out adjustment
requires that the seal is destroyed and the adjusting switch is confirmed in
step 3 when turning on the scale. Position of adjustment switch, see chap.
7.8.1
Attention:
After destruction of the seal the balance must be re-verified by an
authorised agency and a new verification wire/seal mark fitted before it can
be reused for applications subject to verification.
16 RFE-BA-e-1811
Procedure when adjusting:
Observe stable environmental conditions. A warming up time (see chapter 1) is
required for stabilization. Ensure that there are no objects on the weighing pan.
Arrange adjustment weight, details see chap.1 „Techn. data“
• Start balance by pressing . During the selftest press
. The password query "P in" is displayed.
• Using numeric keyboard, enter the standard password "9999".
"P in ----" is displayed.
• Confirm by , the menu is called up, the first menu point "F0
CAL" is displayed.
•
Press adjustment switch on the lower side of the balance
• Press , "F0 UnLoad" will be displayed. Ensure that there
are no weighing goods on the weighing pan. Wait for stability
display.
• Press anew. The value of the adjustment weight appears.
(example)
• Either place the displayed adjustment weight, or use the numeric
keys to enter a new adjustment weight.
• Acknowledge with . „Load“ is displayed.
• Place adjustment weight, wait for stability display and press
. “PASS“ will be displayed.
• Adjustment now has finished. Remove adjustment weight from
weighing plate.
The balance changes automatically into weighing
mode. The zero display appears.
RFE-BA-e-1811 17
7.8 Verification
UUGeneral hints:
According to EU directive 2014/31/EU balances must be officially verified if they are
used as follows (legally controlled area):
a) For commercial transactions if the price of goods is determined by weighing.
b) For the production of medicines in pharmacies as well as for analyses in the
medical and pharmaceutical laboratory.
c) For official purpose.
d) For manufacturing final packages.
In cases of doubt, please contact your local trade in standard.
After verification the balance is sealed at the indicated positions.
Verification of the balance is invalid without the "seal".
Verification notes
An EU type approval exists for balances described in their technical data as
verifiable. If a balance is used where obligation to verify exists as described above, it
must be verified and re-verified at regular intervals.
Re-verification of a balance is carried out according to the respective national
regulations. The validity for verification of balances in Germany is e.g. 2 years.
The legal regulation of the country where the balance is used must be observed!
Balances with obligation to verify must be taken out of operation if:
•
The weighing result of the balance is outside the error limit. Therefore, in
regular intervals load balance with known test weight (ca. 1/3 of the max. load)
and compare with displayed value.
•
The reverification deadline has been exceeded.
18 RFE-BA-e-1811

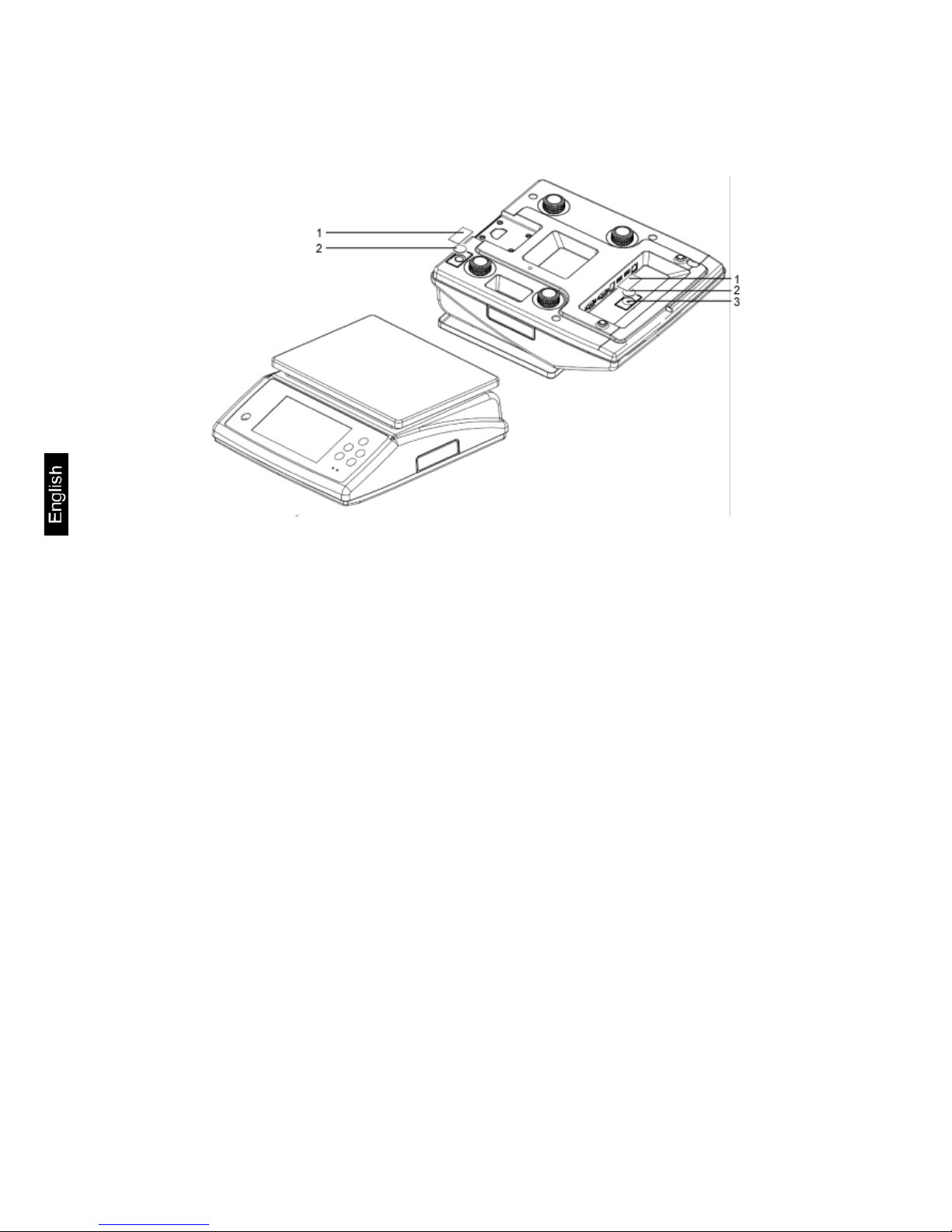

7.8.1 Adjustment switch and seals
1. Seal mark
2. Cover
3. Verification switch
7.9 Checking the balance verification settings
For the adjustment, the balance must be switched over to service mode.
In calibrated scales the service mode is locked individually for each switch. To
disable the access lock, destroy the seal and actuate the switch.
Attention:
After destruction of the seal the balance must be re-verified by an author is ed ag enc y
and a new verification wire/seal mark fitted before it can be reused for applications
subject to verification.
RFE-BA-e-1811 19

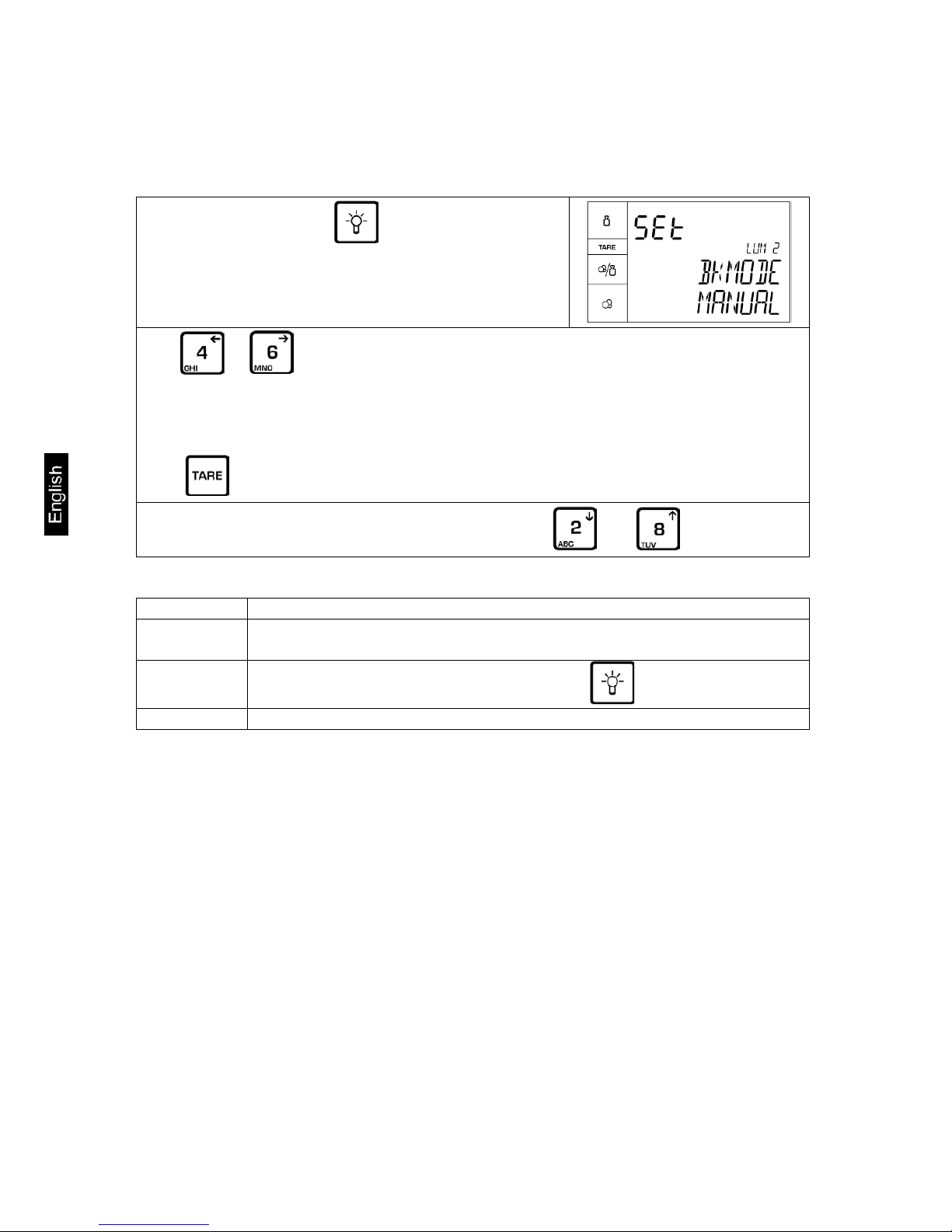

8 The menu
8.1 Access to menu:
• Start balance by pressing . During the selftest press .
The password query "P in" is displayed.
• Using numeric keyboard, enter the standard password "9999".
"P in ----" is displayed.
• Confirm by , the menu is called up, the first menu point "F0
CAL" is displayed.
• Press adjustment switch on the lower side of the balance
Select function:
Use the numeric keys , scroll up or down in the menu.
Confirm selected function by pressing . Select desired setting with
and acknowledge by .
Exit menu:
Press the button as often as necessary until the zero display appears. The
balance is now again in weighing mode.
20 RFE-BA-e-1811
8.2 Menu overview
Function
Settings
or and
Description
or and
F0
CAL
Adjustment function
F1
rES
Press adjustment switch
Resolution
dUAL rAnGE
30000
60000
3000
6000
dUAL intEru
F2
CAP
Weighing range (max)
30KG
3KG
6KG
15KG
F3
oFFtmE
Auto Off function
15
30
oFF
3
5
F4
CLoCK
Time/Date
dAtE
timE
StYLE
RFE-BA-e-1811 21
F5
P Com
RS 232 interface
Com 1
CHAnEL
rJ45
rS232
oFF
Interface out of function
PSEnd
Kont. Data Transfer
bAUd
1200
2400
4800
9600
19200
38400
115200
vEriFY
7E1
701
8n1
Com 2
CHAnEL
Print
USb
Com 3
bLUE
Com 1
Com 2
Com 3
Com 4
PtYPE
oFF
PSEnd
bAUd
9600
19200
38400
115200
1200
2400
4800
Com 4
WiFi
oFF
on
PtYPE
PSEnd
oFF
bAUd
9600
19200
38400
115200
1200
2400
4800
22 RFE-BA-e-1811
F6
Print
Printer setting
FormAt
oFF
Prt 1
Prt 2
HEAdE 1
Head line 1
HEAdE 2
Head line 2
HEAdE 3
Head line 3
FootE 1
Foot line 1
FootE 2
Foot line 2
FootE 3
Foot line 3
F7
AZn
Auto-Zero
on
off
F8
ACC
not documented
on
off
F9
PdECi
Decimal dot in price
0.00
0.000
0
0.0
F10
PrCmod
Fix
FLoAt
F11
CHAnGE
Press adjustment switch
Calculation of credit
on
off
F12
rEtArE
Pre-Tare
on
off
F13
SPEEd
A/D-converter
FAst
SLoW
Mid F14
GrA
Gravity
F15
t-Curr
Symbol for currency
EUr
Euro
CnY
Chinesische Yen
USd
USd
RFE-BA-e-1811 23
9 Operation
9.1 Turn on/off
To switch on, press . The balance will carry out a self-test. As soon as
the weight display shows "0" in all the three numeric values, your balance is
ready to weigh.
To switch off press anew.
9.2 Zeroing
Resetting to zero corrects the influence of light soiling on the weighing plate.
Unload the balance
Press , the balance starts resetting to zero.
The indicator ZERO appears.
9.3 Weighing with tare
Deposit weighing vessel. After successful standstill control press the
button. The weight value goes t o 0, in the field for the taring weight appears th e
weight value of the weighing container.
(example)
Weigh the material, the net weight will be indicated.
24 RFE-BA-e-1811
After removing the weighing container, the weight of the weighing container
appears in the field of the weight display as negative value.
To delete the tare value, remove load from weighing plate and press .
In all fields now will again be displayed 0.
9.4 Overload warning
Overloading exceeding the stated maximum load (max) of the balance, minus a
possibly existing tare load, must be strictly avoided. This could cause damage to
the balance.
Exceeding maximum load is indicated by the display of “-oL-“, and an audio
sound. Unload balance or reduce preload.
RFE-BA-e-1811 25
10 Weighing with price determination
As soon as the goods to be weighed are placed on the balance and the basic price
has been set the price is calculated automatically and displayed in the provided field.
First set the desired currency in menu menu item F14.
10.1 Basic price entry via keyboard
Place goods to be weighed on balance.
(example)
Enter basic price via the numeric keys to
The sales price will be calculated and displayed
automatically.
(example)
• The set basic price is deleted by .
• Using switch over basic price from € / kg to € / 100g.
• Calculating the change, see chap. 10.2.3
26 RFE-BA-e-1811
10.2 Memory for basic price (PLU = Price look up)
The balance has more than 100 indirect PLU memory locations and 4 direct ones.
The following data are stored per memory location:
• Product code
• Product name
• Weighing type
• Sales price
• Purchase price
• Pretare value
10.2.1 Direct P LU memory locations
Save:
Press direct PLU key and keep it pressed. In
the display appears Set PNAmE. The display flashes.
Use the numeric keys to enter the product name, e.g.
APPLE.
Values with up to 9 letters can be entered.
(example)
Acknowledge with . The weighing type is
displayed. Either Amount or Weight.
It can be calculated according to amount or according
to weight.
Select the desired weighing type by or
acknowledge on .
In the weighing type Amount in the display appears
now the entry of the unit price.
RFE-BA-e-1811 27
Use the numeric keys to enter Unit price and confir m
by pressing .
(example)
The display to enter the Pretare value appears.
Enter pretare value using numeric keys.
Acknowledge with .
(example)
Entering the data for the direct PLU memory location "1" is herewith completed. The
balance changes automatically into weighing mode.
28 RFE-BA-e-1811
Retrieve / show sales price:
To call up the data stored before, press in
weighing mode. Data are displayed.
(example)
Place the weighing good, the weight and the sales
price are now displayed.
(example)
10.2.2 Indirect PLU memory locations
Save:
Press and keep pressed. In the display Set
PLU.
Use the numeric keys to enter the memory location
where data shall be stored.
The display to enter the Product name appears.
Use the numeric keys to enter the name.
Acknowledge with .
RFE-BA-e-1811 29
Acknowledge with . The weighing type is
displayed. Either Amount or Weight.
It can be calculated according to amount or according
to weight.
Select the desired weighing type by or
acknowledge on .
In the weighing type Amount in the display appears
now the entry of the unit price.
Use the numeric keys to enter
Unit price
and confirm
by pressing .
(example)
The display to enter the Pretare value appears.
Enter pretare value using numeric keys.
Acknowledge with .
(example)
Entering the data for the indirect PLU memory location "01" is herewith completed.
The balance changes automatically into weighing mode.
30 RFE-BA-e-1811
Retrieve / show sales price:
To call up the data stored before, press in
weighing mode. SELECT PLU is displayed. Use the
numeric keys to enter the memory location.
(example)
In the display appear the data stored before.
(example)
Place the weighing good, the weight and the sales
price are now displayed.
(example)
10.2.3 Calculating the change
When the sales price appears, press .
(example)
PAY will be displayed.
RFE-BA-e-1811 31
Use the numeric keys to enter the given amount and
confirm by pressing .
(example)
The change will be shown briefly.
(example)
32 RFE-BA-e-1811
11 Additional useful functions
11.1 Display background illumination
In weighing mode press and keep pressed.
SET BKMODE manual will be displayed.
Use or to change between the settings:
• Manual
• Auto
• Off
Use to confirm the desired setting.
The brightness of the display can be set by the keys and .
Display
Description
Auto
Background illumination on, as soon as the balance is used or the
weight value is not zero
manual
Background illumination on/off by pressing .
oFF
Background lighting off
RFE-BA-e-1811 33
11.2 AUTO-OFF
To save the rechargeable battery, the automatic switch-off function can be activated,
switch-off time selectable after 3, 5, 15 or 30 minutes.
In menu F3 call up offtmE and confirm by . The last
selected setting will be shown.
(example)
Select the desired time using the keys or and
acknowledge on .
The switch-off time now is set.
11.3 Date and time
In menu F4 call up CloCK and confirm by . The last
selected setting will be shown.
(example)
Use the keys or to change between date, time and the format.
We recommend to select the format firs t:
• YYmmdd = JJMMTT
• mmdd YY = MMT TJJ
•
ddmm YY = TTMMJJ
Here is an example: YYmmdd and press to confirm.
STYLE is displayed.
oFF Automatic switch off deactivated
3 Automatic switch off after 3 min
5 Automatic switch off after 5 min
15 Automatic switch off after 15 min
30 Automatic switch off after 30 min
34 RFE-BA-e-1811
Select date or time using or . In this example
dAtE, confirm with .
dAtE and a date will be displayed. Enter the current date via
the numeric keys and confirm by .
(example)
Set the time in the same way.
RFE-BA-e-1811 35
12 RS 232 interface
12.1 Technical data
RS 232 connection to output of weighing data
ASCII code
Baud rate 1200, 2400, 4800, 9600, 19200, 38400, 115200
8 data bits
No parity
12.2 Pin allocation of balance output bushing:
Pin 2
RXD
Input
Receiving data
Pin 3 TXD Output Transmission data
Pin 5
GND ― Signal ground
9pin D Connector:
Balance
computer
Pin 2 ― Pin 3
Pin 3
―
Pin 2
Pin 5
―
Pin 5
１
２
３ ４ ５
６ ７ ８
９
36 RFE-BA-e-1811
12.3 Data output format
Continuous data outpu t:
Report export:
RFE-BA-e-1811 37
SCALE serial port mode：
SendPlu (use for setting from back office to scale)
38 RFE-BA-e-1811
12.4 Printout examples:
• In validated scales, the sum feature is blocked with a switch. To
remove the access block, destroy the seal and press the switch.
• Menu: F6 → Format → Prt2
HEADER_LINE_1xxxxxxxxxxxxxxx
Header 1
LINE_2xxxxxxxxxxxxxxxxxxxxxxxxx
Header 2
LINE_3xxxxxxxxxxxxxxxxxxxxxxxxx
Header 3
2018/02/12 20:26:08
Date and time
Tare(kg) W.t(kg) U.P.(EUR) Price
Tare value Item to be
weighed
Basic price Price of load placed
----------------------------------------------------------------------------------------------
APPLE
PLU
0.460 1.999 5.00/kg 9.99
----------------------------------------------------------------------------------------------
SubTotal (EUR): 9.99
Price of load placed
Pay (EUR):
10.00
given amount
Change (EUR): 0.01
Change
FOOTER_LINE_1xxxxxxxxxxxxxxx
footer 1
LINE_2xxxxxxxxxxxxxxxxxxxxxxxx
footer 2
LINE_3xxxxxxxxxxxxxxxxxxxxxxxx
footer 3
(The end)
End of printout
RFE-BA-e-1811 39
13 Servicing, maintenance, dis pos al
13.1 Cleaning
Before cleaning, please disconnect the appliance from the operating voltage.
Please do not use aggressive cleaning agents (solvents or similar agents), but a
cloth dampened with mild soap suds. Ensure that no liquid penetrates into the device
and wipe with a dry soft cloth.
Loose residue sample/powder can be removed carefully with a brush or manual
vacuum cleaner.
Spilled weighing goods must be removed immediately.
13.2 Servicing, maintenance
The appliance may only be opened by trained service technicians who are authorized
by KERN.
Before opening, disconnect from power supply.
13.3 Disposal
Disposal of packaging and appliance must be carried out by operator according to
valid national or regional law of the location where the appliance is used.
40 RFE-BA-e-1811
14 Instant help
In case of an error in the program process, briefly turn off the balance and disconnect
from power supply. The weighing process must then be restarted from the beginning.
Fault Possible cause
The displayed weight does
not glow.
• The balance is not switched on.
• The mains supply connection has been interrupted
(mains cable not plugged in/faulty).
• Power supply interrupted.
• Batteries are inserted incorrectly or empty
• No batteries inserted.
The displayed weight is
permanently changing
• Draught/air movement
• Glass doors not closed
• Table/floor vibrations
• Weighing pan has contact with other objects.
• Electromagnetic fields / static charging (choose
different location/switch off interfering device if
possible)
The weighing result is
obviously incorrect
• The display of the balance is not at zero
• Adjustment is no longer correct.
• The balance is on an uneven surface.
• Great fluctuations in temperature.
• Electromagnetic fields / static charging (choose
different location/switch off interfering device if
possible)
Should other error messages occur, switch balance off and then on again. If the error
message remains inform manufacturer.
RFE-BA-e-1811 41
14.1 Error messages
------- Overload
Err 1 Wrong data format in date input
Err 2 Wrong data format in time input
Err 4 Zero range exceeded
Err 5 Invalid entry
Err 6 Damaged electronics
Err 8 Adjustment error, check adjustment weight
Err 9 Instable; check environmental conditions
Err 19
Zero point drift; remove additional preloads (vessels) from the balance.
Adjustment of the balance
Loading...
