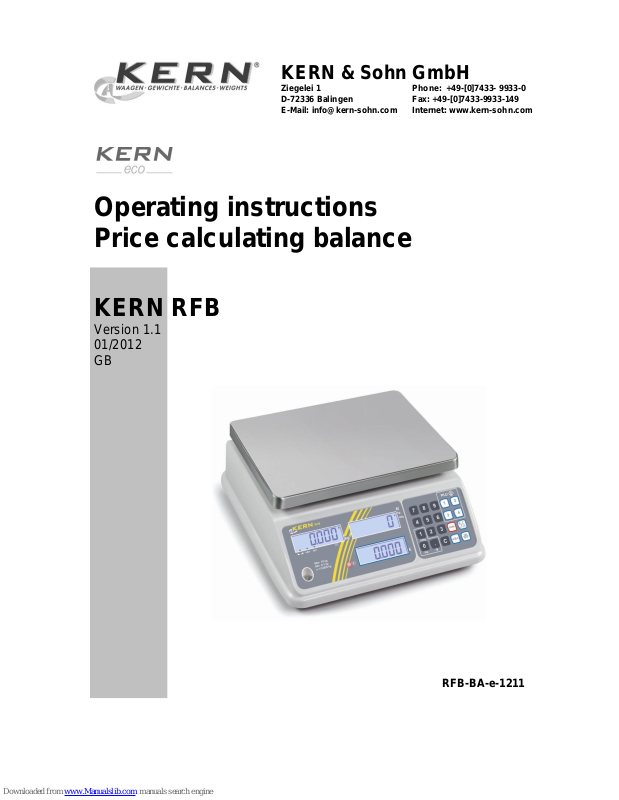

Operating instructions Price calculating balance
KERN RFB
Version 1.1
01/2012 GB
RFB-BA-e-1211
RFB-BA-e-1211
2
GB
KERN RFB
Version 1.1 01/2012
Operating instructions Price calculating balance
Contents
1 Technical data ................................................................................................ 4
2 Device overview ............................................................................................. 5
2.1 Dimensions ................................................................................................................................. 5
2.2 Overview of display ..................................................................................................................... 6
2.2.1 Display weight ............................................................................................................................. 7
2.2.2 Display basic price ...................................................................................................................... 7
2.2.3 Display sale price ........................................................................................................................ 7
2.3 Keyboard overview ..................................................................................................................... 8
3 Basic Information (General) ................................................................ .......... 9
3.1 Proper use .................................................................................................................................. 9
3.2 Improper Use .............................................................................................................................. 9
3.3 Warranty ................................................................................................................................... 10
3.4 Monitoring of Test Resources ................................................................................................... 10
4 Basic Safety Precautions ............................................................................ 10
4.1 Pay attention to the instructions in the Operation Manual ........................................................ 10
4.2 Personnel training ..................................................................................................................... 10
5 Transport and storage ................................................................................. 11
5.1 Testing upon acceptance ......................................................................................................... 11
5.2 Packaging / return transport ..................................................................................................... 11
6 Unpacking, Setup and Commissioning ..................................................... 11
6.1 Installation Site, Location of Use .............................................................................................. 11
6.2 Unpacking ................................................................................................................................. 12
6.2.1 Placing ...................................................................................................................................... 13
6.2.2 Pressure compensation screw: ................................................................................................ 14
6.3 Scope of delivery ...................................................................................................................... 14
6.4 Mains connection ...................................................................................................................... 14
6.5 Battery power supply ................................................................................................................ 15
6.5.1 Rechargeable battery installation ............................................................................................. 15
6.5.2 Mains connection during rechargeable battery operation ......................................................... 17
6.6 Initial Commissioning ................................................................................................................ 17
6.7 Type of protection IP- 65 .......................................................................................................... 17
6.8 Adjustment ................................................................................................................................ 18
6.9 Verification ................................................................................................................................ 20
6.9.1 Position of seals and adjusting switch ...................................................................................... 22
RFB-BA-e-1211
3
7 Operation ...................................................................................................... 23
7.1 Switch on/off and set zero ........................................................................................................ 23
7.2 Simple weighing ........................................................................................................................ 24
7.3 Weighing with taring ................................................................................................................. 25
7.4 Weighing units switch-over ....................................................................................................... 26
7.5 Background illumination ........................................................................................................... 27
7.6 Auto-Off function ....................................................................................................................... 28
7.7 Weighing with price determination ............................................................................................ 30
7.7.1 Manual input of a basic price .................................................................................................... 30
7.7.2 Saving and calling up a basic price .......................................................................................... 31
7.8 Determining the price per number of items .............................................................................. 33
8 The menu ...................................................................................................... 34
8.1 Navigation in the menu ............................................................................................................. 34
8.2 Menu overview .......................................................................................................................... 35
9 Error messages ............................................................................................ 36
10 Service, maintenance, disposal .................................................................. 37
10.1 Clean ........................................................................................................................................ 37
10.2 Service, maintenance ............................................................................................................... 37
10.3 Disposal .................................................................................................................................... 37
11 Instant help ................................................................................................... 38
RFB-BA-e-1211
4
1 Technical data
KERN
RFB 3K1IPM
RFB 6K2IPM
RFB 15K5IPM
Readability (d)
1 g
2 g
5 g
Weighing range (max)
3 kg
6 kg
15 kg
Minimum load
20 g
40 g
100 g
Verification value (e)
1 g
2 g
5 g
Verification class
III
III
III
Reproducibility
1 g
2 g
5 g
Linearity
± 1 g
± 2 g
± 5 g
Stabilization time
2 sec.
2 sec.
2 sec.
Recommended adjusting weight (not supplied)
2 kg (M1) 1 kg (M1)
5 kg (F2) 1 kg (F2)
5 kg (M1)
10 kg (M1)
Net weight (kg)
4,2
Dimensions, completely assembled (W x D x H) [mm]
286 x 316 x 126
Weighing plate, stainless steel
200 x 260 mm
Heating time (operating temperature)
10 min
Weighing unit
kg, g
Permissible ambient condition
-10° C to 40° C
Allowable air humidity
0% - 80% (non-condensing)
Electric Supply
Input Voltage: 220V-240V AC 50Hz
Secondary voltage powerpack: 12V, 500 mA
Rechargeable battery
6V; 3.2Ah
Operating time – background lighting ON approx. 40 hrs.
Operating time – background lighting OFF approx. 60 hrs.
Loading time approx. 12 hrs.
Auto-Off (rechargeable battery)
adjustable 3, 5, 10, 30 min, off
Display
LCD, digit height 15mm
IP protection
IP 65
RFB-BA-e-1211
5
2 Device overview
1 Verification wire
2
Battery compartment
3
Connection of mains adapter
4
Pressure compensation screw
2.1 Dimensions
Membrane for degree of protection IP67
RFB-BA-e-1211
6
2.2 Overview of display
Operator display balance:
Weight
Basic price
Sales price
RFB-BA-e-1211
7
Secondary display on customer side:
Weight
Basic price
Sales price
2.2.1 Display weight
Here, the weight of your goods is displayed.
The arrows above the symbols show:
Stability display
Zeroing display
Net weight
Battery very low
2.2.2 Display basic price
Here, enter your basic price in €/kg or €/100 g via keyboard. The basic price can be switched to €/kg or €/100 g.
The arrows above the symbols show:
€/100 g
Saved basic price in €/100 g
€/kg
Saved basic price in €/kg
2.2.3 Display sale price
Here the sales price is displayed in Euro [€].
RFB-BA-e-1211
8
2.3 Keyboard overview
Selection
Function
in weighing mode
in menu
Turn on/off
-
Zeroing key:
Balance zeroing Invoke function background
illumination (press button long time)
Exit menu and return to
weighing mode
Exit submenu and return to
main menu item
Price calculation per number of
items
Invoke function Auto-Off
-
Taring key:
Tare balance Store pretare-value
Access to menu Choose selected parameter
In functions background illumination and Auto-OFF: change between the single settings
change between the single
parameters
-
Numeric keys:
Entering the basic price/PLU Entering the pretare value
-
RFB-BA-e-1211
9
Selection
Function
in weighing mode
in menu
Saving and invoking the four
PLU values
-
Switch-over buttons /kg or
/100g
-
Deleting key
-
3 Basic Information (General)
3.1 Proper use
The balance you purchased is intended to determine the weighing value of material to be weighed. It is intended to be used as a “non-automatic balance”, i.e. the material to be weighed is manually and carefully placed in the centre of the weighing plate. As soon as a stable weighing value is reached the weighing value can be read.
3.2 Improper Use
Do not use balance for dynamic weighings. In the event that small quantities are removed or added to the material to be weighed, incorrect weighing results can be displayed due to the “stability compensation“. (Example: Slowly draining fluids from a container on the balance.) Do not leave permanent load on the weighing plate. This may damage the measuring system. Impacts and overloading exceeding the stated maximum load (max) of the balance, minus a possibly existing tare load, must be strictly avoided. Balance may be damage by this. Never operate balance in explosive environment. The serial version is not explosion protected. The structure of the balance may not be modified. This may lead to incorrect weighing results, safety-related faults and destruction of the balance. The balance may only be used according to the described conditions. Other areas of use must be released by KERN in writing.
RFB-BA-e-1211
10
3.3 Warranty
Warranty claims shall be voided in case
Our conditions in the operation manual are ignored The appliance is used outside the described uses The appliance is modified or opened Mechanical damage or damage by media, liquids, natural wear and tear The appliance is improperly set up or incorrectly electrically connected The measuring system is overloaded
3.4 Monitoring of Test Resources
In the framework of quality assurance the measuring-related properties of the balance and, if applicable, the testing weight, must be checked regularly. The responsible user must define a suitable interval as well as type and scope of this test. Information is available on KERN’s home page (www.kern-sohn.com with regard to the monitoring of balance test substances and the test weights required for this. In KERN's accredited DKD calibration laboratory test weights and balances may be calibrated (return to the national standard) fast and at moderate cost.
4 Basic Safety Precautions
4.1 Pay attention to the instructions in the Operation Manual
Carefully read this operation manual before setup and commissioning, even if you are already familiar with KERN balances.
4.2 Personnel training
The appliance may only be operated and maintained by trained personnel.
RFB-BA-e-1211
11
5 Transport and storage
5.1 Testing upon acceptance
When receiving the appliance, please check packaging immediately, and the appliance itself when unpacking for possible visible damage.
5.2 Packaging / return transport
Keep all parts of the original packaging for a possibly
required return.
Only use original packaging for returning. Prior to dispatch disconnect all cables and remove
loose/mobile parts.
Reattach possibly supplied transport securing devices. Secure all parts such as the glass wind screen, the
weighing platform, power unit etc. against shifting and damage.
6 Unpacking, Setup and Commissioning
6.1 Installation Site, Location of Use
The balances are designed in a way that reliable weighing results are achieved in common conditions of use. You will work accurately and fast, if you select the right location for your balance.
Therefore, observe the following for the installation site:
Place the balance on a firm, level surface; Avoid extreme heat as well as temperature fluctuation caused by installing
next to a radiator or in the direct sunlight; Protect the balance against direct draughts due to open windows and doors; Avoid jarring during weighing; Protect the balance against high humidity, vapours and dust;
RFB-BA-e-1211
12
Do not expose the device to extreme dampness for longer periods of time.
Non-permitted condensation (condensation of air humidity on the appliance)
may occur if a cold appliance is taken to a considerably warmer environment.
In this case, acclimatize the disconnected appliance for ca. 2 hours at room
temperature. Avoid static charge of goods to be weighed or weighing container. Do not operate in areas with hazard of explosive material or in potentially
explosive atmospheres due to materials such as gasses, steams, mists or
dusts.
Keep away chemicals (such as liquids or gasses), which could attack and
damage the balance inside or from outside.
Keep IP protection of the device. If electro-magnetic fields or static charge occur, or if the power supply is
unstable major deviations on the display (incorrect weighing results) are
possible. In that case, the location must be changed.
6.2 Unpacking
Remove device and accessories carefully from packaging, remove packaging material and place device at the planned work place. Verify that there has been no damage and that all packing items are present.
RFB-BA-e-1211
13
6.2.1 Placing Assembly description:
Place the balance on a firm, level
surface
7 Place the support of the weighing
plate on the balance
Insert shim Using the hexagonal wrench of scope
of delivery, fasten the screw carefully so that the weighing system will not be damaged
Place weighing plate
Level balance with foot screws until the air bubble of the
water balance is in the prescribed circle.
Check levelling regularly.
RFB-BA-e-1211
14
6.2.2 Pressure compensation screw:
On the lower side of the balance there is a pressure compensation screw [1] which has to be opened for the weighing process. Fasten the screw before cleaning
the balance.
6.3 Scope of delivery
Serial accessories:
Balance Weighing plate Carrier weighing plate Power cable Hexagonal socket wrench Shim Fastening screw of the carrier weighing plate Rechargeable battery Operating instructions
6.4 Mains connection
Power is supplied via the external mains adapter. The stated voltage value must be the same as the local voltage. Only use KERN original mains adapter. Using other makes requires consent by KERN.
1
Connection of power pack on the lower side of the balance
RFB-BA-e-1211
15
6.5 Battery power supply
Before the first use, the battery should be charged by connecting it to the mains power supply for at least 12 hours. For this purpose the balance needs not to be switched on.
The operating time of the rechargeable battery with background illumination is about 40h. without background illumination approx. 60 hrs. Charging time until complete recharging is approx. 12h AUTO-OFF function can be selected after 3, 5, 15, 30 min. to save the rechargeable battery.
If an arrow appears on the weight display above the battery symbol , the capacity of the rechargeable battery will soon be exhausted. Connect the power adapter as soon as possible to change the battery.
The LED display beside the piece number window informs you during charging about the charging status of the rechargeable battery. red: Battery is almost discharged
green: Battery is completely discharged yellow: Charging storage battery
6.5.1 Rechargeable battery installation
Remove any adherent moisture from the balance Move both levers 90° to the left
RFB-BA-e-1211
16
Remove the rechargeable battery cover
Connecting the rechargeable battery
Watch the colours: Red on red ! Black on black!
Insert the rechargeable battery in a manner that it
cannot slip (fasten with a rubber mat)
Ensure that the cables are not squeezed.
Close the rechargeable battery cover Move both levers 90° to the right
Avoid excess pressure as this may damage the balance, particularly as it is supported by the weighing plate.
RFB-BA-e-1211
17
6.5.2 Mains connection during rechargeable battery operation
During the rechargeable battery operation ensure that the mains connection is covered with a rubber cap.
Only by this the type of protection IP65 is ensured.
6.6 Initial Commissioning
In order to obtain exact results with the electronic balances, your balance must have reached the operating temperature (see warming up time chap. 1. During this warming up time the balance must be connected to the power supply (mains, accumulator).
The accuracy of the balance depends on the local acceleration of gravity. Strictly observe hints in chapter 6.8 Adjustment.
6.7 Type of protection IP- 65
Suitable for a short-time contact with liquids. For cleaning use a wet cloth. Dust­proof.
RFB-BA-e-1211
18
6.8 Adjustment
As the acceleration value due to gravity is not the same at every location on earth, each balance must be coordinated - in compliance with the underlying physical weighing principle - to the existing acceleration due to gravity at its place of location (only if the balance has not already been adjusted to the location in the factory). This adjustment process must be carried out for the first commissioning, after each change of location as well as in case of fluctuating environment temperature. To receive accurate measuring values it is also recommended to adjust the balance periodically in weighing operation.
Verified models:
The adjustment is locked for verified balances. To disable the access lock, destroy the seal and actuate the adjustment
switch. Position of the adjustment switch see chap. 6.9.1 Attention:
After destruction of the seal the balance must be re-verified by an authorised agency and a new verification wire/seal mark fitted before it can be reused for applications subject to verification.
Operation
Display
Switch on balance While the balance carries out
a self test, press .
RFB-BA-e-1211
19
Use the numeric keys to
enter password „0000“
Actuate adjustment switch on
the lower side of the balance (see chap.6.9.1)
Then press
Press adjustment switch
again
Press
Ensure that there are no objects on the weighing plate.
Press
.
The required adjustment weight is displayed:
(Example)
RFB-BA-e-1211
20
Wait for the appearance of
the triangle over the stability display , then place the adjustment weight
Confirm with
The adjustment process is started.
The display changes to „F0
CAL“
Now the process of adjustment is completed.
Remove adjustment weight
from weighing plate
Using the balance
returns into the weighing mode
In case of an adjustment error or incorrect adjusting weight the display will show an error message; repeat adjustment process.
6.9 Verification
General introduction: According to EU directive 90/384/EEC balances must be officially verified if they are
used as follows (legally controlled area):
a) For commercial transactions if the price of goods is determined by weighing. b) For the production of medicines in pharmacies as well as for analyses in the
medical and pharmaceutical laboratory. c) For official purpose. d) For manufacturing final packages.
In cases of doubt, please contact your local trade in standard.
RFB-BA-e-1211
21
Verification notes: An EU type approval exists for balances described in their technical data as verifiable. If a balance is used where obligation to verify exists as described above, it must be verified and re-verified at regular intervals. Re-verification of a balance is carried out according to the respective national regulations. The validity for verification of balances in Germany is e.g. 2 years. The legal regulation of the country where the balance is used must be observed!
Verification of the balance is invalid without the seal.
The seal marks attached on verified balances point out that the balance may only be opened and serviced by trained and authorised specialist staff. If the seal mark is destroyed, verification looses its validity. Please observe all national laws and legal regulations. In Germany a re-verification will be necessary.
RFB-BA-e-1211
22
6.9.1 Position of seals and adjusting switch
After a verification the balance is sealed at the indicated positions.
1
Self-destroying seal mark
2
Cover of adjustment switch
3
Adjustment switch
4
Self-destroying seal mark
RFB-BA-e-1211
23
7 Operation
7.1 Switch on/off and set zero
Operation
Display
Switch on balance
Press
The balance will carry out a self­test
As soon as the weight display shows "0" in all the display windows your balance is ready to weigh.
Zeroing
If the balance does not display „0“,
press
The zero display and the triangle over the symbol will appear.
Switch off the balance
Press
RFB-BA-e-1211
24
7.2 Simple weighing
Operation
Display
Place goods onto weighing
plate
Read weighing result
If weighing values are stable the triangle will be displayed above the symbol
If the goods are heavier than the weighing range, the display will show "QL" (=Overload), and a whistle is sounded.
RFB-BA-e-1211
25
7.3 Weighing with taring
The dead weight of any weighing container may be tared away by pressing a button, so that the following weighings show the net weight of the goods to be weighed.
Operation
Display
Place empty tare container
on the weighing plate. The total weight of the container is displayed.
Reset display to "0":
Press
The weight of the container is now internally saved. The triangle will appear above the
symbol and the symbol.
Place the goods to be
weighed into the tare container.
The weight of the weighing goods is displayed.
The taring process can be repeated any number of times, e.g. when adding several components for a mixture (adding).
RFB-BA-e-1211
26
7.4 Weighing units switch-over
Operation
Display
Press for approx.
3 sec.
If „kg“ is selected, press the button, the display changes to the weighing unit „100g“
If „100g“ is selected, press the button, the display changes to the weighing unit kg
RFB-BA-e-1211
27
7.5 Background illumination
The balance has three background illumination settings:
Auto
Automatic background illumination on when weighing pate is loaded
On
Switch-on background illumination
Off
Background illumination switched-off
Operation
Display
Press for approx. 3
sec.
Use to switch between
the three settings
RFB-BA-e-1211
28
Use to take over the
selected setting, the balance changes into the weighing mode
An other possibility to adjust the background illumination are the buttons
(Off)
(On) and
(Auto).
7.6 Auto-Off function
For rechargeable battery operation the balance has an automatic switch-off function which can be activated or deactivated. The following settings are possible:
Of 0
Automatic switch off deactivated
Of 3
Automatic switch off after 3 min
Of 5
Automatic switch off after 5 min
Of 10
Automatic switch off after 10 min
Of 30
Automatic switch off after 30 min
RFB-BA-e-1211
29
Operation
Display
Start balance by pressing
While the balance carries out
a self test, press .
Use to switch between
the single settings
Use to take over the
selected setting, the balance changes into the weighing mode
RFB-BA-e-1211
30
7.7 Weighing with price determination
As soon as the goods to be weighed are placed on the balance and the basic price has been set the price is calculated automatically and displayed in the provided field.
7.7.1 Manual input of a basic price
Operation
Display
If you are using a weighing container, tare
If the balance does not display „0.00“, shift the decimal digit (see chap. 8.2 F3 PdESC mode)
Place goods to be weighed on balance.
Enter basic price via number keys; sales price is automatically calculated
The displayed basic price can be deleted by .
RFB-BA-e-1211
31
7.7.2 Saving and calling up a basic price
The balance is able to save up to 4 PLU values as basic price. The PLU value may be saved as €/kg or €/100 g.
The buttons from to are used to save /call up the four PLU values.
Storing a basic price via the PLU buttons:
Operation
Display
Enter your basic price
via keyboard, either in
€/kg or in €/100 g
Press ~ until a
signal sounds, then release
Now the basic price is stored under PLU 1
For the other 3 PLUs proceed in the same way
To modify values saved at a certain PLU position, repeat procedure.
RFB-BA-e-1211
32
Invoking a basic price via the PLU buttons:
Operation
Display
Place the material which
will be weighed
Press ~ button
LOAd PLU 1~4“ will appear shortly before the balance displays
the weight, the basic price and the sales price of the
weighed material
Deleting a PLU value
To delete a stored PLU value as basic price, enter 0.00 and after that press the respective PLU button ~ until a signal sounds, then release.
RFB-BA-e-1211
33
7.8 Determining the price per number of items
To calculate total price, enter basic price / number of items (pocket calculator function). Weighing of goods is not required.
Operation
Display
Enter basic price (1
item) via the numeric
buttons to
(Example)
Press
(Example)
Enter the number of
items via the numeric keyboard The total price is displayed.
(Example)
Using the balance returns into the weighing mode
To delete number of items press
RFB-BA-e-1211
34
8 The menu
In the menu the settings of the balance can be modified and functions can be activated. This way, the balance can be adjusted to individual weighing requirements. Menu items can be selected to change settings. Moreover there is an other menu item for adjustment.
8.1 Navigation in the menu Access to menu:
Operation
Display
Start balance by pressing
While the balance carries out
a self test, press , Pn“ appears
Enter password „0000“
Press adjustment switch on
the lower side of the balance (see chap. 6.9.1)
Press anew, the first
menu item „F0 CAL“ is displayed
How to select menu items:
With help of , the individual menu items can be selected one after the other.
Select menu item:
Use to select the menu item.
RFB-BA-e-1211
35
Exit menu and return to weighing mode
Use to return from the submenu item to the main menu item
Press again to exit the menu and to return into weighing mode.
8.2 Menu overview
Menu item
Submenu item
Description
F0 CAL
Adjustment process.
F1 rES
3 000
Resolution
6 000
dual
F2 CAP
3 kg
Capacity
6 kg
15 kg
30 kg
F3 PdESC
0
Decimal position weight value
0.0
0.00
0.000
F4 PdESC mode
PriCE dESC
FLoAT
Decimal position basic price (Kap. 7.7.1)
PriCE dESC
FIX
F5 init ZEro
init 2
Automatic zeroing range: 0 / 2 / 4 / 10 / 20
RFB-BA-e-1211
36
F6 rE ZEro
rE 2
Manual zeroing range: 0 / 2 / 4 / 10 / 20 / 50 / 100
F7 trACK Zero
AZn
Track zero range:
0.5 d / 1 d / 2 d / 4 d
F8 SCSiVE tArE
S tArE on
Taring: several times
S tArE off
Taring: once
F9 P Unit
Unit 2 off
not documented
F10 CoUnt
not documented
F11 SPEEd
SPEEd 7.5
not documented
SPEEd 15
SPEEd 30
SPEEd 60
F12 GrA
Grav
not documented
F13 Pin
P1
Enter the new password
P2
Enter new password anew
F14 rESEt
back to factory setting
9 Error messages
Error message
Possible cause
Remedy
Err 4
System out of zero range
during switching-on or by
pressing the button
Unload weighing system
and tare again using
.
Err 6
Internal A/D value outside
the normal range
To unload the weighing
system
Check connectors
If the error message appears repeatedly, please contact your retailer.
RFB-BA-e-1211
37
10 Service, maintenance, disposal
10.1 Clean
Before cleaning, please disconnect the appliance from the operating voltage. Keep IP protection (see chap. 6.7).
Please do not use aggressive cleaning agents (solvents or similar agents), but a
cloth dampened with mild soap suds. Ensure that no liquid penetrates into the device. Polish with a dry soft cloth.
10.2 Service, maintenance
The appliance may only be opened by trained service technicians who are
authorized by KERN.
Ensure that the balance is regularly calibrated, see chap. 3.4 Testing instruments
control.
10.3 Disposal
Disposal of packaging and appliance must be carried out by operator according
to valid national or regional law of the location where the appliance is used.
RFB-BA-e-1211
38
11 Instant help
In case of an error in the program process, briefly turn off the balance and disconnect from power supply. The weighing process must then be restarted from the beginning.
Fault
Possible cause
The displayed weight does not glow.
The balance is not switched on.
The mains supply connection has been
interrupted (mains cable not plugged in/faulty).
Power supply interrupted.
Batteries are inserted incorrectly or empty
No batteries inserted.
The displayed weight is permanently changing
Draught/air movement Table/floor vibrations
Weighing plate has contact with other
objects.
Electromagnetic fields / static charging
(choose different location/switch off interfering device if possible)
The weighing result is obviously incorrect
The display of the balance is not at zero
Adjustment is no longer correct.
Great fluctuations in temperature. Electromagnetic fields / static charging
(choose different location/switch off interfering device if possible)
Should other error messages occur, switch balance off and then on again. If the error message remains inform manufacturer.
Loading...
